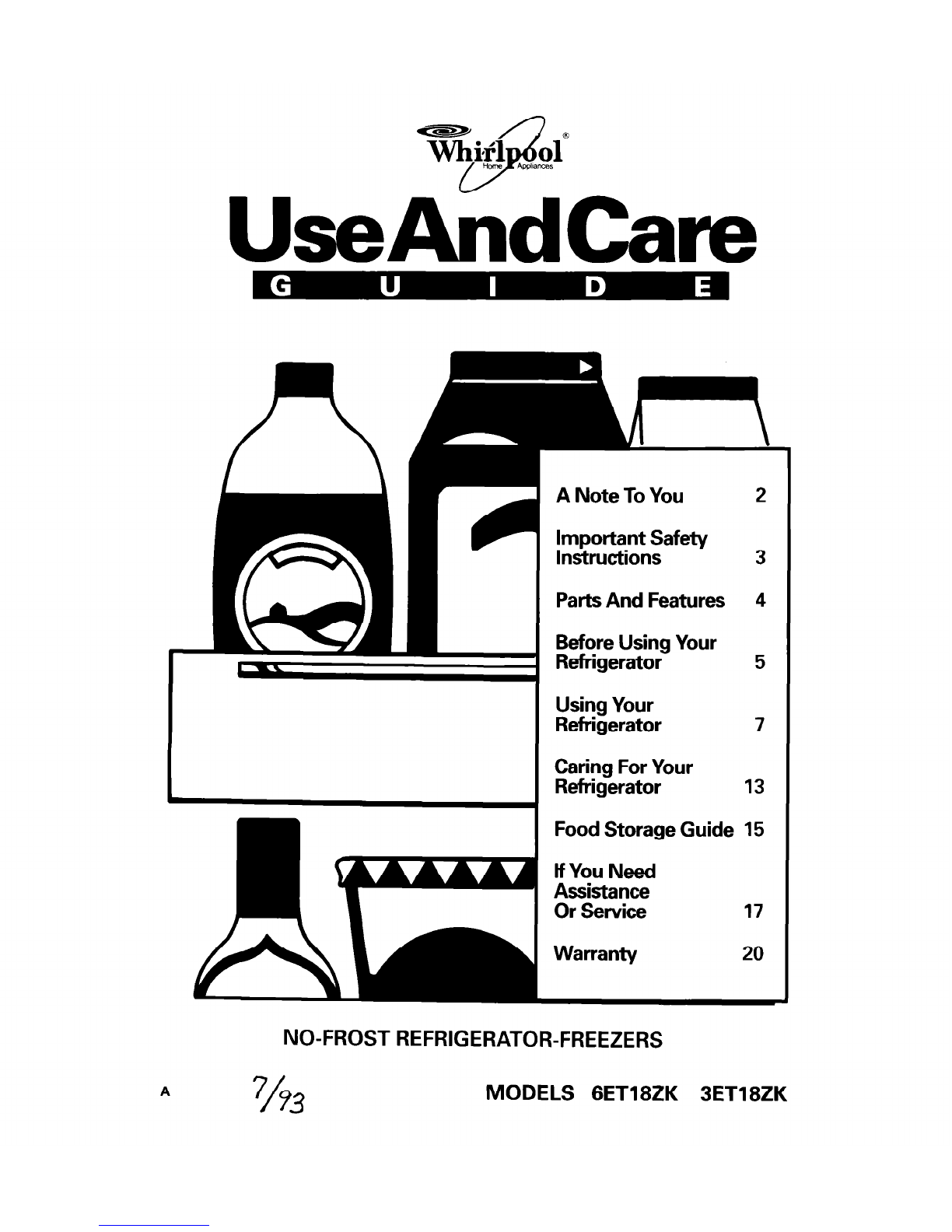

Whirlpool 6ET18ZK Bedienungsanleitung

A Note To You 2

Important Safety

Instructions

Parts And Features

Using Your

Refrigerator 7

Caring For Your

Refrigerator

Food Storage Guide 15

tf You Need

Assistance

Or Service

Warranty

NO-FROST REFRIGERATOR-FREEZERS

7h3

MODELS 6ET18ZK 3ET18ZK

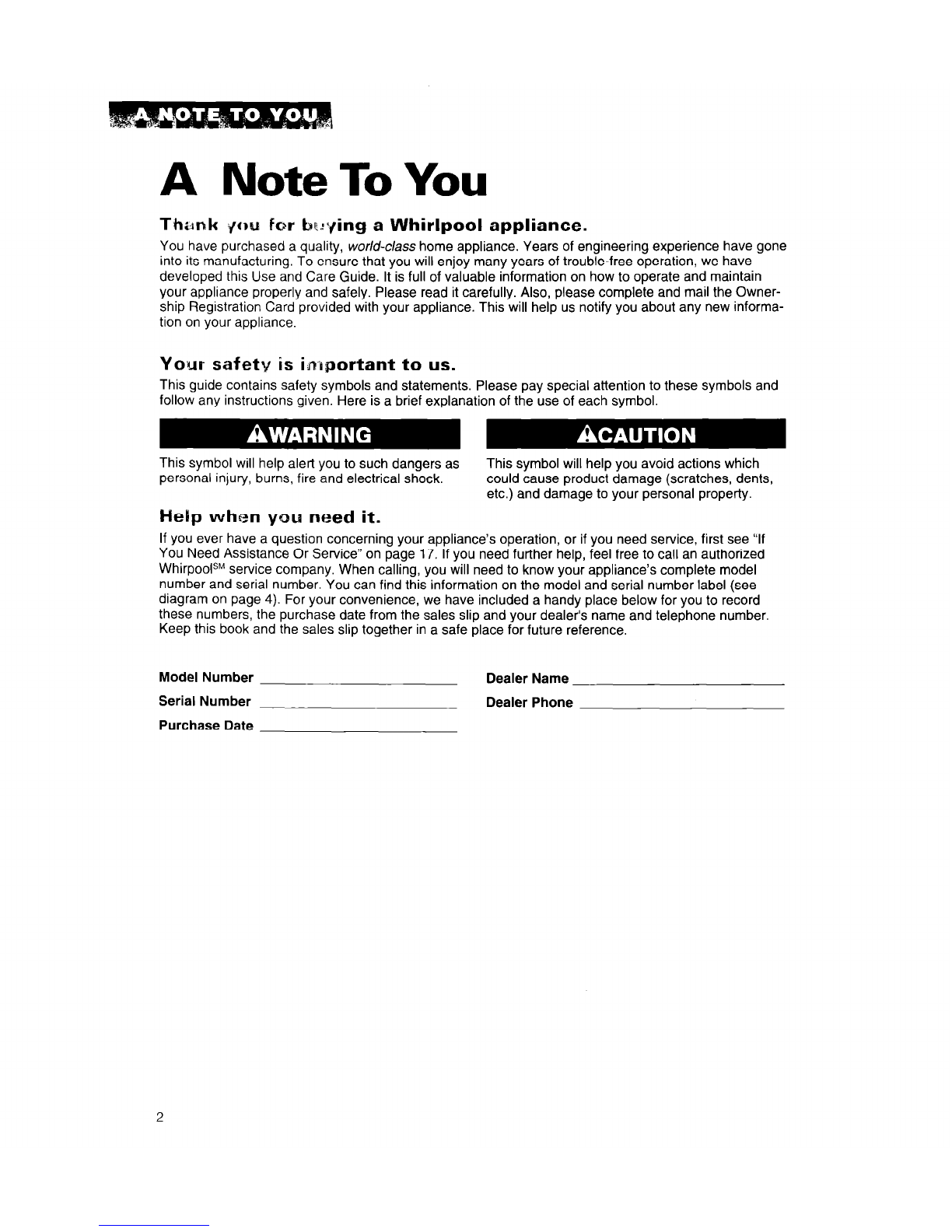

A Note To You

Thank vou fsr br:ying a Whirlpool appliance.

You have purchased a quality, world-class home appliance. Years of engineering experience have gone

into its manufacturing. To ensure that you will enjoy many years of trouble-free operation, we have

developed this Use and Care Guide. It is full of valuable information on how to operate and maintain

your appliance properly and safely. Please read it carefully. Also, please complete and mail the Owner-

ship Registration Card provided with your appliance. This will help us notify you about any new informa-

tion on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these symbols and

follow any instructions given. Here is a brief explanation of the use of each symbol.

This symbol will help alert you to such dangers as This symbol will help you avoid actions which

personal injury, burns, fire and electrical shock. could cause product damage (scratches, dents,

etc.) and damage to your personal property.

Hellp when ysu need it.

If you ever have a question concerning your appliance’s operation, or if you need service, first see “If

You Need Assistance Or Service” on page 17. If you need further help, feel free to call an authorized

WhirpoolSM service company. When calling, you will need to know your appliance’s complete model

number and serial number. You can find this information on the model and serial number label (see

diagram on page 4). For your convenience, we have included a handy place below for you to record

these numbers, the purchase date from the sales slip and your dealer’s name and telephone number

Keep this book and the sales slip together in a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

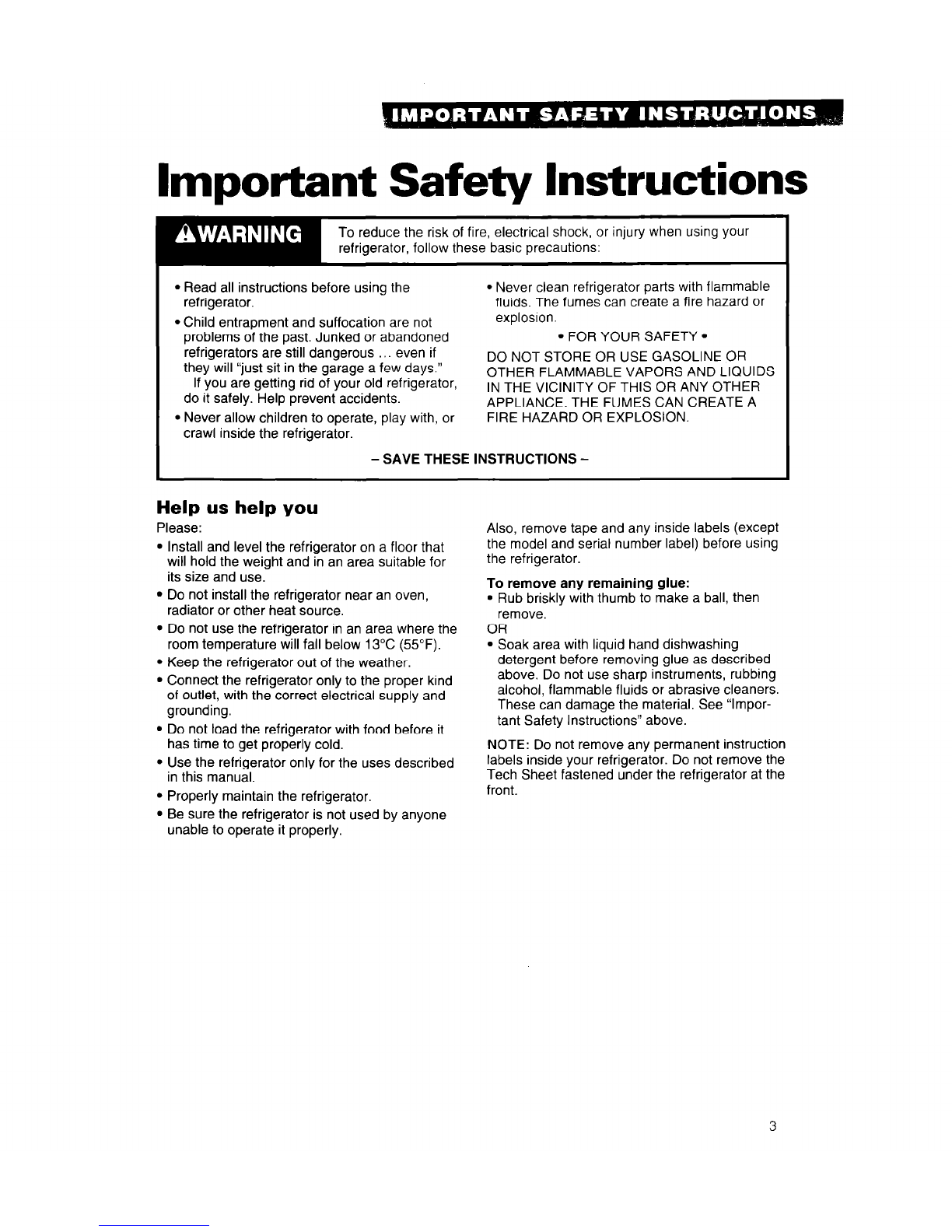

Important Safety Instructions

To reduce the risk of fire, electrical shock, or injury when using your

refrigerator, follow these basic precautions:

Read all instructions before using the

refrigerator.

Child entrapment and suffocation are not

problems of the past. Junked or abandoned

refrigerators are still dangerous even if

they will “just sit in the garage a few days.”

If you are getting rid of your old refrigerator,

do it safely. Help prevent accidents.

Never allow children to operate, play with, or

crawl inside the refrigerator.

Never clean refrigerator parts with flammable

fluids. The fumes can create a fire hazard or

explosion.

FOR YOUR SAFETY.

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND LIQUIDS

IN THE VICINITY OF THIS OR ANY OTHER

APPLIANCE. THE FUMES CAN CREATE A

FIRE HAZARD OR EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install and level the refrigerator on a floor that

will hold the weight and in an area suitable for

its size and use.

Do not install the refrigerator near an oven,

radiator or other heat source.

. Do not use the refrigerator in an area where the

room temperature will fall below 13°C (55°F).

Keep the refrigerator out of the weather.

Connect the refrigerator only to the proper kind

of outlet, with the correct electrical supply and

grounding.

Do not load the refrigerator with food before it

has time to get properly cold.

Use the refrigerator only for the uses described

in this manual.

Properly maintain the refrigerator.

Be sure the refrigerator is not used by anyone

unable to operate it properly.

Also, remove tape and any inside labels (except

the model and serial number label) before using

the refrigerator.

To remove any remaining glue:

. Rub briskly with thumb to make a ball, then

remove.

Soak area with liquid hand dishwashing

detergent before removing glue as described

above. Do not use sharp instruments, rubbing

alcohol, flammable fluids or abrasive cleaners.

These can damage the material. See “lmpor-

tant Safety Instructions” above.

NOTE: Do not remove any permanent instruction

labels inside your refrigerator. Do not remove the

Tech Sheet fastened under the refrigerator at the

front.

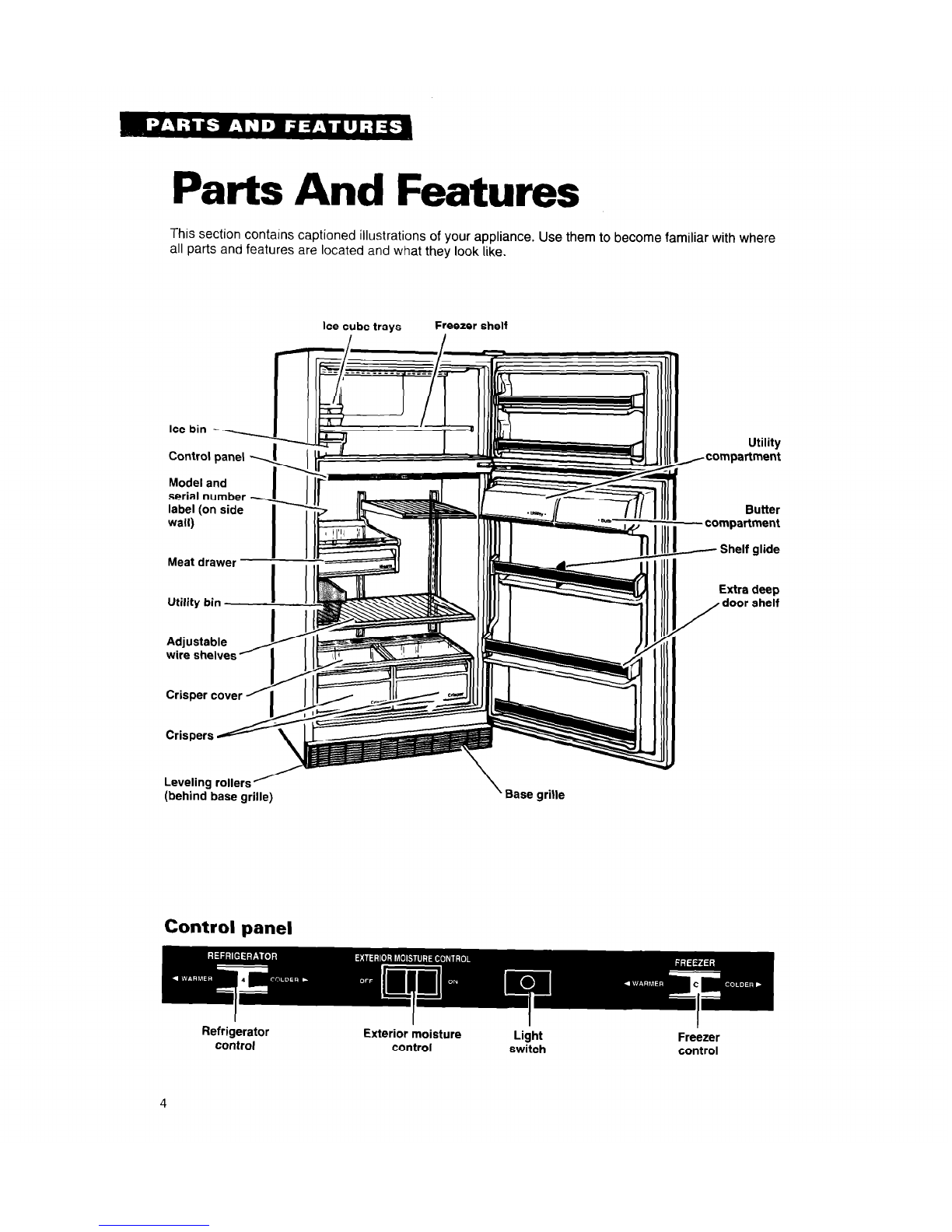

Parts And Features

This section contains captioned illustrations of your appliance. Use them to become familiar with where

all parts and features are located and what they look like.

Ice cube travs Freezer shelf

Ice bin -

serial number

Leveling rollers’

(behind base grille) \ Base grille

Utility

-compartment

Butter

.compartment

= Shelf glide

Extra deep

, door shelf

Refrigerator

control Exterior moisture

control Liiht

switch Freker

control

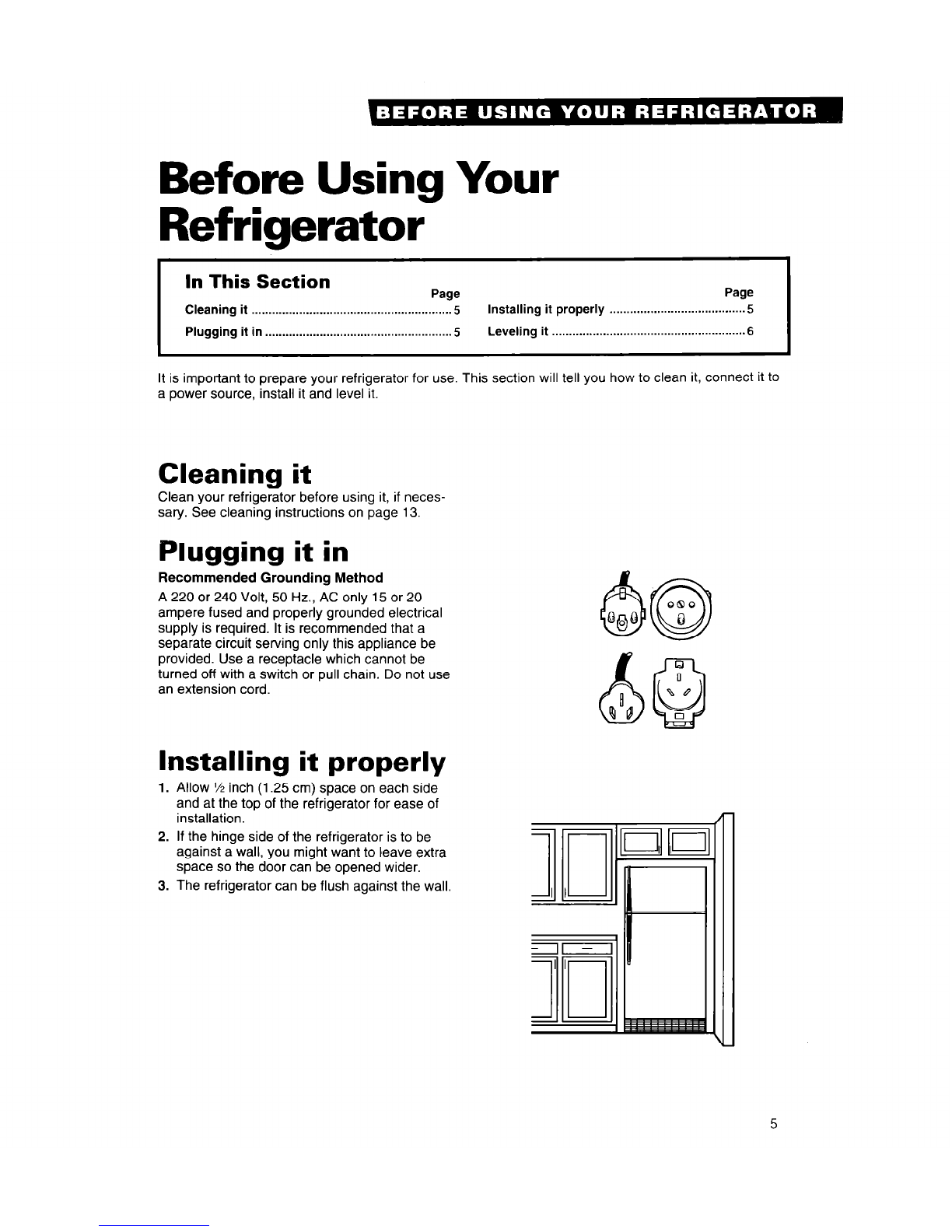

Before Using Your

Refrigerator

E1.I .. .!I~

Cleanmg It .........._................................................ 5

Leveliig

lnstalhng It

it ...................................................~~~~

properly ........................................5

It is important to prepare your refrigerator for use. This section will tell you how to clean it, connect it to

a power source, install it and level it.

Cleaning it

Clean your refrigerator before using it, if neces-

sary. See cleaning instructions on page 13.

Plugging it in

Recommended Grounding Method

A 220 or 240 Volt, 50 Hz., AC only 15 or 20

ampere fused and properly grounded electrical

supply is required. It is recommended that a

separate circuit serving only this appliance be

provided. Use a receptacle which cannot be

turned off with a switch or pull chain. Do not use

an extension cord.

Installing it properly

1. Allow % inch (1.25 cm) space on each side

and at the top of the refrigerator for ease of

installation.

2. If the hinge side of the refrigerator is to be

against a wall, you might want to leave extra

space so the door can be opened wider.

3. The refrigerator can be flush against the wall.

Your refrigerator has 2 front leveling screws-one

on the right and one on the left. To adjust one or

both of these, follow the directions below.

Right to raise;

left to lower

Use a screwdriver

‘. Remove base grille. (See page 11,)

;!. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclockwise.

,A. Check with level.

?. Replace base grille. (See page 11.)

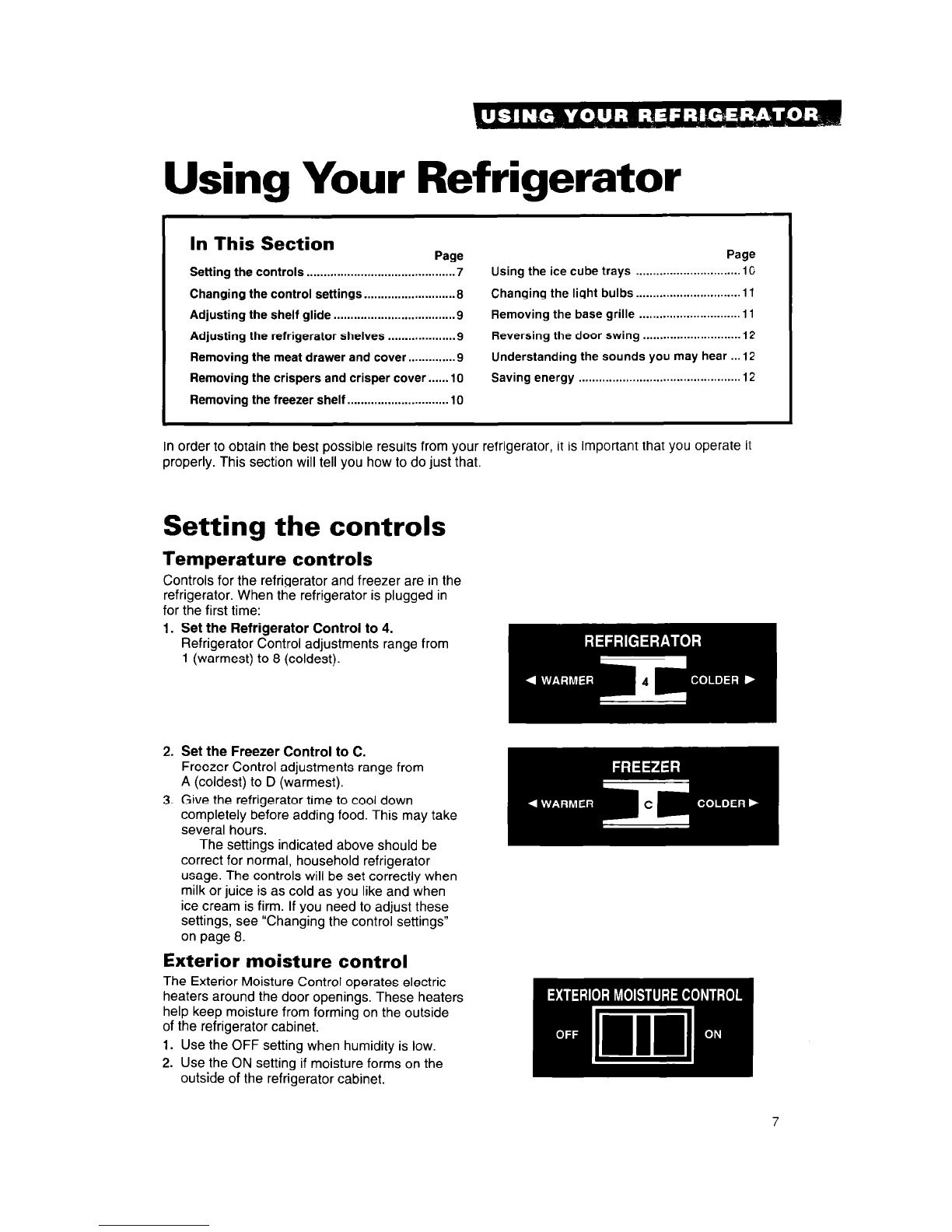

Using Your Refrigerator

In This Section

Page Page

Setting the controls ............................................ 7

Changing the control settings.. ........................ .9

Adjusting the shelf glide ................................... .9

Adjusting the refrigerator shelves ................... .9

Removing the meat drawer and cover.. ........... .9

Removing the crispers and crisper cover.. ....10

Removing the freezer shelf.. ........................... .10

Using the ice cube trays ............................... ic

Changing the light bulbs.. ............................ .I1

Removing the base grille .............................. 11

Reversing the door swing ............................ .12

Understanding the sounds you may hear ...12

Saving energy ................................................ 12

In order to obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section will tell you how to do just that.

Setting the controls

Temperature controls

Controls for the refrigerator and freezer are in the

refrigerator. When the refrigerator is plugged in

for the first time:

1. Set the Refrigerator Control to 4.

Refrigerator Control adjustments range from

1 (warmest) to 8 (coldest).

2. Set the Freezer Control to C.

Freezer Control adjustments range from

A (coldest) to D (warmest).

3. Give the refrigerator time to cool down

completely before adding food. This may take

several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls will be set correctly when

milk or juice is as cold as you like and when

ice cream is firm. If you need to adjust these

settings, see “Changing the control settings”

on page 8.

Exterior moisture control

The Exterior Moisture Control operates electric

heaters around the door openings. These heaters

help keep moisture from forming on the outside

of the refrigerator cabinet.

1. Use the OFF setting when humidity is low.

2. Use the ON setting if moisture forms on the

outside of the refrigerator cabinet.

the contrd settings

If you need to adjust temperatures in refngerator . Adjust the Refrigerator Control first.

or freezer, use the settings listed in the chart

Wait at least 24 hours between adjustments

below as a guide. . Then adjust the Freezer Control if needed.

RECOMMENDED

CONDITION: REASON: CONTROL SEl-NNGS:

If Refrigerator

Section is

TOO WARM

Door opened often

Large amount of food added

Room temperature too warm

Refrigerator 6

Freezer D

If Freezer

Section is

TOO WARM

Door opened often

Large amount of food added

Very cold room temperature

(can’t cycle often enough)

Refrigerator 4

Freezer A

If Refrigerator

Section is

TOO COLD

Controls not set correctly Refrigerator 2

for your conditions Freezer A

If ICE isn’t

MADE FAST

ENOUGH

If BOTH

SECTIONS

are TOO WARM

Heavy ice usage

Very cold room temperature

(can’t cycle often enough)

Door opened often

Large amount of food added

Very warm or very cold room

temperatures

Refrigerator 4

Freezer A

Refrigerator

Freezer

Adjusting the shelf glide

The shelf glide can be used to secure odd-

shaped items or to separate other items.

To adjust the shelf glide:

1. Grasp glide.

2. Slide glide along track.

Adjusting the refrigerator shelves

Shelves can be adjusted to match the way you

use your refrigerator.

To remove shelves:

1. Remove items from shelf.

2. Tilt shelf up at front.

3. Lift back of shelf.

4. Pull shelf straight out.

To replace shelves:

1. Guide the rear shelf hooks into the slots in the

shelf supports on cabinet wall.

2. Tilt shelf up at front until hooks drop into slots.

Lower front of shelf to level position.

Removing the meat drawer and cover

To remove the meat drawer:

1. Slide meat drawer out to the stop.

2. Lift front of meat drawer.

3. Slide meat drawer out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Tilt front of cover up.

2. Lift back of cover.

3. Pull cover straight out.

4. Replace cover in reverse order

Pull out to the stop, lift

the front and pull again.

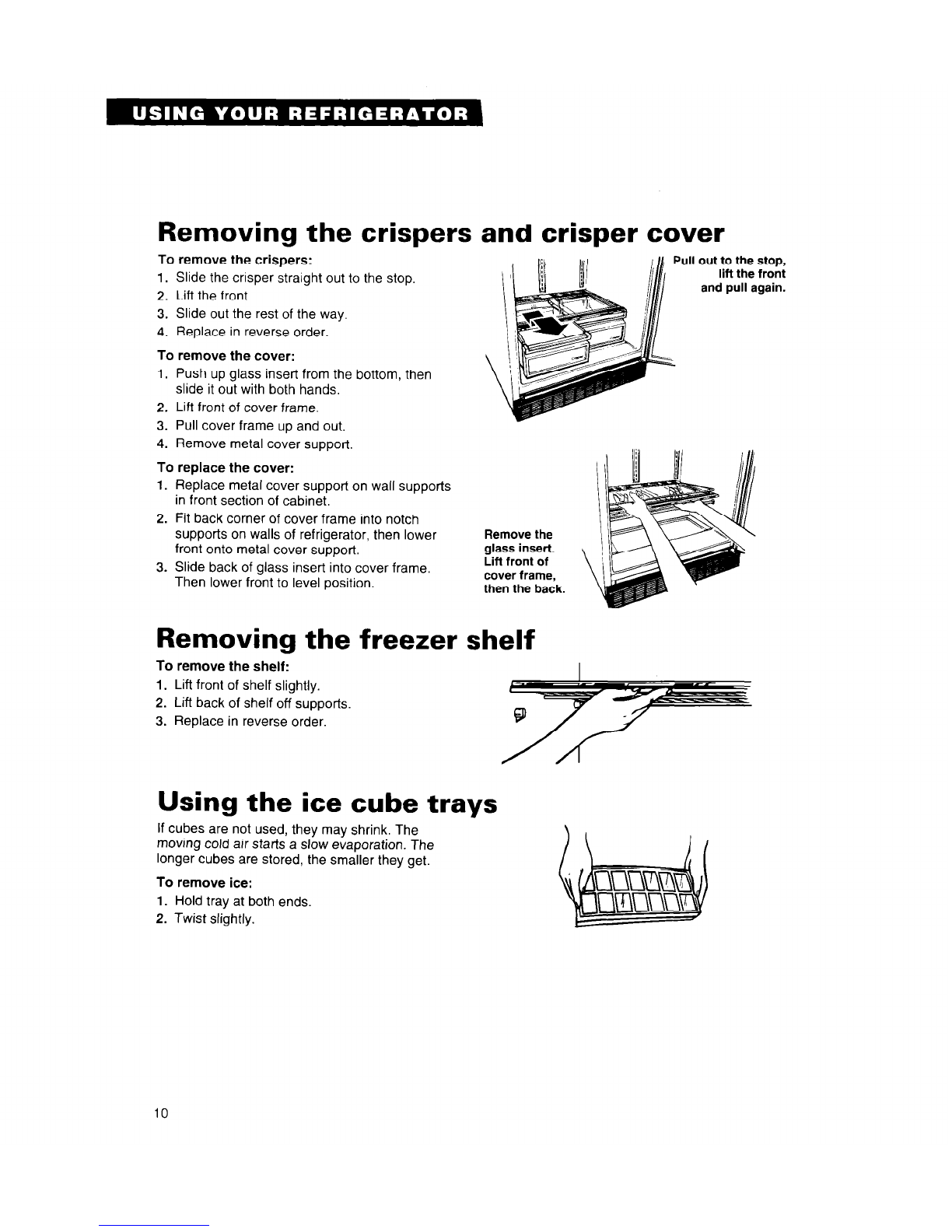

Removing the crispers and crisper cover

To remove the crispers:

1. Slide the crisper straight out to the stop.

2. Lift the front.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Push up glass insert from the bottom, then

slide it out with both hands.

2. Lift front of cover frame.

3. Pull cover frame up and out.

4. Remove metal cover support.

To replace the cover:

1. Replace metal cover support on wall supports

in front section of cabinet.

2. Fit back corner of cover frame into notch

supports on walls of refrigerator, then lower

front onto metal cover support.

3. Slide back of glass insert into cover frame.

Then lower front to level position.

Remove the

glass insert.

Lift front of

cover frame,

then the back.

Removing the freezer shelf

To remove the shelf:

1. Lift front of shelf slightly.

2. Lift back of shelf off supports.

3. Replace in reverse order.

Using the ice cube trays

If cubes are not used, they may shrink. The

moving cold air starts a slow evaporation. The

longer cubes are stored, the smaller they get.

To remove ice:

1. Hold tray at both ends.

2. Twist slightly.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Gefrierschrank Handbücher

Whirlpool

Whirlpool ADN 248FS Bedienungsanleitung

Whirlpool

Whirlpool WV 1500 WH Bedienungsanleitung

Whirlpool

Whirlpool EH270F Bedienungsanleitung

Whirlpool

Whirlpool EH230F Bedienungsanleitung

Whirlpool

Whirlpool W84BE72X Bedienungsanleitung

Whirlpool

Whirlpool WSZ57L18DMSS Bedienungsanleitung

Whirlpool

Whirlpool SideKicks EL88TRRWQ Montageanleitung

Whirlpool

Whirlpool EV170NX Bedienungsanleitung

Whirlpool

Whirlpool AFG 6512 Bedienungsanleitung

Whirlpool

Whirlpool AFB 910/IS Bedienungsanleitung

Whirlpool

Whirlpool WSF5574 A+N Bedienungsanleitung

Whirlpool

Whirlpool WVA31612 NFW Bedienungsanleitung

Whirlpool

Whirlpool WHA22KB Series Bedienungsanleitung

Whirlpool

Whirlpool W7 811O OX H 1 Bedienungsanleitung

Whirlpool

Whirlpool EH151FXTQ Bedienungsanleitung

Whirlpool

Whirlpool EV161FZRQ00 Bedienungsanleitung

Whirlpool

Whirlpool EH105FXRQ01 Bedienungsanleitung

Whirlpool

Whirlpool UPRIGHT FREEZER Bedienungsanleitung

Whirlpool

Whirlpool EHH-060F Bedienungsanleitung

Whirlpool

Whirlpool UPRIGHT FREEZER Bedienungsanleitung

Whirlpool

Whirlpool EV120NXRQ00 Bedienungsanleitung

Whirlpool

Whirlpool EH185FXTQ Montageanleitung

Whirlpool

Whirlpool EV201NZRQ00 Bedienungsanleitung

Whirlpool

Whirlpool EVISHKXK Bedienungsanleitung

Beliebte Gefrierschrank Handbücher anderer Marken

Siemens

Siemens GU..D SERIES Bedienungsanleitung

Omcan

Omcan FR-CN-0155 Bedienungsanleitung

Beko

Beko FNE290E24W Bedienungsanleitung

Electrolux

Electrolux ARCTIS G 8 60 50-6I Bedienungsanleitung

Electrolux

Electrolux EUF2042AOX Bedienungsanleitung

Dometic

Dometic CoolFreeze CFX95DZ Bedienungsanleitung

Electrolux

Electrolux EUF7000W1 Bedienungsanleitung

Polar Electro

Polar Electro CT330 Bedienungsanleitung

MPM

MPM MPM-145-SK Series Bedienungsanleitung

SAF

SAF PRESTOTIG 200AC/DC Kurzanleitung

Zanussi

Zanussi ZFT11407WA Bedienungsanleitung

AEG

AEG A63190GT Bedienungsanleitung

AEG

AEG A81000TNW0 Bedienungsanleitung

Matsui

Matsui MUC50S15E Bedienungsanleitung

NEFF

NEFF G4344X8 Bedienungsanleitung

Frigidaire

Frigidaire FV 1246 H Bedienungsanleitung

Frigidaire

Frigidaire FFC13K1AW Bedienungsanleitung

Electrolux

Electrolux EU 2400C Bedienungsanleitung
