Please read this

Use and Care Guide

before you do anything else...

This booklet tells you how to start your freezer,

defrost it, clean it and adjust controls.

Treat your new freezerwith care. Use it only to

do what home freezers are designed to do.

Parts and features

Key Eject

lock

Basket

Defrost Water Drai

and Drain Cover Signal

light

Model and Serial

Copy your Model and Serial Numbers here...

When you need sewice, or call with u question.

have this information ready:

Model Number

1. Complete Model and Serial Numbers from the

plate located as shown).

Serial Number

2. Purchase date from soles slip.

Copy this information in these spaces. Keep this

book, your warranty and sales slip together in a

Purchase Date

handy place.

Please complete and mail the Owner Regis-

tration Card furnished with this product.

Service Company and Telephone Number

Contents

SAFETY FIRST

BEFOREYOUPLUGITIN.,

Install Properly

Level Chest Freezer

Install Defrost Drain Cover,

Remove Sales Labels

Clean It,

Plugltln

USING YOUR FREEZER

Setting the Temperature Control

Adjusting the Temperature Control

Cooling Freezer First

The Sliding Basket.

The Key Eject Lock

The Signal Light

Page

3 Page

Energy Saving Tips 6

CLEANING YOUR FREEZER 6

Cleaning Chart. 7

FREEZING FOOD IN YOUR FREEZER, 8

Packaging and Sealing Food 8

ToWrap Foods 8

Loading 9

Storing Frozen Food 9

VACATION AND MOVING CARE 10

Vacations. 10

Shutting Off and Moving 10

IF YOU NEED SERVICE OR ASSISTANCE 11

FREEZERWARRANTY 12

REIMBURSEMENT FOR FOOD LOSSES 12

01986 Whirlpool Corporation

Before you plug it in

IMPORTANT

Before using your freezer, you are personally re-

sponsible for making sure that it,

is installed and levelled on a floor that will hold the

weight, and in an area suitable for its size and use.

isconnected only to the right kind of outlet, with the

right electrical supply and grounding. (Refer to

your “Electrical Requirements and Grounding

Instructions,“)

is used only for jobs expected of home freezers.

is not near an oven, radiator or other heat source.

is properly maintained.

is out of the weather.

is used in an area where the room temperature

will not exceed 110°F (43.3”C).

is not run where there are explosive fumes.

is not used by those who may not understand

how it should be used.

is not loaded with food before it has time to get

properly cold.

Install properly... Remove sales labels...

Remove the Consumer Buy Guide label and any

inside labels before using the freezer.

To remove any remaining glue:

1 Rub briskly with thumb to make a ball, then

remove.

1 Check the strength of the floor It should hold the

weight of a fully loaded

freezer

2 Pick a safe place, indoors, away from in-

flammables such as gasoline.

3. Allow at least 3 inches (7.5 cm] air space on all

sides of freezer and 2 inches (5 cm] at back Leave

room at top for lid to open all the way.

4. It should not be necessary to remove the lid during

installation. If, for any reason, the hinges need ad-

justment, see your authorized WHIRLPOOL dealer

5. Do not cover the freezer wlth Items such as

blankets, sheets, tablecloths, etc.

Level chest freezer.. .

from end to end and front to back so that the IId will

seal properly.

Check with level

Install defrost drain cover...

1 Remove cover from literature package.

2 Check drawing on front cover for placement

3. Install cover.

2 Soak area with dlshwashlng detergent solutlon (1

teaspoon detergent in 1 quart warm water) be-

fore removing glue as described In step 1

DO NOT USE rubbing alcohol or flammable or

toxic solvents, such as acetone, gasoline, car-

bon tetrachloride, etc. These can damage the

material.

NOTE: DO NOT REMOVE the Care 6 Service label

on lnslde Ild or Tech Sheet on back of cabinet.

Clean it ...

Clean vour freezer before

using It See cleaning

Instructions on page

Plug it in...

3-prong grounding

type wall receptacle

Retaining Clip

Freezer /

Power Plug ” ‘T” grounding plug

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere fused

and properly grounded electrical supply is required.

It isrecommended that a separate circuit serving only

this appliance be provided. Use a receptacle

which cannot be turned off with a switch or pull

chain. Do not use an extension cord.

Attach retaining clip over power cord plug from

literature package inside the freezer

Using your freezer

.*~~ypsesa*...&.*~*+e,I!<?&‘2Jsi.i.‘::“.-:s;,i?..‘r@C. ,:.

Setting the temperature control...

I. Insert a corn rnthe slot of the Temperature Control to 1 Turn control to higher number for colder temper-

turn it. atures.

2. Turn control to Number 3 This setting is desrgned to 2 Turn to lower number for less cold temperatures.

matntarn the temperature at or near 0°F ( --17.8%)

under normal operating conditions

Cooling freezer first...

1 Allow freezer to cool 6 to 8 hours before filling with

frozen food.

2 Let it cool overnight before adding large amount

of unfrozen tood.

NOTE: When freezer is first started the compressor will

run constantly until the cabinet is cooled. It may take

up to 6 to 8 hours or longer, depending on room tem-

perature and the number of times the freezer lid is

opened

After the cabinet is cooled the compressor will

turn

on and off as needed to keep freezer at proper

temperature.

loadrng or unloading food below it

To remove:

Lift baskei out

To replace:

Lower basket Into place

The key eject lock...

cun help reduce the hazard of child

The sliding basket...

Can be moved from side to stde or removed when

To lock or unlock the freezer you must hold the

key In the lock while turnrng The lock is sprrrlg

loaded so the key cannot be left in the lock.

If the key IS lost, contact your WHIRLPOOL

dealer for a replacement Always give the com-

plete model and serial number of your freezer

when requesting a replacement key.

entrapment s.--.--

-x

-.,

The signal light...

automatically warns of any unexpected power

Ifthe signal light isnot glowing, immediately check:

for power interruption,

failure.

for an unplugged power cord,

2. Carefully snap out light cover and assembly with a

To replace:

screwdriver by inserting it under the end of metal

edge of the light. Be careful not to chip finish on

1. Unplug power cord from outlet.

freezer.

Signal

light

3. Unplug burned out signal light and replace with a

new one. Signal light can be ordered from your

WHIRLPOOL dealer

4. Then, snap light assembly into place.

5. Plug power cord into outlet.

Energy Saving Tips...

Check lid gasket and level cabinet to ensure a

gocd lid seal. Keeping freezer locked ensures lid

closure.

Keep lid openings to a minimum. Remove several

items at one time. Keep contents organized to elimi-

nate searching.

FIIIto capacity follow recommended procedures

for freezing foods.

Set Temperature Control to provide temperatures

around 0°F [ ~ 17.8”C) There isno need to store foods

below 0°F

Do not let trost build up to more than Y4 Inch

(6 mm) thick.

Cleaning your freezer

This freezer should be cleaned when frost has built up to about ‘/4 inch (6 mm] thrckness.

Complete defrosting and cleaning should be done at least once a year.

In high humidity areas, a freezer may need more frequent defrostrng

To detrost and clean:

1. Turn Temperature Control to OFF.

2. Unplug Freezer

3. Take out all frozen food and sliding basket.

Note: Wrap frozen foods and packages in several

layers of newspaper and cover with a blanket. Food

will stay frozen several hours.

4. Remove drain cover by pulling out.

5. Insert hose adapter provided into drain outlet.

6. Remove rubber stopper from inside bottom of

freezer

7. Place a pan under the drain, or attach a hose to the

threaded end of the adapter and direct water into

a separate drain.

8. Clean freezer according to the following

directions.

Dmln

Atter detrosttng:

1. Remove hose adapter.

2. Replace drain cover and rubber stopper

3. Plug in freezer

4. See directions for “Setting the Temperature Con-

trol:’ page 5.

Cleaning chart...

Part What to use How to clean

Removable part

(basket) Sponge, cloth or

paper towel; mild

detergent, warm water

Wash with warm water and a mild detergent.

Rinse and dry

Outside Sponge, cloth or

Wash with warm water and a mild detergent.

paper towel; mild

Rinse and dry

detergent, warm water.

Do not use abrasive or harsh cleansers.

Waxing is recommended in high humidity areas. Use a good auto

paste wax or an appliance wax on painted metal surfaces. Do not

use on plastic because it may damage these parts.

Inside walls

Lid gasket

Plastic scraper, pans of

Use plastic scraper to remove frost.

hot water, electric fan,

Place pans of hot water in freezer with lid open

sponge or towel, baking to speed melting. Directing air from an electric

soda and warm water. fan into freezer will also help.

Remove defrost water with towel or sponge.

Wash with solution of 2 tablespoons (26 g)

baking soda to 1quart (.95 L) warm water.

Rinse and dry.

DO NOT USE an ice pick, knife of other sharp-pointed tool or any

type of electric defroster to defrost freezer. They can cause damage

to the liner and interior parts.

Sponge, soft cloth or

Wash with mild detergent and warm water

paper towel; mild deter- * Rinse and dry

gent and warm water

DO NOT USE cleaning waxes, concentrated detergents, bleaches

or cleansers containing petroleum on plastic parts.

Freezing food in your freezer

When freezer has cooled to a safe storage

temperature, it may be loaded with frozen food.

When you plan to freeze unfrozen food, see

the following chart for the amount to freeze at

one time.

POUNDS OF FOOD

TO FREEZEAT ONE TIME*

‘These amounts are based on USDA recommen-

datlons If too many packages of unfrozen food

are packed at one time Into the freezer, the rate

of freezing

too slow Poor quality products result

Packaging and sealing food...

Arrtight packaging IS Important in freezing

foods. Containers and wrappings should be

moisture and vapor-proof and packages should

be sealed carefully to keep moisture in and air

out

Freezer burn can result if food i:. Tot qroperly

wrapped. When this happens, food dehydrates

and is of poor quality

To wrap foods...

1. Cut sheet of wrapping materral about one-

third longer than distance around food to be

wrapped. Place wrappjng sheet on flat sur-

face with food in center of sheet

2. Bring front and back of wrapping together

and fold in toward food, making at least two

one-Inch (2 5 cm) folds until food fits tightly

against wrapping

3. Crease ends close to food to elimtnate air

4. Press all air from package. Fold each end over

twrce. Make sure fold is tight and fasten

against end of package with freezer tape.

NOTE: When packaging meats that have not

been boned, pad sharp edges with extra wrap

or use stockinette to protect against tearing or

puncturing

Use heavy-duty aluminum freezer foil, kraff pa-

per with cellophane bonded to It,special freezer

bags, jars, cartons and freezer sealing tape for

packaging your food items. You’ll find them at the

supermarket or freezer dealer.

See booklet, “How to Preserve Foods the

Modern Way with Your WHIRLPOOL Freezer,”

for complete Information and tlps on home

freezlng.

Loading... Storing frozen food...

After food isfrozen, stack packages anywhere

in the freezer Packages should not extend above

the cabinet edge or they may keep the lid from

closing and sealing properly.

1. Before freezing large quantities of food, turn Tem-

perature Control to highest setting and let freezer

operate for several hours. After loading all food

items, return Temperature Control to the usual

setting.

Foods to be frozen near side wall

Packages already frozen

2. To speed freezing, place unfrozen packages

near a side wall. Leave space between

packages.

3. Add more unfrozen food after first load is

frozen (approximately 18 to 24 hours). Stack

frozen packages in center of freezer

Basket - Store small packages here to avoid

losing them In bottom of freezer.

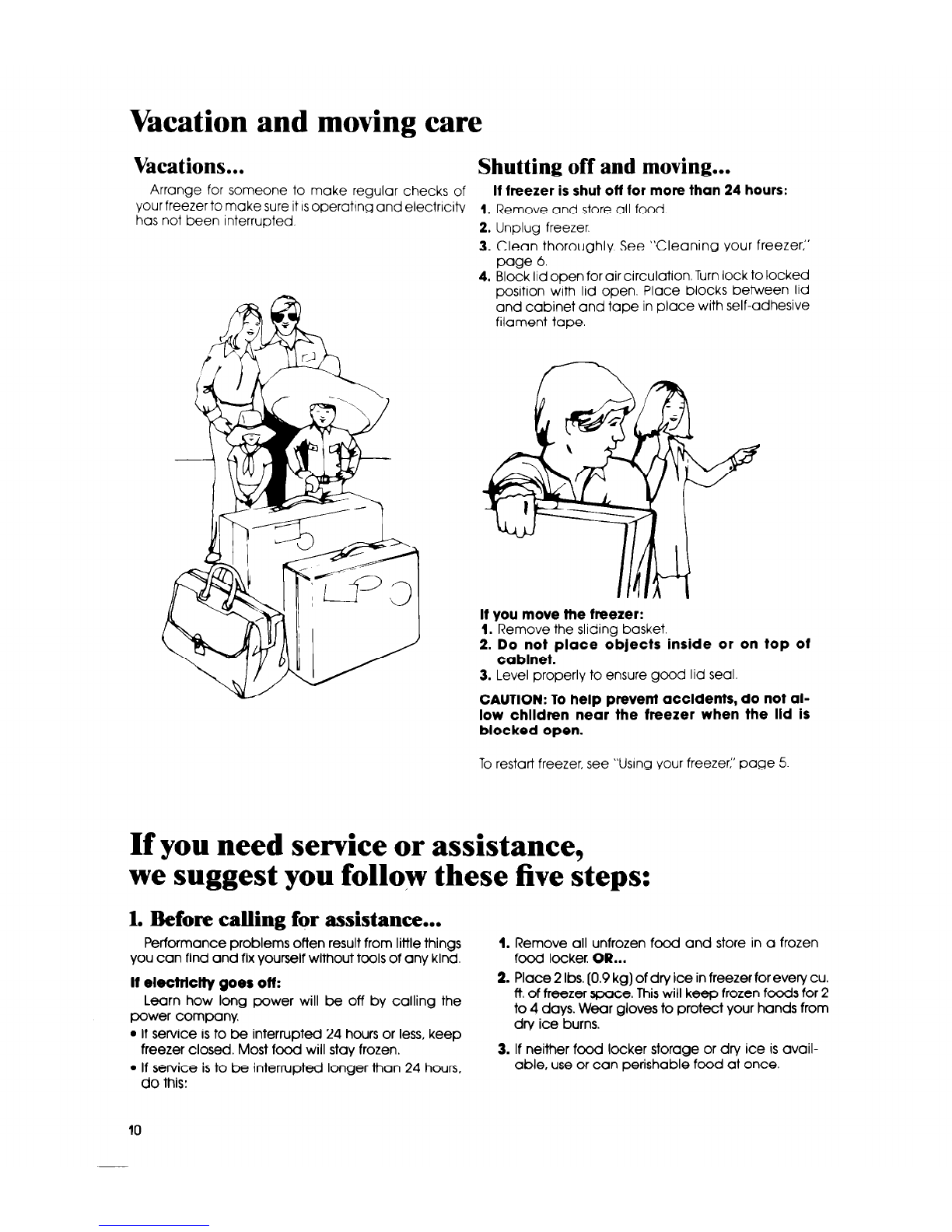

Vacation and moving care

Vacations... Shutting off and moving...

Arrange for someone to make regular checks of

your freezer to make sure it

operating and electrrcity

has not been interruoted.

If freezer is shut off for more than 24 hours:

1. Remove and store all food

2. Unplug freezer.

3. Clean thoroughly. See “Cleaning your freezer,”

page 6.

4. Block lid open for air circulation. Turn lock to locked

position with lid open. Place blocks between lid

and cabinet and tape in place with self-adhesive

filament tape.

If you move the freezer:

1. Remove the sliding basket.

2. Do not place objects inside or on top of

cabinet.

3. Level properly to ensure good lid seal.

CAUTION: To help prevent accidents, do not al-

low children near the freezer when the Ild is

blocked open.

To restart freezer, see “Usrng your freezer:’ page 5.

If you need service or assistance,

we suggest you follow these five steps:

1.Before calling for assistance...

Performance problems often result from little things

you can find and fix yourself without tools of any kind. 1. Remove all unfrozen food and store in a frozen

food locker OR...

If electrtclty goes off:

Learn how long power will be off by calling the

power company.

If service is to be interrupted 24 hours or less, keep

freezer closed. Most food will stay frozen.

. If service is to be interrupted longer than 24 hours,

do this:

2. Place 2 Ibs. (0.9 kg) of dry ice in freezer for every cu.

ft. of freezer space. This will keep frozen foods for 2

to 4 days. Wear gloves to protect your hands from

dry ice burns.

3. If neither food locker storage or dry ice is avail-

able, use or can perishable food at once.

Inhaltsverzeichnis

Andere Whirlpool Gefrierschrank Handbücher

Whirlpool

Whirlpool UPRIGHT FREEZER Bedienungsanleitung

Whirlpool

Whirlpool WNF8 Series Bedienungsanleitung

Whirlpool

Whirlpool AFG 070 E-AP Bedienungsanleitung

Whirlpool

Whirlpool EV190E Bedienungsanleitung

Whirlpool

Whirlpool EV181FZTQ Montageanleitung

Whirlpool

Whirlpool W7 931T OX H 3 Bedienungsanleitung

Whirlpool

Whirlpool EH105FXRQ01 Bedienungsanleitung

Whirlpool

Whirlpool COMPACT FREEZER Bedienungsanleitung

Whirlpool

Whirlpool EH12OC EH15OC Bedienungsanleitung

Whirlpool

Whirlpool WZC5422DW Bedienungsanleitung

Whirlpool

Whirlpool EV160EXK Bedienungsanleitung

Whirlpool

Whirlpool WHA30 Bedienungsanleitung

Whirlpool

Whirlpool W7 811O OX H 1 Bedienungsanleitung

Whirlpool

Whirlpool EH225FXTQ Montageanleitung

Whirlpool

Whirlpool ART 471/A+/7 Bedienungsanleitung

Whirlpool

Whirlpool WVE1893 NFW Bedienungsanleitung

Whirlpool

Whirlpool WZF34X20DW Bedienungsanleitung

Whirlpool

Whirlpool EV190N Bedienungsanleitung

Whirlpool

Whirlpool EVllOC Bedienungsanleitung

Whirlpool

Whirlpool EH180FXK Bedienungsanleitung

Whirlpool

Whirlpool EVISHKXK Bedienungsanleitung

Whirlpool

Whirlpool WSZ57L18DH Bedienungsanleitung

Whirlpool

Whirlpool EV200FZRQ03 Bedienungsanleitung

Whirlpool

Whirlpool 260/300 Bedienungsanleitung

Beliebte Gefrierschrank Handbücher anderer Marken

Siemens

Siemens GU..D SERIES Bedienungsanleitung

Omcan

Omcan FR-CN-0155 Bedienungsanleitung

Beko

Beko FNE290E24W Bedienungsanleitung

Electrolux

Electrolux ARCTIS G 8 60 50-6I Bedienungsanleitung

Electrolux

Electrolux EUF2042AOX Bedienungsanleitung

Dometic

Dometic CoolFreeze CFX95DZ Bedienungsanleitung

Electrolux

Electrolux EUF7000W1 Bedienungsanleitung

Polar Electro

Polar Electro CT330 Bedienungsanleitung

MPM

MPM MPM-145-SK Series Bedienungsanleitung

SAF

SAF PRESTOTIG 200AC/DC Kurzanleitung

Zanussi

Zanussi ZFT11407WA Bedienungsanleitung

AEG

AEG A63190GT Bedienungsanleitung

AEG

AEG A81000TNW0 Bedienungsanleitung

Matsui

Matsui MUC50S15E Bedienungsanleitung

NEFF

NEFF G4344X8 Bedienungsanleitung

Frigidaire

Frigidaire FV 1246 H Bedienungsanleitung

Frigidaire

Frigidaire FFC13K1AW Bedienungsanleitung

Electrolux

Electrolux EU 2400C Bedienungsanleitung
