Whirlpool AMW 201/WHITE Bedienungsanleitung

SERVICE Whirlpool Europe

Customer Services

Model AMW 201/WHITE

Version 8587 201 10291 Page

Introduction safety 2

Technical data 3

Spare part list 4

Exploded view 5

Wiring diagram 6

Service Manual

Microwave oven

AMW 201/WHITE

This documentation is only intended for qualiﬁed technicians who are aware of the respec-

tive safety regulations.

Date: 16.01.2004 Subject to modiﬁcation

Document-No.: 4812 714 14999

SERVICE

16.01.2004 / Page 2 AMW 201/WHITE Whirlpool Europe

Doc. No: 4812 714 14999 8587 201 10291 Customer Service

Introduction safety

INTRODUCTION

Before leaving the factory each oven is carefully checked.

It must, however, be installed and used correctly.

Despite all the steps taken to make the oven safe, the safety is dependent on the correct installation and the fact

the user understands how to use and maintain the oven.

The information in this section should be used as a reminder that the oven is safe and that anyone who uses it must

ﬁrst read the instructions for use in order to be able to use the oven correctly and obtain best results.

SAFETY

To avoid injury to yourself and damage to the appliance always work to the following rules when servicing an oven.

Always disconnect the plug from the mains before starting work.

If there is no plug switch off the electric supply at the control box.

When you have ﬁnished servicing an oven before you reconnect it to the mains, make sure that:

- all the internal connections are correct

- the wires are insulated and not touching the door or the cabinet or anything sharp

- all the earth connections are electrically and mechanically sound

- do not modify or anyway interfere with the safety devices built-in to the oven

- make sure that each replacement part you use conforms to the manufacturer´s speciﬁcations

Do not start a repair if you have any doubt as to your ability to complete it.

CAUTION - MICROWAVE RADIATION

PERSONNEL SHOULD NOT BE EXPOSED TO THE MICROWAVE ENERGY WHICH MAY RADIATE FROM THE MAGNETRON,

WAVEGUIDE OR ANTENNA IF THEY ARE IMPROPERLY USED OR CONNECTED. ALL INPUT

AND OUTPUT MICROWAVE CONNECTIONS, WAVEGUIDES, FLANGES AND GASKETS MUST BE SECURE.

NEVER OPERATE THE DEVICE WITHOUT A MICROWAVE ENERGY ABSORBING LOAD ATTACHED.

NEVER LOOK INTO AN OPEN WAVEGUIDE OR ANTENNA WHILE THE DEVICE IS ENERGIZED.

NEVER OPERATE AN OVEN WITH CABINET OFF WITHOUT MEASURING THE MICROWAVE LEAKAGE

AROUND MAGNETRON AND VISIBLE MICROWAVECONNECTIONS (WELDING JOINTS).

Do not operate the oven if the following conditions exist:

- the door does not close ﬁrmly against the door support because of the door being warped or the hinges damaged.

- The door trims or seals are damaged.

- If there is any visible damage to the oven.

- if the door does not close properly.

Avoid operating the oven if known components in the interlock system, oven door or microwave

generating assembly are known defective. They must be replaced.

WARNING - HIGH VOLTAGE

IT IS POSSIBLE TO COME IN CONTACT WITH LETHAL HIGH VOLTAGE WHEN WORKING WITH

HV TRANSFORMER, HV CAPACITOR AND MAGNETRON. THEREFORE NEVER TRY TO MEASURE

THE HIGH VOLTAGE. ALWAYS TAKE UTMOST CARE WHEN PERFORMING ELECTRIC

MEASUREMENTS INSIDE THE OVEN.

SERVICE Whirlpool Europe AMW 201/WHITE 16.01.2004 / Page 3

Customer Service 8587 201 10291 Doc. No: 4812 714 14999

Technical data

Product dimensions

Height 285 mm

Width 456 mm

Depth 392 mm

Cavity dimensions

Height 196 mm

Width 295 mm

Depth 292 mm

Cavity volume 17.8 l

Turntable 272 mm

Weight

Gross 15.2 kg

Net 13.6 kg

Electrical

Voltage 230 V

Frequency 50 Hz

Current consumption 8 A

Power

Power consumption 1250 W

Output power Microwave 800 W

Microwave frequency 2450 MHz

Timer

electronic 99 min.

7 power levels

SERVICE

16.01.2004 / Page 4 AMW 201/WHITE Whirlpool Europe

Doc. No: 4812 714 14999 8587 201 10291 Customer Service

Spare part list

Model AMW 201/WHITE

Service No. 858720110291

Version 858720110291

Pos. No. 12NC Code Description

001 0 4812 442 69211 Cabinet WH

011 0 4819 902 00694 Foot

011 1 4812 462 79806 Support front/back

121 0 4812 459 48126 Door, inner

121 1 4812 459 48128 Door frame inner

130 0 4812 310 38706 Switch holder

130 6 4812 450 58714 Door lock

141 0 4812 450 58611 Oven glass outer

142 0 4812 459 48132 Door inner foil

142 2 4812 459 48129 Support door glass

143 0 4812 459 48131 Door frame outer

255 0 4812 466 78398 Turntable glass

264 0 4812 535 78063 Rail Driver TT

301 1 4812 404 78688 Support button A WH

301 2 4812 404 78687 Support button B WH

320 0 4812 453 59929 Panel, control WH

331 1 4812 411 28998 Knob rotacode WH

333 1 4812 411 28989 Knob stop WH

334 1 4812 411 28993 Knob defrost WH

334 3 4812 411 28988 Knob power WH

352 1 4812 130 38727 Lens

352 2 4812 130 38731 Plate PC

352 3 4812 130 38729 Cover lens

404 0 4812 131 58803 Magnetron

406 0 4812 361 58369 Motor TT

412 0 4812 145 28021 Transformer HV

412 9 4812 529 18057 Shock absorber

420 0 4812 121 58135 Capacitor HV

421 0 4812 121 18265 Filter, mains board

426 0 4812 218 38134 Diode HV

443 0 4812 515 28091 Fan wheel (ﬁve)

443 1 4812 515 28093 Air guide fan

444 0 4812 361 18383 Motor fan

490 0 4812 321 18235 Cable, mains

500 0 4812 214 79218 Control board

561 0 4812 282 48265 Thermostat (145˚C)

562 0 4812 282 48264 Thermostat (165˚C)

632 0 4819 902 00845 Microswitch

633 0 4819 271 38271 Microswitch

633 2 4819 271 38269 Microswitch

651 0 4812 134 28074 Lamp (20W)

652 0 4812 134 28073 Lamp holder

770 0 4812 526 48119 Air guide

774 0 4812 442 29264 Cover mica plate

900 5 4819 404 79411 Bracket for cable

910 1 4819 902 00565 Pin

930 1 4819 902 00868 Spring

950 1 4812 532 68104 Seal water proof

SERVICE Whirlpool Europe AMW 201/WHITE 16.01.2004 / Page 5

Customer Service 8587 201 10291 Doc. No: 4812 714 14999

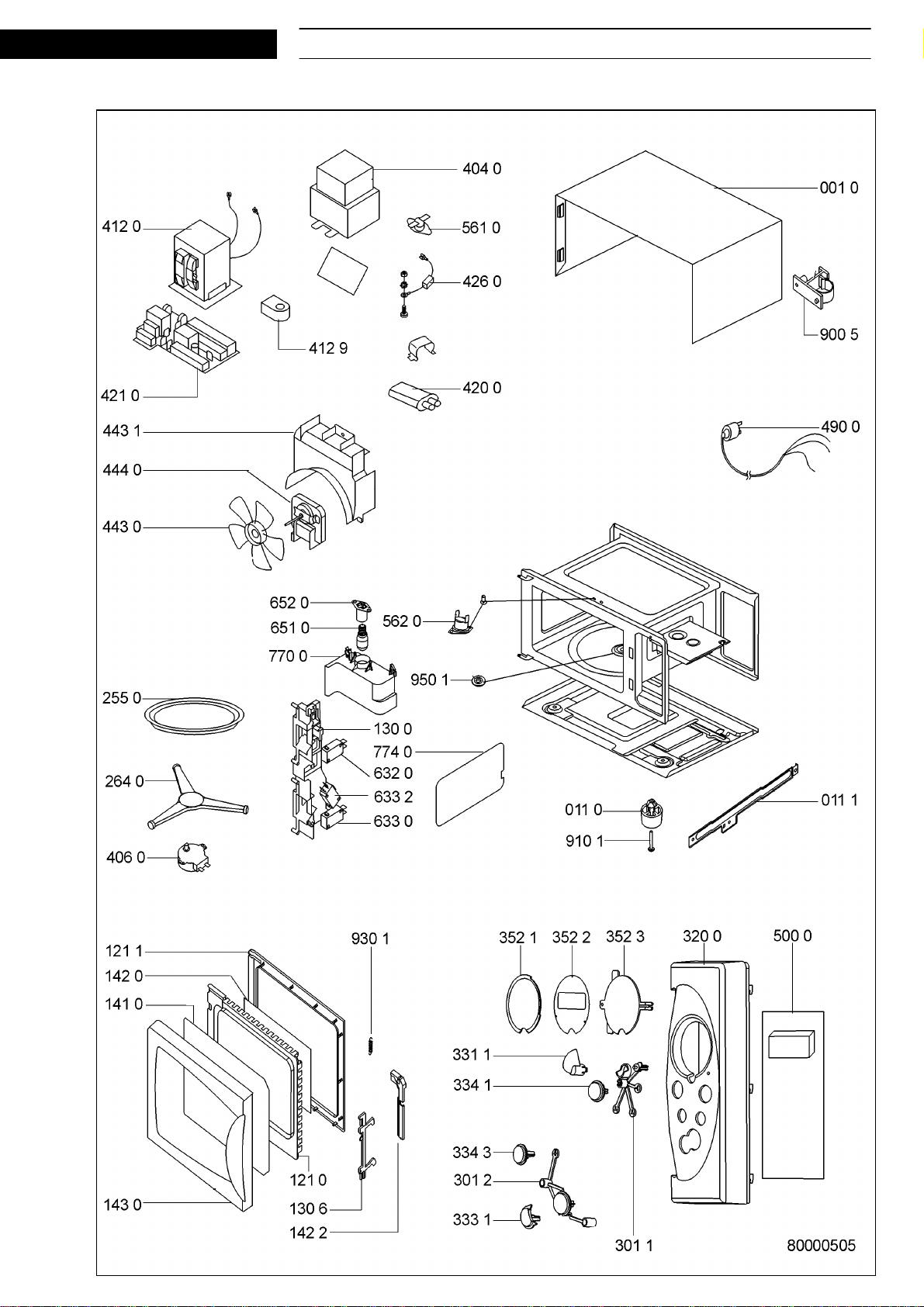

Exploded view

SERVICE

16.01.2004 / Page 6 AMW 201/WHITE Whirlpool Europe

Doc. No: 4812 714 14999 8587 201 10291 Customer Service

Wiring diagram

B Black

BL Blue

BR Brown

G Green

OR Orange

R Red

W White

Y Yellow

Door open

FM Fan motor

L Lamp

T.T Turntable motor
