CONTROL BOARD PARTS
1
For Models: GH7208XRQ0, GH7208XRB0, GH7208XRS0, GH7208XRT0
(White) (Black) (Stainless Steel) (Biscuit)
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8206204 Use & Care Guide
8206217 Tech Sheet
8205272 Installation
Instructions
8205746 Quick Reference
8205279 Cook Guide Label
2 8206039 Support, Cavity
(Left)
3 8206040 Plate, Protection
(Left)
4 Side Panel, Left
8206041 White
8206042 Black
8206044 Stainless Steel
8206043 Biscuit
5 Button
8206045 White
8206046 Black
8206048 Universal Silver
8206047 Biscuit
6 8206049 Hood/Light Switch
Board
7 Side Panel, Right
8206056 White
8206057 Black
8206059 Stainless Steel
8206058 Biscuit
8 8206054 Control Board,
(Relay)
9 8206061 Plate, Protection
(Right)
10 8206067 Plate, Chassis
11 8206065 Support, Cavity
(Right)
12 8206063 Board, Relay
13 8206053 Holder,
Microcomputer
14 8206062 AC Line Filter
15 8206060 Holder, Filter
2−07 Litho In U.S.A. (dmm) Part No. 8206221 Rev. A
MICROWAVE
HOOD
COMBINATION

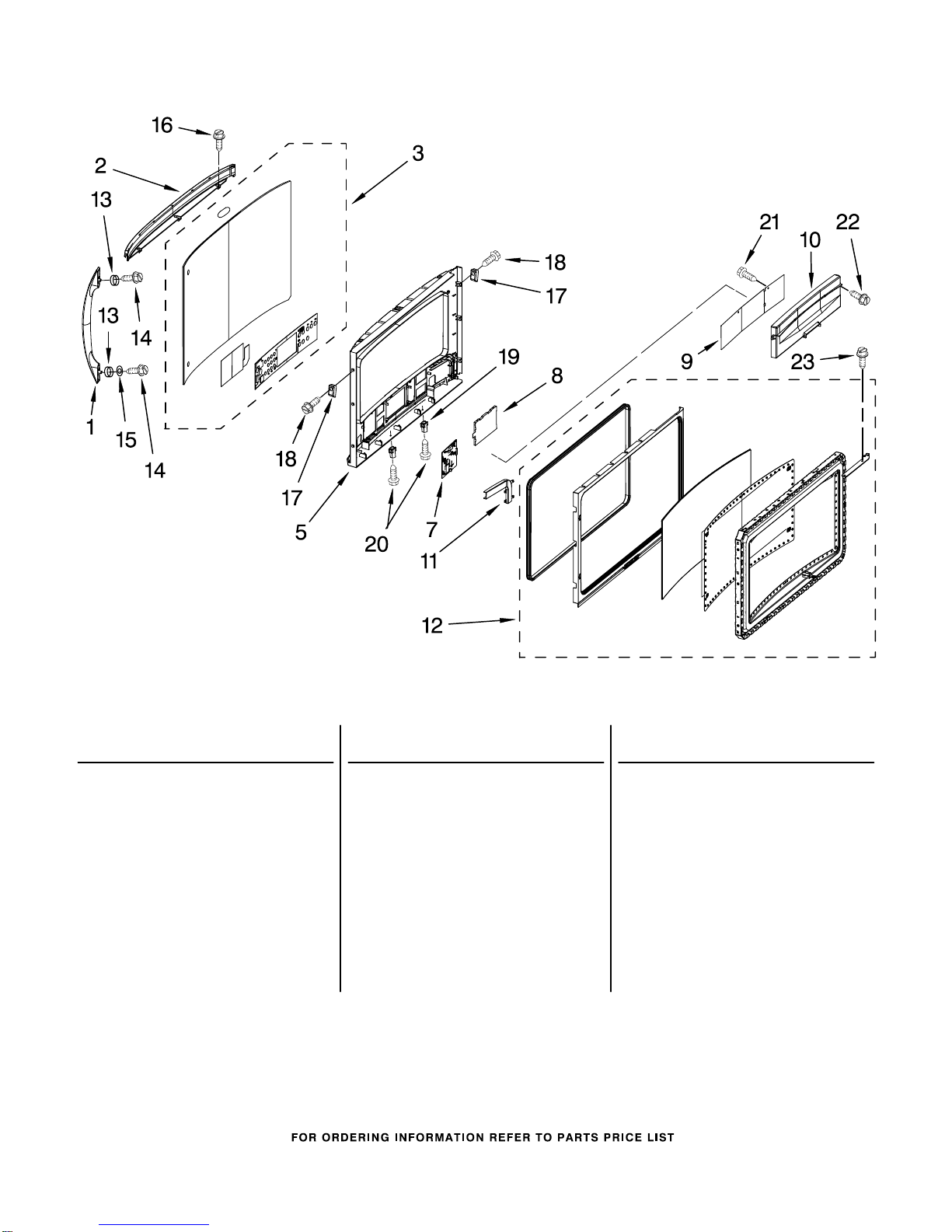

DOOR PARTS
2
For Models: GH7208XRQ0, GH7208XRB0, GH7208XRS0, GH7208XRT0
(White) (Black) (Stainless Steel) (Biscuit)
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Handle
8206120 White
8206121 Black
8206123 Universal Silver
8206122 Biscuit
2 Trim, Door
8206144 White
8206145 Black
8206147 Stainless Steel
8206146 Biscuit
3 Door Control Assy
8206148 White
8206149 Black/Stainless
8206150 Biscuit
5 Outer Door Frame
8206157 White
8206158 Black
8206160 Stainless Steel
8206159 Biscuit
7 8206161 Board, User
(Interface)
8 8206162 LCD Module
9 8206163 Deflector,
Air Guide
10 8206164 Air Guide
11 8206165 Cable Cover, Door
12 8206139 Inner Door
13 8206166 Gasket (2)
14 8206167 Screw (2)
15 8206168 Washer
16 8206169 Screw (3)
17 8206170 Spacer, Side (6)
18 8206215 Screw (6)
19 8206178 Spacer, Bottom (2)
20 8206179 Screw (2)
21 8169478 Screw (2)
22 8206180 Screw (2)
23 8206181 Hinge Screw
8206221

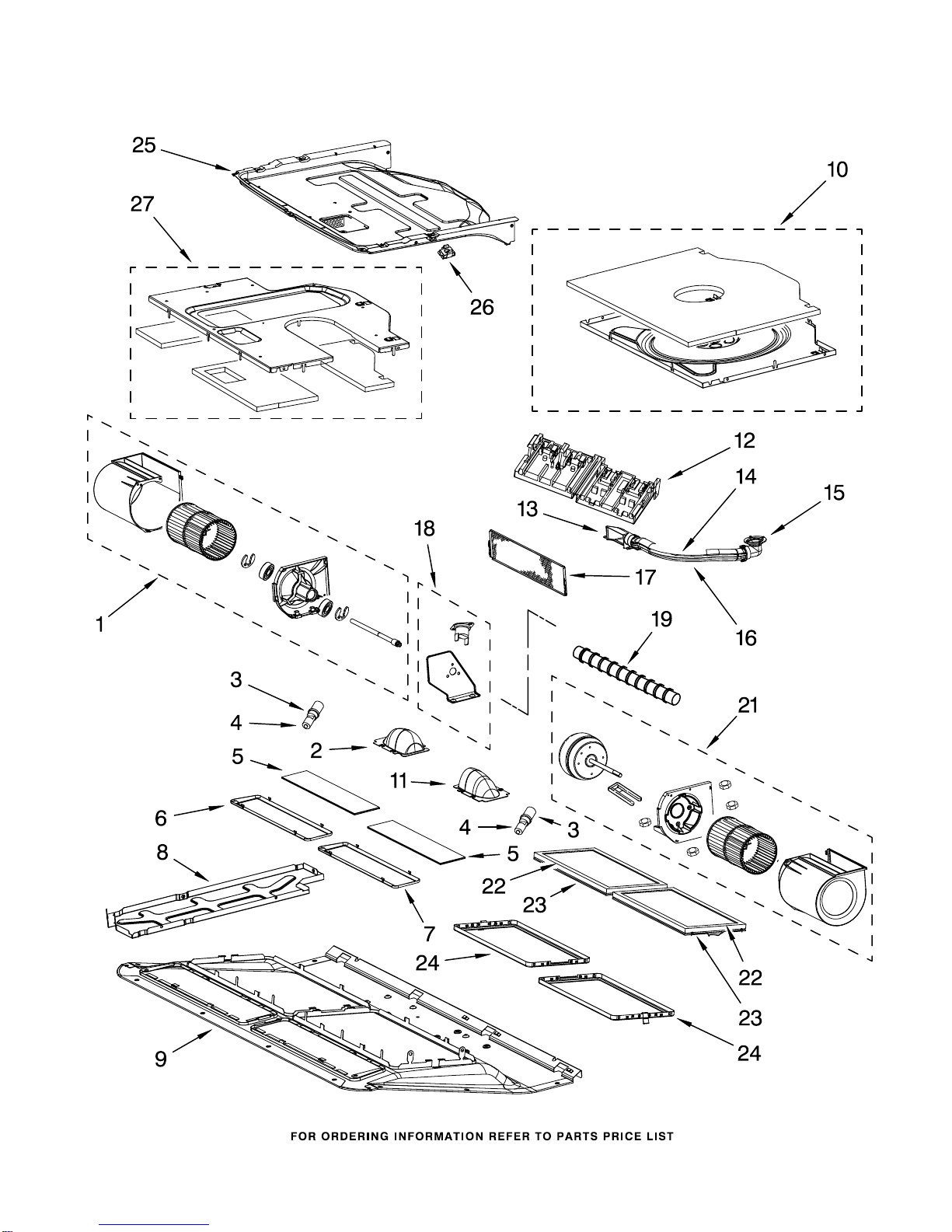

VENTILATION PARTS
3
For Models: GH7208XRQ0, GH7208XRB0, GH7208XRS0, GH7208XRT0
(White) (Black) (Stainless Steel) (Biscuit)
8206221
VENTILATION PARTS
4
For Models: GH7208XRQ0, GH7208XRB0, GH7208XRS0, GH7208XRT0
(White) (Black) (Stainless Steel) (Biscuit)
8206221
Illus. Part
No. No. DESCRIPTION
1 8206092 Housing, Blower
(Left)
2 8206211 Reflector, Lamp
(Left)
3 8204670 Lamp (2)
4 8206033 Socket, Lamp (2)
5 8206094 Glass, Lamp (2)
6 8206095 Frame, Glass
(Left)
7 8206096 Frame, Glass
(Right)
8 8206097 Plate, Separator
(Left)
9 8206098 Plate, Bottom
10 8206099 Plate, Insulation
(Bottom)
11 8206213 Reflector, Lamp
(Right)
12 8206103 Cover, Terminal
13 8206104 Diffuser
14 8206105 Cover, Duct
15 8206106 Connector, Duct
16 8206107 Holder, Duct
17 8206108 Shield
18 8206212 Support & Base
Thermostat Assy
19 8206263 Connector Shaft
21 8206112 Housing, Blower
(Right)
22 8205998 Filter, Charcoal
23 8205997 Filter, Grease
24 8206214 Spring, Hook
25 8206020 Air Guide,
Center Hood
26 8206021 Mounting Nut (2)
27 8206007 Plate, Insulation
(Top)
INTERIOR AND AIR FLOW PARTS
5
For Models: GH7208XRQ0, GH7208XRB0, GH7208XRS0, GH7208XRT0
(White) (Black) (Stainless Steel) (Biscuit)
8206221
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8206075 Fan Motor Assy
2 8206076 Housing, Fan
3 8206077 Plate, Divider
4 8206078 Thermistor,
Magnetron
5 8206079 Magnetron
6 8206080 Motor, Capacitor
7 8206081 Housing, Valve
8 8206082 Solenoid
9 8206083 Lid, Valve
10 8206084 Spring, Valve
11 8206085 Cover, Inverter
12 8206086 Ferrite Ring
13 8206087 Inverter
14 8206035 Thermostat,
Base Assembly
15 8206089 Holder, Inverter
16 8206090 Air Guide,
Magnetron
17 4393595 Support, Interlock
18 8206091 Spring, Interlock
19 4393697 Switch, Micro
(Secondary)
20 8184312 Holder, Fuse
21 4393308 Fuse
22 4393598 Switch, Micro
(Monitor)
23 4393599 Switch, Micro
(Primary)
24 8206026 Humidity Sensor
& Thermostat Assy
25 8206031 Support, Air Guide
26 8206036 Protector, Wire
27 8206037 Clip, Saddle
28 8206038 Clip, Round
29 8206209 Support, Interlock
30 8206210 Piston Assembly
31 8206023 Sensor,
Temperature
32 8206224 Cover
33 8206223 Clip, Sensor
RACK AND TURNTABLE PARTS
6
For Models: GH7208XRQ0, GH7208XRB0, GH7208XRS0, GH7208XRT0
(White) (Black) (Stainless Steel) (Biscuit)
8206221
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8206264 Rack, Grill
2 8206117 Rack
3 8206118 Hook, Rack (4)
4 8204670 Lamp, Cavity
5 8206208 Holder, Lamp
6 8206025 Thermostat,
Grill
7 8206024 Cover, Insulation
(Grill)
8 8184837 Browner, Halogen
9 8184838 Quartz tube,
Softstart
10 8184839 Heater, Quartz
11 8205239 Cover, Protector
12 8205996 Plate, Crisp
13 8205992 Turntable
14 8205993 Ring, Turntable
15 8205994 Driver, Turntable
16 8204652 Handle
17 8206034 Clip, Cavity Lamp
18 8206101 Spacer
19 8206102 Motor, Turntable
20 4393832 Screw
21 8204727 Steamer
22 8169646 Frame, Glass
23 8206116 Spacer
24 8206066 Cover, Inlet
25 8206032 Lid, Lamp
26 8169499 Glass, Lamp
27 8205995 Rack, Convection

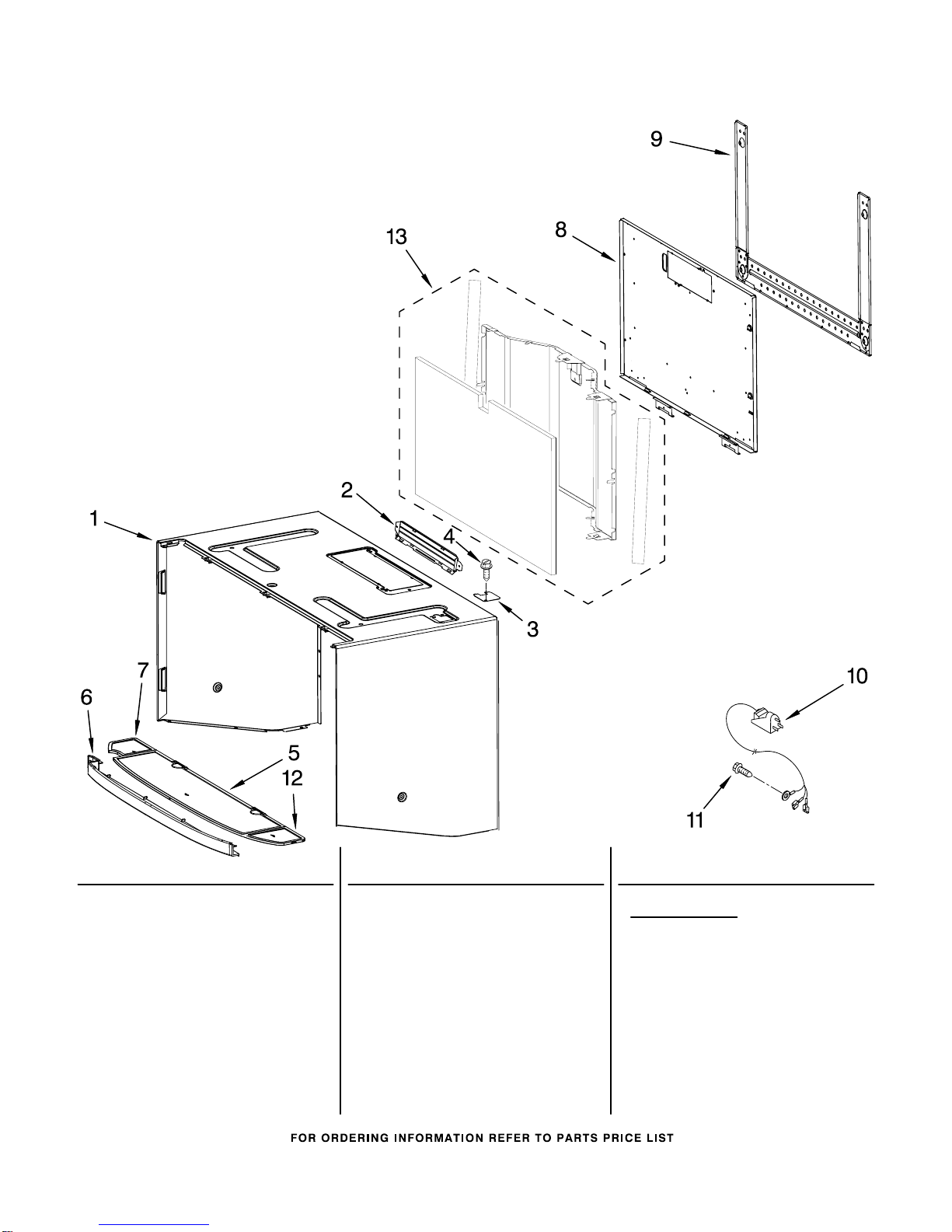

CABINET AND INSTALLATION PARTS
7
For Models: GH7208XRQ0, GH7208XRB0, GH7208XRS0, GH7208XRT0
(White) (Black) (Stainless Steel) (Biscuit)
8206221
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Case, Outer
8206027 White
8206028 Black
8206030 Apollo Grey
2 8205558 Damper
3 8184897 Lid, Power Cord
4 4393472 Screw
5 8206017 Vent Screen
(Middle)
6 Support,
Vent Screen
8206011 White
8206012 Black
8206016 Universal Silver
7 8206207 Vent Screen
(Left)
8 8206051 Plate, Back
9 8206052 Plate, Mounting
10 8206182 Cord, Power
11 4393836 Screw
12 8206206 Vent Screen
13 8206050 Insulation Assy.
(Right)
Miscellaneous
8205979 Installation,
Hardware
8205274 Template, Upper
8206167 Screw, Top Mountng
8206188 Main Harness
8206185 Ground Wire
8206186 H.V. Wire Assy
8206187 Lights, Fan, &
Turntable Harness
8206189 Hood/Light Control
Wire Harness
8
For Models: GH7208XRQ0, GH7208XRB0, GH7208XRS0, GH7208XRT0
(White) (Black) (Stainless Steel) (Biscuit)
8206221
Illus. Part
No. No. DESCRIPTION
1 8206068 Thermostat
2 8206069 Impeller Assy
3 8206070 Bracket, Motor
4 8206071 Heater Assembly
5 8206073 Washer
6 8206074 Fan Wheel
7 8206225 Plate,
Spring Lock

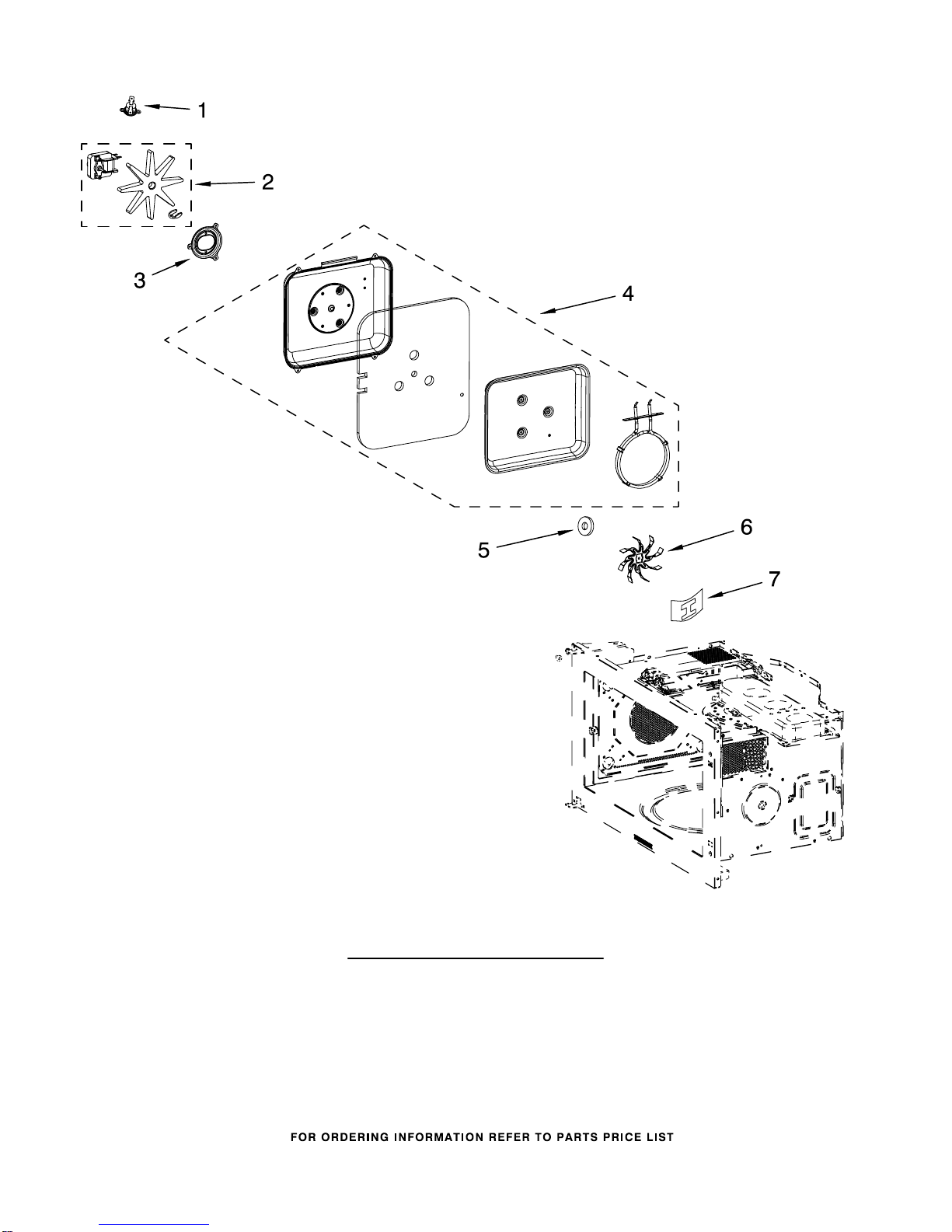

CONVECTION PARTS
