Whirlpool GSC309PV Series Gebrauchsanweisung

PRODUCT MODEL SERIES PRODUCT DIMENSIONS

CABINET OPENING DIMENSIONS

GSC309PV RMC275PV

RMC305PV

Electrical: Oven must be connected to the proper

electrical voltage and frequency as specified on the

model/serial number rating plate. The model/serial

number rating plate is located at the bottom of the

right-hand mounting rail. See the following

illustration.

Models rated from 7.3 to 9.6 kW at 240 volts

(5.5 to 7.2 kW at 208 volts) require a separate

40-amp circuit. Models rated at 7.2 kW and below

at 240 volts (5.4 kW and below at 208 volts)

require a separate 30-amp circuit.

A circuit breaker is recommended. Connect directly

to the circuit breaker (or fused disconnect)

through flexible, armored or nonmetallic, sheathed

copper cable (with grounding wire).

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. W10192051B

09-05-08

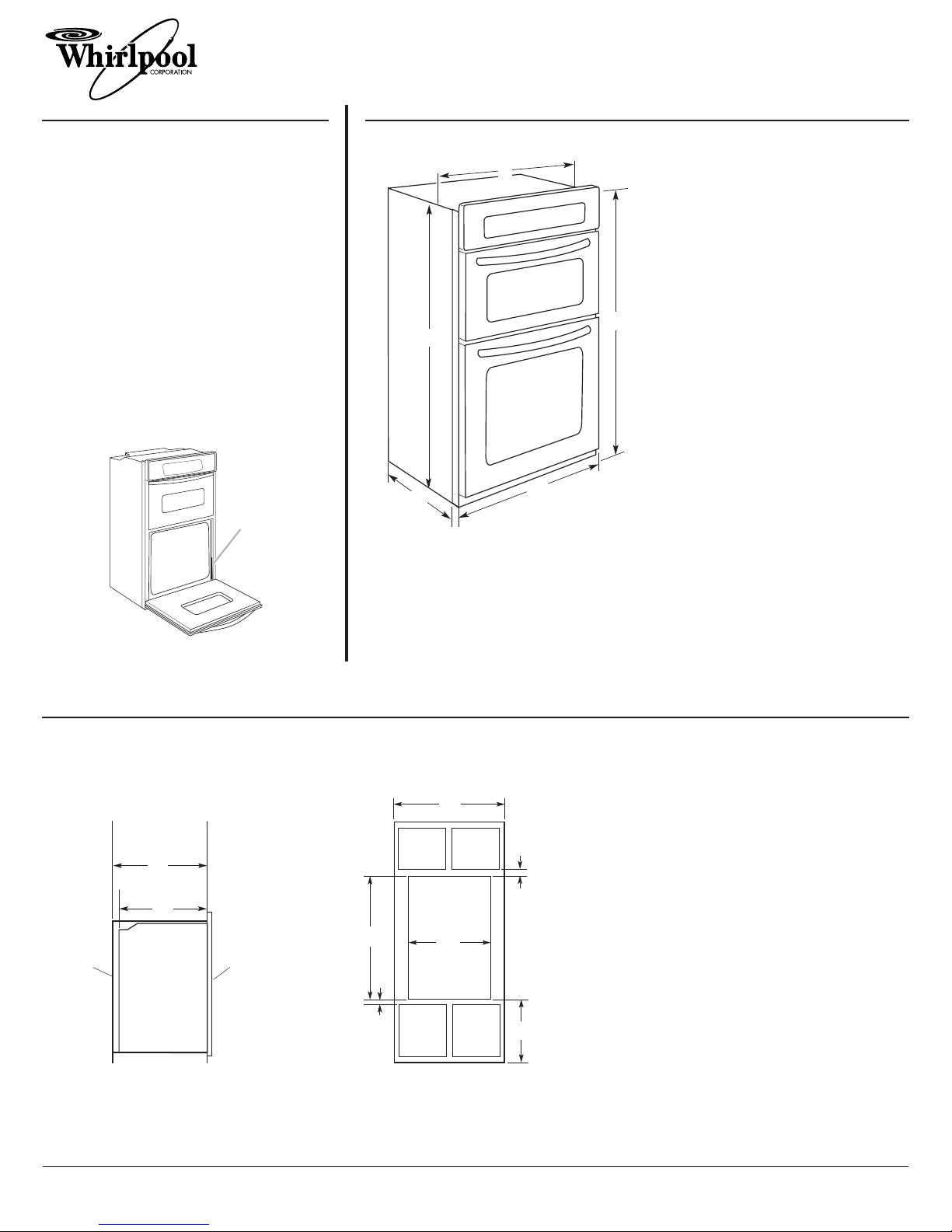

27" (68.6 CM) AND 30" (76.2 CM) ELECTRIC BUILT-IN

MICROWAVE/OVEN COMBINATION

27" (68.6 cm) models

A. 25-5/16" (64.3 cm) recessed width

B. 42-3/8" (107.6 cm) overall height

C. 26-3/4" (67.9 cm) overall width

D. 23" (58.4 cm) max. recessed depth

E. 41" (104.1 cm) recessed height

30" (76.2 cm) models

A. 28-5/16" (71.9 cm) recessed width

B. 42-3/8" (107.6 cm) overall height

C. 29-3/4" (75.6 cm) overall width

D. 23" (58.4 cm) max. recessed depth

E. 41" (104.1 cm) recessed height

. Model/serial number plate

Front View

27" (68.6 cm) models

A. 27" (68.6 cm) min. cabinet width

B. 1" (2.5 cm) top of cutout to bottom of upper cabinet door

C. 19-1/4" (48.9 cm) bottom of cutout to floor

D. 25-1/2" (64.8 cm) cutout width

E. 1-1/2" (3.8 cm) min. bottom of cutout to top of cabinet door

F. 41-1/4" (104.8 cm) cutout height

30" (76.2 cm) models

A. 30" (76.2 cm) min. cabinet width

B. 1" (2.5 cm) top of cutout to bottom of upper cabinet door

C. 19-1/4" (48.9 cm) bottom of cutout to floor

D. 28-1/2" (72.4 cm) cutout width

E. 1-1/2" (3.8 cm) min. bottom of cutout to top of cabinet door

F. 41-1/4" (104.8 cm) cutout height

Side View

Cabinet Oven

Front

Recessed

Oven

A. 23-1/4" 59.1 cm) min. cutout depth

B. 23" (58.4 cm) recessed oven depth
