Whirlpool WMH1162XVB1 Bedienungsanleitung

CONTROL PANEL PARTS

For Models: WMH1162XVQ1, WMH1162XVB1, WMH1162XVS1, WMH1162XVD1

(DESIGNER WHITE) (BLACK) (STAINLESS) (UNIVERSAL SILVER)

2−11 Litho in U.S.A. (MP)(bay) Part No. W10240331 Rev. B

Microwave Oven

1.6 Cu. Ft.

Illus. Part

No. No. DESCRIPTION

1 Literature

W10182518

U & C Guide

W10191923

Tech Sheet, Slim

8205879 Cook Guide Label

W10189505

Install,Instruct

2 Panel Asy, Control

Includes Lens and

Membrane Switch

W10211459

Black

W10211460

White

W10210864

Stainless

W10211461

Universal Silver

W10210862

Bracket, Control

W10211457

Microcomputer

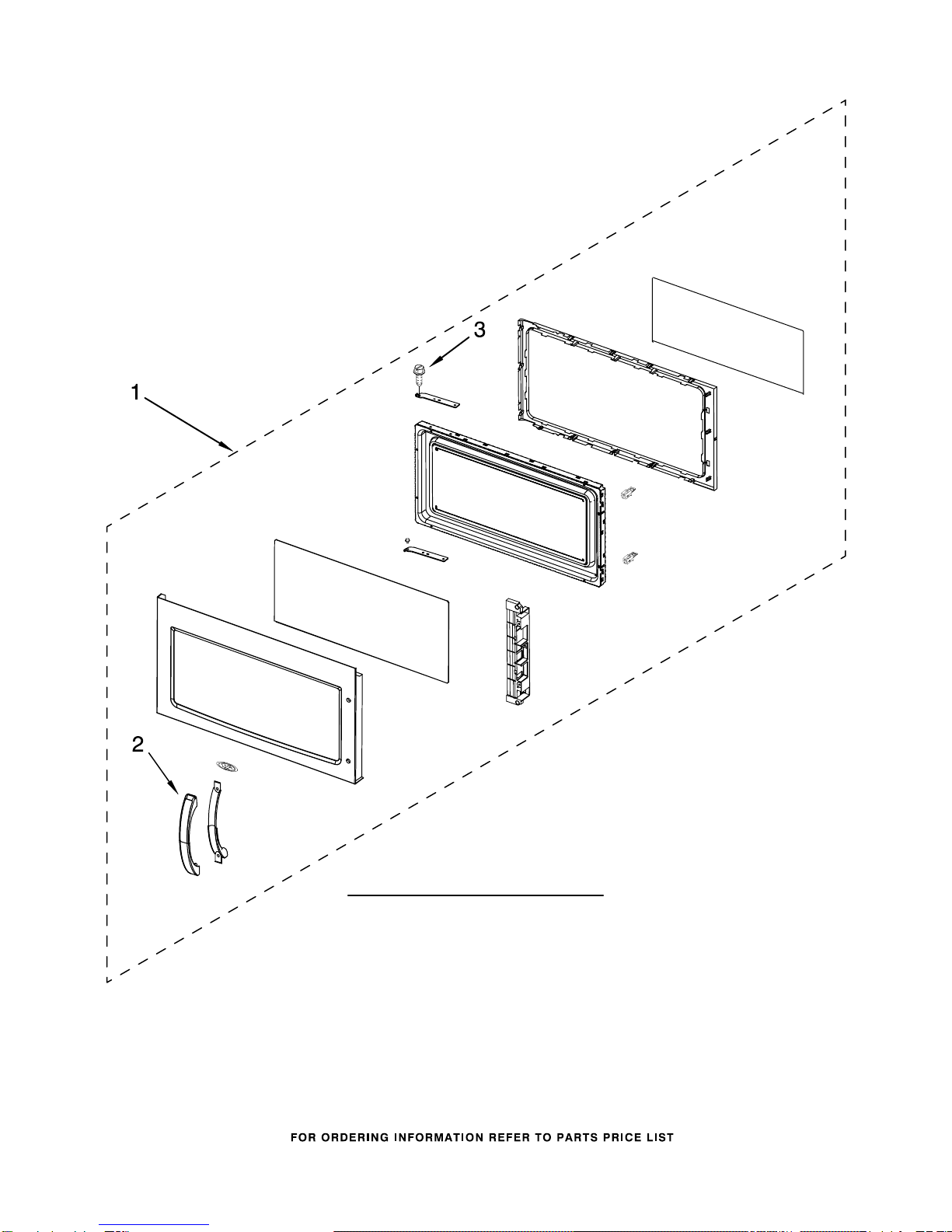

DOOR PARTS

For Models: WMH1162XVQ1, WMH1162XVB1, WMH1162XVS1, WMH1162XVD1

(DESIGNER WHITE) (BLACK) (STAINLESS) (UNIVERSAL SILVER)

W10240331

Illus. Part

No. No. DESCRIPTION

1 COMPLETE DOOR

W10211463

Black

W10211464

White

W10210886

Stainless

W10211465

Universal Silver

2 Handle

W10211466

White

W10211467

Black, US

W10210887

Stainless

W10138802

Screw

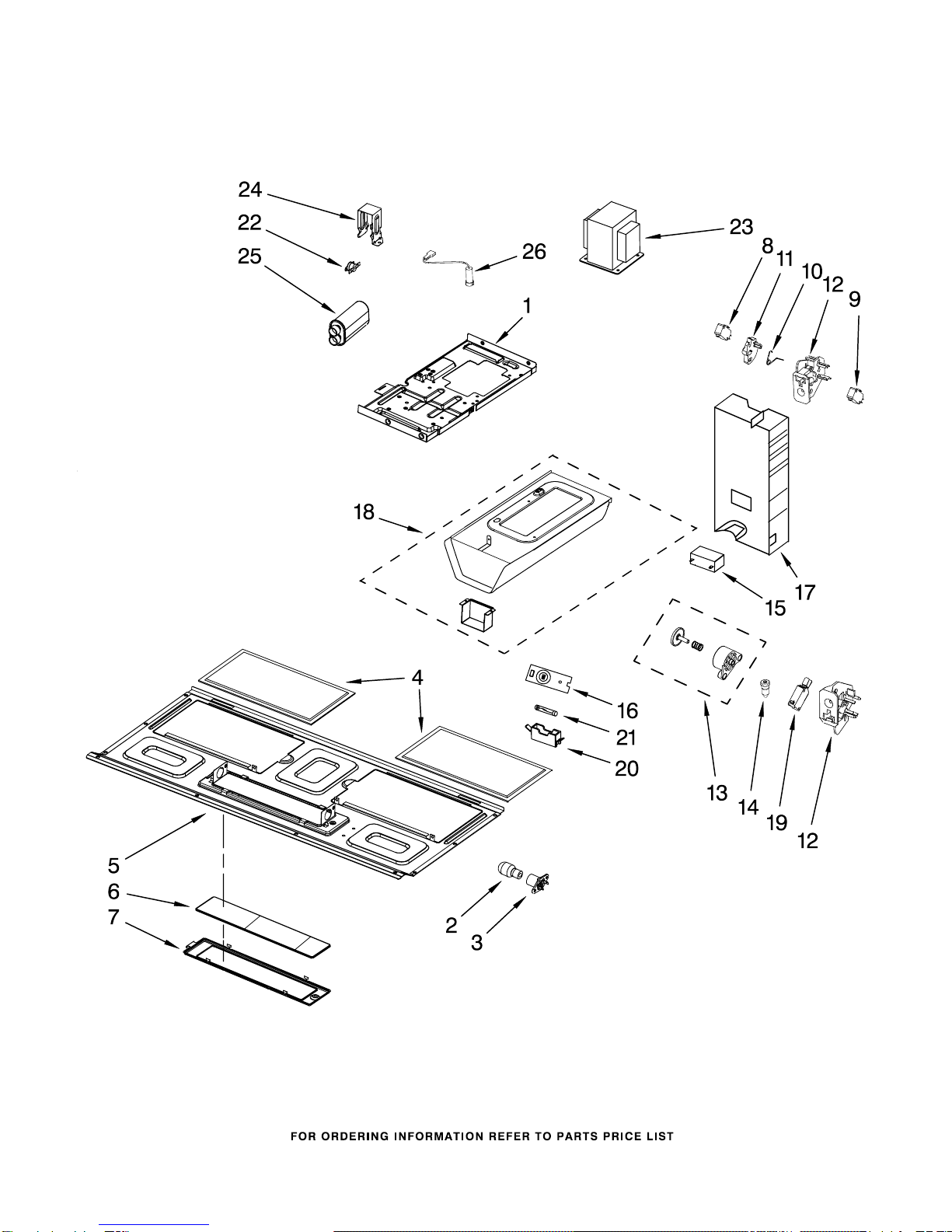

INTERIOR AND VENTILATION PARTS

For Models: WMH1162XVQ1, WMH1162XVB1, WMH1162XVS1, WMH1162XVD1

(DESIGNER WHITE) (BLACK) (STAINLESS) (UNIVERSAL SILVER)

W10240331

INTERIOR AND VENTILATION PARTS

For Models: WMH1162XVQ1, WMH1162XVB1, WMH1162XVS1, WMH1162XVD1

(DESIGNER WHITE) (BLACK) (STAINLESS) (UNIVERSAL SILVER)

W10240331

Illus. Part

No. No. DESCRIPTION

W10163420

Chassis

2 8206232 Lamp

W10210871

Holder, Lamp

W10181505

Filter, Grease

W10225455

Plate, Bottom

W10210875

Glass, Lamp

W10210873

Holder, Glass

W10211972

Switch, Micro

V15T16−CZ200

W10211973

Switch, Micro

V15T16−CC200

W10156812

Spring, Interlock

W10156811

Plate, Cam

12 Support, Interlock

8206419 Top

W10156813

Bottom

W10197758

Piston Assembly

14 8206180 Screw

W10210855

Capacitor, 125 V

W10163422

Thermistor (PCBA)

W10163421

Plate, Side

W10163423

Chassis Assembly

W10211974

Switch, Micro

V15T16−CP200

W10117908

Holder, Fuse

W10138793

Fuse

22 8206359 Terminal Cvr,Lamp

22 8206379 Thermostat

23 8206343 Transformer, H.V.

W10156817

Bracket, Capacitor

W10138798

Capacitor, H.V.

W10163432

Diode, H.V.

AIR FLOW PARTS

For Models: WMH1162XVQ1, WMH1162XVB1, WMH1162XVS1, WMH1162XVD1

(DESIGNER WHITE) (BLACK) (STAINLESS) (UNIVERSAL SILVER)

W10240331

Illus. Part

No. No. DESCRIPTION

1 8206340 Deflector, Air

2 8206382 Cover, Lamp

3 4393681 Lamp

W10210869

Cover, Side Inlet

W10114550

Motor, Fan Assy

6 8206627 Air Guide

7 8206230 Filter, Charcoal

W10110862

Mounting, Nut

W10138800

Air Guide

10 8206624 Filter

W10210878

Holder, Lamp

W10210881

Base Plate,

Air Guide

W10156815

Brkt−Mntg,Filter

W10139750

Socket, Motor Wire

W10216360

Magnetron

16 8206342 Thermostat

W10164716

Plate, Water Proof

W10210884

Cover, Right Duct

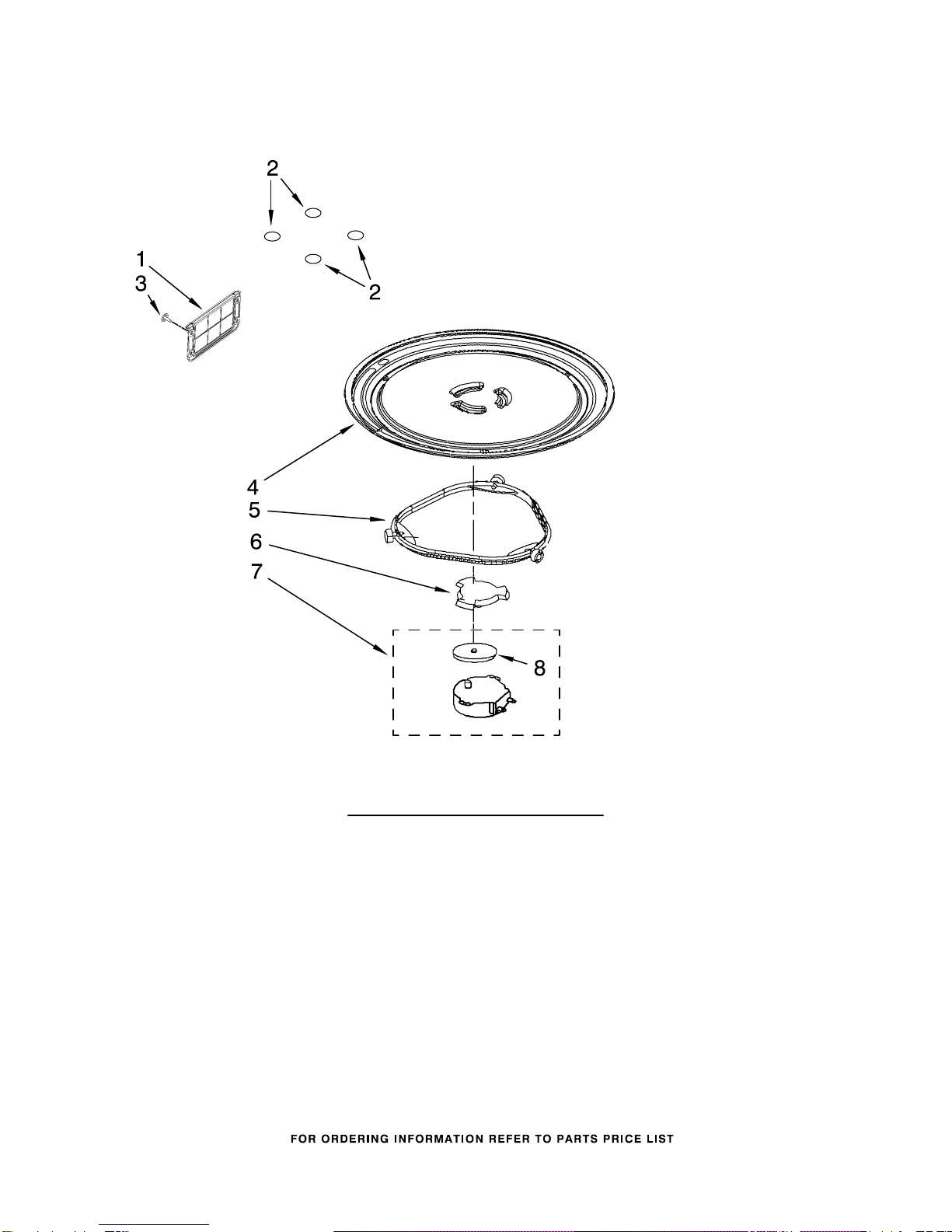

TURNTABLE PARTS

For Models: WMH1162XVQ1, WMH1162XVB1, WMH1162XVS1, WMH1162XVD1

(DESIGNER WHITE) (BLACK) (STAINLESS) (UNIVERSAL SILVER)

W10240331

Illus. Part

No. No. DESCRIPTION

1 8206389 Cover, Inlet

Includes Nails

and Bushings

W10108800

Cavity Plugs

W10138801

Plastic Rivets

4 4393799 Turntable

5 8206227 Ring, Turntable

6 8206228 Driver, Turntable

W10210848

Motor, Turntable

8 8184109 Seal, Waterproof

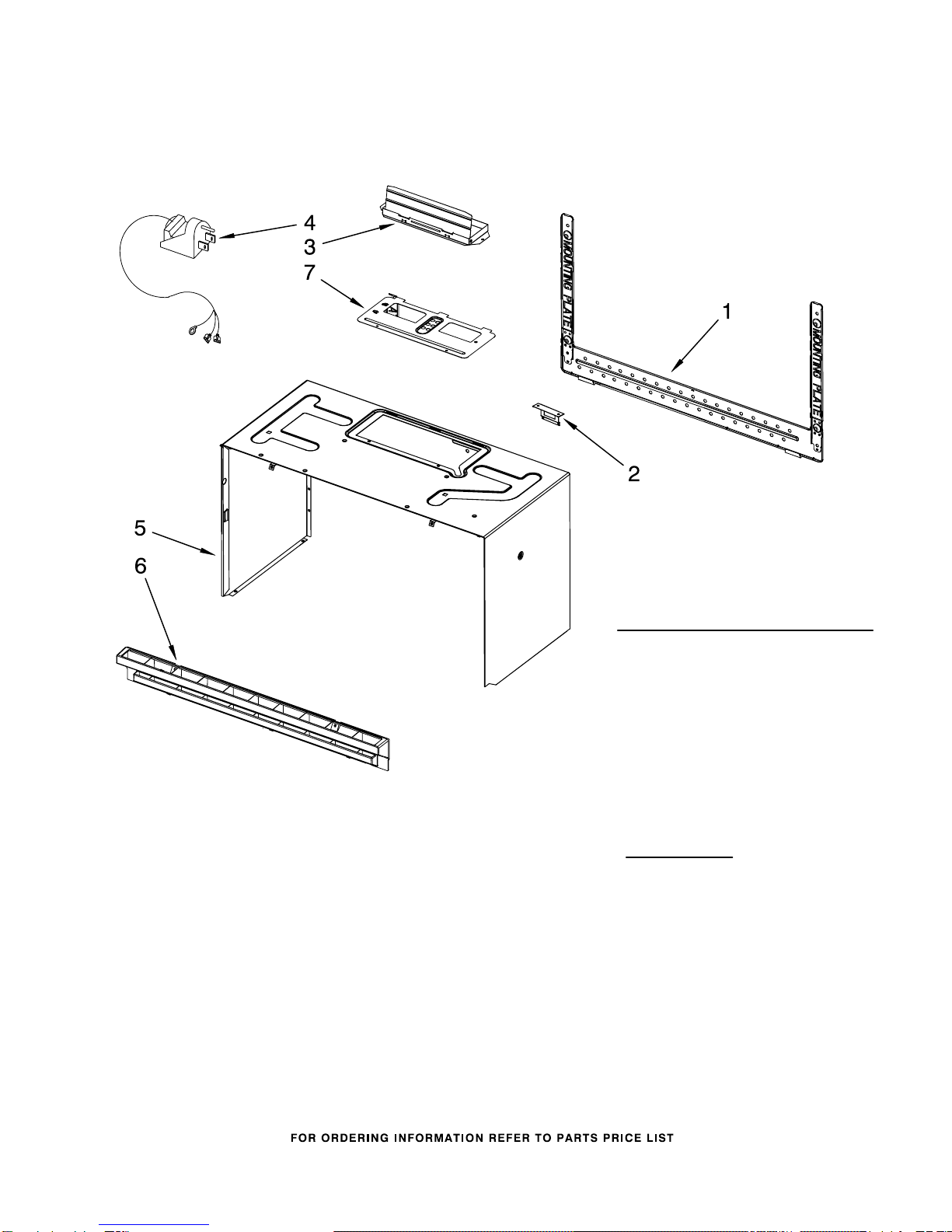

CABINET AND INSTALLATION PARTS

For Models: WMH1162XVQ1, WMH1162XVB1, WMH1162XVS1, WMH1162XVD1

(DESIGNER WHITE) (BLACK) (STAINLESS) (UNIVERSAL SILVER)

W10240331

Illus. Part

No. No. DESCRIPTION

1 8206315 Plate, Mounting

2 8206385 Support, Wire Clip

3 8206442 Damper Assembly

4 8206388 Cord, Power

5 Case, Outer

W10210839

BlK,SS,US Models

W10210836

White

6 Grille, Vent

8206391 Blk,SS,US Models

8206390 White

W10210832

Plate, Damper

Miscellaneous

8206614 Installation,

Hardware

8205871 Template, Upper

W10138802

Screw, Top Mountng

W10212887

Main Harness

W10163438

Ground Wire Assy

8206415 H.V. Wire Assy

W10107760

Grnd Wire, Filter

W10210892

Hdlmp/TT Wire Assy

W10163436

HV Trnsfmr Wr Assy

W10163439

Harness Wire, NTC
