Whirlpool GBD307PRS02 Bedienungsanleitung
LOWER OVEN PARTS
1
For Models: GBD307PRS02
(Stainless)
09−07 Litho in U.S.A. (amd) Part No. W10162393 Rev. A
30" BUILT−IN ELECTRIC
DOUBLE OVEN
CONVECTION−UPPER
SELF−CLEAN (GOLD LINE)
LOWER OVEN PARTS
2
For Models: GBD307PRS02
(Stainless)
W10162393
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8303647 Installation
Instructions
Owners Manual
8304075 English
8304076 French
8302068 Tech Sheet (Oven)
Safer Cooking Tips
3191638 English
9759133 French
2 Trim, Side
W10145003
Right
W10145002
Left
3 Hinge Receiver
4455606 Right
4455605 Left
4
W10105790
Bumper, Door
5 4452490 Spacer, Foam
6 8302349 Divider, Vent
7 8303099 Top, Chassis
8 Screw
9 4452158 Tube, Vent
10
W10067870
Lens, Light
11
W10009930
Assembly, Oven
Light
12 4452166 Bulb, Light
13 4449809 Screw
14
W10130368
Frame, Front
15 4455382 Gasket, Door
16 4449040 Screw
17 4450118 Nut
18 4452152 Bracket, Mounting
19 4451478 Support, Insulation
20 3196176 Screw
21 4449154 Screw
22 3400832 Screw
23 4455641 Side, Chassis
24 4452234 Back, Chassis
25 Liner, Oven
(Not serviceable)
26 4455636 Sensor
27 9760888 Latch, Motorized
28 9760677 Deflector, Bottom
29 9759242 Thermostat
30 9759713 Base, Chassis
31 4448933 Retainer, Gasket
32 4451747 Cover, Back
33
W10145001
Trim, Bottom
Vent
34 4449845 Support, Bracket
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449316 Insulation, Wrap
4450365 Insulation, Back
UPPER OVEN PARTS
3
For Models: GBD307PRS02
(Stainless)
W10162393
UPPER OVEN PARTS
4
For Models: GBD307PRS02
(Stainless)
W10162393
Illus. Part
No. No. DESCRIPTION
1 4449809 Screw
2 4449154 Screw
3 Hinge Receiver
4455606 Right
4455605 Left
4
W10105790
Bumper, Door
5 3196176 Screw
6 8302349 Divider, Vent
7 8303099 Top, Chassis
8 4448444 Grommet
9 4452158 Tube, Vent
10
W10067870
Lens, Light
11
W10009930
Assembly, Oven
Light
12 4452166 Bulb, Light
13 9760888 Latch, Motorized
14
W10130368
Frame, Front
15 4455382 Gasket, Door
16 4449040 Screw
17 4450118 Nut
18 3400832 Screw
19 4451478 Support, Insulation
21 Rail, Side
8302793 Right
8302794 Left
22 4455641 Side, Chassis
23 4452234 Back, Chassis
24 Liner, Oven
(Not serviceable)
25 4455636 Sensor
26 4452267 Vent, Center
27 9759242 Thermostat
28 4448933 Retainer, Gasket
29 4451747 Cover, Back
30 4449845 Support, Bracket
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449316 Insulation, Wrap
4450365 Insulation, Back

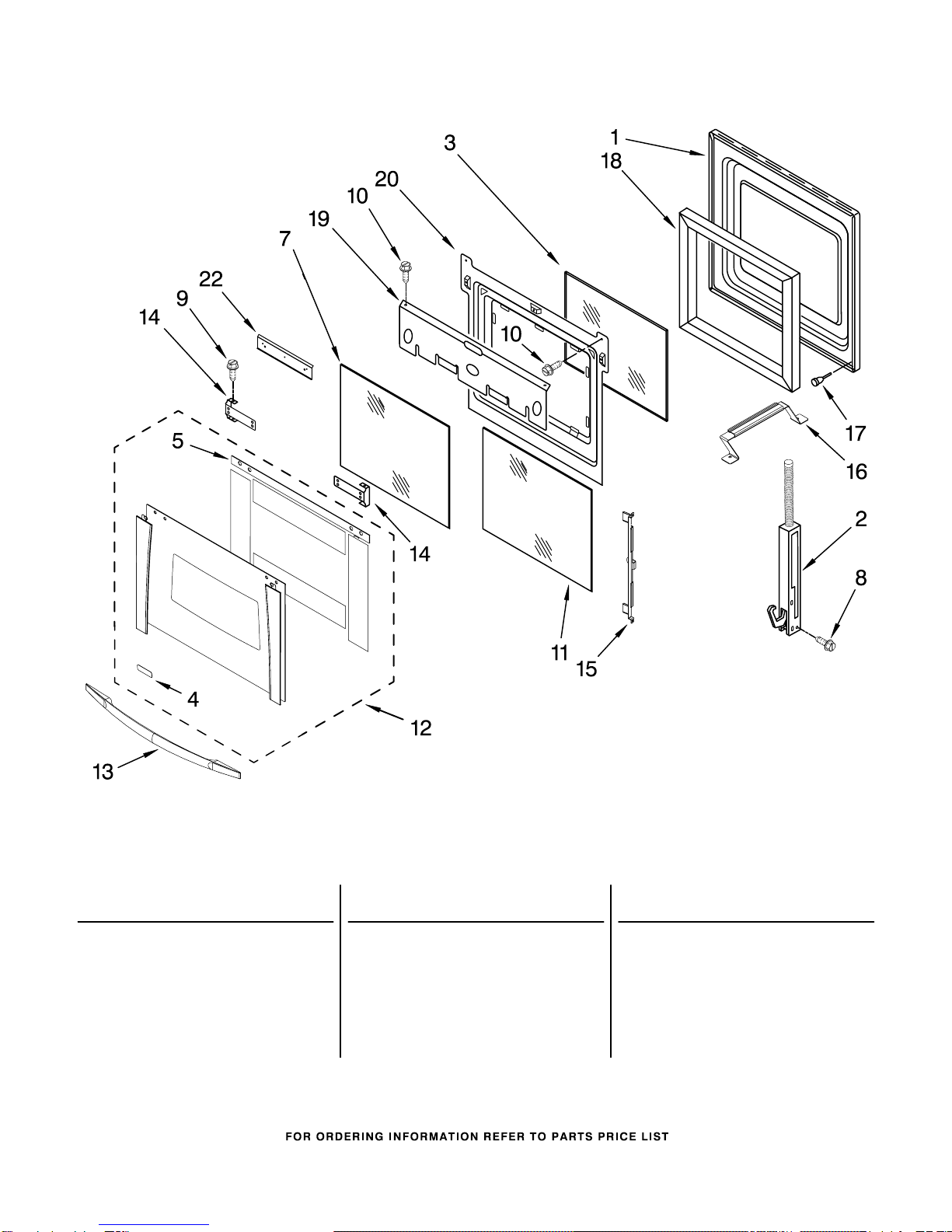

OVEN DOOR PARTS
5
For Models: GBD307PRS02
(Stainless)
W10162393
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 9759413 Panel, Door
2 Hinge, Door
9760577 Right
9760578 Left
3 4449259 Glass, Inner Door
4 8303810 Nameplate
5 8303878 Seal, Foam
7 9759225 Glass, Inner Door
8 4449743 Screw
9 4451040 Screw
10 4449809 Screw
11 9759228 Glass, Inner Door
12 Assembly
W10151079
Upper
W10151080
Lower
13 8303164 Door Handle
14
W10136473
Bracket, Handle
15 9759229 Bracket(2nd Glass)
16 9759230 Bracket(3rd Glass)
17 4448520 Bumper, Door
18 4451722 Insulation, Door
19 4457103 Shield, Heat
20 4457132 Retainer, Glass
22 4457114 Shield, Heat
INTERNAL OVEN PARTS
6
For Models: GBD307PRS02
(Stainless)
W10162393
Illus. Part
No. No. DESCRIPTION
1 4448988 Cover, Fan
2 9760771 Element, Broil
3 4448717 Rack, Oven
4 9760766 Element,
Bake Convection
5 4449154 Screw
6 4451583 Fan, Convection
7 4452226 Blade, Fan
8 4452227 Nut
CONTROL PANEL PARTS
7
For Models: GBD307PRS02
(Stainless)
W10162393
Illus. Part
No. No. DESCRIPTION
1 8302848 Control Panel
2
W10112115
Assembly, Switch
3 8303883 Assembly, Control
4
W10153086
Backer, Control
Panel
5 4449745 Screw
6 8301848 Latch, Sister
Board
7
W10144998
Trim, Cooktop
TOP VENTING PARTS
8
For Models: GBD307PRS02
(Stainless)
W10162393
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 4451759 Assembly,Vent
2 4455178 Elbow, Vent Top
3 4455177 Elbow, Vent
Bottom
4 Blower
W10016550
45MM Lower Oven
4457289 65MM Upper Oven
4455191 Bracket
5 4451758 Foam, Block
6 8300642 Transformer,
Control
7 8302390 Bracket, Support
Air Stop
8 3400080 Screw
9 4450038 Screw
10 4449809 Screw
11 4449868 Block, Terminal
12 4449154 Screw
13 8303497 Vent,
Control Panel
14 Side, Control Top
4451597 Right
4451598 Left
15 9759135 Back, Control
16 4450551 Cover, Top Rear
17 4448664 Clamp
18 4452367 Cover, Top Front
19 9759243 Thermostat, Oven
20 8302143 Suppressor
OPTIONAL PARTS (NOT INCLUDED)
9
For Models: GBD307PRS02
(Stainless)
W10162393
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242827 Wire (14 Ga.
150 c Yellow)
WIRING HARNESS PARTS
8301909 Harness, Wire
(Latch, Lower)
4449809 Screw
8301777 Harness, Main
4450953 Conduit, Double
4452400 Lead, Ground Wire
4450800 Screw
4448664 Clamp
4449809 Screw
112432 Nut
98997 Clip
4452260 Spacer, Foam
4454835 Tie, Cable
4451761 Support, Wiring
4454842 Tie, Cable
Miscellaneous
4448950 Screw, Install (4)
