Whirlpool GMC275PDB6 Bedienungsanleitung

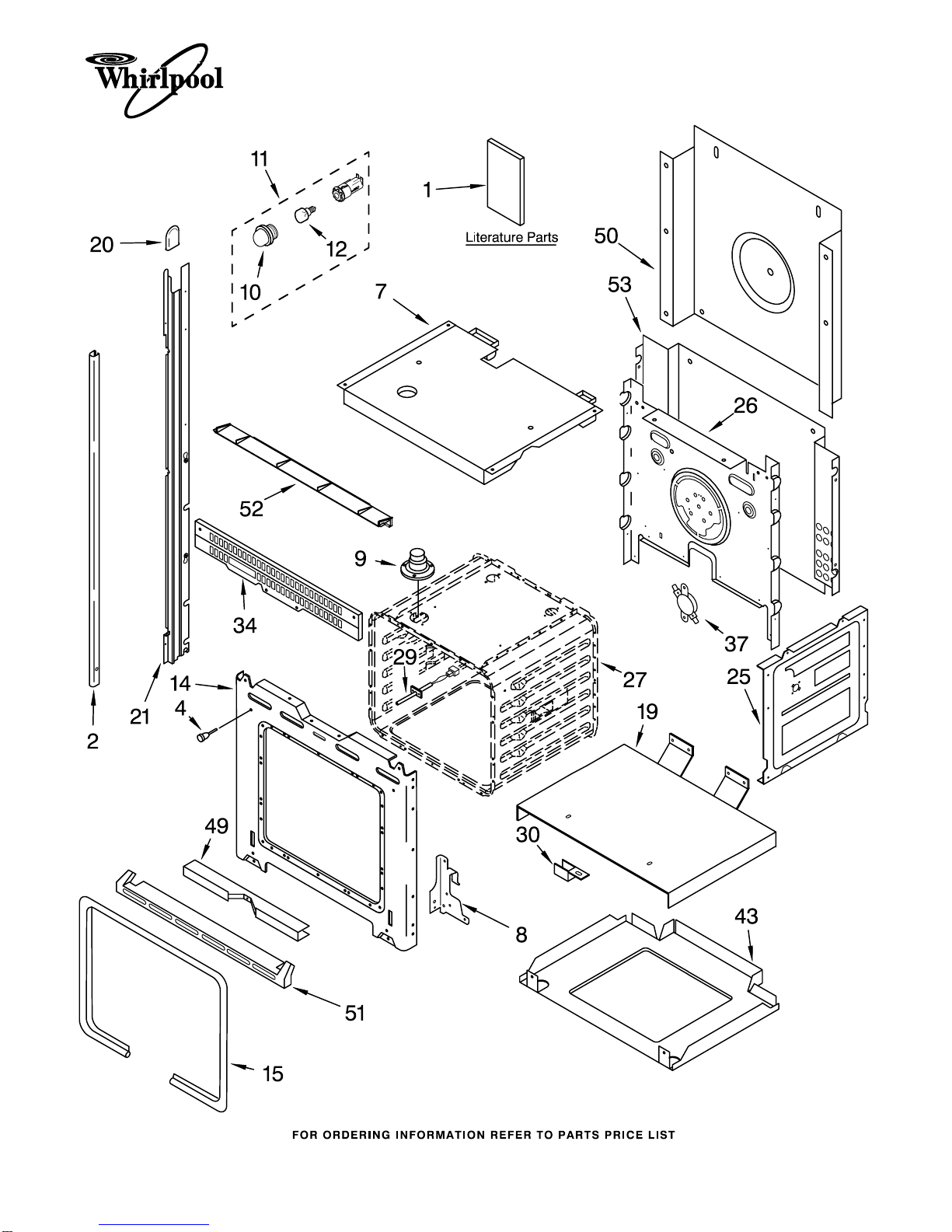

OVEN PARTS
1
For Models:GMC275PDB6, GMC275PDQ6, GMC275PDS6, GMC275PDT6
(Black) (White) (Black Stainless) (Biscuit)
5−01 Litho In U.S.A. (cre) Part No. 8185830
27" BUILT−IN ELECTRIC
COMBO
SENSOR/SC
(GOLD LINE)
OVEN PARTS
2
For Models:GMC275PDB6, GMC275PDQ6, GMC275PDS6, GMC275PDT6
(Black) (White) (Black Stainless) (Biscuit)
8185830
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
LIT8300653
Installation
Instructions
LIT8300667
Use & Care Guide
(Oven)
LIT4450785
Cooking Guide
(Label)
LIT4452005
Use & Care Guide
(Microwave)
LIT4455474
Tech Sheet
LIT3191638
Safer Cooking Tips
2 Trim, Side
4450856 RH Black
4450857 RH White
4452124 RH Biscuit
4450859 LH Black
4450860 LH White
4452125 LH Biscuit
Screw
8281236 Black Model
4449041 White
694091 Biscuit Model
4 4448520 Bumper, Door
7 4455285 Top Chassis
4449809 Screw
8 Hinge Receiver
4455605 Left Hand
4455606 Right Hand
9 4452158 Tube, Vent
3196176 Screw
10 4452165 Lens,Light
11 4452368 Oven Light Assy
12 4452166 Bulb,Light
14 4455611 Frame, Front
4449040 Screw
15 4455381 Gasket, Door
19 4451477 Support, Insulation
4449809 Screw
20 4451605 Cap, Spacer
21 Rail, Side
4450583 Right Side
4450584 Left Side
4448444 Grommet
4449154 Screw
25 4455641 Side, Chassis
(R.H. & L.H.)
4449809 Screw
26 4452233 Back, Chassis
4449809 Screw
27 Liner, Oven
(Not serviceable)
29 4455636 Sensor
4449154 Screw
30 4449845 Bracket, Support
4449809 Screw
34 4451666 Vent, Center
4450038 Screw
37 4451442 Thermostat (TOD)
(Temp.) SPST
4449809 Screw
43 4455529 Base, Chassis
4449809 Screw
49 4448933 Retainer, Gasket
4449154 Screw
50 4451747 Cover, Back
4449809 Screw
51 Trim, Bottom
4448475 Black Model
4448476 White Model
4452414 Biscuit Model
3400832 Screw
52 4450787 Vent, Control
53 4451755 Chassis, Back
4452260 Spacer, Foam
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449315 Insulation, Wrap
4450364 Insulation, Back
CONTROL PANEL PARTS
3
For Models:GMC275PDB6, GMC275PDQ6, GMC275PDS6, GMC275PDT6
(Black) (White) (Black Stainless) (Biscuit)
8185830
Illus. Part
No. No. DESCRIPTION
2 4450356 Gasket
3 4452889 Microcomputer
8281179 Screw
4449745 Screw
10 Control Panel Assy
W/Membrane Switch
8300411 Black Model
8300410 White Model
8300536 Biscuit Model
OVEN DOOR PARTS
4
For Models:GMC275PDB6, GMC275PDQ6, GMC275PDS6, GMC275PDT6
(Black) (White) (Black Stainless) (Biscuit)
8185830
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 4455617 Door Liner
2 Hinge, Door
8300569 Right Hand
8300570 Left Hand
(White & Black
Models)
8300571 Right Hand
8300572 Left Hand
(Black StainlessModel)
4449743 Screw
3 4449253 Glass, Inner
4 4451721 Insulation, Door
5 8300777 Retainer, Glass
4449809 Screw
7 4455256 Glass, Inner
4449809 Screw
10 4449257 Glass, Inner
13 Door Handle
4448405 Black Model
4448406 White Model
8300255 Biscuit Model
14 4450813 Bracket,Handle
4451040 Screw
3400832 Screw
18 Assy.,Door Glass
4452062 Black Model
4452063 White Model
8300257 Biscuit Model
4452478 Black StainlessModel
19 4450361 Shield, Heat
4449809 Screw
20 4451668 Retainer, Glass
4449809 Screw
21 8300819 Seal, Door Top
23 Retainer, Clip
4450863 Black Model
4450864 White & Biscuit
Model
3400832 Screw
LATCH PARTS
5
For Models:GMC275PDB6, GMC275PDQ6, GMC275PDS6, GMC275PDT6
(Black) (White) (Black Stainless) (Biscuit)
8185830
Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
1 4451759 Vent, Exhaust
4449040 Screw
2 4455178 Elbow Vent−Top
3 4455177 Elbow Vent−Bottom
9 4450407 Baffle, Rear
4449809 Screw
10 4451896 Latch Assy.
11 4452224 Solenoid
12 4452312 Micro Switch N.C.
13 4451426 Micro Switch
14 4451537 Spring, Leaf
4449154 Screw
16 6610168 Blower
21 4451758 Seal, Foam
22 4455191 Plate, Blower
6
INTERNAL OVEN PARTS
For Models:GMC275PDB6, GMC275PDQ6, GMC275PDS6, GMC275PDT6
(Black) (White) (Black Stainless) (Biscuit)
8185830
Illus. Part
No. No. DESCRIPTION
2 4452154 Element, Broil
4449154 Screw
3 3147563 Grill, Broiler
4 3147845 Pan, Broiler
6 4448715 Rack, Oven
7 4452153 Element, Bake
CABINET AND STIRRER PARTS
7
For Models:GMC275PDB6, GMC275PDQ6, GMC275PDS6, GMC275PDT6
(Black) (White) (Black Stainless) (Biscuit)
8185830
CABINET AND STIRRER PARTS
8
For Models:GMC275PDB6, GMC275PDQ6, GMC275PDS6, GMC275PDT6
(Black) (White) (Black Stainless) (Biscuit)
8185830
Illus. Part
No. No. DESCRIPTION
1 4375299 Bracket, Capacitor
3 4375037 Rubber Ring
4 4375038 Screw
5 4375314 Air Duct,
Magnetron
11 4375315 Damper
12 4375260 Duct, Inlet
13 4375316 Insulation, Switch
14 4375322 Fan Wheel
15 4375317 Duct, Air
16 4375264 Block, Slide
17 4375248 Cover Plate, Upper
19 4375318 Lens, Lamp
20 4375319 Spring
21 4375320 Reflector
25 4375020 Capacitor
26 4375072 Magnetron
27 4375321 Fuse
28 4375231 Block, Fuse
29 4375278 Motor, Blower
30 4375279 Thermostat
31 4375079 Thermostat
34 4375286 Transformer
35 Hinge, Door
4375323 Left
4375324 Right
36 4451008 Torsion Spring
37 Bracket, Hinge
4375327 Left
4375328 Right
38 4375329 Inlet
39 4375331 Door Strap
40 4375333 Fan Cap
41 4375334 Fan Cap Bottom
42 Holder, Switch
4375335 Left
4375336 Right
43 4375337 Isolation Plate
44 4375338 Cover Plate
45 4375339 Plate, Door
46 4375340 Inner Frame
47 Side Plate
4375341 Right
4375342 Left
48 4375343 Turntable
49 4375344 Ring Assembly
50 4375345 Shaft
51 4375346 Switch
52 4375347 Motor, Turntable
53 4375348 Lamp
54 4375349 Rectifier
55 4375350 Cable
56 4375351 Holder, Lamp
MICROWAVE DOOR PARTS
9
For Models:GMC275PDB6, GMC275PDQ6, GMC275PDS6, GMC275PDT6
(Black) (White) (Black Stainless) (Biscuit)
8185830
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
NOTE: The screws and nuts
required to attach a part are
listed immediately following
that part.
9 4450834 Glass, Middle
10 4450945 Frame, Door
14 Bracket, Mounting
4449141 Right Side
4449142 Left Side
4449809 Screw
15 4449083 Filler, Side
4449809 Screw
16 Handle, Door
4448405 Black Model
4448406 White Model
17 Glass, Outer
4450379 Black Model
4451219 White Model
4452470 Black Stainless
8300523 Biscuit Model
24 4452330 Bracket, Handle
4451040 Screw
25 Retainer, Glass−Clip
4450863 Black Model
4450864 White Model
MICROWAVE COMPARTMENT PARTS
10
For Models:GMC275PDB6, GMC275PDQ6, GMC275PDS6, GMC275PDT6
(Black) (White) (Black Stainless) (Biscuit)
8185830
Illus. Part
No. No. DESCRIPTION
5 Support Rails
4452551 Right Side
4452552 Left Side
4449809 Screw
11 4452547 Rear Channel
4449809 Screw
4449154 Screw
