Whirlpool GMC305PRS02 Bedienungsanleitung

OVEN PARTS

For Models:GMC305PRS02

(Stainless)

3−08 Litho in U.S.A. (amd) Part No. W10163659 Rev. A

30" BUILT−IN ELECTRIC

COMBO

SENSOR/SC

(GOLD LINE)

OVEN PARTS

For Models:GMC305PRS02

(Stainless)

W10163659

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

Installation

Instructions

8303655 English

8303780 French

Use & Care Guide

(Microwave)

8304078 English

8304082 French

Use & Care Guide

(Oven)

8304077 English

8304081 French

8304173 Tech Sheet (Oven)

Safer Cooking Tips

3191638 English

9759133 French

2 Trim, Side

W10145006

Right

W10145007

Left

3 Hinge, Receiver

4455606 Right

4455605 Left

W10105790

Bumper, Door

5 4448444 Grommet, Mounting

Rail

6 4452490 Spacer, Foam

7 8303099 Top, Chassis

8 4449809 Screw

9 4452158 Tube, Vent

W10067870

Lens, Light

W10009930

Assembly, Oven

Light

12 4452166 Bulb, Light

13 8300791 Bracket, Combo

W10130368

Frame, Front

15 4455382 Gasket, Door

16 3400832 Screw

17 3196176 Screw

18 4452152 Bracket, Mounting

19 4451478 Support, Insulation

21 Rail, Side

8303117 Right

8303118 Left

22 4449040 Screw

23 4449743 Screw

24 4449154 Screw

25 4455641 Side, Chassis

26 4452234 Back, Chassis

27 Liner, Oven

(Not Serviceable)

29 4455636 Sensor

30 4449845 Bracket, Support

31 4450038 Screw

33 9760677 Deflector, Vent

34 8302592 Vent, Center

35 4449906 Ext−Filler

37 9759243 Thermostat (TOD)

43 9759713 Base, Chassis

49 4448933 Retainer, Gasket

50 4451747 Cover, Back

W10145001

Trim, Vent

Bottom

52 8303502 Vent, Control

53 4451756 Chassis, Back

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449316 Insulation, Wrap

4450365 Insulation, Back

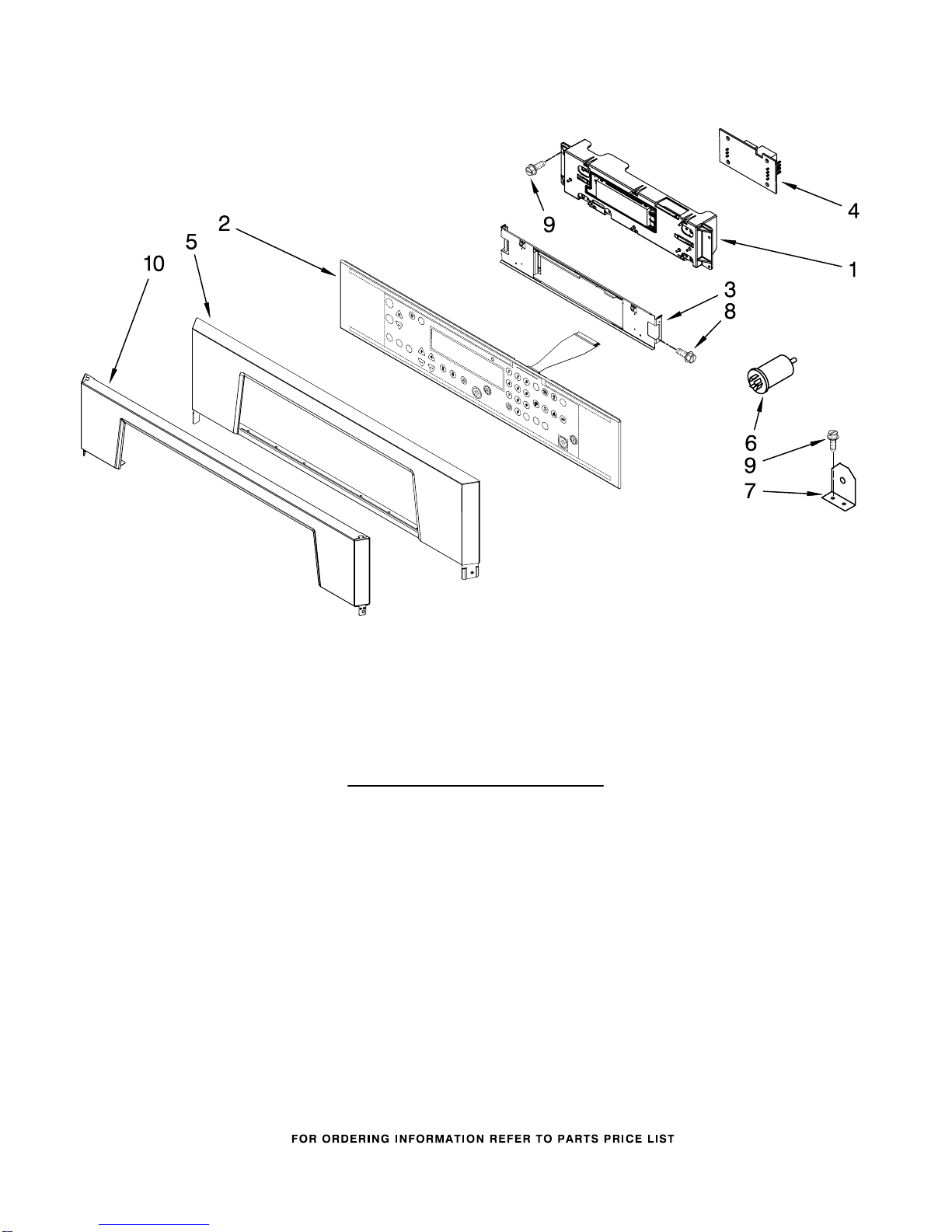

CONTROL PANEL PARTS

For Models:GMC305PRS02

(Stainless)

W10163659

Illus. Part

No. No. DESCRIPTION

W10105800

Assembly, Control

2 8303948 Assembly, Switch

W10153086

Backer, Control

4 8301848 Board, Motorized

Latch

5 8302848 Control Panel

6 4451592 Filter

7 4451632 Bracket, Filter

8 4449745 Screw

9 4449809 Screw

W10144998

Trim, Cooktop

OVEN DOOR PARTS

For Models:GMC305PRS02

(Stainless)

W10163659

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 9759413 Panel, Door

2 Hinge, Door

9760577 Right

9760578 Left

3 4449259 Glass, Inner

4 4451722 Insulation, Door

And Bottom Door

5 4457132 Retainer, Glass

6 4449809 Screw

7 9759225 Glass, Inner

8 4451040 Screw

9 9759228 Glass, Inner

Door

8303389BL

Clip, Door

11 Wings

W10144995

Right

W10144994

Left

W10151080

Assembly, Door

Glass

13 8303164 Handle, Door

W10136473

Bracket, Handle

15 9759229 Bracket(2nd Glass)

16 9759230 Bracket(3rd Glass)

19 4457103 Shield, Heat

22 4457114 Shield, Heat

Bottom

LATCH PARTS

For Models:GMC305PRS02

(Stainless)

W10163659

Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4449040 Screw

3 4451758 Seal, Foam

4 4450408 Baffle, Rear

5 4449154 Screw

6 9760888 Latch, Motorized

8 4455178 Vent, Top

9 4455177 Vent, Bottom

INTERNAL OVEN PARTS

For Models:GMC305PRS02

(Stainless)

W10163659

Illus. Part

No. No. DESCRIPTION

1 9760771 Element, Broil

2 4449154 Screw

3 4448717 Rack, Oven

4 9760766 Element,

Convention Bake

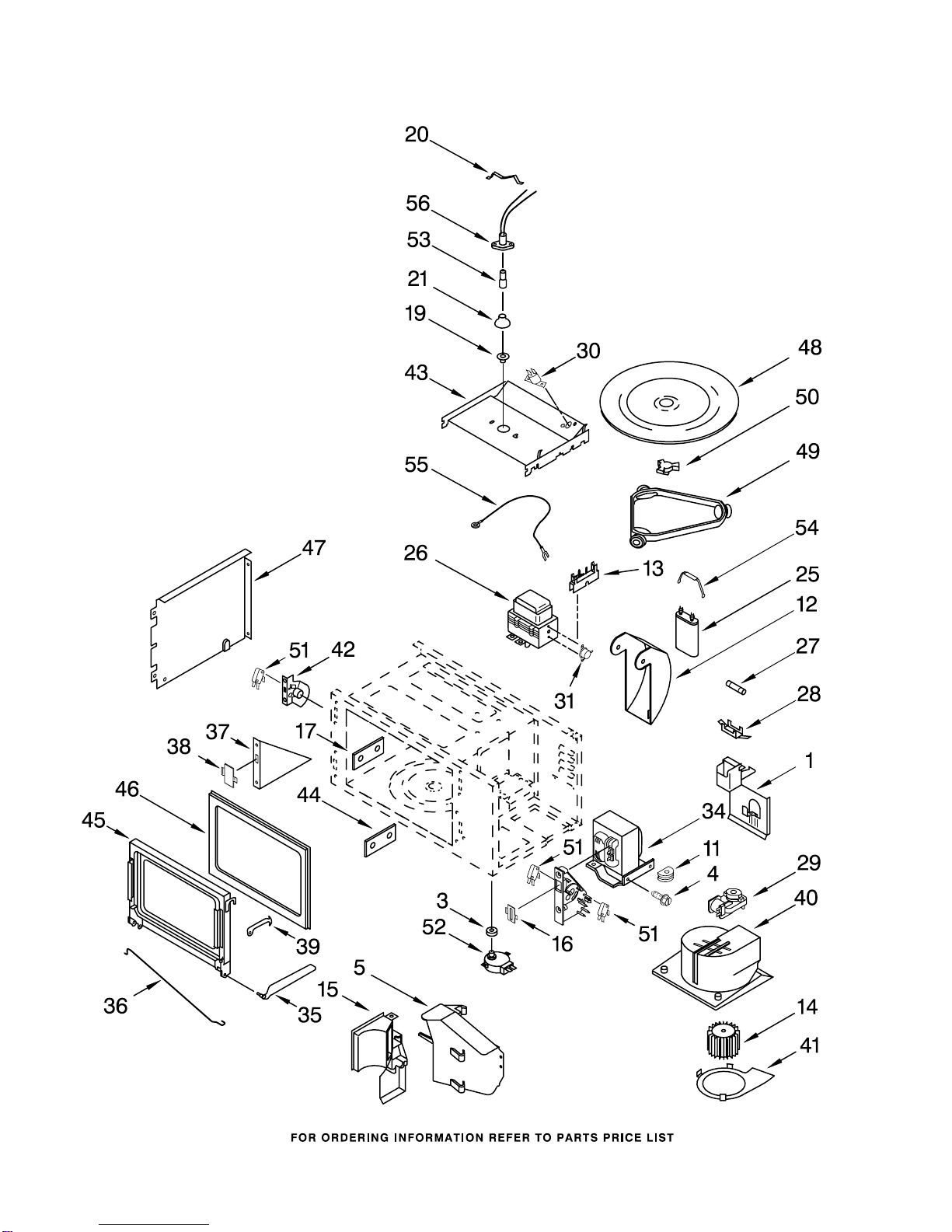

CABINET AND STIRRER PARTS

For Models:GMC305PRS02

(Stainless)

W10163659

CABINET AND STIRRER PARTS

For Models:GMC305PRS02

(Stainless)

W10163659

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4375299 Bracket, Capacitor

3 4375037 Rubber Ring

4 4375038 Screw

5 4375314 Air Duct,

Magnetron

11 4375315 Damper

12 4375260 Duct, Inlet

13 4375316 Insulation, Switch

14 4375322 Fan Wheel

15 4375317 Duct, Air

16 4375264 Block, Side

17 4375248 Cover Plate, Upper

19 4375318 Lens, Lamp

20 4375319 Spring

21 4375320 Reflector

25 4375020 Capacitor

26 4375072 Magnetron

27 4375321 Fuse

28 4375231 Block, Fuse

29 4375278 Motor, Blower

30 4375279 Thermostat

31 4375079 Thermostat

34 4375286 Transformer

35 Hinge, Door

4375323 Left

4375324 Right

36 4451009 Torison Spring

37 Bracket, Hinge

4375327 Left

4375328 Right

38 4375329 Inlet

39 4375330 Door Strap

40 4375333 Fan Cap

41 4375334 Fan Cap Bottom

42 Switch Holder

4375335 Left

4375336 Right

43 4375337 Isolation Plate

44 4375338 Cover Plate

45 4375339 Door Plate

46 4375340 Inner Frame

47 Side Plate

4375341 Left

4375342 Right

48 4455915 Turntable

49 4375344 Ring Assembly

50 4375345 Shaft

51 4375346 Switch

52 4375347 Motor, Turntable

53 4375348 Lamp

54 4375349 Rectifier

55 4375350 Cable

56 4375351 Lamp Holder

MICROWAVE COMPARTMENT PARTS

For Models:GMC305PRS02

(Stainless)

W10163659

Illus. Part

No. No. DESCRIPTION

1 Support Rails

4452551 Right

4452552 Left

2 4449809 Screw

3 4452548 Rear Channel

MICROWAVE DOOR PARTS

For Models:GMC305PRS02

(Stainless)

W10163659

Illus. Part

No. No. DESCRIPTION

1 8303810 Nameplate

2 4450834 Glass, Middle

3 8303556 Frame, Door

4 4450038 Screw

5 Bracket, Mounting

4449141 Right

4449142 Left

6 4449809 Screw

7 Filler, Side

4449083 Right

4449086 Left

8 8303164 Handle, Door

W10151072

Glass, Outer

10 8303169 Bracket, Handle

11 4451040 Screw
