LOWER OVEN

Self-Cleaning

Model RM278BXV

Contents

BEFOREYOU USEYOUROVEN

IMPORTANT SAFETY

INSTRUCTIONS

PARTSAND FEATURES

USING YOUR LOWEROVEN..

Setting the Clock

Using the Minute Timer

Using the Lower Oven

Baking

Adjusting the Oven

Temperature Control

Broiling

Using the Automatic

MEALTIMER’ Control

Page2

Oven Vent

Optional Rotisserie

Optional Door Panel Pat

CARING FOR YOUR

LOWEROVEN

Control Panel and Knobs

Using the Self-Cleaning

Cycle

Cleaning Chart

Lower Oven Light

IF YOU NEEDSERVICE OR

ASSISTANCE

WHIRLPOOL RANGE

WARRANTY

Page

‘Tmk.

01988 Whirlpool Corporation

Before you useyour oven

Read and carefully follow the Installation Instructions packed with

your oven.

Read this Use & Care Guide and your Cooking Guide carefully for important

use and safety information. Store these with the upper microwave oven

literature in a convenient place for future use.

It is Your personal responsibility and obligation to be sure your oven:

Has been installed where it is protected from the elements.

Has been installed and leveled in a wall or cabinet that will hold the weight.

Has been properly connected to electrical supply and grounded.

[See Installation Instructions.)

Is not used by anyone unable to operate it properly.

Is properly maintained.

Is used only for jobs expected of a home oven.

See the Cooking Guide and Upper Microwave Oven Use & Care Guide

for important safety and use information.

IMPORTANT

SAFETY INSTRUCTIONS

NOT

allow children to use or

Let steam and hot air escape

play with any part of the oven, or from the oven before removing

leave them unattended near it. food to prevent burns.

They could be burned or injured. 4.

DO NOT

use the oven to heat a

DO NOT

store things children room. Persons in the room could

might want above the oven. Chil- be burned or injured, or a fire

dren could be burned or injured could start.

while climbing on the door and

the door could be damaged. 5.

DO NOT

wear loose or hanging

3. KEEP

children away from the garments when using the oven.

They could ignite if they touch a

oven when it is on. The oven walls, heating element and you could

racks and door can get hot be burned.

enough to cause burns.

Put oven racks where you 6.

DO NOT

heat unopened.con-

want them before turning on tainers, they could explode. The

the oven. Heated racks hot contents could burn you

could cause severe bums. and container particles could

Do not touch any part of the cause injury

oven, especially the heating 7. When adding or removing food.

elements, until you know they

MAKE SURE

to open the oven

are completely cool. Dark ele- door all the way to prevent burns.

ments can still be hot enough

to cause severe burns.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THEY COULD

IGNITE CAUSING EXPLOSION AND/OR FIRE.

- SAW THESE INSTRUCTIONS -

Thank you tor buying a Whirlpool appliance. Please complete and mail

the Owner Reglstratlon Card provided with this product.

Then complete

the form below Have this information ready if you need service or call with

a question.

Copy model and serial numbers

from plate (behind the micro-

wave oven door] and purchase

date from sales slip.

Model Number

Serlal Number

Keep this book and sales slip to-

gether in a handy place.

Purchase Date

Service Company Phone Number

Parts and features

Model RM278BXV

LOWER OVEN

MODEL AND

SERIAL NUMBER

PLATE (behlnd

oven door)

OVEN VENT-

LOCK LEVER

-- _.. -- -..

COVER PANEL III fi-

UPPER

MICROWAVE

OVEN CONTROLS

1 LOWER OVEN

CONTROLS

‘AUTOMATIC OVEN

LIGHT SWITCH

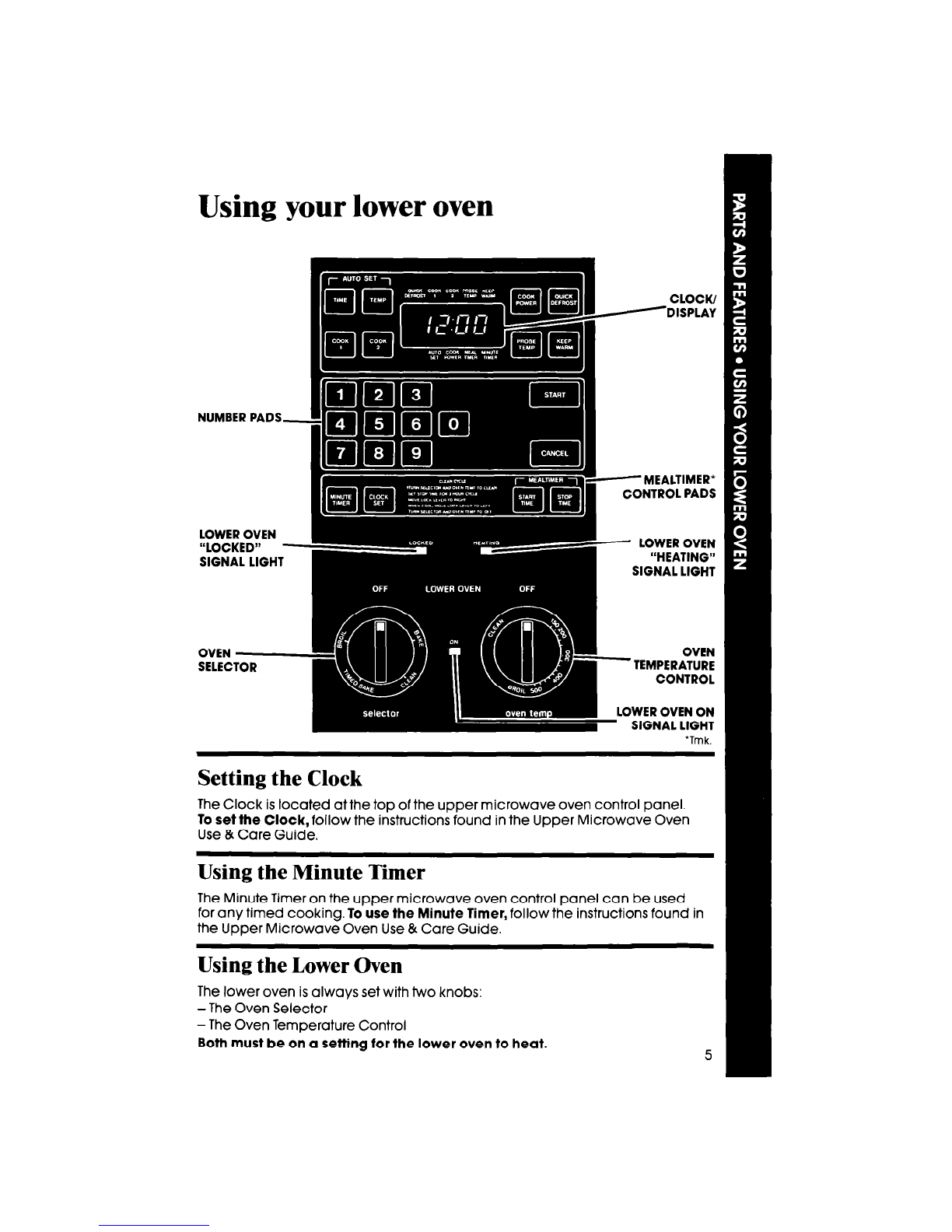

Using your lower oven

CLOCK/

-DISPLAY

NUMBER PADS,

- MEALTIMER*

CONTROL PADS

LOWER OVEN

“LOCKED” -

SIGNAL LIGHT

OVEN -

SELECTOR

- LOWER OVEN

“HEATING”

SIGNAL LIGHT

OVEN

- TEMPERATURE

CONTROL

LOWER OVEN ON

= SIGNAL LIGHT

Setting the Clock

The Clock is located at the top of the upper microwave oven control panel.

set the Clock,

follow the instructions found in the Upper Microwave Oven

Use & Care Guide.

Using the Minute Timer

The Minute Timer on the upper microwave oven control panel can be used

for any timed cooking.

To use the Minute Timer,

follow the instructions found in

the Upper Microwave Oven Use & Care Guide.

Using the Lower Oven

The lower oven is always set with two knobs:

-The Oven Selector

-The Oven Temperature Control

Both must be on a setting for the lower oven to heat. 5

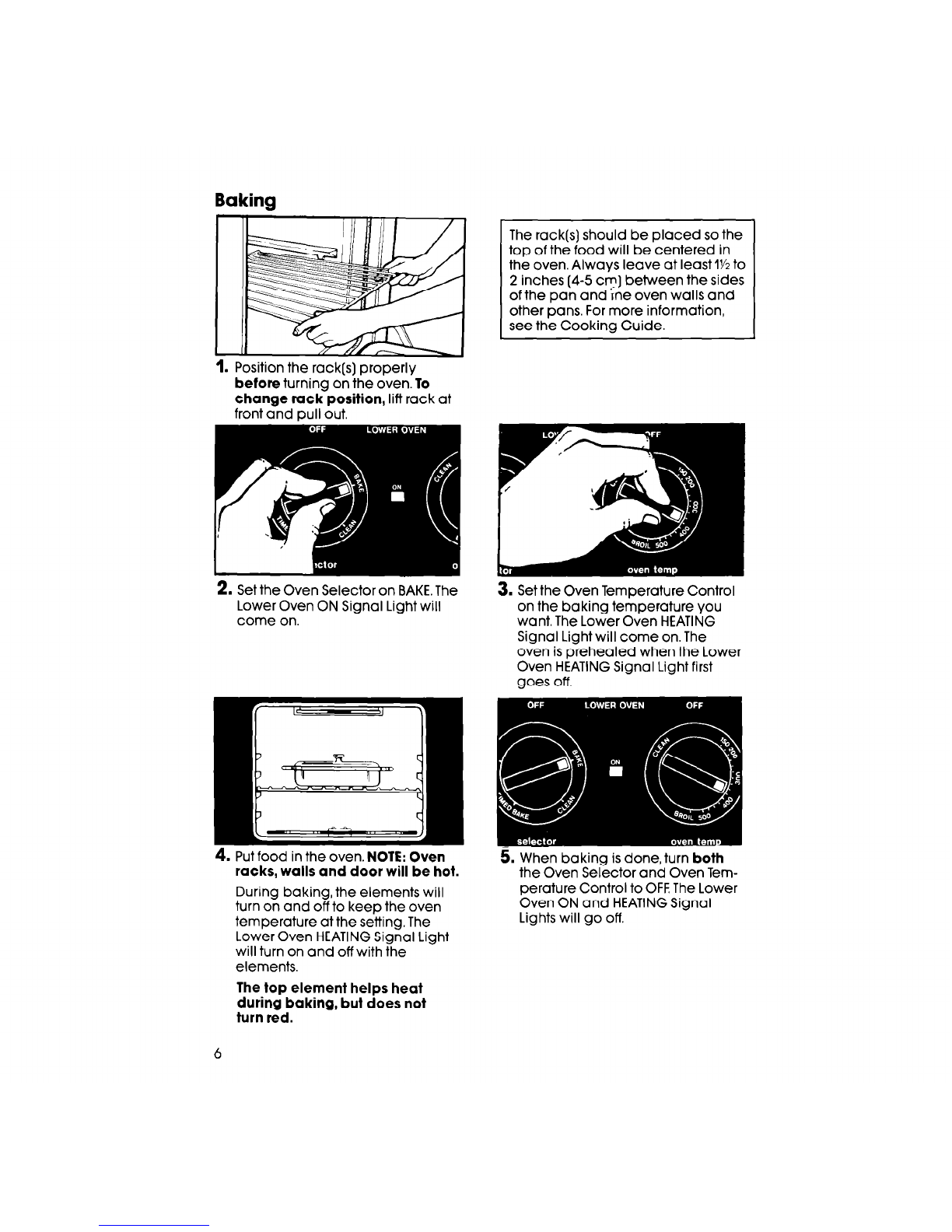

Baking

Position the rack(s) properly

before

turning on the oven.

change rack position,

lift rack at

front and pull out.

2. Set the Oven Selector on BAKE. The

Lower Oven ON Signal Light will

come on.

Put food in the oven.

NOTE:Oven

racks, walls and door will be hot.

During baking, the elements will

turn on and off to keep the oven

temperature at the setting. The

Lower Oven HEATING Signal Light

will turn on and off with the

elements.

The top element helps heat

during baking, but does not

turn red.

The rack(s) should be placed so the

top of the food will be centered in

the oven. Always leave at least 1%to

2 inches (4-5 cm] between the sides

of the pan and rne oven walls and

other pans. For more information,

see the Cooking Guide.

3. Set the Oven Temperature Control

on the baking temperature you

want. The Lower Oven HEATING

Signal Light will come on. The

oven is preheated when the Lower

Oven HEATING Signal Light first

goes off.

When baking is done, turn

both

the Oven Selector

and

Oven Tem-

perature Control to OFF.The Lower

Oven ON and HEATING Signal

Lights will go off.

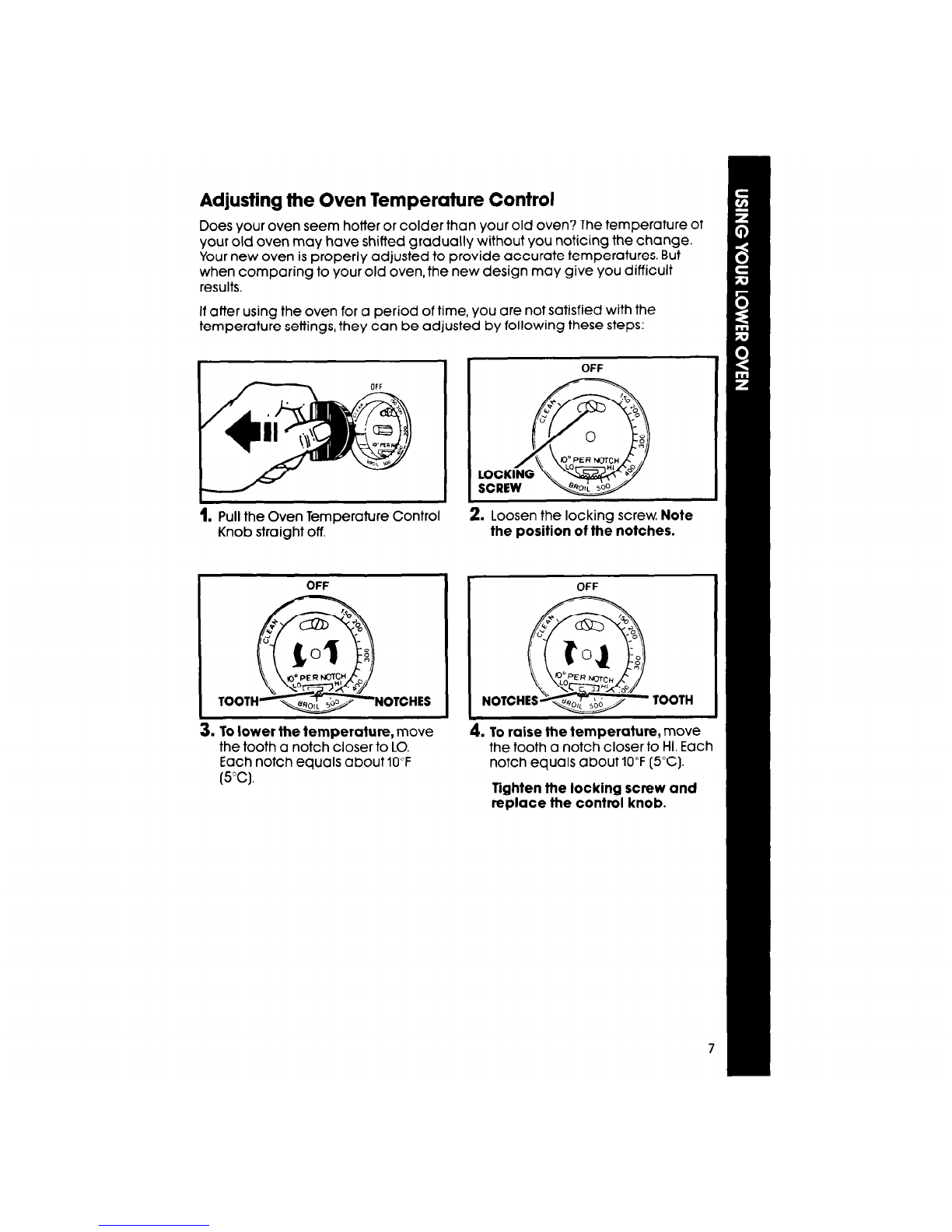

Adjusting the Oven Temperature Control

Does your oven seem hotter or colder than your old oven? The temperature of

your old oven may have shifted gradually without you noticing the change.

Your new oven is properly adjusted to provide accurate temperatures. But

when comparing to your old oven, the new design may give you difficult

results.

If after using the oven for a period of time, you are not satisfied with the

temperature settings, they can be adjusted by following these steps:

Pull the Oven Temperature Control

Knob straight off.

OFF

TOOT NOTCHES

#.To lower the temperature,

move

the tooth a notch closer to LO.

Each notch equals about 10°F

(5°C).

OFF

2. Loosen the locking screw

Note

the position of the notches.

OFF

TOOTH

4. To raise the temperature,

move

the tooth a notch closer to HI. Each

notch equals about 10°F (5°C).

Tighten the locking screw and

replace the control knob.

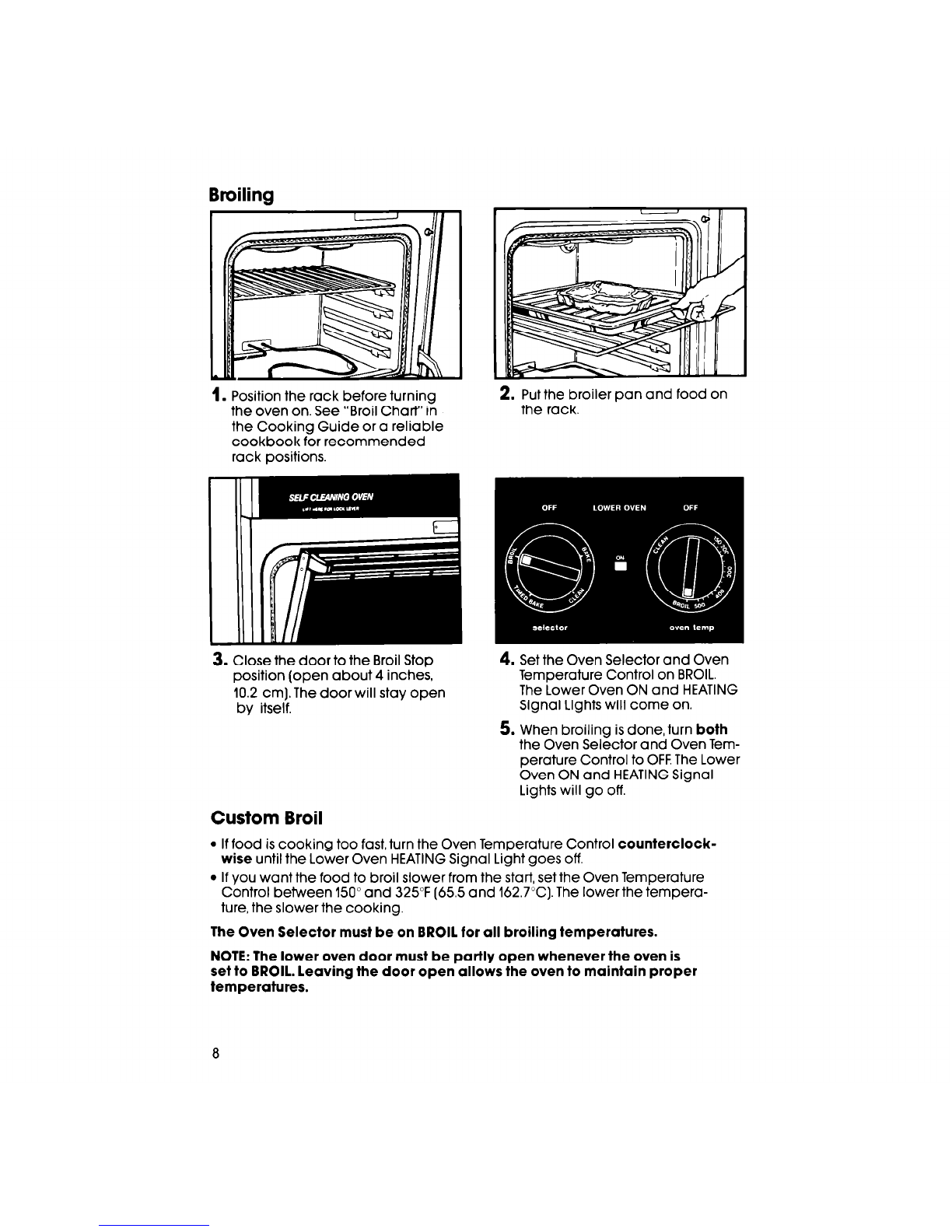

Broiling

Position the rack before turning

the oven on. See “Broil Chart” in

the Cooking Guide or a reliable

cookbook for recommended

rack positions.

2. Put the broiler pan and food on

the rack.

3. Close the door to the Broil Stop

position (open about 4 inches,

10.2 cm]. The door will stay open

by itself.

4. Set the Oven Selector and Oven

Temperature Control on BROIL.

The Lower Oven ON and HEATING

Signal Lights will come on.

5. When broiling is done, turn

both

the Oven Selector and Oven Tem-

perature Control to OFF.The Lower

Oven ON and HEATING Signal

Lights will go off.

Custom Broil

If food is cooking too fast, turn the Oven Temperature Control

counterclock-

wise

until the Lower Oven HEATING Signal Light goes off.

If you want the food to broil slower from the start, set the Oven Temperature

Control between 150” and 325°F (65.5 and 162.7”C). The lower the tempera-

ture, the slower the cooking.

The Oven Selector must be on BROIL for all broiling temperatures.

NOTE:The lower oven door must be partly open whenever the oven is

set to BROIL. leaving the door open allows the oven to maintain proper

temperatures.

Using the Automatic MEALTIMER* Control

The automatic MEALTIMER’ control will turn the lower oven on and off at times

you set...even when you are not around.

Automatic baking is ideal for foods which do not require a preheated oven,

such as meats and casseroles,

Do not use the automatic cycle for cakes,

cookies, etc...undercooking will result.

To start and stop baking

automatically:

Position the oven rack(s) properly

and place the food in the oven.

3. ;;;;e Oven Selector on TIMED

2. Make sure the clock is set to the

right time of day. (See

the Upper

Microwave Oven Use & Care

Guide for setting instructions.]

4. Set the Oven Temperature Control

on the baking temperature you

want.

5. Touch the STARTTIME Pad. Then

touch the Number Pads for the

time you want baking to start.

(Option:

Skip this step if you want

to start baking immediately.)

6. Touch the STOP TIME Pad. Then

touch the Number Pads for the

time you want baking to stop.

continued on next page 9

7. Touch START.The oven will now

start and stop automatically.

After baking is done or to stop

the oven before preset time,

turn

both the Oven Selector and Oven

Temperature Control to OFF

To cancel the MEALTIMER* conirtil

settings:

1. Touch STOP TIME.

Touch CANCEL.

3. Turn the Oven Selector and Oven

Temperature Control to OFF

The Oven Vent

Hot air and moisture escape from the

lower oven through a vent just above

the lower oven door.

Do not block

the vent.

Poor baking can result.

Inhaltsverzeichnis

Andere Whirlpool Ofen Handbücher

Whirlpool

Whirlpool GW395LEPB01 Bedienungsanleitung

Whirlpool

Whirlpool AKP 402 Bedienungsanleitung

Whirlpool

Whirlpool GBD307PD Bedienungsanleitung

Whirlpool

Whirlpool AKZM 755/IX Betriebsanleitung

Whirlpool

Whirlpool RB770PXT Bedienungsanleitung

Whirlpool

Whirlpool AKP 951 Bedienungsanleitung

Whirlpool

Whirlpool GGE350LWB Bedienungsanleitung

Whirlpool

Whirlpool AKZ9 6230 NB Bedienungsanleitung

Whirlpool

Whirlpool 24" (61.0 CM) GAS SINGLEAND DOUBLE BUILT-IN... Bedienungsanleitung

Whirlpool

Whirlpool RM235PXL Bedienungsanleitung

Whirlpool

Whirlpool AKZM 756/IX Betriebsanleitung

Whirlpool

Whirlpool 702.259.11 Bedienungs- und Montageanleitung

Whirlpool

Whirlpool RS610PXGV8 Bedienungsanleitung

Whirlpool

Whirlpool 6AKZ 148 Bedienungsanleitung

Whirlpool

Whirlpool RB16 PXB Bedienungsanleitung

Whirlpool

Whirlpool AKP 7460 IX Betriebsanleitung

Whirlpool

Whirlpool AKZ 558 Betriebsanleitung

Whirlpool

Whirlpool 3183635 Bedienungsanleitung

Whirlpool

Whirlpool AKZM 760 Betriebsanleitung

Whirlpool

Whirlpool AKP 290 Abmessungen

Whirlpool

Whirlpool AKP3840PIXAUS Einrichtungshandbuch

Whirlpool

Whirlpool AKZM 8910 Betriebsanleitung

Whirlpool

Whirlpool AKZM 784 Betriebsanleitung

Whirlpool

Whirlpool RM280PXA Bedienungsanleitung

Beliebte Ofen Handbücher anderer Marken

Bosch

Bosch HVA531NS0 Bedienungsanleitung

Electrolux

Electrolux EOF6P46X Bedienungsanleitung

NEFF

NEFF B44S32 5GB Series Bedienungsanleitung

Combi

Combi BLODGETT BC142GDS Bedienungsanleitung

AEG

AEG COMPETENCE 311704300 Bedienungsanleitung

Falcon

Falcon DOMINATOR PLUS G3106 Series Benutzerhandbuch

Rational

Rational SCC WE 61G Bedienungsanleitung

Smeg

Smeg DOSPA38X Installations- und Betriebshandbuch

Electrolux

Electrolux air-o-convect 20 GN 2/1 Bedienungsanleitung

Miele

Miele HR 1954-2 Bedienungsanleitung

KHIND

KHIND OT50 Bedienungsanleitung

Henny Penny

Henny Penny Smoker Box Bedienungsanleitung

Lang

Lang ECOD-AP Bedienungsanleitung

AEG

AEG BEK455310M Bedienungsanleitung

Frigidaire

Frigidaire FNGE90JGR Bedienungsanleitung

Hotpoint

Hotpoint FE9 S831 JSH IX Bedienungsanleitung

GE Advantium SCB2000 Bedienungsanleitung

AEG

AEG DE401301DM Bedienungsanleitung
