COOKTOP PARTS

For Models:RS610PXGW3, RS610PXGN3, RS610PXGV3

(White) (Almond) (Black on Biscuit)

11−02 Litho in U.S.A. (RS) Part No. 8185618

30" DROP−IN

ELECTRIC

STANDARD CLEAN

OVEN

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT3191799

Installation

Instructions

LIT3191537

Use & Care Guide

LIT3192846

Tech Sheet

LIT3191638

Safe Cooking Tips

2 3192459 Burner Box

4 3192575 Bracket, Mounting

5 3196537 Screw, 8−18 x 3/8

7 3192102 Trim, Extension

8 Cooktop

3191168 White

3191169 Almond

8284709 Biscuit

9 3195210 Clip, Receptacle

10 3191228 Panel, Control

11 3183956 Seal, Switch (4)

12 Switch, Infinite

3191471 Use W/ 6" Surface

(Blue Shaft)

3191472 Use W/ 8" Surface

(Silver Shaft)

13 3191491 Light, Indicator

14 3195917 Clip, Element

15 3400855 Screw, 8−32 x 1/4

17 4448444 Grommet

19 Drip Bowl

3195208 6" (2)

3195209 8" (2)

20 Element, Coil

8053265 6" LF−RR

8053267 8" RF−LR

21 3400843 Screw, 8−18 x 3/8

22 3196231 Knob, Control (4)

23 3192330 Bracket, Switch

Mounting

CONTROL PANEL PARTS

For Models:RS610PXGW3, RS610PXGN3, RS610PXGV3

(White) (Almond) (Black on Biscuit)

8185618

Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 4456313 Control Panel Assy.

W/Membrane Switch

4449745 Screw

3400832 Screw

2 4451034 Gasket,

Control Panel

3 4453193 Microcomputer

4449745 Screw

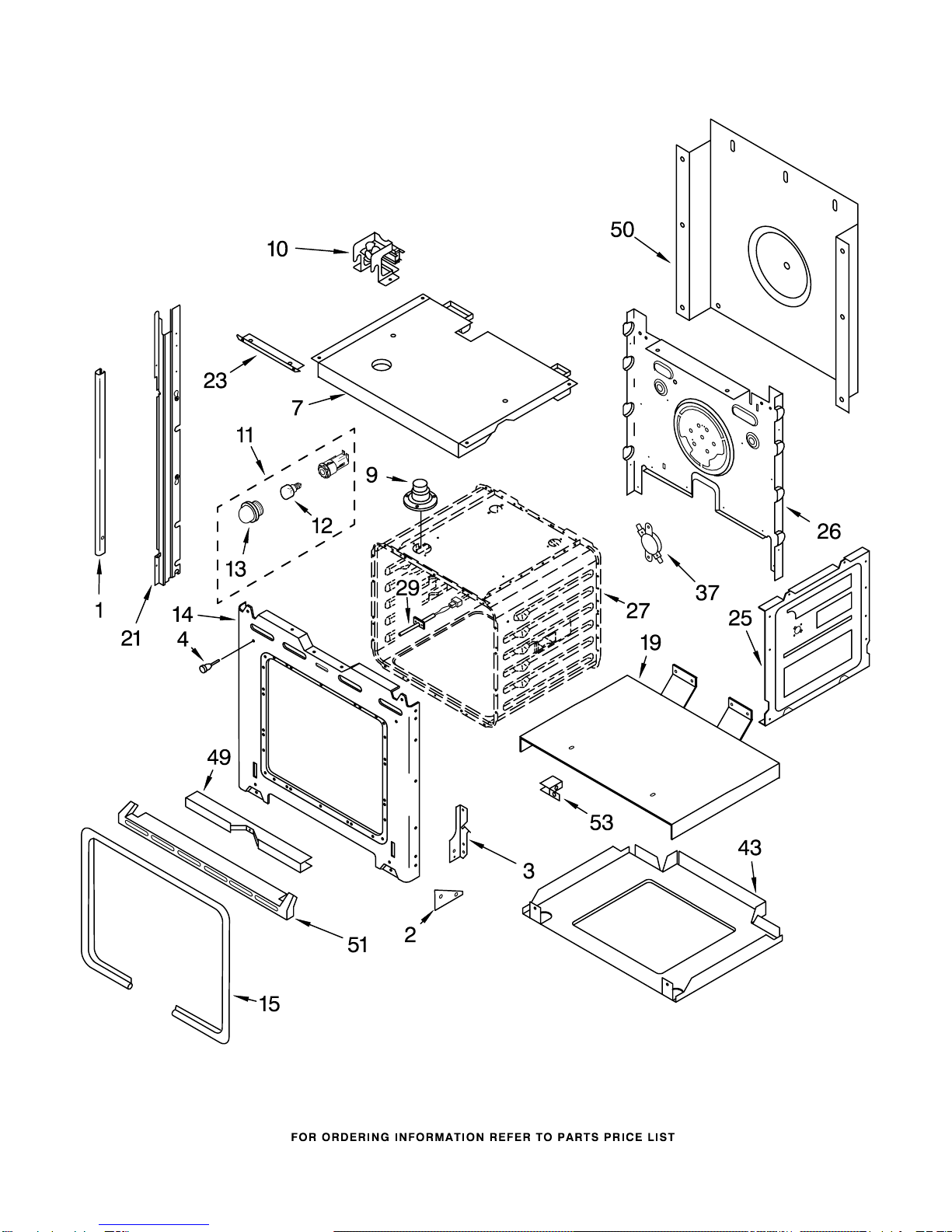

OVEN PARTS

For Models:RS610PXGW3, RS610PXGN3, RS610PXGV3

(White) (Almond) (Black on Biscuit)

8185618

OVEN PARTS

For Models:RS610PXGW3, RS610PXGN3, RS610PXGV3

(White) (Almond) (Black on Biscuit)

8185618

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 Trim, Side

4450844 RH Black

4450847 LH Black

4449747 Screw

2 4455509 Bracket, Support

3 Hinge Receiver

4455722 Left Hand

4455723 Right Hand

4 4448520 Bumper, Door

7 4455286 Top, Chassis

4449809 Screw

9 4452159 Tube, Vent

3196176 Screw

10 4451664 Fan & Bracket Assy

4449809 Screw

11 4452368 Oven Light Assy

12 4452166 Bulb, Light

13 4452165 Lens, Light

14 4451740 Frame, Front

4449040 Screw

4450118 Nut

15 4450493 Gasket, Door

19 4451478 Support, Insulation

4449809 Screw

21 Rail, Side

4450579 Right Side

4450580 Left Side

4448444 Grommet

4449154 Screw

23 4450051 Deflector

4449154 Screw

25 4454691 Side, Chassis

(R.H. & L.H.)

4449809 Screw

26 4452234 Back, Chassis

4449809 Screw

27 Liner, Oven

(Not serviceable)

29 4455636 Sensor

4449154 Screw

37 4451354 Fuse − Thermal

4449809 Screw

43 4455530 Base, Chassis

49 4448933 Retainer

4449154 Screw

50 4451747 Cover, Back

4449809 Screw

51 4448477 Trim, Bottom

53 4449845 Support, Bracket

4449154 Screw

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

4449316 Insulation, Wrap

4450365 Insulation, Back

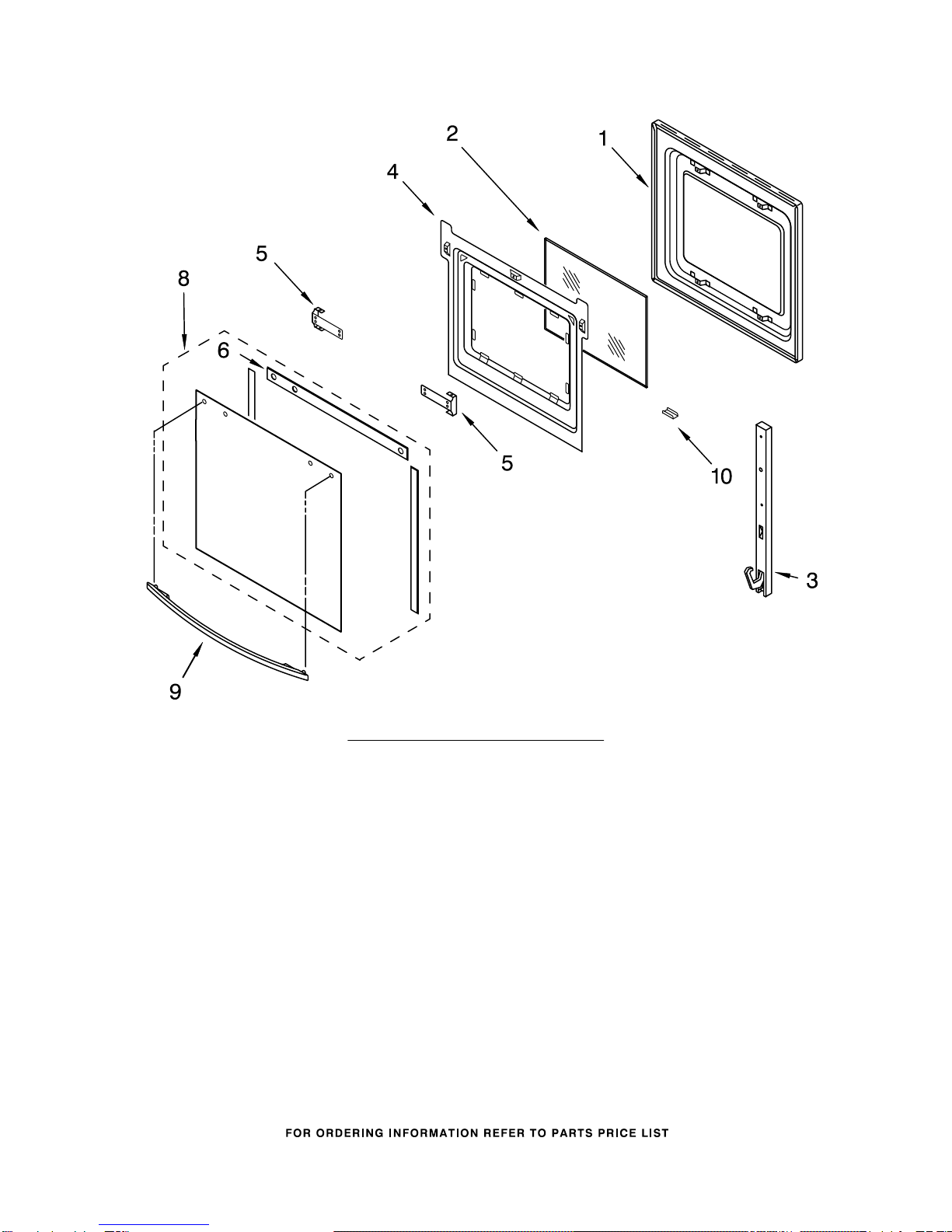

OVEN DOOR PARTS

For Models:RS610PXGW3, RS610PXGN3, RS610PXGV3

(White) (Almond) (Black on Biscuit)

8185618

Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 4451719 Door Liner

2 4449259 Glass, Inner

3 4455523 Hinge, Door

4449743 Screw (4)

4 4451671 Retainer, Glass

4449809 Screw (4)

5 4450813 Bracket, Handle

4451040 Screw (4)

4449743 Screw (2)

6 4451674 Seal, Top

8 4452065 Assy, Door Glass

9 4448854 Handle, Door

10 4450863 Retainer, Glass

4449743 Screw (2)

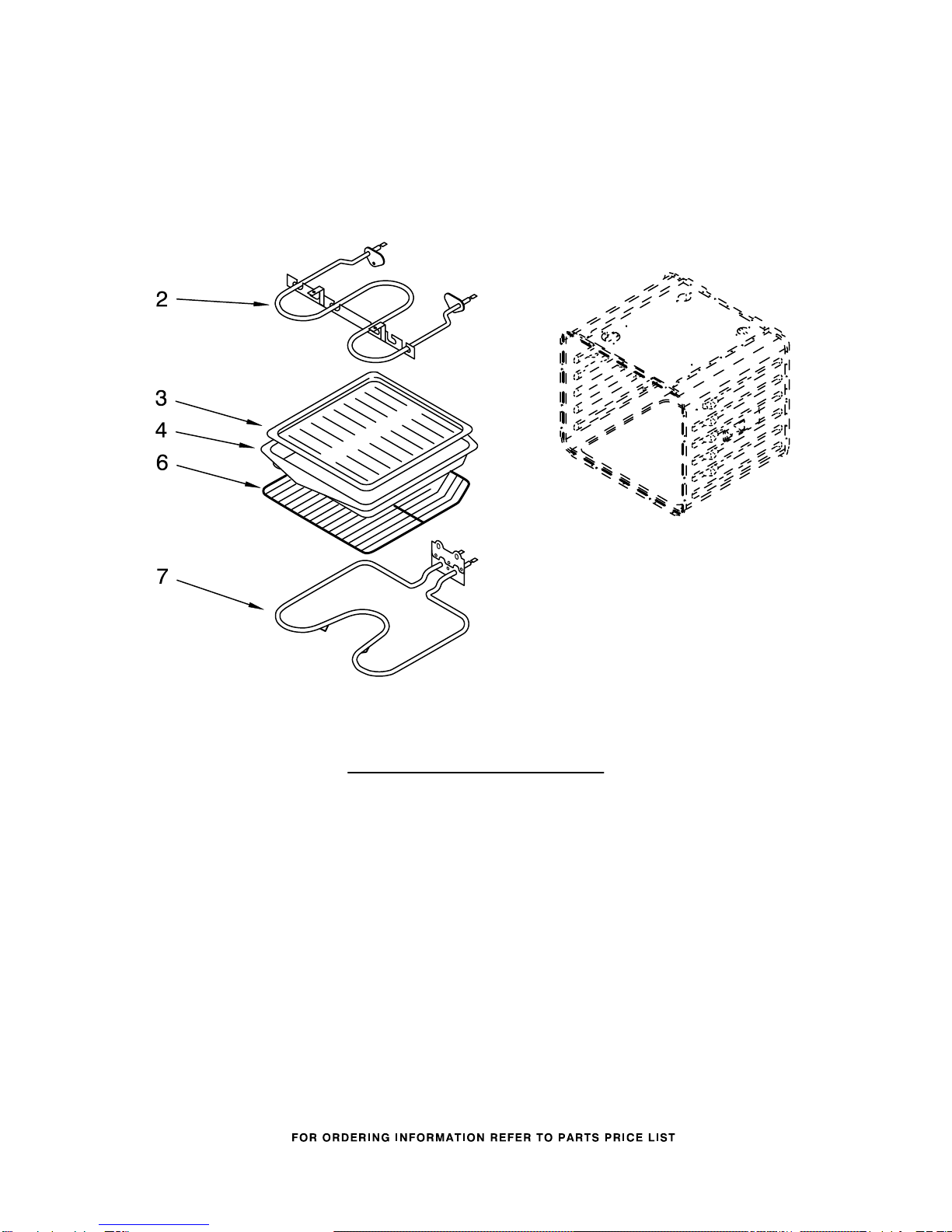

INTERNAL OVEN PARTS

For Models:RS610PXGW3, RS610PXGN3, RS610PXGV3

(White) (Almond) (Black on Biscuit)

8185618

Illus. Part

No. No. DESCRIPTION

2 4452154 Element, Broil

4449154 Screw

3 3147563 Grill, Broiler

4 3147845 Pan, Broiler

6 4448717 Rack, Oven

7 4452153 Element, Bake

4449154 Screw

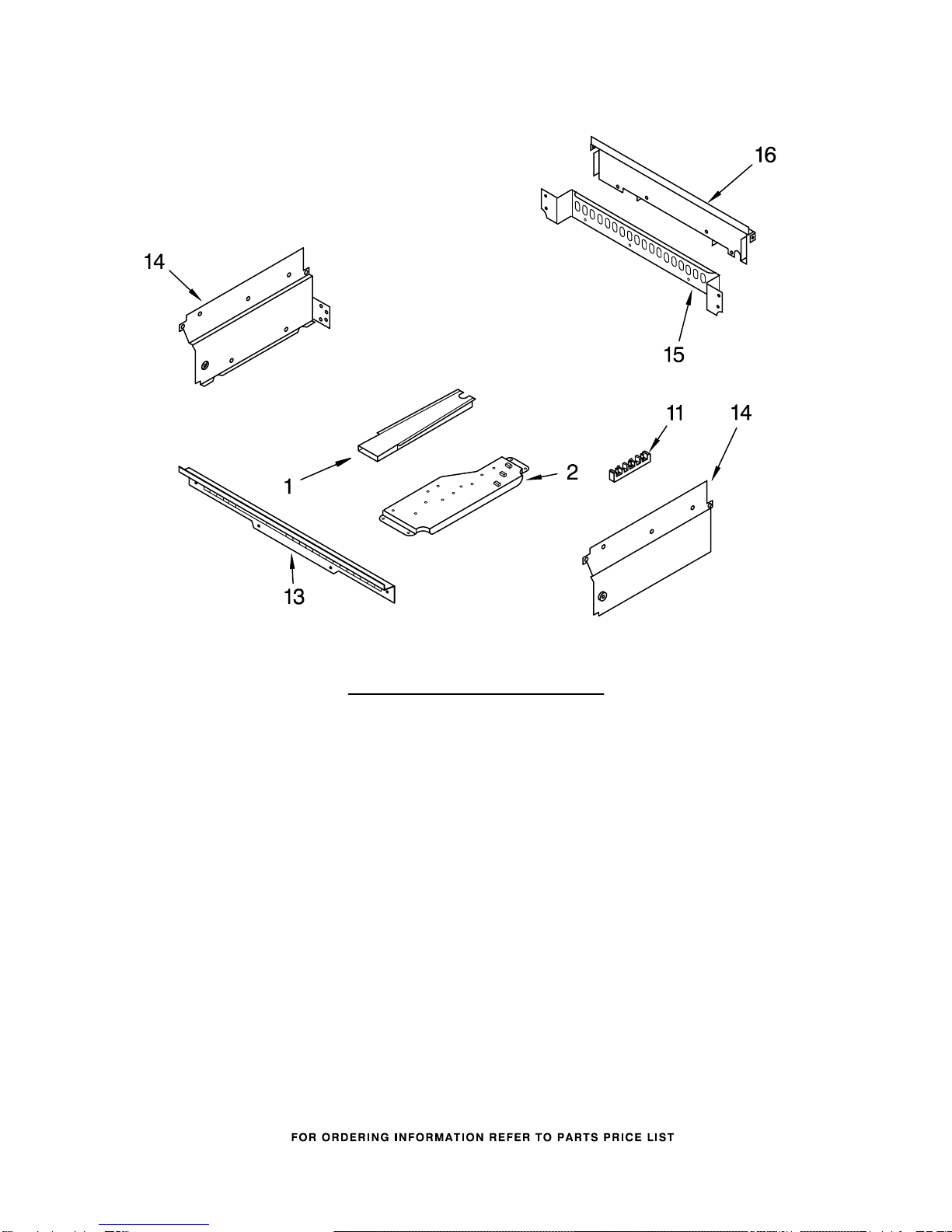

TOP VENTING PARTS

For Models:RS610PXGW3, RS610PXGN3, RS610PXGV3

(White) (Almond) (Black on Biscuit)

8185618

Illus. Part

No. No. DESCRIPTION

NOTE: The screws and nuts

required to attach a part are

listed immediately following

that part.

1 4451759 Vent, Exhaust

4449040 Screw

2 4454943 Plate, Mounting

11 4449868 Block, Terminal

3400080 Screw

112432 Nut

13 4448549 Vent,

(Control Panel)

4450038 Screw

14 Side, Control Compt.

3191832 Right

3191833 Left

4449809 Screw

15 4452244 Back, Control

4449809 Screw

16 3191842 Cover, Rear

4449809 Screw

OPTIONAL PARTS

For Models:RS610PXGW3, RS610PXGN3, RS610PXGV3

(White) (Almond) (Black on Biscuit)

8185618

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

4449809 Screw

3191220 Harness, Wire

(Main)

4455745 Harness, Wire

(EDC)

4451163 Conduit

3400015 Screw, Ground

4448664 Clamp

3192236 Harness, Wire

(Infinite Switch)

4455592 Harness, Wire

(Light)

4454384 Ground, Wire

4452222 Spacer, Harness

4454835 Tie, Cable

Miscellaneous

4448950 Screw, Install.

8−14 x 1" (4)

814381 Hinge Pin Kit
