Whirlpool GS773LXS Betriebsanleitung

30" Freestanding Gas Range

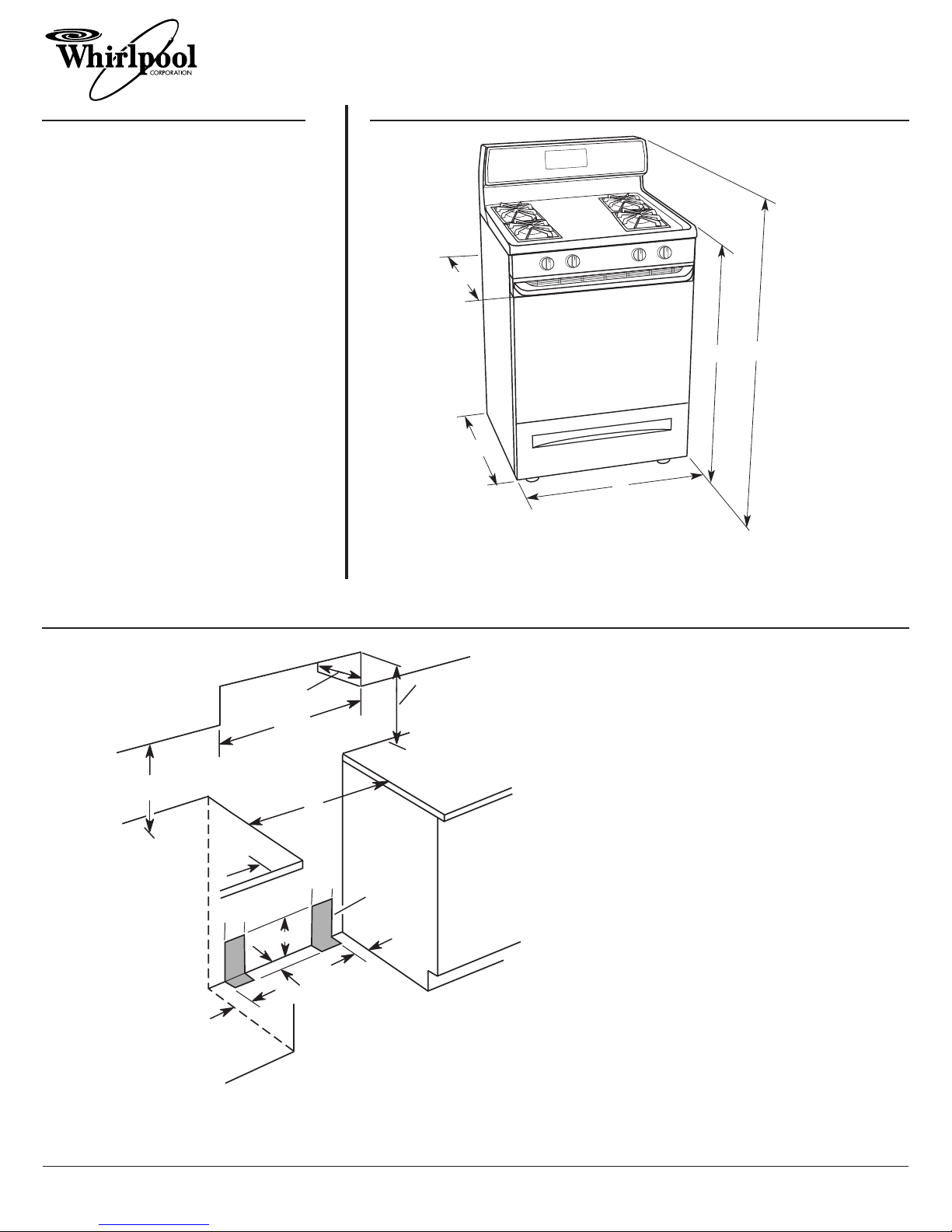

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS

CABINET OPENING DIMENSIONS

GS773LXS

SF262LXS

SF362LXS

SF462LXS

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Gas supply: Use 3/4" (1.9 cm) rigid pipe gas

supply line to the range location. A smaller size

pipe on long runs may result in insufficient gas

supply. With L.P. gas, piping or tubing size can be

1/2" minimum. If local codes permit, a new CSA

design-certified, 4 - 5 ft (122 - 152.4 cm) long,

1/2" (1.3 cm) or 3/4" (1.9 cm) I.D., flexible metal

appliance connector may be used for connecting

range to the gas supply line. A 1/2" (1.3 cm) male

pipe thread is needed for connection to pressure

regulator female pipe threads. An easily accessible

individual manual shutoff valve must be located in

the same room, but external to the range.

Electrical: 120-volt, 60 Hz, AC-only, 15 amp,

fused electrical circuit is required. A separate

circuit is recommended. A time-delay fuse or

circuit breaker is recommended.

Ref. 9762998

02-17-06

A. 27

¹⁄₈

" (68.9 cm) depth with handle

B. 36" (91.4 cm) cooktop height

C. 46

⁷⁄₈

" (119.1 cm) overall height

D. 29

⁷⁄₈

" (75.9 cm) width

E. 25" (63.5 cm)

*NOTE: 24" (61 cm) minimum when bottom of wood or metal

cabinet is protected by not less than ¹⁄₄" (0.64 cm) flame

retardant millboard covered with not less than No. 28 MSG

sheet steel, 0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm)

aluminum or 0.020" (0.5 mm) copper.

30" (76.2 cm) minimum clearance between the top of the

cooking platform and the bottom of an unprotected wood or

metal cabinet.

A. 18" (45.7 cm) upper side cabinet to countertop

B. 13" (33 cm) max. upper cabinet depth

C. 30" (76.2 cm) min. opening width

D. For minimum clearance to top of cooktop, see NOTE*

E. 30

¹⁄₈

" (76.5 cm) min. opening width

F. This shaded area recommended for installation of rigid gas pipe

G. 8" (20.3 cm)

H. 17" (43.2 cm)

I. 4

¹⁄₂

" (11.4 cm)

J. 2" (5.1 cm)

K. 2" (5.0 cm) min. clearance from both sides of range to side wall

or other combustible material.
