SELF-CLEANING ELECTRIC RANGE

PART NO. 3189070 Rev. B

MODELS RF364BBD RF374PXD

‘O/q5

Table of Contents

A Note to You ............................................ 3

Range Safety ......................................... 4-6

Getting to Know Your Range ................... 7

Using Your Range .................................... 8

Using the surface units ......................... 8

Positioning racks and pans ................ 10

For best air circulation ........................ 11

Using aluminum foil for baking ........... 11

The electronic oven control ................ 12

Setting the clock ................................ 13

Using the electronic Minute Timer ....... 13

Starting a function .............................. 15

Canceling a function .......................... 15

Baking/roasting .................................. 15

Adjusting the oven temperature

control ............................................... 17

Broiling .............................................. 18

Broiling tips ........................................ 20

Energy saving tips ............................. 20

The oven vent .................................... 21

The storage drawer ............................ 21

The anti-tip bracket ............................ 22

Optional door panel pat ..................... 22

Using the Self-Cleaning Cycle ............... 23

Before you start ................................. 23

Before setting the controls .................. 24

Setting the controls ............................ 24

Special tips ........................................ 26

How the cycle works .......................... 26

Caring for Your Range ........................... 27

Cleaning the cook-top ......................... 27

Cleaning other range parts.. ................ 29

The oven light .................................... 30

Troubleshooting ..................................... 31

Requesting Assistance or Service ....... .33

Index ....................................................... 35

Warranty ................................................. 36

A Note to You

Thank you for buying a WHIRLPOOL@ appliance.

Because your life is getting busier and more complicated, WHIRLPOOL ranges are easy to

use, save time, and help you manage your home better. To ensure that you enjoy years of

trouble-free operation-, we developed this Use and Care Guide. It is full of valuable informa-

tion about how to operate and maintain your appliance properly and safely. Please read

it carefully.

Also, please complete and mail in the Ownership Registration Card provided with your

appliance. The card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service for

Model Number

your appliance, you need to know your

complete model number and serial number.

Serial Number

You can find this information on the model

Purchase Date

and serial number plate (see diagram on

Dealer Name

page 7 for location of plate).

Please also record the purchase date of

your appliance and your dealer’s name,

address, and telephone number.

Dealer Address

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Assistance Center

number is toll-free 24 hours a day.

l-800-253- 130 1

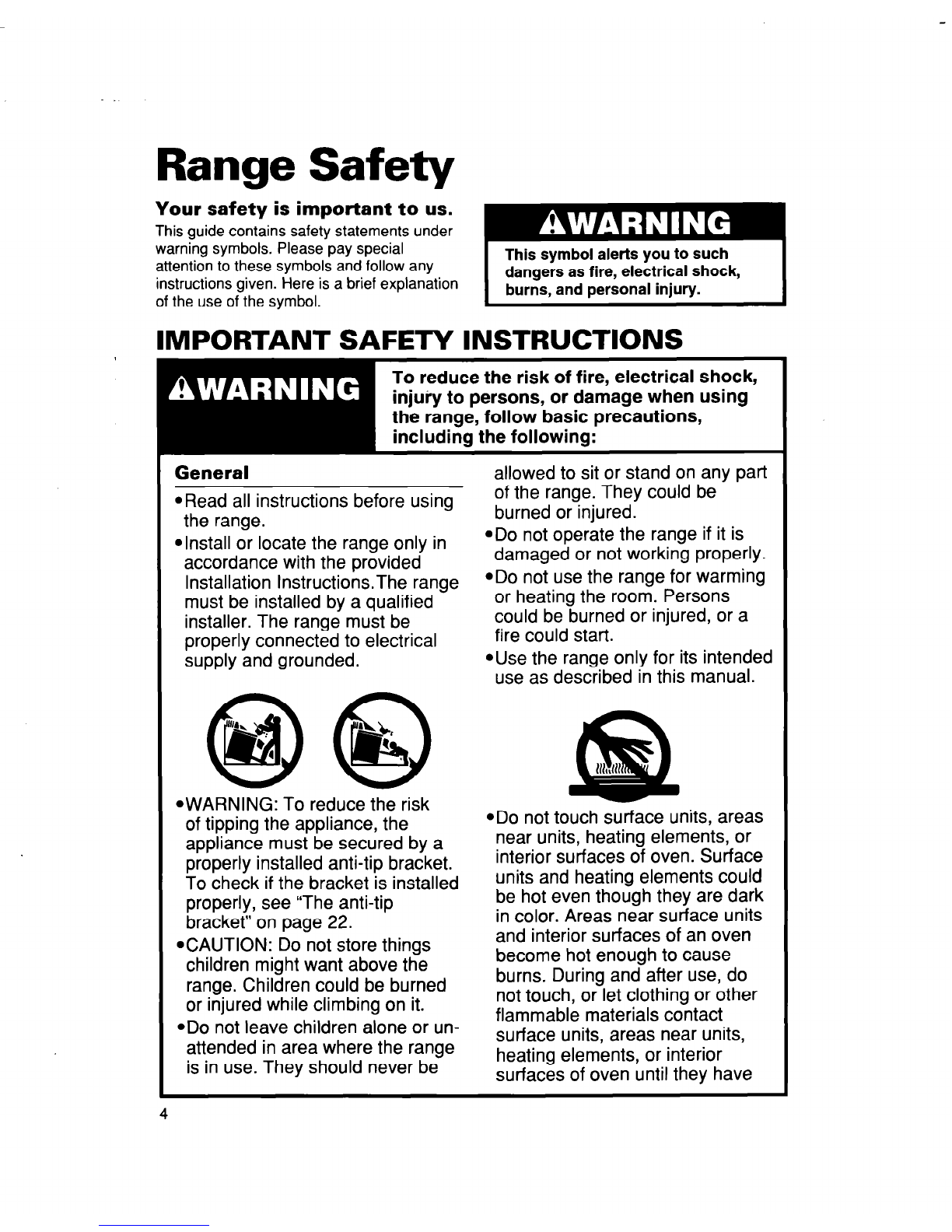

Range Safety

Your safety is important to us.

This guide contains safety statements under

warning symbols. Please pay special

attention to these symbols and follow any

instructions given. Here is a brief explanation

of the use of the symbol.

This symbol alerts you to such

dangers as fire, electrical shock,

burns, and personal injury.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of fire, electrical shock,

injuiy to persons, or damage when using

the range, follow basic precautions,

including the following:

General allowed to sit or stand on any part

@Read all instructions before using of the range. They could be

the range. burned or injured.

@Install or locate the range only in .Do not operate the range if it is

accordance with the provided damaged or not working properly.

Installation Instructions.The range @Donot use the range for warming

must be installed by a qualified or heating the room. Persons

installer. The range must be could be burned or injured, or a

properly connected to electrical fire could start.

supply and grounded. @Use the range only for its intended

use as described in this manual.

aWARNING: To reduce the risk

of tipping the appliance, the @Donot touch surface units, areas

appliance must be secured by a near units, heating elements, or

properly installed anti-tip bracket. interior surfaces of oven. Surface

To check if the bracket is installed units and heating elements could

properly, see “The anti-tip be hot even though they are dark

bracket” on page 22. in color. Areas near surface units

CAUTION: Do not store things and interior surfaces of an oven

children might want above the become hot enough to cause

range. Children could be burned burns During and after use, do

or injured while climbing on it. not touch, or let clothing or other

ADO not leave children alone or un- flammable materials contact

attended in area where the range surface units, areas near units,

is in use. They should never be heating elements, or interior

surfaces of oven until they have

had sufficient time to cool. Other

surfaces of the range, such as

the oven vent opening, the

surface near the vent opening,

the cooktop, and the oven door

and window, could also become

hot enough to cause burns.

‘1

*Do not wear loose or hanging

garments when using the range.

They could ignite if they touch a

hot surface unit and you could be

burned.

@Use only dry pot holders. Moist or

damp pot holders on hot surfaces

could result in burns from steam.

Do not let pot holder touch hot

heating elements. Do not use a

towel or bulky cloth for a pot

holder. It could catch on fire.

@Keep range vents unobstructed.

*Do not heat unopened contain-

ers. They could explode. The hot

contents could cause burns and

container particles could cause

injury.

@Use only utensils approved for

oven use. Follow utensil manu-

facturer’s instructions, especially

when using glass or plastic

utensils.

*Do not store flammable materials

on or near the range. The fumes

could create an explosion and/or

fire hazard.

When using the cooktop

@Donot cook on a broken cooktop.

If cooktop should break, cleaning

solutions and spillovers could

penetrate the broken cooktop and

create a risk of electrical shock.

Contact a qualified technician

immediately.

@Select a pan with a flat bottom

that is about the same size as the

surface unit. If pan is smaller than

the surface unit, some of the heat-

ing element will be exposed and

could result in the igniting of cloth-

ing or pot holders. Correct pan

size also improves cooking

efficiency.

Gheck to be sure glass cooking

utensils are safe for use on the

range. Only certain types of glass,

glass-ceramic, ceramic, earthen-

ware, or other glazed utensils are

suitable for cooktops without

breaking due to the sudden

change in temperature.

@Never leave surface units un-

attended at high heat settings.

A boilover could result and cause

smoking and greasy spillovers that

could ignite.

@Turn pan handles inward, but not

over other surface units. This will

help reduce the chance of burns,

igniting of flammable materials, and

spills due to bumping of the pan.

continued on next page

When using the oven @Small amounts of formaldehyde

@Always position oven rack(s) in and carbon monoxide are given

desired location while oven is off in the Self-Cleaning cycle from

cool. If a rack must be removed fiberglass insulation and food de-

while oven is hot, do not let pot composition. Significant exposure

holder contact hot heating ele- to these substances could cause

ment in oven. cancer or reproductive harm. Expo-

muse care when opening oven sure can be minimized by venting

door. Let hot air or steam escape with a hood or open window and

before removing or replacing wiping out excess food spills prior

food. to self-cleaning.

Grease

Grease is flammable. Do not

allow grease to collect around

cooktop or in vents. Wipe spill-

overs immediately.

@Donot use water on grease fires.

Never pick up a flaming pan.

Smother flaming pan on range by

covering with a well-fitted lid,

cookie sheet, or flat tray. Flaming

grease outside of pan can be

extinguished with baking soda

or, if available, a multipurpose

dry chemical or foam-type

extinguisher.

Care and cleaning

Clean cooktop with care. Some

cleaners could produce noxious

fumes if applied to a hot surface.

If a wet paper towel is used to

wipe spills on a hot cooking area,

be careful to avoid steam burns.

*Do not use oven cleaners. No

commercial oven cleaner or oven

liner protective coating of any kind

should be used in or around any

part of the oven.

@Before self-cleaning the oven,

remove broiler pan, broiler grid,

oven racks, and other utensils.

Do not use your oven to clean

miscellaneous parts unless you

are instructed to do so in this Use

and Care Guide.

ADO not clean door heat seal. It is

essential for a good seal. Care

should be taken not to rub, dam-

age, or move the seal. Clean only

parts recommended in this Use

and Care Guide.

*Do not repair or replace any part

of the range unless specifically

recommended in this manual. All

other servicing should be referred

to a qualified technician.

@Disconnect the electrical supply

before servicing the range.

- SAVE THESE INSTRUCTIONS -

Getting to Know Your Range

This section contains captioned illustrations of your range. Use them to become familiar with

the location and appearance of all parts and features. To help you find information on specific

parts and features quickly, page references are included.

Control panel -

Model and

serial number

Control panel

ceramic

Broil element

element

(P. 16)

bracket, see p.

22)

(P. 21) NOTE:

Window available on

Model RF374PXD only.

cooktop

(PP. 9,27)

Automatic

Manual

Surface Left rear Electronic

unit marker control oven

(P. ‘3) knob control

Right

rear

control

knob

oven light Right

switch front

(Model

control

RF374PXD) knob

Left front

control

knob

(PP.892%

Hot surface

indicator light

(P. 8)

Surface unit

indicator light

(P.8)

Using Your Range

To obtain the best cooking results possible, you must operate your range properly. This

section gives you important information for efficient and safe use of your range.

Using the surface units

Push in control knobs before turning

them to a setting. You can set them

anywhere between HI and OFF.

Surface unit markers

The solid dot in the surface unit marker

SurFace unit indicator lights

One of the Surface Unit Indicator Lights on

the control panel will glow

when a surface unit is

turned on.

Hot surface indicator light

The Hot Surface Indicator Light on the

control panel will glow when a

surface unit becomes too hot

to touch. The Indicator Light

will continue to glow as long as

the surface unit is too hot to

touch, even after it is turned off.

Fire Hazard

Turn all controls off when done

cooking.

Failure to do so can result in death,

fire, or burns.

Until you get used to the settings, use

the following as a guide. For best results,

start cooking at the high setting; then turn

the control knob down to continue cooking.

IE~ING RECOMMENDED USE

2-4

l For gravy, pudding, and

icing.

l To cook large amounts

of vegetables.

l To keep food cooking

after starting it on a

higher setting.

l To keep food warm until

ready to serve.

Using the ceramic glass

cooktop

Cooking on the ceramic glass cooktop is

almost the same as cooking on coil surface

units. There are, however, a few differences:

l The surface unit will glow red when it is

turned on. You will see the element cycling

on (glowing red) and off - even on HI

setting -to maintain the proper tempera-

ture setting you have selected.

l Sliding metal pans on ceramic glass

cooktop surface could leave marks. Wiping

off the cooktop before and after each use

will help keep the surface free from stains

and provide the most even heating. See

pages 27 and 28 for care and cleaning

suggestions.

Cookware tips

l Select a pan that is about the same size

as the surface unit.

l NOTE: For best results and greater

energy efficiency, use only flat-bottomed

cookware that makes good contact with

the surface units. Cookware with rounded,

warped, ribbed (such as some porcelain

enamelware), or dented bottoms could

cause uneven heating and poor cooking

results.

You can, however, use the newer

cookware available with slightly indented

bottoms or very small expansion channels.

This cookware is specially designed to

provide the good contact needed for best

cooking results.

Also, woks, canners, and teakettles with

flat bottoms suitable for use on your

cooktop are now available in most stores

that sell housewares.

l The pan should have straight sides and a

tight-fitting lid.

l Choose medium to heavy gauge (thick-

ness) pans that are fairly lightweight.

l The pan material (metal or glass) affects

how fast heat transfers from the surface

unit through the pan material and how

evenly heat spreads over the pan bottom.

Choose pans that provide the best cooking

results.

l Handles should be made of sturdy, heat-

resistant material and be securely attached

to the pan.

l With your hand, feel the bottom of your

pans while they are cool for nicks and

scratches. Nicks and scratches on pan

bottoms will scratch the ceramic glass

cooktop.

l Make sure bottoms of pans are clean and

dry before using on cooktop.

l Avoid spillovers on cooktop. Use pans

with tall sides.

l Do not cook food directly on cooktop.

NOTE: Do not leave an empty utensil, or

one which has boiled dry, on a hot surface

unit. The utensil could overheat and

damage the utensil or surface unit.

Home canning information

Pan

Surface unit

l Use the largest surface unit for best

results. Also, use a canner/pan which can

be centered over the surface unit.

l Start with hot water. This reduces the

time the control is set on high. Reduce

heat setting to lowest position needed to

keep water boiling.

l Refer to your canner manual for specific

instructions.

Positioning racks and pans

General guidelines

l Always position oven rack(s) in desired

location before turning oven on.

l To move rack(s), lift rack(s) at front and

pull out.

l Be sure the rack(s) is level.

l If rack(s) must be moved while oven is

hot, use pot holders or oven mitts to

protect hands.

l For baking/roasting with one rack, place

the rack so the top of the food will be

centered in the oven.

l When baking on two racks, arrange

racks on the bottom and third level from

the bottom.

Rack placement for specific

foods:

FOOD RACK POSITION

Frozen pies, large Lowest level or

roasts, turkeys, angel 2nd level from

food cakes bottom

Bundt cakes, most 2nd level from

quick breads, yeast bottom

breads, casseroles,

meats

Cookies, biscuits,

muff ins, cakes,

nonfrozen pies

2nd or 3rd level

from bottom

NOTE: For recommended rack placement

when broiling, see “Broiling rack position

chart” on page 19.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Reichweite Handbücher

Whirlpool

Whirlpool W10200947D Bedienungsanleitung

Whirlpool

Whirlpool WFE320M0AS0 Bedienungsanleitung

Whirlpool

Whirlpool GR450LXHQ2 Bedienungsanleitung

Whirlpool

Whirlpool TER56W2B Montageanleitung

Whirlpool

Whirlpool 76724.CO/4320880 Bedienungsanleitung

Whirlpool

Whirlpool SF514OEY Bedienungsanleitung

Whirlpool

Whirlpool SFOlOESR/ER Bedienungsanleitung

Whirlpool

Whirlpool WFG114SV Bedienungsanleitung

Whirlpool

Whirlpool RF3020XKQ2 Bedienungsanleitung

Whirlpool

Whirlpool WEE515SALW Bedienungsanleitung

Whirlpool

Whirlpool RS660BXV Bedienungsanleitung

Whirlpool

Whirlpool TER86W5B Montageanleitung

Whirlpool

Whirlpool SF5100SR Bedienungsanleitung

Whirlpool

Whirlpool 30" Freestanding Sealed Burner Gas Range with self-cleaning... Bedienungsanleitung

Whirlpool

Whirlpool 98014106 Bedienungsanleitung

Whirlpool

Whirlpool SF111PXSQ1 Bedienungsanleitung

Whirlpool

Whirlpool RF4900XL Bedienungsanleitung

Whirlpool

Whirlpool Gold GGE388LX Bedienungsanleitung

Whirlpool

Whirlpool WFC340S0AW Bedienungsanleitung

Whirlpool

Whirlpool 36'' Freestanding Gas Range Bedienungsanleitung

Whirlpool

Whirlpool W10620413B Bedienungsanleitung

Whirlpool

Whirlpool RM988PXP Bedienungsanleitung

Whirlpool

Whirlpool AKZ 360 Bedienungsanleitung

Whirlpool

Whirlpool RS675PXK Bedienungsanleitung

Beliebte Reichweite Handbücher anderer Marken

Samsung

Samsung FCQ321HTUW Bedienungsanleitung

Kenmore

Kenmore 790.45712 Bedienungsanleitung

Wolf

Wolf CHR CHSSR Bedienungsanleitung

Smeg

Smeg Built-in Microwave Oven Bedienungsanleitung

Zanussi

Zanussi ZCG054G Bedienungsanleitung

Frigidaire

Frigidaire 316000635 Bedienungsanleitung

GE JCSS630 Bedienungsanleitung

Samsung

Samsung NX58M9960P series Bedienungsanleitung

Hotpoint

Hotpoint RB524R Installationsanleitung

Amana

Amana ART6610 SERIES Bedienungsanleitung

Maytag

Maytag MERH770WB Bedienungsanleitung

Fulgor Milano

Fulgor Milano SOFIA Bedienungsanleitung

Premier

Premier EF-4358GH Bedienungsanleitung

Kenmore

Kenmore 790.9010 Series Bedienungsanleitung

KitchenAid

KitchenAid KESC300 Bedienungsanleitung

Frigidaire

Frigidaire FFEF3012LS Benutzerhandbuch

Diamond

Diamond G65/2F4T Bedienungsanleitung

Samsung

Samsung NX58*565 Series Bedienungsanleitung
