SELF-CLEANING ELECTRIC SET-IN RANGE

MODEL RS660BXB

A Note To You

Thank you for buying a Whirlpool@ appliance.

You have purchased a quality, world-class home appliance. Years of engineering experience have gone

into its manufacturing. To ensure that you will enjoy many years of trouble-free operation, we have

developed this Use and Care Guide. It is full of valuable information on how to operate and maintain

your appliance properly and safely. Please read it carefully. Also, please complete and mail the Owner-

ship Registration Card provided with your appliance. This will help us notify you about any new informa-

tion on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these symbols and

follow any instructions given. Here is a brief explanation of the use of each symbol.

This symbol will help alert you to such dangers

as personal injury, burns, fire and electrical

Our Consumer Assistance Center number, l-800-253-1301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first see “If

You Need Assistance Or Service” on page 25. If you need further help, feel free to call our Consumer

Assistance Center. When calling, you will need to know your appliance’s complete model number and

serial number. You can find this information on the model and serial number plate (see diagram on page

6). For your convenience, we have included a handy place below for you to record these numbers, the

purchase date from the sales slip and your dealer’s name and telephone number. Keep this book and

the sales slip together in a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

Important Safety Instructions

General .Do not use the range for warm-

@Read all instructions before ing or heating the room. Per-

using the range. sons could be burned or injured,

4nstall or locate the range onl or a fire could start.

in accordance with the provi dy

ed 4Jse the range only for its in-

Installation Instructions. The tended use as described in this

e must be installed by a manual.

@Donot touch surface units,

areas near units, heating ele-

*WARNING: To reduce the risk ments or interior surfaces of

of tiP

ping of the appliance, the oven. Surface units and heating

app iance must be secured by elements may be hot even

anti-tip fasteners. To check if the though they are dark in color.

appliance is installed proper1

Y Areas near surface units and

open the oven door and veri y interior surfaces of an oven

that the ran e is secured to

cabinets wit four screws% become hot enou h to cause

burns. During an? after use, do

through the mounting holes in not touch, or let clothing or

the front frame of the oven. other flammable materials

*CAUTION: Do not store things contact surface units, areas

children mi%

ht want above the near units, heatin elements or

range. Chil ren could be burned interior surfaces 0 oven until

or injured while climbing on it. they have had sufficient time to

.Do not leave children alone or cool. Other surfaces of the

unattended in area where the range, such as the oven vent

range is in use. They should opening, the surface near the

never be allowed to sit or stand vent opening, the cooktop, and

on an

could L part of the range. They the oven door, could also be-

e burned or injured. come hot enough to cause

burns.

.Do not operate the range if it is

damaged or not working

properly.

continued on next page

ADOnot wear loose or hanging

garments when using the

range. They could ignite if they

touch a hot surface unit and

you could be burned.

@Useonly d potholders. Moist

or damp po holders on hot sur-

faces could result in burns from

steam. Do not let potholder

touch hot heating elements.

not use a towel or bulky cloth for

a potholder. It could ca ch on

fire.

.Keep range vents unobstructed.

*Do not heat unopened contain-

ers. They could explode. The hot

contents could cause burns and

container particles could cause

Injury.

*Do not store flammable materi-

als on or near the range. The

fumes could create an explosion

and/or fire hazard.

When using the cooktop

@Make sure the reflector bowls

are in place during cooking.

Cooking without reflector bowls

could subject the wirin and

components undernea ll them to

damage.

@Donot line reflector bowls with

aluminum foil or other liners.

Improper installation of these

liners could result in a risk of

electric shock or fire.

@Select a pan with a flat bottom

that is about the same size as

the surface unit. If pan is smaller

than the surface unit, some of

the heatin element will be ex-

posed an8 could result in the

8 niting of clothing or potholders.

orrect pan size also improves

cooking efficiency.

*Check to be sure lass cook-

ing utensils are sa e for use on

the ran e. Only certain types of

glass, g ass-ceramic,

9 ceramic,

earthenware or other glazed

utensils are suitable for

cooktops without breaking due

to the sudden change in

temperature.

@Never leave surface units

unattended at high heat set-

tings. A boilover could result

and cause smokin and greasy

spillovers that cou d ignite.

*Turn pan handles inward, but

not over other surface units.

This will help reduce the

chance of burns, i niting of

flammable materia s,

9 and spills

due to bumping of the pan.

When using the oven

@Always osition oven rack(s) in

desired ocation while oven IS

cool. If a rack must be re-

moved while oven is hot, do

not let potholder contact hot

heating element in oven.

@Usecare when opening oven

door. Let hot air or steam es-

cape before removing or re-

placing food.

Grease

@Grease is flammable. Do not

allow grease to collect around

cooktop or in vents. Wipe

spillovers immediately.

ADOnot use water on grease

fires. Never pick up a flaming

pan. Smother flamin pan on

range by coverin YlWI h a well-?

fitted lid, cookie s eet or flat

tray. Flaming grease outside

witR

an can be extinguished

bakin 9 soda or, if avail-

able, a mu ti urpose dry

chemical or oam-type extin-

guisher.

Care and cleaning

Small amounts of formalde-

hyde and carbon monoxide

are given off in the Self-

Cleaning cycle from fiber-

lass insulation and food

ecomposition. Significant

exposure to these substances

could cause cancer or repro-

ductive harm. Exposure can

be minimized by venting with

a hood or open window and

wiping out excess food spills

prior to self-cleaning.

ADOnot use oven cleaners. No

commercial oven cleaner or

oven liner rotective coating of

any kind sItould be used in or

around any part of the oven.

*Before self-cleaning the oven,

remove broilercf an, broiler 9nd,

oven racks an other utensr s.

Do not use your oven to clean

miscellaneous parts unless you

are instructed to do so in this

Use and Care Guide.

ADOnot soak removable heating

elements in water. The element

will be damaged and shock or

fire could result.

*Do not clean door heat seal. It

is essential for a ood seal.

Care should be ta3(en not to rub,

damage or move the seal.

Clean only parts recommended

in this Use and Care Guide.

@Donot repair or replace any

part of the range unless specifi-

cally recommended in this

manual. All other servicing

should be referred to a qualified

technician.

*Disconnect the electrical supply

before servicing the range.

- SAVE THESE INSTRUCTIONS -

Parts And Features

This section contains captioned illustrations of your range. Use them to become familiar with the

location and appearance of all parts and features.

Cooktop

control-panel

Left rear

control knob

Right rear

control knob

Left front

control knob

Right front

control knob

Surface unit

ndicator light

Plug-in surface unit

with one-piece chrome Oven vent

reflector bowl /

cooktop

- control panel

Oven control

SurfaLe unit

marker

Oven control panel

Oven Oven temperature

selector control knob MEALTIMERTM clock/Minute Timer

Oven heatiig \

Locked indicator

indicator light light

Using Your Range

In This Section Pa*

U8ing the 8urfaca unitm ...................................... 7

Poritionlng racks and pans .............................. .Q

For bo4 ah circulation ..................................... 10

Using afuminum foil for baking

.......................10

Setting the clock ............................................... 11

Using the Minute Timor .................................... 11

Baking/roasting ................................................ 12

Paw

Adjusting the oven temperature control ........12

Brdling .............................................................. 13

Broiling tips ....................................................... 14

Enugy saving Cpr ............................................ 14

Using the YEALTfMERw clock ...................... .15

The own vent ................................................... 17

To obtain the best cooking results possible, you must operate your range properly. This section gives

you important information for efficient and safe use of your range.

Using the surface units

Push in control knoba before turning them to

a setting. You can set them anywhere between

HI and OFF.

Surface unit markers

The solid dot in the surface unit marker shows

which surface unit is turned on by that knob.

Surface unit indicator light

The Surface Unit Indicator Light on the control

panel will glow when a surface unit is turned on.

Burn and Fire Hazard

Be sure all control knobs are turned to OFF

and all indicator lights are OFF when you

are not cooking.

Someone could be burned or a fire could

start if a surface unit is accidentally left ON.

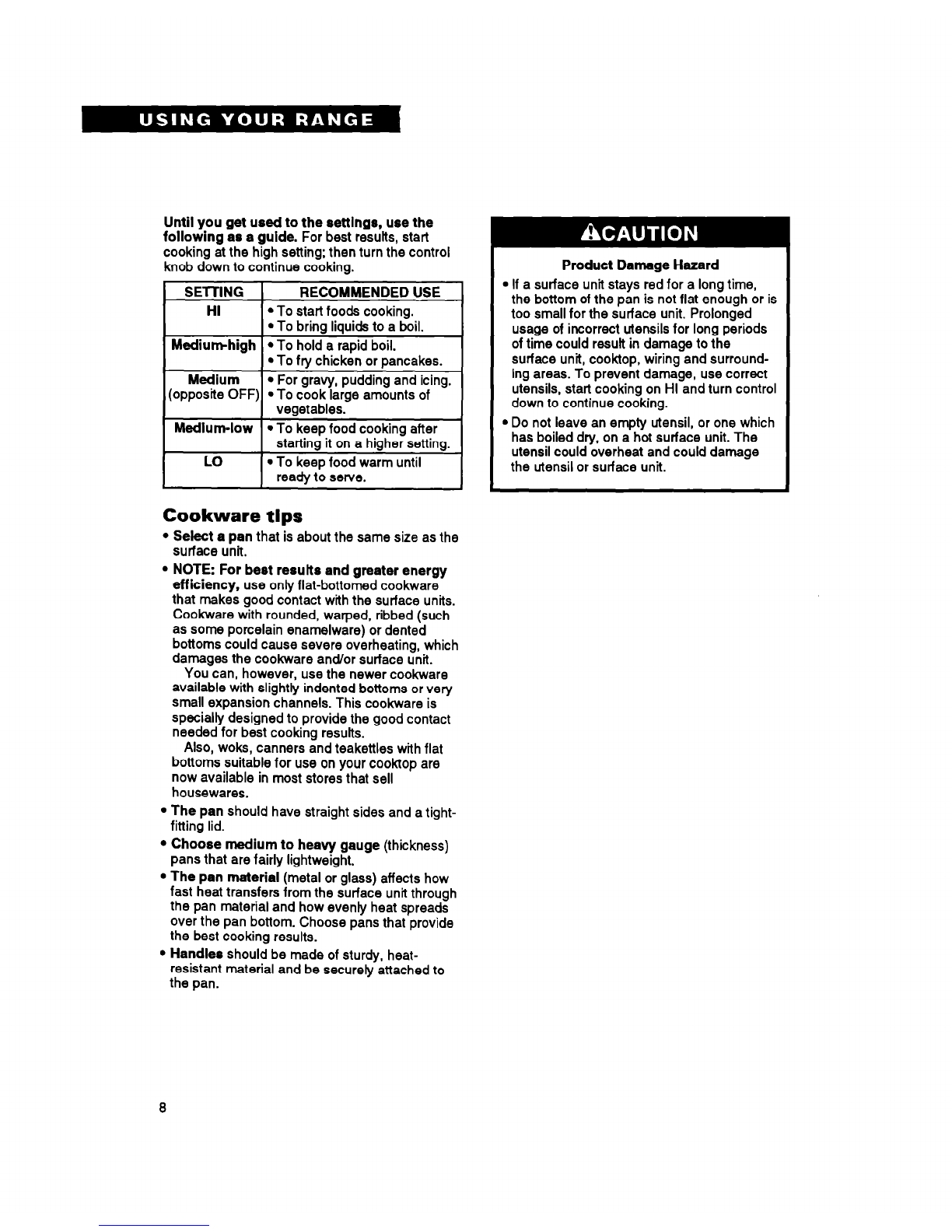

Until you get used to the settlngs, use the

following as a guide. For best resufts, start

cooking at the high setting: then turn the control

knob down to continue cooking.

To hold a rapid boil.

To fry chicken or pancakes.

Medium

For gravy, pudding and icing.

(opposite OFF) . To cook large amounts of

Medium-low

To keep food cooking after

Cookware tips

Select a pan that is about the same size as the

surface unit.

. NOTE: For best results and greater energy

efficiency, use only flat-bottomed cookware

that makes good contact with the surface units.

Cookware with rounded, warped, ribbed (such

as some porcelain enamelware) or dented

bottoms could cause severe overheating, which

damages the cookware and/or surface unit.

You can, however, use the newer cookware

available with slightly indented bottoms or very

small expansion channels. This cookware is

specially designed to provide the good contact

needed for best cooking results.

Also, woks, canners and teakettles with flat

bottoms suitable for use on your cooktop are

now available in most stores that sell

housewares.

The pan should have straight sides and a tight-

fitting lid.

Choose medium to heavy gauge (thickness)

pans that are fairly lightweight.

The pan material (metal or glass) affects how

fast heat transfers from the surface unit through

the pan material and how evenly heat spreads

over the pan bottom. Choose pans that provide

the best cooking results.

Handles should be made of sturdy, heat-

resistant material and be securely attached to

the pan.

I Product Damage Hazard

If a surface unit stays red for a long time,

the bottom of the pan is not flat enough or is

too small for the surface unit. Prolonged

usage of incorrect utensils for long periods

of time could resuft in damage to the

surface unit, cooktop, wiring and surround-

ing areas. To prevent damage, use correct

utensils, start cooking on HI and turn control

down to continue cooking.

Do not leave an empty utensil, or one which

has boiled dry, on a hot surface unit. The

utensil could overheat and could damage

the utensil or surface unit.

Home canning information

Use flat-bottomed canners/pans for best

results.

Use the largest surface unit for best results.

Also, use a canner/pan which can be centered

over the surface unit and which does not

extend more than one inch outside surface unit

area. Large diameter canners/pans, if not

properly centered, trap heat and can cause

damage to the cooktop.

Do not place canner on two surface units at

the same time. Too much heat will build up and

will damage the cooktop.

Start with hot water. This reduces the time the

control is set on high. Reduce heat setting to

lowest position needed to keep water boiling.

Keep reflector bowls clean for best heat

reflection.

To prolong the life of the elements:

- Prepare small batches at a time.

- Do not use elements for canning all day.

Refer to your canner manual for specific

instructions.

Optional canning kii

The large diameter of most water-bath or

pressure canners combined with high heat

settings for long periods of time can shorten the

life of regular surface units and cause damage to

the cooktop.

If you plan to use the cooktop for canning, we

recommend the installation of a Canning Kit.

Order the kii (Part No. 242905) from your

Whirlpool dealer or authorized Whirlpoole service

company.

Positioning racks and pans

For baking/roasting with one rack, place the

rack so the top of the food will be centered in the

oven.

Rack placement for specific foods:

FOOD RACK POSlTlON

Frozen pies, large roasts, Lowest level or 2nd

turkeys level from bottom

Angel and bundt cakes, 2nd level from

most quick breads, yeast bottom

breads, casseroles, meats

Cookies, biscuits, muffins, 2nd or 3rd level

cakes, nonfrozen pies from bottom

When baking on two rackr, arrange racks on

bottom and third level from bottom.

NOTE: For recommended rack placement when

broiling, see “Broiling rack position chart” on

page 14.

Personal Injury Hazard

Always position oven rack(s) in desired

location before turning oven on. Be sure

the rack(s) is level.

If rack(s) must be moved while oven is

hot, use potholders or oven mitts to

protect hands.

Failure to follow the above precautions

could resuft in personal injury.

For best air circulation

Hot air must circulate around the pans in the

oven for even heat to reach all parts of the oven.

This results in better baking.

Place the pans so that one is not directly over

the other.

For beet results, allow 1% to 2 inches

(4-5 cm) of space around each pan and

between pans and oven walls. There must be

a minimum space of 1 inch (2.5 cm).

Use only one cookie sheet in the oven at one

time.

Use the following as a guide to determine

where to place the pans:

One pan

Place in the center of the oven rack.

Two pans

Place in opposite corners of the oven rack.

Three or four pans

Place in opposite corners on each oven rack.

Stagger pans so no pan is directly over another.

Using aluminum foil for baking

Use aluminum foil to catch spillovero from

pies or casseroles:

Place the foil on the oven rack below the rack

with the food. Turn up foil edges and make

sure foil is about 1 inch (3 cm) larger all around

than the dish holding the food.

Do not cover the entire rack with aluminum foil.

lt will reduce air circulation and cause poor

cooking results.

Do not line oven bottom or entire oven rack

with foil or other liners. Poor baking will result.

Electrical Shock and Fire Hazard

Do not allow foil to touch the heating

elements.

Failure to follow this precaution could result

in electrical shock or fire hazard and

damage to the elements.

Inhaltsverzeichnis

Andere Whirlpool Reichweite Handbücher

Whirlpool

Whirlpool WEE745H0FS Bedienungsanleitung

Whirlpool

Whirlpool RF367PXD Bedienungsanleitung

Whirlpool

Whirlpool w10575963a Bedienungsanleitung

Whirlpool

Whirlpool RJE-365B Bedienungsanleitung

Whirlpool

Whirlpool RF365BXY Bedienungsanleitung

Whirlpool

Whirlpool RF212PXSQ1 Bedienungsanleitung

Whirlpool

Whirlpool W10600816A Bedienungsanleitung

Whirlpool

Whirlpool GFE461LVS - 30" Ing Electric Range Bedienungsanleitung

Whirlpool

Whirlpool AER5522VAS0 Bedienungsanleitung

Whirlpool

Whirlpool FOR IKEA W10017750B2 Bedienungsanleitung

Whirlpool

Whirlpool SF385PEG Bedienungsanleitung

Whirlpool

Whirlpool TER56W2B Montageanleitung

Whirlpool

Whirlpool RF36OOXY Bedienungsanleitung

Whirlpool

Whirlpool WEE515SALW Bedienungsanleitung

Whirlpool

Whirlpool RF375PXEN0 Bedienungsanleitung

Whirlpool

Whirlpool 8575985-W Stücklistenhandbuch

Whirlpool

Whirlpool Roper RME30000 Bedienungsanleitung

Whirlpool

Whirlpool Estate SF335ESR/ER Bedienungsanleitung

Whirlpool

Whirlpool RF310PXD Bedienungsanleitung

Whirlpool

Whirlpool SF3020EKQ3 Bedienungsanleitung

Whirlpool

Whirlpool SF265LXTB1 Bedienungsanleitung

Whirlpool

Whirlpool Gold GGE388LX Bedienungsanleitung

Whirlpool

Whirlpool YSF315PEGQ6 Bedienungsanleitung

Whirlpool

Whirlpool WFG775H0HV1 Bedienungsanleitung

Beliebte Reichweite Handbücher anderer Marken

Samsung

Samsung FCQ321HTUW Bedienungsanleitung

Kenmore

Kenmore 790.45712 Bedienungsanleitung

Wolf

Wolf CHR CHSSR Bedienungsanleitung

Smeg

Smeg Built-in Microwave Oven Bedienungsanleitung

Zanussi

Zanussi ZCG054G Bedienungsanleitung

Frigidaire

Frigidaire 316000635 Bedienungsanleitung

GE JCSS630 Bedienungsanleitung

Samsung

Samsung NX58M9960P series Bedienungsanleitung

Hotpoint

Hotpoint RB524R Installationsanleitung

Amana

Amana ART6610 SERIES Bedienungsanleitung

Maytag

Maytag MERH770WB Bedienungsanleitung

Fulgor Milano

Fulgor Milano SOFIA Bedienungsanleitung

Premier

Premier EF-4358GH Bedienungsanleitung

Kenmore

Kenmore 790.9010 Series Bedienungsanleitung

KitchenAid

KitchenAid KESC300 Bedienungsanleitung

Frigidaire

Frigidaire FFEF3012LS Benutzerhandbuch

Diamond

Diamond G65/2F4T Bedienungsanleitung

Samsung

Samsung NX58*565 Series Bedienungsanleitung
