Whirlpool RY160LXT Bedienungsanleitung

COOKTOP PARTS

For Models: RY160LXTQ0, RY160LXTB0

(White) (Black)

6−08 Litho in U.S.A. (mo) Part No. W10168187 Rev. A

30" Slide−In

Electric Range

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10165716

Use & Care Guide

W10166918

Wiring Diagram

W10165721

Installation

Instructions

2 Cooktop

74010895 White

74011071 Black

3 12001676 Kit, Hardware

4 74007159 Element RF/LR(2)8"

5 74007158 Element LF/RR(2)6"

6 74005759 Tube, Vent Upper

7 74003357 Screw (4)

8 74006046 Bottom, Burner Box

9 74001212 Bowl, Drip(Chr 6")

10 74001213 Bowl, Drip(Chr 8")

11 74010894 Bracket,Burner Box

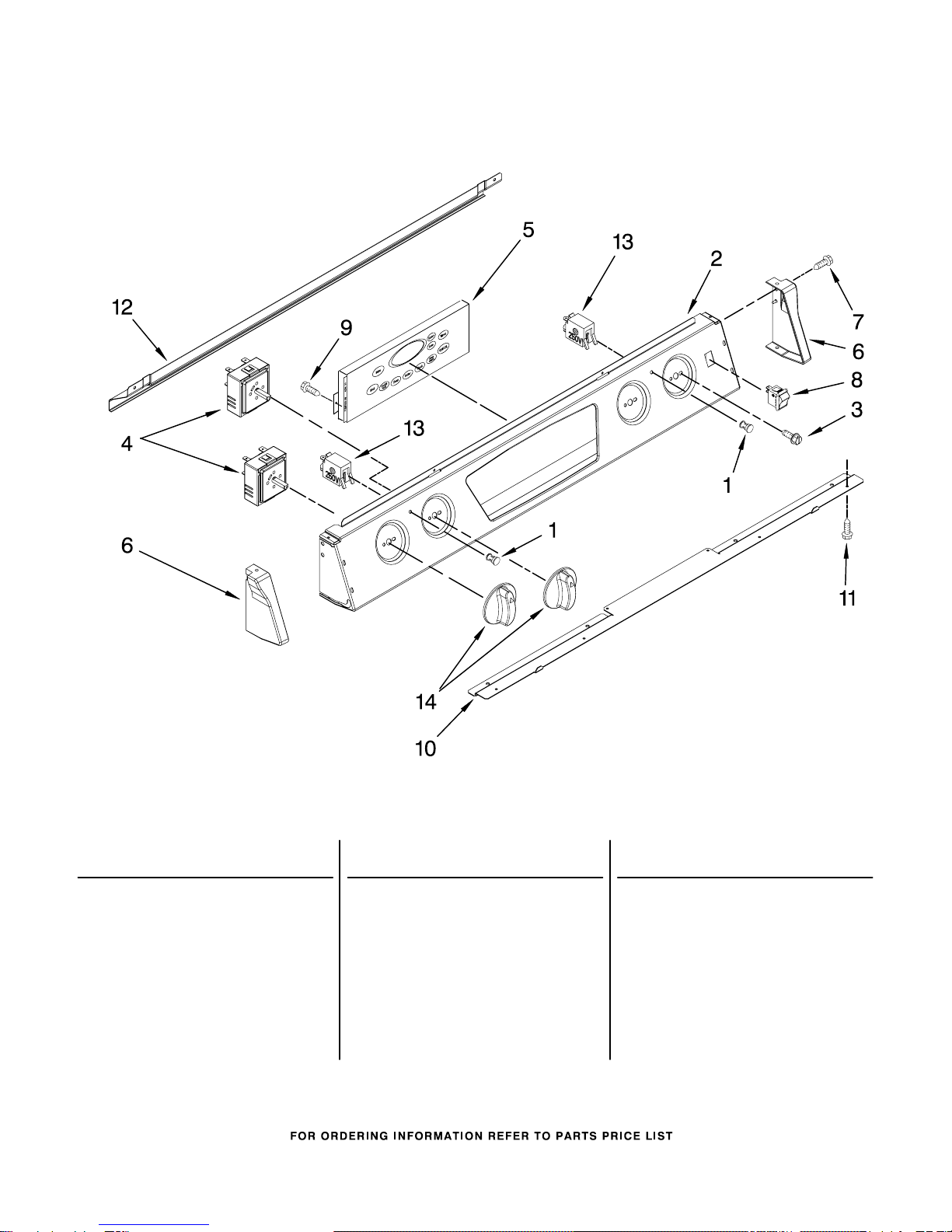

CONTROL PANEL PARTS

For Models: RY160LXTQ0, RY160LXTB0

(White) (Black)

W10168187

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

7730P011−60

Lens

2 Panel, Control

W10169863

Black

W10169864

White

7101P309−60

Screw, Switch (10)

4 Switch, Infinte

7403P239−60

8" (RF/LR)(2)

7403P238−60

6" (LF/RR) (2)

5 Control W/Overlay

W10169864

White

W10169863

Black

6 End Cap

74010835 Left Black

74004822 Left White

74010834 Right Black

74004821 Right White

7 Screw, End Cap

74009537 Black

74009540 White

8 Switch, Rocker

74008718 Black

74008717 White

9 74004288 Screw, Control

10 74004785 Support,

Control Panel

7101p338−60

Screw, Support (4)

12 Shield, Heat

74001337 Black

74001338 White

13 74004153 Light, Indicator

14 Knob (4)

74003612 Black

74003611 White

CHASSIS PARTS

For Models: RY160LXTQ0, RY160LXTB0

(White) (Black)

W10168187

CHASSIS PARTS

For Models: RY160LXTQ0, RY160LXTB0

(White) (Black)

W10168187

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Panel, Shield

74010821 Left

74010822 Right

2 74010897 Latch Assembly

3 Lever, Lock

74002974 Gray

74001075 Black

4 74011465 Main Back

5 74006096 Cover, Main Wire

6 74010815 Extension, Back

7 Y700502 Screw

8 74006364 Insulator, Cord

9 74005264 Panel, Access

11 74010823 Fan, Cooling

12 74008298 Block, Bare Wire

13 74004223 Connector, Cable

14 74003040 Element, Broil

15 74004943 Sensor, Oven

W10165822

Tube, Vent Lower

17 74010886 Tube, Vent Upper

18 71001394 Screw (4)

19 74010817 Holder, Vent Tube

20 74008597 Smoke Eliminator

W10165724

Plate, Smoke Elm.

22 74010885 Light Assembly

23 74004180 Bracket,Pwr Supply

7407P103−60

Bulb, Oven

25 Trim, Side

74010832 White (2)

74010831 Black (2)

26 74003976 Screw,Shoulder (4)

27 74010883 Element, Bake

28 74010884 Support, Oven Rear

29 71001394 Screw

30 74011142 Hinge (2)

7101P112−60

Screw, Hinge (4)

32 74010818 Switch, Hi−Limit

33 74003975 Screw, Lever (2)

34 74010820 Extention, Shield

35 74003386 Support, Element

36 74010805 Leg, Leveling

37 74010899 Pedestal, Bottom

38 74010882 Pedestal, Front

39 74007129 Support

40 74003565 Runner, Drawer (2)

41 74004078 Roller, Drawer (2)

42 74005231 Shaft, Roller (2)

43 74005230 Nut, Lock (2)

44 74006522 Retainer, Bottom

45 74005564 Bracket, Anti−Tip

7101P124−60

Screw, w/Washer

47 74010812 Support, Ov Bottom

48 74003976 Screw,Shoulder (2)

49 74010807 Cover, Front

INSULATION

74010987 Insulation, Wrap

W10165725

Insulation, Back

74011207 Insulation,

Oven Bottom

DOOR PARTS

For Models: RY160LXTQ0, RY160LXTB0

(White) (Black)

W10168187

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Door Top

W10165729

Black

W10165726

White

2 74011674 Screw, Handle (2)

3 74011457 Baffel, Retainer

4 74001530 Screw 8AB 1/2

5 74003645 Glass, Inner (2)

6 74005546 Spacer, Rubber

7 74001574 Nut, Snap (4)

8 74011456 Lining, Door

9 74011458 Bracket, Glass (2)

10 74003647 Insulation, Door

11 Y700502 Screw

12 Bracket, Handle

74009699 Left

74009698 Right

13 74004224 Tape, White

14 Trim, Door Side

74009693 Black, Left

74009695 White, Left

74009692 Black Right

74009694 White, Right

15 Tape, Double Sided

74009014 White

74009025 Black

16 Trim, Door Bottom

74009687 White

74009686 Black

17 Screw, Trim

74009540 White

74009539 Black

7201P046−60

Seal, Door

19 Glass, Door

W10165730

White

W10165731

Black

(Order Items 13 &

21 When Replacing

Door Glass)

20 Handle, Door

74008322 White

74008318 Black

21 74003664 Tape, Foil

22 8303811 Nameplate, Logo

DRAWER AND RACK PARTS

For Models: RY160LXTQ0, RY160LXTB0

(White) (Black)

W10168187

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 74001757 Rack, Oven (2)

2 74008333 Drawer, Storage

3 74004310 Screw, Panel

4 74010896 Bracket, Drawer

5 Panel, Drawer

74003407 White

74003701 Black

6 Screw, Panel

74009540 White

74009539 Black

7 74005230 Nut, Lock

2404F030−51

Lining, Drawer

9 74005546 Spacer, Rubber

10 74004078 Roller, Drawer (2)

11 74005231 Shaft, Roller (2)

7103P082−60

Nut

OPTIONAL PARTS (NOT INCLUDED)

For Models: RY160LXTQ0, RY160LXTB0

(White) (Black)

W10168187

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit(Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3191048 Cleaner, Glass

WIRING HARNESS PARTS

74010890 Harness, Sensor

74010891 Coil, Harness (Rt)

74010893 Coil,Harness (Lt)

W10166773

Harness, Main

74011206 Cable, Assy.(Flex)

74006811 Clip, Wire

7101P027−60

Screw, Ground
