Whirlpool SF362LXTB1 Bedienungsanleitung

COOKTOP PARTS

For Models: SF362LXTB1, SF362LXTQ1, SF362LXTT1, SF362LXTS1, SF362LXTY1

(Black) (Designer White) (Designer Biscuit) (Stainless Steel) (Universal Silver)

06−07 Litho In U.S.A. (rek) Part No. W10139613 Rev.A

30" GAS FREESTANDING

SELF CLEAN RANGE

SEALED BURNER

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

9762998 Installation

Instructions

Anti−Tip Template

9757142 English/Spanish

9757143 English/French

W10110369

Owners Manual

W10116296

Tech Sheet

9762761 Safer Cooking Tips

2 Cap, Burner

Left Front

3191904 Black

3191905 Grey

8273345 Espresso

R. Front, L. Rear

3191901 Black

3191903 Grey

8273344 Espresso

Right Rear

3191898 Black

3191899 Grey

8273343 Espresso

3 Burner

4455981 Left Front

4455980 R. Front, L. Rear

4455979 Right Rear

4 Cooktop

8272251 White

8272743 Biscuit

8272253 Black

5 Panel, Manifold

8523855 Black

8523854 White

8523856 Biscuit

6 Knob, Control (3)

8273103 Black

8273104 White

8273106 Biscuit

7 Knob, Powerburner

8273111 Black

8273112 White

8273114 Biscuit

8 Grate, Burner (4)

8522851 Black

8522850 Grey

8522853 Espresso

9 3400701 Screw

10 3196557 Screw

CONTROL PANEL PARTS

For Models: SF362LXTB1, SF362LXTQ1, SF362LXTT1, SF362LXTS1, SF362LXTY1

(Black) (Designer White) (Designer Biscuit) (Stainless Steel) (Universal Silver)

W10139613

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap, Left Hand

W10009080

Black

W10009040

White

W10009060

Biscuit

Endcap, Right Hand

W10009090

Black

W10009050

White

W10009070

Biscuit

2 Panel, Control

9762093 Black

9762091 White

9762092 Biscuit

9762094 Stnls,Univ Slvr

3 9758080 Module, Spark

4 9762095 Brkt−Mntg, Console

5 8523412 Bracket, Support

6 9756301 Cover, Upper

7 8053910 Shield, Heat

8 8273132 Cover, Lower

9 3196169 Screw

10 Control, Range

W10108190

Black

W10108180

White

W10108200

Biscuit

11 3196178 Screw

12 9757609 Badge

13 9762726 Brkt−Mntg, DSI

14 8273564 Clip

15 9762078 Brkt, Mntg E0C

16 8053505 Heat−Shield,

Lower

MANIFOLD PARTS

For Models: SF362LXTB1, SF362LXTQ1, SF362LXTT1, SF362LXTS1, SF362LXTY1

(Black) (Designer White) (Designer Biscuit) (Stainless Steel) (Universal Silver)

W10139613

MANIFOLD PARTS

For Models: SF362LXTB1, SF362LXTQ1, SF362LXTT1, SF362LXTS1, SF362LXTY1

(Black) (Designer White) (Designer Biscuit) (Stainless Steel) (Universal Silver)

W10139613

Illus. Part

No. No. DESCRIPTION

1 8273096 Screw, Valve

2 Burner Base

8273700 Large (3)

8273701 Small (1)

3 Tubing, Burner

W/Orifice

8273693 Left Front

8273698 Left Rear

8273695 Right Front

8273697 Right Rear

4 8523402 Tubing (Manifold

to Regulator)

5 8523406 Harness, Igniter

(W/Switches)

6 8523793 Electrode (4)

7 9762230 Pipe, Manifold

8 Valve

9757218 LF − RF − LR

8273004 Right Rear

9 8273060 Nut (4)

10 8273062 Screw (4)

11 3400228 Bolt

12 8054078 Burner, Broiler

13 8053970 Spreader, Flame

(Oven)

14 9758078 Burner, Bake

15 9761959 Valve/Regulator

16 Igniter

8054129 Broil

9758079 Bake

17 8272222 Tubing (Broiler

Fitting To Valve)

18 3186489 Fitting, Broiler

19 Orifice, Burner

8273064 Left Front

8273065 Right Front

8273066 Left Rear

8273067 Right Rear

20 8053262 Spreader, Flame

(Broiler)

21 3196265 Screw

22 3196176 Screw

23 3196385 Screw

24 3400016 Screw

Following Parts Not Illustrated

8523420 Spuds, LP Gas

(Kit of 4)

CHASSIS PARTS

For Models: SF362LXTB1, SF362LXTQ1, SF362LXTT1, SF362LXTS1, SF362LXTY1

(Black) (Designer White) (Designer Biscuit) (Stainless Steel) (Universal Silver)

W10139613

CHASSIS PARTS

For Models: SF362LXTB1, SF362LXTQ1, SF362LXTT1, SF362LXTS1, SF362LXTY1

(Black) (Designer White) (Designer Biscuit) (Stainless Steel) (Universal Silver)

W10139613

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10012240

Flue Box

2 8272747 Shield, Flue

3 8273036 Burner Box

4 Panel, Side (2)

8053830 White−Textured

8272519 Biscuit−Textured

8053832 Black−Textured

5 8523249 Brkt, Manifold Mtg

W10067840

Screw

7 3196037 Foot, Front (2)

W10058460

Foot, Rear (2)

9 3195097 Bottom, Oven

10 8273902 Sensor, Oven

11 8053967 Baffle, Burner

12 8053969 Shield, Heat

13 8053968 Shield, Lower

14 9760314 Rail, Base (2)

15 9761517 Clip,Door Mntg(2)

16 9758701 Spacer, Door

17 9757098 Back, Main

18 8522416 Seal, Oven

19 8053971 Brace, Main Back

20 Retainer, Insul.

9761449 Left Hand

9761448 Right Hand

21 3196576 Clip, Panel (6)

22 9757891 Cord, Power

23 9760407 Brkt − Hinge

24 9757262 Switch, Door

25 3196701 Light Socket Assy

26 311255 Bulb, Oven Light

27 9761013 Latch, Door

W10078370

Rod, Latch

W10107820

Latch−Mtr

W10114344

Glide, Drawer

31 9761490 Insulation

32 9761512 Clip, Mounting

33 3196178 Screw

34 3196152 Screw

35 Screw

3196166 White

8281194 Biscuit

3196168 Black

W10031780

Screw

37 3196179 Screw

38 3196177 Screw

39 3196168 Screw

40 9757239 Rod − Door Switch,

Rear Mount

41 3196560 Screw

INSULATION

8524099 Insulation, Wrap

8272614 Insulation, Back

8272613 Insulation, Vent

DOOR PARTS

For Models: SF362LXTB1, SF362LXTQ1, SF362LXTT1, SF362LXTS1, SF362LXTY1

(Black) (Designer White) (Designer Biscuit) (Stainless Steel) (Universal Silver)

W10139613

DOOR PARTS

For Models: SF362LXTB1, SF362LXTQ1, SF362LXTT1, SF362LXTS1, SF362LXTY1

(Black) (Designer White) (Designer Biscuit) (Stainless Steel) (Universal Silver)

W10139613

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Top

9762391 Black

9761975 White

9761976 Biscuit

9762394 Stainless Steel

W10067560

Universal Silver

2 3196164 Screw

3 Handle, Door

9761983 Black

9761982 White

9761984 Biscuit

9761985 Universal Silver

4 9761344 Liner, Door

W10031790

Screw

6 9758162 Glass, Inner (2)

7 3186289 Frame, Glass

8 8272618 Insulation, Door

9 9761357 Retainer, Insul.

10 Hinge, Door

9761493 Wht,Blk,Bsct,US

9761496 Stainless Model

11 Glass, Outer Door

W10075990

Black

W10075980

White

W10076000

Biscuit

9756435 Stnls & Univ Slvr

12 Trim, Door Side

Left Hand

8523171 Black

8523172 White

8523173 Biscuit

W10113926

Universal Silver

Right Hand

8523165 Black

8523166 White

8523167 Biscuit

W10113925

Universal Silver

13 3196160 Screw

14 3196165 Screw

15 3196794 Bracket, Window(2)

16 Trim, Bottom

8523177 Black

8523175 White

8523178 Biscuit

8523180 Stainless Model

W10067550

Universal Silver

W10031780

Screw

W10113759

Strap, Door

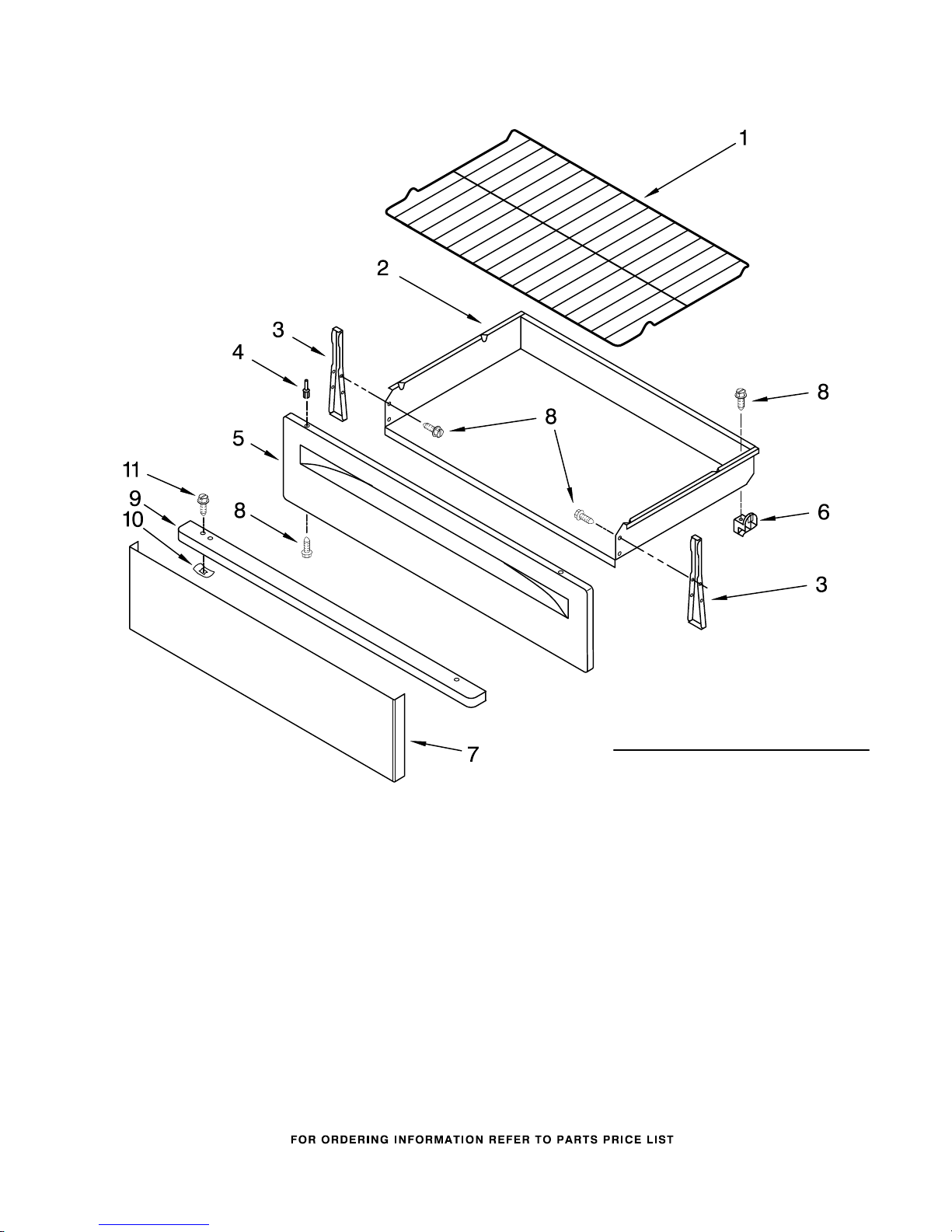

DRAWER & BROILER PARTS

For Models: SF362LXTB1, SF362LXTQ1, SF362LXTT1, SF362LXTS1, SF362LXTY1

(Black) (Designer White) (Designer Biscuit) (Stainless Steel) (Universal Silver)

W10139613

Illus. Part

No. No. DESCRIPTION

W10138079

Rack, Oven (2)

2 9761031 Drawer, Storage

3 3196817 Bracket, Drawer(2)

4 Rivet, Push (2)

3196814 White

3196815 Almond

3196813 Black

5 Panel, Drawer Frnt

W10022090

White

W10022110

Biscuit

W10022100

Black

6 8053334 Spacer, Glide

7 9755797 Panel, Stnls & US

8 3196168 Screw

9 Handle, Door

9757219 Stainless Model

9762251 Universal Silver

10 9781235 Clip,Stnls,Unv Slv

W10031790

Screw, Universal

Silver and

Stainless Steel

Models

OPTIONAL PARTS

For Models: SF362LXTB1, SF362LXTQ1, SF362LXTT1, SF362LXTS1, SF362LXTY1

(Black) (Designer White) (Designer Biscuit) (Stainless Steel) (Universal Silver)

W10139613

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

REFINISHING MATERIAL

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

4396923 Pan − Broiler

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

W10082160

Harness, Main

(EOC Pyro)

8524207 Harness, Wire

Bake/Broil

8523599 Harness, Wire

(Cooktop Spark)

W10045060

Harness, Wire

(Ground)

3196896 Clip, Wire

3400964 Clip, Wire

313438 Clip, Harness

3196173 Screw

3196696 Clip, Harness

3196174 Screw−Grnd Harns

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Reichweite Handbücher

Whirlpool

Whirlpool GR450LXL Bedienungsanleitung

Whirlpool

Whirlpool Inglis IEP315RQ1 Bedienungsanleitung

Whirlpool

Whirlpool SF362LXTB0 Bedienungsanleitung

Whirlpool

Whirlpool IEL730C Bedienungsanleitung

Whirlpool

Whirlpool RJE-365B Bedienungsanleitung

Whirlpool

Whirlpool GGE388LX - 8-18-10 Bedienungsanleitung

Whirlpool

Whirlpool werp4120pq0 Bedienungsanleitung

Whirlpool

Whirlpool IGS426AS1 Bedienungsanleitung

Whirlpool

Whirlpool WFG371LVQ2 Bedienungsanleitung

Whirlpool

Whirlpool SF385PEE W/N Bedienungsanleitung

Whirlpool

Whirlpool W10106890 Bedienungsanleitung

Whirlpool

Whirlpool GY399LXUB0 Bedienungsanleitung

Whirlpool

Whirlpool Roper FGS325RQ0 Bedienungsanleitung

Whirlpool

Whirlpool WFG510S0AW Bedienungsanleitung

Whirlpool

Whirlpool GS395LEHS7 Bedienungsanleitung

Whirlpool

Whirlpool WGE555S0BB Bedienungsanleitung

Whirlpool

Whirlpool RF264LXSB3 Bedienungsanleitung

Whirlpool

Whirlpool RY160LXTB - 30" Ing Slide-In Electric Coil... Stücklistenhandbuch

Whirlpool

Whirlpool RF367BXW Bedienungsanleitung

Whirlpool

Whirlpool RF375PXE W Bedienungsanleitung

Whirlpool

Whirlpool WLP85800 Bedienungsanleitung

Whirlpool

Whirlpool Roper STANDARD CLEANING GAS RANGE Bedienungsanleitung

Whirlpool

Whirlpool Estate TGG222VDQ0 Bedienungsanleitung

Whirlpool

Whirlpool RF364BBD Bedienungsanleitung

Beliebte Reichweite Handbücher anderer Marken

Samsung

Samsung FCQ321HTUW Bedienungsanleitung

Kenmore

Kenmore 790.45712 Bedienungsanleitung

Wolf

Wolf CHR CHSSR Bedienungsanleitung

Smeg

Smeg Built-in Microwave Oven Bedienungsanleitung

Zanussi

Zanussi ZCG054G Bedienungsanleitung

Frigidaire

Frigidaire 316000635 Bedienungsanleitung

GE JCSS630 Bedienungsanleitung

Samsung

Samsung NX58M9960P series Bedienungsanleitung

Hotpoint

Hotpoint RB524R Installationsanleitung

Amana

Amana ART6610 SERIES Bedienungsanleitung

Maytag

Maytag MERH770WB Bedienungsanleitung

Fulgor Milano

Fulgor Milano SOFIA Bedienungsanleitung

Premier

Premier EF-4358GH Bedienungsanleitung

Kenmore

Kenmore 790.9010 Series Bedienungsanleitung

KitchenAid

KitchenAid KESC300 Bedienungsanleitung

Frigidaire

Frigidaire FFEF3012LS Benutzerhandbuch

Diamond

Diamond G65/2F4T Bedienungsanleitung

Samsung

Samsung NX58*565 Series Bedienungsanleitung
