COOKTOP PARTS

02−07 Litho in U.S.A. (mek) Part No. W10122867 Rev. B

30" GAS FREESTANDING

SELF CLEAN RANGE

SEALED BURNER

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10110368

Use & Care Guide

Tech Sheet

W10116296

English

W10116297

French

9762997 Installation

Instructions

Anti−Tip Template

9757142 English/Spanish

9757143 English/French

Safer Cooking Tips

9762761 English

9759133 French

2 Cap, Burner

LF & RF

3191905 Grey

3191904 Black

3191903 Grey

3191901 Black

3191899 Grey

3191898 Black

4 Burner

4455981 LF & RF (12K)

4455980 LR − RF(9K)

4455979 RR(6K)

5 Cooktop

8272251 White

8272253 Black

6 Panel, Manifold

8523854 White

8523855 Black

7 Knob, Control (2)

8273104 White

8273103 Black

8 Knob, AccuSimmer

8273108 White

8273107 Black

9 Knob,

Powerburner (2)

8273112 White

8273111 Black

11 Grate, Burner (4)

8522850 Grey

8522851 Black

12 Grate, Center

8522847 Gray

8522846 Black

14 3400701 Screw

15 3196557 Screw

For Models: SF367LXSQ1, SF367LXSB1, SF367LXSS1, SF367LXSY1

(Designer White) (Black) (Stainless Steel)(Universal Silver)

CONTROL PANEL PARTS

2W10122867

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap, Left Hand

W10009040

White

W10009080

Black

Endcap, Right Hand

W10009050

White

W10009090

Black

2 8053505 Heat Shield, Lower

3 Panel, Control

9762091 White

9762093 Black

9762094 Stainless Model

4 9762078 Bracket, EOC Mount

5 9758080 Module, Spark

8 9756301 Cover, Upper

9 8053910 Shield, Heat

10 8273132 Cover, Lower

11 8523412 Bracket, Support

12 Control, Range

W10108180

White

W10108190

Black

13 3196178 Screw

14 9757609 Nameplate

15 9762726 Brkt−Mntg, DSI

16 9762095 Brkt−Mntg,Console

19 8273564 Clip

For Models: SF367LXSQ1, SF367LXSB1, SF367LXSS1, SF367LXSY1

(Designer White) (Black) (Stainless Steel)(Universal Silver)

MANIFOLD PARTS

W10122867

For Models: SF367LXSQ1, SF367LXSB1, SF367LXSS1, SF367LXSY1

(Designer White) (Black) (Stainless Steel)(Universal Silver)

MANIFOLD PARTS

4W10122867

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8273096 Screw, Valve

2 Burner Base

8273700 Large (3)

8273701 Small (1)

3 Tubing, Burner

W/Orifice

8273693 Left Front

8273694 Left Rear

8273696 Right Front

8523506 Right Rear

4 8523402 Tubing (Manifold

to Regulator)

5 8523406 Harness, Igniter

(W/Switches)

6 8523793 Electrode (4)

7 8523407 Pipe, Manifold

8 Valve

9757218 LF − RF − LR

8273004 Right Rear

9 8273060 Nut (4)

10 8273062 Screw (4)

11 3400228 Bolt

12 8054078 Burner, Broiler

13 8053970 Spreader, Flame

(Oven)

14 9758078 Burner, Bake

15 9761959 Valve/Regulator

16 Igniter

8054129 Broil

9758079 Bake

17 8272222 Tubing (Broiler

Fitting To Valve)

18 3186489 Fitting, Broiler

19 8272403 Cover, Igniter

20 Orifice, Burner

8273064 Left Front

8273064 Right Front

8273065 Left Rear

8273067 Right Rear

21 8053262 Spreader, Flame

(Broiler)

23 3196265 Screw

24 3196176 Screw

25 3196385 Screw

26 3400016 Screw

Following Parts Not Illustrated

8523420 Spuds, LP Gas

(Kit of 4)

For Models: SF367LXSQ1, SF367LXSB1, SF367LXSS1, SF367LXSY1

(Designer White) (Black) (Stainless Steel)(Universal Silver)

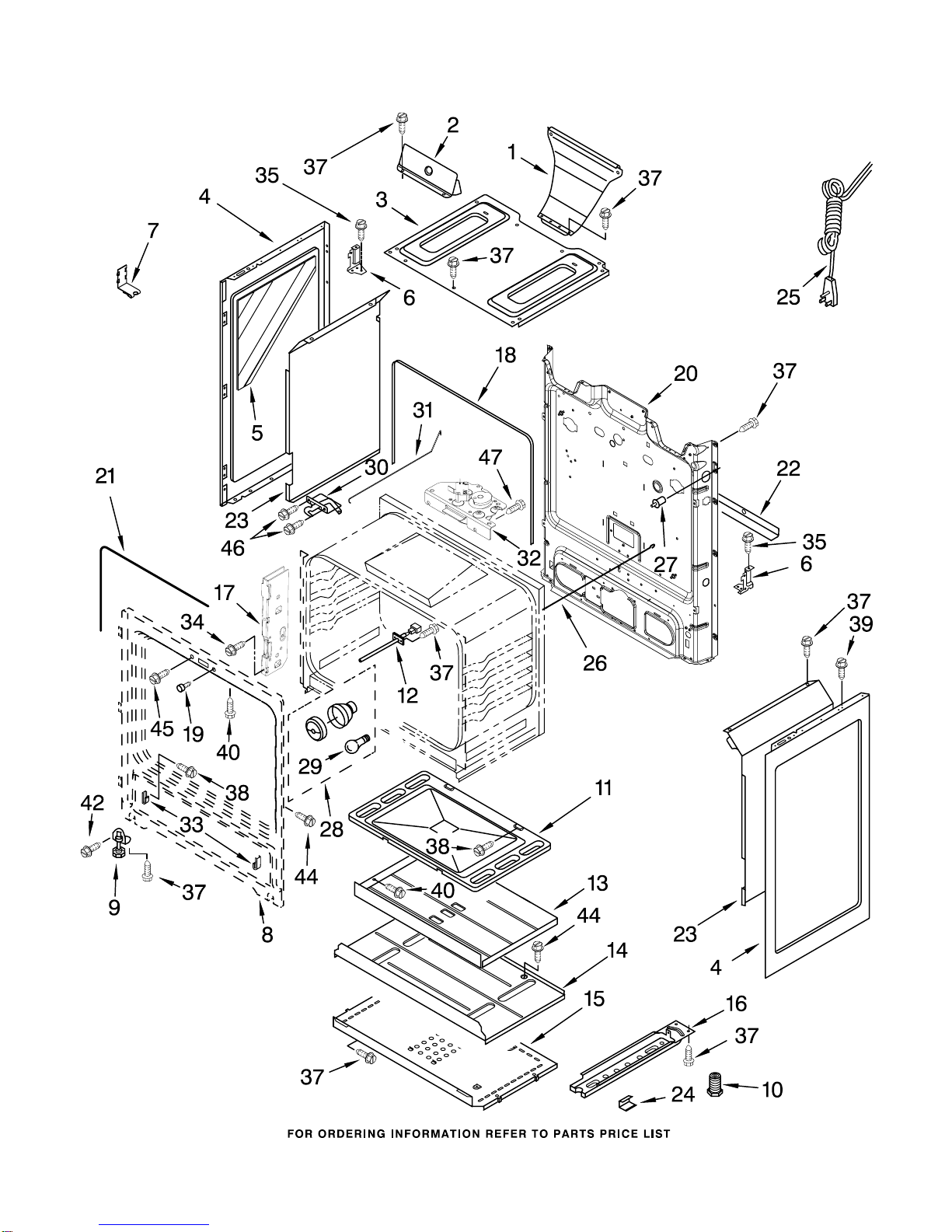

CHASSIS PARTS

W10122867

For Models: SF367LXSQ1, SF367LXSB1, SF367LXSS1, SF367LXSY1

(Designer White) (Black) (Stainless Steel)(Universal Silver)

CHASSIS PARTS

6W10122867

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10012240

Flue Box

2 8272747 Shield, Flue

3 8273036 Burner Box

4 Panel, Side (2)

8053830 White−Textured

8053832 Black

5 9761490 Insulation

6 8523249 Brkt, Manifold Mtg

7 9761512 Clip, Mounting

8 Frame, Front

(Not Serviced)

9 3196037 Foot, Front (2)

W10058460

Foot, Rear (2)

11 3195097 Bottom, Oven

12 8273902 Sensor, Oven

13 8053967 Baffle, Burner

14 8053969 Shield, Heat

15 8053968 Shield, Lower

16 9760314 Rail, Base (2)

17 9760407 Brkt − Mounting

W10008830

Seal, Oven Flange

19 9758701 Spacer, Door

20 9757098 Back, Main

21 8522416 Seal, Oven

22 8053971 Brace, Main Back

23 Retainer, Insul.

9761449 Left Hand

9761448 Right Hand

24 3196576 Clip, Panel (6)

25 9757891 Cord, Power

26 9757239 Rod − Dr Switch

27 9757262 Switch, Door

28 3196701 Light Socket Assy

29 311255 Bulb, Oven Light

30 9761013 Latch, Door

W10078370

Rod, Latch

W10107820

Latch−Mtr

33 9759785 Glide, Drawer

W10031780

Screw

35 3196169 Screw

37 3196178 Screw

38 3196152 Screw

39 Screw

3196166 White

3196168 Black

40 3196176 Screw

42 3196179 Screw

44 3196177 Screw

45 3196168 Screw

46 3196560 Screw

47 3196160 Screw

INSULATION

8524099 Insulation, Wrap

8272613 Insulation, Vent

8272614 Insulation, Back

For Models: SF367LXSQ1, SF367LXSB1, SF367LXSS1, SF367LXSY1

(Designer White) (Black) (Stainless Steel)(Universal Silver)

DRAWER & BROILER PARTS

W10122867

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3195710 Rack, Oven (2)

2 9761031 Drawer, Storage

3 3196817 Bracket, Drawer(2)

W10031790

Screw, For

Stainless Steel

And Universal

Silver Models

5 Handle

9757219 Stainless Steel

Model

9762251 Universal Silver

Model

6 9781235 Clip

7 Panel, Drawer Frnt

W10022090

White

W10022100

Black

8 9755797 Panel, Drawer Frnt

For Stainless

Steel And

Universal Silver

Models

9 3196168 Screw

10 Rivet, Push (2)

3196814 White

3196813 Black

11 8053334 Spacer, Glide

For Models: SF367LXSQ1, SF367LXSB1, SF367LXSS1, SF367LXSY1

(Designer White) (Black) (Stainless Steel)(Universal Silver)

DOOR PARTS

8W10122867

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Top

9761975 White

9762391 Black

9762394 Stainless Steel

Model

W10067560

Universal Silver

Model

2 3196164 Screw

3 Handle, Door

9761982 White

9761983 Black

9761985 Stainless Steel

4 9761344 Liner, Door

W10031790

Screw

6 9758162 Glass, Inner (2)

7 3186289 Frame, Glass

W10113759

Strap, Door

9 8272618 Insulation, Door

10 9761493 Hinge, Door

9761496 Stainless Steel

And Universal

Silver Models

11 9761357 Retainer, Insul.

12 Trim, Door Side

Left Hand

8523172 White

8523171 Black

W10113926

Gray

Right Hand

8523166 White

8523165 Black

W10113925

Gray

13 Glass, Outer Door

W10075980

White

W10075990

Black

9756435 Stainless Steel

And Universal

Silver Models

14 3196160 Screw

15 3196025 Clip, Door Glass

W10031780

Screw

19 Trim, Bottom

8523175 White

8523177 Black

8523180 Stainless Steel

Model

W10067550

Universal Silver

Model

21 3196794 Bracket, Window

22 3196165 Screw

23 9761517 Clip, Door Mntg(2)

For Models: SF367LXSQ1, SF367LXSB1, SF367LXSS1, SF367LXSY1

(Designer White) (Black) (Stainless Steel)(Universal Silver)

OPTIONAL PARTS (NOT INCLUDED)

W10122867

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire, Black

12 Ga. 150 c

242821 Wire, Blue

14 Ga. 150 c

242822 Wire, Brown

14 Ga. 150 c

242830 Wire, Brown

14 Ga. 200 c

242823 Wire, Green

14 Ga. 150 c

242824 Wire, Orange

14 Ga. 150 c

242825 Wire, Red

14 Ga. 150 c

242831 Wire, Red

14 Ga. 200 c

242827 Wire, Yellow

14 Ga. 150 c

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

4392899 Biscuit

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

4392901 Biscuit

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

4392900 Biscuit (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

4396923 Pan − Broiler

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

W10082160

Harness, Main

8524207 Harness, Bake &

Broil Ignitor

8523599 Harness, Wire

(Cooktop Spark)

W10045060

Harness, Grnd DSI

3196174 Screw, Ground

3400964 Clip, Wire

3196896 Clip, Wire

313438 Clip, Harness

3196173 Screw

3195927 Wire, Tie

3196696 Clip, Harness

For Models: SF367LXSQ1, SF367LXSB1, SF367LXSS1, SF367LXSY1

(Designer White) (Black) (Stainless Steel)(Universal Silver)

Andere Handbücher für SF367LXS

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Reichweite Handbücher

Whirlpool

Whirlpool SF110AXSQ2 Bedienungsanleitung

Whirlpool

Whirlpool RF380LXPB3 Bedienungsanleitung

Whirlpool

Whirlpool SF367LEMB0 Bedienungsanleitung

Whirlpool

Whirlpool WGG555S0BB Bedienungsanleitung

Whirlpool

Whirlpool 40' Electric Freestanding Range Bedienungsanleitung

Whirlpool

Whirlpool SF378LEPS3 Bedienungsanleitung

Whirlpool

Whirlpool RF385PXW Bedienungsanleitung

Whirlpool

Whirlpool WERC4101SB2 Bedienungsanleitung

Whirlpool

Whirlpool Drop-In Ceramic Electric Range Bedienungsanleitung

Whirlpool

Whirlpool RS575PXR5 Bedienungsanleitung

Whirlpool

Whirlpool GFG474LVS Bedienungsanleitung

Whirlpool

Whirlpool RF114PXSB1 Bedienungsanleitung

Whirlpool

Whirlpool 9753313B Bedienungsanleitung

Whirlpool

Whirlpool lSF034PEW Bedienungsanleitung

Whirlpool

Whirlpool RF114PXSB2 Bedienungsanleitung

Whirlpool

Whirlpool SF378PEW Bedienungsanleitung

Whirlpool

Whirlpool RF396PXV Bedienungsanleitung

Whirlpool

Whirlpool GGE388LX - 8-18-10 Bedienungsanleitung

Whirlpool

Whirlpool Rooper Bedienungsanleitung

Whirlpool

Whirlpool ELECTRIC RANGE Bedienungsanleitung

Whirlpool

Whirlpool range series Bedienungsanleitung

Whirlpool

Whirlpool GW395LEPB01 Bedienungsanleitung

Whirlpool

Whirlpool KSGG700ESS2 Bedienungsanleitung

Whirlpool

Whirlpool RJE-340P Bedienungsanleitung

Beliebte Reichweite Handbücher anderer Marken

Samsung

Samsung FCQ321HTUW Bedienungsanleitung

Kenmore

Kenmore 790.45712 Bedienungsanleitung

Wolf

Wolf CHR CHSSR Bedienungsanleitung

Smeg

Smeg Built-in Microwave Oven Bedienungsanleitung

Zanussi

Zanussi ZCG054G Bedienungsanleitung

Frigidaire

Frigidaire 316000635 Bedienungsanleitung

GE JCSS630 Bedienungsanleitung

Samsung

Samsung NX58M9960P series Bedienungsanleitung

Hotpoint

Hotpoint RB524R Installationsanleitung

Amana

Amana ART6610 SERIES Bedienungsanleitung

Maytag

Maytag MERH770WB Bedienungsanleitung

Fulgor Milano

Fulgor Milano SOFIA Bedienungsanleitung

Premier

Premier EF-4358GH Bedienungsanleitung

Kenmore

Kenmore 790.9010 Series Bedienungsanleitung

KitchenAid

KitchenAid KESC300 Bedienungsanleitung

Frigidaire

Frigidaire FFEF3012LS Benutzerhandbuch

Diamond

Diamond G65/2F4T Bedienungsanleitung

Samsung

Samsung NX58*565 Series Bedienungsanleitung
