NO-FROST REFRIGERATOR-FREEZER 8ED22PW

UseAndCareGuide \zfq3

A Note To You 2

Important Safety

Instructions 3

Parts And Features 4

Before Using Your

Refrigerator 5

Using Your

Refrigerator 7

Caring For Your

Refrigerator 18

Food Storage Guide 20

If You Need

Assistance Or

Service 22

Warranty 24

1-800-253-1301

Call us with questions or comments

from anywhere in the U.S.A.

A Note To You

Thank you for buying a Whirlpool appliance.

You have purchased a quality, world-class home appliance. Years of engineering experience have gone

into its manufacturing. To ensure that you will enjoy many years of trouble-free operation, we have

developed this Use and Care Guide. It is full of valuable information on how to operate and maintain

your appliance properly and safely. Please read it carefully. Also, please complete and mail the Owner-

ship Registration Card provided with your appliance. This will help us notify you about any new informa-

tion on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these symbols and

follow any instructions given. Here is a brief explanation of the use of each symbol.

This symbol will help alert you to such dangers as This symbol will help you avoid actions which

personal injury, burns, fire and electrical shock. could cause product damage (scratches, dents,

etc.) and damage to your personal property.

Our Consumer Assistance Center number, l-800-253-1 301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first see “If

You Need Assistance Or Service” on page 22. If you need further help, feel free to call our Consumer

Assistance Center. When calling, you will need to know your appliance’s complete model number and

serial number. You can find this information on the model and serial number label (see diagram on

page 4). For your convenience, we have included a handy place below for you to record these numbers,

the purchase date from the sales slip and your dealer’s name and telephone number. Keep this book

and the sales slip together in a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

ImDortant Safetv Instructions

To reduce the risk of fire, electrical shock, or injury when using your

refrigerator, follow these basic precautions:

Read all instructions before using the

refrigerator.

Child entrapment and suffocation are not

problems of the past. Junked or abandoned

refrigerators are still dangerous . even if

they will “just sit in the garage a few days.”

If you are getting rid of your old refrigerator,

do it safely. Please read the enclosed safety

booklet from the Association of Home

Appliance Manufacturers. Help prevent

accidents.

. Never allow children to operate, play with, or

crawl inside the refrigerator.

Never clean refrigerator parts with flammable

fluids. The fumes can create a fire hazard or

explosion. . FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND LIQUIDS

IN THE VICINITY OF THIS OR ANY OTHER

APPLIANCE. THE FUMES CAN CREATE A

FIRE HAZARD OR EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install and level the refrigerator on a floor that Also, remove tape and any inside labels (except

will hold the weight and in an area suitable for the model and serial number label) before using

its size and use. the refrigerator.

Do not install the refrigerator near an oven,

radiator or other heat source.

Do not use the refrigerator in an area where the

room temperature will fall below 55°F (13°C).

Keep the refrigerator out of the weather.

Connect the refrigerator only to the proper kind

of outlet, with the correct electrical supply and

grounding. (Refer to the Electrical Require-

ments and Grounding Instructions Sheet.)

Do not load the refrigerator with food before it

has time to get properly cold.

Use the refrigerator only for the uses described

in this manual.

Properly maintain the refrigerator.

Be sure the refrigerator is not used by anyone

unable to operate it properly.

To remove any remaining glue:

Rub briskly with thumb to make a ball, then

remove.

Soak area with liquid hand dishwashing

detergent before removing glue as described

above. Do not use sharp instruments, rubbing

alcohol, flammable fluids or abrasive cleaners.

These can damage the material. See “lmpor-

tant Safety Instructions” above.

NOTE: Do not remove any permanent instruction

labels inside your refrigerator. Do not remove the

Tech Sheet fastened under the refrigerator at the

front.

Parts And Features

This section contains captioned illustrations of your appliance. Use them to become familiar with where

all parts and features are located and what they look like. The model you have purchased may have all

or some of the parts and features shown, and they may not match the illustration exactly. This manual is

designed to cover several models.

Light Model and

I serial number

Automatic

ice maker

Ice bin

shelves

Snack bin

Slide-out

freezer basket,

(wire on

ED25PW,

plastic on

ED22PW)

Base grille

Leveling rollers \

(behind base grille), ;:I:f I/ -

\ I

---n side bz;

6 compartment

m 11111

-Utility bin

di ~!!!!!?A::::: I III

Gallon-wide

door bins

-Crisper light

Crisper cover

Crisper with

“I

T Meat drawer

Meat drawer

Model ED25PW shown

Control panel

\ air control

(on side wall)

Freezer control

Refrigerator control

Before Using Your

Refrigerator

In This Section

Page

Cleaning it ...........................................................5

Plugging it in .......................................................5

Page

Installing it properly ........................................5

Leveling it .........................................................

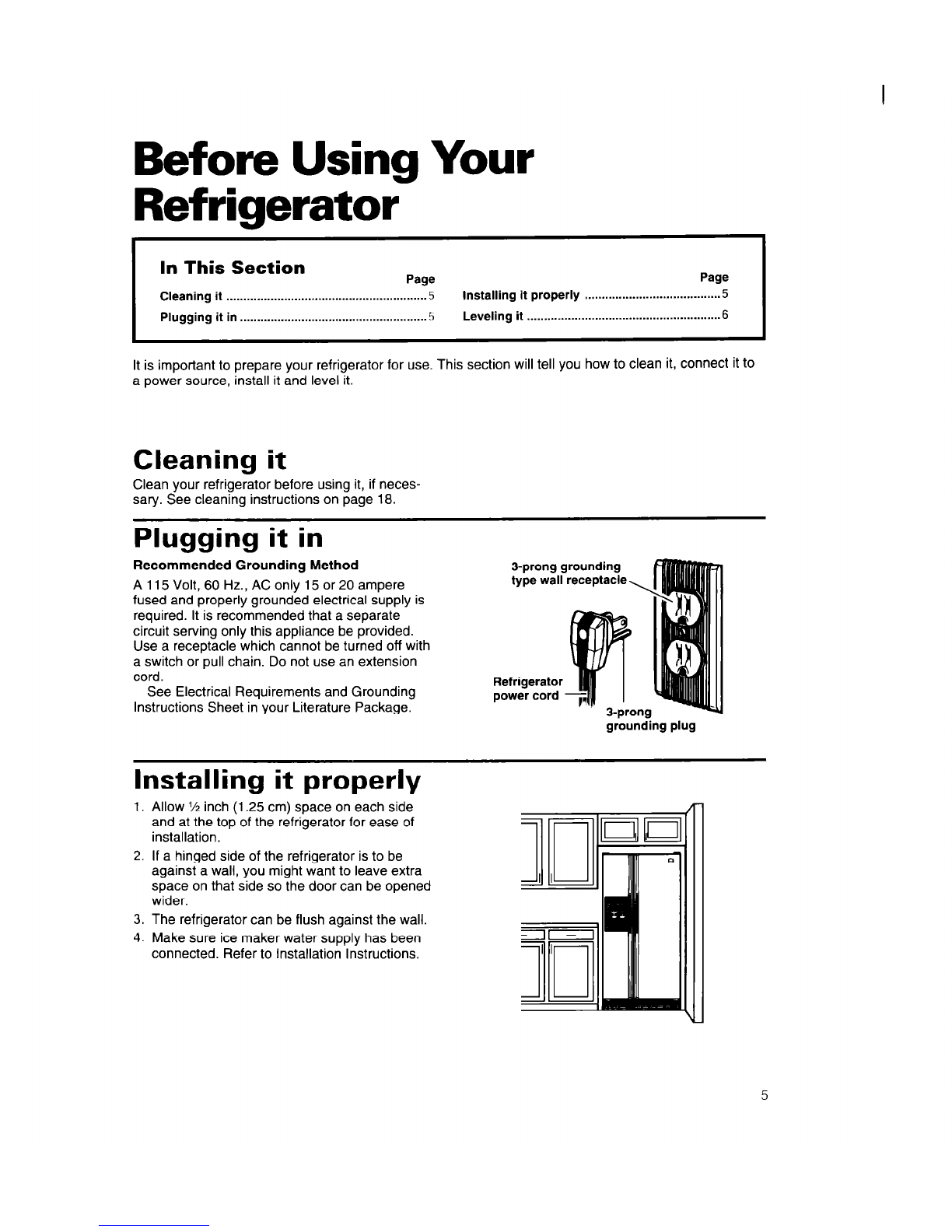

It is important to prepare your refrigerator for use. This section will tell you how to clean it, connect it to

a power source, install it and level it.

Cleaning it

Clean your refrigerator before using it, if neces-

sary. See cleaning instructions on page 18.

Plugging it in

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere

fused and properly grounded electrical supply is

required. It is recommended that a separate

circuit serving only this appliance be provided.

Use a receptacle which cannot be turned off with

a switch or pull chain. Do not use an extension

cord.

See Electrical Requirements and Grounding

Instructions Sheet in your Literature Package.

3-prong grounding

type wall receptacle

Refrigerator

power cord

grounding plug

Installing it properly

Allow % inch (1.25 cm) space on each side

and at the top of the refrigerator for ease of

installation.

If a hinged side of the refrigerator is to be

against a wall, you might want to leave extra

space on that side so the door can be opened

wider.

The refrigerator can be flush against the wall.

Make sure ice maker water supply has been

connected. Refer to Installation Instructions.

LeveIinQ it

Your refrigerator has 2 front leveling screws-one

on the right and one on the left. To adjust one or

both of these, follow the directions below.

1. Remove base grille. (See page 15.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclockwise.

Check with level.

Right to raise;

left to lower

Use a screwdriver

5. Replace base grille. (See page 15.)

Using Your Refrigerator

In This Section

Page

Setting the controls ............................................7

Changing the control settings ...........................8

Adjusting the door bins .....................................8

Adjusting the door bin glides ............................9

Adjusting the refrigerator shelves ....................9

Removing the crisper, meat drawer

and covers ...........................................................9

Adjusting the crisper humidity control ..........

Adjusting the meat drawer temperature .........

Removing the snack bin ..................................10

Removing the freezer door shelves ................11

Page

Removing the freezer shelves ......................11

Removing the freezer basket ........................11

Using the automatic ice maker .....................12

Removing the ice maker storage bin ...........13

Using the ice and water dispensers .............14

Solving common dispenser/ice maker

problems .........................................................15

Removing the base grille ..............................15

Changing the light bulbs ...............................

Understanding the sounds you may hear ...17

Saving energy ................................................ 17

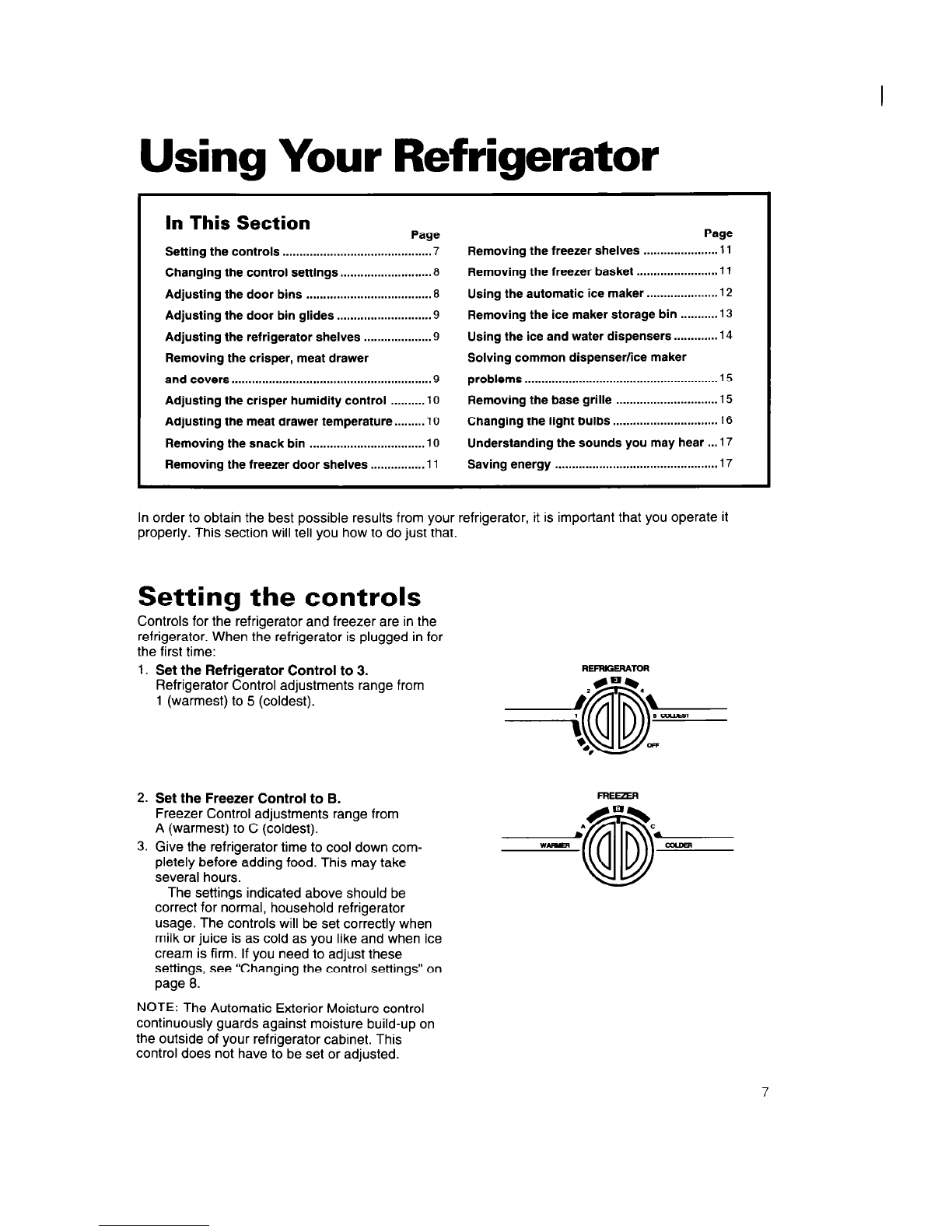

In order to obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section will tell you how to do just that.

Setting the controls

Controls for the refrigerator and freezer are in the

refrigerator. When the refrigerator is plugged in for

the first time:

Set the Refrigerator Control to 3.

Refrigerator Control adjustments range from

1 (warmest) to 5 (coldest).

2. Set the Freezer Control to B.

Freezer Control adjustments range from

A (warmest) to C (coldest).

3. Give the refrigerator time to cool down com-

pletely before adding food. This may take

several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls will be set correctly when

milk or juice is as cold as you like and when ice

cream is firm. If you need to adjust these

settings, see “Changing the control settings” on

page 8.

NOTE: The Automatic Exterior Moisture control

continuously guards against moisture build-up on

the outside of your refrigerator cabinet. This

control does not have to be set or adjusted.

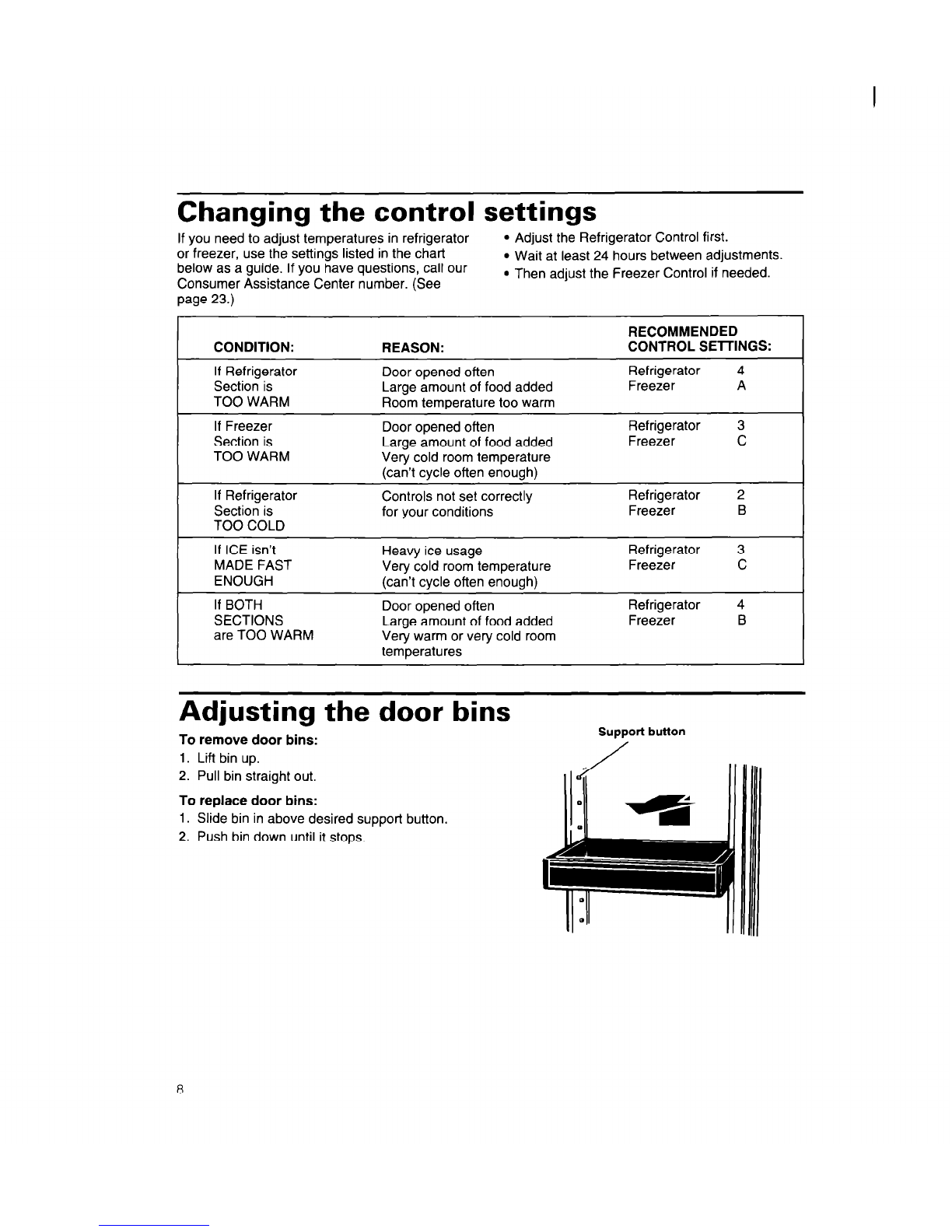

Changing the control settings

If you need to adjust temperatures in refrigerator

or freezer, use the settings listed in the chart

below as a guide. If you have questions, call our

Consumer Assistance Center number. (See

page 23.)

Adjust the Refrigerator Control first.

Wait at least 24 hours between adjustments.

Then adjust the Freezer Control if needed.

CONDITION:

If Refrigerator

Section is

TOO WARM

If Freezer

Section is

TOO WARM

If Refrigerator

Section is

TOO COLD

REASON:

Door opened often

Large amount of food added

Room temperature too warm

Door opened often

Large amount of food added

Very cold room temperature

(can’t cycle often enough)

Controls not set correctly

for your conditions

RECOMMENDED

CONTROL SElTINGS:

Refrigerator 4

Freezer A

Refrigerator

Freezer z

Refrigerator 2

Freezer B

If ICE isn’t

MADE FAST

ENOUGH

If BOTH

SECTIONS

are TOO WARM

Heavy ice usage

Very cold room temperature

(can’t cycle often enough)

Door opened often

Large amount of food added

Very warm or very cold room

temperatures

Refrigerator 3

Freezer C

Refrigerator 4

Freezer B

Adjusting the door bins

To remove door bins:

1. Lift bin up.

2. Pull bin straight out.

To replace door bins:

1. Slide bin in above desired support button.

2. Push bin down until it stops.

Support button

Adjusting the door bin glides

The door bin glides can be used to secure odd-

shaped items or to separate other items.

1. Grasp glide.

2. Slide glide along bin.

Adjusting the refrigerator shelves

Shelves can be adjusted to match the way you

use your refrigerator. Glass shelves are strong

enough to hold bottles, milk and other heavy food

items.

To remove the shelves:

1. Remove items from the shelf.

2. Tilt shelf up at front.

3. Lifl shelf up at back.

4. Pull shelf straight out.

To replace the shelves:

1. Guide the rear shelf hooks into the slots in the

shelf supports on liner wall.

2. Tilt front of shelf up until hooks drop into slots.

3. Lower front of shelf to a level position.

Be careful when

handling glass items.

3. Slide drawer out the rest of the way.

4. Replace in reverse order.

To remove the covers:

Push up glass insert from the bottom, then

slide it out with both hands.

Lift front of cover frame.

Lift cover frame up and out.

Remove metal cover support.

Removing the crisper, meat drawer and

covers

Pull out to the stoo.

To remove the crisper or meat drawer:

1. Slide drawer straight out to the stop.

2. Lift the front slightly.

Remove glass

insert. Lift the

front of cover

frame, then the

back.

Inhaltsverzeichnis

Andere Whirlpool Kühlschrank Handbücher

Whirlpool

Whirlpool ET1FTEXV Montageanleitung

Whirlpool

Whirlpool ED2FHAXSB04 Bedienungsanleitung

Whirlpool

Whirlpool W201 Bedienungsanleitung

Whirlpool

Whirlpool ED25SM Bedienungsanleitung

Whirlpool

Whirlpool GSS30C6EYW Stücklistenhandbuch

Whirlpool

Whirlpool S26S5 DF Bedienungs- und Montageanleitung

Whirlpool

Whirlpool ED7FHGXKB00 Bedienungsanleitung

Whirlpool

Whirlpool ED20PK ED22PK Bedienungsanleitung

Whirlpool

Whirlpool ET18HM Bedienungsanleitung

Whirlpool

Whirlpool ARG 733/A+ Technische Daten

Whirlpool

Whirlpool Gold GSF26C4EX Bedienungsanleitung

Whirlpool

Whirlpool Inglis IT21AMXRQ01 Bedienungsanleitung

Whirlpool

Whirlpool ET1MHKXMB02 Bedienungsanleitung

Whirlpool

Whirlpool EDl9VK Bedienungsanleitung

Whirlpool

Whirlpool EJT181XKWR2 Bedienungsanleitung

Whirlpool

Whirlpool EL87TRRRQ00 Bedienungsanleitung

Whirlpool

Whirlpool BF 30 NFI Series Bedienungsanleitung

Whirlpool

Whirlpool Gladiator Garageworks Freezerator... Bedienungsanleitung

Whirlpool

Whirlpool ET1MHKXMB04 Bedienungsanleitung

Whirlpool

Whirlpool EL15SC Bedienungsanleitung

Whirlpool

Whirlpool ED22EM Bedienungsanleitung

Whirlpool

Whirlpool EDISSC Bedienungsanleitung

Whirlpool

Whirlpool Gold GX2FHDXV Gebrauchsanweisung

Whirlpool

Whirlpool GSS30C6EYY02 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
