INSTRUCTIONS FOR USE

BEFORE USING THE REFRIGERATOR

SAFEGUARDING THE ENVIRONMENT

PRECAUTIONS AND GENERAL

RECOMMENDATIONS

HOW TO OPERATE THE REFRIGERATOR

COMPARTMENT

HOW TO OPERATE THE LOW TEMPERATURE

COMPARTMENT

HOW TO DEFROST AND CLEAN THE

REFRIGERATOR

CARE AND MAINTENANCE

TROUBLESHOOTING GUIDE

AFTER-SALES SERVICE

INSTALLATION

ELECTRICAL CONNECTION

3Gb33007.fm Page 67 Monday, January 27, 2003 3:54 PM

BEFORE USING THE REFRIGERATOR

Your new appliance is exclusively for domestic use.

Use the low temperature compartment, if

fitted, for making ice cubes, storing frozen and

deep-frozen foods and freezing fresh and cooked

foods (only in the compartment marked );

defrosting is a manual procedure. The

refrigerator compartment, which has an

automatic defrost feature, is used for the storage

of fresh food and beverages.

To get the most out of your new appliance,

read the user handbook thoroughly. The

handbook contains a description of the

appliance and useful tips for storing food.

Keep this handbook for future consultation.

1. After unpacking the appliance, make sure that

the door shuts properly.

Any damage must be reported to your dealer

within 24 hours after delivery of the appliance.

2. Wait at least two hours before connecting the

appliance to the power supply in order to

ensure the refrigerant circuit is fully efficient.

3. Installation of the appliance and electrical

connections must be carried out by a qualified

electrician, in accordance with the

manufacturer's instructions and local

regulations.

SAFEGUARDING THE ENVIRONMENT

1. Packing

The packaging material is entirely recyclable, and

marked with the recycling symbol.

Follow local regulations for scrapping.

Keep the packaging materials (plastic bags,

polystyrene parts, etc.) out of reach of children, as

they are potentially dangerous.

2. Appliance

The appliance is made using recyclable materials.

Disposal must be carried out in accordance with

local environmental regulations for waste disposal.

Make the appliance unusable by cutting off the

power cord. The appliance must be delivered to an

authorised collection centre for the recovery of

refrigerant gas.

Information:

This appliance does not contain CFCs (replaced

with R134a) or HFCs (replaced with R600a -

Isobutane). For more information, refer to the

identification data plate affixed to the appliance.

3Gb33007.fm Page 68 Monday, January 27, 2003 3:54 PM

PRECAUTIONS AND GENERAL

RECOMMENDATIONS

Use the refrigerator compartment only for

storing fresh foods and the low temperature

compartment only for making ice cubes,

storing frozen foods and freezing fresh foods

(only in the compartment marked ).

Do not cover or obstruct the air vents of the

appliance.

Do not store liquids in glass containers in the

low temperature compartment - risk of

bursting.

Do not eat ice cubes or ice lollies immediately

after taking them out of the low temperature

compartment - risk of "cold" burns.

Do not allow children to play or hide inside the

appliance - risk of becoming trapped and

suffocating.

Before servicing or cleaning the appliance,

unplug it from the mains or disconnect the

electrical power supply.

The power cable may only be replaced by an

authorised person.

Declaration of conformity

This appliance is intended to come into contact

with foodstuffs and conforms

to D.L. 108 of 25.01.1992 (European Directive

89/109/EEC).

Information

Appliances with Isobutane (R600a)

Isobutane is a natural gas with low environmental

impact. Caution is required, however, since

isobutane is flammable. Therefore, it is essential to

ensure that refrigerant pipelines are not damaged.

3Gb33007.fm Page 69 Monday, January 27, 2003 3:54 PM

HOW TO OPERATE THE REFRIGERATOR

COMPARTMENT

Switching on the appliance

Starting up the appliance

The appliance features internal controls.

Plug in the appliance.

When the appliance is connected to the mains, the inside light

switches on each time the door is opened. The thermostat knob,

located either inside the refrigerator compartment or on the top

section of the appliance (depending on the model), is used to

adjust the temperature of both the refrigerator compartment and

the low temperature compartment.

Adjusting the temperature

For correct operation and optimum storage of food, follow

instructions given in the enclosed product sheet for

thermostat adjustment.

Note:

The ambient air temperature, frequency of door opening and the

position of the appliance can affect internal temperatures. These

factors must be taken into account when setting the thermostat.

How to use the refrigerator compartment

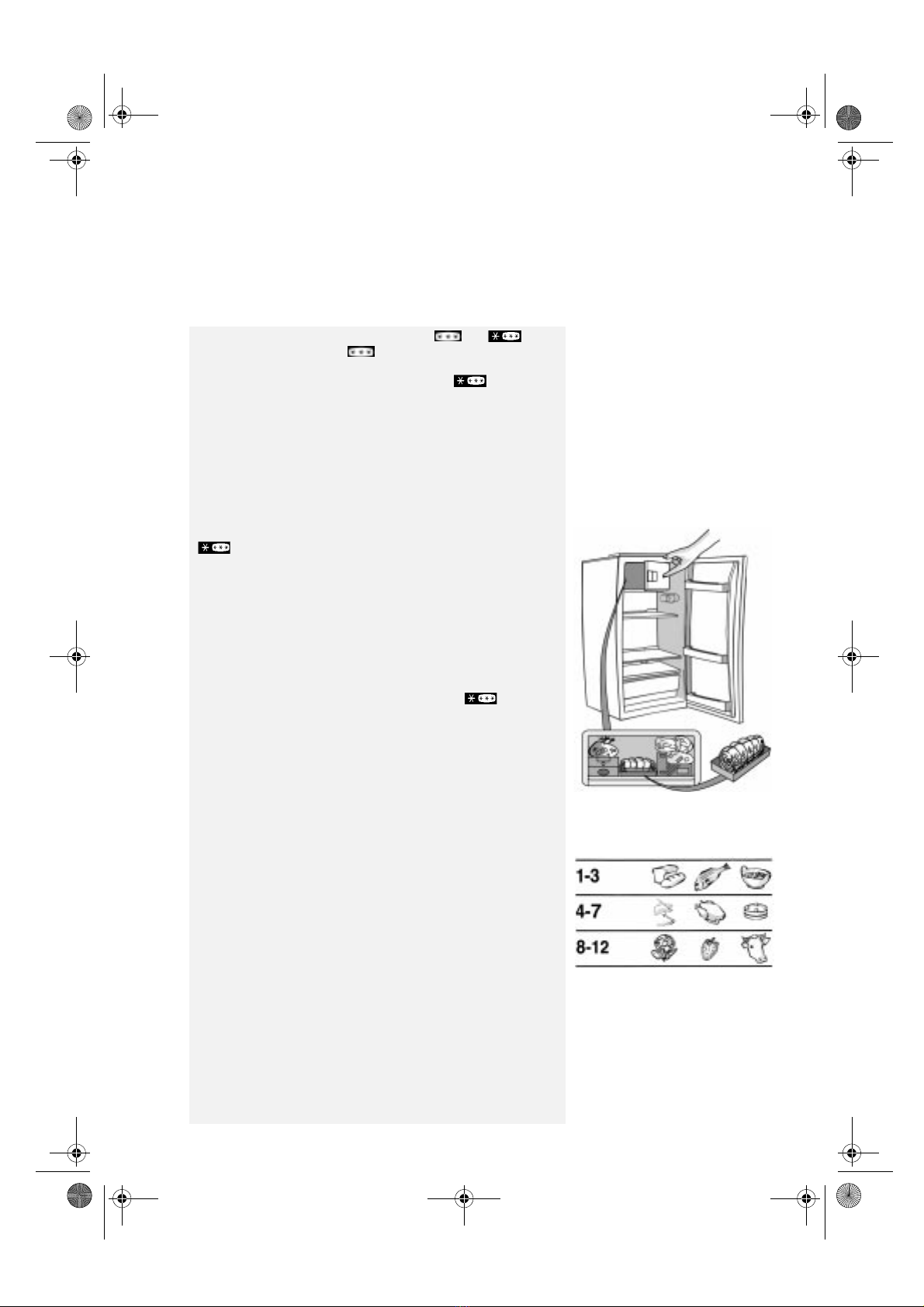

Position the food as shown in the figure.

A. Cooked food

B. Fish, meat

C. Fruit and vegetables

D. Bottles

E. Cheese

Notes:

The space between the shelves and the rear wall of the

refrigerator compartment must be unobstructed to allow

circulation of air.

Do not place food in direct contact with the rear wall of the

refrigerator compartment.

Do not place hot food in the refrigerator.

Store liquids in closed containers.

Important

Storing vegetables with high water content can cause

condensation to form on the glass shelf of the crisper

drawer: this will not affect the correct operation of the

appliance.

3Gb33007.fm Page 70 Monday, January 27, 2003 3:54 PM

HOW TO OPERATE THE LOW TEMPERATURE

COMPARTMENT

The low temperature compartment is , or .

Compartments marked can be used to store frozen

foods for the period of time indicated on packaging. If the

low temperature compartment is marked , it can also

be used to freeze fresh food.

The quantity of fresh food that can be frozen in 24 hours is

shown on the rating plate.

Note:

In the event of a power cut, the low temperature compartment

will maintain a sufficiently low temperature for food storage.

However, it is advisable to avoid opening the compartment door

during such periods.

Freezing fresh food (only in compartments marked

)

Important

Before freezing, wrap and seal fresh food in: aluminium foil,

cling film, air and water-tight plastic bags, polythene containers

with lids or freezer containers suitable for freezing fresh food.

Arrange the fresh food in the top compartment, leaving

sufficient space around each pack for the air to circulate.

For optimum freezing, turn the thermostat down by half a point

when placing fresh foods in the freezer compartment.

The food will be completely frozen in 24 hours.

For appliances with compartments marked

The table alongside shows the recommended maximum

storage time for frozen fresh foods.

When purchasing frozen food products:

Ensure that the packaging is not damaged (frozen food in

damaged packaging may have deteriorated). If the package is

swollen or has damp patches, it may not have been stored

under optimal conditions and defrosting may have already

begun.

When shopping, leave frozen food purchases until last and

transport the products in a thermally insulated cool bag.

Place the items in the low temperature compartment as soon

as you get home.

If food has defrosted even partially, do not re-freeze it.

Consume within 24 hours.

Avoid, or reduce temperature variations to the minimum.

Respect the best-before date on the package.

Always observe the storage information on the package.

Making ice cubes

Fill the ice cube tray 2/3 full and place it in the low

temperature compartment.

Do not use sharp or pointed instruments to detach the tray if

it is stuck to the low temperature compartment bottom.

Bend the ice tray slightly to remove the cubes.

MONTHS FOOD

3Gb33007.fm Page 71 Monday, January 27, 2003 3:54 PM

HOW TO DEFROST AND CLEAN THE

REFRIGERATOR

Before any cleaning or maintenance operation, unplug

the appliance from the mains or disconnect the

electrical power supply.

Defrosting of the refrigerator compartment is

completely automatic.

Droplets of water on the rear wall of the refrigerator

compartment indicate that the periodic automatic defrost

cycle is in progress.

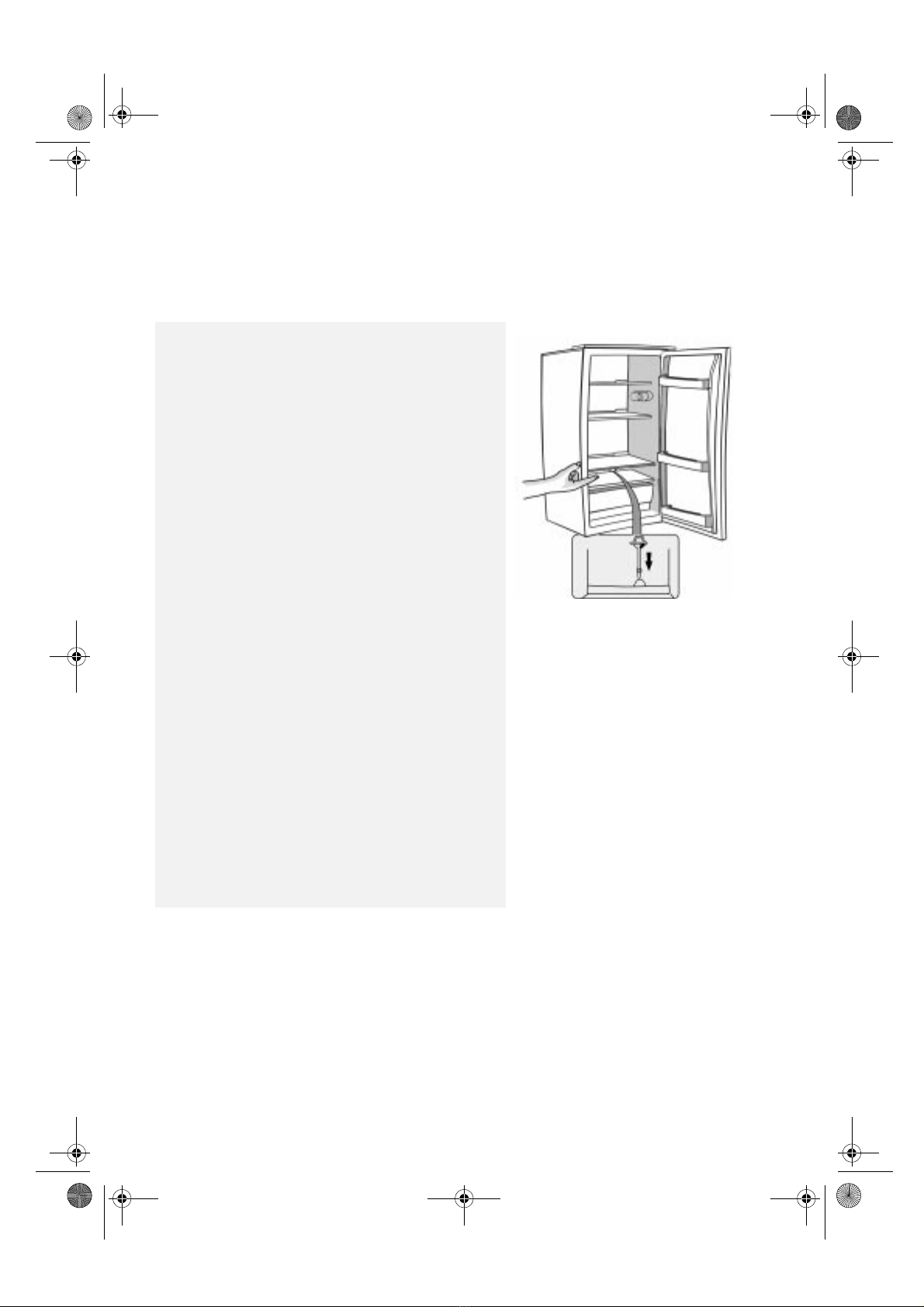

The defrost water is automatically routed to a drain outlet and

into a container from which it evaporates.

Clean the defrost water drain outlet regularly using the tool

supplied with the appliance in order to ensure defrost water

is removed correctly.

Defrosting the low temperature compartment

Defrost the low temperature compartment once or

twice a year or when the ice formation is excessive.

It is perfectly normal for ice to form. The amount of ice

which forms and the rate at which it accumulates will

depends on room temperature and humidity, and on

the frequency with which the door is opened. Ice

formation is concentrated at the top of the

compartment and does not affect the efficiency of the

appliance.

If possible, defrost the freezer when it is nearly empty.

Remove the food from the freezer, wrap in a newspaper

and group together in a cool place or in a portable cooler.

Leave the door open to allow the frost to melt.

Clean the interior with a sponge soaked in warm water

and/or neutral detergent.

Do not use abrasive substances.

Rinse the interior and dry thoroughly.

Put the food back into the freezer.

Close the door.

Plug in the appliance once again.

Switch the appliance on.

3Gb33007.fm Page 72 Monday, January 27, 2003 3:54 PM

CARE AND MAINTENANCE

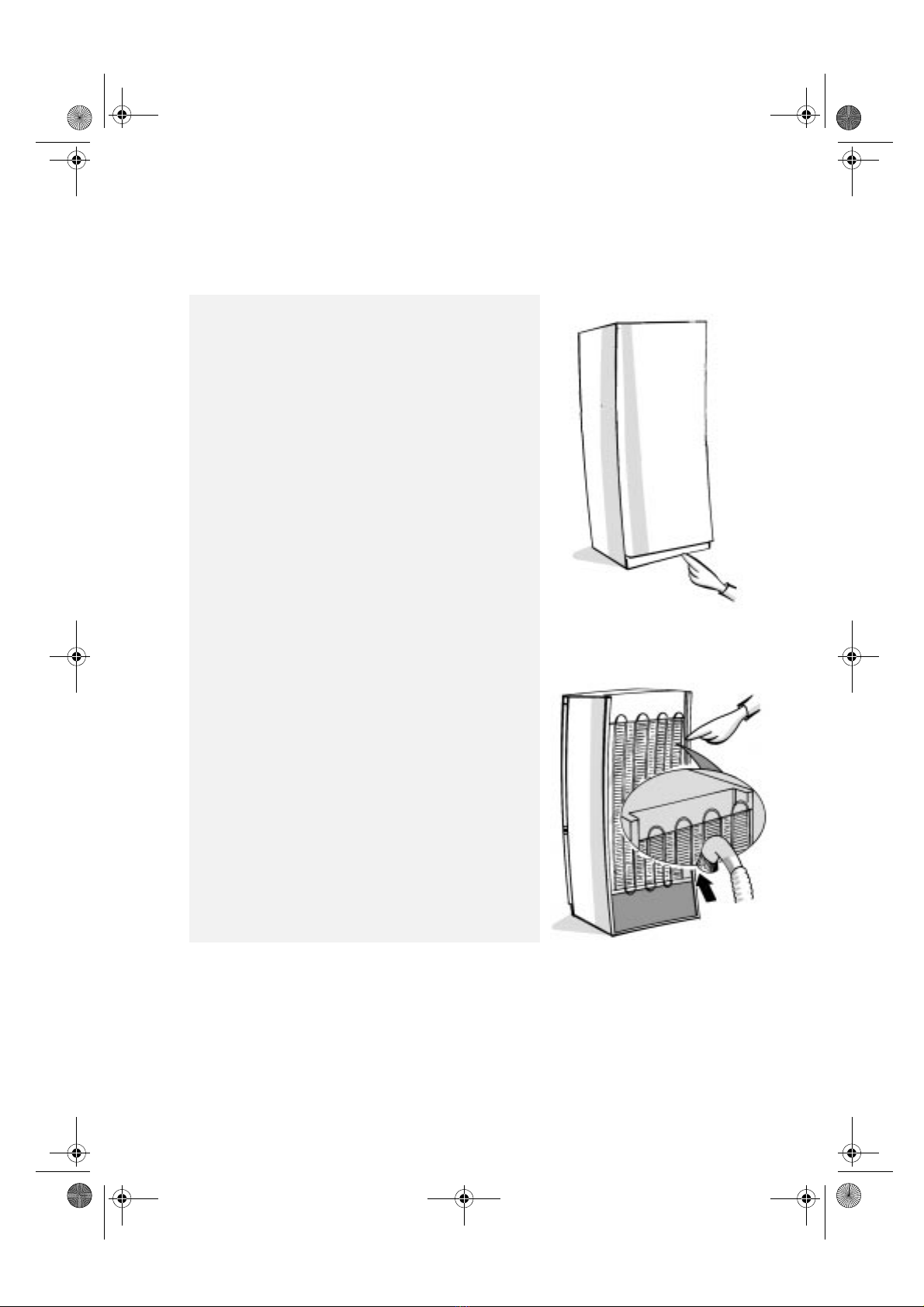

Periodically clean air vents and the condenser at the rear

of the appliance with a vacuum cleaner or a brush.

Clean the outside using a soft cloth.

Prolonged disuse

1. Empty the refrigerator.

2. Disconnect the appliance from the power supply.

3. Defrost and clean the interior.

4. In the event of prolonged disuse, leave the door open to

prevent the formation of mould, odours and oxidation.

5. Clean the appliance.

Clean the inside of the low temperature compartment

(where fitted) when defrosting.

Periodically clean the inside of the refrigerator

compartment with a sponge dampened in warm water

and/or neutral detergent. Rinse and dry with a soft cloth.

Do not use abrasive products.

Clean the outside with a soft damp cloth. Do not use

abrasive products, scourers, stain-removers (e.g.

acetone, trichloroethylene) or vinegar.

3Gb33007.fm Page 73 Monday, January 27, 2003 3:54 PM

TROUBLESHOOTING GUIDE

1. The appliance is not working.

Is there a power failure?

Is the plug properly inserted in the socket?

Is the double-pole switch on?

Has the fuse blown?

Is the power cord in perfect condition?

Is the thermostat set to ●(Stop)?

2. Temperature inside the compartments is

not low enough.

Is the door shut properly?

Is food obstructing proper door closure?

Is the appliance installed near a heat source?

Is the thermostat setting correct?

Are the air circulation vents blocked?

3. Temperature inside the refrigerator

compartment is too low.

Is the thermostat setting correct?

4. The appliance is excessively noisy.

Has the appliance been installed correctly?

Are the pipes at the back touching or vibrating?

5. Water collects at the bottom of the

refrigerator compartment.

Is the defrost water drain blocked?

6. Excessive frost build-up in the low

temperature compartment.

Is the door shut properly?

Is food obstructing proper door closure?

Notes:

Gurgling and hissing noises due to expansion in

the refrigerant circuit are normal.

AFTER-SALES SERVICE

Before contacting After-Sales Service:

1. See if you can solve the problem yourself with the

help of the Troubleshooting guide).

2. Switch the appliance on again to see if the problem

has been solved. If it has not, disconnect the

appliance from the power supply and wait for about

an hour before switching on again.

3. If the problem persists after this course of action,

contact After-sales Service.

Specify:

The nature of the problem.

The model.

The Service number (the number after the word

SERVICE on the data plate on the inside of the

appliance).

Your full address.

Your telephone number and area code.

Note:

The direction of door opening can be changed. If

this operation is performed by After-sales Service

it is not covered by the warranty.

3Gb33007.fm Page 74 Monday, January 27, 2003 3:54 PM

INSTALLATION

Install the appliance away from heat sources. Installation in a

hot environment, direct exposure to the sun or installation

near heat sources (heaters, radiators, cookers) will increase

power consumption and should therefore be avoided.

If this is not possible, the following minimum distances must

be respected:

30 cm from coal or paraffin stoves;

3 cm from electric and/or gas stoves.

Fit the spacers (if supplied) on the rear of the condenser

positioned at the back of the appliance (see figure).

To optimize appliance efficiency, leave a 5 cm gap above the

appliance and make sure that adjacent kitchen units are

sufficiently distanced to allow air circulation.

Install the appliance in a dry, well-ventilated place, and

ensure it is level, using the front adjustment feet if necessary.

Clean the interior.

Fit the accessories.

Electrical Connection

 Electrical connections must be made in accordance

with local regulations.

Voltage and power consumption are indicated on the rating

plate inside the appliance.

 Regulations require that the appliance is earthed.

The manufacturer declines all liability for injury to

persons or animals and for damage to property

resulting from failure to observe the above

procedures and reminders.

If the plug and socket are not of the same type, have the

socket replaced by a qualified electrician.

Do not use extension leads or adapters.

Disconnecting the appliance

It must be possible to disconnect the appliance by unplugging it

or by means of a two-pole switch fitted upline of the socket.

3Gb33007.fm Page 75 Monday, January 27, 2003 3:54 PM

ELECTRICAL CONNECTION

1) For Great Britain only

Warning - this appliance must be earthed

Fuse replacement

If the mains lead of this appliance is fitted with a BS 1363A 13amp

fused plug, to change a fuse in this type of plug use an A.S.T.A.

approved fuse to BS 1362 type and proceed as follows:

1. Remove the fuse cover (A) and fuse (B).

2. Fit replacement 13A fuse into fuse cover.

3. Refit both into plug.

Important:

The fuse cover must be refitted when changing a fuse and if the

fuse cover is lost the plug must not be used until a correct

replacement is fitted.

Correct replacement are identified by the colour insert or the

colour embossed in words on the base of the plug.

Replacement fuse covers are available from your local electrical

store.

2) For the Republic of Ireland only

The information given in respect of Great Britain will frequently

apply, but a third type of plug and socket is also used, the

2-pin, side earth type.

3) Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, please

contact Whirlpool Service for further instruction. Please do not

attempt to change plug yourself. This procedure needs to be

carried out by a qualified Whirlpool technician in compliance with

the manufactures instructions and current standard safety

regulations.

3Gb33007.fm Page 76 Monday, January 27, 2003 3:54 PM

Inhaltsverzeichnis

Andere Whirlpool Kühlschrank Handbücher

Whirlpool

Whirlpool ED5FVAXWL Montageanleitung

Whirlpool

Whirlpool WH46TS3E Bedienungsanleitung

Whirlpool

Whirlpool No Frost 390/ Bedienungsanleitung

Whirlpool

Whirlpool 25RI-D4 Bedienungsanleitung

Whirlpool

Whirlpool Multibras ARC8140IX Bedienungsanleitung

Whirlpool

Whirlpool GC3NHAXVA00 Bedienungsanleitung

Whirlpool

Whirlpool ARG 912 - Abmessungen

Whirlpool

Whirlpool EL88TRRW - 4-2010 Stücklistenhandbuch

Whirlpool

Whirlpool ED22EM Bedienungsanleitung

Whirlpool

Whirlpool WRI51ABTWW Kurzanleitung

Whirlpool

Whirlpool W8TXNGFWB - 17.6 cu. Ft. Refrigerator Montageanleitung

Whirlpool

Whirlpool ET25PK Bedienungsanleitung

Whirlpool

Whirlpool 3XARG457WP00 Betriebsanleitung

Whirlpool

Whirlpool CABINET DEPTHSIDE BY SIDEREFRIGERATOR Bedienungsanleitung

Whirlpool

Whirlpool RS20CK Bedienungsanleitung

Whirlpool

Whirlpool G2IXEFMWQ - 21.8 cu. Ft. Refrigerator Bedienungsanleitung

Whirlpool

Whirlpool GSS26C4XXB Montageanleitung

Whirlpool

Whirlpool ENXTL 19 FL Series Bedienungsanleitung

Whirlpool

Whirlpool 25RI-D4 PT Bedienungs- und Montageanleitung

Whirlpool

Whirlpool W4TXNGFW Gebrauchsanweisung

Whirlpool

Whirlpool ED2KHAXVA00 Bedienungsanleitung

Whirlpool

Whirlpool ET18PK Bedienungsanleitung

Whirlpool

Whirlpool ET14EK Bedienungsanleitung

Whirlpool

Whirlpool W10325088A Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
