A Note To You 2

!FZEfdW 3

Parts And Features 4

Before Using Your

Refrigerator 5

Using Your

Refrigerator 7

~$;e~i-I&our 17

Food Storage Guide 19

If You Need

gy;ez 22

Warranty 24

1-800-253-1301

Call us with questions or comments.

NO-FROST REFRIGERATOR-FREEZERS

0 -sa

MODELS ED20PK ED20ZK ED22ZR

A Note To You

Thank you for buying a Whirlpool appliance.

You have purchased a quality, world-class home appliance. Years of engineering experience have gone

into its manufacturing. To ensure that you will enjoy many years of trouble-free operation, we have

developed this Use and Care Guide. It is full of valuable information on how to operate and maintain

your appliance properly and safety. Please read it carefully. Also, please complete and mail the Owner-

ship Registration Card provided with your appliance. This will help us notify you about any new informa-

tion on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these symbols and

follow any instructions given. Here is a brief explanation of the use of each symbol.

This symbol will help alert you to such dangers as

personal injury, burns, fire and electrical shock. This symbol will help you avoid actions which

could cause product damage (scratches, dents,

etc.) and damage to your personal property.

Our Consumer Assistance Center number, l-800-253-1301,

is TOLL-FREE, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first see “If

You Need Assistance Or Service” on page 22. If you need further help, feel free to call our Consumer

Assistance Center. When calling, you will need to know your appliance’s complete model number and

serial number. You can find this information on the model and serial number label (see diagram on page

4). For your convenience, we have included a handy place below for you to record these numbers, the

purchase date from the sales slip and your dealer’s name and telephone number. Keep this book and

the sales slip together in a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

Imraortant Safetv Instructions

To reduce the risk of fire, electrical shock, or injury when using your

refrigerator, follow these basic precautions:

Read all instructions before using the

refrigerator.

Child entrapment and suffocation are not

problems of the past. Junked or abandoned

refrigerators are still dangerous ... even if

they will “just sit in the garage a few days.”

If you are getting rid of your old refrigerator,

do it safely. Please read the enclosed safety

booklet from the Association of Home

Appliance Manufacturers. Help prevent

accidents.

Never allow children to operate, play with, or

crawl inside the refrigerator.

Never clean refrigerator parts with flammable

fluids. The fumes can create a fire hazard or

explosion.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND LIQUIDS

IN THE VICINITY OF THIS OR ANY OTHER

APPLIANCE. THE FUMES CAN CREATE A

FIRE HAZARD OR EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install and level the refrigerator on a floor that

will hold the weight and in an area suitable for

its size and use.

Do not install the refrigerator near an oven,

radiator or other heat source.

Do not use the refrigerator in an area where the

room temperature will fall below 55°F (13°C).

Keep the refrigerator out of the weather.

Connect the refrigerator only to the proper kind

of outlet, with the correct electrical supply and

grounding. (Refer to the Electrical Require-

ments and Grounding Instructions Sheet.)

Do not load the refrigerator with food before it

has time to get properly cold.

Use the refrigerator only for the uses described

in this manual.

Properly maintain the refrigerator.

Be sure the refrigerator is not used by anyone

unable to operate it properly.

Also, remove tape and any inside labels (except

the model and serial number label) before using

the refrigerator.

To remove any remaining glue:

Rub briskly with thumb to make a ball, then

remove.

Soak area with liquid hand dishwashing

detergent before removing glue as described

above. Do not use sharp instruments, rubbing

alcohol, flammable fluids or abrasive cleaners.

These can damage the material. See “lmpor-

tant Safety Instructions” above.

NOTE: Do not remove any permanent instruction

labels inside your refrigerator. Do not remove the

Tech Sheet fastened under the refrigerator at the

front.

PartsAnd Feahms

This section contains captioned illustrations of your appliance. Use them to become familiar with where

all parts and features are located and what they look like. The model you have purchased may have all

or some of the parts and features shown and they may not match the illustration exactly. This manual is

designed to cover several models.

Control Dane1 Liaht

Automatic ice

maker and ice

Door shelves

Model EDSOZK shown

Control panel

Freeze; control Refrigerator control

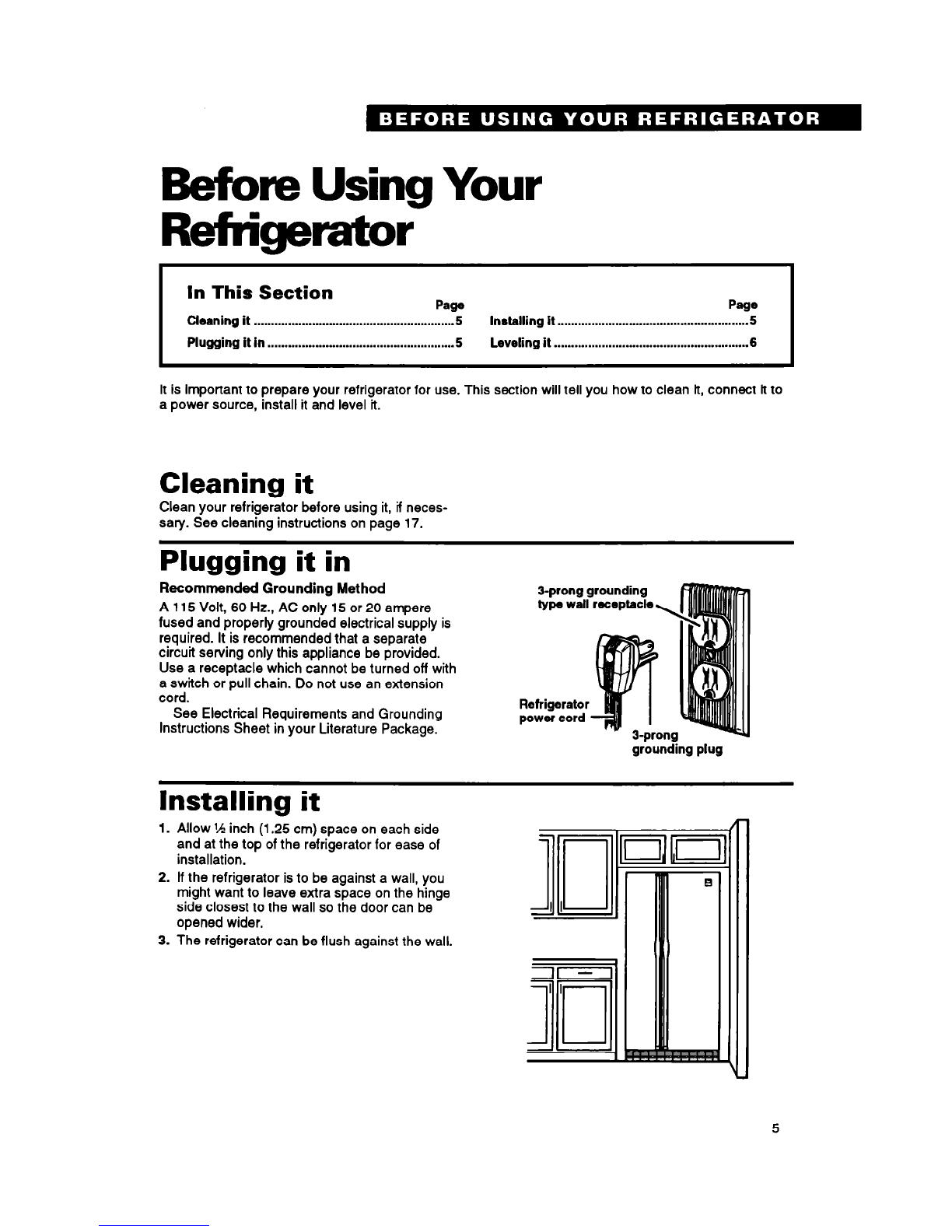

Before Using Your

Refrigerator

In This Section Page Page

Cleaning it ...........................................................5 Instelling it ........................................................5

Plugging it in .......................................................5 Leveling it .........................................................6

It is important to prepare your refrigerator for use. This section will tell you how to clean it, connect it to

a power source, install it and level it.

Cleaning it

Clean your refrigerator before using it, if neces-

sary.

See cleaning instructions on page

17.

Plugging it in

Recommended Grounding Method

115

Volt, 60 Hz., AC only 15 or 20 ampere

fused and properly grounded electrical supply is

required. It is recommended that a separate

circuit serving only this appliance be provided.

Use a receptacle which cannot be turned off with

a switch or pull chain. Do not use an extension

cord.

See Electrical Requirements and Grounding

Instructions Sheet in your Literature Package.

%-prong grounding

type wall receptacle \

Refrigerator

power cord I I

J-prong

g~ounchg plug

Installing it

1. Allow lh inch (1.25 cm) space on each side

and at the top of the refrigerator for ease of

installation.

2. If the refrigerator is to be against a wall, you

might want to leave extra space on the hinge

side closest to the wall so the door can be

opened wider.

3. The refrigerator can be flush against the wall.

Leveling it

Your refrigerator has 2 leveling screws-one on

the right and one on the left. To adjust one or

both of these, follow the directions below.

Remove base grille. (See page

14.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclockwise.

Check with level.

5. Replace base grille. (See page 14.)

Right to raise;

Ml to lower

Front

r0lh

Use a screwdriver

Using Your Refrigerator

In This Section -

Paw

Setting the controls ........................................... .7

Changing the control settings. .......................... 9

Adjusting the refrigerator shelves ................... .6

Removing the freezer shetvcs ........................... 9

Removing the freezer door shelves .................. 9

Adjusting the shelf glides .................................. 9

Removing the crisper

and crisper

cover

...... ..lO

Removing the meat drawer and cover..

..........10

Adjusting the meat drawer temperature.. ...... .10

Removing the freezer bin.. .............................. .ll

Paw

Using the ice cubs trays.. ............................. .ll

Using the automatic ice maker ....................

.l 1

Using the ice dispenser.. ............................... 12

Removing the ice maker storage bin .......... .13

Solving common ice maker/

dispenser problems ....................................... 14

Removing the base grille ............................. .14

Changing the light bulbs ............................... 15

Undwstanding the sounds you may hear ...16

Saving energy ................................................ 16

In order to obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section will tell you how to do just that.

Setting the controls

Controls for the refrigerator and freezer are in the

refrigerator. When the refrigerator is plugged in for

the first time:

1. Set the Ref rigeretor Control to 3.

Refrigerator Control adjustments range from

(warmest) to 5 (coldest).

2. Set the Freezer Control to B.

Freezer Control adjustments range from A

(warmest) to C (coldest).

3. Give the refrigerator time to cool down com-

pletely before adding food. This may take

several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls will be set correctly when

milk or juice is as cold as you like and when ice

cream is firm. If you need to adjust these

settings, see “Changing the control settings” on

page 8.

NOTE: The Automatic Exterior Moisture control

continuously guards against moisture build-up on

the outside of your refrigerator cabinet. This

control does not have to be set or adjusted.

Changing the control settings

If you need to adjust temperatures in refrigerator

or freezer, use the settings listed in the chart

below as a guide. If you have questions, call our

Consumer Assistance Center number. (See

page 23.)

Adjust the Refrigerator Control first.

Wait at least 24 hours between adjustments.

Then adjust the Freezer Control if needed.

CONDITION:

If Refrigerator

Section is

TOO WARM

If Freezer

Section is

TOO WARM

If Refrigerator

Section is

TOO COLD

REASON:

Door opened often

Large amount of food added

Room temperature too warm

Door opened often

Large amount of food added

Very cold room temperature

(can’t cycle often enough)

Controls not set correctly

for your conditions

RECOMMENDED

CONTROL SETTINGS:

Refrigerator

Freezer i

Refrigerator 3

Freezer C

Refrigerator 2

Freezer B

If ICE isn’t

MADE FAST

ENOUGH

If BOTH

SECTIONS

are TOO WARM

Heavy ice usage

Very cold room temperature

(can’t cycle often enough)

Door opened often

Large amount of food added

Very warm or very cold room

temperatures

Refrigerator 3

Freezer C

Refrigerator

Freezer ii

Adjusting the refrigerator shelves

Shelves can be adjusted to match the way you

use your refrigerator. Glass shelves are strong

enough to hold bottles, milk and other heavy food

items.

To remove shelves:

1. Remove items from shelf.

2. Tilt shelf up at front.

3. Lift shelf up at back.

4. Pull shelf straight out.

To replace shelves:

1. Guide the rear hooks into the slots in the shelf

supports.

2. Tilt up front of shelf until hooks drop into slots.

3. Lower front of shelf to level position.

NOTE: The above instructions apply to all

models in this manual (ED20PK with glass

shelves and ED20ZK and ED22ZR with wire

shelves).

Removing the freezer shelves

To remove the shelves:

1. Lift right side of shelf off supports.

2. Slide shelf out of shelf support holes.

3. Replace in reverse order.

To adjust the shelves:

1. Remove shelf as above.

2. Remove supports by sliding upward.

3. Replace supports on desired level.

4. Replace shelf.

NOTE: The cup-shaped supports go in the back

of the freezer.

Removing the freezer door shelves

(ED~~ZR)

Shelves can be removed for easier cleaning.

To remove door shelves:

1. Grasp shelf at both ends.

2. Lift shelf up and pull out.

To replace door shelves:

1. Insert hooks into guides on both sides of door.

2. Push shelf down to lock into place.

Adjusting the shelf glides

(EDZOPK)

The shelf glides can be used to secure odd-

shaped items or to separate other items.

1. Grasp glide.

2. Slide guide along track.

Slide along

track

NOTE: Shetf glides cannot be removed.

Removing the crisper and crisper cover

To remove the crisper:

1. Slide the crisper straight out to the stop.

2. Lift the front.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Push glass insert up from bottom, then slide

out with both hands.

Pull

out to the stop,

lift the front

2. Lift front of cover frame.

3. Lift cover frame out by pulling up and out.

To replace the cover:

1. Fit back of cover into notch supports on walls

of refrigerator, then lower front into place.

2. Slide back of glass insert into place, then

lower front into place.

Lift the covew

Removing the meat drawer and cover

To remove the meat drawer:

1. Slide the meat drawer out to the stop.

2. Lift the front.

3. Slide meat drawer out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Remove crisper, crisper cover and meat

drawer.

2. Tilt front of cover up, lift at back and pull

straight out.

3. Replace in reverse order.

Adjusting the meat drawer temperature

Cold air flows against the meat drawer through

an opening between the freezer and the refrig-

erator. This helps keep the meat drawer colder

than the rest of the refrigerator for better storage

of meats.

Slide the control to let more or less cold air

through.

Andere Handbücher für ED20ZK

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Kühlschrank Handbücher

Whirlpool

Whirlpool ET6WSKXSQ02 Bedienungsanleitung

Whirlpool

Whirlpool WBE 34162 TS Bedienungsanleitung

Whirlpool

Whirlpool ARC 6700/IX Bedienungsanleitung

Whirlpool

Whirlpool ED25D Bedienungsanleitung

Whirlpool

Whirlpool WD5600S Bedienungsanleitung

Whirlpool

Whirlpool ET8WTMXKQ04 Bedienungsanleitung

Whirlpool

Whirlpool REFRIGERATOR Bedienungsanleitung

Whirlpool

Whirlpool ET20VM Bedienungsanleitung

Whirlpool

Whirlpool WRT138FZDB SERIES Bedienungsanleitung

Whirlpool

Whirlpool GS2KVAXVS02 Bedienungsanleitung

Whirlpool

Whirlpool EL7ATRRMQ00 Bedienungsanleitung

Whirlpool

Whirlpool Roper RS22AQXGN03 Bedienungsanleitung

Whirlpool

Whirlpool ET8WTKXKB00 Bedienungsanleitung

Whirlpool

Whirlpool TS22AW Montageanleitung

Whirlpool

Whirlpool Gold G9RXXFMW Gebrauchsanweisung

Whirlpool

Whirlpool Gold GC5THEXN Gebrauchsanweisung

Whirlpool

Whirlpool WNF8 Series Bedienungsanleitung

Whirlpool

Whirlpool GC3NHAXVB - 36in 23.1 cu. ft Gebrauchsanweisung

Whirlpool

Whirlpool ET8CHMXKQ04 Bedienungsanleitung

Whirlpool

Whirlpool Gold GI0FSAXV Stücklistenhandbuch

Whirlpool

Whirlpool WRT1L1TZY Stücklistenhandbuch

Whirlpool

Whirlpool WT70E 831 X Installations- und Betriebshandbuch

Whirlpool

Whirlpool BLF 8001 Einrichtungshandbuch

Whirlpool

Whirlpool GI7FVCXWA Bottom Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
