Whirlpool ED5FHAXVT - 25' Dispenser Refrigerator Gebrauchsanweisung

Side by Side Refrigerator

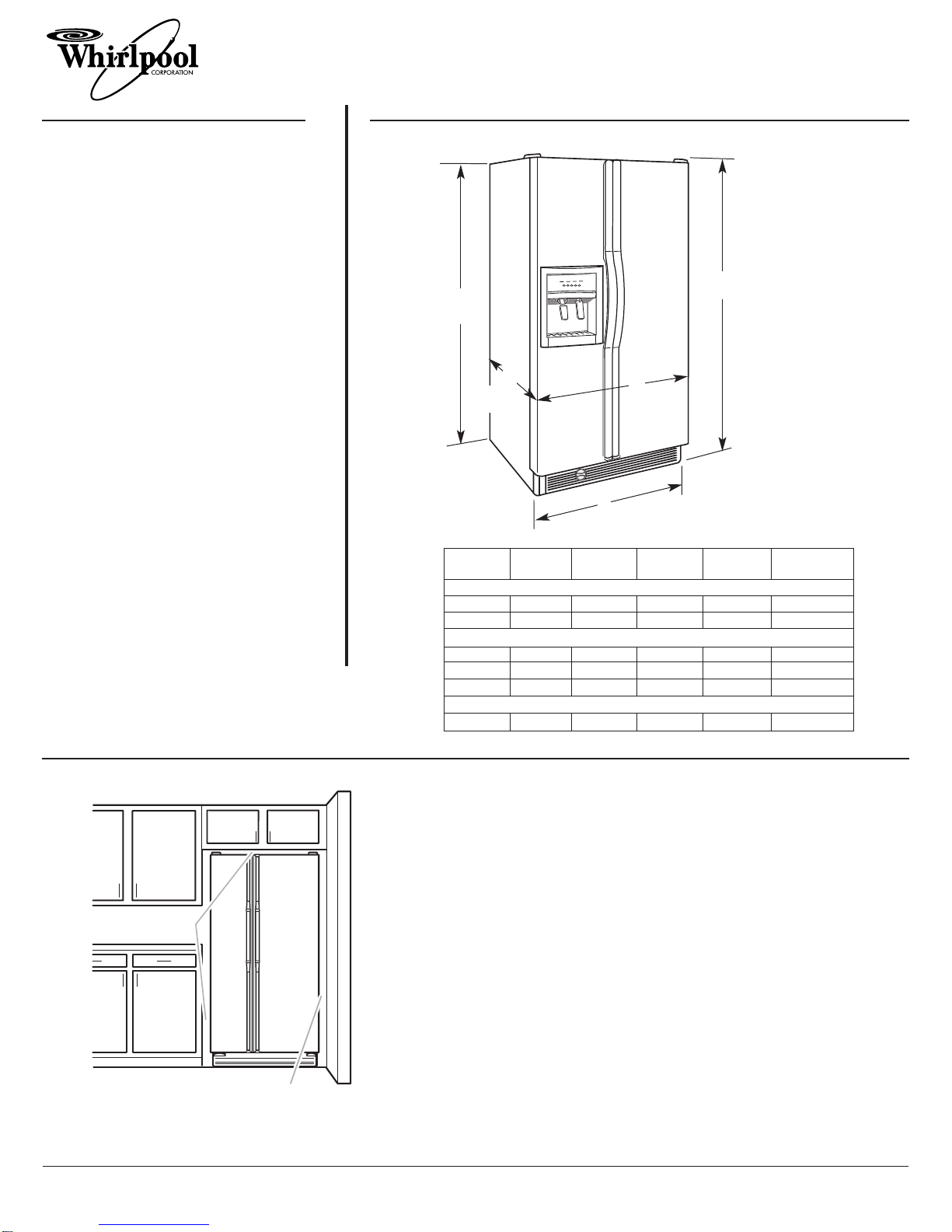

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS

LOCATION REQUIREMENTS

ED2LHAXM

ED2NHAXN

ED2SHAXM

ED5LHAXM

ED5NHAXN

ED5RHAXN

ED5SHAXM

ED5SHAXN

ED5THAXM

GD2NHAXM

GD2SHAXN

GD5NHAXM

GD5PHAXM

GD5RHAXN

GD5SHAXN

GD5YHAXN

GS2SHAXN

GS2SHEXN

GS5SHAXN

GS6SHEXN

Electrical: A 115 Volt, 60 Hz., AC only 15 or 20

amp fused, grounded electrical supply is required.

It is recommended that a separate circuit serving

only your refrigerator be provided. Use an outlet

that cannot be turned off by a switch. Do not use

an extension cord.

Water: A cold water line with water pressure

between 30 and 120 psi is required for the water

dispenser and ice maker. If a reverse osmosis

water filtration system is connected to your cold

water supply, the water pressure to the reverse

osmosis system needs to be a minimum of 40 to

60 psi (276-414 kPa).

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. 2261717

10-04-04

" (1.25 cm)

2" (5.08 cm)

To ensure proper ventilation for your refrigerator, allow for 1⁄2 in. (1.25 cm) space

on each side and at the top. (At the top, when using half depth cabinet, use top of

cabinet height "D" dimension. When using full depth cabinet, use overall "E"

dimension.) When installing your refrigerator next to a fixed wall, leave 2 in.

(5.08 cm) minimum on each side (depending on your model) to allow for the door

to swing open. If your refrigerator has a water dispenser and ice maker, allow extra

space at the back for the water line connections.

NOTE: Do not install the refrigerator near an oven, radiator, or other heat source, nor

in a location where the temperature will fall below 55°F (13°C).

overall

top of

cabinet

not incl.

handle

Depth Cab.Width Door Width Cab. Height Overall Height

Model size "A" "B" "C" "D" "E"

STANDARD MODELS

22 cu.ft. 31 3/8" 32 3/4" 33 1/8" 65 7/8" 66 3/4"

25 cu.ft. 31 3/8" 35 1/2" 35 7/8" 68 7/8" 69 3/4"

CURVED DOOR MODELS

22 cu.ft. 33 1/4" 32 3/4" 33 1/2" 65 7/8" 67 1/4"

25 cu.ft. 33 1/4" 35 1/2" 36 1/8" 68 7/8" 70 1/4"

26 cu.ft. 33 1/4" 35 1/2" 36 1/8" 68 7/8" 70 1/4"

TRIM KIT (attached) MODELS

25 cu.ft. 31 1/4" 35 1/2" 35 15/16" 68 3/8" 70"

Handle and door style

will vary with model.

Dimensions “D” and “E”

include rollers extended 3/4".
