Whirlpool ELite NICKEL GREY Kurzanleitung

PARTS &

SERVICEManual

Model Code 5040 - 260L ELite NICKEL GREY

Model Code 5130 - 260L Delux NICKEL GREY

Phillippines

Whirlpool of India

260 L DC CFC FREE

This document is only intended for qualified technicians who are aware of the respective safety regulations.

First Released Date 17TH July, 2002 Subject to modification

Document No. WOI/DC/2002/07 PAGE 2of 21

CONTENTS

1. KEY FEATURES 2

2. WIRING DIAGRAM 3

3. REFRIGERANT FLOW DIAGRAM 4

4. R134 SERVICE CONSIDERATIONS 5

5. PART LIST 6

6. EXPLODED VIEWS 10

7. PARTS SPECIFIC TO 260 L 17

8. TROUBLE DIAGNOSIS CHART 18

9. COMPONENT CHECK GUIDE 20

10. GENERAL INSTRUCTIONS 21

Whirlpool of India

260 L DC CFC FREE

This document is only intended for qualified technicians who are aware of the respective safety regulations.

First Released Date 17TH July, 2002 Subject to modification

Document No. WOI/DC/2002/07 PAGE 3of 21

KEY FEATURES

?Improved Freezer latch for effective closing of the door.

?White painted Roll Bond evaporator

?Single entry evaporator to increase the heat transfer between suction line & capillary.

?CFC-Free

?Accommodate 2 ltr bottles in door

C Evaporator: Roll bond Suction line in

Al & capillary

inside

Refrigerant - R134a

QB51

GNF wrapper

Whirlpool of India

260 L DC CFC FREE

This document is only intended for qualified technicians who are aware of the respective safety regulations.

First Released Date 17TH July, 2002 Subject to modification

Document No. WOI/DC/2002/07 PAGE 4of 21

WIRING DIAGRAM

Whirlpool of India

260 L DC CFC FREE

This document is only intended for qualified technicians who are aware of the respective safety regulations.

First Released Date 17TH July, 2002 Subject to modification

Document No. WOI/DC/2002/07 PAGE 5of 21

REFRIGERANT FLOW DIAGRAM

Whirlpool of India

260 L DC CFC FREE

This document is only intended for qualified technicians who are aware of the respective safety regulations.

First Released Date 17TH July, 2002 Subject to modification

Document No. WOI/DC/2002/07 PAGE 6of 21

R134a SERVICE CONSIDERATIONS

Note: Use the sweep charging procedure in all R134a system repairs as given in the special

section on R134a and sweep charging.

R134a systems cannot tolerate (compared to other refrigerants) even trace amounts of foreign

substances, chemical contamination or moisture.

Examples of detrimental substances are wax or paraffin, silicon, greases, oils, rust preventatives,

lubricants, leak detection dye or any other additives.

Do not use R12 or R22 servicing equipment to repair a R134a system.

Use new servicing equipment. Old equipment (hoses, coupler/valve seals and 0-rings) are not

compatible with R134a.

Oil in R134a compressors is very sensitive and capable of absorbing large quantities of moisture.

Moisture cannot be removed from the compressor oil in a service workshop.

Check service replacement compressor to make sure the PLUGS seals are in place and not

tampered with.

Do not open compressor PLUGS for more than ten minutes.

Always replace the filter-drier in ANY repair of R134a sealed system failure. Always replace new

compressor in any compressor failure in R134 a system REPLACING R134a COMPRESSORS

1. CAUTION: Never open replacement compressor PLUGS to the air for longer than 10 minutes.

2. Carefully inspect rubber plugs in the service replacement compressor. If the plug appears to

have been removed or tampered with, DO NOT USE THE COMPRESSOR. Get another one.

3. Clean compressor with plugs still in them.

4. Install into system fast. Braze into system within ten minutes.

Whirlpool of India

260 L DC CFC FREE

This document is only intended for qualified technicians who are aware of the respective safety regulations.

First Released Date 17TH July, 2002 Subject to modification

Document No. WOI/DC/2002/07 PAGE 7of 21

260L Delux/ELite NICKEL GREY Phillippines

Part List

Part Code Description 5130 5040 Location

DA20408430G END CAP TOP N.GREY 190L/215L DLX 1A2

DA20408530J UPPER END CAP NICKEL GREY 1A2

DA20408730J END CAP BOTTOM N.GREY-190/215L DLX 1A3

DA20408830J BOTTOM END CAP ELITE NICKEL GREY 1A3

A2076050000 EVAPORATOR DOOR ASSY WITH PRINTING, 260L 1 1 A4

A2075340000 CRISPER 1 1 A6

A2075280000 GASKET(SERVICE)OPERA 260L 1 1 A6

DA20430200E Drain Cup(OPERA) 1 1 B11

A204141000E Wire Shelf 260 Opera Plain 3 3 B13

A2075523000 LEVELLING FEET, 260L DLX, N.GREY 2B15

DA20404430H LEVELLING FEET N.GREY - OPERA 4B15

A204198000C BOTTOM HINGE ASSY - 260L 1 1 B16

DA20414400E SHELF TRIM (OPERA) 3B4

DA20414800E CRISPER COVER PRINTED 1 1 B7

DA20415000E Humidity control(Opera) 1 1 B8

DA20415100E CRISPER SEPARATOR Y 1B9

A2075503000 DOOR ASSY - 260L DLX, NICKEL GREY 1C

A2042003000 DOOR ASSY- 250L ELITE, NICKEL GREY 1C

DA20411700I DAIRY BIN - GPPS - OPERA ELITE 1 1 C1

DA20513300A LOCK ASSY- OPERA 1 1 C10

DA205129300 SHIM FOR LOCK NICKEL GREY 1 1 C11

D114108000D LOCK RETAINER 1 1 C12

DA20412000E RIGHT DAIRY BIN COVER - OPERA ELITE 1 1 C2

DA20412100E LEFT DAIRY BIN COVER - OPERA ELITE 1 1 C3

DA20412200G BOTTLE BIN-GPPS - OPERA ELITE 2 2 C4

DA20412500D TWO HEIGHT BIN - OPERA ELITE 1 1 C5

DA20412700E SMALL BIN -GPPS 1 1 C7

DA20413003E HANDLE M.GREY-190/215L ELITE 1C8

DA20413130F HANDLE COVER ELITE N.GREY 1C9

DA20418130I CABINET TOP N.GREY - 190/215L ELITE 1D1

DA20418330F CABINET TOP COMPL. N.GREY-190/215L ELITE 1D2

A2075730000 THERMOSTAT ASSY - 260L DLX 1D3

A204210000A THERMOSTAT ASSY.-250L ELITE 1D3

11611410000 THERMOSTAT KNOB 1D4

DA20418830D CONTROL KNOB FT NICKEL GREY 1D4

11611410000 THERMOSTAT KNOB 1 1 D4

D116113000A PUSH BUTTON 1D5

DA20430830G DEFROST KNOB FT NICKEL GREY 1D5

A2075530000 THERMOSTAT BOX, 260L DLX 1D6

Whirlpool of India

260 L DC CFC FREE

This document is only intended for qualified technicians who are aware of the respective safety regulations.

First Released Date 17TH July, 2002 Subject to modification

Document No. WOI/DC/2002/07 PAGE 8of 21

Part Code Description 5130 5040 Location

DA20428130G PROTECTION BOX N.GREY-190/215L ELITE 1D6

A2075700000 LABEL, THERMOSTAT BOX - 260L DLX 1D7

A2075131000 DISPLAY-260L ELITE, NEPTUNE BLUE 1D7

A204249000D RIGHT EVAPORATOR FRAME-260L ELITE 1 1 E1

A204158000D EVAPORATOR FRAME,LH 260L ELITE 1 1 E2

A204048000E STAGGERED CONDENSER ASSY.-260L OPERA 1 1 F1

DA20407700C Condenser Bracket(OPERA) 4 4 F2

A2045160000 PROTECTION BOX FOR LIGHT SWITCH 1G10

DA20432600H Light Socket - OPERA/170L 1G10

DA20412900D EGG TRAY - GPPS 1 2 G12

DA20446700D ICE TRAY-ice magic 2 2 G2

DA20416500F DRIPTRAY DOOR PRINTED 1 1 G3

D116118000A LIGHT COVER 1G4

DA20416900G LIGHT BOX COVER 1G4

DA20417000F LAMP HOLDER 1G5

DA20417100H LAMP PROTECTION - OPERA/170L 1G6

DA20430700F Drain Nozzle Bottom(Opera) 1 1 G8

DA20431600A Upper Hinge Bushing - OPERA/170L 1 1 G9

A2075240000 WASHER HINGE BEARING 2 2 G9

Whirlpool of India

260 L DC CFC FREE

This document is only intended for qualified technicians who are aware of the respective safety regulations.

First Released Date 17TH July, 2002 Subject to modification

Document No. WOI/DC/2002/07 PAGE 9of 21

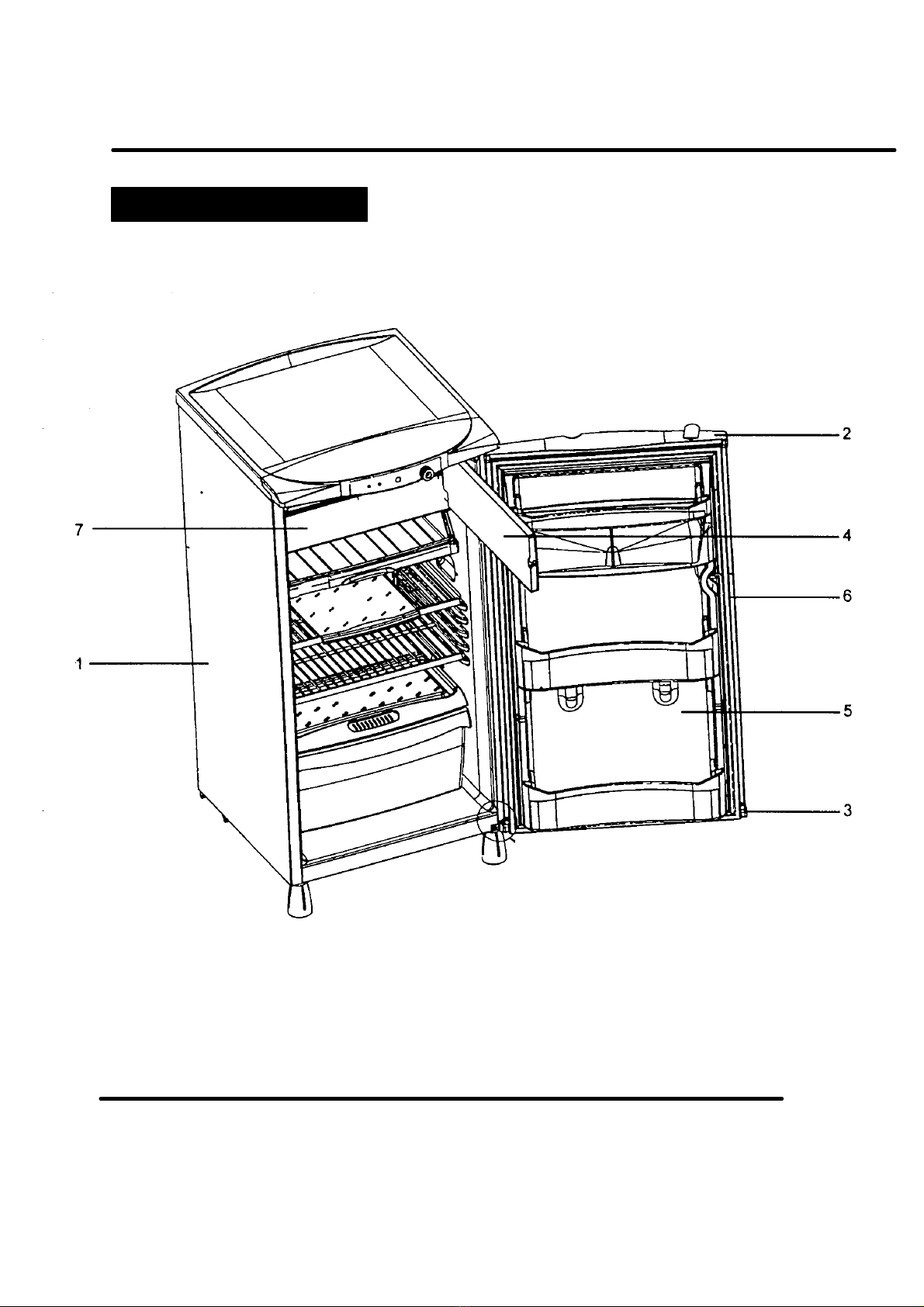

View - A

260 L EXPLODED VIEWS

Whirlpool of India

260 L DC CFC FREE

This document is only intended for qualified technicians who are aware of the respective safety regulations.

First Released Date 17TH July, 2002 Subject to modification

Document No. WOI/DC/2002/07 PAGE 10 of 21

View - B

260 L EXPLODED VIEWS
