Whirlpool ET14HJXDN01 Bedienungsanleitung

USE AND CARE GUIDE

GUIDE D’UTILISATION ET D’ENTRETIEN

MANUAL DE US0 Y MANEJO

14’ NO-FROST

TOP FREEZER REFRIGERATOR

RcFRIGiRATEUR-CONGiLATEUR

SANS GIVRE DE 14 PI

REFRIGERADORES QUE NO HACEN

ESCARCHA DE 396 DM3 (14 PIES3) ‘/q5

Table of

Contents

Page

Note

to You.. .......................................................... 1

Refrigerator Safety ................................................... 2

Parts and Features ................................................... 3

Before Uslng Your Refrigerator ............................. 4

Uslng Your Refrigerator.. ......................................... 5

Setting the control ................................................ 5

Adjusting the refrigerator shefves.. ....................... 6

Removing the meat drawer and cover ................. 6

Removing the crisper(s) and crisper cover .......... 7

Removing the freezer shelf .................................. 7

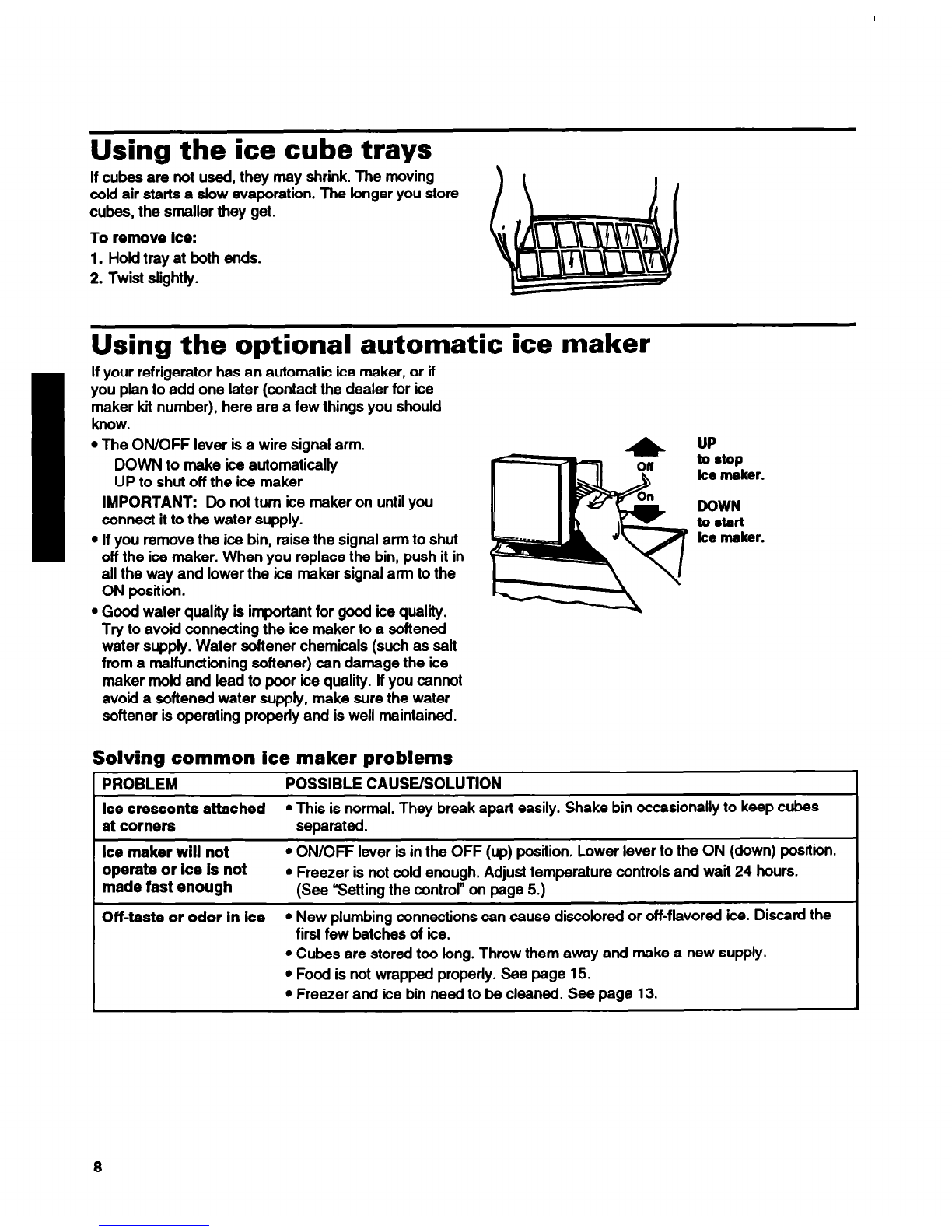

Using the ice cube trays.. ..................................... 6

A Note to You

Page

Using the optional automatic ice maker ............... 6

Attaching the ice maker to a water supply .......... .9

Changing the light bulb ......................................

Understanding the sounds you may hear .......... 12

Saving energy .................................................... 12

Reversing the door swing .................................. 12

Caring for Your Refrigerator.. ................................ 13

Food Storage Guide ............................................... 15

Troubleshootlng ..................................................... 16

Requesting Assistance or Service.. ...................... 17

Warranties ............................................................... 20

Thank you for buying a Whirlpool0 appliance.

Because your life is getting busier and more complicated, Whirlpool Refrigerators are easy to use, save time, and

help you manage your home better. To ensure you enjoy years of trouble-free operation, we developed this Use

and Care Guide. It contains valuable infomration about how to operate and maintain your appliance properly and

safely. Please read it carefully. Also, please complete and mail the Ownership Registration Card provided with

your appliance. This card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service on your appli- Model

Number

ante, you need to know your complete model number

and serial number. You can find this information on the Serial Number

model and serial number label (see diagram on page 3

for location of label). Purchase Date

Please also record the purchase date of your appli-

ance and your dealer’s name, address, and telephone Dealer

Name

number. Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center number is toll-

free from anywhere in the U.S.A. 24 hours a day.

1-800-253-1301

Refrigerator Safety

Your safety is important to us.

This guide contains statements under warning sym-

bols. Please pay special attention to these symbols

and follow any instructions given. Here is a brief

explanation of the use of the warning symbol. This symbol alerts you to such dangers as

personal injury, burns, fire, and electrical shock.

IMPORTANT SAFEW INSTRUCTIONS

To reduce the risk of fire, electrical shock, or Injury when using your

refrigerator, follow these basic precautions:

Read all instructions before using the refrigerator. eNever allow children to operate, play with, or

Child entrapment and suffocation are not problems crawl inside the refrigerator.

of the past. Junked or abandoned refrigerators are

Never clean refrigerator parts with flammable

still dangerous ... even if they will “just sit in the fluids. The fumes can create a fire hazard or

garage a few days.” explosion.

If you are getting rid of your old refrigerator, do

it safefy. Please read the enclosed safety booklet

from the Association of Home Appliance Manufac-

turers. Help prevent accidents.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR OTHER

FLAMMABLE VAPORS AND LIQUIDS IN THE

VICINITY OF THIS OR ANY OTHER APPLIANCE.

THE FUMES CAN CREATE A FIRE HAZARD OR

EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install and level the refrigerator on

floor that will

hold the weight and in an area suitable for its size

and use.

Do not install the refrigerator near an oven, radiator,

or other heat source.

Do not use the refrigerator in an area where the

room temperature will fall below 55°F (13°C).

Keep the refrigerator out of the weather.

Connect the refrigerator only to the proper kind of

outlet, with the correct electrical supply

and

ground-

ing. (Refer to the Electrical Requirements and

Grounding Instructions Sheet.)

Do not load the refrigerator with food before it has

time to get property cold.

Use the refrigerator only for the uses described in

this manual.

Properly maintain the refrigerator.

Be sure the refrigerator is not used by anyone

unable to operate it properly.

Parts and Features

This section contains captioned illustrations of your appliance. Use them to become familiar with where all parts

and features are located and what they look like. Page references are included for your convenience.

NOTE: Your model may have all or some of the parts and features shown, and they may not match the illustration

exactly. This manual Covers several models. -

Adjustable freezer shelf

(partial shelf on some models)

Temperature

;,;n:;o’\

Model and serial

number label -

(on side wall)

(P. 1)

(P.6)

Plastk

crisper cover H

(glass on some

models)

(P.7)

Leveling rollers

(not shown)

(P-5)

ib. 7) I

Door shelves

Magnetic

door gaskets

Llght awitch

Dairy

compartment

- Meat drawer cover

(solid plastic)

(P.6)

> Door shelves

- Crisper drawer0

(full-width drawer on

some models)

(P.7)

Control Panel

Temperature control Light switch

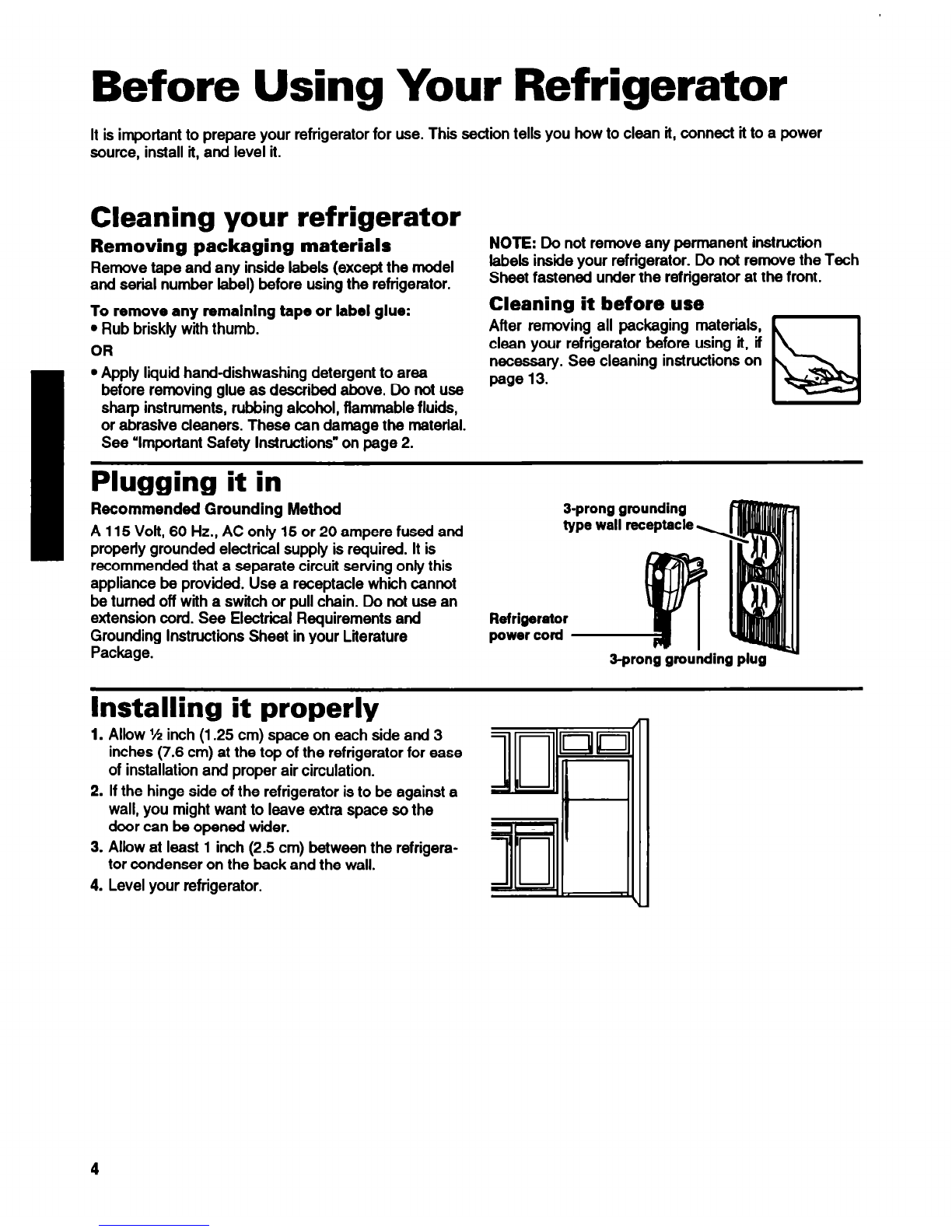

It is important to prepare your refrigerator for use. This section tells you how to clean it, connect it to a power

source, install it, and level it.

Cleaning your refrigerator

Removing packaging materials

Remove tape and any inside labels (except the model

and serial number label) before using the refrigerator.

To remove any remaining tape or label glue:

Rub briskly with thumb.

Appty liquid hand-dishwashing detergent to area

before removing glue as described above. Do not use

sharp instruments, rubbing alcohol, flammable fluids,

or abrasive cleaners. These can damage the material.

See ‘Important Safety Instructions” on page 2.

NOTE:

Do not remove

any

permanent instruction

labels inside your refrigerator. Do not remove the Tech

Sheet fastened under the refrigerator at the front.

Cleaning it before use

After removing all packaging materials,

clean your refrigerator before using it, if

necessary. See cleaning instructions on

page 13.

Plugging it in

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere fused and

property grounded electrical supply is required. It is

recommended that a separate circuit serving only this

appliance be provided. Use a receptacle which cannot

be turned off with a switch or pull chain. Do not use an

extension cord. See Electrical Requirements and

Grounding Instructions Sheet in your Literature

Package.

&prong grounding

type wall receptacle

Refrigerator

power cord

Installing it properly

Allow YZinch (1.25 cm) space on each side and 3

inches (7.6 cm) at the top of the refrigerator for ease

of installation and proper air circulation.

2. If the hinge side of the refrigerator is to be against a

wall, you might want to leave extra space so the

door can be opened wider.

3. Allow at least 1 inch (2.5 cm) between the refrigera-

tor condenser on the back and the wall.

4. Level your refrigerator.

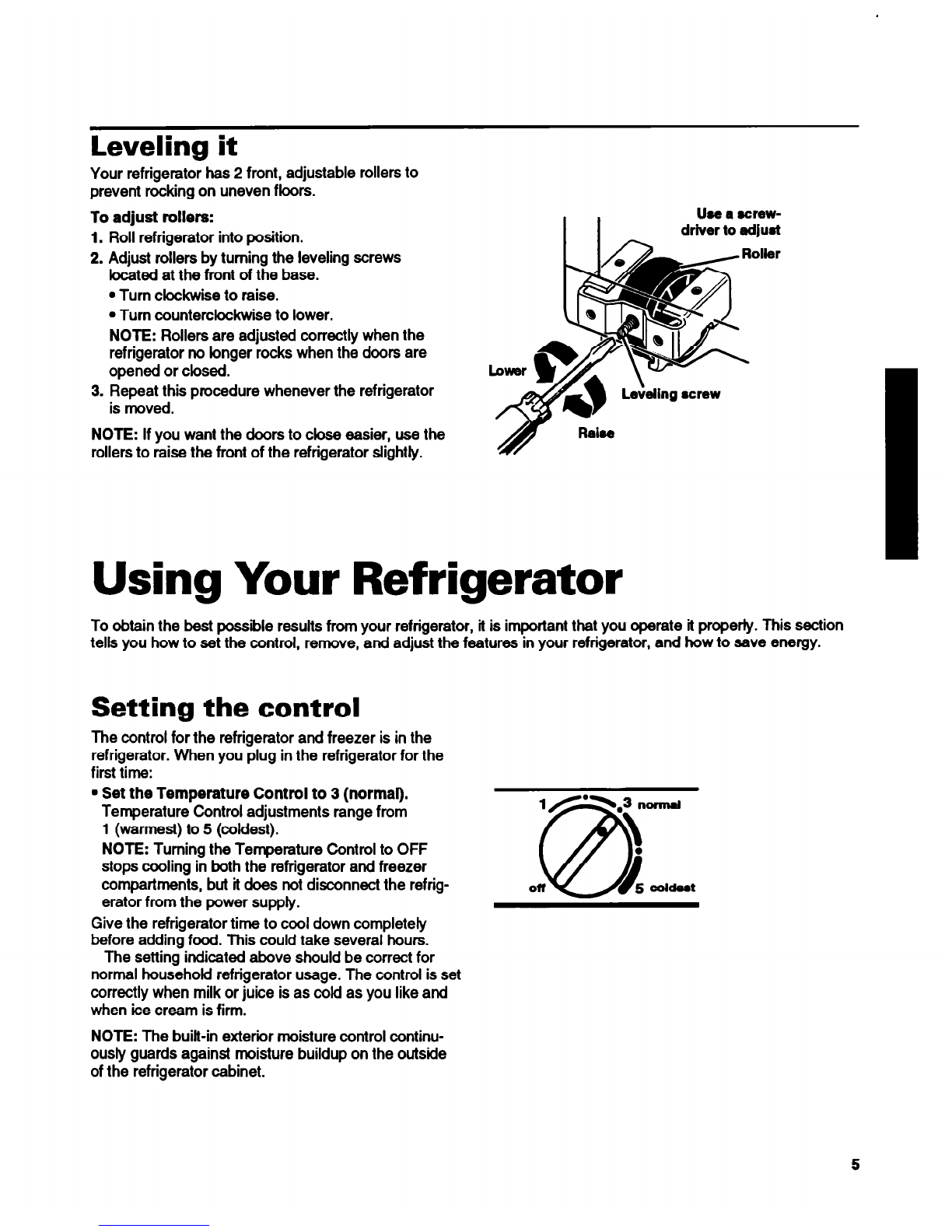

Leveling it

Your refrigerator has 2 front, adjustable rollers to

prevent rocking on uneven floors.

To adiust rollers: I I Usea mcrew-

Roll refrigerator into position.

Adjust rollers by turning the leveling screws

located at the front of the base.

Turn clockwise to raise.

Turn counterclockwise to lower.

NOTE: Rollers are adjusted correctly when the

refrigerator no longer rocks when the doors are

opened or closed.

Repeat this procedure whenever the refrigerator

is moved.

NOTE:

If you want the doors to close easier, use the

rollers to raise the front of the refrigerator slightly.

Using Your Refrigerator

To obtain the best possible results from your refrigerator, it is important that you operate it properly. This section

tells you how to set the control, remove, and adjust the features in your refrigerator,

and how

to save energy.

Setting the control

The control for the refrigerator and freezer is in the

refrigerator. When you plug in the refrigerator for the

first time:

Set the Temperature Control to 3 (normal).

Temperature Control adjustments range from

1 (warmest) to 5 (coldest).

NOTE: Turning the Temperature Control to OFF

stops cooling in both the refrigerator and freezer

compartments, but it does not disconnect the refrig-

erator from the power supply.

Give the refrigerator time to cool down completely

before adding food. This could take several hours.

The setting indicated above should be correct for

normal household refrigerator usage. The control is set

correctly when milk or juice is as cold as you like and

when ice cream is firm.

NOTE:

The built-in exteriir moisture control continu-

ously guards against moisture buildup on the outside

of the refrigerator cabinet.

l/‘-,3 normal

on /

5 coldeot

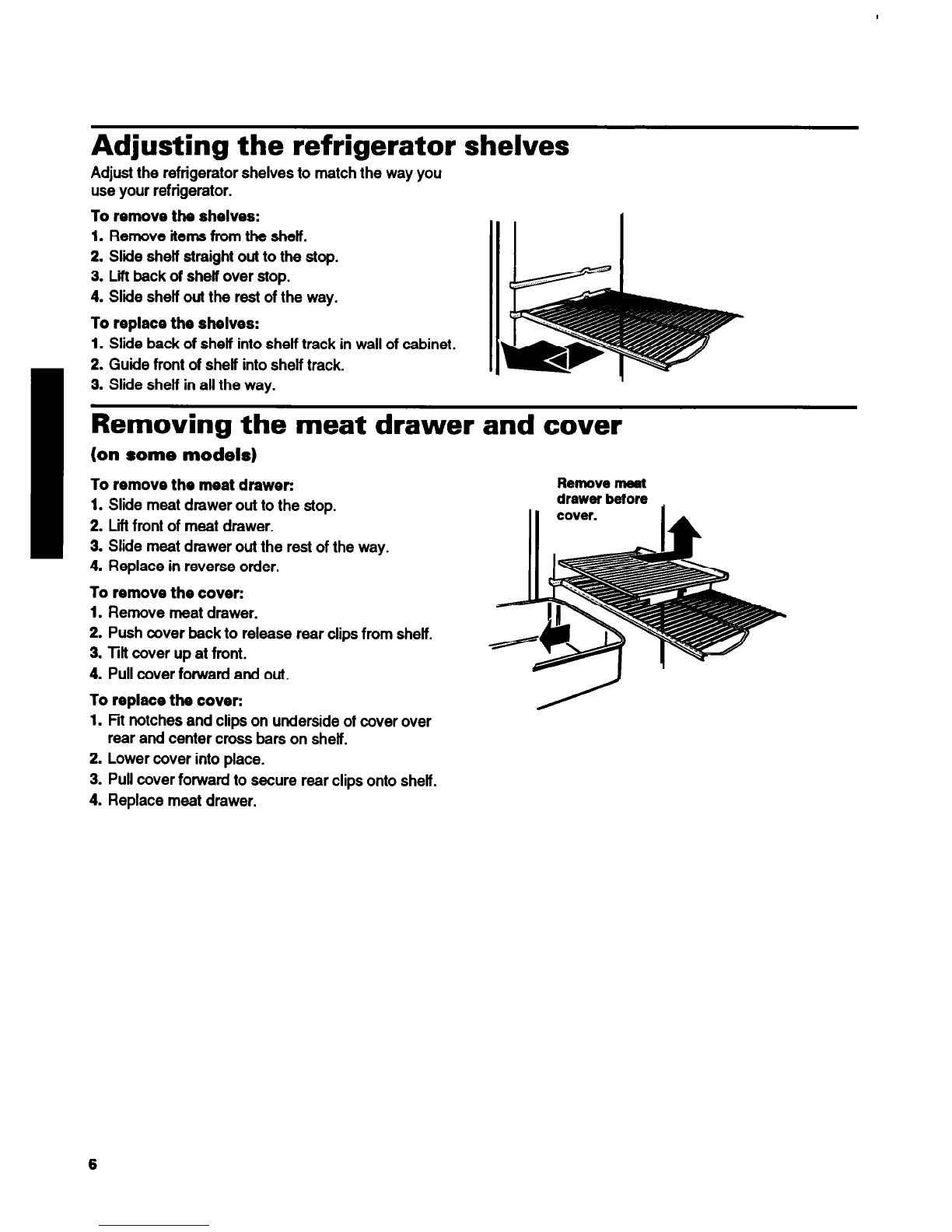

Adjusting the refrigerator shelves

Adjust the refrigerator shelves to match the way you

use your refrigerator.

remove the shelves:

1. Remove items

from the shelf.

2. Slide shelf straight out to the stop.

3. Lii back of sheff over stop.

4. Slide shelf out the rest of the way.

To replace the shelves:

Slide back of shelf into shelf track in wall of cabinet.

2. Guide front of shelf into shelf track.

3. Slide shelf in all the way.

Removing the meat drawer and cover

(on some models)

To remove the meat drawer: Removemaat

1. Slide meat drawer out to the stop.

2. Lii front of meat drawer.

3. Slide meat drawer out the rest of the way.

4. Replace in reverse order.

To remove the cover:

Remove meat drawer.

2. Push cover back to release rear clips from shelf.

3. Tift cover up at front.

4. Pull cover forward and out.

drawer before

To replace the cover:

Pit notches and clips on underside of cover over

rear and center cross bars on shelf.

2. Lower cover into place.

3. Pull cover fomrard to secure rear clips onto shelf.

4. Replace meat drawer.

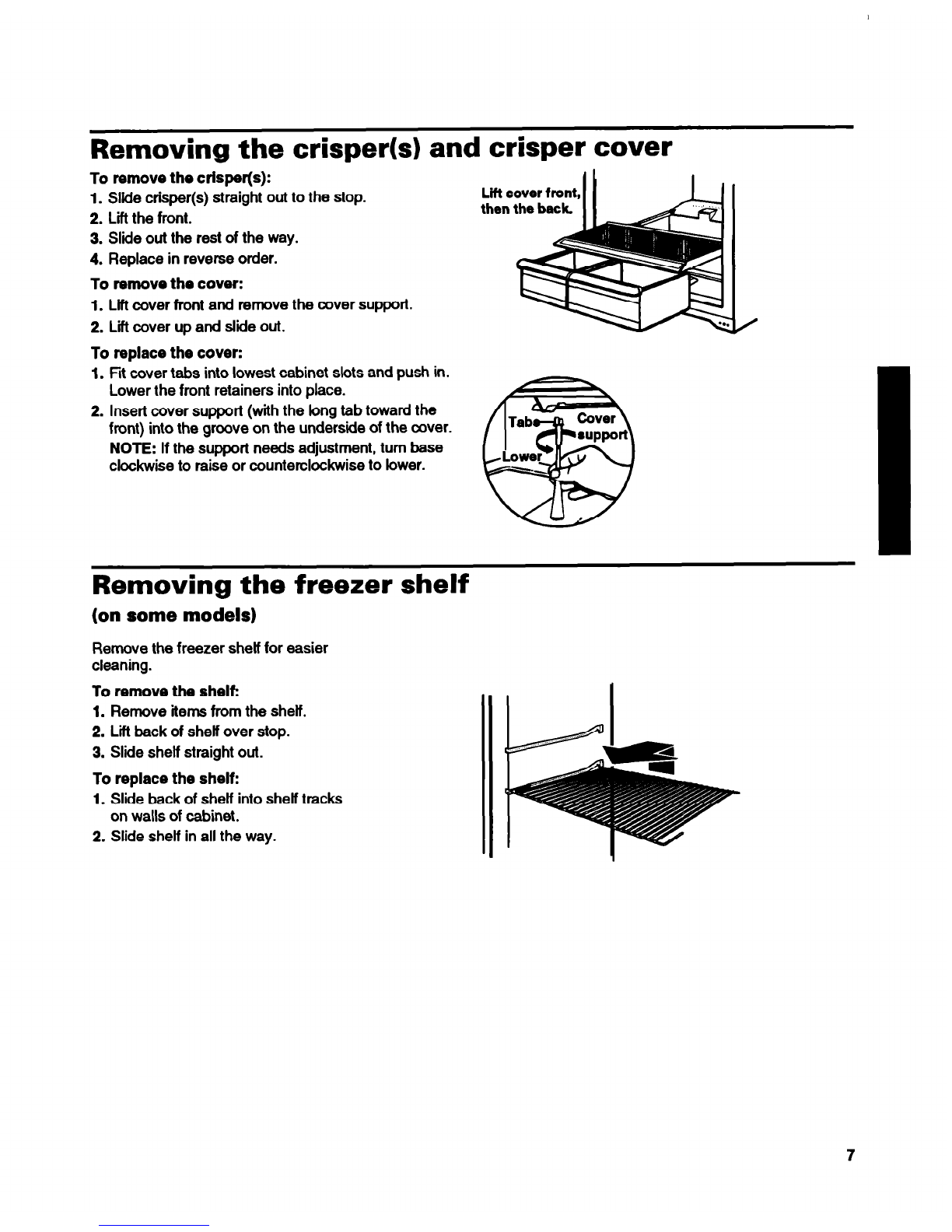

Removing the crisper(s) and crisper cover

remove the crisper(s):

Slide crisper(s) straight out to the stop.

2. Lii the front.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Lii

cover front and remove the cover support.

2. Lii cover up and slide out.

To replace the cover:

Fit cover tabs into lowest cabinet slots and push in.

Lower the front retainers into place.

2. Insert cover support (with the long tab toward the

front) into the groove on the underside of the cover.

NOTE:

If the support needs adjustment, turn base

clockwise to raise or counterclockwise to lower.

Lift cover front,

then the beck.

Removing the freezer shelf

(on some models)

Remove the freezer shelf for easier

cleaning.

To remove the sheik

Remove items from the sheff.

2. Lii back of shelf over stop.

3. Slide shelf straight out.

To replace the shelf:

Slide back of shelf into shelf tracks

on walls of cabinet.

2. Slide shelf in all the way.

Using the ice cube trays

If cubes are not used, they may shrink. The moving

cold air starts a slow evaporation. The longer you store

cubes, the smaller they get.

To remove ice:

Hold tray at both ends.

2. Twist slightly.

Using the optional automatic ice maker

If your refrigerator has an automatic ice maker, or if

you plan to add one later (contact the dealer for ice

maker kit number), here are a few things you should

know.

The ON/OFF lever is

wire signal arm.

DOWN to make ice automatically

UP to shut off the ice maker

IMPORTANT:

Do not turn ice maker on until you

connect it to the water supply.

If you remove the ice bin, raise the signal arm to shut

off the ice maker. When you replace the bin, push it in

all the way and lower the ice maker signal arm to the

ON position.

Good water quality is important for good ice quality.

Try to avoid connecting the ice maker to a softened

water supply. Water softener chemicals (such as salt

from a malfunctioning softener) can damage the ice

maker mold and lead to poor ice quality. If you cannot

avoid a softened water supply, make sure the water

softener is operating properly and is well maintained.

ke maker.

Solving common ice maker problems

PROBLEM POSSIBLE CAUSE/SOLUTION

ice crescents attached

. This is normal. They break apart easily. Shake bin occasionally to keep

cubes

at corners

separated.

ice maker will not

ON/OFF lever is in the OFF (up) position. Lower lever to the ON (down) position.

operate or ice is not

made fast enough

Freezer is not cold enough. Adjust temperature controls and wait 24 hours.

(See

‘Setting the control on page 5.)

Off-taste or odor in ke

New plumbing connections can cause discolored or off-flavored ice. Discard the

first few batches of ice.

Cubes are stored too long. Throw them away and make a new supply.

Food is not wrapped properly. See page 15.

Freezer and ice bin need to be cleaned. See page 13.

Attaching the ice maker to a water supply

Read all directions carefully before you begin.

Electrical Shock Hazard

. Disconnect electrical supply to refrigerator

before installing.

Electrical drill must be grounded before drilling

holes in water line.

Failure to do so couki result in electriil shock,

serious injury, or death.

IMPORTANT:

Use copper tubing only and check for leaks.

Install ice maker tubing in areas where temperatures

are above freezing.

Tools required:

Standard screwdriver

7/is-inch and S-inch open-end wrenches or

2 adjustable wrenches

G-rch nut driver

Winch drill bit

Hand drill or electric drill (properly grounded)

NOTE: Your nearest appliance dealer has a kii

available with a X-inch saddle type shut-off valve, a

union, and copper tubing. Before purchasing, make

sure a saddle type valve complies with your local

plumbing codes. Do not use piercing type or %s-inch

saddle valve which reduces water flow and clogs

more easily.

Cold water supply

Ice maker water valve wntains a flow washer which is

used as a water pressure regulator. The ice maker

needs to be connected to a cold water line with water

pressure limitations of 20-120 psi. If a problem occurs,

call your utility company.

IMPORTANT:

. It may take up to 24 hours for your ice maker to

begin producing ice.

If operating the refrigerator before installing the water

connection, turn ice maker to the OFF position to

prevent operation without water.

All installations must be in accordance with local

plumbing code requirements.

INSTALLATiON IS NOT WARRANTED

BY REFRIGERATOR OR ICE MAKER

MANUFACTURER. I

Inhaltsverzeichnis

Sprachen:

Andere Whirlpool Kühlschrank Handbücher

Whirlpool

Whirlpool W10245525A Bedienungsanleitung

Whirlpool

Whirlpool MTAA 241 (TK) Bedienungsanleitung

Whirlpool

Whirlpool GB2SHKXMQ00 Bedienungsanleitung

Whirlpool

Whirlpool WRID41TW Bedienungsanleitung

Whirlpool

Whirlpool EL88TRRWS Bedienungsanleitung

Whirlpool

Whirlpool GR2SHWXVB01 Bedienungsanleitung

Whirlpool

Whirlpool WRS950SIAM01 Bedienungsanleitung

Whirlpool

Whirlpool GS6NBEXRB - 36in 25.6 Cu. Ft. Refrigerator Bedienungsanleitung

Whirlpool

Whirlpool Gold GD5VVAXTY Bedienungsanleitung

Whirlpool

Whirlpool WF2T203 Installationsanleitung

Whirlpool

Whirlpool 8ET8MTKXKT04 Bedienungsanleitung

Whirlpool

Whirlpool W10175487A Bedienungsanleitung

Whirlpool

Whirlpool ED5FVGXSS04 Bedienungsanleitung

Whirlpool

Whirlpool W8TXNGMWB Montageanleitung

Whirlpool

Whirlpool WF2B220RPS Installationsanleitung

Whirlpool

Whirlpool REFRIGERATOR Bedienungsanleitung

Whirlpool

Whirlpool ET19TK Bedienungsanleitung

Whirlpool

Whirlpool G9IXEFMWQ01 Bedienungsanleitung

Whirlpool

Whirlpool REFRIGERATOR Bedienungsanleitung

Whirlpool

Whirlpool ART 836/G/GREY Bedienungsanleitung

Whirlpool

Whirlpool ARC 104 Bedienungsanleitung

Whirlpool

Whirlpool GS2KVAXVS02 Bedienungsanleitung

Whirlpool

Whirlpool ET22MK Bedienungsanleitung

Whirlpool

Whirlpool B TNF 5323 W Installationsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
