A Note To You

kiZEZil:d' 3

Parts And Features

Cating For Your

Refrigerator

Food Storage Guide 16

If You Need

1-800-253-1301

Cdl us with questions or comments.

NO-FROST REFRIGERATOR-FREEZERS 0-W

MODELS ET22PK ET20PK ET18PK

A Note To You

Thank you for buying a Whirlpool appliance.

You have purchased a quality, worldclass home appliance. Years of engineering experience have gone

into its manufacturing. To ensure that you will enjoy many years of trouble-free operation, we have

developed this Use and Care Guide. It is full of valuable information on how to operate and maintain

your appliance properly and safely. Please read it carefully. Also, please complete and mail the Owner-

ship Registration Card provided with your appliance. This will help us notify you about any new informa-

tion on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these symbols and

follow any instructions given. Here is a brief explanation of the use of each symbol.

This symbol will help alert you to such dangers as

personal injury, burns, fire and electrical shock. This symbol will help you avoid actions which

could cause product damage (scratches, dents,

etc.) and damage to your personal property.

Our Consumer Assistance Center number, l-800-253-1301,

is toll-free, 24 hours a day.

If you ever have a question concerning your appliance’s operation, or if you need service, first see “If

You Need Assistance Or Service” on page 18. If you need further help, feel free to call our Consumer

Assistance Center. When calling, you will need to know your appliance’s complete model number and

serial number. You can find this information on the model and serial number label (see diagram on

page 4). For your convenience, we have included a handy place below for you to record these numbers,

the purchase date from the sales slip and your dealer’s name and telephone number. Keep this book

and the sales slip together in a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

Important Safety Instructions

To reduce the risk of fire, electrical shock, or injury when using your

refrigerator, follow these basic precautions:

Read all instructions before using the

refrigerator.

Child entrapment and suffocation are not

problems of the past. Junked or abandoned

refrigerators are still dangerous ... even if

they will “just sit in the garage a few days.”

lf you are getting rid of your old refrigerator,

do it safely. Please read the enclosed safety

booklet from the Association of Home

Appliance Manufacturers. Help prevent

accidents.

Never allow children to operate, play with, or

crawl inside the refrigerator.

Never clean refrigerator parts with flammable

fluids. The fumes can create a fire hazard or

explosion.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND LIQUIDS

IN THE VICINITY OF THIS OR ANY OTHER

APPLIANCE. THE FUMES CAN CREATE A

FIRE HAZARD OR EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install and level the refrigerator on a floor that

will hold the weight and in an area suitable for

its size and use.

Do not install the refrigerator near an oven,

radiator or other heat source.

Do not use the refrigerator in an area where the

room temperature will fall below 55°F (13°C).

Keep the refrigerator out of the weather.

Connect the refrigerator only to the proper kind

of outlet, with the correct electrical supply and

grounding. (Refer to the Electrical Require-

ments and Grounding Instructions Sheet.)

Do not load the refrigerator with food before it

has time to get properly cold.

Use the refrigerator only for the uses described

in this manual.

Properly maintain the refrigerator.

Be sure the refrigerator is not used by anyone

unable to operate it properly.

Also, remove tape and any inside labels (except

the model and serial number label) before using

the refrigerator.

To remove any remaining glue:

Rub briskly with thumb to make a ball, then

remove.

Soak area with liquid hand dishwashing

detergent before removing glue as described

above. Do not use sharp instruments, rubbing

alcohol, flammable fluids or abrasive cleaners.

These can damage the material. See “lmpor-

tant Safety Instructions” above.

NOTE: Do not remove any permanent instruction

labels inside your refrigerator. Do not remove the

Tech Sheet fastened under the refrigerator at the

front.

Parts And Features

This section contains captioned illustrations of your appliance. Use them to become familiar with where

all parts and features are located and what they look like. The model you have purchased may have all

or some of the parts and features shown and they may not match the illustration exactly. This manual is

designed to cover several models.

Freezer Freezer light

shelf (ET22PK)

Ice cuba tray8 \

Ice bin

Control panel \

Model and

serial number

label ,

(on aide wall)

Meat drawer .

Utility bin

Adjustable

glass shehres -

Crisper cover -

Crispers --

1 Bin glide

L Base grille

Model ET20PK shown

Control panel

Refrigerator

control Exterior moisture

control Light

owitch Frkzer

control

Before Using Your

Refrigerator

In This Section Paw+ Paw

Cleaning it .......................................................... .5 Installing it properly ........................................ 5

Plugging it in ...................................................... .5 Leveling it ........................................................ .6

It is important to prepare your refrigerator for use. This section will tell you how to clean it, connect it to

a power source, install it and level it.

Cleaning it

Clean your refrigerator before using it, if neces-

sary. See cleaning instructions on page 14.

Plugging it in

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere

fused and properly grounded electrical supply is

required. It is recommended that a separate

circuit serving only this appliance be provided.

Use a receptacle which cannot be turned off with

a switch or pull chain. Do not use an extension

cord.

See Electrical Requirements and Grounding

Instructions Sheet in your Literature Package.

3-prong grounding

type wall receptacle1

grounding plug

Installing it properly

Allow % inch (1.25 cm) space on each side

and at the top of the refrigerator for ease of

installation.

2. If the hinge side of the refrigerator is to be

against a wall, you might want to leave extra

space so the door can be opened wider.

3. The refrigerator can be flush against the wall.

Leveling it

Your refrigerator has 2 front leveling screws+ne

on the right and one on the left. To adjust one or

both of these, follow the directions below.

Remove base grille. (See page 12.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclockwise.

4. Check with level.

5. Replace base grille. (See page I 2.)

Front

Right to raiem;

left to lower

Use a screwdriver

roller

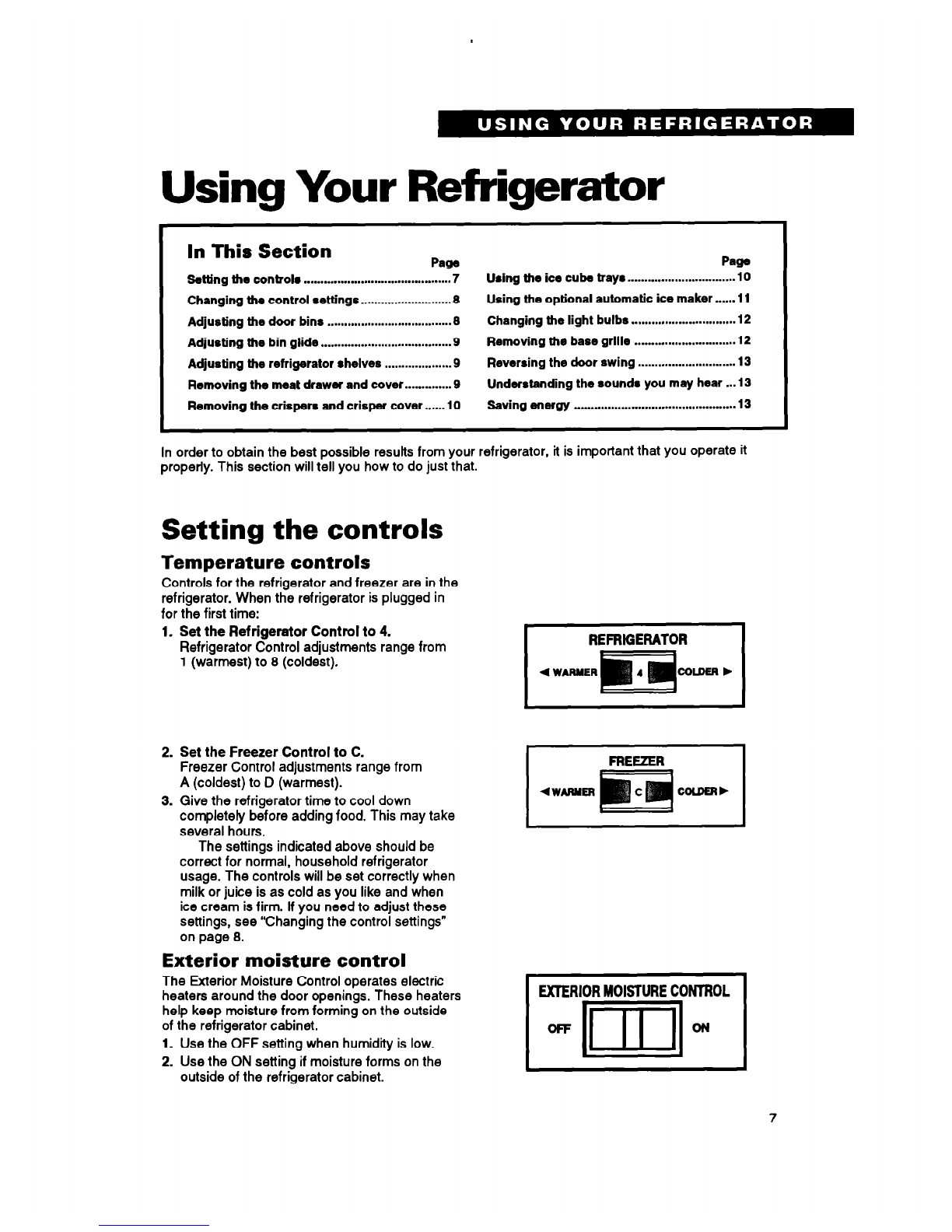

Using Your Refrigerator

In This Section

Pa*

getting the controb ............................................ 7

Changing the control mettings.. ........................ .8

Adjusting the door bins .................................... .8

Adjusting the bin glide ....................................... 9

Adjusting the refrigerator shelves ................... .9

Removing the meat drawer and cover.. ........... .9

Removing the crispers and crisper cover..

....10

Paw

Ming the ice cube tray8 ................................ 10

Using the optional automatic ice maker..

....11

Changing the light bulbs ............................... 12

Removing the base grille .............................. 12

Reversing the door swing ............................. 13

Understanding the sounds you may hear.. .13

Saving energy ................................................ 13

In order to obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section will tell you how to do just that.

Setting the controls

Temperature controls

Controls for the refrigerator and freezer are in the

refrigerator. When the refrigerator is plugged in

for the first time:

1. Set the Refrigerator Control to 4.

Refrigerator Control adjustments range from

1 (warmest) to 8 (coldest).

2. Set the Freezer Control to C.

Freezer Control adjustments range from

A (coldest) to D (warmest).

3. Give the refrigerator time to cool down

completely before adding food. This may take

several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls will be set correctly when

milk or juice is as cold as you like and when

ice cream is firm. If you need to adjust these

settings, see “Changing the control settings”

on page 8.

Exterior moisture control

The Exterior Moisture Control operates electric

heaters around the door openings. These heaters

help keep moisture from forming on the outside

of the refrigerator cabinet.

1. Use the OFF setting when humidity is low.

2. Use the ON setting if moisture forms on the

outside of the refrigerator cabinet.

REFRIGERATOR

4 WARMER ColDEn.

Changing the control settings

If you need to adjust temperatures in refrigerator

or freezer, use the settings listed in the chart

below as a guide. If you have questions, call our

Consumer Assistance Center number. (See

page 19.)

Adjust the Refrigerator Control first.

Wait at least 24 hours between adjustments.

Then adjust the Freezer Control if needed.

RECOMMENDED

CONDITION: REASON: CONTROL SEllINGS: I

If Refrigerator

Section is

TOO WARM

If Freezer

Section is

TOO WARM

Door opened often

Large amount of food added

Room temperature too warm

Door opened often

Large amount of food added

Very cold room temperature

(can’t cycle often enough)

Refrigerator 6

Freezer D

Refrigerator

Freezer i

If Refrigerator

Section is

TOO COLD

Controls not set correctly Refrigerator

for your conditions Freezer i

If ICE isn’t

MADE FAST

ENOUGH

Heavy ice usage

Very cold room temperature

(can’t cycle often enough)

Refrigerator

Freezer i

If BOTH

SECTIONS

are TOO WARM

Door opened often

Large amount of food added

Very warm or very cold room

temperatures

Refrigerator

Freezer :

Adjusting the door bins

To remove door bins:

1. Lift bin up.

2. Pull bin straight out.

To replace door bins:

1. Slide bin in above desired support button.

2. Push down until it stops.

Adjusting the bin glide

The bin glide can be used to secure odd-shaped

items or to separate other items.

To adjust the bin glide:

1. Grasp glide.

2. Slide glide along bin.

Adjusting the refrigerator shelves

Shelves can be adjusted to match the way you

use your refrigerator. Glass shelves are strong

enough to hold bottles, milk and other heavy food

kerns.

To remove glass shelves:

1. Remove items from shelf.

2. Tilt shelf up at front.

3. Lift back of shelf.

4. Pull shelf straight out.

To replace glass shelves:

1. Guide the rear shefl hooks into the slots in the

shelf supports on cabinet wall.

2. Tilt shelf up at front until hooks drop into slots.

Lower front of shelf to level position.

Glass shelves are heavy.

Be careful.

Removing the meat drawer and cover

To remove the meat drawer:

1. Slide meat drawer out to the stop.

2. Lift front of meat drawer.

3. Slide meat drawer out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Tilt front of cover up.

2. Lift back of cover.

3. Pull cover straight out.

4. Replace cover in reverse order.

Pull out to the stop, lift

the front and pull again.

Removing the crispers and crisper cover

To remove the crispers:

1. Slide the crisper straight out to the stop.

2. Lift the front.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Push up glass insert from the bottom, then

slide it out with both hands.

2. Lift front of cover frame.

3. Pull cover frame up and out.

4. Remove metal cover support.

To replace the cover:

1. Replace metal cover support on wall supports

in front section of cabinet.

2. Fit back corner of cover frame into notch

supports on walls of refrigerator, then lower

front onto metal cover support.

3. Slide back of glass insert into cover frame.

Then lower front to level position.

Pull out to the stop,

lift the front

and pull again.

Remove the

glwm inoart.

Lift front of

cover frame,

then the back

Using the ice cube trays

If cubes are not used, they may shrink. The

moving cold air starts a slow evaporation. The

longer cubes are stored, the smaller they get.

To remove ice:

1. Hold tray at both ends.

2. Twist slightly.

Andere Handbücher für ET18PK

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Kühlschrank Handbücher

Whirlpool

Whirlpool WRF995FIFZ Bedienungsanleitung

Whirlpool

Whirlpool ED20ZK Bedienungsanleitung

Whirlpool

Whirlpool WRS325FDAB Montageanleitung

Whirlpool

Whirlpool 2308181 Bedienungsanleitung

Whirlpool

Whirlpool ET1FTEXVQ - 21 cu. ft. Top-Freezer... Bedienungsanleitung

Whirlpool

Whirlpool ET20MK Bedienungsanleitung

Whirlpool

Whirlpool WRT314TFDW Bedienungsanleitung

Whirlpool

Whirlpool GI5FVAXVB - 25 Cubic Foot Refrigerator Bedienungsanleitung

Whirlpool

Whirlpool WRT18YAWD Bedienungsanleitung

Whirlpool

Whirlpool ED5FVGXWS00 Bedienungsanleitung

Whirlpool

Whirlpool WRIT41W Bedienungsanleitung

Whirlpool

Whirlpool 4ED20ZK Bedienungsanleitung

Whirlpool

Whirlpool WRS555SIHZ Bedienungsanleitung

Whirlpool

Whirlpool AGB 776/WP Gebrauchsanweisung

Whirlpool

Whirlpool ET0MSRXTL - 9.7 Cubic Foot Refrigerator Montageanleitung

Whirlpool

Whirlpool ED5FHAXVY - 25.3 cu. ft. Refrigerator Bedienungsanleitung

Whirlpool

Whirlpool WRS537SIA Gebrauchsanweisung

Whirlpool

Whirlpool WRT1L1TZY Stücklistenhandbuch

Whirlpool

Whirlpool ET22MT Bedienungsanleitung

Whirlpool

Whirlpool CB310 Bedienungsanleitung

Whirlpool

Whirlpool WF2T203 Installationsanleitung

Whirlpool

Whirlpool WRS537SIAW Bedienungsanleitung

Whirlpool

Whirlpool WTH4714 A+M Bedienungsanleitung

Whirlpool

Whirlpool ETIGEK Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
