CABINET PARTS REFRIGERATOR

For Models: ET22DKXAW04, ET22DKXAN04, ET22DKXAB04

(White) (Almond) (Black)

3−94 Litho In U.S.A. (sak) Part No. 4379310

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

CABINET PARTS

For Models: ET22DKXAW04, ET22DKXAN04, ET22DKXAB04

(White) (Almond) (Black)

4379310

1 Cabinet (Not A

Serviceable Part)

2 2152011 Roller, Front

3 489393 Screw,

5/16−24 x 1−1/4

4 981122 Roller, Rear (2)

5 488454 Screw,

1/4−28 x 1/2

6 489242 Screw

7 489385 Clamp, Tube

9 2148533 Control, Front

Cover

10 2157307 Heater, Mullion

11 1129018 Clip, Rail (4)

12 2149077 Spacer (3)

13 2172705 Center Rail

14 489367 Screw

15 2172708 Deck Rail Cover

17 2157593 Hinge, Top

18 2157269 Shim, Hinge Top

19 Hinge Cover

2160403 White

2160404 Almond

2160406 Black

20 489105 Screw

21 2151453 Hinge, Center

22 836155 Shim, Hinge

Center

23 2154070 Fitting−Water Tube

24 487802 Washer, 11/64

25 Washer

488184 White

489200 Black

26 Hinge Butt,

Bottom

2157300 White And

Almond Models

2157299 Black Model

31 2172744 Spacer

32 Hole Plug

2151652 White

2151653 Almond

2160802 Black

33 Corner Filler,

Grille

1125665 White

1125670 Almond

1118078 Black

34 Filler, Wrap

Corner

1118058 White

1118059 Almond

2162679 Black

35 Grille

1125663 White

1125667 Almond

1129001 Black

36 Hole Plug

1129062 White

37 2153994 Wiring Assy.

Intermediate

38 489048 Screw, 8−32 x 1/2

39 487996 Cap

40 1106508 Gasket

41 2155774 Strap, Mtg.

44 937360 Cord, Service

48 2160490 Cover, Unit

53 489084 Screw

59 488725 Screw,

8 x 13/16

60 489174 Screw

61 2157315 Tap−Plate,

Bottom Hinge

65 2155013 Clip, Grille

Retainer (2)

68 549193 Clamp

LINER PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: ET22DKXAW04, ET22DKXAN04, ET22DKXAB04

(White) (Almond) (Black)

4379310

1 Liner (Not A

Serviceable Part)

2 1127626 Wiring, Fan Motor

4 941839 Hole Plug (3)

11 1108112 Rocker Arm Switch

13 2157411 Cover, Air Duct

15 489242 Screw

16 2169116 Motor, Fan

17 2162448 Blade, Fan

19 531933 Grommet (2)

20 1110779 Grommet (4)

21 489168 Screw

22 2155597 Socket, Light

23 2160644 Scroll, Fan

24 2157427 Evaporator Cover

25 489196 Screw

26 944759 Hole Cover,

Evaporator

27 1103725 Hole Plug

28 934326 Housing Plug

29 946059 Light Bulb

30 981365 Light Lens

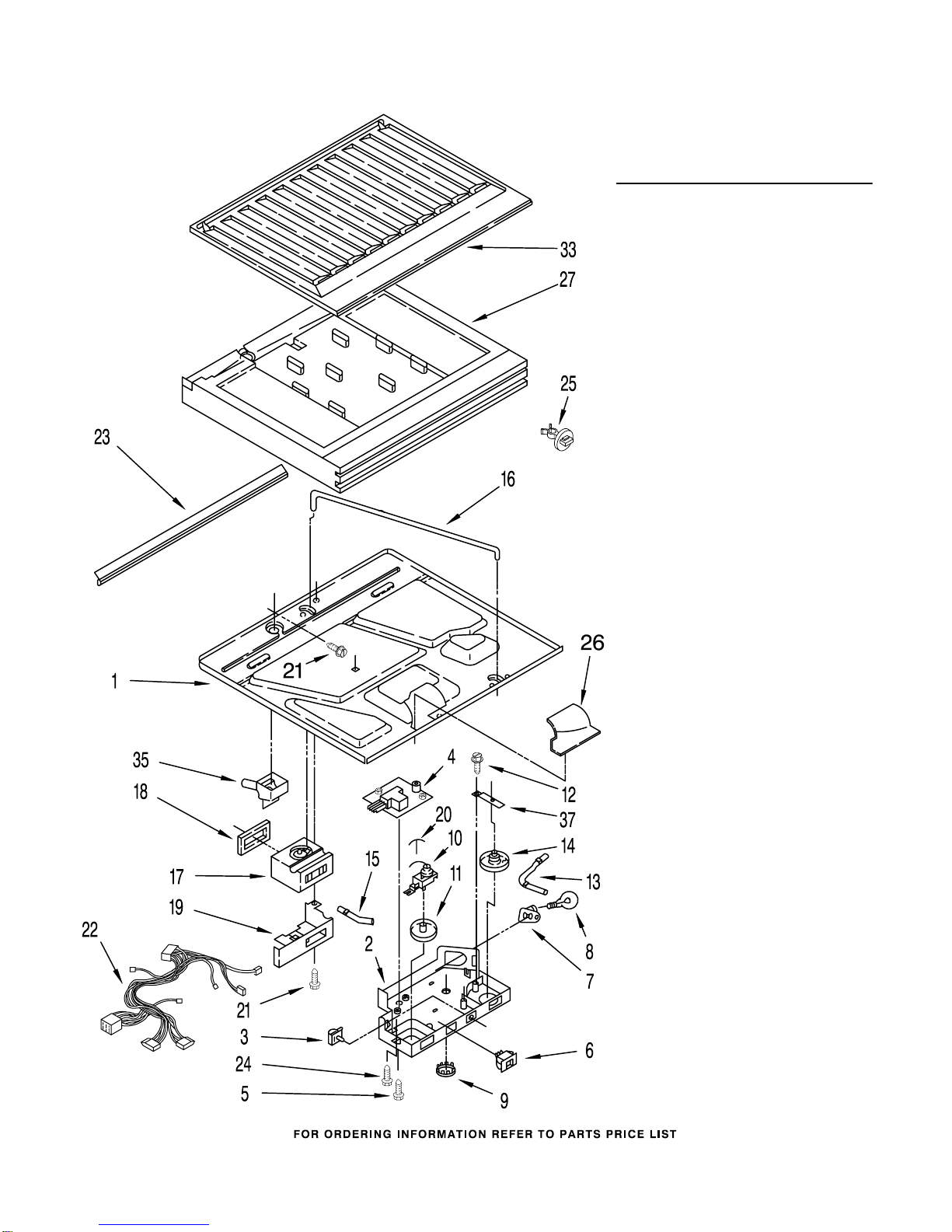

COMPARTMENT SEPARATOR PARTS

Illus. Part

No. No. DESCRIPTION

For Models: ET22DKXAW04, ET22DKXAN04, ET22DKXAB04

(White) (Almond) (Black)

4379310

1 2172820 Bottom,

Compartment

Separator

2 2162826 Box, Control

3 2149705 Switch, Light

4 2162373 Timer, Defrost

5 488693 Screw

6 938049 Switch, Toggle

7 2162085 Socket (2)

8 946059 Bulb, Light (2)

9 940014 Hole Plug

10 1123212 Thermostat

Assembly

11 1114315 Knob, Thermostat

12 487415 Screw 8 x 3/8

13 1105475 Light, Bar

14 1114314 Knob, Air Control

15 1105476 Light, Bar

16 1105460 Rod, Connecting

17 2157253 Air Diffuser

Assembly

18 2157255 Gasket, Air

Diffuser

19 1108176 Cover, Air

Diffuser

20 1106693 Thermostat

Tube Barrier

21 489242 Screw

22 2159536 Wiring Assembly,

Control Box

23 2159684 Gasket, Bottom

Separator

24 489048 Screw,

8−32 x 1/2

25 2172812 Clip, Thermostat

Tube Retention

26 1108196 Insulation, Filler

27 1105464 Insulation,

Compartment

Separator

33 2151663 Separator,

Compartment (Top)

35 937065 Cup, Drain

37 1105457 Bracket, Control

Knob

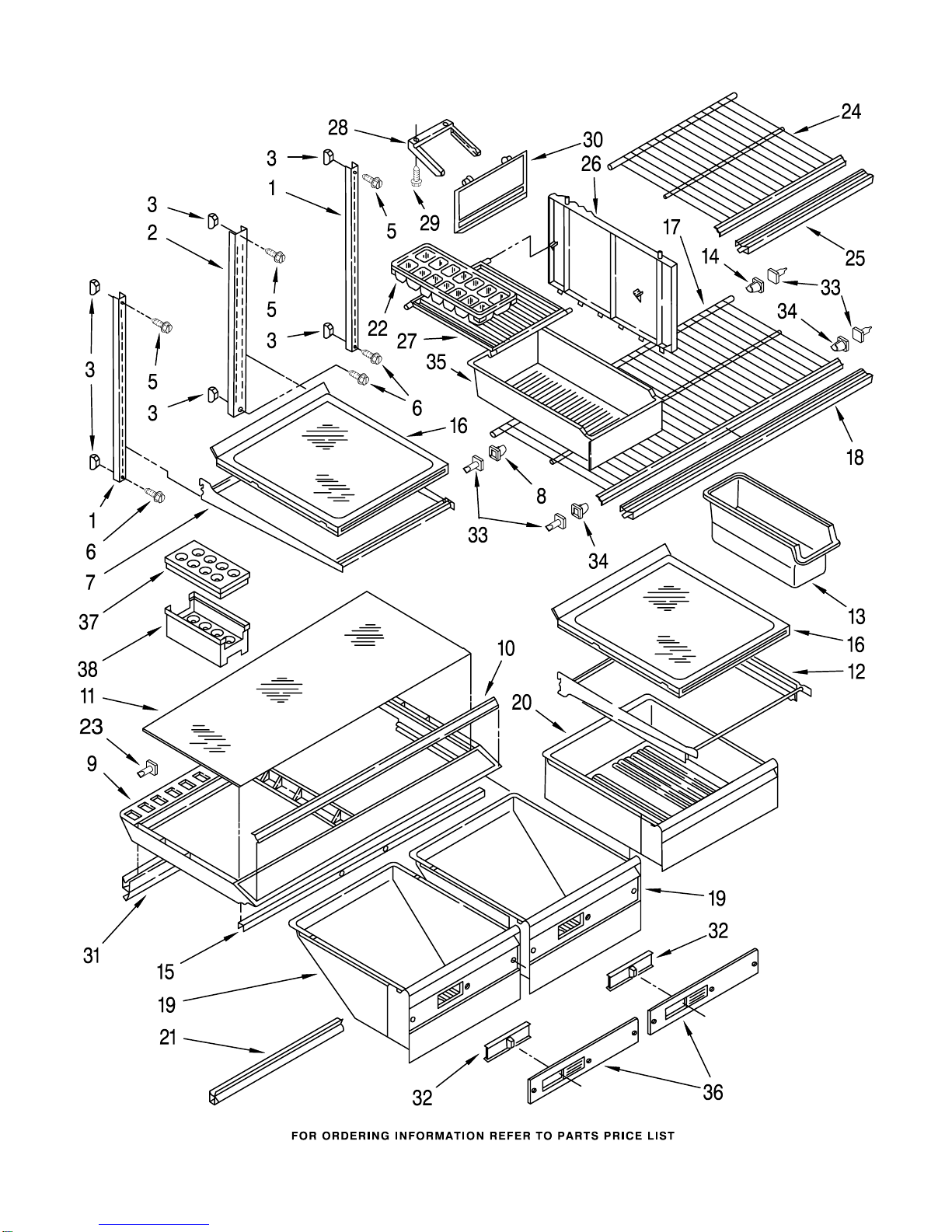

SHELF PARTS

For Models: ET22DKXAW04, ET22DKXAN04, ET22DKXAB04

(White) (Almond) (Black)

4379310

SHELF PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: ET22DKXAW04, ET22DKXAN04, ET22DKXAB04

(White) (Almond) (Black)

4379310

1 1114466 Shelf, Ladder (2)

2 1114465 Shelf, Ladder

Center

3 520965 Screw, Support (6)

5 489345 Screw,

8−32 x 1−1/4

6 488163 Screw,

8 x 1−1/4

7 2160306 Shelf,

Cantilever

8 946358 Shelf Stud, L.S.

9 2148600 Crisper Cover

10 2172711 Trim, Crisper

Cover

11 1124553 Glass, Crisper

Cover

12 2166327 Shelf Assembly,

Cantilever

13 1127196 Container

14 946357 Shelf Stud, R.S.

15 2172748 Crisper, Support

16 2160318 Shelf Assembly,

Spillguard (5)

17 1106615 Shelf, Freezer

18 2148535 Trim, Shelf Front

19 2162717 Pan, Crisper

20 2162716 Pan, Meat

21 1116512 Crisper Gasket,

Front (2)

22 841180 Ice Tray (4)

23 1106612 Shelf Stud (2)

24 1106822 Shelf, Freezer

(Top)

25 2148537 Trim, Shelf

26 1127416 Divider

27 1106624 Ice Compartment,

Shelf

28 1106817 Slide, Ice

Compartment

29 489242 Screw

30 2148741 Door, Ice

Compartment

31 1105653 Crisper Gasket,

Rear (2)

32 2148524 Slide, Crisper

33 946355 Support, Stud

34 946356 Shelf Stud

35 2148742 Pan, Utility

36 2148816 Crisper, Pan

Front

37 1107388 Egg Container−Top

38 1107384 Egg Container−

Bottom

Parts Not Illustrated and

Optional Parts (Not Included)

Miscellaneous

978941 Insulation,

Fiberglass

(63−1/2" x 35−1/2"

x 2−5/8")

212643 Sealer, Gum

(4 Feet)

479502 Tape, Vinyl

(3/4" x 108")

876305 Kit, Insulation

(14 Pcs.

3" x 24" x 48")

876370 Kit, Insulation

(2 Pcs.

3" x 24 " x 48")

876029 Kit, Foam Slab

(30" x 32−1/2" x

1−1/2")

505587 Sealer, Mastic

(1 Qt.)

511873 Touch−Up, White

Porcelain (2 Oz.)

542638 Grease, Silicone

(1/2 Oz.)

542639 Cement,

Alumilastic

(1−1/4 Oz.)

606755 Bag, Insulation

(36−5/8" x 46")

799833 Kit, Evaporator

Repair

(Aluminum Epoxy)

503695 Cork Sealer

(1/4 Pound)

2155034 Door Reversal

Instructions

Customer Touch−Up Material

350942 Primer, White

(13 Oz. Spray Can)

350941 Leveler, Enamel

(13 Oz. Spray Can)

350939 Enamel, Black

(13 Oz. Spray Can)

350930 Enamel, White

(13 Oz. Spray Can)

350956 Enamel, Almond

(13 Oz. Spray Can)

72017 Brush Touch−Up Kit

(White)

72032 Brush Touch−Up Kit

(Black)

72107 Brush Touch−Up Kit

(Almond)

Refinishing Material

799344 Enamel, White

(1 Qt. Uncut)

978883 Enamel, Almond

(1 Qt. Uncut)

833938 Kit, Terminal

Connector

Caution: The Spray Paint Is Not

To Be Used Where The Paint

May Make Contact With The

Door Gaskets

LITERATURE PARTS

LIT2162812 Energy Guide

LIT2160152 Care & Use Guide

LIT2169381 Service & Wiring

Sheet

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677969 Do−It Yourself

Manual, Ref./Fzr.

LIT677971 Do−It Yourself

Manual, Icemaker

FIELD INSTALLABLE

ICE MAKER

ECKMF−90

Part No. 1129316

TORX SCREW WRENCH

1117510 Torx Key

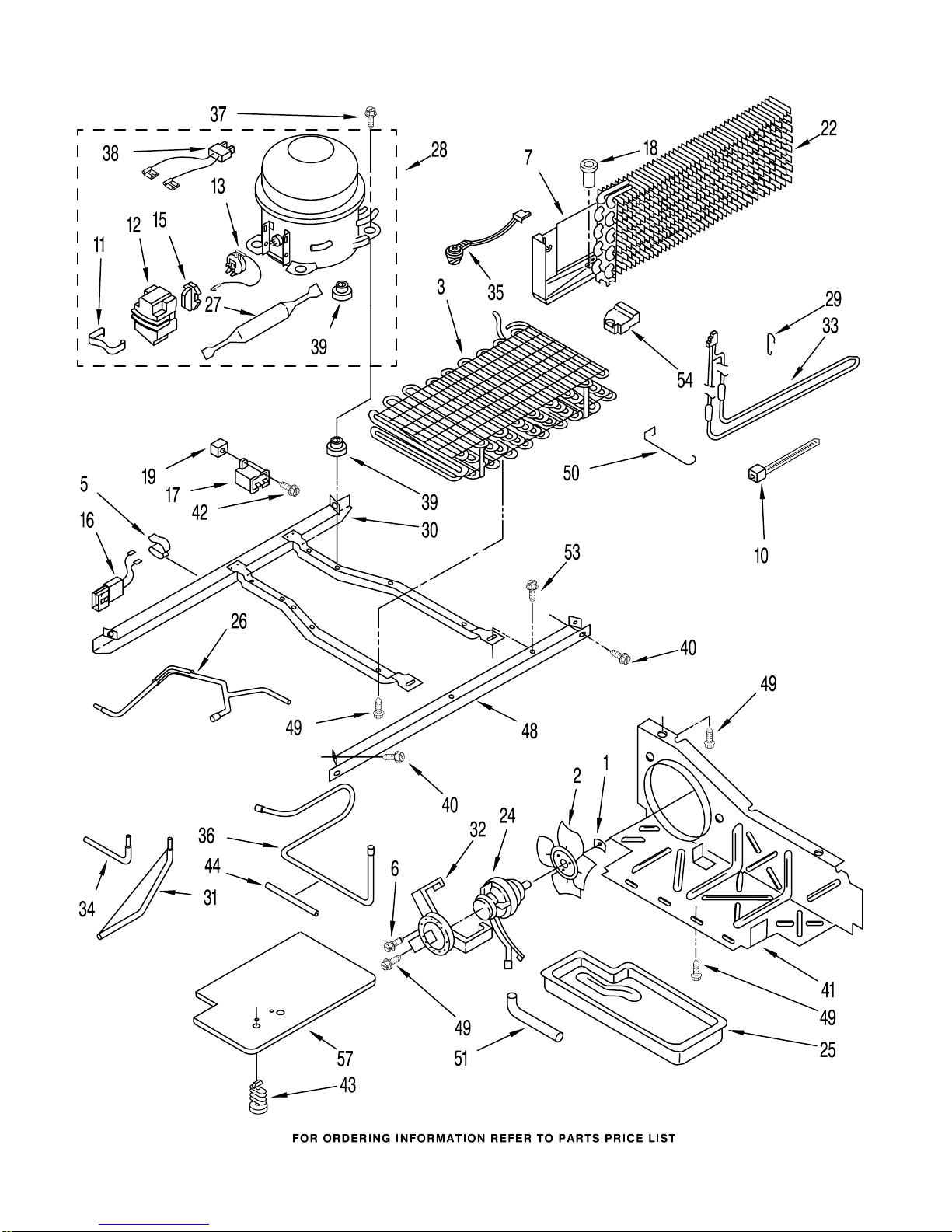

UNIT PARTS

For Models: ET22DKXAW04, ET22DKXAN04, ET22DKXAB04

(White) (Almond) (Black)

4379310

UNIT PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

For Models: ET22DKXAW04, ET22DKXAN04, ET22DKXAB04

(White) (Almond) (Black)

4379310

1 486692 Speed Nut

2 851732 Fan, Blade

3 2164513 Condenser

Assembly

5 548745 Clip, Wire

6 489019 Screw,

8−32 x 3/8

7 2153974 Drain Pan &

Heat Shield

10 2155774 Strap, Mtg.

11 Strap

2165001 Production

938384 Service

12 Cover

2162358 Production

1108115 Service

13 Overload

2159596 Production

(Includes Relay)

2154760 Service

(Includes Relay)

15 Relay

(See Overload)

16 1118850 Housing Plug

17 2154565 Running Capacitor

18 2172811 Drain Fitting

19 509812 Screw Grommet

22 2153978 Evaporator

24 2154735 Fan Motor

25 2154114 Tray, Evaporator

26 2162475 Tube, Discharge

27 2164409 Drier

28 2162354 Compressor

(Includes Items 11,

12, 13, 15, 27,

38, 39)

(Also Order

876765 Tube Kit)

29 2149120 Support, Heater

30 2160500 Unit Mounting

Frame

31 2154032 Tube, Condenser

To Heat Loop

32 2162062 Fan, Motor Bracket

33 2162019 Heater, Defrost

34 2154109 Tube, Process

35 2149641 Bi−Metal, Defrost

36 2162472 Tube, Suction

37 489373 Screw, 1/4−28 x 1

38 1127675 Wire Asm.

39 1100826 Grommet

40 489340 Screw

41 2162457 Air Baffle

42 488687 Screw

43 489396 Clip

44 2162499 Sleeve

48 2149717 Unit Mounting

Rail

49 489337 Screw

50 1105612 Guard, Fan

51 2154119 Tube, Drain

53 489339 Screw,

1/4−28 x 1/2

54 Support, Evap.

1118805 R.S.

2159708 L.S.

57 2160505 Cover, Unit

Bottom

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.5 Ozs.

Production Compressor Requires Production Electrical Components.

Service Compressor Requires Service Electrical Components.

For Further Information, Refer to Filmcard 19.1.

REFRIGERATOR DOOR PARTS

4379310

For Models: ET22DKXAW04, ET22DKXAN04, ET22DKXAB04

(White) (Almond) (Black)

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

REFRIGERATOR DOOR PARTS

For Models: ET22DKXAW04, ET22DKXAN04, ET22DKXAB04

(White) (Almond) (Black)

4379310

1 Panel, Refrigerator

Door (Also

Order Item 26)

1122549 White

1122658 Almond

2161866 Black

3 943185 Plate, Tap (4)

4 Bracket, Door

Stop

944036 White And

Almond Models

1115910 Black Model

5 488921 Screw, 8 x 1/2

6 489028 Screw, 8−15 x 1/2

7 Hole Plug

844478 White

989196 Almond

2160808 Black

8 Door Gasket,

Magnetic

2148565 White And

Black Models

1122828 Almond Model

9 Screw

489101 (20)

489287 (8)

489084 (Repair)

10 944157 Handle End

11 1109189 Handle End,

Side

12 Handle, Center

2150150 White

943068 Almond

1120781 Black

13 935075 Shim, Handle

End (Side)

14 943188 Spacer, Handle

Door

15 2151669 Screw Anchor

16 489006 Screw, 8 x 5/8

17 487909 Screw, 8 x 1/2

18 Insert, Handle

2150153 White

2150154 Almond

1120830 Black

19 2156245 Interior Door

Panel

20 1122750 Trim, Door

Compartment

21 2160050 Divider,

Door Shelf

22 2148807 Compartment Door,

Right Side

23 2148809 Compartment Door,

Left Side

24 Hole Plug, Handle

1122653 White

1122654 Almond

2160809 Black

25 1116986 Pin Plate

26 876029 Foam Insulation

(Required When

Replacing Exterior

Door Panel)

27 489022 Screw,

6−20 x 3/8

28 1122551 Retainer, Gasket

29 935871 Retainer,

Insert

30 1105804 End Cap, Insert

Retainer

32 2148616 Trim, Door Shelf

33 2148549 Bin, Door

Shelf (2)

34 2148550 Bin, Door Shelf

(Deep) (2)

35 1118001 Hinge Pin, Center

36 1105685 End Cap Trim (2)

37 1122711 Door Dike, Center

38 1122709 Door Dike,

Side (2)

39 2152335 Divider, Bin

40 1122552 Retainer, Gasket

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Kühlschrank Handbücher

Whirlpool

Whirlpool EL88TRRWS Bedienungsanleitung

Whirlpool

Whirlpool 8ED2GTKXRQ00 Bedienungsanleitung

Whirlpool

Whirlpool WRS973CIDM Bedienungsanleitung

Whirlpool

Whirlpool W10131412A Bedienungsanleitung

Whirlpool

Whirlpool ED2FHEXS Gebrauchsanweisung

Whirlpool

Whirlpool WH35S1Q Bedienungsanleitung

Whirlpool

Whirlpool RS22AMXV Bedienungsanleitung

Whirlpool

Whirlpool ET8MTKXKQ01 Bedienungsanleitung

Whirlpool

Whirlpool EL11PC Bedienungsanleitung

Whirlpool

Whirlpool GSS30C6EYY00 Bedienungsanleitung

Whirlpool

Whirlpool UH6F1CWUK Bedienungs- und Montageanleitung

Whirlpool

Whirlpool ET16TK Bedienungsanleitung

Whirlpool

Whirlpool AMANA Bedienungsanleitung

Whirlpool

Whirlpool 3ET16NK Bedienungsanleitung

Whirlpool

Whirlpool WRF535SMBB Montageanleitung

Whirlpool

Whirlpool WRF954CIHV Bedienungsanleitung

Whirlpool

Whirlpool EL11PC Bedienungsanleitung

Whirlpool

Whirlpool 3ET22RK Bedienungsanleitung

Whirlpool

Whirlpool GI7FVCXW - DIMENSION GUIDE 8-12-09 Bedienungsanleitung

Whirlpool

Whirlpool 8VET8WPKLQ00 Bedienungsanleitung

Whirlpool

Whirlpool TT21AKXKQ02 Bedienungsanleitung

Whirlpool

Whirlpool ET8WTKXKB - 18 cu. Ft. Refrigerator Montageanleitung

Whirlpool

Whirlpool ED22ZRXDN00 Bedienungsanleitung

Whirlpool

Whirlpool KSRP22FNSS00 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
