Model ETl2CC

Please read this

Use and Care Guide

before you do anything else...

This booklet tells you how to start your

refrigerator, clean It, move shelves and adjust

controls. It even tells you what new sounds to

expect from your retrlgerator.

Treat your new refrigerator wlth care. Use it

only to do what home refrlgemtors are deslgned

to do.

Parts and features

ICECUBE

TRAYS

MODELAND I _

SERIALNUMBER I

CONTROL

POWERSAVING

CONTROL

CRISPER

\ JUICECAN

- BUTTER

COMPARTMENT

STATIONARY

SHELVES

- ADJUSTABLE

SHELVES

and Serial Numbers here...

When you need service or call with a question,

have this information ready:

Model Number

1. Complete Model and Serial Numbers (from

the label located as shown).

2. Purchase date from sales slip.

Serial Number

Copy this information in these spaces. Keep this

book, your warranty and ScalesSlip together in a purchase Date

handy place.

Please complete and mail the Owner Regis-

tration card furnished with this product. Senrlce Company

and Telephone Number

Contents

Paae

PARTSAND FEATURES

................. -2

SAFETYFIRST .........................

BEFOREYOU PLUG IT IN. .............. :

Install Properly .....................

Level Refrigerator-Freezer ..........

Remove Soles Labels ...............

Clean It ............................

Plugltln ...........................

USING YOUR REFRIGERATOR..........

Setting the Control .................

Power Saving Control ..............

Changing the Light Bulb ............

Adjusting the Refrigerator Shelves . .

Removing Crisper and Crisper Cover

Page

Ice Cube Trays ...................... 6

Sounds You May Hear ............... 6

Energy Saving Tips .................. 6

CLEANING YOUR REFRIGERATOR

....... 7

Defrosting the Freezer ............... 7

Cleaning Chart ..................... 8

FOOD STORAGE GUIDE ................ 9

Storing Fresh Food .................. 9

Freezing and Storing Frozen Foods 10

VACATION AND MOVING CARE........ 13

IF YOU NEEDSERVICEOR ASSISTANCE. 14

WHIRLPOOL REFRIGERATOR

WARRANTY ............................ 16

i.nw*ilr~i*~,,,R,6s-RtMI-~-*l,?r.. .%.il>..~1.7

01987 Whirlpool Corporation

Before you plug it in

Before using your refrigerator, you ore personally

responsible for making sure that it...

l is installed and leveled on a floor that will hold

the weight, and in on orea suitable for its size

and use.

l is not near on oven, radiator or other heat

source.

l is properly maintained.

l is out of the weather.

l isconnected only to the right kind of outlet, with l is used in on area where the room temperature

the right electrical supply and grounding. will not fall below 55°F (lSC].

[Refer to your “Electrical Requirements and l is not used by those who may not understand

Grounding Instructions:‘) how it should be used.

l is used only for jobs expected of home l is not loaded with food before it has time to get

refrigerators. properly cold.

II’:,w@‘I~‘iBI’mJlw~IymI~~tv,+i-sL.,,dF~:Ald41:wat;,:ilir:I, 1 :.,..,: ,., .^j , ,,,“1

Install properly...

1. Allow 3 inches (7.5cm) between overhead c

inets and the refrigerator top.

2. Allow at least on inch (2.5 cm) between the re-

frigerator condenser on the bock and the wall.

3. Allow Yzinch (1.25 cm] on each side of the re-

frigerator for ease of installation.

4. If the refrigerator is to be against a wall, you

might wont to leave extra space on the hinge

side so the door con be opened wider.

Level refrigerator-freezer...

1. Keep the 4 bolts that held refrigerator in ship-

ping crate. They ore the levelling legs.

2. Screw these bolts all the way into bolt holes at

the bottom corners of refrigerator.

3. Adjust each leg until the refrigerator won’t rock.

4. Slide refrigerator into place.

5. Adjust front legs to level the refrigerator.

-To raise corners, turn legs in direction shown.

-To lower corners, turn legs in direction shown.

6. Check with level.

Removesaleslabels...

Remove the Consumer Buy Guide label, tape

and any inside labels before using the re-

frigerator. To remove any remalnfng glue:

1. Rub briskly with thumb to make Q boll then

remove.

2. Soak area with liquid hand dishwashing

detergent before removing glue as described

in step 1.

DO NOT USErubbing alcohol or flammable or

toxic solvents, such as acetone, gasoline, car-

bon tetrachloride, etc. These can damage the

material.

NOTE: DO NOT REMOVE ANY PERMANENT IN-

STRUCTIONS LABELS INSIDE YOUR REFRIGER-

ATOR.

Do not remove the Tech sheet fastened under

the refrigerator at the front.

Clean it...

Clean your refriger-

ator before using it.

See cleaning instruc-

tions on page 8.

Plug it in...

3-PRONG GROUNDING A,!

TYPE WALL RECEPTACLE

3-PI

GROUNDI

--- -- -ING PLUG

REFRIGERATOR

POWER CORD

RECOMMENDED GROUNDING METHOD

A 115Volt, 60 Hz.,AC only 15or 20 ampere fused

and properly grounded electrical supply is

required. It is recommended that a separate cir-

cuit serving only this appliance be provided.

Do not use an extension cord. Use a recepta-

cle which cannot be turned off with a switch or

pull chain. See individual electrical requirements

and grounding instruction sheet in your literature

package.

Using your refrigerator

TEMPERATURE

CONTROL

POWER SAVING

CONTROL

Setting the control...

The Temperature Control for the refrigerator and Give the refrigerator time to cool down

freezer is in the refrigerator in the top right hand completely before adding food. (This may take

corner. When the refrigerator is plugged in for the several hours.]

first time:

l Set the Temperature

Control to 3. L

Power Saving Control...

The Power Saving Control on the Control Con-

sole operates electric heaters around the door

openings. These heaters help keep moisture from

forming on the outside of the refrigerator.

Changing the light bulbs...

LIGHT

SWITCH

This setting should be about right for normal

household refrigerator usage.

The control will be set about right when milk or

juice isas cold as you like and when ice cream

is firm.

1. Use the “SAVES

POWER” setting

when humidity is

low.

2. Use the “REDUCES

EXTERIOR MOIS-

TURE” setting if

moisture forms on

the outside of the

refrigerator.

Reach behind the control console to find bulbs.

2. Remove bulb.

3. Replace with a 40-watt appliance bulb.

Adjusting the refrigerator shelves...

To remove fhe shelf:

1. First,remove food from shelf.

2. Slide shelf straight out to stop.

3. Lift front, slide shelf the rest of the way out.

To replace the shelf:

1. Fit back of shelf on top of guides with wire stops

on the bottom of guides.

2. Liti front, slide shelf in until it clears guide stops. GUIDE

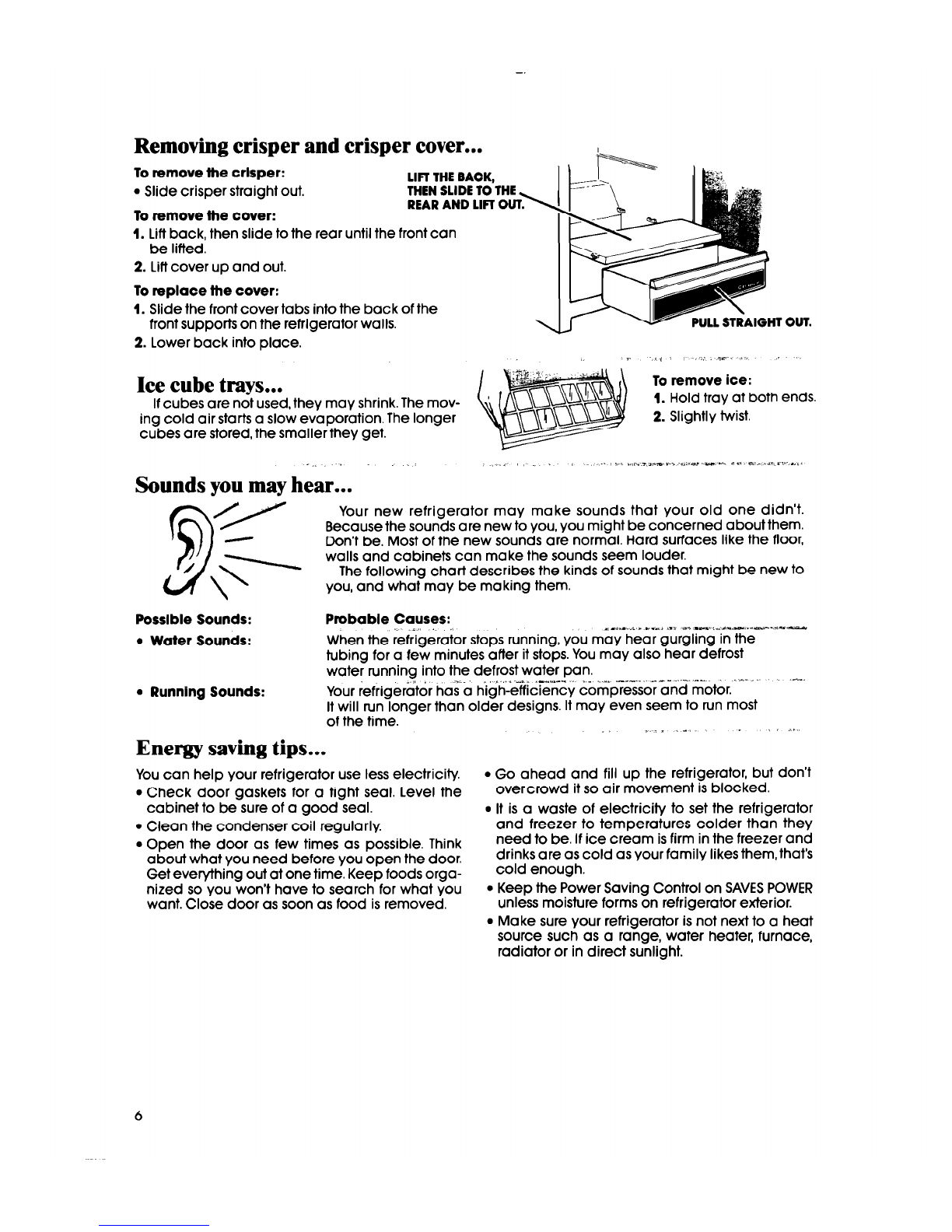

Removing crisper and crisper cover...

To remove the crisper: LIFTTHEBACK,

l Slide crisper straight out.

THEN SLIDE TO THE \

REAR AND LIFT OUT.

To remove the cover:

L:;;I;, then slide to the rear until the front can

2. Liftcover up and out.

To replace the cover:

1. Slide the front cover tabs into the back of the

front supports on the refrigerator walls.

2. Lower back into place.

Ice cube trays...

Ifcubes are not used, they may shrink. The mov-

ing cold air starts a slow evaporation. The longer

cubes are stored, the smallerthey get.

To remove ice:

1. Hold tray at both ends.

2. Slightly twist.

Sounds you may hear...

‘/

=--

’\\

Your new refrigerator may make sounds that your old one didn’t.

Because the sounds are new to you, you might be concerned about them.

Don’t be. Most of the new sounds are normal. Hard surfaces like the floor,

walls and cabinets can make the sounds seem louder.

The following chart describes the kinds of sounds that might be new to

you, and what may be making them.

Possible Sounds:

l Water Sounds:

l Running Sounds:

Probable Causes: AC1Y..Chcs.c,.zi LI*.mCY*I&%-.Iw-“s-.~w

When the refr&rator stops running, you may hear gurgling in the

tubing for a few minutes after it stops. You may also hear defrost

water running into the defrost water pan.

,-yl-._ <_..?.ji~,~.lZ.Y1-m..XI,nIL.

.,~.r_.,._.. _-,

Your refrigerator hasia high-e?ffciency compressor and motor.

It will run longer than older designs. It may even seem to run most

of the time. ..~ ,*,. . , / ,ir,,

Energy saving tips...

You can help your refrigerator use less electricity.

l Check door gaskets for a tight seal. Level the

cabinet to be sure of a good seal.

l Clean the condenser coil regularly.

l Open the door as few times as possible. Think

about what you need before you open the door.

Get everything out at one time. Keep foods orga-

nized so you won’t have to search for what you

want. Close door as soon as food is removed.

l Go ahead and fill up the refrigerator, but don’t

overcrowd it so air movement is blocked.

l It is a waste of electricity to set the refrigerator

and freezer to temperatures colder than they

need to be. If ice cream is firm in the freezer and

drinks are as cold as your family likes them, that’s

cold enough.

l Keep the Power Saving Control on SAVESPOWER

unless moisture forms on refrigerator exterior.

l Make sure your refrigerator is not next to a heat

source such as a range, water heater, furnace,

radiator or in direct sunlight.

Cleaning your refrigerator

There is a cold plate on the back wall at the top

of the refrlgerator section, When the refrigerator

motor runs, frost collects on the cold plate. When

the motor turns off, the frost melts.

The refrigerator section defrosts automatically.

The freezer section needs defrosting from time to

time. Both sections should be cleaned about once

a month to help prevent odors from building up. Of

course, spills should be wlped up right away.

To clean your refrigerator, turn the Temperature

Control to “OFF,”unplug it, take out all removable

parts, and clean it according to the following

directions and chart.

DRAIN CAP OPENINGS.

Defrosting the freezer...

Water from this

melted frost drips

into a drain trough

just below the cold

plate. Then it runs

down the back wall

and through the

drain just above

the crisper. The

drain leads to a de-

frost water pan on

the top of the re-

frigerator motor.

Heat from the motor

evaporates the

water.

If the drain be-

comes clogged,

force warm water

mixed with baking

soda through the

drain until the water

flows freely.

The freezer section should be defrosted when-

ever frost builds up to a G-inch (6 mm) thickness.

DO NOT USEANY TYPEOF ELECTRIC DEFROSTER

OR SHARPUTENSILS(ICE PICK,KNIFE,ETC.)to speed

defrosting. These can cause damage.

DEFROST DRAIN

1. Putempty pan in the refrigerator on the top shelf

in the center.

2. Move frozen food and ice to the refrigerator

section.

3. Turn the Temperature Control to “OFF.”

4. Close the refrigerator door. Leave the freezer

door open.

5. Puta pan of hot water in the center of the freezer.

This helps melt the frost. Don’t place pan over

drain hole in center of the freezer.

PUT PAN OF HOT WATER

IN FREEZERTO SPEED

6. Defrost water will drain through drain hole into

MELTING.

the pan you put in the refrigerator section. You

may have to melt frost from the drain hole by

pouring a little hot water around it.

PUT PAN IN REFRIGER-

7. Wash the inside of the freezer with a solution of

ATOR TO CATCH DEFROST

2 tablespoons (26 g) of baking soda and one

WATER.

quart (.95 L)warm water. Rinse well and dry.

8. Remove the pan of defrost water from the

refrigerator; put frozen food and ice back into

freezer.

9. Reset the Temperature Control.

Cleaning chart...

Part

Removable parts

(shelves and crisper)

What to use

Sponge or cloth; mild

detergent and warm

water.

How to clean

l Wash removable parts with warm water

and a mild detergent.

l Rinse and dry.

Outside Sponge, cloth or paper

towel;mild detergent;

appliance wax (or

good auto paste wax).

l Wash with warm water and a mild

detergent. Do not use abrasive or harsh

cleansers.

l Rinse and dry.

l Wax painted metal surfaces at least

twice a year with appliance wax or a

good auto paste wax. Apply wax with a

clean, soft cloth. Do not use wax on plas-

tic parts.

Inside walls (Freezer

should be allowed to

warm up so cloth won’t

stick.]

Waxlng painted metal surfaces provides rust protection.

Sponge, soft cloth or l Wash with warm water and

paper towel, baking -mild detergent or

soda, warm water, mild - baking soda (2 tablespoons [26 g] to

detergent. 1quart [.95 L.]warm water).

l Rinse and dry

Door liners and gaskets Sponge, soft cloth or l Wash with mild detergent and warm

paper towel; mild water.

detergent, warm water. l Rinse and dry.

DO NOT USECleaning waxes, concentrated detergents, bleaches

or cleansers containing petroleum on plastic parts.

Dark plastics

(covers and panels)

Defrost pan Sponge or cloth; mild

(behind refrigerator detergent and warm

on top of the motor) water.

Condenser coils

Floor under refrigerator

Mild detergent and

warm water; soft clean

sponge and soft, clean

cloth.

l Wash with a soft cloth or sponge.

l Rinse and dry.

DO NOT USEpaper towels, window sprays, scouring cleansers,

or flammable or toxic solvents like acetone, gasoline, carbon

tetrachlorlde, etc. These can scratch or damage the material.

l Slide refrigerator out away from wall.

l Wash defrost pan with warm water and

mild detergent. Do not remove defrost

pan to clean.

l Rinse and dry.

l Make sure defrost drain tube points into

pan.

l Slide refrigerator back into place.

Usevacuum cleaner

with brush attachment.

Usual floor cleaners.

l Clean dust and lint from condenser

coils behind the refrigerator at

least once every other month.

l Leave an inch (2.54 cm) between

wall and condenser coils on back

of the refrigerator.

l Slide refrigerator out away from wall.

l Clean the floor.

l Slide refrigerator back into place.

l Check to see if the refrigerator is level.

Food storage guide

STORING FRESH FOOD

There is a right way to package and store

refrigerated or frozen foods. Tokeep foods fresher,

longer, take the time to study these recommended

steps.

leafy Vegetables...Remove store wrapping

and trim or tear off bruised and discolored areas.

Wash in cold water and drain. Place in plastic bag

or plastic container and store in crisper. Cold, moist

air helps keep leafy vegetables fresh and crisp.

Vegetables with Skins (carrots, peppers)...Store

in crisper, plastic bags or plastic container.

Frult...Wash, let dry and store in refrigerator in

plastic bags or crisper. Do not wash or hull berries

until they are ready to use. Sort and keep berries in

their store container in a crisper, or store in a

loosely closed paper bag on a refrigerator shelf.

Meat*...Meat is perishable and expensive...you

won’t want to waste an ounce of itthrough careless

handling. The following list and chart give you

packaging hints and time limits.

Fresh, Prepackaged Meat. Store fresh meat in

the store wrapping. Vacuum packaged meat can

be frozen for as long as one month if the seal is not

broken. If you want to keep it frozen longer, you

should wrap it with special freezer wrapping

material.

Fresh Meat, Not Prepackaged. Remove the

market wrapping paperand re-wrap in aluminum

foil for storing it unfrozen.

Cooked Meat. Wrap or cover cooked meat with

plastic wrap or aluminum foil. Store immediately.

Cured or Smoked Meat and Cold Cuts. Ham,

bacon, sausage, cold cuts, etc., keep best in origi-

nal wrappings. Once opened, tightly re-wrap in

plastic wrap or aluminum foil.

Canned Ham. Store in refrigerator unless the

label says it’s okay to store on the shelf. Do not

freeze.

Fresh Poultry...Wrap in plastic wrap. The plastic

on poultry, as purchased, may be used for storage.

NOTE:Fresh fish and shellfish should be used the

same day as purchased.

Eggs...Store without washing in the original carton

or use the egg nest in the door.

Mllk...Wipe milk cartons. For best storage, place

milk on interior shelf.

Beverages...Wipe bottles and cans. Store on a

door shelf or inside the refrigerator.

Butter...Keep opened butter in covered dish or in

the Butter Compartment. When storing an extra

supply, wrap in freezer packaging and freeze.

Cheese...Store in original wrapping until you are

ready to use it. Once opened, rewrap tightly in

plastic wrap or aluminum foil.

Condiments...Store small jars and bottles (catsup,

mustard, jelly, olives] on door shelves where they

are easy to reach.

Lettovers...Cover leftovers with plastic wrap or

aluminum foil to keep food from drying out and

transferring food odors. Plastic containers with tight

lids are fine, too.

FREEZING & STORING

FROZEN FOODS

The freezer section is designed for storage of

commercially frozen foods and for freezing foods

at home.

Packaglng - The secret of successful freezing is

in the packaging. The wrap you use must be air,

moisture and vapor proof. The way you close and

seal the package must not allow air, moisture or

vapor in or out. Packaging done in any other way

could cause food odor and taste transfer through-

out the refrigerator and drying of frozen food.

Rigid polyethylene (plastic] containers with

tightfitting lids, straight-sided canning/freezing

jars, heavy-duty aluminum foil, plastic-coated pa-

per and nonpermeable plastic wraps (made from

a Saran film] are recommended. NOTE: Heat-

sealed bolllng bags are easy to use and can be

used by themselves or as carton liners.

Seallng - When sealing foods in bags squeeze

out the alr [liquids need headspace to allow for

expansion). Twistthe top and turn it back. Fasten tie

securely around the doubled-over tail. Put the

label inside transparent bags; use self-adhesive

label on outside of opaque ones.

Air-tight wrapping calls for “drugstore” wrap. Cut

the sheet about one-third longer than the distance

around the food. Bring the ends together and fold

in (toward the food) at least twice to seal out air.

Crease ends close to food, press air from package.

Fold tips over twice. Finish package and tape

closed. NOTE: Wlth unboned meats, pad sharp

edges wlth extra wrap or use stockinette to pro-

tect the wrap tfom punctures.

Freezing Fruits - Select ripe, blemish-free fruits.

Besure they taste as good as they look. Wash 2 to 3

quarts [liters) at a time and drain. Fruitthat stands in

water may lose food value and become soggy.

Sort, peel, trim, pit and slice as needed.

Pack in rigid wide-mouthed containers or other

recommended material. Leave head space to

allow liquids to expand during freezing.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Kühlschrank Handbücher

Whirlpool

Whirlpool WF179 Bedienungsanleitung

Whirlpool

Whirlpool GB2SHDXTB00 Bedienungsanleitung

Whirlpool

Whirlpool W10245525A Bedienungsanleitung

Whirlpool

Whirlpool KRMF606ESS Bedienungsanleitung

Whirlpool

Whirlpool GSF26C5EXT Bedienungsanleitung

Whirlpool

Whirlpool W5 611E X Bedienungsanleitung

Whirlpool

Whirlpool 2225405 Bedienungsanleitung

Whirlpool

Whirlpool GS5VHAXWA - 25.6 cu. Ft. Refrigerator Bedienungsanleitung

Whirlpool

Whirlpool ED5FHAXVY - 25.3 cu. ft. Refrigerator Bedienungsanleitung

Whirlpool

Whirlpool SW8 AM2C XR2 Bedienungsanleitung

Whirlpool

Whirlpool ET1 8JKXL Bedienungsanleitung

Whirlpool

Whirlpool ED7FHGXKB00 Bedienungsanleitung

Whirlpool

Whirlpool BF 30 NFI Series Bedienungsanleitung

Whirlpool

Whirlpool WRSA88FIHZ Bedienungsanleitung

Whirlpool

Whirlpool EB19AKXL Bedienungsanleitung

Whirlpool

Whirlpool ET14GK Bedienungsanleitung

Whirlpool

Whirlpool G2IXEFMW - 2-20-09 Gebrauchsanweisung

Whirlpool

Whirlpool ED5HVAXVL00 Bedienungsanleitung

Whirlpool

Whirlpool ETl8EK Bedienungsanleitung

Whirlpool

Whirlpool UH6F1CWUK Bedienungs- und Montageanleitung

Whirlpool

Whirlpool ET1MHEXR Gebrauchsanweisung

Whirlpool

Whirlpool ED20GK Bedienungsanleitung

Whirlpool

Whirlpool G32026PEKS5 Bedienungsanleitung

Whirlpool

Whirlpool er6ahkxsq00 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
