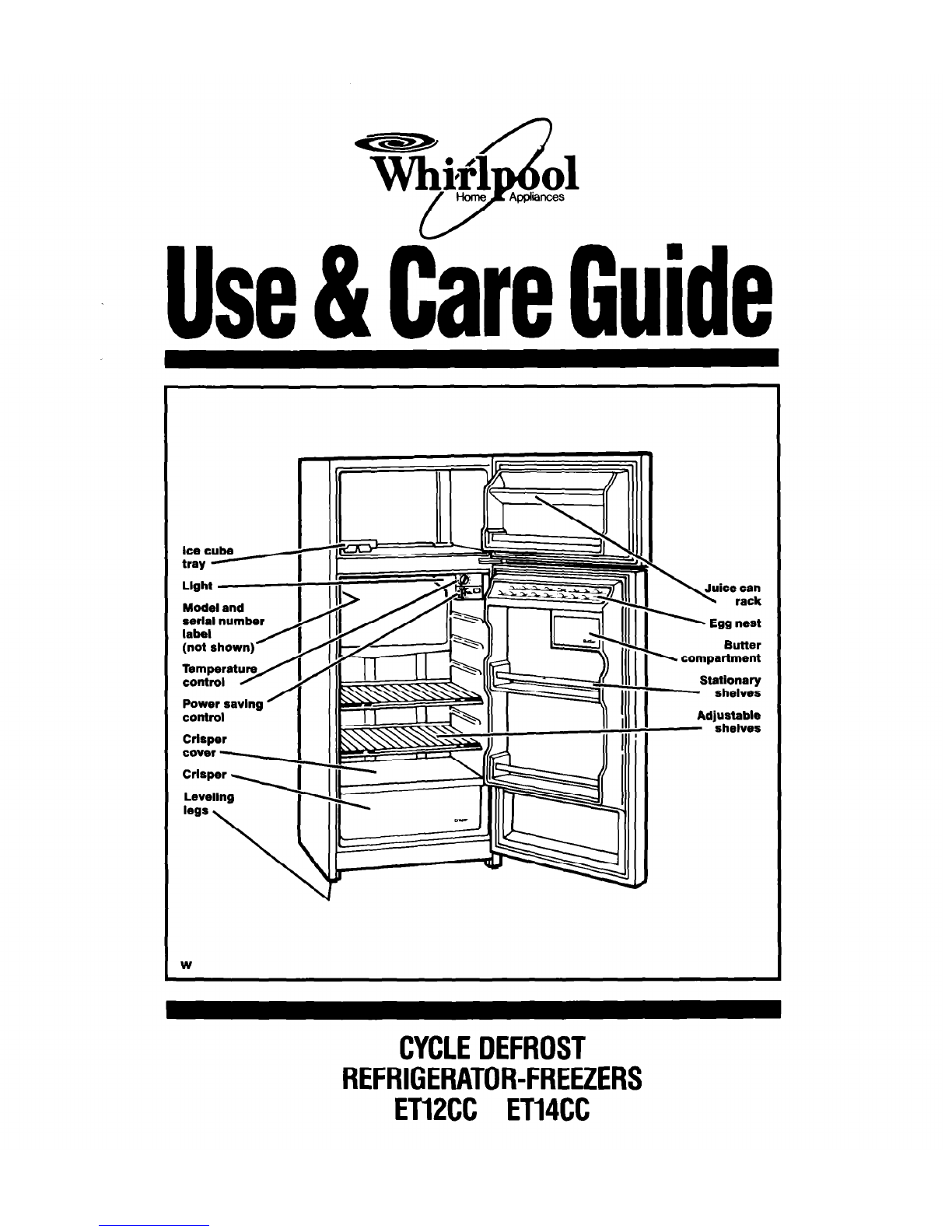

Whirlpool ETl4CC Bedienungsanleitung

TLi#l 01

. Use&C~rA~Guide

I Irr I,

II I l#l /Al

Model and

m \ Juice can

\ rack

label

(not shown)

N Egg nest

Butter

compartment

Stationary

- shelves

Adjustable

- shelves

CYCLEDEFROST

REFRIGERATOR-FREEZERS

ETl2CC ETl4CC

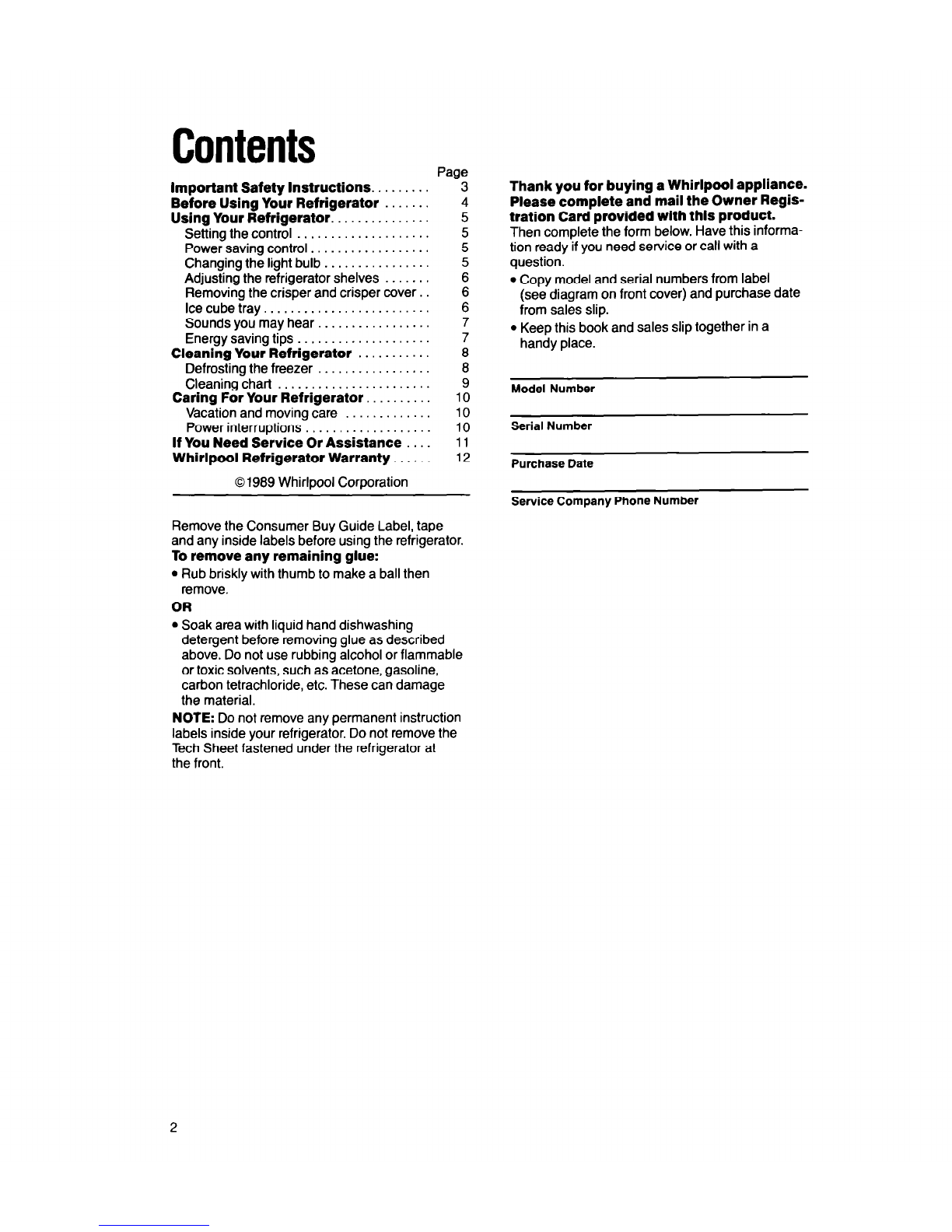

Important Safety Instructions. ........

Before Using Your Refrigerator .......

Usfng Your Refrigerator. ..............

Setting the control ....................

Power saving control. .................

Changing the light bulb ................

Adjusting the refrigerator shelves .......

Removing the crisper and crisper cover. .

Ice cube tray. ........................

Sounds you may hear .................

Energy saving tips ....................

Cleaning Your Refrigerator ...........

Defrosting the freezer .................

Cleaning chart .......................

Caring For Your Refrigerator. .........

Vacation and moving care .............

Power interruptions ...................

If You Need Service Or Assistance ....

Whirlpool Refrigerator Warranty. .....

01989 Whirlpool Corporation

Page

Thank you for buying a Whirlpool appliance.

Please complete and mail the Owner Regis-

tration Card provided with this product.

Then complete the form below. Have this informa-

tion ready if you need service or call with a

question.

Copy model and serial numbers from label

(see diagram on front cover) and purchase date

from sales slip.

Keep this book and sales slip together in a

handy place.

Model Number

Serial Number

Purchase Date

Service Company Phone Number

Remove the Consumer Buy Guide Label, tape

and any inside labels before using the refrigerator.

To remove any remaining glue:

Rub briskly with thumb to make a ball then

remove.

Soak area with liquid hand dishwashing

detergent before removing glue as described

above. Do not use rubbing alcohol or flammable

or toxic solvents, such as acetone, gasoline,

carbon tetrachloride, etc. These can damage

the material.

NOTE: Do not remove any permanent instruction

labels inside your refrigerator. Do not remove the

Tech Sheet fastened under the refrigerator at

the front.

ImportantSafetyInstructions

Read all instructions before using the

refrigerator.

Child entrapment and suffocation

are not problems of the past. Junked

or abandoned refrigerators are still

dangerous...even if they will “just sit

in the garage a few days!’

If you are getting rid of your old

refrigerator, do it safely. Please read

the enclosed safety booklet from

the Association of Home Appliance

Manufacturers. Help prevent accidents.

Never allow children to operate, play

with, or crawl inside the refrigerator.

Never clean refrigerator parts with

flammable fluids. The fumes can create

a fire hazard or explosion.

. FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND LIQ-

UIDS IN THE VICINITY OF THIS OR ANY

OTHER APPLIANCE. THE FUMES CAN

CREATE A FIRE HAZARD OR EXPLOSION.

It is your responsibility to be sure your

refrigerator:

is installed and leveled on a floor that will hold

the weight, and in an area suitable for its size

and use.

is connected only to the right kind of outlet,

with the right electrical supply and grounding.

(Refer to the Electrical Requirements and

Grounding Instructions Sheet.)

is used only to do what home refrigerators

are designed to do.

is not near an oven, radiator or other heat

source.

is properly maintained.

is out of the weather.

is used in an area where the room tempera-

ture will not fall below 55°F (13°C).

is not used by anyone unable to operate

it properly.

is not loaded with food before it has time to

get properly cold.

- SAVE THESE INSTRUCTIONS -

BeforeUsingYourRefrigerator

&prong grounding

type wall receptacle

1. Clean It

Clean your refrigerator before using it. See

cleaning instructions on page 8.

2. Plug it in

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere fused

and properly grounded electrical supply is

required. It is recommended that a separate circuit

serving only this appliance be provided. Use a re-

ceptacle which cannot be turned off with a switch

or pull chain. Do not use an extension cord.

See Electrical Requirements and Grounding

Instruction Sheet in your Literature Package.

3. Install properly

1. Allow 3 inches (7.5 cm) between overhead

cabinets and the refrigerator top.

2. Allow at least an inch (2.5 cm) between the

refrigerator condenser on the back and the wall.

3. Allow

inch (1.25 cm) on each side of the

refrigerator for ease of installation.

4. If the refrigerator is to be against a wall, you

might want to leave extra space on the hinge

side so the door can be opened wider.

4. Level refrigerator-freezer

1. Keep the 4 bolts that held the refrigerator in the

shipping crate. They are the leveling legs.

2. Screw these bolts all the way into bolt holes at

the bottom corners of refrigerator.

3. Adjust each leg until the refrigerator won’t rock.

4. Slide refrigerator into place.

5. Adjust front legs to level the refrigerator.

-To raise corners, turn legs in direction shown.

-To lower corners, turn legs in direction shown.

6. Check with level.

UsingYourRefrigerator

TEMPERATURE

CONTROL

OFF

. REDUCES EXTERIOR

MOISTURE

IFI

POWER

SAVING

CONTROL

SAVES POWER I

Setting the control

The Temperature Control for the refrigerator and

freezer is in the refrigerator. When the refrigerator

is plugged in for the first time:

1. Set the Temperature Control to 3.

Give the refrigerator time to cool down

completely before adding food. (This may take

several hours.)

This setting should be about right for normal

household refrigerator usage.

The control will be set about right when milk

or juice is as cold as you like and when ice cream

is firm.

Power saving control

The Power Saving Control on the Control Console

operates electric heaters around the door open-

ings. These heaters help keep moisture from form-

ing on the outside of the refrigerator.

1. Use the SAVES POWER setting when

humidity is low.

2. Use the REDUCES EXTERIOR MOISTURE

setting if moisture forms on the outside of

the refrigerator.

Changing the light bulb

Electrical Shock Hazard

Before removing the light bulb, either

unplug the refrigerator or disconnect the

electricity leading to the refrigerator at the

main power supply. Shock and injury can

occur if electricity remains connected.

1. Disconnect refrigerator from power supply.

2. Reach behind the Control Console to find bulb.

3. Remove bulb.

4. Replace with a 40-watt appliance bulb.

5. Reconnect power supply.

Using Your Refrigerator

Continued

Liftthe back,

then slide out to the

rear and lifl out.

Pull straight wt.

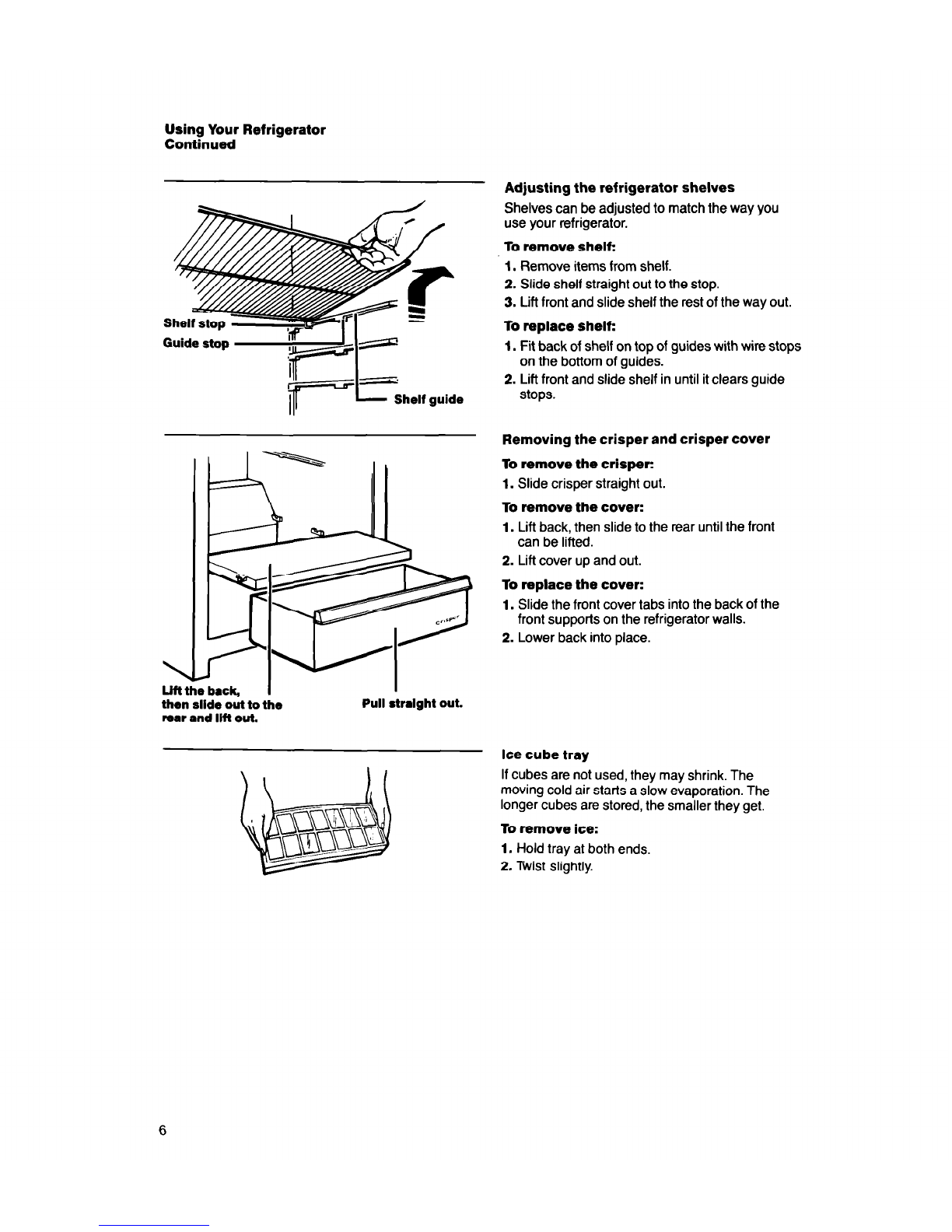

Adjusting the refrigerator shelves

Shelves can be adjusted to match the way you

use your refrigerator.

To remove shelf:

1. Remove items from shelf.

2. Slide shelf straight out to the stop.

3. Lift front and slide shelf the rest of the way out.

To replace shelf:

1. Fit back of shelf on top of guides with wire stops

on the bottom of guides.

2. Lift front and slide shelf in until it clears guide

stops.

Removing the crisper and crisper cover

To remove the crisper:

1. Slide crisper straight out.

To remove the cover:

1. Lift back, then slide to the rear until the front

can be lifted.

2. Lift cover up and out.

To replace the cover:

1. Slide the front cover tabs into the back of the

front supports on the refrigerator walls.

2. Lower back into place.

Ice cube tray

If cubes are not used, they may shrink. The

moving cold air starts a slow evaporation. The

longer cubes are stored, the smaller they get.

To remove ice:

I, Hold tray at both ends.

2. Twist slightly.

Soundsyoumayhear

Your new refrigerator may make sounds that your

old one didn’t. Because the sounds are new to

you, you might be concerned about them. Don’t

be. Most of the new sounds are normal. Hard sur-

faces like the floor, walls and cabinets can make

the sounds seem louder.

The following describes the kinds of sounds

that might be new to you, and what may be

making them.

Water sounds

When the refrigerator stops running, you may hear

gurgling in the tubing for a few minutes after it

stops. You may also hear defrost water running

into the defrost water pan.

Running sounds

Your refrigerator has a high-efficiency compressor

and motor. It will run longer than older designs. It

may even seem to run most of the time.

Energysavingtips

You can help your refrigerator use less electricity.

Check door gaskets for a tight seal. Level the

cabinet to be sure of a good seal.

Clean the condenser coils regularly.

Open the door as few times as possible. Think

about what you need before you open the door.

Get everything out at one time. Keep food orga-

nized so you won’t have to search for what you

want. Close door as soon as food is removed.

Go ahead and fill up the refrigerator, but don’t

overcrowd it so air movement is blocked.

It is a waste of electricity to set the refrigerator

and freezer to temperatures colder than they

need to be. If ice cream is firm in the freezer and

drinks are as cold as your family likes them,

that’s cold enough.

Keep the Power Saving Control on SAVES

POWER unless moisture forms on refrigerator

exterior.

Make sure your refrigerator is not next to a heat

source such as a range, water heater, furnace,

radiator or in direct sunlight.

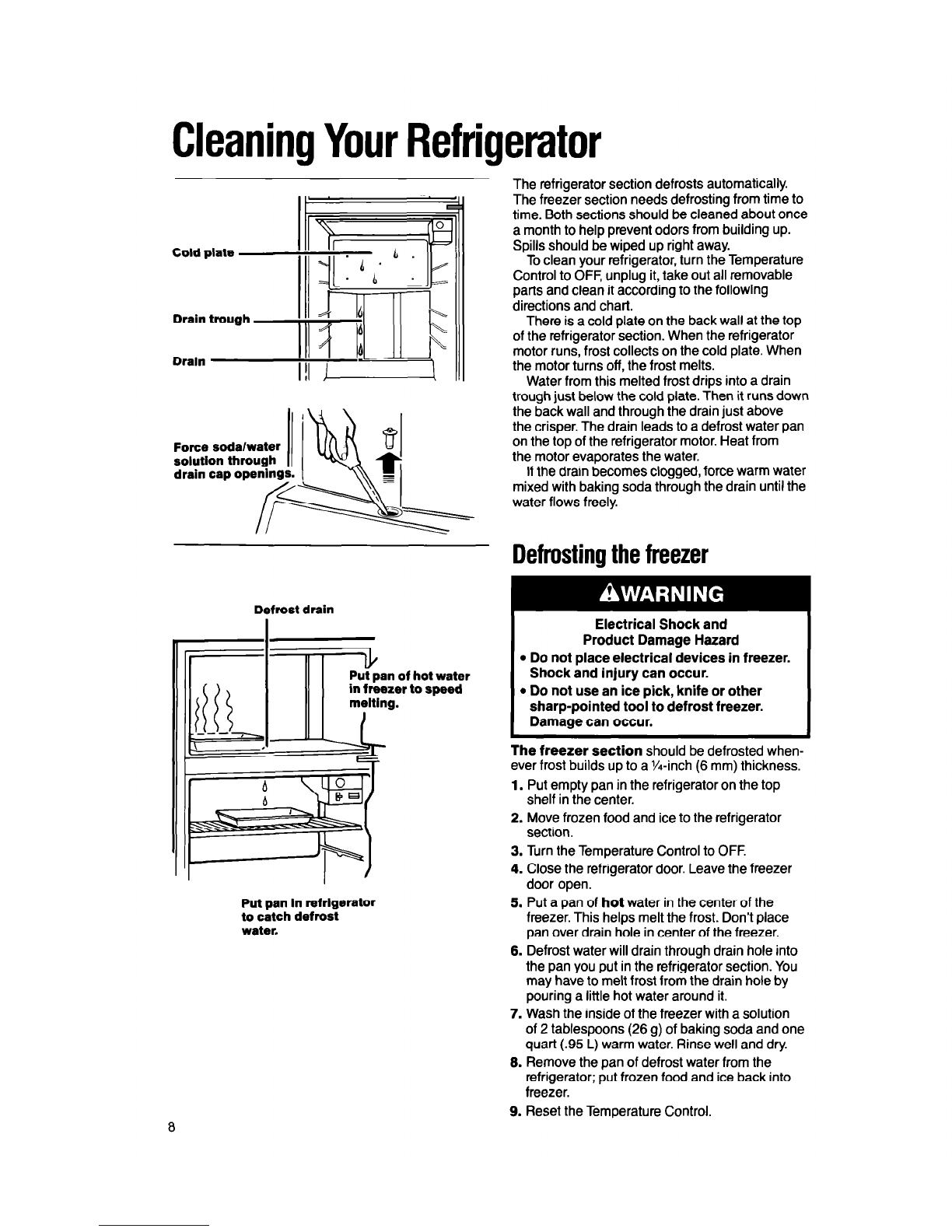

CleaningYourRefrigerator

Cold plate

Drain trough - I

Force soda/water

solution through

drain cap openings.

Defrost drain

in freezer to speed

Put pan in refrigerator

to catch defrost

water.

The refrigerator section defrosts automatically.

The freezer section needs defrosting from time to

time. Both sections should be cleaned about once

a month to help prevent odors from building up.

Spills should be wiped up right away.

To clean your refrigerator, turn the Temperature

Control to OFF, unplug it, take out all removable

parts and clean it according to the following

directions and chart.

There is a cold plate on the back wall at the top

of the refrigerator section. When the refrigerator

motor runs, frost collects on the cold plate. When

the motor turns off, the frost melts.

Water from this melted frost drips into a drain

trough just below the cold plate. Then it runs down

the back wall and through the drain just above

the crisper. The drain leads to a defrost water pan

on the top of the refrigerator motor. Heat from

the motor evaporates the water.

If the drain becomes clogged, force warm water

mixed with baking soda through the drain until the

water flows freely

Defrostingthefreezer

Electrical Shock and

Product Damage Hazard

Do not place electrical devices in freezer.

Shock and injury can occur.

Do not use an ice pick, knife or other

sharp-pointed tool to defrost freezer.

Damage can occur.

The freezer section should be defrosted when-

ever frost builds up to a %-inch (6 mm) thickness.

1. Put empty pan in the refrigerator on the top

shelf in the center.

2. Move frozen food and ice to the refrigerator

section.

3. Turn the Temperature Control to OFF.

4. Close the refrigerator door. Leave the freezer

door open.

5. Put a pan of hot water in the center of the

freezer. This helps melt the frost. Don’t place

pan over drain hole in center of the freezer.

6. Defrost water will drain through drain hole into

the pan you put in the refrigerator section. You

may have to melt frost from the drain hole by

pouring a little hot water around it.

7. Wash the inside of the freezer with a solution

of 2 tablespoons (26 g) of baking soda and one

quart (.95 L) warm water. Rinse well and dry

8. Remove the pan of defrost water from the

refrigerator; put frozen food and ice back into

freezer.

9. Reset the Temperature Control.

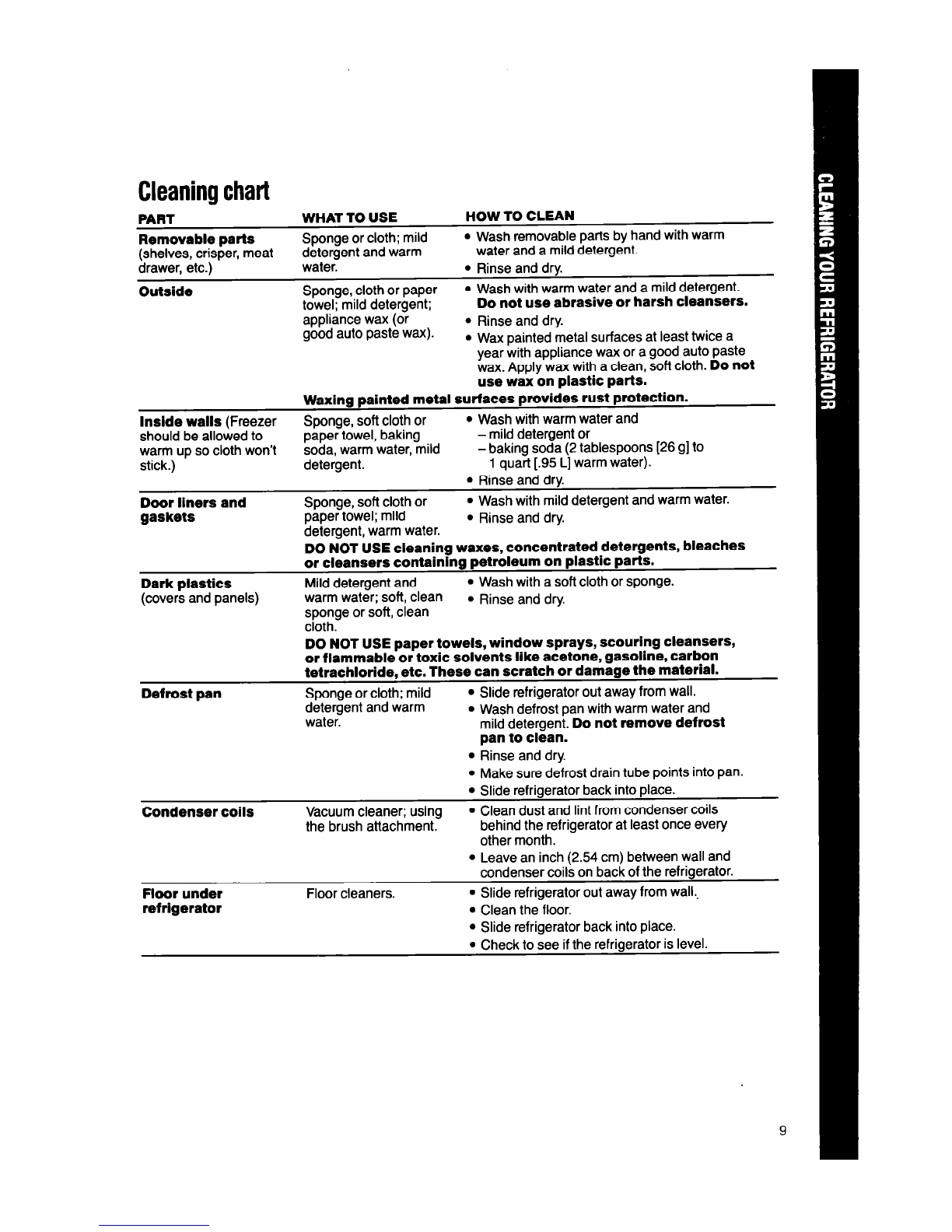

Cleaningchart

PART

Removable parts

(shelves, crisper, meat

drawer, etc.)

Outside

WHAT TO USE

Sponge or cloth; mild

detergent and warm

water.

Sponge, cloth or paper

towel; mild detergent;

appliance wax (or

good auto paste wax).

HOW TO CLEAN

Wash removable parts by hand with warm

water and a mild detergent.

Rinse and dry.

Wash with warm water and a mild detergent.

Do not use abrasive or harsh cleansers.

Rinse and dry.

Wax painted metal surfaces at least twice a

year with appliance wax or a good auto paste

wax. Apply wax with a clean, soft cloth. Do not

use wax on plastic parts.

lnslde walls (Freezer

should be allowed to

warm up so cloth won’t

stick.)

Waxing painted metal surfaces provides rust protection.

Sponge, soft cloth or

Wash with warm water and

paper towel, baking - mild detergent or

soda, warm water, mild - baking soda (2 tablespoons [26 g] to

detergent. 1 quart [.95 L] warm water).

Rinse and dry.

Door liners and

gaskets Sponge, soft cloth or

paper towel; mild

detergent, warm water.

Wash with mild detergent and warm water.

Rinse and dry.

Dark plastics

(covers and panels)

DO NOT USE cleaning waxes, concentrated detergents, bleaches

or cleansers containing petroleum on plastic parts.

Mild detergent and

Wash with a soft cloth or sponge.

warm water; soft, clean

sponge or soft, clean

Rinse and dry.

cloth.

Defrost pan

DO NOT USE paper towels, window sprays, scouring cleansers,

or flammable or toxic solvents like acetone, gasoline, carbon

tetrachloride, etc. These can scratch or damage the material.

Sponge or cloth; mild

Slide refrigerator out away from wall.

detergent and warm

Wash defrost pan with warm water and

water. mild detergent. Do not remove defrost

pan to clean.

Rinse and dry.

Condenser coils

Make sure defrost drain tube points into pan.

Slide refrigerator back into place.

Vacuum cleaner; using

Clean dust and lint from condenser coils

the brush attachment. behind the refrigerator at least once every

other month.

Floor under

refrigerator Floor cleaners.

Leave an inch (2.54 cm) between wall and

condenser coils on back of the refrigerator.

Slide refrigerator out away from wall..

Clean the floor.

Slide refrigerator back into place.

Check to see if the refrigerator is level.

CaringForYour

Refrigerator

Vacationandmovingcare Powerinterruptions

Short vacations If electricity goes off, call the power company. Ask

how long power will be off.

1. If service is to be interrupted 24 hours or less,

keep both doors closed. This will help

frozen food stay frozen.

2. If service is to be interrupted longer than

24 hours:

No need to shut off the refrigerator if you will be

away for less than four weeks. Use up perisha-

bles; freeze other items.

Long vacations

Remove all the food if you are going for a month

or more.

Unplug the refrigerator and clean it.. rinse well

and dry. Tape rubber or wood blocks to the top of

both doors.. .keeping them open far enough

for air to get in. This will keep odor and mold from

building up.

Personal Injury Hazard

Do not allow children near the refrigerator

when the doors are blocked open. They

may become injured or trapped.

To restart refrigerator, see “Using Your

Refrigerator” on page 5.

Moving

Remove all food. Pack frozen food in dry ice.

Unplug the refrigerator and clean it thoroughly,

Take out all removable parts. Wrap all parts well

and tape them together so they don’t shift and

rattle.

Screw in the leveling legs; tape the doors shut;

and tape the electric cord to the cabinet. When you

get to your new home, put everything back and

refer to page 4.

(a) Remove all frozen food and store in a frozen

food locker.

(b) Place 2 Ibs. (0.9 kg) of dry ice in freezer for

every cu. ft. of freezer space. This will keep

food frozen for 2 to 4 days. Wear gloves to

protect your hands from dry ice burns.

available, use or can perishable food

at once.

3. A full freezer will stay cold longer than a partly

filled one. A freezer full of meat will stay cold

longer than a freezer full of baked goods. If food

contains ice crystals, it may be safely refrozen,

although the quality and flavor may be affected.

If the condition of the food is poor or if you feel it

is unsafe, dispose of it.

Questions?

Call your COOL-LINE@ service assistance

telephone number. (See page 11.)

Andere Handbücher für ETl4CC

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Kühlschrank Handbücher

Whirlpool

Whirlpool GD5NHAXSB00 Bedienungsanleitung

Whirlpool

Whirlpool ART 6600 A+ Bedienungsanleitung

Whirlpool

Whirlpool W8RXNGMWB Montageanleitung

Whirlpool

Whirlpool ARC 4324 IX Bedienungsanleitung

Whirlpool

Whirlpool 22' TO 25' NO-FROST DESIGNERSTYLE TOP FREEZER REFRIGERATOR WITH THIRSTCRUSHERDISPENSING... Bedienungsanleitung

Whirlpool

Whirlpool ED22MK Bedienungsanleitung

Whirlpool

Whirlpool WUR35X24HZ Bedienungsanleitung

Whirlpool

Whirlpool WF1D061RXG Series Bedienungsanleitung

Whirlpool

Whirlpool WRF991BOOM Bedienungsanleitung

Whirlpool

Whirlpool ETl6AK Bedienungsanleitung

Whirlpool

Whirlpool GC3JHAXTL01 Bedienungsanleitung

Whirlpool

Whirlpool RT14VK Leitfaden

Whirlpool

Whirlpool WRT311FZDM Kurzanleitung

Whirlpool

Whirlpool GZ25FSRXYY Bedienungsanleitung

Whirlpool

Whirlpool ARC 4020 Bedienungsanleitung

Whirlpool

Whirlpool WRF57R18DM Bedienungsanleitung

Whirlpool

Whirlpool top freezer refrigerator Montageanleitung

Whirlpool

Whirlpool 2300257 Bedienungsanleitung

Whirlpool

Whirlpool GI7FVCXWA Bottom Bedienungsanleitung

Whirlpool

Whirlpool W55VM 1110 W Bedienungsanleitung

Whirlpool

Whirlpool 6ET18GK Bedienungsanleitung

Whirlpool

Whirlpool ED20DFXEB00 Bedienungsanleitung

Whirlpool

Whirlpool ED7FHGXKB00 Bedienungsanleitung

Whirlpool

Whirlpool ET16AKXR Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
