CABINET PARTS

For Models: GD5VVAXTY00

(Monochromatic Satina)

REFRIGERATOR

08−08 Printed In U.S.A. (mat) (psw) Part No. W10160529 Rev. B

CABINET PARTS

For Models: GD5VVAXTY00

(Monochromatic Satina)

W10160529

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

2318830 Energy Guide

2318505 Owner’s Manual

2304183 Service and Wiring

Sheet

2220407 Modular Icemaker

Service Sheet

2308394 Instruction Sheet,

Door Removal

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Rear Roller (2)

5 489427 Screw

6 2155013 Clip, Grille

7 488500 Screw

8 2156056 Shim

9 2203771 Hinge Top (RC)

11 8281227 Screw

12 Hinge Cover

2203407AP

Apollo Grey

13 2304322 Bottom Hinge (RC)

14 Filler, Wrapper

W10143043

Apollo Grey

15 Grille

2323580AP

Apollo Grey

16 489497 Screw

17 489464 Screw

18 2304888 Drain Fitting

19 2304937 Extension Tube

21 2188735 Cover, Unit

22 Cabinet (Not A

Serviceable Part)

23 Hinge Cover

2203408AP

Apollo Grey

24 549193 Clamp, Service

Cord

25 489084 Screw

26 2155311 Door Closer, RC

27 489483 Screw

28 2260507 Housing, Water

Filter

29 4396841 Water Filter

30 Cap, Water

Filter

2260502AP

Apollo Grey

31 489500 Screw

32 3400113 Screw

33 2303141 Bottom Hinge (FC)

34 2260519 Block, Housing

Support

35 2304708 Tube, Filter

Outlet

36 2203770 Hinge Top (FC)

37 2319867 Tube, Filter

Inlet

38 Button, Water

Filter

2260503AP

Apollo Grey

39 2223751 Door Closer, FC

40 2305373 Clamp, Cord

REFRIGERATOR LINER PARTS

For Models: GD5VVAXTY00

(Monochromatic Satina)

W10160529

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 2194744 Escutcheon, Meat

Pan Control

3 2182757 Slide Meat

Pan Control

4 2257741 Louver

W10004810

Screw

6 1118894 Switch,

Rocker Arm

7 2319866 Shelf Ladder

8 489478 Screw

9 2261601 Door Control Asm

10 2209753 Air Diffuser

Assembly

11 2162085 Socket

12 2305226 Reservoir

13 2255743 Light Bulb

14 2209769 Light Lens

15 488280 Screw

16 2256035 Bracket,

Dual Crisper

17 2311637 Wire Harness

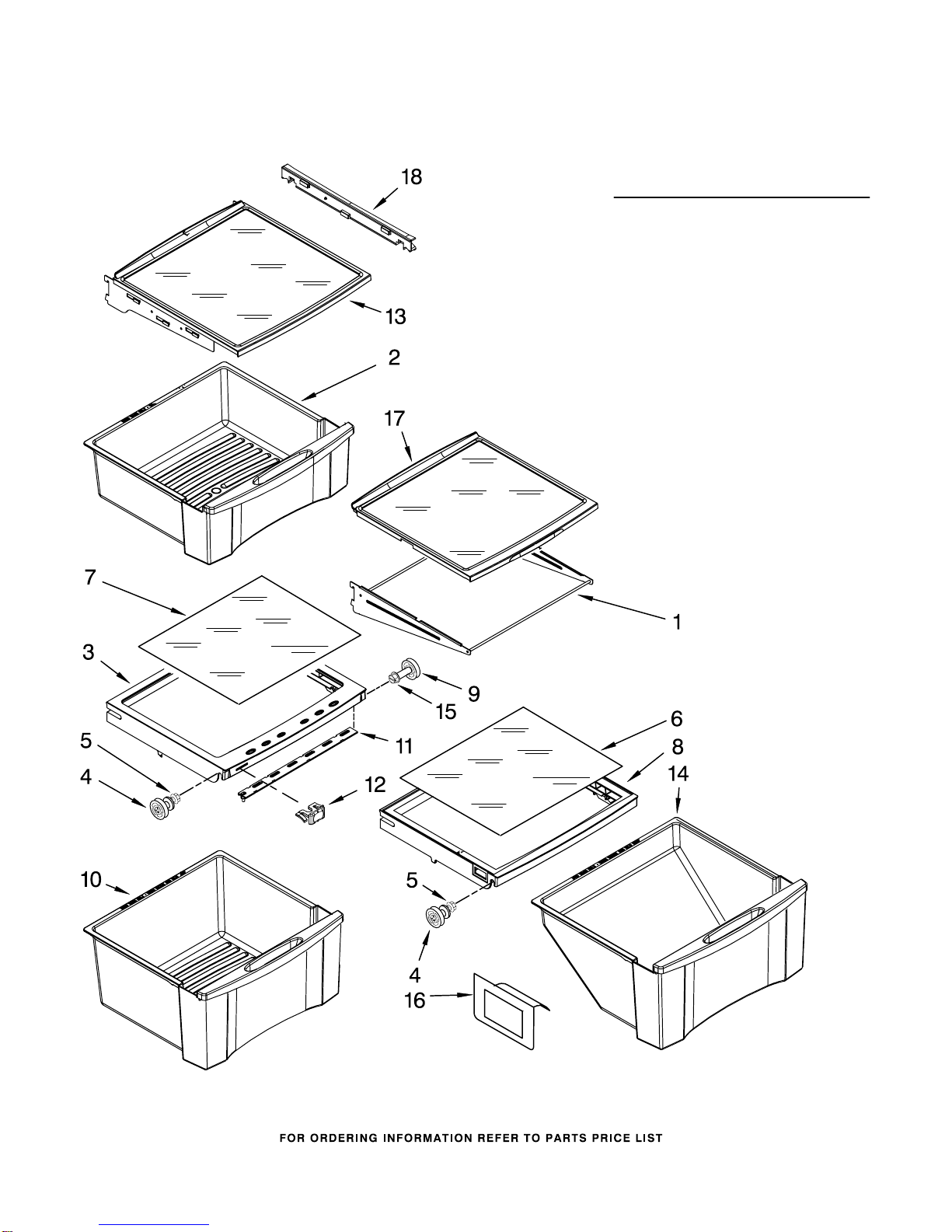

REFRIGERATOR SHELF PARTS

For Models: GD5VVAXTY00

(Monochromatic Satina)

W10160529

Illus. Part

No. No. DESCRIPTION

1 2223517 Frame Assembly (2)

2 2223261 Snack Bin Asm

3 2223592 Cover, Crisper

4 2196485 Stud Assembly

5 3400894 Screw

6 2223714 Glass, Meat Cover

7 2223591 Glass, Cover

8 2223242 Cover, Meat Pan

9 2196483 Stud Assembly

10 2223235 Crisper Pan Asm

11 2223308 Slide, Humidity

Control

12 2223309 Knob, Humidity

Control

13 2223288 Shelf Pan Assembly

(Includes #18)

14 2223243 Meat Pan Assembly

15 8281158 Screw

16 2179350 Deflector

17 2255160 Shelf,

Slide Out (2)

18 2223320 Slide, Pan (2)

FREEZER LINER PARTS

For Models: GD5VVAXTY00

(Monochromatic Satina)

W10160529

FREEZER LINER PARTS

For Models: GD5VVAXTY00

(Monochromatic Satina)

W10160529

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2211746K Shelf, Slide Out

(Lower)

3 2211742K Shelf, Slide−Out

(Upper)

4 3400893 Screw

5 2195905K Trim, Basket

6 Shelf Track

2301289 Right Side

2301290 Left Side

7 2205837K Shelf (2)

8 2301191 Basket, Sloped

W10004810

Screw (8)

10 842534 Clip, Air Duct (2)

11 Shelf Track, Dual

2301291 Right Side

2301292 Left Side

12 2198587 Cover, Emitter

13 941839 Hole Plug

14 2198635 Spring

15 2198634 Pin

16 1115373 Switch, Rocker Arm

17 2220398 P.C. Board

Emitter

18 2255588 Cover, Ice Maker

19 2212321 Slide, Ice Maker

Mounting

20 489478 Screw

21 489214 Screw

22 2162085 Light Socket

23 2255743 Light Bulb

24 8281185 Screw

25 2198633 Flipper

26 2255558 Cover, Receiver

27 2255562 Slide, Ice Maker

Shut Off

28 2255114 P.C. Board,

Receiver

29 2198643 Lens

30 2198589 Light Shield

31 2212340 Light Lens

32 2198641 Bracket,

Ice Maker Cover

33 2155597 Socket, Light

34 Ladder

2320024 Left Side

2320025 Right Side

35 2303234 Shield, Wiring

MOTOR AND ICE CONTAINER PARTS

For Models: GD5VVAXTY00

(Monochromatic Satina)

W10160529

MOTOR AND ICE CONTAINER PARTS

For Models: GD5VVAXTY00

(Monochromatic Satina)

W10160529

Illus. Part

No. No. DESCRIPTION

1 2305336 Ice Bin

2 2305206 Crusher Bin

3 2320327 Auger

4 2258220 Washer, Auger

5 1119007 Spacer, Flat (4)

6 2305244 Cover, Crusher

7 2257024 Blade, Rotary

8 1119005 Spacer, Step (2)

9 2257020 Blade, Fixed

10 2257023 Blade, Rotary

11 2198602 Block, Blade

12 489229 Roll Pin

13 2257022 Blade, Rotary

14 489235 Washer, Plain

15 2198661 Washer, Coupling

16 2220457 Coupling

17 8281164 Screw

18 3400065 Screw

19 2305382 Rubber Boot

20 2305443 Latch, Bin

21 2198608 Spring, Latch

22 2187813 Wire Assembly,

IDI Motor

23 2212369 Holder

24 2220458 Coupling, Bottom

25 2198628 Seal

26 2212370 Washer

27 2198607 Spring

28 2305243 Drive Shaft

29 2252130 Dispenser, Motor

30 2305208 Bracket, Motor

31 8281163 Screw

32 2212365 Sleeve, Coupling

100 2320329 Ice Container

(Complete)

REFRIGERATOR DOOR PARTS

For Models: GD5VVAXTY00

(Monochromatic Satina)

W10160529

REFRIGERATOR DOOR PARTS

For Models: GD5VVAXTY00

(Monochromatic Satina)

W10160529

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes Item #6)

W10135462

Mono Satina

2 2255421 Dairy Door

3 2223239K Door Bin (3)

4 3400012 Screw

5 2219698 Clip

6 Door Gasket,

Magnetic

2221302 Mist

7 2223727 Trivet

8 Handle

2254600S Stainless

9 488208 Screw

10 2182178 Door Closer,

Upper Cam

11 489420 Screw

12 Bracket, Door Stop

2206629 White

W10010140

Set Screw

14 2308050 Thimble, Top

15 2255420 Door Compartment

16 2255422 Frame, Can Rack

17 2255424 Air Diffuser Asm

18 2220214 Nameplate

19 2255423 Floor, Can Rack
