CONTENTS GB

BEFORE USING THE REFRIGERATOR PAGE 4

SAFEGUARDING THE ENVIRONMENT PAGE 4

PRECAUTIONS AND GENERAL

RECOMMENDATIONS PAGE 5

HOW TO OPERATE THE REFRIGERATOR

COMPARTMENT PAGE 6

HOW TO OPERATE THE FREEZER

COMPARTMENT PAGE 7

HOW TO DEFROST AND CLEAN THE FREEZER

COMPARTMENT PAGE 8

HOW TO CLEAN THE REFRIGERATOR

COMPARTMENT PAGE 8

CARE AND MAINTENANCE PAGE 9

TROUBLESHOOTING GUIDE PAGE 9

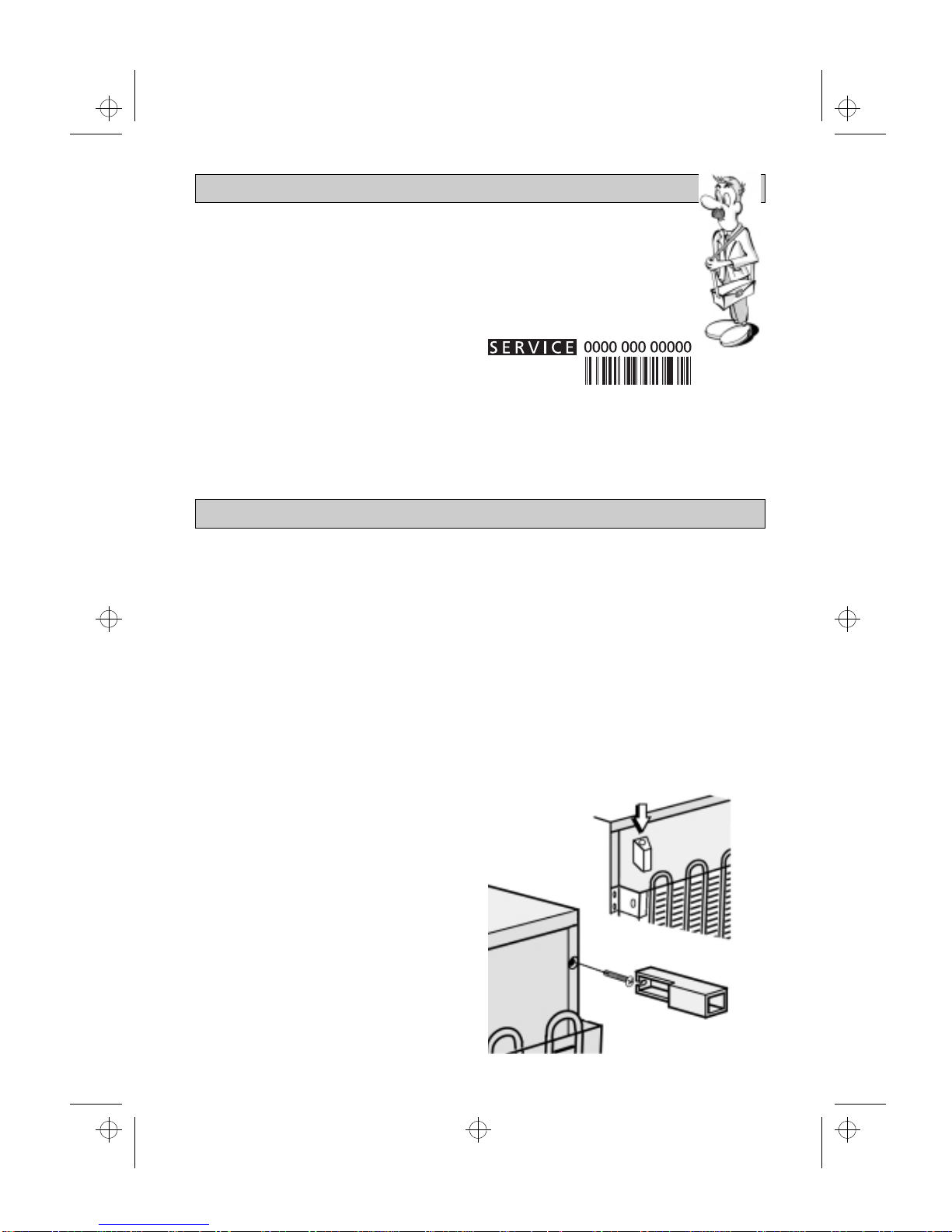

AFTER-SALES SERVICE PAGE 10

INSTALLATION PAGE 10

ELECTRICAL CONNECTION PAGE 11

1gb33020a.fm5 Page 3 Tuesday, February 20, 2001 4:37 PM

Your new appliance is exclusively for domestic use.

The freezer compartment can be

used for freezing fresh and cooked food, making

ice cubes, and storing frozen and deep-frozen

food; defrosting is a manual procedure.

The refrigerator compartment, which has an

automatic defrost feature, is used for the

storage of fresh food and beverages.

To get the most out of your new appliance,

read the user handbook thoroughly. The

handbook contains a description of the

appliance and useful tips for storing food.

Keep this handbook for future consultation.

1. Afterunpackingtheappliance,makesurethat

the door shuts properly.

Any damage must be reported to your dealer

within 24 hours after delivery of the appliance.

2. Wait at least two hours without moving

the appliance before switching on. This

will give the refrigerant circuit time to

settle and operate efficiently.

3. Installation of the appliance and electrical

connections must be carried out by a

qualified electrician, in accordance with the

manufacturer’s instructions and local

regulations.

1. Packing

The packaging material is entirely recyclable,

and marked with the recycling symbol.

Follow local regulations for scrapping.

Keep the packaging materials (plastic bags,

polystyrene parts, etc.) out of reach of children,

as they are potentially dangerous.

2. Appliance

The appliance is made using recyclable

materials.Disposeoftheapplianceinconformity

with local environmental regulations.

Make the appliance unusable by cutting off the

power cord. The appliance must be delivered to

an authorised collection centre for the recovery

of refrigerant gas.

Information:

This appliance does not contain CFCs (replaced

with R134a) or HFCs (replaced with R600a -

Isobutane). For more information, refer to the

identification data plate affixed to the appliance.

BEFORE USING THE REFRIGERATOR

SAFEGUARDING THE ENVIRONMENT

1gb33020a.fm5 Page 4 Tuesday, February 20, 2001 4:37 PM

•Use the refrigerator compartment only for

storing fresh food and beverages and use the

freezer compartment only for storing frozen

food, freezing fresh food and making ice cubes.

•Do not cover or obstruct the air vents of the

appliance.

•Do not store liquidsin glass containers in the

freezer compartment - danger of bursting.

•Donoteatice cubesoricelollies immediately

after taking them out of the freezer

compartment - risk of “cold”burns.

•Do not allow children to play or hide inside

the appliance - risk of becoming trapped and

suffocating.

• Before servicing or cleaning the

appliance, unplug it from the mains or

disconnect the electrical power supply.

•The power cable may only be replaced by an

authorised person.

Declaration of conformity

•This appliance is intended to come intocontact

with foodstuffs and conforms to D.L. 108 of

25.01.1992 (European Directive 89/109/EEC).

Appliances with Isobutane (R600a)

Isobutane is a natural gas having low

environmental impact. Caution is required,

however, since isobutane is flammable.

Therefore, it is essential to ensure that

refrigerant pipelines are not damaged.

PRECAUTIONS AND GENERAL RECOMMENDATIONS

1gb33020a.fm5 Page 5 Tuesday, February 20, 2001 4:37 PM

This appliance is a refrigerator with a star

freezer compartment.

Defrosting of the refrigerator compartment is

completely automatic.

The refrigerator can operate at ambient

temperaturebetween+10°Cand+38°C.Optimal

performance is obtained at temperatures

between +16°C and +32°C.

Switching on the refrigerator for the first time

Insert the plug into the mains socket.

The thermostat is used to adjust the temperature

of both compartments: refrigerator and freezer.

How to adjust the temperature of the

compartments:

1. Forcorrectoperationandoptimumstorageof

food, follow instructions given in the

enclosed product sheet for thermostat

adjustment.

2. To adjust the temperature in the refrigerator

compartment, turn the thermostat control knob:

•lowest numbers 1-2/MIN for the LEAST

COLD internal temperatures;

•highest numbers 5-7/MAX for the

COLDEST internal temperatures.

Thermostat set to z: no operation, no light.

Note:

The ambient air temperature, frequency of door

opening and the position of the appliance can

affect internal temperatures. These factors must

be taken into account when setting the thermostat.

How to use the refrigerator compartment

Position the food as illustrated in the figure.

A Cooked food

BFish,meat

C Fruit and vegetables

D Bottles

EEggs

F Butter, cheese and dairy products

Notes:

•The space between the shelves and the rear

wall of the refrigerator compartment must be

unobstructed to allow circulation of air.

•Do not place food in direct contact with the

rear wall of the refrigerator compartment.

•Do not place hot food in the refrigerator or

freezer.

•Store liquids in closed containers.

•Storing vegetables with a high water content

can result in condensation in the crisper

drawer: this will not affect the correct

operation of the appliance.

HOW TO OPERATE THE REFRIGERATOR

COMPARTMENT

1gb33020a.fm5 Page 6 Tuesday, February 20, 2001 4:37 PM

The freezer is a star compartment.

This compartment can be used to store frozen

foods for the period of time indicated on

packaging. The freezer can also be used to

freeze fresh food by positioning it on the rack;

place frozen food in the lower part of the

compartment so that there is no contact with

fresh food that has yet to be frozen.

The quantity of fresh food that can be frozen

in 24 hours is shown on the rating plate.

Important:

Before freezing, wrap and seal fresh food in:

•aluminium foil, cling film, air and water-tight

plasticbags,polythene containerswith lidsor

freezer containers suitable for freezing fresh

food.

•In the event of a power cut, the freezer

compartment will maintain a sufficiently low

temperature for food storage. However, it is

advisable to avoid opening the compartment

door during such periods.

Important:

The table alongside shows the recommended

maximum storage time for frozen fresh foods.

When purchasing frozen food products:

•Ensure that the packaging is not damaged

(frozen food in damaged packaging may

have deteriorated). If the package is swollen

or has damp patches, it may not have been

stored under optimal conditions and

defrosting may have already begun.

•When shopping, leave frozen food

purchases until last and transport the

products in a thermally insulated cool bag.

•Place the items in the freezer compartment

as soon as you get home.

•If food has defrosted even partially, do not re-

freeze it. Consume within 24 hours.

•Avoid, or reduce temperature variations to

the minimum. Respect the best-before date

on the package.

•Always observe the storage information on

the package.

Making ice cubes

•Fill the ice cube tray 3/4 with water and place

it at the bottom of the freezer compartment.

Do not use sharp or pointed instruments to

detach the tray if it is stuck to the

compartment bottom.

HOW TO OPERATE THE FREEZER COMPARTMENT

MONTHS FOOD

1gb33020a.fm5 Page 7 Tuesday, February 20, 2001 4:37 PM

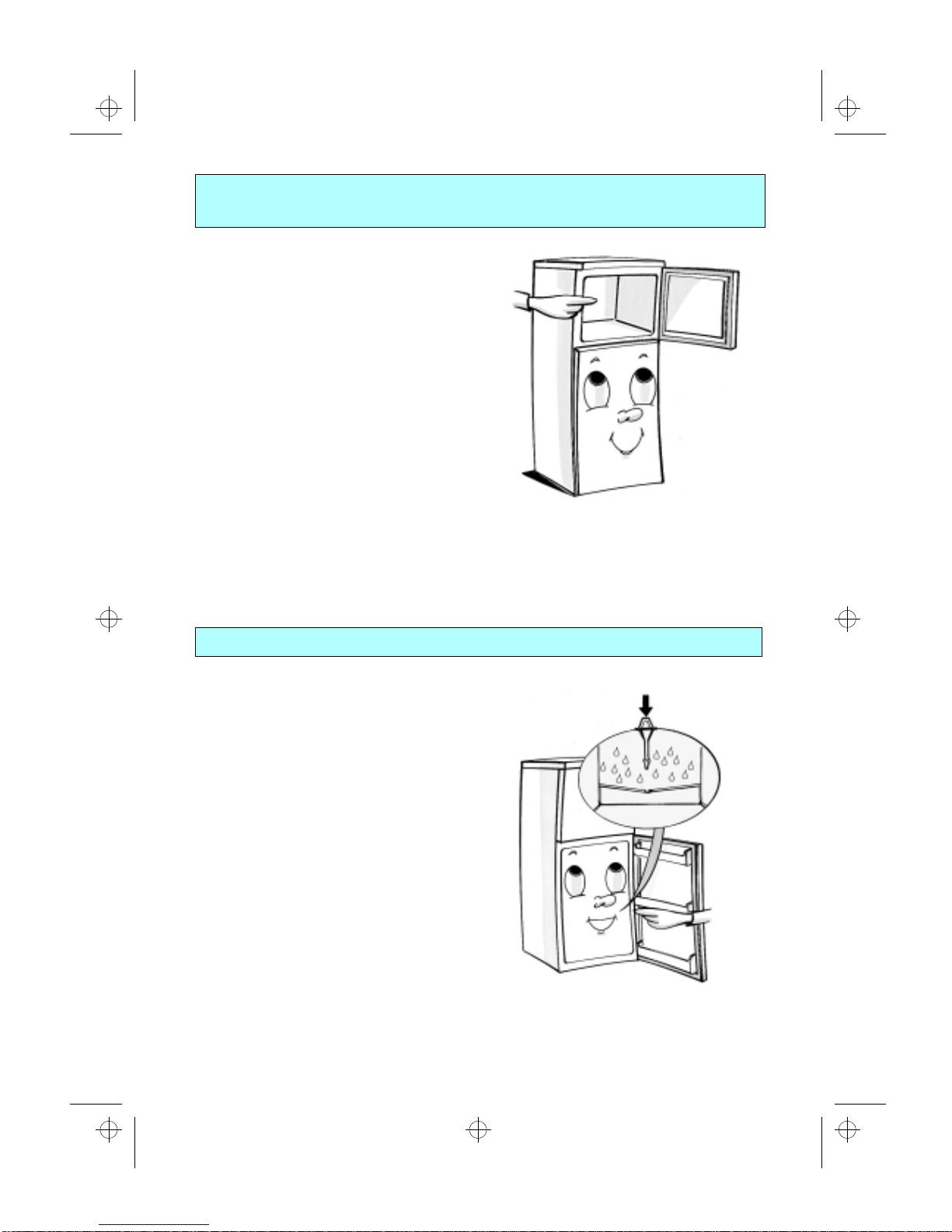

Defrost the freezer compartment once or

twice a year, or when the ice on the walls

reaches a thickness of about 3 mm. If

possible, carry out defrosting when the

compartment is nearly empty.

•Remove the food from the low temperature

compartment,wrapina newspaperandgroup

together in a cool place or in a portable cooler.

•Disconnect the appliance from the mains

power supply.

•Leave the dooropen to allow the frost to melt.

•Remove the defrost water from the

compartment bottom.

•Clean the interior with a sponge dampened in

lukewarm water and neutral detergent.

Do not use abrasive products.

•Rinse the interior and dry thoroughly.

Note: Do not use sharp or pointed metal

instruments to scrape off ice; do not heat the

freezer compartment artificially.

Periodically clean the inside of the

refrigerator compartment.

Defrosting of the refrigerator compartment is

completely automatic.

Droplets of water on the rear wall of the

refrigerator compartment indicate that the

periodic automatic defrost cycle is in progress.

The defrost water is automatically routed to a

drain outlet and into a container from which it

evaporates.

Clean the defrost water drain outlet regularly

using the tool supplied with the appliance in

order to ensure defrost water is removed

correctly.

Before carrying out any cleaning operations,

unplug the appliance.

•Use a sponge dampened in lukewarm water

and/or neutral detergent.

•Rinse the interior and dry with a soft cloth.

Do not use abrasive products.

HOW TO DEFROST AND CLEAN THE FREEZER

COMPARTMENT

HOW TO CLEAN THE REFRIGERATOR COMPARTMENT

1gb33020a.fm5 Page 8 Tuesday, February 20, 2001 4:37 PM

For built-in appliances

•Periodically clean air vents with a vacuum

cleaner or a brush (see figure A).

•Clean the outside using a soft cloth.

Freestanding appliances

•Periodically clean the condenser at the rear

of the appliance with a vacuum cleaner or a

brush (see figure B).

Prolonged disuse

1. Empty the refrigerator and freezer

compartments.

2. Disconnect the appliance from the mains

power supply.

3. Defrost the freezer compartment, and clean

and dry both compartments.

4. Leave the doors open to preventformation of

unpleasant odours.

1. The appliance is not working.

•Is there a power failure?

•Is the plug properly inserted in the mains

socket?

•Is the double-pole switch on?

•Has the fuse blown?

•Is the power cord in perfect condition?

•Is the thermostat set to z(Stop)?

2. Temperature inside the compartments is

not low enough.

•Is the door shut properly?

•Is the appliance installed near a heat

source?

•Is the thermostat setting correct?

•Are the air circulation grilles blocked?

3. Temperature inside the refrigerator

compartment is too low.

•Is the thermostat setting correct?

4. Water collects at the bottom of the

refrigerator compartment.

•Is the defrost water drain blocked?

5. The inside light is not working.

Perform the checks for problem 1, then:

•Disconnect the appliance from the mains

power supply. To inspect the bulb, refer to

the instructions and illustration on the

attached table.

•Check the bulb and, if necessary, replace it

with one of the same type.

Replace using maximum 15W bulb.

6. Excessive frost build-up in the freezer

compartment.

•Is the door shut properly?

•Is food obstructing proper door closure?

Notes:

•The front edge of the appliance may be

hot. This prevents the formation of

condensation and is not a defect.

•Gurgling and hissing noises due to

expansion in the refrigerant circuit are

normal.

CARE AND MAINTENANCE

TROUBLESHOOTING GUIDE

1gb33020a.fm5 Page 9 Tuesday, February 20, 2001 4:37 PM

Before contacting After-Sales Service:

1. See if you can solve the problem yourself

with the help of the ”Troubleshooting guide”.

2. Switch the appliance on again to see if the

problem has been solved.

If it has not, disconnect the appliance from

the power supply and wait for about an hour

before switching on again.

3. If the problem persists after this course of

action, contact After-sales Service.

Specify:

•the nature of the problem

•the model

•the Service number (the number after the

word SERVICE on the data plate on the

inside of the appliance)

•your full address

•your telephone number and area code

Note:

The direction of door opening can be

changed. If this operation is performed by

After-sales Service it is not covered by the

warranty.

•Install the appliance away from heat sources.

•Install the appliance in a dry, well-ventilated

place.

•Do not obstruct the top and bottom vent zones.

•Clean the inside (see “How to clean the

refrigerator compartment”).

•Fit the accessories supplied.

Electrical connection

•Electrical connections must be made in

accordance with local regulations.

•Voltage and power consumption are

indicatedontheratingplate(atthesideofthe

crispers).

Freestanding appliances

(not built-in)

•Fit the spacers (if supplied) on the rear of the

condenser positioned at the back of the

appliance (see figure).

•To optimize appliance efficiency, leave a 5

cm gap above the appliance and make sure

that adjacent kitchen units are sufficiently

distanced to allow air circulation.

•Ensure that the appliance is level, using the

front adjustment feet if necessary.

•Regulations require that the appliance is

earthed.

The manufacturer declines all liability for

injury to persons or animals and for

damage to property resulting from failure

to observe the above procedures and

reminders.

•If the plug and socket are not of the same

type, have the socket replaced by a qualified

electrician.

•Do not use extension leads or adaptors.

Disconnecting the appliance

It must be possible to disconnect the appliance

byunpluggingitorbymeansofa two-poleswitch

fitted upline of the socket.

AFTER-SALES SERVICE

INSTALLATION

1gb33020a.fm5 Page 10 Tuesday, February 20, 2001 4:37 PM

For Great Britain only

Warning - this appliance must be

earthed

Fuse replacement

If the mains lead of this appliance is fitted with a

BS1363A13ampfusedplug, to changeafusein

this type of plug use an A.S.T.A. approved fuse

to BS 1362 type and proceed as follows:

1. Remove the fuse cover (A) and fuse (B).

2. Fit replacement 13A fuse into fuse cover.

3. Refit both into plug.

Important:

Thefusecovermustberefittedwhen changinga

fuseandif the fusecoveris lost theplugmust not

be used until a correct replacement is fitted.

Correct replacement are identified by the colour

insert or the colour embossed in words on the

base of the plug.

Replacement fuse covers are available from

your local electrical store.

Connection to a rewirable plug

If the fitted plug is not suitable for your socket

outlet, then it should be cut off and disposed of in

order to avoid a possible shock hazard should it

be inserted into a 13A socket elsewhere.

A suitable alternative plug should then be fitted

to the cable.

The wires in the mains lead are coloured in

accordance with the following code:

BLUE - “NEUTRAL”(“N”)

BROWN - “LIVE”(“L”)

GREEN AND YELLOW - “EARTH”(“E”)

1. The GREEN AND YELLOW wire must be

connected to the terminal in the plug which is

marked with the letter “E”or by the Earth

symbol or coloured green or green and

yellow.

2. The BLUE wire must be connected to the

terminal which is marked with theletter “N”or

coloured black.

3. The BROWN wire must be connected to the

terminal which is marked with the letter “L”or

coloured red.

For the Republic of Ireland only

•The information given in respect of Great

Britainwill frequentlyapply, but athirdtype of

plug and socket is also used, the 2-pin, side

earth type. In this case, the wire which is

coloured GREEN AND YELLOW must be

connected to the EARTH contact, and the

two wires to the two pins, irrespective of

colour. The supply to the socket must be

fitted with a 16 amp fuse.

ELECTRICAL CONNECTION

1gb33020a.fm5 Page 11 Tuesday, February 20, 2001 4:37 PM

Andere Handbücher für Refrigerator-freezer

Inhaltsverzeichnis

Andere Whirlpool Kühlschrank Handbücher

Whirlpool

Whirlpool Refrigarator Bedienungsanleitung

Whirlpool

Whirlpool ED2KHAXVB - 22 Cubic Foot 2008 Si Montageanleitung

Whirlpool

Whirlpool 30414114 Bedienungsanleitung

Whirlpool

Whirlpool EL11PC Bedienungsanleitung

Whirlpool

Whirlpool G2IXEFMWB03 Bedienungsanleitung

Whirlpool

Whirlpool ARG 725/A Bedienungsanleitung

Whirlpool

Whirlpool WRF990SLAM Montageanleitung

Whirlpool

Whirlpool GS5VHAXWA - 25.6 cu. Ft. Refrigerator Bedienungsanleitung

Whirlpool

Whirlpool WRF736SDAF00 Bedienungsanleitung

Whirlpool

Whirlpool WF-NL300 Bedienungsanleitung

Whirlpool

Whirlpool WF1D061RXG Series Bedienungsanleitung

Whirlpool

Whirlpool WT70E 831 X Bedienungsanleitung

Whirlpool

Whirlpool ETl8JK Bedienungsanleitung

Whirlpool

Whirlpool GC3NHAXVA00 Bedienungsanleitung

Whirlpool

Whirlpool GC5THEXNB01 Bedienungsanleitung

Whirlpool

Whirlpool R-92 Bedienungsanleitung

Whirlpool

Whirlpool GI7FVCXW - DIMENSION GUIDE 8-12-09 Bedienungsanleitung

Whirlpool

Whirlpool W10245525A Bedienungsanleitung

Whirlpool

Whirlpool ET1FHTXMB04 Bedienungsanleitung

Whirlpool

Whirlpool ES5DVAXW Bedienungsanleitung

Whirlpool

Whirlpool WSR57R18DH Bedienungsanleitung

Whirlpool

Whirlpool 22' TO 25' NO-FROST DESIGNERSTYLE TOP FREEZER REFRIGERATOR WITH THIRSTCRUSHERDISPENSING... Bedienungsanleitung

Whirlpool

Whirlpool GI7FVCXXY Bedienungsanleitung

Whirlpool

Whirlpool ET22MT Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
