Whirlpool RT25BK Montageanleitung

UseAndCare

A Note To You

kiZiZiEd~

Parts And Features 4

Before Using Your

Refrigerator

Using Your

Refrigerator

Caaizour 14

Food Storage Guide 16

If You Need

EEz . 18

Warranty

1-800-44-ROPER

Call us with questions or comments.

NO-FROST REFRIGERATOR-FREEZER

MODEL RT25BK

A Note To You

Thank you for buying a Roper appliance.

You have purchased a quality, woM+z/ass home appliance. Years of engineering experience have gone

into its manufacturing. To ensure that you will enjoy many years of trouble-free operation, we have

developed this Use and Care Guide. lt is full of valuable information on how to operate and maintain

your appliance properly and safely. Please read it carefully. Also, please complete and mail the Owner-

ship Registration Card provided with your appliance. This will help us notify you about any new informa-

tion on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these symbols and

follow any instructions given. Here is a brief explanation of the use of each symbol.

This symbol will help alert you to such dangers as

personal injury, burns, fire and electrical shock. This symbol will help you avoid actions which

could cause product damage (scratches, dents,

etc.) and damage to your personal property.

Our toll-free number, l-80044-ROPER (l-800447-6737), is

available 24 hours a day.

If you ever have a question concerning your appliance’s operation, or ti you need service, first see “If

You Need Assistance Or Service” on page 18. If you need further help, feel free to call us. When calling,

you will need to know your appliance’s complete model number and serial number. You can find this

information on the model and serial number label (see diagrams on page 4). For your convenience, we

have included a handy place below for you to record these numbers, the purchase date from the sales

slip and your dealer’s name and telephone number. Keep this book and the sales slip together in a safe

place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

Important Safety Instructions

To reduce the risk of fire, electrical shock, or injury when using your

refrigerator, follow these basic precautions:

Read all instructions before using the

refrigerator.

Child entrapment and suffocation are not

problems of the past. Junked or abandoned

refrigerators are still dangerous ... even if

they will “just sit in the garage a few days.”

If you are getting rid of your old refrigerator,

do it safely. Please read the enclosed safety

booklet from the Association of Home

Appliance Manufacturers. Help prevent

accidents.

Never allow children to operate, play with, or

crawl inside the refrigerator.

Never clean refrigerator parts with flammable

fluids. The fumes can create a fire hazard or

explosion.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND LIQUIDS

IN THE VICINITY OF THIS OR ANY OTHER

APPLIANCE. THE FUMES CAN CREATE A

FIRE HAZARD OR EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

Install and level the refrigerator on a floor that

will hold the weight and in an area suitable for

its size and use.

Do not install the refrigerator near an oven,

radiator or other heat source.

Do not use the refrigerator in an area where the

room temperature will fall below 55°F (13°C).

Keep the refrigerator out of the weather.

Connect the refrigerator only to the proper kind

of outlet, with the correct electrical supply and

grounding. (Refer to the Electrical Require-

ments and Grounding Instructions Sheet.)

Do not load the refrigerator with food before it

has time to get properly cold.

Use the refrigerator only for the uses described

in this manual.

Properly maintain the refrigerator.

Be sure the refrigerator is not used by anyone

unable to operate it properly.

Also, remove tape and any inside labels (except

the model and serial number label) before using

the refrigerator.

To remove any remaining glue:

Rub briskly with thumb to make a ball, then

remove.

Soak area with liquid hand dishwashing

detergent before removing glue as described

above. Do not use sharp instruments, rubbing

alcohol, flammable fluids or abrasive cleaners.

These can damage the material. See “lmpor-

tant Safety Instructions” above.

NOTE: Do not remove any permanent instruction

labels inside your refrigerator. Do not remove the

Tech Sheet fastened under the refrigerator at the

front.

Parts And Features

This section contains captioned illustrations of your appliance. Use them to become familiar with where

all parts and features are located and what they look like.

Fraazu mhdf

Fmuor light

I I

ko cuk tray@

Utility

-comcompubnult

Control panel

&tub mdstun contrd Uaht mlkh Fmazet conlrd

Before Using Your

Refrigerator

In This Section Paw Page

Cleaning it ...........................................................5 Installing it properly ........................................5

Plugging It in .......................................................5 Leveling it .........................................................6 I

It is important to prepare your refrigerator for use. This section will tell you how to clean it, connect it to

a power source, install it and level it.

Cleaning it

Clean your refrigerator before using it, if neces-

sary. See cleaning instructions on page 14.

Plugging it in

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only 15 or 20 ampere

fused and properly grounded electrical supply is

required. It is recommended that a separate

circuit serving only this appliance be provided.

Use a receptacle which cannot be turned off with

a switch or pull chain. Do not use an extension

cord.

See Electrical Requirements and Grounding

Instructions Sheet in your Literature Package.

Installing it properly

1. Allow l/z inch (1.25 cm) space on each side

and at the top of the refrigerator for ease of

installation.

2. If the hinge side of the refrigerator is to be

against a wall, you might want to leave extra

space so the door can be opened wider.

3. The refrigerator can be flush against the wall.

Leveling it

Your refrigerator has 2 front leveling screws-one

on the right and one on the left. To adjust one or

both of these, follow the directions below.

Remove base grille. (See page 12.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclockwise.

Check with level.

5. Replace base grille. (See page 12.)

Front

roller

Right to raise;

left to lower

Use a screwdriver

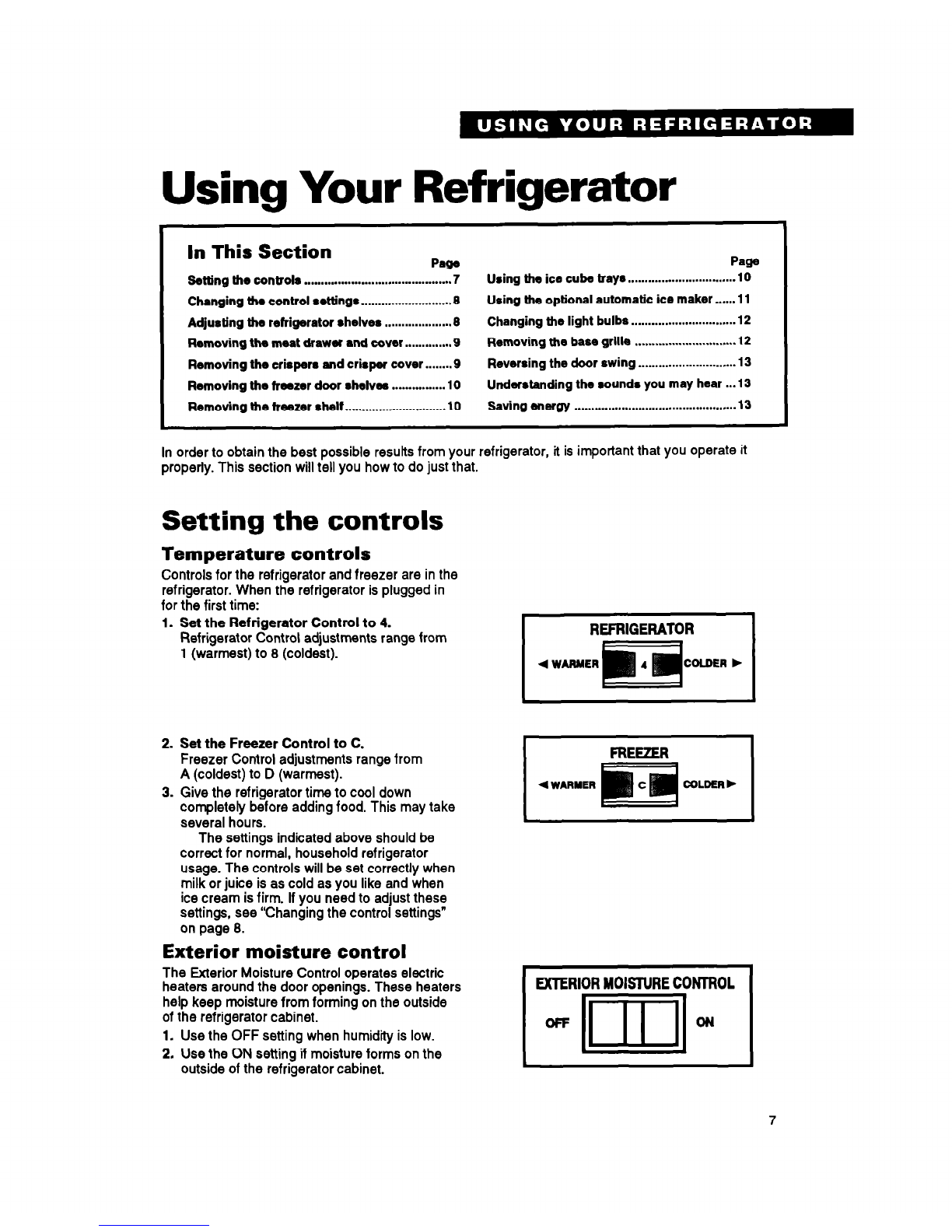

Using Your Refrigerator

In This Section

Paw

getting the controls ............................................ 7

Changing Wra control settings ........................... 6

Adjusting the rafrigarator shahrae ................... .6

Removing the meat drawer and cover.. ........... .9

Removing the crispers and crisp cover.. ......9

Removing the freezer door ahetves ................ 10

Removing the traezer shelf.. ............................ 10

Page

Using the ice cube trays ................................ 10

Using the optional automatic ice maker..

....

Changing the light bulbs .............................. .12

Removing the base grille .............................. 12

Reversing the door awing ............................. 13

Understanding the sounds you may hear ...13

Saving energy ................................................ 13

In order to obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section will tell you how to do just that.

Setting the controls

Temperature controls

Controls for the refrigerator and freezer are in the

refrigerator. When the refrigerator is plugged in

for the first time:

1. Set the Refrigerator Control to 4.

Refrigerator Control adjustments range from

1 (warmest) to 8 (coldest).

2. Set the Freezer Control to C.

Freezer Control adjustments range from

A (coldest) to D (warmest).

3. Give the refrigerator time to cool down

completely before adding food. This may take

several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls will be set correctly when

milk or juice is as cold as you like and when

ice cream is firm. If you need to adjust these

settings, see “Changing the control settings”

on page 8.

Exterior moisture control

The Exterior Moisture Control operates electric

heaters around the door openings. These heaters

help keep moisture from forming on the outside

of the refrigerator cabinet.

1. Use the OFF setting when humidity is low.

2. Use the ON setting if moisture forms on the

outside of the refrigerator cabinet.

REFRIGERATOR

Changing the control settings

If you need to adjust temperatures in refrigerator

or freezer, use the settings listed in the chart

below as a guide. If you have questions, call us.

(See page 19.)

Adjust the Refrigerator Control first.

Wait at least 24 hours between adjustments.

Then adjust the Freezer Control if needed.

RECOMMENDED

CONDITION: REASON: CONTROL SElTINGS:

If Refrigerator Door opened often

Section is Large amount of food added

TOO WARM Room temperature too warm

Refrigerator 6

Freezer D

If Freezer

Section is

TOO WARM

Door opened often

Large amount of food added

Very cold room temperature

(can’t cycle often enough)

Refrigerator

Freezer A

TOO COLD

Controls not set correctly

for your conditions Refrigerator

Freezer :

If ICE isn’t

MADE FAST

ENOUGH

Heavy ice usage

Very cold room temperature

(can’t cycle often enough)

Refrigerator 4

Freezer A

If BOTH

SECTIONS

are TOO WARM

Door opened often

Large amount of food added

Very warm or very cold room

temperatures

Refrigerator

Freezer :

Adjusting the refrigerator shelves

Shelves can be adjusted to match the way you

use your refrigerator.

To remove glass shelves:

1. Remove items from shelf.

2. Tilt shelf up at front.

3. Lii back of shelf.

4. Pull shelf straight out.

To replace glass shelves:

1. Guide the rear shelf hooks into the slots in the

shelf supports on cabinet wall.

2. Tilt shelf up at front until hooks drop into slots.

Lower front of shelf to level position.

Removing the meat drawer and cover

To remove the meat drawer:

1. Slide meat drawer out to the stop.

2. Lift front of meat drawer.

3. Slide meat drawer out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Tilt front of cover up.

2. Lift back of cover.

3. Pull cover straight out.

4. Replace cover in reverse order.

Pull out to the stop, lift

tfm front and pull again.

Removing the crispers and crisper cover

To remove the

crispers:

Slide the crisper straight out to the stop.

2. Lift the front.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Push up glass insert from the bottom, then

slide it out with both hands.

2. Lift front of cover frame.

3. Pull cover frame up and out.

4. Remove metal cover support.

To replace the cover:

1. Replace metal cover support on wall supports

in front section of cabinet.

2. Fit back corner of cover frame into notch

supports on walls of refrigerator, then lower

front onto metal cover support.

3. Slide back of glass insert into cover frame.

Then lower front to level position.

Pull out to the stop,

lift the front

and pull again.

Rsmovs the

glass inseA Lift

front of cover

frame, thsn the

back.

Removing the freezer door shelves

The freezer door sheives can be removed for

easier cleaning.

To remove a door shelf:

1. Remove all items from the shelf.

2. Grasp shelf at both ends.

3. Lift sheff up and pull it out.

To replace a door shelf:

1. Insert sheff hooks into guides on both sides of

the door liner.

2. Push shelf down to lock hooks into place.

3. Replace items on the shelf.

Removing the freezer shelf

To remove the shelf:

1. Lift front of shelf slightly.

2. Lift back of shelf off supports.

3. Replace in reverse order.

Using the ice cube trays

If cubes are not used, they may shrink. The

moving cold air starts a slow evaporation. The

longer cubes are stored, the smaller they get.

To remove ice:

1. Hold tray at both ends.

2. Twist slightly.

Inhaltsverzeichnis

Andere Whirlpool Kühlschrank Handbücher

Whirlpool

Whirlpool WRF560SMHV Bedienungsanleitung

Whirlpool

Whirlpool GC3NHAXVS - Side-By-Side Refrigerator Bedienungsanleitung

Whirlpool

Whirlpool ED5LVAXVB00 Bedienungsanleitung

Whirlpool

Whirlpool ED5FVGXSS02 Bedienungsanleitung

Whirlpool

Whirlpool ED5SHAXMB10 Bedienungsanleitung

Whirlpool

Whirlpool EL15SC Bedienungsanleitung

Whirlpool

Whirlpool GB9SHKXMQ00 Bedienungsanleitung

Whirlpool

Whirlpool REFRIGERATOR Bedienungsanleitung

Whirlpool

Whirlpool WRR56X18FW Bedienungsanleitung

Whirlpool

Whirlpool 6ED22DQXFW00 Bedienungsanleitung

Whirlpool

Whirlpool W8TXEGFYQ Montageanleitung

Whirlpool

Whirlpool GC5SHAXVS - 24.6 Cubic Foot Flat Texture... Montageanleitung

Whirlpool

Whirlpool 3ET18DK Bedienungsanleitung

Whirlpool

Whirlpool W8FLNGFV Bedienungsanleitung

Whirlpool

Whirlpool MULLION EVAPORATOR DESIGN Bedienungsanleitung

Whirlpool

Whirlpool NEO IC255 Stücklistenhandbuch

Whirlpool

Whirlpool ETl8YK Bedienungsanleitung

Whirlpool

Whirlpool Refrigarator Bedienungsanleitung

Whirlpool

Whirlpool G2IXEFMW - 2-20-09 Gebrauchsanweisung

Whirlpool

Whirlpool G32026PEKS4 Bedienungsanleitung

Whirlpool

Whirlpool ETl8DK Bedienungsanleitung

Whirlpool

Whirlpool ED2KHAXVB - 22 Cubic Foot 2008 Si Montageanleitung

Whirlpool

Whirlpool KRMF606ESS Bedienungsanleitung

Whirlpool

Whirlpool ED2LHEXTD00 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
