Use and Care Guide

To ensure proper use of this appliance and for your safety, please read

the following instructions completely before operating this appliance.

by nz-Zhongshan Galanz Consumer Electric Appliances Co., Ltd., Gala

Guangdong, China. Limited warranty provided by manufacturer.

W11662557A

Disposal of the refrigerator

Limited warranty

Replacement of interior light

Grounding instructions

Location requirements

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always

be followed to reduce the risk of explosion, fire, electrical shock, and/or

injury to persons, including the following:

Read all instructions before using the appliance.

1. This appliance must be grounded. Connect only to properly grounded outlet

See Important Grounding Instructions on page 2.

2. Install or locate this refrigerator only in accordance with the provided

Installation Instructions.

3. To protect against electric shock, do not place cord, plug, or refrigerator

in water or other liquid.

4. The refrigerant of this product is R600a, which is flammable. Make sure

not to damage the cooling system during the transportation and

5. Please note that servicing shall be done by factory authorized service

personnel, so as to minimize the risk of possible ignition due to incorrect

parts or improper service.

installation.

SAVE THESE INSTRUCTIONS

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual

appliance. Always read and obey all safety messages.and on your

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill

and others.or hurt you

All safety messages will follow the safety alert symbol

These words mean:

word DANGER” or “WARNING.”and either the “

You can be killed or seriously injured if you

immediately follow instructions.don’t

You can be killed or seriously injured if you

follow instructions.don’t

All safety messages will tell you what the potential hazard is, tell

you how to the chance of injury, and tell you what can reduce

are not followed.happen if the instructions

–

DANGER

WARNING

Power failure

All refrigeration products contain refrigerants, which under federal law must be

removed prior to product disposal. If you are getting rid of an old refrigeration

product, check with a qualified disposal company for instructions.

1. Take off the doors.

2. Leave the shelf racks in place so that children may not easily climb inside.

Before you throw away your old refrigerator:

DISPOSAL OF THE REFRIGERATOR

Failure to follow these instructions can result

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

in death, fire, or electrical shock.

Suffocation Hazard

Remove door from your old refrigerator.

Failure to do so can result in death or brain damage.

WARNING

1. It is recommended not to install the refrigerator near an oven,

or other heat source.radiator,

Do not install in a location where the temperature will fall below 55 °F (13 °C). 2.

For best performance, do not install the refrigerator behind a cabinet door.

6. Do not put the unit in a place where it is subjected to sunlight.

7. Do not put the unit in a place where the ambient temperature is more than

90 °F (32 °C).

4. Leave a minimum of 1/2" (1.27 cm) between each side of the appliance

and the wall. The top and back of the appliance should have a minimum

2" (5.08 cm) clearance. This allows for proper air circulation. This

appliance is intended to be free-standing and should not be built-in or

placed in a recessed area.

3. The refrigerator should be located on a firm, flat surface that is strong

enough to support the refrigerator when it is fully loaded.

5. The refrigerator legs must be adjusted during installation in order to

function properly. The leveling legs on the front c can be adjusted orners

by turning clockwise to raise the appliance, and counter-clockwise to

lower it. Be sure to have the appliance sloped slightly backward to ensure

that the door closes tightly.

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or fire.

WARNING

3 2

Consult a qualified electrician or service technician if the

doubt exists as to whether the appliance is properly

grounded.

grounding instructions are not completely understood or if

This appliance must be grounded due to the event of an electrical short circuit.

This appliance is equipped with a grounded wire and a grounded plug.

Refrigerator must be plugged into a properly installed grounded 3 prong outlet.

5 4

Freezer compartment

Temperature control dial

Removable glass shelf

Lamp switch

Can dispenser

Tall bottle storage

WHR43S1E/ WH43S1E

Before using the refrigerator for the first time, remove all of the packing

materials, including the foam base and adhesive tape holding

accessories in place.

Failure to follow these instructions can result

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

in death, fire, or electrical shock.

WARNING

Excessive Weight Hazard

Use two or more people to move and install refrigerator.

Failure to do so can result in back or other injury.

WARNING

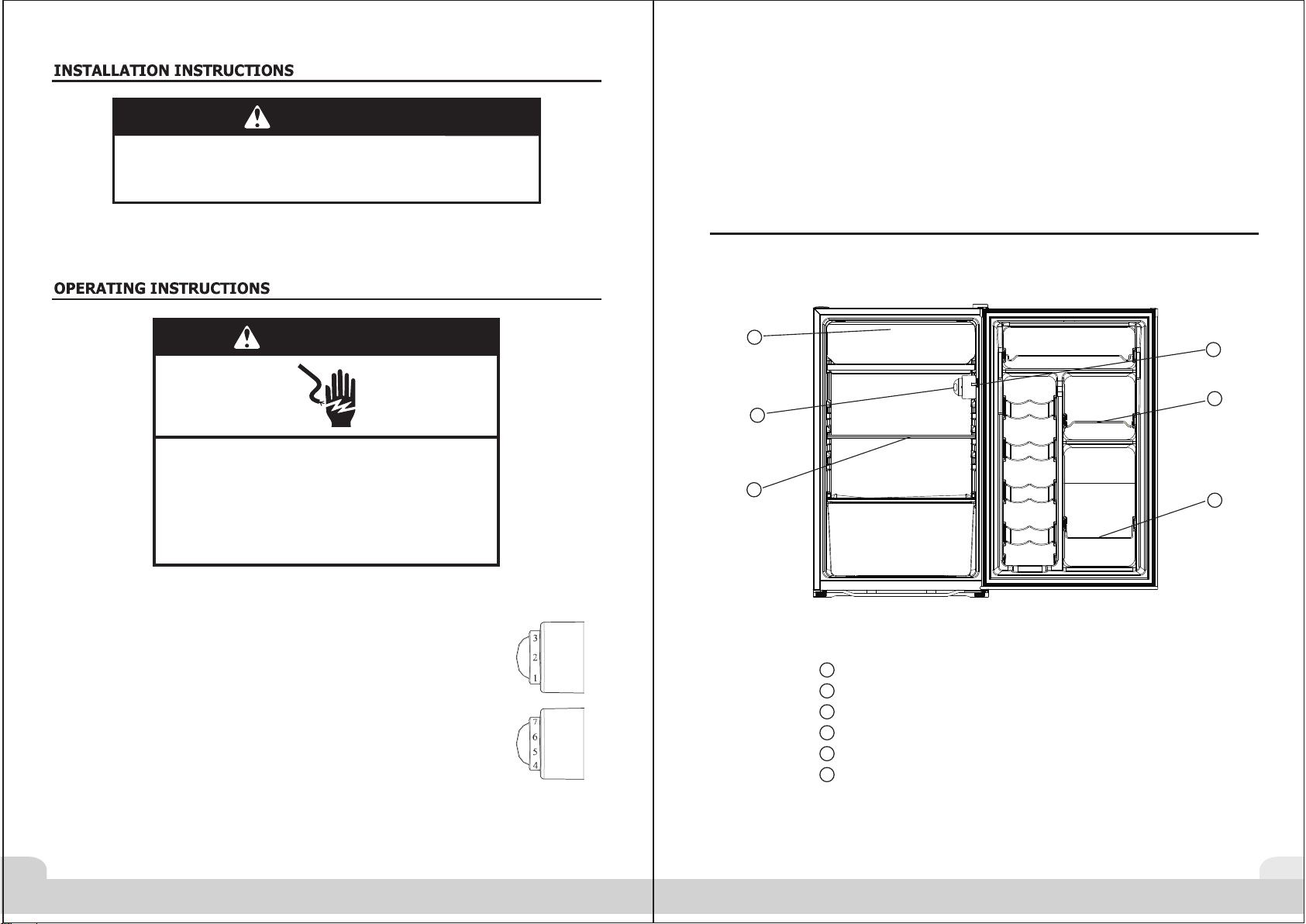

PARTS AND FEATURES

6. It is recommended not to open the door frequently to minimize the power

consumption.

5. Hot food should be cooled down before placing into the appliance to

prevent increase in interior temperature and power consumption.

Placing food inside too soon will impact the performance.

4. Food should be kept in sealed containers to prevent odors or drying.

2. Plug refrigerator into a grounded 3 prong outlet.

(See “Grounding instructions”).

1. Allow refrigerator to stand upright for 4 hours before using.

3. Use the control dial to control the temperature of the

refrigerator manually. As shown in Figure, The numbers

shown on the dial does not represent the temperature,

instead the larger number is, cooler the interior temperature.

To stop the cooling, turn the dial to "0". Do not switch off

the power.

Turn the knob to number "4" for normal use. •

Turn the knob to number "5-7", when cooler temperature needed. •

Turn the knob to number "1-3", when warmer temperature needed.•

SPECIFICATIONS

120

0.8

32~46.4

<42

Sound (dB)

Interior temperature (°F)

Capacity (cu.ft)

Voltage (V)

Frequency (Hz)

Current (A)

Electric shock protection type

Refrigerant

Net weight (lbs)

Energy consumption (kWh/24 h)

Model

Dimension (Inches)

Width

Depth

Height

WHR43S1E/ WH43S1E

4.3

R600a/0.96oz

51.8

19.92

22.00

32.91

0.62

6 7

• Clean the interior of the appliance with a mixture of warm water and baking

soda, use about 1-2 tablespoons per quart of water.

• Use a sponge or soft cloth and make sure to wipe excess moisture out before

cleaning around the controls.

• Rinse thoroughly with warm water and dry with a clean soft cloth.

the gasket frequently with the method as described above for exterior cleaning.

Clean the exterior surface with warm water and mild detergent. Rinse thoroughly

and dry with a clean, soft cloth.

1/4" (0.64 cm).

the

The door gasket must be kept clean to ensure a proper seal. Make sure to clean

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death, explosion,

or fire.

WARNING

8 9

it’s recommended

When a power failure occurs, the refrigerator can normally keep food cool for

several hours. Do not put additional food into the appliance during a power

failure, and avoid opening the door. Disconnect the plug from the outlet, and

reconnect when the power has been restored. Always inspect for, and discard

any spoiled or thawed food in the refrigerator or freezer before resuming use

of the appliance.

Electrical Shock Hazard

Disconnect power before cleaning.

Replace all parts and panels before operating.

Failure to do so can result in death or electrical shock.

WARNING

IMPORTANT: Do not use sharp or pointed objects to remove frost or ice from the

surfaces of the freezer compartment. This can cause damage to the compartment

walls and cooling coils, and will void the warranty.

Excessive Weight Hazard

Use two or more people to move and install

refrigerator.

Failure to do so can result in back or other

injury.

WARNING

Reset the refrigerator temperature, see "Operating instructions" on page 4.

Turn the refrigerator off and unplug it from the outlet.

45° as possible

10 11

Top hinge cover

Top hinge screw

Top hinge

Bottom hinge screws

Cabinet plugs

Leveling legs

1. Remove top hinge cover and 3 top hinge screws which are below it. Then

remove top hinge.

2. Remove 1 cabinet plug.

3. Remove the door.

4. Remove right and left leveling legs.

5. Remove the bottom hinge and 3 bottom hinge screws.

6. Install the bottom hinge on the other side of the leveling legs with

3 bottom hinge screws.

7. Install right and left leveling legs. There are two holes below the

refrigerator to fit the two leveling legs.

8. Install the door.

9. Install the top hinge on the other side with 3 top hinge screws.

10. Install top cover above the top hinge and install 1 cabinet plug

11.Adjust the leveling legs.

on the other side.

Bottom hinge

NOTE: Do not tilt the appliance over 45° when reversing the door

as possible damage to the sealed system may occur.

Uninstall the cover and replace the light with a screwing light (120 V / 10 W).

Refer to the illustrations and instructions below:

1. Move the lamp cover 1.2" - 2" (3.05 - 5.08 cm) according to arrow point direction.

2. Take out the lamp cover.

3. Rotate and take out the bulb in counterclockwise direction.

4. Replace bulb and reinstall lamp cover.

Consult with a qualified

electrician

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result

in death, fire, or electrical shock.

WARNING

12 13

the

Check to ensure that

nothing inside the

refrigerator is causing the

door to not close

Check to ensure that

nothing inside the

refrigerator is causing the

door to not close

14 15

For parts replacement

If you need to order replacement parts, we recommend that you only use factory

specified replacement parts. Factory specified replacement parts will fit and work

correctly because they are made with the same precision used to build every

new refrigerator.

Assistance

Before calling for assistance or service, please check “Troubleshooting”. It may save

you the cost of a service call. If you still need help, follow the instructions below.

When calling, please know the purchase date and the complete model and serial

number of your appliance. This information will help us to better respond to your

request.

To locate factory specified replacement parts in the area, call us or the nearest

designated service center.

In the U.S.A.

toll free: 1-855-666-4477.

Limited Warranty

This warranty applies to products purchased and used in the U.S. This is the

only express warranty for this product and is in lieu of any other warranty.

This product is warranted to be free from defects in material and workmanship

for a period of one (1) year from the date of original purchase, except as noted

below. During this period, we will repair or replace this product at our option.

This warranty extends only to the original consumer purchaser and does not

cover a defect resulting from abuse, misuse, neglect including failure to clean

product regularly in accordance with manufacturer's instructions, use for

commercial purposes, or any use not in conformity with the printed directions.

This warranty is provided by Galanz-Zhongshan Galanz Consumer Electric

Appliances Co.,Ltd.

If you have a claim under this warranty, please call our CUSTOMER SERVICE

NUMBER: For faster service please have model number and 1-855-666-4477.

serial number ready for operator to assist you.

We exclude all claims for special, incidental, and consequential damages caused

by breach of express or implied warranty. All liability is limited to the amount

of the purchase price. Every implied warranty, including any statutory

warranty of merchantability or fitness for a particular purpose, is

disclaimed except to the extent prohibited by law, in which case such

warranty is limited to the duration of this written warranty. This

warranty gives you specific legal rights. You may have other legal rights that

vary depending on where you live. Some states do not allow limitations on

implied warranties or special, incidental, or consequential damages, so the

foregoing limitations may not apply to you.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Kühlschrank Handbücher

Whirlpool

Whirlpool 2314474 Bedienungsanleitung

Whirlpool

Whirlpool W10297791 Bedienungsanleitung

Whirlpool

Whirlpool 7S21FNI SL Bedienungsanleitung

Whirlpool

Whirlpool 3VED23DQDW00 Bedienungsanleitung

Whirlpool

Whirlpool WBM35LW Bedienungsanleitung

Whirlpool

Whirlpool GSS26C4XXB Montageanleitung

Whirlpool

Whirlpool GI0FSAXVB - 19.8 cu. Ft. Refrigerator Montageanleitung

Whirlpool

Whirlpool Gold GR9FHTXVS Handbuch

Whirlpool

Whirlpool WRF989SDAE Bedienungsanleitung

Whirlpool

Whirlpool ET20NK Bedienungsanleitung

Whirlpool

Whirlpool WT70E 831 X Bedienungsanleitung

Whirlpool

Whirlpool W10312241A Bedienungsanleitung

Whirlpool

Whirlpool GSS30C6EYW Bedienungsanleitung

Whirlpool

Whirlpool E2BGH 19 F Series Bedienungsanleitung

Whirlpool

Whirlpool ET8MHKXMB01 Bedienungsanleitung

Whirlpool

Whirlpool EB21DK Bedienungsanleitung

Whirlpool

Whirlpool ADN350S Handbuch

Whirlpool

Whirlpool W8FRNGFVD00 Bedienungsanleitung

Whirlpool

Whirlpool ET22DKXAB04 Bedienungsanleitung

Whirlpool

Whirlpool WRF995FIFZ Bedienungsanleitung

Whirlpool

Whirlpool GB2SHDXTB00 Bedienungsanleitung

Whirlpool

Whirlpool EL87TRRRQ - on 35.3 Cu. Ft. SideKicks Bedienungsanleitung

Whirlpool

Whirlpool 7S21FNI SL Merkblatt

Whirlpool

Whirlpool GI6FARXXB Montageanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
