SERVICE AND

PARTS MANUAL

GLOBAL NO FROST DOUBLE DOOR

REFRIGERATOR

COUNTRY-VENEZUELA

1.0 Safety precautions & warnings 2-3

2.0 Product specifications 4

3.0 Circuit diagram 5

4.0 Product dimensions 6

5.0 Packaging dimensions 7

6.0 Sealed system schematic layout 8

7.0 Trouble shooting -cooling system 9

7.1 Trouble shooting defrosting 10

8.10 Cabinet assembly parts diagram 11

8.20 Shelves part diagram 12

8.30 Freezer compartment parts diagram 13

8.40 Control box parts diagram 14

8.50 Compressor assembly parts diagram 15

8.51 Parts list 16-19

MODEL SAP CODE DESCRIPTION

WRNE322 3730 285L EXPORT, ALMOND, VCM - VENEZUELA

WRNE322 2302 285L EXPORT GREY VCM -COLOMBIA

WRNE282 3700 250L EXPORT, ALMOND, VCM - VENEZUELA

WRNE282 5010 285L Q.Chill Dlx 110V N Grey Venezuela

This document is only intended for qualified technicians who are aware of the respective safety regulations.

Modified Date Subject to modification Revision 0

Document No. WOI/NF/2003/001 Date 04/01/2003

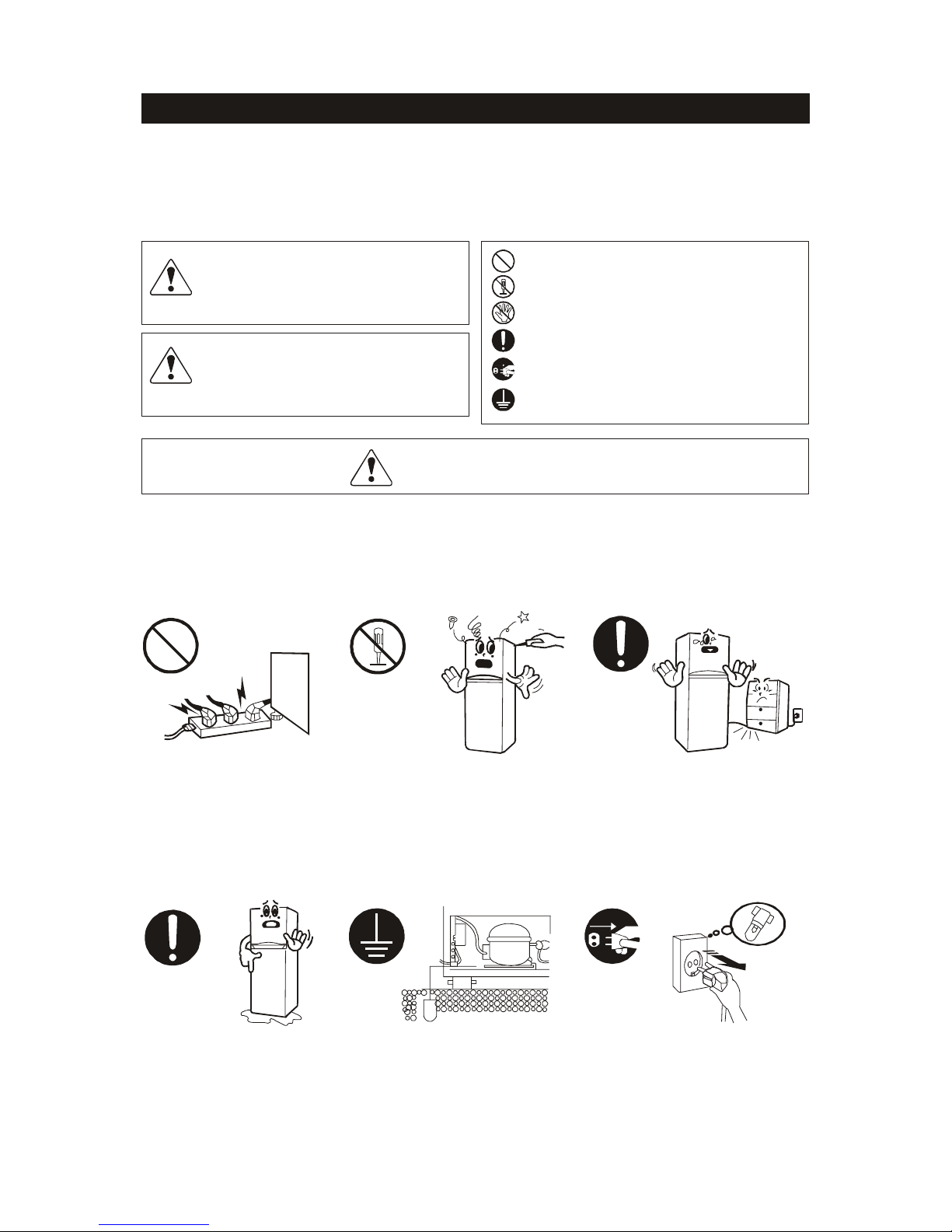

Safety precautions and warnings:

Read all instructions before using this appliance in order to

avoid risk of accident or possible damage.

Indicates prohibition

This symbol is intended

to alert the user to the

possible death or injury.

This symbol is intended

to alert the user to the

possible injury or damage.

Warning / Caution Description of symbols

Warning

Caution

Do not disassemble

Adhere the instruction strictly

Unplug from the electrical outlet

Earth the appliance to avoid the risk

of an electric shock.

This may cause abnormal

heating or fire hazard.

Do not install the

refrigerator in a humid

(with condensation)

location or an

unstable surface.

If earthling is not done, it will

cause break down and electric

shock. It may cause electric shock

It may cause fire or abnormal

operation which leads to injury. This may cause fire.

Do not plug multiple

electric appliances

into the same outlet.

Check the operating

environment Be sure to earth. Pull the power plug out for

exchanging the interior

lam of the refrigerator.

Prohibition

Do not disassemble

repair or alter. Do not bend the power cord

with excessive force or do

not have the power cord

pressure by heavy article.

Do not

disassemble

Do not contact

Earth Unplug

Page 2

This document is only intended for qualified technicians who are aware of the respective safety regulations.

Modified Date Subject to modification Revision 0

Document No. WOI/NF/2003/001 Date 04/01/2003

Caution

Bottles may explode

causing personal injury.

Opening or closing the

door may trigger the loose

itemsto slip & cause injury.

Use of it as it is may cause

fire.

Opening the door may

trigger loose items to slip

&cause injury.

Check the model, rated

voltage, rated current,

operating temperature etc.

of the component.

The service unit should be

resembled & returnto its

original assembly state.

Medical supplies, which

need to be under strict

temperature control, should

not be stored in the

refrigerator.

This can protect against the

risk of fire hazard caused by

tracking and short circuit.

When the trace of moisture

penetration is detected,

insulation tapping.

Do not store bottled food

or drinks in the freezing

compartment.

Do not put on top of the

refrigerator.

Please wipe out foreign

materials of the metal

option of power plug

cleanly.

Do not store food in

unstable manner.

When replacing electric

components, be sure to

use rated components.

After servicing the refrigerator

be sure to check the

components are reassembled

in a correct manner.

Do not store anything

other than food in the

refrigerator.

When servicing the

refrigerator completely

remove dust or foreign

substances from the housing,

electric connections etc.

Check electrical ports for

the trace of moisture

penetration.

Prohibition

Prohibition Prohibition

Unplug

Rated

Components

Page 3

This document is only intended for qualified technicians who are aware of the respective safety regulations.

Modified Date Subject to modification Revision 0

Document No. WOI/NF/2003/001 Date 04/01/2003

2.0 Technical SpecificationsData

Dimensions Cooling agent

Type R134a

As mentioned in table

Quantity 98 g

Capacity Thermostat Cooling

Total

Switchingvalues

250/285L Switch on temperature

Min. 0.0 deg. C

Switchontemperature

Max. 3.1 deg. C

Electrical Connection Switch off temperature

Min. -11.1 deg C

Voltage 1150Volts Switch off Temperature

Frequency 60 Hz. Max. -6.3 deg. C

Power consumption

In 24 hours 1.4 kWh

This document is only intended for qualified technicians who are aware of the respective safety regulations.

Modified Date Subject to modification Revision 0

Document No. WOI/NF/2003/001 Date 04/01/2003

SYMBOL CODE

= CONNECTOR - SCREW ON

= CONNECTOR - CLOSED END

= DISCONNECT TERMINAL

= PERMANENT CONNECTION

= PLUG CONNECTOR

= GROUND (CHASSIS)

WIRE COLOR CODE

GN = GREEN

BU = BLUE

BK = BLACK

RD = RED

WH = WHITE

YL = YELLOW

BR = BROWN

PK = PINK

RD /BR = RED BROWN TRACER

BR /BK = BROWN BLACK TRACER

3. Circuit Diagram :

Model : ET09PCXHWO

115 VOLTS

60 HERTZ

REFR

LIGHT

BR/BK

FAN

SWITCH

TEST

TERM

BI - METAL

RD/ BR

PKOR

RD BR

RUN

START

LIGHT/ FAN

SWITCH

COMPRESSOR

THERMOSTAT

TIMER

OVERLOAD RUN CAP

OPTIONAL

BR / BK

PTC RELAY

MODULE

DEFROST HEATER

EVAP FAN MOTOR

Page 5

This document is only intended for qualified technicians who are aware of the respective safety regulations.

Modified Date Subject to modification Revision 0

Document No. WOI/NF/2003/001 Date 04/01/2003

This document is only intended for qualified technicians who are aware of the respective safety regulations.

Modified Date Subject to modification Revision 0

Document No. WOI/NF/2003/001 Date 04/01/2003

This document is only intended for qualified technicians who are aware of the respective safety regulations.

Modified Date Subject to modification Revision 0

Document No. WOI/NF/2003/001 Date 04/01/2003

Page 8

6.0 Sealed System Schematic Layout :

Evaporator

Condenser

(Foamed in three sides.)

Heat Loop

(Foamed)

Drier Compressor

Precooler

This document is only intended for qualified technicians who are aware of the respective safety regulations.

Modified Date Subject to modification Revision 0

Document No. WOI/NF/2003/001 Date 04/01/2003

7. Trouble shooting method

7.0 The refrigerator does not operate

Is the interior

light on when the door switch

is pushed?

Make sure that the

refrigerator is plugged

in at the wall outlet.

Does the

compressor operate?

Make sure that the

thermostat is

electrically connected

Replace the defective

part

Check the

defrost timer

Check the

PTC relay

Check the

over load

protector

Check the

Condensor

The compressor

is defective

Check for

abnormalities

Check the

electrical connection

The compressor is

defective. The freezing

cycle has a problem.

The compressor

is operated for more

than

30 Min. andthere is no

cooling

If the fan operates

when you push the

door switch,it is

normal(Replace if it is

defective)

Replace the defective

part

This document is only intended for qualified technicians who are aware of the respective safety regulations.

Modified Date Subject to modification Revision 0

Document No. WOI/NF/2003/001 Date 04/01/2003

Yes

7.1 Defrosting mechanism does not work :

7.2 Defrosting mechanism does not work :

Check that the defrost timer

operates properly

Check the temperature fuse

Check the bimetal thermometer

Check the defrost heater

Replace the defrost timer

Replace the temperature fuse

Replace the bimetal thermometer

Replace the defrost heater

Yes

Does not cooling fan operate?

Is the freezer defrosted normally?

Is the door close properly?

Is the door stopper hinge normal?

Is too much food stored in

the freezer compartment?

cooling fan motor

Check the door switch

Check the

Temperature fuse / Bimetal

thermometer

Defrost heater

Defrost timer

Check the door gasket is

properly sealed, check for

the damage gasket.

Correct or readjust the door

stopper hinge.

Tightly cover stored frozen food.

Distribute food evenly in

thecompartment.

Tightly cover stored ice cubes.

Yes

Page 10
