ONE SPEED AUTOMATIC WASHERS

UseAndCare

GUIDE

A Note to You ......................... 2

Washer Safety ........................ 3

Parts and Features ................ 4

Operating Your Washer......... 5

Starting your washer .......... 5

Stopping/restarting

your washer........................ 7

Selecting a cycle

and time.............................. 8

Using rinse and spin........... 9

Using drain and spin........... 9

Understanding normal

washer sounds ................... 9

Understanding what

happens in each cycle...... 10

MAGIC CLEAN®lint filter ... 11

Adding liquid

chlorine bleach ................. 11

Adding liquid

fabric softener................... 11

Caring for Your Washer ...... 12

Laundry Tips ........................ 13

Removing Stains.................. 17

Troubleshooting................... 20

Requesting Assistance

or Service ............................. 22

Warranty ............................... 24

1-800-253-1301

Call us with questions or comments.

A Note to You

Thank you for buying a WHIRLPOOL®appliance.

Because your life is getting busier and more complicated, WHIRLPOOL washers are easy

to use, save time, and help you manage your home better. To ensure that you enjoy years

of trouble-free operation, we developed this Use and Care Guide. It contains valuable infor-

mation about how to operate and maintain your washer properly and safely. Please read it

carefully.

Also, please complete and mail in the Ownership Registration Card provided with your

appliance. The card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service on

your appliance, you need to know your

complete model number and serial number.

You can find this information on the model

and serial number plate (see diagram on

page 4 for location of plate).

Please also record the purchase date of

your appliance and your dealer’s name,

address, and telephone number.

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center

number is toll-free.

Model Number _________________________

Serial Number _________________________

Purchase Date _________________________

Dealer Name __________________________

Dealer Address ________________________

Dealer Phone __________________________

1-800-253-1301

– SAVE THESE INSTRUCTIONS –

•Read all instructions before using

the washer.

•Do not wash articles that have

been previously cleaned in,

washed in, soaked in, or spotted

with gasoline, dry-cleaning

solvents, other flammable, or

explosive substances as they

give off vapors that could ignite

or explode.

•Do not add gasoline, dry-cleaning

solvents, or other flammable, or

explosive substances to the wash

water. These substances give

off vapors that could ignite or

explode.

•Under certain conditions, hydro-

gen gas may be produced in a

hot water system that has not

been used for 2 weeks or more.

HYDROGEN GAS IS EXPLO-

SIVE. If the hot water system has

not been used for such a period,

before using a washing machine,

turn on all hot water faucets and

let the water flow from each for

several minutes. This will release

any accumulated hydrogen gas.

As the gas is flammable, do not

smoke or use an open flame

during this time.

•Do not allow children to play on

or in the washer. Close supervi-

sion of children is necessary

when the washer is used near

children.

•Before the washer is removed

from service or discarded, re-

move the door.

•Do not reach into the washer if

the tub or agitator is moving.

•Do not install or store the washer

where it will be exposed to the

weather.

•Do not tamper with controls.

•Do not repair or replace any part

of the washer or attempt any

servicing unless specifically

recommended in this Use and

Care Guide or in published

user-repair instructions that you

understand and have the skills to

carry out.

•See Installation Instructions for

grounding requirements.

Washer Safety

Your safety is important to us.

This guide contains safety statements

under warning symbols. Please pay special

attention to these symbols and follow any

instructions given. Here is a brief explana-

tion of the symbol.

IMPORTANT SAFETY INSTRUCTIONS

WARNING – To reduce the risk of fire, electric shock, or injury to

persons when using the washer, follow basic precautions, including

the following:

This symbol alerts you to

hazards such as fire,

electrical shock, or

other injuries.

Extra Rinse

ExceptHand WashablesExceptHand Washables

Off

Temperature

Load Size

7 Cycle - 1 Speed7 Cycle - 1 Speed

Heavy Duty • Large CapacityHeavy Duty • Large Capacity

WashWash

RinseRinse

Warm

Warm Warm

Cold

Hot

Cold

Extra

Large

Small

Medium

Cold

Pull StartPull Start

Push StopPush Stop

Permanent

Press

Normal

Pre - Wash

Soak

Regular

Light

Normal

Heavy

Short

Spin

Off

Rinse

Cool

Down

Rinse

Soak

PausePause

20 8

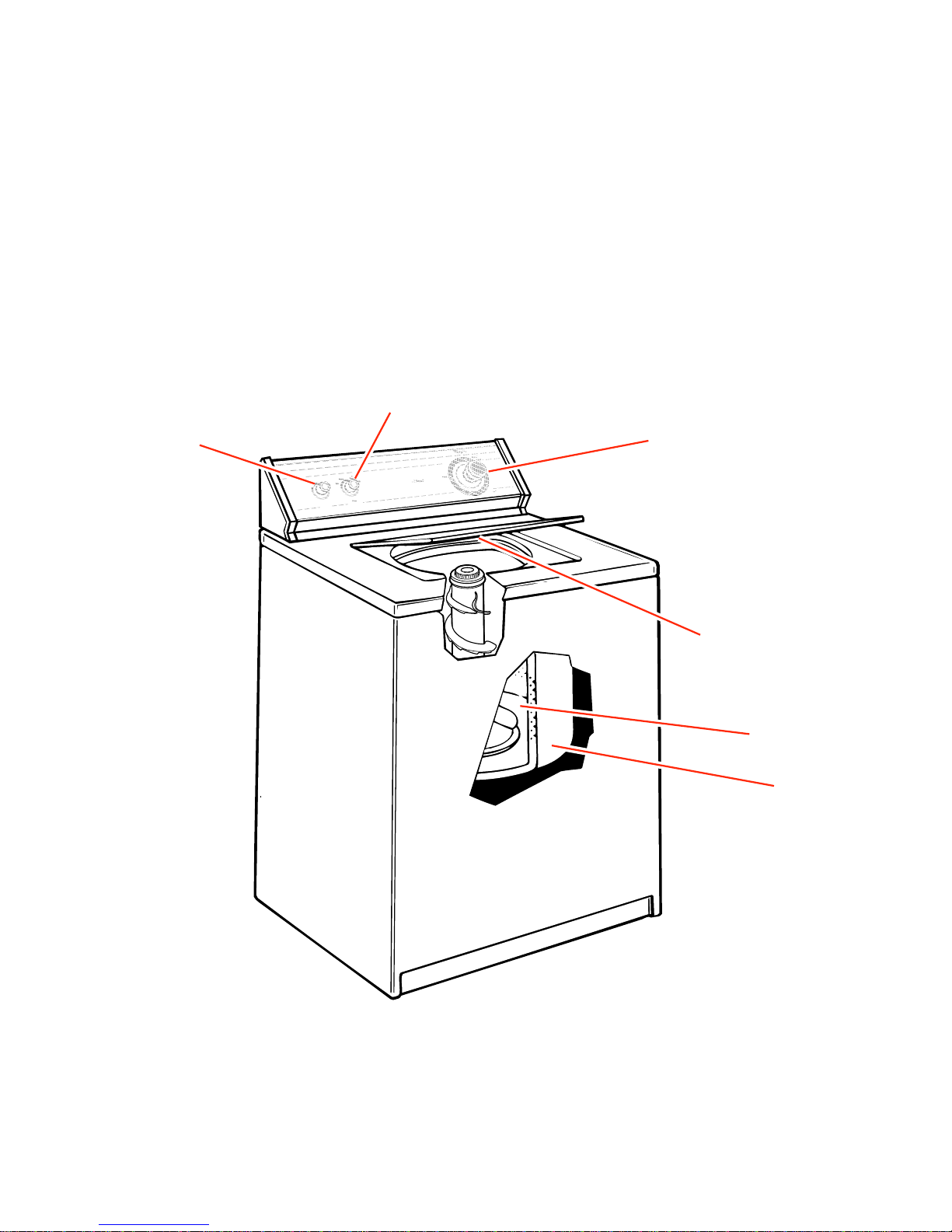

Parts and Features

The parts and features of your washer are illustrated on this page. Become familiar with all

parts and features before using your washer.

NOTES:

•The drawings in this book may vary from your washer model. They are designed to

show the different features of all models covered by this book. Your model may not

include all features.

•Page references are included next to some features. Refer to those pages for more

information about the features.

Cycle control knob

(pp. 7-9)

Model and serial

number plate

(under lid)

(p. 2)

Basket

Tub

Load size

selector

(p. 6)

Water temperature

selector

(p. 7)

Operating Your Washer

To obtain the best washing results, you must operate your washer properly. This section

gives you this important information. Page references are included for more information.

Starting your washer

1. Add measured detergent to the

washer. Then place a sorted load of

clothes in the washer.

•Sort and load clothes as described on

pages 13 and 14.

•If desired, you may also add color safe

bleach to the wash load.

2. Close the washer lid.

wWARNING

Explosion Hazard

Never place items in the washer that

are dampened with gasoline or other

flammable fluids.

Do not wash or dry items soiled with

vegetable or cooking oils because

they may contain some oil after

laundering.

Doing so can result in death,

explosion, or fire.

wWARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Failure to follow these instructions

can result in death, fire, or electrical

shock.

continued on next page

3. Turn the Load Size Selector to the

setting that corresponds with the size

of your wash load and the type of

fabric being washed.

•Depending on your model, your

washer’s Load Size Selector has two,

three, or four settings (see illustrations).

•To change the load size setting after

the washer has started to fill, turn the

Selector to the desired new setting.

OPERATING YOUR WASHER

Load Size

Small Large

Medium

Small Large

Load Size

Small Extra

Large

Medium Large

Temperature

Cold

Hot

Cold

Wash

Rinse

Warm

Cold

4. Select a wash-rinse temperature with

the Water Temperature Selector. Match

the water temperatures with the type

of fabric and soils being washed.

•See page 15 for water temperature

guidelines.

•Depending on your model, your

washer’s Water Temperature Selector

has either three or four settings (see

illustrations).

•The top temperature is the wash water

and the bottom temperature is the

rinse water.

5. Push in the Cycle Control Knob and

turn it clockwise to the wash cycle you

want. See pages 8 and 9.

6. Pull out Cycle Control Knob to start

the washer.

7. (OPTIONAL STEP) If desired, add mea-

sured liquid chlorine bleach after the

washer starts agitating. See page 11.

8. (OPTIONAL STEP) If desired, add mea-

sured and diluted liquid fabric softener

to the final rinse cycle. See page 11.

Stopping/restarting your washer

•To stop the washer at any time, push in

the Cycle Control Knob.

•To restart the washer, close the lid (if open)

and pull out the Cycle Control Knob.

Temperature

Hot

Cold

Wash

Rinse

Warm

Cold

OPERATING YOUR WASHER

Selecting a cycle and time

This section illustrates and describes the

wash cycles you can select with the Cycle

Control Knob. Use this information to help

you make the best cycle selections for your

wash loads. Each cycle is designed for

different types of fabrics and soil levels.

Normal Cycle

The Normal cycle features longer spins to

shorten drying time.

Use this cycle for

cleaning cotton and

linen fabrics. Select 6

(Regular) or 12

(Heavy) minutes of

wash time, depending

on whether your load

is moderately or heavily soiled.

Permanent Press Cycle

The Permanent Press cycle features a

cool-down rinse and

shorter spins to

reduce wrinkling. Use

this cycle for cleaning

permanent press and

some synthetic fabrics.

Select 4 (Light) or 8

(Regular) minutes of

wash time, depending on whether your wash

load is lightly or moderately soiled.

Short Cycle

The Short cycle features brief wash and

soak periods, followed

by shorter spins. Use

this 8-minute cycle to

clean delicate items

and washable knits

that are lightly or

moderately soiled.

•The washer pauses briefly throughout each

cycle. These pauses are normal for washer

operation.

•Refer to page 9 to learn more about the

sounds you may hear during a wash cycle.

•Refer to page 10 to help you understand

what happens during a wash cycle.

OPERATING YOUR WASHER

Normal

Regular

Heavy

Spin

Rinse

Off

Permanent

Press

Cool

Down

Pause

Off

Spin

Rinse

Regular

Light

Soak Cycle

The Soak cycle features brief periods of agi-

tation and soak time

to help remove heavy

soils and stains that

need pretreatment.

•Use warm water

when soaking

laundry. Hot water

can set stains. See

pages 17-19 for stain removal information.

•

Use the amount of detergent or presoak

additive recommended by the manufacturer.

•After the Soak cycle ends, add detergent

and set a new wash cycle.

Pre-Wash Cycle

The 4-minute Pre-Wash cycle features a

brief period of agi-

tation to help remove

heavy soils and

stains that need

pretreatment. See

pages 17-19 for

stain removal infor-

mation. Once the

Pre-Wash cycle ends, add detergent and

start a new wash cycle.

Soak

Off

Short

Spin

Rinse

Soak

Off

Soak

Pre-Wash

Off

Using rinse and spin

When using extra detergent for heavily soiled

clothes, or washing special-care items, you

may find an extra rinse and spin is needed.

1. For an additional rinse, push in the Cycle

Control Knob and turn clockwise to Rinse,

as illustrated.

2. Pull out the Cycle Control Knob. The

washer fills to selected load size,

agitates, drains, and spins.

Using drain and spin

A drain and spin may help shorten drying

times for some heavy fabrics or special-care

items by removing excess water.

1. Push in the Cycle Control Knob and turn

clockwise to Spin, as illustrated.

2. Pull out the Cycle Control Knob. The

washer drains, then spins.

Understanding normal washer sounds

Your new washer may make sounds that

your old one didn’t. Because the sounds are

unfamiliar, you may be concerned about

them. Don’t be; most of them are normal.

The following describes some of the sounds

you may hear and what causes them.

During washing

When you select a small load size setting

for a small wash load, the water level in your

washer is lower. With this lower water level,

you may hear a clicking sound from the

upper portion of the agitator.

OPERATING YOUR WASHER

Spin

Regular

Heavy

Soak

Cool

Down

Pause

Pull Start

Push Stop

Regular

Light

Permanent

Press

Normal

Short

Pre-Wash

Rinse

Off

Rinse

Soak

Rinse

Regular

Heavy

Soak

Cool

Down

Pause

Pull Start

Push Stop

Regular

Light

Permanent

Press

Normal

Short

Pre-Wash

Off

Spin

Soak

During drain

The rate that water is drained from your

washer depends on your installation. If water

is drained quickly from the washer, you may

hear air being pulled through the pump. This

happens during the end of draining.

After drain and before spin

When the cycle changes from draining to

spinning, you may hear gears engaging.

Fill

▼

Rinse

▼

Drain-No agitation

▼

Spin-Spray rinse

▼

Spin

▼

Off

Fill

▼

Wash selected time

▼

Drain*

No agitation

▼

Spin

▼

Understanding what happens in each cycle

When the Cycle Control Knob is set to a

number and pulled out, the washer fills (to

the selected load size) before agitation and

timing start. The washer begins agitating

immediately after filling; agitation occurs with

the washer lid up or down.

During agitation, the agitator creates a

continuous rollover action

that provides a thorough

cleaning of the wash load.

After agitation starts, the Cycle Control Knob

turns clockwise until it points to an OFF area

and the cycle ends.

The washer pauses briefly throughout

each cycle. These pauses are normal for

washer operation.

*The Permanent Press cycle partially

drains, fills, agitates briefly, and drains.

WASH RINSE

OPERATING YOUR WASHER

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Waschmaschine Handbücher

Whirlpool

Whirlpool LLR5144BQ0 Bedienungsanleitung

Whirlpool

Whirlpool WFW9400SZ - Metallic Water Drop R Duet HTR Ultra... Service-Handbuch

Whirlpool

Whirlpool WTW128AF Bedienungsanleitung

Whirlpool

Whirlpool LA968OXW Bedienungsanleitung

Whirlpool

Whirlpool AWO/D 43115 Bedienungs- und Montageanleitung

Whirlpool

Whirlpool LA7500XK Bedienungsanleitung

Whirlpool

Whirlpool 3957165 Bedienungsanleitung

Whirlpool

Whirlpool LA4OOOXK Bedienungsanleitung

Whirlpool

Whirlpool LA6700XK Bedienungsanleitung

Whirlpool

Whirlpool WFW86HEBW Bedienungsanleitung

Whirlpool

Whirlpool WFW9400VE - 27in Front Load Washer Bedienungsanleitung

Whirlpool

Whirlpool WFW5090JW0 Bedienungsanleitung

Whirlpool

Whirlpool WTW5000DW Bedienungsanleitung

Whirlpool

Whirlpool MVWC450XW4 Bedienungsanleitung

Whirlpool

Whirlpool W10254491A Bedienungsanleitung

Whirlpool

Whirlpool Duet sport WFW8300SW00 Bedienungsanleitung

Whirlpool

Whirlpool FFWDB 964369 WV UK Installations- und Betriebshandbuch

Whirlpool

Whirlpool Cabrio WTW6400S Kurzanleitung

Whirlpool

Whirlpool AWT 2288/3 Bedienungsanleitung

Whirlpool

Whirlpool Design 2000 Bedienungsanleitung

Whirlpool

Whirlpool WWDC 7410 Bedienungsanleitung

Whirlpool

Whirlpool MVWC400XW Bedienungsanleitung

Whirlpool

Whirlpool 2DLSQ8000JQ3 Bedienungsanleitung

Whirlpool

Whirlpool AWO/D 4605 Bedienungsanleitung

Beliebte Waschmaschine Handbücher anderer Marken

Tricity Bendix

Tricity Bendix AW 1000 W Produkthandbuch

Panasonic

Panasonic NA-F60L5WRB Bedienungsanleitung

GE WSLP1500 Handbuch

Electrolux

Electrolux EWF1284EDW Bedienungsanleitung

Bosch

Bosch WAN2829BSN Bedienungsanleitung

LG TV2516DV3B Bedienungsanleitung

LG TH2517DSAV Bedienungsanleitung

VESTEL

VESTEL CMH-XL 7510 TE Bedienungsanleitung

AEG

AEG 74335 Bedienungsanleitung

Johnson

Johnson JWF721A Bedienungsanleitung

Beko

Beko WTE7604XLW0 Bedienungsanleitung

Danby

Danby DTT100A1WDB Montageanleitung

Amica

Amica WA 14 Ex Bedienungsanleitung

Daewoo

Daewoo DWD-F1222 Bedienungsanleitung

Bosch

Bosch WAS28461AU Bedienungsanleitung

Miele

Miele PW 6080 Vario Bedienungsanleitung

Finlux

Finlux FLX108CF220 Bedienungsanleitung

Beko

Beko WKB 51231 PTMA Bedienungsanleitung
