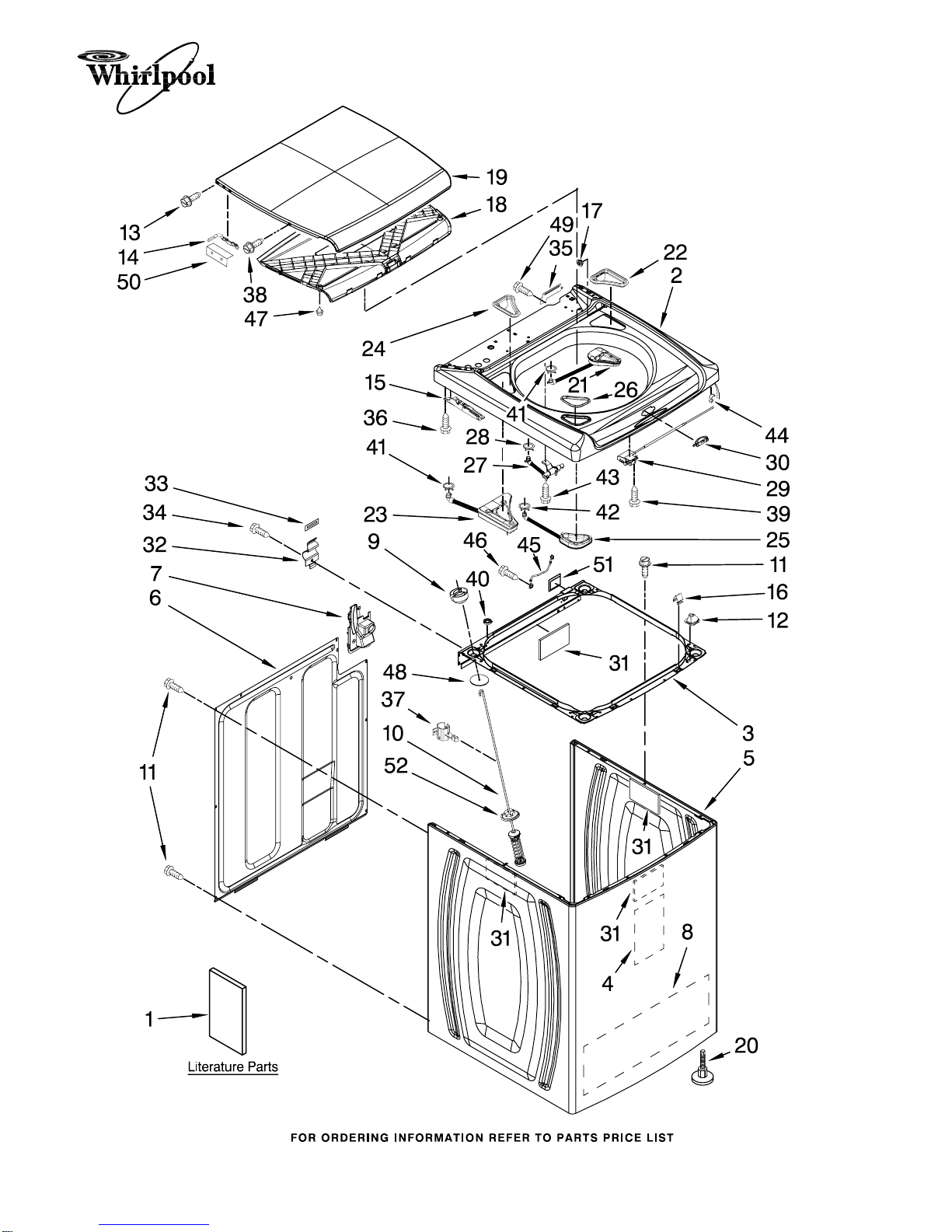

TOP AND CABINET PARTS
1
For Model: WTW6400SW2
(White)
2−07 Litho in U.S.A. (slc) Part No. W10119754 Rev. A
AUTOMATIC WASHER
TOP AND CABINET PARTS
2
For Model: WTW6400SW2
(White)
W10119754
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10106470
Use & Care Guide
W10026571
Tech Sheet
W10106480
Quick Start Guide
8577781 Wiring Diagram
W10107030
Energy Guide
2 8565311 Top
3
W10114656
Frame Assembly,
Cabinet Top
(Includes
Items 31 & 51)
4 8576784 Sound Absorber,
Cabinet
5 8566156 Cabinet
6 8566090 Panel, Rear
7 8543781 Retainer, Drain
Hose Storage
8 8578225 Sound Absorber,
Cabinet
9
W10111536
Ball,
Suspension (4)
10 8564009 Damper Assembly,
Tub Suspension
(Set Of 4−Includes
Items 48 & 52)
11 1157158 Screw, 8−18 x 3/8
12
W10042120
Locator, Top (2)
13 355274 Screw, Lid
Hinge
Mounting (4)
14 8576780 Hinge Arm, Lid (2)
15 Hinge, Spring
Assembly
8563962 (Left)
8563963 (Right)
16 8563785 Lock, Top−
Front (2)
17
W10052730
Bearing, Lid
Hinge (2)
18 8577353 Lid−Inner
(Includes Item 47)
19 8572891 Lid
20 8578826 Foot Assembly,
Leveling (4)
21
W10059150
Dispenser,
Fabric Softener
22 8566210 Bezel, Fabric
Softener Dispenser
23
W10059160
Dispenser, Bleach
24 8566211 Bezel, Bleach
Dispenser
25 8564976 Dispenser,
Detergent
26 8564979 Bezel, Detergent
Dispenser
27
W10106990
Nozzle Assembly,
Fresh Water
28 371503 Clamp, Hose
29
W10059230
Lock Assembly, Lid
30 8572019 Bezel, Lid Lock
31 8564458 Absorber, Impact
32 8564456 Hinge, Top (2)
33 18849 Pad, Top Hinge (2)
34 343641 Screw,
10−16 x 1/2 (2)
35 8563941 Cover, Harness
36 693995 Screw, 8−18 x 3/8
37 8543784 Bracket,
Drain Hose
38
W10076920
Screw (2)
39 8281136 Screw, 10−16 x 3/4
40 8576476 Spacer, Rear
(Cabinet/Top)
41 370451 Clamp, Hose
42 371503 Clamp, Hose
43 3400061 Screw,
10−16 x 9/16
44 90016 Clip, Harness (5)
45 8281736 Wire,
Ground Jumper
46 3400076 Screw, 10−32 x 5/8
47
W10076780
Bumper, Lid (2)
48 8577896 Washer, Suspension
Umbrella (4)
49 3390647 Screw, 8−18 x 1/2
50 21097 Pad,
Lid Hinge (2)
51 8578386 Shield, Wire
Harness
52 8564017 Cup,
Suspension (4)

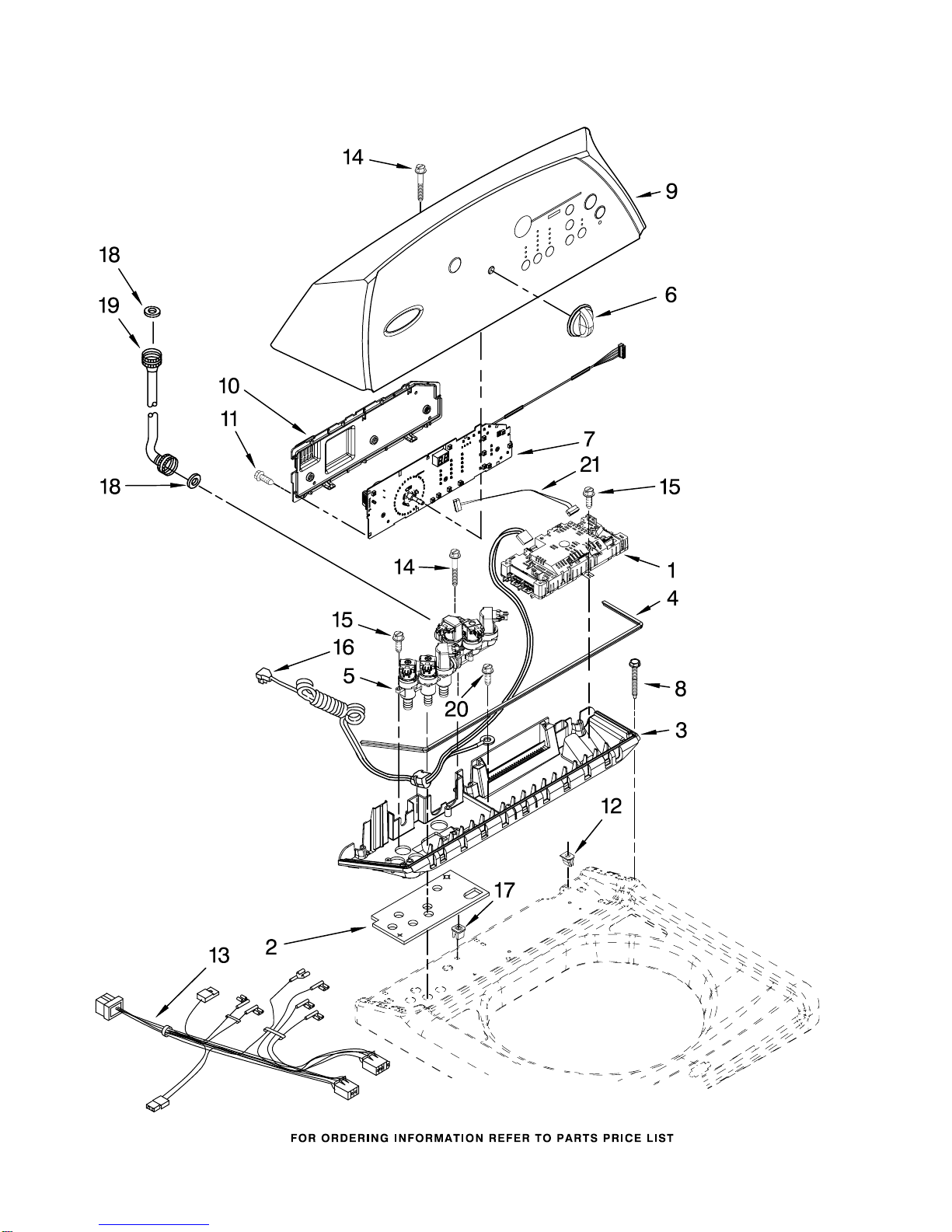

CONTROL PANEL PARTS
3
For Model: WTW6400SW2
(White)
W10119754
CONTROL PANEL PARTS
4
For Model: WTW6400SW2
(White)
W10119754
Illus. Part
No. No. DESCRIPTION
1
W10112113
Control Unit
Assembly,
Machine & Motor
2 8565260 Gasket, Valve Tray
3 8565304 Tray Assembly,
Console (Includes
Items 2 & 4)
4 8565259 Gasket,
Console/Tray
5
W10059320
Valve, Log
Assembly
6 8574957 Knob, Control
7 8564291 User Interface
8
W10004990
Screw, 6−20 x 1.2
9
W10070050
Console
10 8564265 Cover, Rear−
User Interface
11
W10003770
Screw,
6−19 x 1/2 (3)
12
W10022060
Nut, Push−In (3)
13
W10045100
Harness, Upper
14 8565324 Screw,
10−16 x 1.75
15 8281136 Screw, 8−18 x 3/4
16 3407203 Cord Assembly,
Power
17 98460 Nut, Push−In (2)
18 3976300 Washer, Water
Inlet Hose
(1−1/16 x 5/8)(4)
19 Hose, Water Inlet
8571377 Blue Coupler
8571378 Red Coupler
20 488649 Screw, Power
Cord Ground
21 3407187 Harness,
Thermistor
MOTOR, BASKET AND TUB PARTS
5
For Model: WTW6400SW2
(White)
W10119754
MOTOR, BASKET AND TUB PARTS
6
For Model: WTW6400SW2
(White)
W10119754
Illus. Part
No. No. DESCRIPTION
1
W10106600
Cap, Impeller
2
W10076270
Screw & Washer
Assembly
3
W10076260
Washer
4
W10108430
Tub Ring
5 8572540 Hose Pressure
Switch
6
W10076230
Impeller
(Washplate)
7 8533953 Screw,
8−16 x 1.000 (6)
8
W10118114
Hub, Basket−Driven
(Includes Item 9)
9 8545953 Hub, Basket−Driver
(Includes Item 8)
10
W10118182
Basket Assembly
(Includes Items
7, 8, & 9)
11 8572660 Tub & Drive Shaft
Assembly
13 8542674 Weight,
Tub Counterbalance
14
W10004910
Screw,
12−16 x 1−1/4 (2)
15 8557839 Shield,
Drive Motor
(Includes Item 16)
16 8565172 Tube, Buffer
(Set Of 4)
17 8565170 Stator, Motor
(Includes Item 18)
18 8557836 Plate, Stator
(Set Of 2)
19
W10076010
Screw,
1/4−20 x .968 (4)
20 8565188 RPS Assembly
21 8565177 Rotor, Main Drive
Motor (Includes
Item 22)
22 Bolt, Rotor
Assembly
Non−Serviceable
(Supplied W/Rotor)
23
W10058730
Harness, Lower
(Includes Item 5)
24 8566197 Filter, Dual
Pump Hood
25 8533928 Screw,
8−18 x 3/4 (2)
27
W10005430
Clamp, Pressure
Hose Retainer
28 8533957 Screw, 10−16 x 1/2

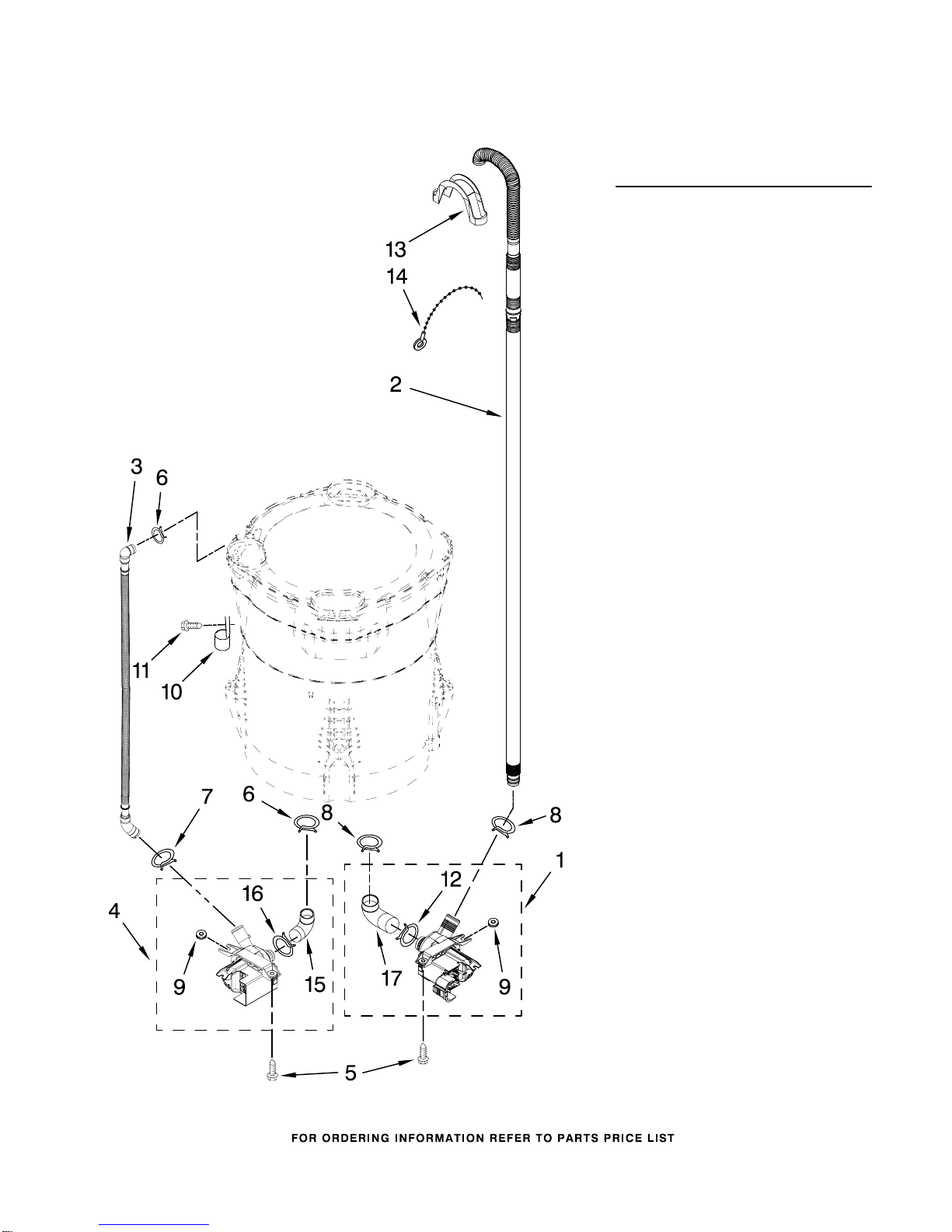

PUMP PARTS
7
For Model: WTW6400SW2
(White)
W10119754
Illus. Part
No. No. DESCRIPTION
1
W10049390
Pump Assembly,
Drain
2 8571715 Hose, Drain
3 8543774 Hose, Recirc
4
W10049400
Pump Assembly,
Recirc
5 8534063 Screw,
10−14 x 1.000
6 370449 Clamp, Hose
7 8269146 Clamp, Hose
8 8317496 Clamp, Hose
9 8182771 Grommet, Pump
Mounting (4)
10 8534021 Clamp, Recirc
Hose Retainer
11 8533943 Screw, 10−16 x 3/4
12 8182768 Clamp,
Drain Pump Hose
13 8576642 Retainer,
Drain Hose
14 3347868 Cable Tie
15 8182769 Hose, Recirc Pump
16 8182770 Clamp,
Recirc Pump Hose
17 8182767 Hose, Drain Pump
OPTIONAL PARTS (NOT INCLUDED)
8
For Model: WTW6400SW2
(White)
W10119754
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
PAINT, PRESSURIZED SPRAY
(12 oz.)
350938 Primer, Gray
350930 White
PAINT, BULK (1 qt.)
799344 White (Uncut)
WATER SYSTEM PARTS
285442 Connector Kit,
Plastic Drain
Hose
285321 Sleeve Kit,
(Contains 2
Sleeves)
285320 Siphon Break Kit
367031 Drain Protector
SEALER
285195 Sealer, Gasket
(.20 Fl. Oz.) (6 ml)
COUPLING
384496 Coupling, Hose
