Whirlpool LA543oxs Bedienungsanleitung

AUTOMATIC

WASHER

Large Capacity

Model

LA543oxs

Anwave Ovens. Trash Compactors. Room AM Condllloners. Dehumldifws, Automatic Washers, Clolhes Dryers, Freezers, Refrlgeralor-

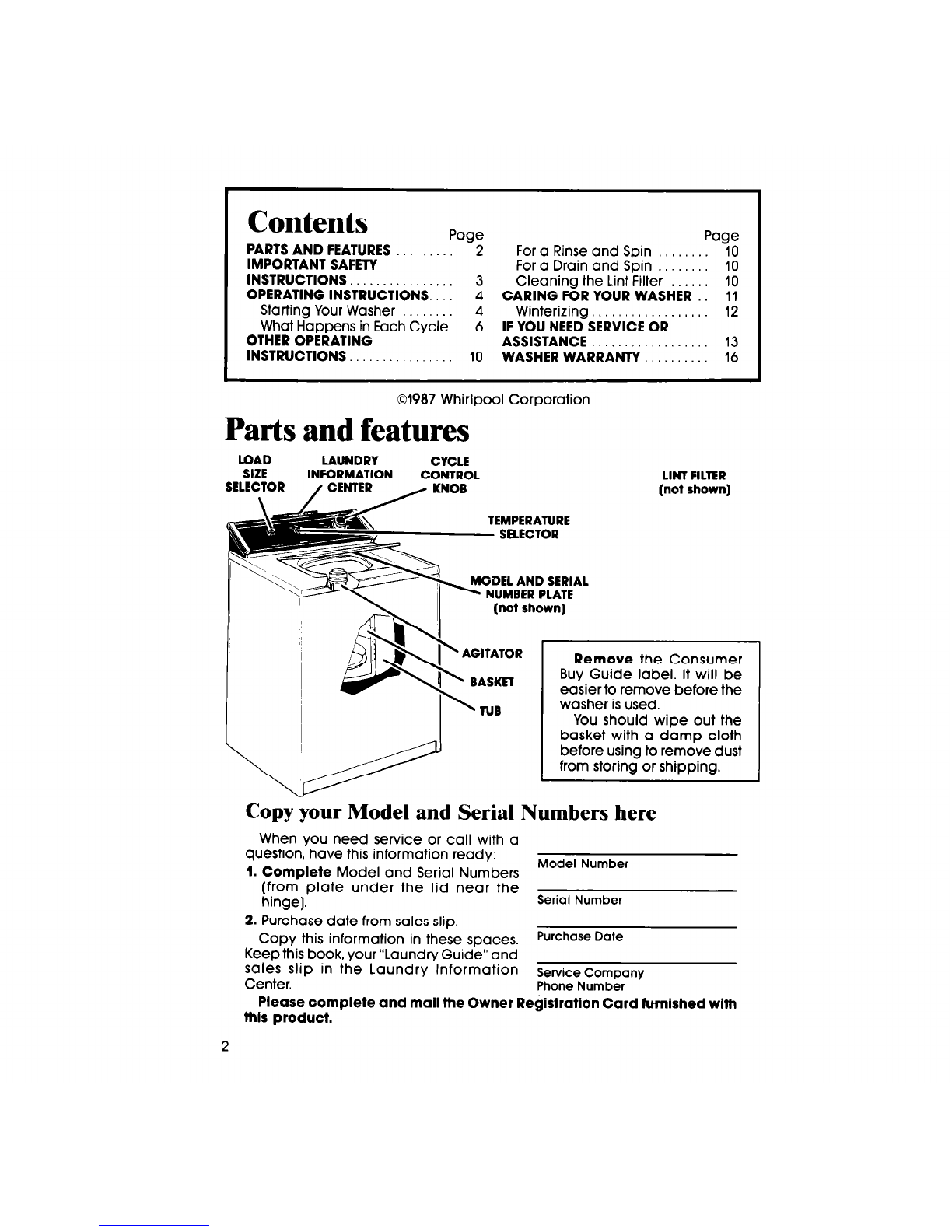

Contents

Page

PARTS AND FEATURES 2

IMPORTANT SAFETY

INSTRUCTIONS. . 3

OPERATING INSTRUCTIONS.. 4

Starting Your Washer 4

What Happens in Each Cycle 6

OTHER OPERATING

INSTRUCTIONS 10

For a Rinse and Spin

For a Drain and Spin

Cleaning the Lint Filter .

CARING FOR YOUR WASHER

Winterizing

IF YOU NEED SERVICE OR

ASSISTANCE

WASHER WARRANTY

Page

01987 Whirlpool Corporation

Parts and features

LOAD LAUNDRY CYCLE

SIZE INFORMATION CONTROL LINT FILTER

SELECTOR

. / CENTER , KNOB (not shown)

EMPERATURE

SELECTOR

ODE1 AND SERIAL

NUMBERPLATE

washer is used.

You should wipe out the

basket with a damp cloth

before using to remove dust

from

storing or shipping.

Copy your Model and Serial Numbers here

When you need service or call with a

question, have this information ready:

1. Complete Model and Serial Numbers

Model Number

(from plate under the lid near the

hinge]. serio, Number

2. Purchase date from sales slip.

Copy this information in these spaces. Purchase Date

Keep this book, your “Laundry Guide” and

sales slip in the Laundry Information

Center.

Service Company

Phone Number

Please complete and mall the Owner Registration Card furnlshed wllh

this product.

Additional Safety Instructions and Your Responsibilities

ALWAYS store detergent, laundry aids ALWAYS unplug the power supply

and other materials in a cool, dry cord before attempting to service the

place where children can’t reach washer.

them- in a locked cabinet if possible. DO NOT machine wash glass fiber

ALWAYS read and follow instructions materials. Small particles can stick to

on packages of detergent and laun- fabrics washed in following loads

dry aids - especially warnings and and cause skin irritation.

precautions. You are personally responsible for

HAZARDOUS FUMES can be formed if making sure that your washer:

chlorine bleach is used in the same

is used only for jobs normally ex-

wash as ammonia or acids such as

vinegar or rust remover. petted of home automatic washers.

is not run by children or anyone un-

able to operate it properly. 3

Operating instructions

Starting Your Washer

Be sure to measure and add detergent, then place

a sorted load in the washer before starting it.

. Select

LOAD SIZE

Select

. WATER TEMPERATURES

Turn the knob to point at a setting

that describes the size of load you

want to wash.

The water level can be set for

SMALL (a few items] or LARGE

(a full load].

NOTE: Use the LARGE water level

for best permanent press results.

Match the wash and rinse water

temperature to the tvpe of fabrics and

soils being washed.

All rinses are cold. Cold rinses save

energy and help prevent wrinkles from

setting into fabrics.

Recommended wash temperatures

can be found in your “Laundry Guide.”

LOAD SIZES AND WATER LEVELS

For best cleaning results, the

load must be able to move freely

in the water. Too big a load or too

little water can cause wear or 0

CAUTION:

DO NOT

OVERLOAD WASHER.

tearing of load items.

*Approximate LARGE (17.3 gals./655 L)’

fill with load. SMALL (9.5 galsJ36.0 L]*

i TIME;

Stop on a number in the cycle

you want. The numbers are min-

utes of wash time. The drawing

shows 6 minutes of agitation in

the REGULAR NORMAL Cycle.

To stop the washer at any time,

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

What Happens in Each Cycle*

Each cycle has been designed for different kinds of fabrics. Numbers on the

dial on each cycle are the minutes of WASH agitation time.

When the Cycle Control Knob is set to a number and pulled out, the washer fills

before agitation and timing starts. After agitation starts, the knob turns clock-wise

until it points to OFF and the cycle ends.

REGULAR HEAVY Cycle

A cycle for sturdily con-

structed fabrics that are

heavily soiled.

REGULAR NORMAL Cycle

A cycle for regular loads

of fabrics that are moder-

ately soiled.

PERMANENT PRESS NORMAL Cycle

A cycle designed for mod-

erately soiled permanent

press and some synthetic

fabrics. The cool-down

rinse helps keep wrinkles

from setting into these

items.

NOTE: You may hear the sound of water spraying during the spin parts of some

cycles. In some cycles, cold water is sprayed on the spinning load to help with

the rinsing.

PERMANENT

PRESS

A cycle designed for

lightly soiled permanent

press and some synthetic

fabrics. The cool-down

rinse helps keep wrinkles

from setting into these items.

SHORT Cycle

Alndlcates the machine is

Use for delicate items that

need a short wash and spin

time. Wash nylon hose or

panty hose in a net laundry

bag.

pauslng for a brief soak

period.

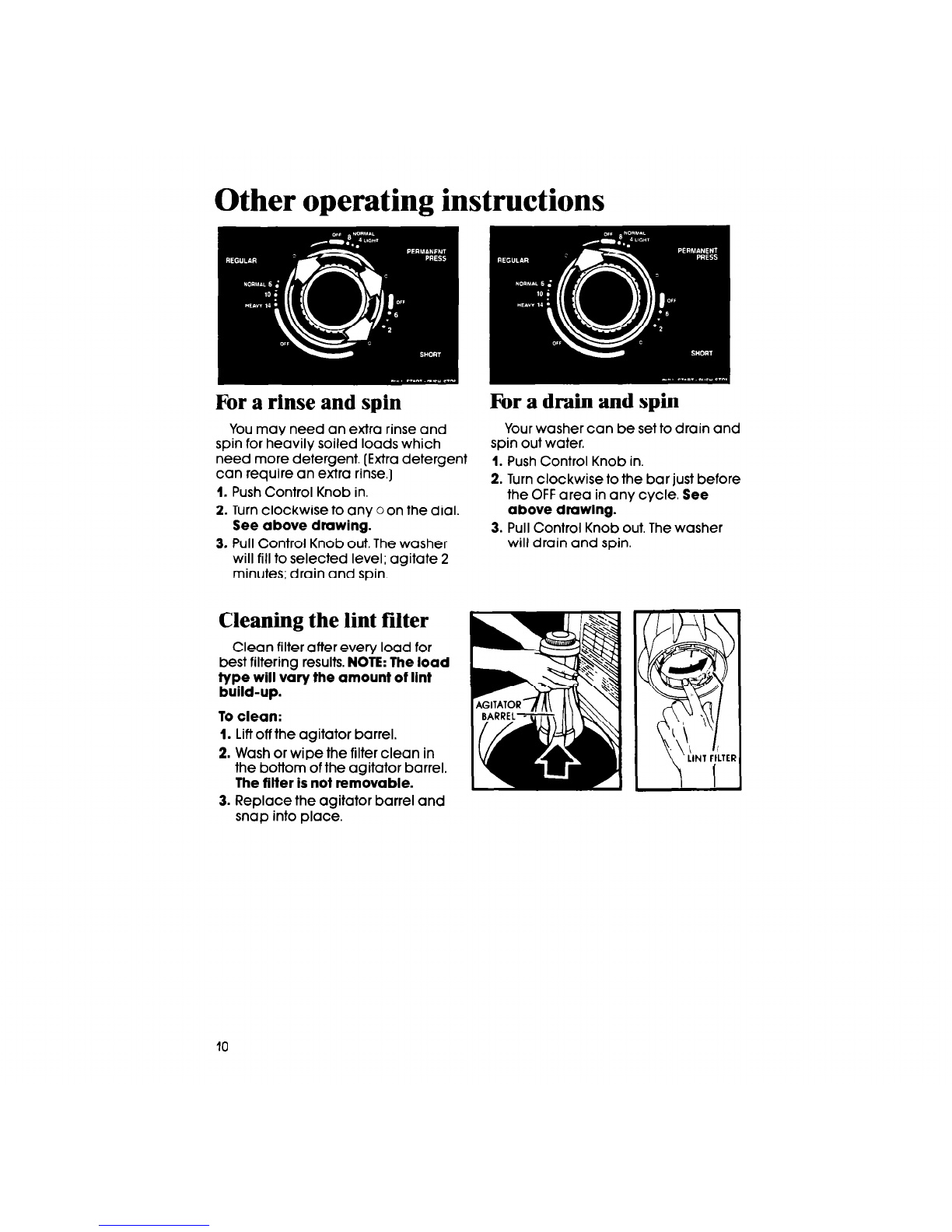

Other operating instructions

For a rinse and spin For a drain and spin

You may need an extra rinse and Your washer can be set to drain and

spin for heavily soiled loads which spin out water.

need more detergent. (Extra detergent 1. Push Control Knob in.

can require an extra rinse.]

1. Push Control Knob in.

2. Turn clockwise to any o on the dial.

See above drawing.

3. Pull Control Knob out The washer

will fill to selected level; agitate 2

minutes; drain and spin.

2. Turn clockwise to the bar just before

the OFF area in any cycle. See

above drawing.

3. Pull Control Knob out. The washer

will drain and spin.

Cleaning the lint filter

Clean filter after every load for

best filtering results. NOTE: The load

type will vary the amount of lint

build-up.

To clean:

1. Lift off the agitator barrel.

2. Wash or wipe the filter clean in

the bottom of the agitator barrel.

The filter is not removable.

3. Replace the agitator barrel and

snap into place.
