YOUR WASHER’S PARTS AND FEATURES

LOAD TEMPERATURE

SELECTOR LAUNDRY

SIZE INFORMATION

SELECTOR CENTER CYCLE

CONTROL

KNOB

CONTROL CONSOLE

LIQUID FABRIC

SOFTENER

DISPENSER

LIQUID

BLEACH

DISPENSER

AGITATOR

BASKET

TUB

MAGIC

CLEAN *

LINT FILTER

(not shown)

DRAIN HOSE

WATER INLET HOSES

Back of Washer

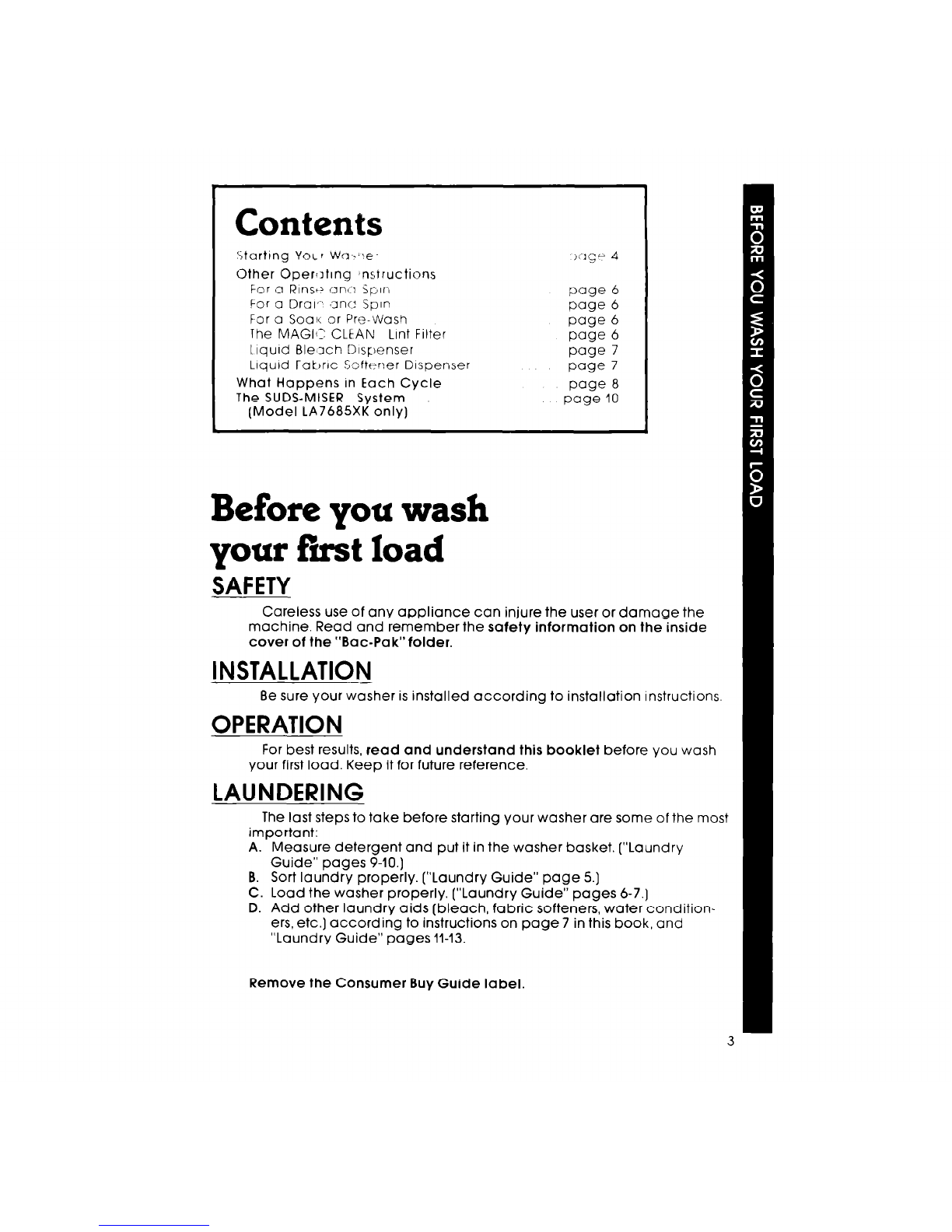

Contents

5tarting Y~Lr Woxl,e-

Other Oper:ltlng .nstructions

For a Rlnstl aw.1 5c11r.1

For a Dral--, an<: Spin

For a Soa!< or Pre-‘Wash

The MAGI<> CLtAlC Lint Filter

I lquld Ble,xh i3spenser

Llquld Fabric S:,ftoner Dispenser

What Happens in Each Cycle

The SUDS-MISER System

(Model LA7685XK only)

,:lC’-’ 4

page 6

Paw

page

Page

page 7

page

page 10

Before you wash

your fmt load

SAFETY

Careless use of any appliance can injure the user or damage the

machine. Read and remember the safety information on the inside

cover of the “Bat-Pa k” folder.

INSTALLATION_

Be sure your washer is installed according to installation instructions.

OPERATION

For best results, read and understand this booklet before you wash

your first load. Keep it for future reference.

LAUNDERING

The last steps to take before starting your washer are some of the most

important:

A. Measure detergent and put it in the washer basket. [“Laundry

Guide” pages 9-10.)

B. Sort laundry properly. [“Laundry Guide” page 5.)

C. Load the washer properly. [“Laundry Guide” pages 6-7.)

D. Add other laundry aids (bleach, fabric softeners, water condition-

ers, etc.) according to instructions on page 7 in this book, and

“Laundry Guide” pages 11-13.

Remove the Consumer Buy Guide label.

Starttng your washer

Before starting your washer, be sure you have measured and

added detergent, put in a properly sorted load, and have used

other laundry aids only as recommended in your “Laundry Guide.’

Select a

LOAD SIZE

Select WATER

TEMPERATURES

To change the setting on the LOAD

SIZE SELECTOR, turn the knob to RESET

Then turn the knob to point at a

setting that describes the size of

the load you want to wash

Set the knob anywhere on or

between HAND WASHABLE (a few

small items) and EX LARGE (a full

load).

See the “Laundry Guide” for details

on load sizes.

Select wash and rinse water tem-

peratures by pushing a button.

This drawing shows a warm wash

(top temperature) and cold rinse

(bottom temperature] selection.

Recommended wash tempera-

tures are in your “Laundry Guide”

and printed under the washer lid.

LOAD SIZES AND WATER LEVELS

Save energy Use less than a full tub

of water when you have less than a full

load to wash.

Be careful to use enough water for

the load. Too big a load ortoo little

water can result in a wash that isn’t

clean or can even

tear items.

EX-LARGE

(20

5 gols

6 L)

MEDIUM (I 3 9 gals 52 6

HAND WASHABLE (7 8 gals 29 5 LJ

For examples of a full load in this super capacity washer, see

“Laundry Guide”page 7.

Approximate fill with load

3. Start the washer

Push in the Control Knob and

turn it to the right. It must be

pushed in and turned only to the

right (clockwise).

Stop on a number in the cycle

you want. The numbers are

minutes of wash time. The

drawing shows 8 minutes of

agitation in the REGULAR HEAVY

Cycle.

Start the washer by pulling out

the Control Knob. The washer

will fill to the level you set with

wash water of the selected

temperature. After filling, the

washer will agitate for the

selected number of minutes.

To stop the washer at any time,

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

To set the controls for a rinse and spin

(second rinse), a drain and spin, or a

soak or pre-wash, see page 6. 5

Other Operating Instructions

For a RINSE and SPIN For a DRAIN and SPIN

Push Control Knob in.

Push Control Knob in

Turn right [clockwise] to any dot on

Turn right (clockwise] to the bar jusi

the dial. See above drawing. before OFF in any cycle. See

Pull Control Knob out. above drawing.

The washer will fill with rinse water,

Pull Control Knob out.

agitate 2 minutes, drain and spin.

The washer will drain and spin.

For agitation and spin speeds in each cycle, see pages 8 and 9.

For a SOAK or

PRE-WASH

Use enough detergent or pre-soa k

product for a single load.

Push in Cycle Control Knob.

Turn right (clockwise) to point at

22,12 or 2 in the SOAK Cycle.

Pull out Control Knob to start the

washer.

When the cycle is over, add deter-

gent for the next selected wash

cycle. (IMPORTANT: Special care

information in “Laundry Guide”

paw 7.1

Set the washer and start the next

selected wash cycle.

To start the soak or pre-wash with agitation, the Cycle Control

Knob must point to a number in the SOAK Cycle.

MAGIC CLEANB LINT FILTER

The lint filter in vour washer cleans

itself. Collected lint is drained away

with the wash and rinse water.

If your washer drains into a tub,

remove any lint collected in the

drain or strainer.

LIQUID BLEACH DISPENSER

After loading the washer, measure

liquid bleach in a

standard mea-

suring cup.

Follow directions on the bottle for

the amount to use. Never use

more than 1 cup (250 ml) for a full

load. Use less with lower level

settings.

Use a cup with a pouring spout to

help avoid spilling.

Do not let any bleach splash,

drip or run down into the washer

basket. Undiluted bleach will

damage any fabric.

For more information on bleaching, see “Laundry Guide”

pages 11-12.

LIQUID FABRIC SOFTENER DISPENSER

Lift the dispenser off the agitator.

Add detergent and load to the

basket.

Replace the dispenser on the

agitator.

Add

liquid fubric

softener to the

dispenser using the amount rec-

ommended on the bottle.

Avoid dripping or spilling any on

the load.

IMPORTANT: Add enough hot or

warm water to fill the dispenser to

the FULL mark.

Diluted softener will be added to

the load when the washer stops

spinning after the wash part of the

cycle. NOTE: Do not stop the

washer during this spin. If you do,

the fabric softener will be added

to the remaining, soapy wash

water. This can cause stains

Clean the dispenser after each

use with only warm water. Deter-

gent can make softeners sticky

and lumpy.

What happens in each cycle

The Cycle Control is a timer. The numbers on the dial are the min-

utes of WASH time you can select. Agitation speed, spin speed and

time, and rinse agitation speed and time are built into each cycle to

provide proper washing for different types of fabrics and loads.

After the washer fills the pointer of the Cycle Control Knob moves

PERMANENT PRESS CYCLE

Use for permanent press

fabrics. Cooling of the

wash water before the

spin helps prevent the

setting of wrinkles

The washer pauses for about

I1 2 minutes after partial drain.

KNITS GENTLE CYCLE

Low agitation and spin

speeds and shorter wash

time make this cycle the

one to use for delicate

items and washable

synthetic knits. Wash

nylon hose or panty hose

in a net laundry bag.

REGULAR HEAVY CYCLE

SOAK CYCLE

Use for sturdy white and

colorfast cottons, and for

heavy work clothes. High

agitation and spin

speeds are designed to

help remove heavy soils

and spin water from

heavy cotton fabrics.

This is not a complete

wash cycle. It soaks,

agitates, spins out the

water and stops without

rinsing. Use it for stained,

yellowed, grey or heavily

soiled laundry with a

detergent or pre-soak

product

to the right, like the hands of a clock, until it reaches OFF and the

cycle ends.

You may hear the sound of water spraying during the spin parts of

some cycles In some cycles, cold water is sprayed on the spinning

load to help with the rinsing

NOTE:

Always use

COLD rinse water

for permanent press fabrics.

DRAIN

Agitation

SOAK

8 Minutes

Agitation

AGITATE SOAK AGITATE DRAIN HIGH-

2Minutes

8 Minutes

2 Minutes

Low No Low Agitation

Speed Agitation Speed b

SPEED

SPIN

II UUI

Special care is required for the handling of a load when soaking or pre-

washing.

See your “laundry Guide” for proper use of this cycle.

C::r Model i A7585XK Only

The

SUDS-MISER System

‘Your wr:;rlpr * -:

the SUDS MISER System I! has two drain

rloses Or :. 7:) ,I, )vt?s use!: ,%astt water Into I: storage tub and

‘Toves It :. ,-rcr ! ,+ the ti,~she when .t’s called ror The other hose

carries

:t~r 7 : i -lthe, !~b’ :A.Iti- ~211,:pen dram or to a stand-

pipe dra :

If you a TIC)’,~ r8tto re-Jst, tiasr, water leave the stopper out

of the sto-%I,Je t(?:: SI?the +/aier drclns away

STORAGE STANDPIPE STORAGE DRAIN

TUB TUB

If you have a storage tub big enough to hold about 25 gal-

lons (95 liters), you can have a qualified installer convert your

washer to save all the wash water

To Save Wash Water

Be sure the stopper is In the storage tub The SUDS-MISER System

does not save rrnse water from any cycle, nor does it save wash

water from the PERMANENT PRESSCycle.

To RemUs Wash Water

Pull the Control Knob out.

Push in the Cycle Control Knob

The washer will pump most of the

water from the storage tub back

Off

suds14

Into the washer basket. The washer

will finish filling with fresh water

Drain the storage tub. Water still in

the tub will have any soil that

settled out. The hose is cut on an

angle to leave about an inch

of water.

If you want a cycle other than

REGULAR HEAVY to follow SUDS,

push in the Cycle Control Knob

Turn it right (clockwise] so it points after the water has been

to SUDS (see illustration]. pumped back into the washer,

Add about half the recom- iurn the knob right [clockwise) to

mended amount of detergent and the cycle and wash time you

then the load want.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Waschmaschine Handbücher

Whirlpool

Whirlpool W10441074B - SP Bedienungsanleitung

Whirlpool

Whirlpool LA5400XP Bedienungsanleitung

Whirlpool

Whirlpool LA5300XP Bedienungsanleitung

Whirlpool

Whirlpool W10306121A Bedienungsanleitung

Whirlpool

Whirlpool FRONT-LOADING AUTOMATIC WASHER Bedienungsanleitung

Whirlpool

Whirlpool WFL98HEBU Montageanleitung

Whirlpool

Whirlpool WTW5500BW Bedienungsanleitung

Whirlpool

Whirlpool ADVANTECH CAE2761K Handbuch

Whirlpool

Whirlpool SAWB600JQ1 Bedienungsanleitung

Whirlpool

Whirlpool WFW9500TC00 Bedienungsanleitung

Whirlpool

Whirlpool 8LSR5233EZ0 Bedienungsanleitung

Whirlpool

Whirlpool WFW9600TW01 Bedienungsanleitung

Whirlpool

Whirlpool Duet 461970255001 Bedienungsanleitung

Whirlpool

Whirlpool AWE 6112 Bedienungsanleitung

Whirlpool

Whirlpool Cabrio W10240441C - SP Bedienungsanleitung

Whirlpool

Whirlpool W10560165A Bedienungsanleitung

Whirlpool

Whirlpool ONE SPEED AUTOMATIC WASHERS Bedienungsanleitung

Whirlpool

Whirlpool W10656460A Bedienungsanleitung

Whirlpool

Whirlpool LC45OOXS Bedienungsanleitung

Whirlpool

Whirlpool WWA-780 Bedienungsanleitung

Whirlpool

Whirlpool WTW4850XQ Montageanleitung

Whirlpool

Whirlpool 7LSC9245BN0R Bedienungsanleitung

Whirlpool

Whirlpool 1CWTW4840 Bedienungsanleitung

Whirlpool

Whirlpool WFC 3C26 P X Bedienungsanleitung

Beliebte Waschmaschine Handbücher anderer Marken

Tricity Bendix

Tricity Bendix AW 1000 W Produkthandbuch

Panasonic

Panasonic NA-F60L5WRB Bedienungsanleitung

GE WSLP1500 Handbuch

Electrolux

Electrolux EWF1284EDW Bedienungsanleitung

Bosch

Bosch WAN2829BSN Bedienungsanleitung

LG TV2516DV3B Bedienungsanleitung

LG TH2517DSAV Bedienungsanleitung

VESTEL

VESTEL CMH-XL 7510 TE Bedienungsanleitung

AEG

AEG 74335 Bedienungsanleitung

Johnson

Johnson JWF721A Bedienungsanleitung

Beko

Beko WTE7604XLW0 Bedienungsanleitung

Danby

Danby DTT100A1WDB Montageanleitung

Amica

Amica WA 14 Ex Bedienungsanleitung

Daewoo

Daewoo DWD-F1222 Bedienungsanleitung

Bosch

Bosch WAS28461AU Bedienungsanleitung

Miele

Miele PW 6080 Vario Bedienungsanleitung

Finlux

Finlux FLX108CF220 Bedienungsanleitung

Beko

Beko WKB 51231 PTMA Bedienungsanleitung
