Your responsibilities

Read this “Use and Care Guide”

and your “Laundry Gurde” care-

fully for important use and safety

information.

You are personally responsible

for making sure that your

washer...

is installed by a qualified installer.

is properly installed and

leveled on a floor that can

support the weight.

. is connected to the right kind

of outlet, electric supply, water

supply and drain.-

* is properly grounded.”

is used only for jobs normally

expected of home automatic

washers.

is properly maintained.

is protected from the weather

and kept where the tempera-

ture will not fall below freezing.

is not run by children or anyone

unable to operate it properly.

*See the “Installation Instructions”

for complete Information.

Contents

Page

PARTS AND FEATURES 2

YOUR RESPONSIBILITIES 3

SAFETY FIRST 3

STARTING YOUR WASHER 4

WHAT HAPPENS IN EACH

CYCLE.

OTHER OPERATING’ 6

INSTRUCTIONS 10

For a Rinse and Spin 10

For a Drain and Spin 10

For a Soak 10

Cleaning the Lint Falter 10

CARING FOR YOUR WASHER 11

IF YOU NEED SERVICE OR

ASSISTANCE 13

1 Before Calling for

Assistance 13

2 If You Need Assistance 14

3 If You Need Serwce 14

4. If You Have a Problem 14

c 1984 Whirlpool Corporation

Select a

I. LOAD SIZE Select WATER

TEMPERATURES

To change the setting on the LOAD

SIZE SELECTOR. turn the knob to RESET

Then turn the knob to point at a

setting that describes the srze of the

road

yocl

want ‘0 was?

- Set the knob arvwh+.:re 1~7cr

tje-

iweer, HANC WAStiAP.!.F 7 few \I--IC>:

terns1 end EX L,ARGE .: ?!,;:I!.oc ~‘1

Select wash and rinse water tem-

peratures by pushing a button.

* Thusdrawrng shows a warm wash

[top temperature) and cold rrnse

ibottom temperature) selectron

?ecornmended wash temperatures

.:an oe foilnd in your “Laundry Guide.”

3. Start the washer

Push in the Control Knob and

turn it to the right. It must be

pushed in and turned only

clockwise.

6. Stop on a number in the cycle

you want. The numbers are min-

utes of wash time. The drawing

shows40 minutes of agitation in

the REGULAR Cycle.

Start the washer by pulling out

the Control Knob. The washer

will fill to the level you set with

wash water of the selected

temperature. After filling, the

washer will agitate for the

selected number of minutes.

TOstop the washer at any time

push in the Control Knob. To

restart the washer, pull out the

Control Knob.

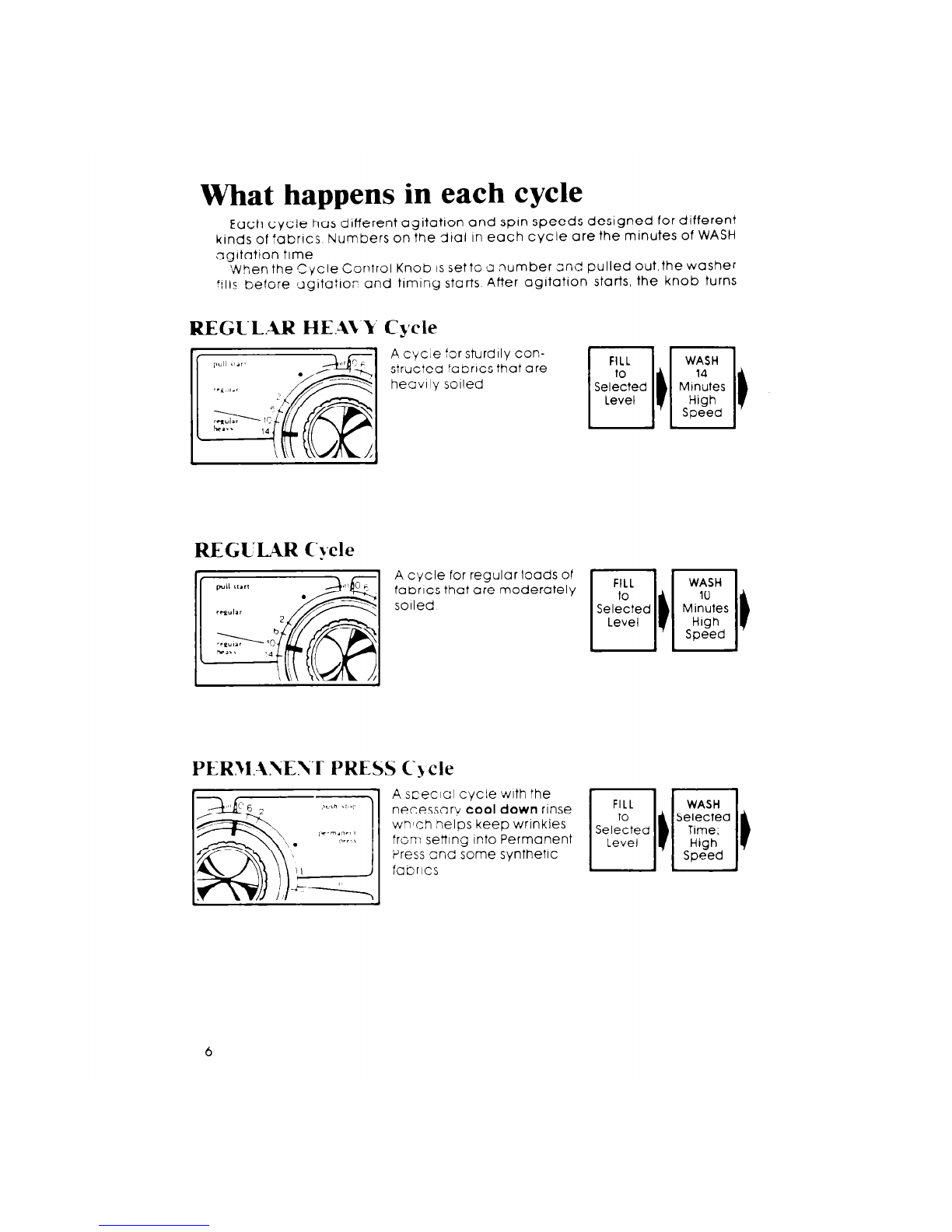

What happens in each cycle

Each cycle has different agitatron and sprn speeds designed for different

kinds of fabncs Numbers on the dtal In each cycle are the minutes of WASH

cigrtation trme

When the Cycle Control Knob ISsetto d number znd pulled out,the washer

f~llc before ogrtatror and trming starts After agitatron starts, the knob turns

REGULAR Cycle

A cycie tar sturdily con-

structea fcbrlcs that are

heavily soiled

A cycle for regular loads of

fabrics that are moderately

sorled WASH

, Minutes

High

Speed

PERJI.4SESl- PRESS C‘s cle

A sceclcl cycle with the

necessary cool down rinse

which helps keep wrrnkies

front settrng Into Permanent

Press c;nd some synthetic

clockwise until it points to OFF and the cycle ends.

NOTE:You may hear the sound of water spraying during the spin parts of

some cycles. In some cycles, cold water is sprayed on the spinning load to

help with the rinsing

KNITS/GESTLE Cycle

6 cycle that gentiy washes

and spins delicate items

and washable knits

Sl:PER Wl4SH Qcle

Use for washing heavily

soiled loads that require

maximum soil removal.

Double the amount of de-

~~~::~:~::,‘“,A,,

SOAK .4ND PRE-W, ASH Cycles

Brief periods of agitation

and soak time help remove

heavy soils and certain

stains that need extra

pretreatment. Use recom-

mended amount of

detergent or pre-soak

additive. The SOAK Cycle

should always be fol-

lowed by a Wash Cycle.

WASH

Selected

Time,

tow

Speed

WASH

Minutes

High

Speed

)

The washer will proceed to

the Regular/Heavy Cycle. If

you want a different cycle to

follow Super Wash, push in

the cycle control knob, turn

to the cycle and time you

want, pull knob out to start.

+ Pre-wash setting begins here, (see pagelo).

Special care is needed when soaking or pre-washing laundry

See your “Laundry Guide” for proper use of this cycle.

Other operating instructions

For a rinse and spin For a drain and spin

You may neec: an extra rinse and

spin for heavily solled loads which

need more detergent. (Extra de-

tergent can requtre an extra rinse.]

Push Control Knob In

. Turn clockwlse to any ‘on the dial.

See above drawing

Pull Control knob out

The washer WIII fill to selected

level; agitate 2 minutes; drain

and spin.

Your washer can be set to drain

and spin out water.

= Push Control Knob in.

0 Turn clockwlse to the bar just before

OFF in any cycle. See above

drawing.

Pull Control Knob out.

The washer will drain and spin.

For agitation and spin speeds in each cycle,see pages 6-9.

For a soak

Use recommended amount of

For best results. use warm water for detergent or pre-soak product.

soaking stained laundry Hot water

Push Control Knob in.

can set stains.

Turn clockwise to point at a number

in the SOAK Cycle?

Pull Control Knob out to start washer.

When the cycle is over, add de-

tergent for the next selected wash

cycle. The SOAK Cycle should

always be followed by a Wash

Cycle.

Important: See additional care

information on page 7 of your

“laundry Guide!’

‘To start soak with agitation, the Cycle Control Knob

must point to a number in the SOAK Cycle.

Cleaning the lint ftiter

Water runs through the lint filter

whenever the washer agitates

Check it ofien to make sure it’s clean

and is filtering at its best.

To remove it for cleaning. press the

release and pull straight out. Instruc-

tions for cleaning are printed on the

bottom of the filter
