TOP AND CABINET PARTS

For Model: LBR2121DW0

(WHITE)

7−96 Litho in U.S.A. (L.T.) Part No. 881194

AUTOMATIC WASHER

TOP AND CABINET PARTS

LITERATURE AND OPTIONAL PARTS

For Model: LBR2121DW0

(WHITE)

881194

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

357213

Nut, Push−In (2)

Top

3358239

White

62750

Spacer, Cabinet To

Top (4)

Cabinet

63128

White

62780

Clip, Top & Cabinet

& Rear Panel (2)

3356311

Screw & Washer,

Lid Switch (2)

3352631

Switch, Lid

3351355

Screw, Lid Hinge

Mounting (4)

54584

Hinge, Lid (L.H.)

54583

Hinge, Lid (R.H.)

19119

Bumper, Lid Hinge

21258

Bearing, Lid

Hinge (2)

Lid

3351652

White

358684

Strike, Lid Switch

93770

Bumper, Lid (2)

384435

Screw,

10−16 x 1/2 (4)

90016

Clip, Harness

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT3360057

Sheet, Installation

Instructions

LIT3363551

Guide, Use and

Care

LIT3361385

Energy Guide

LIT3351738

Label, Wiring

Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT4313896

Manual, (Washer)

Do−It−Yourself

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017

White

72107

Almond

72110

Golden Harvest

PAINT, PRESSURIZED SPRAY

(13 oz.)

350938

Primer, Gray

350930

White

350956

Almond

261890

Golden Harvest

PAINT, BULK (1 qt.)

799344

White (Uncut)

978883

Almond (Uncut)

261891

Golden Harvest

(Uncut)

OIL

350572

Oil, Gearcase

(16 Oz.)

LUBRICANT

285208

Lubricant (Use

Only in Brake

Shoe Assembly

On Roller and

Pin)

SEALER

285195

Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

SHIPPING KIT

3348675

Shipping Kit

ACCESSORY PARTS

89121

Stand−Pipe Kit

367031

Drain Protector

285320

Siphon Break Kit

CONTROLS AND REAR PANEL PARTS

For Model: LBR2121DW0

(WHITE)

881194

CONTROL AND REAR PANEL PARTS

For Model: LBR2121DW0

(WHITE)

881194

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

16123

Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

3354858

Hose, Water

Inlet (2)

3357027

Nozzle−Drain

Hose

387402

Hinge, Console (2)

3357976

Panel, Rear

62747

Pad, Rear Panel

661575

Hose, Drain

(4’− 8")

661577

Hose, Drain

(9’− 9")

(Not Included)

3357090

Extension,

Drain Hose

(21 Inches.)

(Not Included.)

3946451

Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

90767

Screw, 8A x 3/8

64102

Switch, Water Level

3358897

Bracket, Control

3360514

Cord, Power

63848

Strain Relief,

Power Cord

Cap, End (L.H.)

3358530

Black/Chrome

96160

Screen, Filter (2)

3360392

Valve, Water

Mixing

90864

Screw,

10−24 x 3/8 (2)

370451

Clamp, Hose

272846 (Alt.)

353367 (Alt.)

62662

Hose, Vacuum

Break

371503

Clamp, Hose

3347034

Break, Vacuum

63290

Support, Rear

Panel

3361805

Hose−Corrugated

Assy.

356138

Clamp, Hose

371502

Clamp, Hose

660628

Clamp, Hose

272858 (Alt.)

370447 (Alt.)

353097 (Alt.)

62731

Hose, Pump To Tub

96435

Screw, Timer

Mounting

(10−32 x 1) (2)

3947790

Panel, Console

3358418

Knob, Timer

3946260

Dial, Timer

3353145

Screw, 8−18

(Panel to Top)

62863

Screw, 10−16 x 3/8

Cap, End (R.H.)

3358515

Black/Chrome

3357331

Clamp, Drain

Hose

3357011

Screw,

10−16 X 1/2

3947388

Harness, Wiring

(For Detail See

Page 9.) Also

See Clips.

AGITATOR, BASKET AND TUB PARTS

For Model: LBR2121DW0

(WHITE)

881194

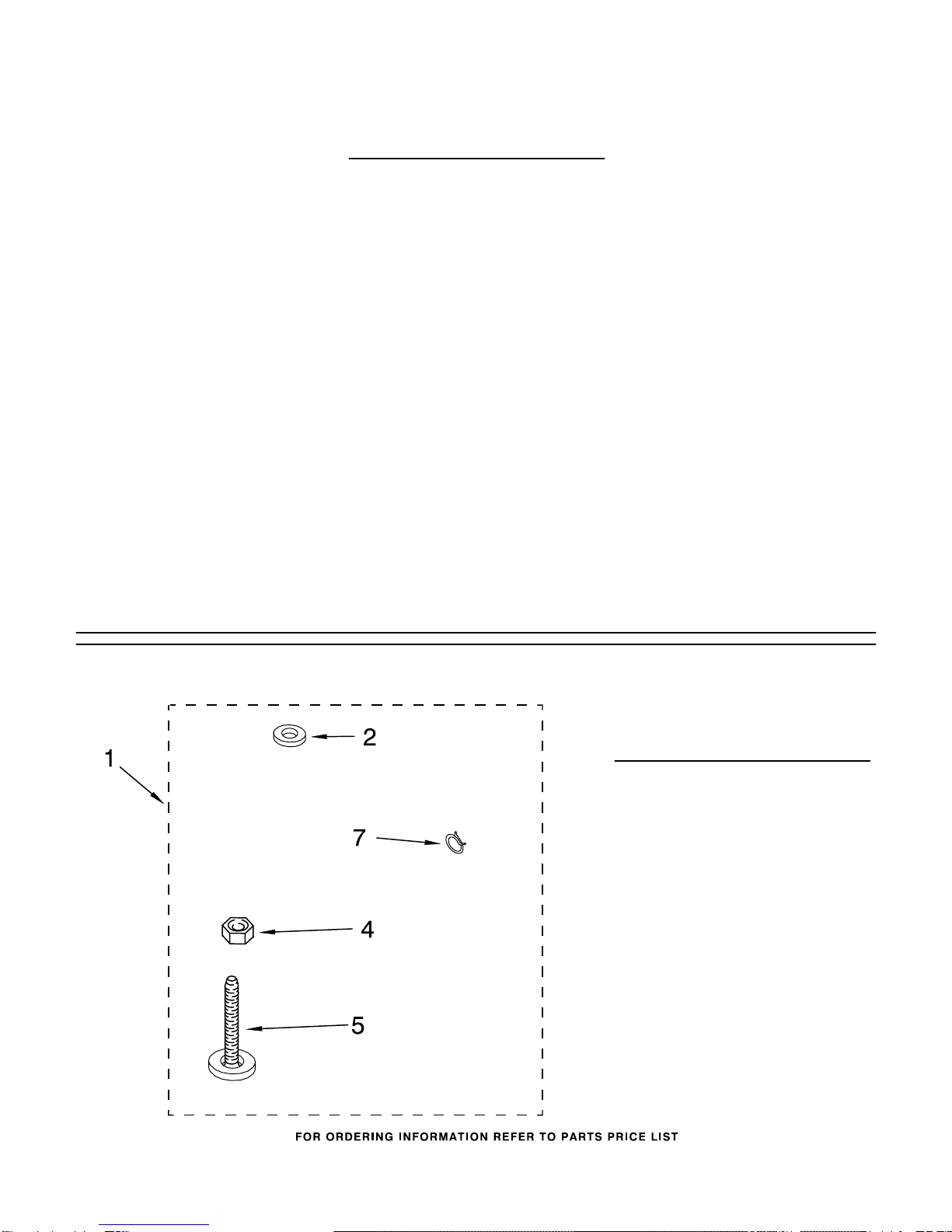

MISCELLANEOUS PARTS

AGITATOR, BASKET AND TUB PARTS

For Model: LBR2121DW0

(WHITE)

881194

Illus. Part

No. No. DESCRIPTION

3355758

Cap, Agitator

358237

Screw & Washer

(5−16−24 x 1)

3350151

Agitator

3360611

Tub Ring & Gasket

Assy.

3359586

Gasket, Tub Ring

387867

Clip, Balance

Ring (8)

387868

Balance Ring

21366

Nut, Spanner

387713

Basket & Balance

Ring

63125

Tub

389140

Block, Basket

Drive

383727

Gasket, Centerpost

386757

Hose, Pressure

Switch

Illus. Part

No. No. DESCRIPTION

3356711

Miscellaneous

Parts Bag

16123

Washer, Inlet

Hose

(1−1/16 x 5/8) (4)

62739

Nut, Lock (2)

(3/8−16)

389102

Foot, Front (2)

356138

Clamp, Hose

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Model: LBR2121DW0

(WHITE)

881194

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

388951

Brake & Drive

Tube (Complete)

(Refer to Page 10

For Further

Breakdown)

63292

Washer, Spin

Tube Thrust

62697

Ring, Spin

Tube Support

63283

Ring, Retainer

3946794

Clutch (Complete)

3946793

Band & Lining,

Clutch (Includes

Illus. 7 & 8)

62646

Cap, Clutch

Spring (2)

3363337

Spring, Clutch

3360630

Gearcase

(Complete)

(Refer To Page

11 For Further

Breakdown.)

3357334

Screw, Gearcase

To Base (3)

62611

Plate, Motor

Mount To

Gearcase

62691

Grommet, Motor (4)

3364003

Coupling, Motor

And Isolation

Coupling

3946532

Shield, Motor

3357334

Screw

3349637

Retainer, Motor (2)

3362089

Shield, Tub

To Motor

661599

Motor, Main

Drive

62850

Switch, Main

Drive Motor

62700

Retainer, Pump (2)

3363394

Pump (Complete)

3387485

Screw (2)

10−16 x 5/8

3355454

Clip,

Anti−Rattle

62863

Screw,

10−16 x 3/8

357021

Capacitor

357030

Clamp, Capacitor

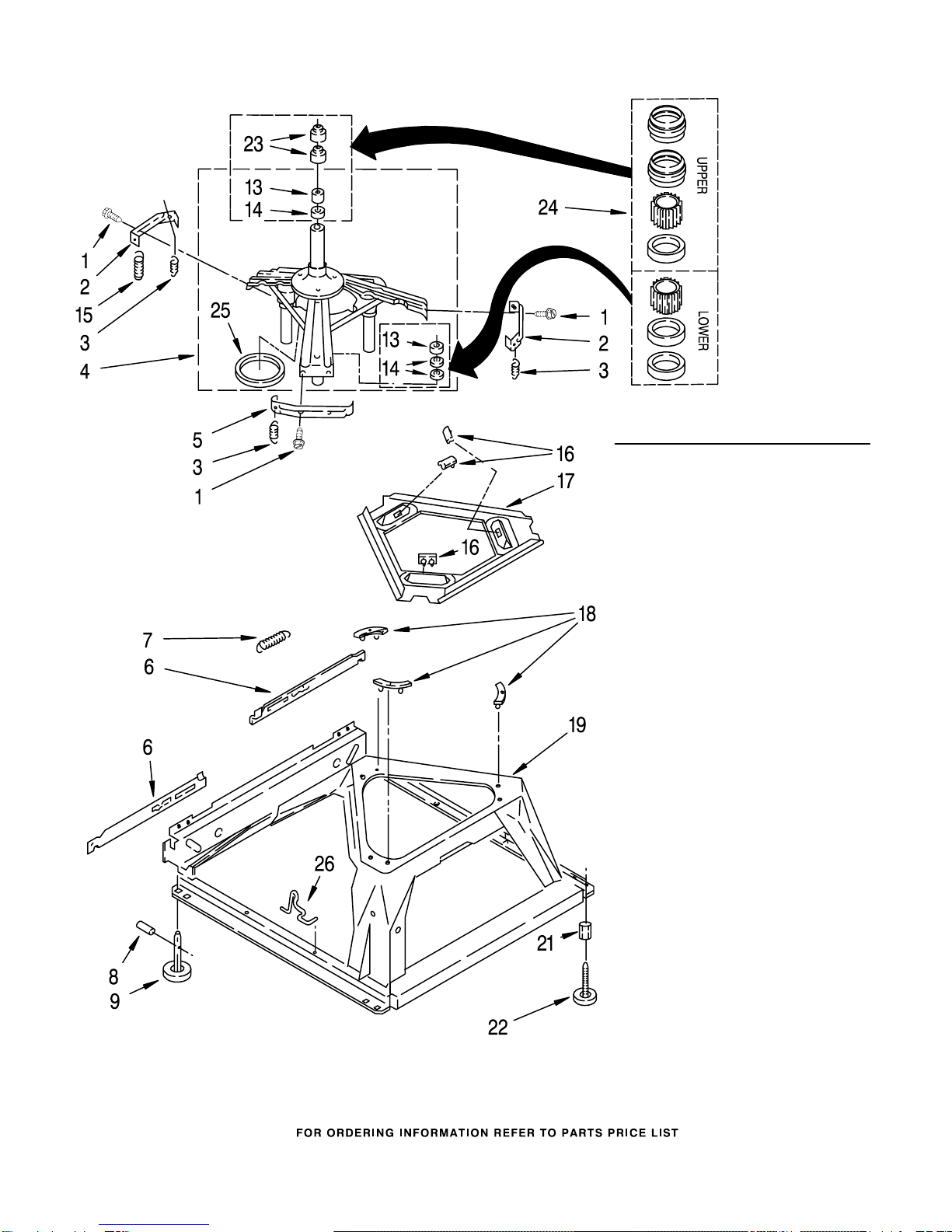

MACHINE BASE PARTS

For Model: LBR2121DW0

(WHITE)

881194

Illus. Part

No. No. DESCRIPTION

343641

Screw, Bracket

Mounting

(10−16 x 1/2)

64067

Bracket, Spring

Outer (2)

63907

Spring (3)

3362087

Support & Brake,

Tub

64065

Bracket, Spring

Outer (L.F.)

3348725

Link, Leveling

Mechanism (2)

62597

Spring, Leveling

Mechanism

62837

Pin, Knurled

62596

Foot, Rear (2)

3347047

Bearing,

Centerpost (2)

357409

Seal, Centerpost (3)

388492

Spring,

Counterweight

62568

Pad, Plate

3946509

Plate, Suspension

(Includes Illus. 16)

3363660

Pad, Base

3349337

Base Assembly

(Includes Illus, 6,

7, 8, 9, 18 & 26)

62739

Nut, Lock

(3/8−16) (2)

389102

Foot, Front (2)

356934

Seal, Centerpost (2)

285203

Centerpost

Bearing Kit

(Includes Illus.

13, 14 & 23)

63134

Ring, Sound

Deadening

63806

Retainer,

Suspension Spring

WIRING HARNESS PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

WH2D

1 3349557 Clip, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 389379 Retainer,

(Suds Models)

8 352090 Timer, Block

Disconnect

(White)

9 352089 Timer, Block

Disconnect

(Black)

10 62889 Receptacle,

Terminal

(3−Way)

(Lid Switch)

(Use Term.94613)

Or 94614.)

11 353424 Plug, Terminal

(3−Way)

(Power Cord)

(Use Term.94613)

12 62505 Block, Disconnect

(Motor 2 Speed)

(Use Term.352088)

13 3348075 Block, Disconnect

(Motor 3 Speed)

(Use Term. 94613

Or 94614.)

14 3347243 Block, Disconnect

(Use Term. 352088)

15 63523 Protector

16 717252 Connector

(2−Way)

(Use Term.94614)

17 387566 Plug, Terminal

(4−Way)

(Power Cord)

(Use M3 Screws)

18 3352944 Clip, Harness

19 3390423 Block, Disconnect

(12−Way)

(Timer)

(Use Term. 94613)

20 3347730 Receptacle

(6−Way)

(Use Term. 94613)

21 388818 Plug, Terminal

(12−Way)

(Use Term. 94613

Or 94614.)

22 3369366 Timer, Block

Disconnect

(Black) (Amp)

(Use Term.3369365)

23 3349494 Connector, Etc

24 60687 Connector, Relay

(Use Term.308569

Or 338664.)

25 3407125 E.T.C. Control

For Model: LBR2121DW0

(WHITE)

881194

BRAKE AND DRIVE TUBE PARTS

Illus. Part

No. No. DESCRIPTION

1 388951 Brake And Drive

Tube (Complete)

2 62658 Ring, Thrust

3 91939 Seal, Oil

4 356427 Seal, Drive Tube

5 356937 Spacer, Drive

Tube

6 64027 Tube, Basket

Drive (Includes

Illus. 3, 4, 5 & 9)

7 64035 Ring, Retaining

8 64232 Brake Shoe

9 62703 ‘‘T’’ Bearing,

Spin Tube

10 62648 Cap, Brake

Spring (2)

11 62647 Spring, Brake

12 62909 Sleeve, Brake

Spring

13 63023 Cam, Brake

Release

14 63022 Sleeve, Cam

15 64194 Driver, Brake

Cam

16 90368 Ring, Retaining

FOLLOWING PARTS

NOT ILLUSTRATED

285208 Lubricant

(Use Only In

Brake Shoe

Assembly On

Roller & Pin)

For Model: LBR2121DW0

(WHITE)

881194

Inhaltsverzeichnis

Andere Whirlpool Waschmaschine Handbücher

Whirlpool

Whirlpool LHW0050P Handbuch

Whirlpool

Whirlpool FDLR70210 Bedienungsanleitung

Whirlpool

Whirlpool LC4500XT Bedienungsanleitung

Whirlpool

Whirlpool WVFC750AJGR Bedienungsanleitung

Whirlpool

Whirlpool Cabrio WTW8800YW Bedienungsanleitung

Whirlpool

Whirlpool LA5000XP Bedienungsanleitung

Whirlpool

Whirlpool AWO/D 3080 Bedienungsanleitung

Whirlpool

Whirlpool Duet WFW9470WW Bedienungsanleitung

Whirlpool

Whirlpool WTW4955HW Bedienungsanleitung

Whirlpool

Whirlpool FFB 9469 BV SPT Bedienungsanleitung

Whirlpool

Whirlpool CABRIO W10373818A Bedienungsanleitung

Whirlpool

Whirlpool WFW9700VW - Duet Steam -Front Load Washer Bedienungsanleitung

Whirlpool

Whirlpool LA5580XM Bedienungsanleitung

Whirlpool

Whirlpool AWO 5761 Bedienungsanleitung

Whirlpool

Whirlpool BI WDWG 961484 EU Bedienungsanleitung

Whirlpool

Whirlpool TDLR70234 Installationsanleitung

Whirlpool

Whirlpool WASHER Bedienungsanleitung

Whirlpool

Whirlpool Top Loading Washing Machine Bedienungsanleitung

Whirlpool

Whirlpool LA65OOXS Bedienungsanleitung

Whirlpool

Whirlpool LA5311XP Bedienungsanleitung

Whirlpool

Whirlpool ALA 102 Bedienungsanleitung

Whirlpool

Whirlpool GLA7900XM Bedienungsanleitung

Whirlpool

Whirlpool duet sport WFW8300SW01 Bedienungsanleitung

Whirlpool

Whirlpool WTW8200Y Series Stücklistenhandbuch

Beliebte Waschmaschine Handbücher anderer Marken

Tricity Bendix

Tricity Bendix AW 1000 W Produkthandbuch

Panasonic

Panasonic NA-F60L5WRB Bedienungsanleitung

GE WSLP1500 Handbuch

Electrolux

Electrolux EWF1284EDW Bedienungsanleitung

Bosch

Bosch WAN2829BSN Bedienungsanleitung

LG TV2516DV3B Bedienungsanleitung

LG TH2517DSAV Bedienungsanleitung

VESTEL

VESTEL CMH-XL 7510 TE Bedienungsanleitung

AEG

AEG 74335 Bedienungsanleitung

Johnson

Johnson JWF721A Bedienungsanleitung

Beko

Beko WTE7604XLW0 Bedienungsanleitung

Danby

Danby DTT100A1WDB Montageanleitung

Amica

Amica WA 14 Ex Bedienungsanleitung

Daewoo

Daewoo DWD-F1222 Bedienungsanleitung

Bosch

Bosch WAS28461AU Bedienungsanleitung

Miele

Miele PW 6080 Vario Bedienungsanleitung

Finlux

Finlux FLX108CF220 Bedienungsanleitung

Beko

Beko WKB 51231 PTMA Bedienungsanleitung
