TOP AND CABINET PARTS
1
For Model: LHW0050PQ2
(White)
9−05 Litho in U.S.A. (rcg) Part No. 8180823
COMPACT AUTOMATIC
WASHER
TOP AND CABINET PARTS
2
For Model: LHW0050PQ2
(White)
8180823
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8565591 Use & Care Guide
8182467 Wiring Diagram
8182569 Energy Guide
2 8182721 Cover, Filter
3 8182719 Top
4 8182589 Panel, Rear
5 8182325 Clamp, Hose
6 8182338 Screw
7 8182324 Clamp, Hose
8 8182319 Bottom Plate
9 8182323 Screw
10 Hinge
(Not Serviced)
11 8182321 Clip, Harness
12 8182322 Support, Harness
13 8182328 Clip
14 8182330 Control, Inverter
15 8182333 Screw
16 Cabinet
(Not Serviced)
17 8182331 Bracket
18 8182332 Shield
19 8182334 Foot, Leveling
20 8182337 Nut
21 8182722 Electronic Control
22 8182342 Bracket, Contrl
23 8182388 Switch, Pressure
24 8182341 Screw
25 8182645 Filter
26 8182392 Power Cord
27 8182394 Harness, Main
28 8182690 Microswitch, Door
29 8182718 Bracket
30 8182401 Screw
31 8182731 Strain Relief
32 8182732 Screw

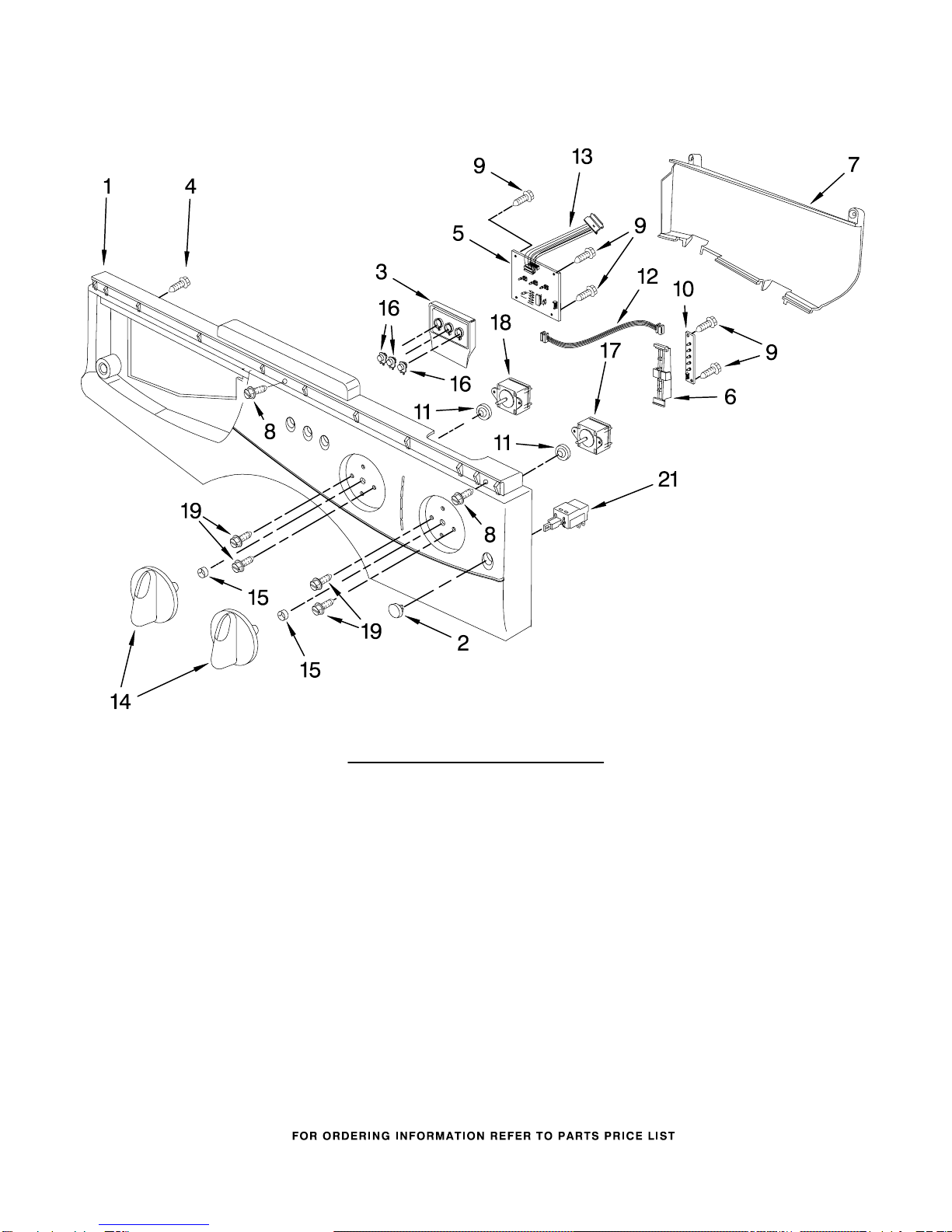

CONTROL PANEL PARTS
3
For Model: LHW0050PQ2
(White)
8180823
Illus. Part
No. No. DESCRIPTION
1 8182348 Control Panel
2 8182725 Button
3 8182350 Housing
4 8182720 Screw
5 8182351 Control, PCB
6 8182353 Support
7 8182354 Shield
8 8182355 Screw
9 8182352 Screw (6)
10 8182356 LED, PCB
11 8182357 Gasket
12 8182358 Cable
13 8182359 Cable, Ribbon
14 8182360 Knob (2)
15 8182361 Spring, Knob
16 8182362 Push Button (3)
17 8182724 Switch, Cycle
18 8182346 Switch, Spin Speed
19 8182723 Screw
21 8182395 Switch, On/Off
DOOR PARTS
4
For Model: LHW0050PQ2
(White)
8180823
Illus. Part
No. No. DESCRIPTION
1 8182406 Door, Outer Frame
2 8182410 Retainer
3 8182333 Screw
4 8182405 Door Glass
5 8182412 Screw
6 8182414 Inner Frame
7 8182404 Inner Ring
8 8182403 Door Gasket
9 8182402 Outer Ring
10 8182733 Screw
11 8182413 Spring, Door Catch
12 8182401 Screw
13 8182407 Microswitch
14 8182408 Door Handle

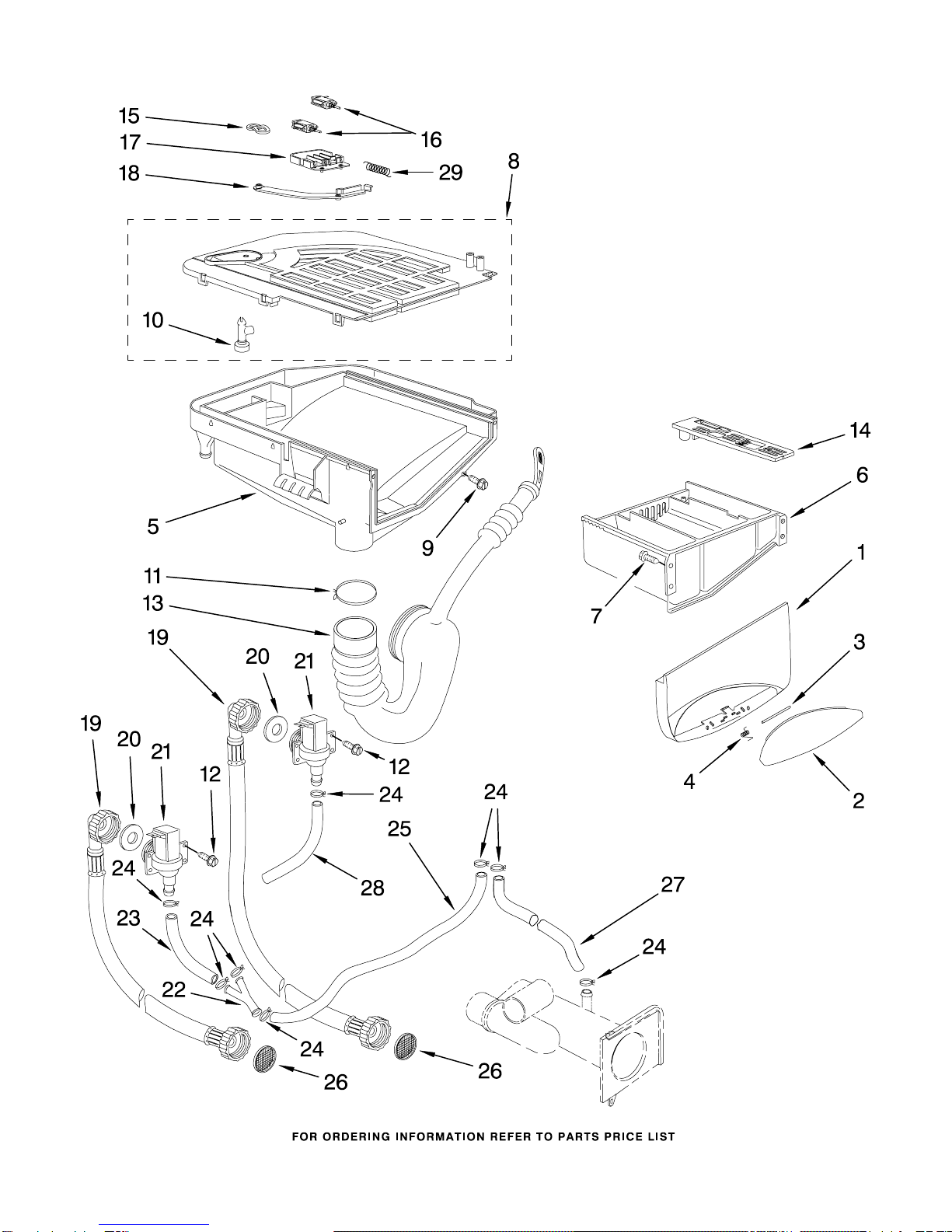

DISPENSER PARTS
5
For Model: LHW0050PQ2
(White)
8180823
DISPENSER PARTS
6
For Model: LHW0050PQ2
(White)
8180823
Illus. Part
No. No. DESCRIPTION
1 8182371 Handle, Drawer
2 8182729 Overlay
3 8182383 Pin
4 8182730 Spring
5 8182367 Housing, Dispenser
6 8182370 Drawer, Detergent
7 8182377 Screw
8 8182727 Cover, Drawer
9 8182376 Screw
10 8182378 Dispenser
11 8182375 Clamp
12 8182323 Screw
13 8182373 Hose, Drawer
14 8182372 Cover, Bleach
15 8182379 Link
16 8182366 Actautor (2)
17 8182365 Bracket, Actuator
18 8182364 Arm
19 Hose, Fill
8182389 Cold
8182397 Hot
20 8182390 Washer
21 Water Valve
8182387 Cold
8182398 Hot
22 8182380 Connector
23 8182381 Hose
24 8182374 Clamp, Hose (8)
25 8182386 Hose
26 8182396 Screen
27 8182399 Hose
28 8182728 Hose
29 8182726 Spring
BASKET AND TUB PARTS
7
For Model: LHW0050PQ2
(White)
8180823
BASKET AND TUB PARTS
8
For Model: LHW0050PQ2
(White)
8180823
Illus. Part
No. No. DESCRIPTION
1 8182441 Tub
2 8182454 Basket
3 8182737 Pulley
4 8182444 Baffle
5 8182450 Drive Belt
6 8182539 Nut
7 8182445 Gasket, Tub
8 8182440 Screw
9 8182446 Counterweight,
Bottom
10 8182448 Heater
11 8182447 Motor, Main Drive
12 8182457 Washer
13 8182453 Washer
14 8182439 Shock Absorber
15 8182451 Bushing
16 8182443 Screw
17 8182456 Thermostat
18 8182432 Screw
19 8182458 Screw, Ground
20 8182433 Thermal Cutoff
21 8182435 Gasket
22 8182455 Cover, Rear Tub
(Includes Seal
& Bearings)
23 8182459 Screw (Ground)
24 8182434 Support, Element
25 8182436 Washer
26 8182437 Bushing, Upper
27 8182438 Bushing, Lower
28 8182442 Washer
29 8182739 Kit, Motor Mount
30 8182736 Vent Tube, Upper
31 8182412 Screw
32 8182568 Ring, Locking
33 8182734 Vent Tube, Lower
34 8182735 Elbow, Right
35 8182571 Clamp, Hose

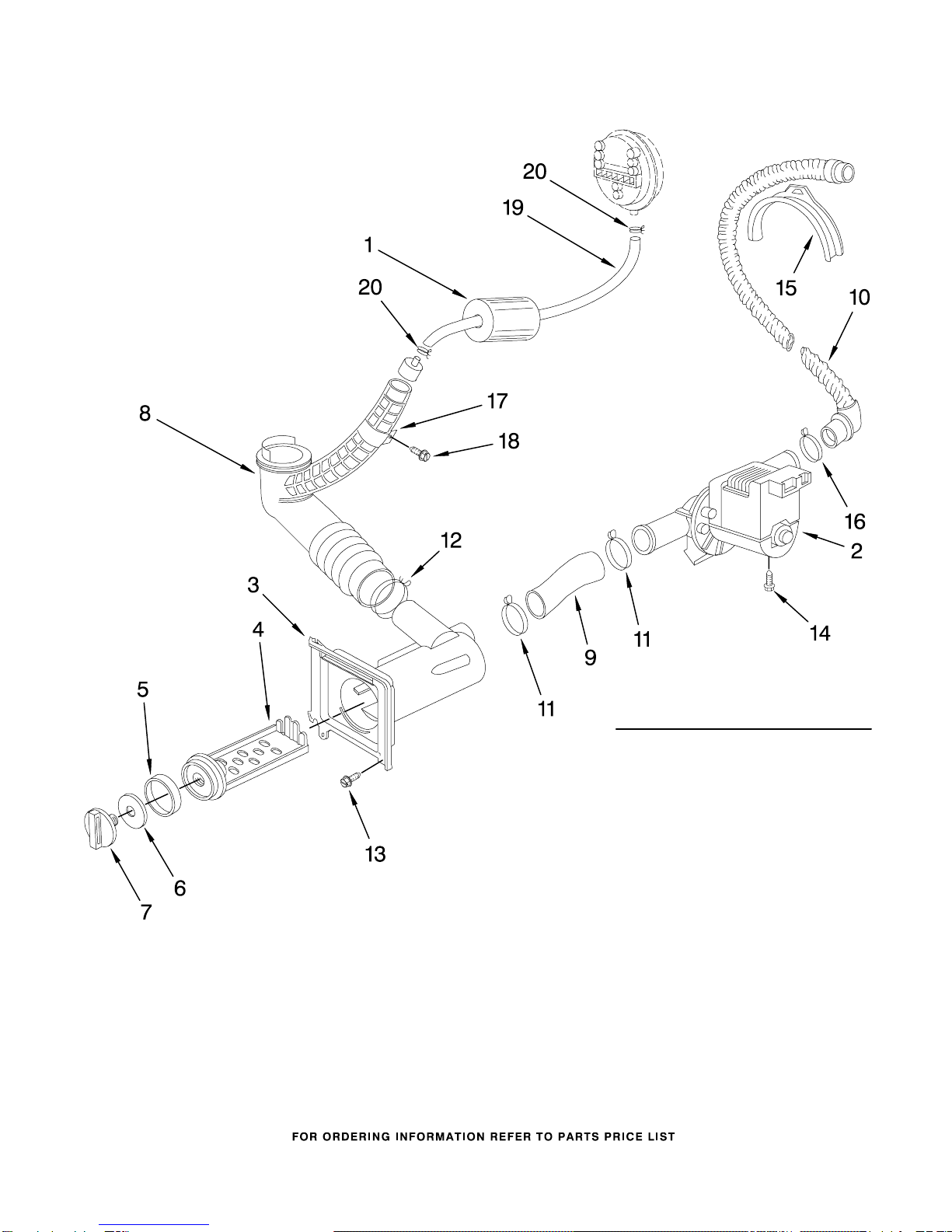

PUMP PARTS
9
For Model: LHW0050PQ2
(White)
8180823
Illus. Part
No. No. DESCRIPTION
1 8182385 Grommet
2 8182415 Pump
3 8182416 Housing, Filter
4 8182417 Filter
5 8182418 Gasket
6 8182419 Washer
7 8182420 Cap
8 8182421 Hose
9 8182422 Hose
10 8182423 Hose, Drain
11 8182424 Clamp, Hose
12 8182425 Clamp, Hose
13 8182426 Screw
14 8182427 Screw
15 8182428 Bracket, Hose
16 8182429 Clamp, Hose
17 8182430 Support
18 8182431 Screw
19 8182409 Hose, Pressure
Switch
20 8182375 Clamp, Hose
OPTIONAL PARTS (NOT INCLUDED)
10
For Model: LHW0050PQ2
(White)
8180823
Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
PAINT, PRESSURIZED SPRAY
(12 oz.)
350938 Primer, Gray
350930 White
PAINT, BULK (1 qt.)
799344 White (Uncut)
ACCESSORIES
8182452 Stack Kit
285987 Shipping Kit
