Whirlpool LLR7144DQ0 Bedienungsanleitung

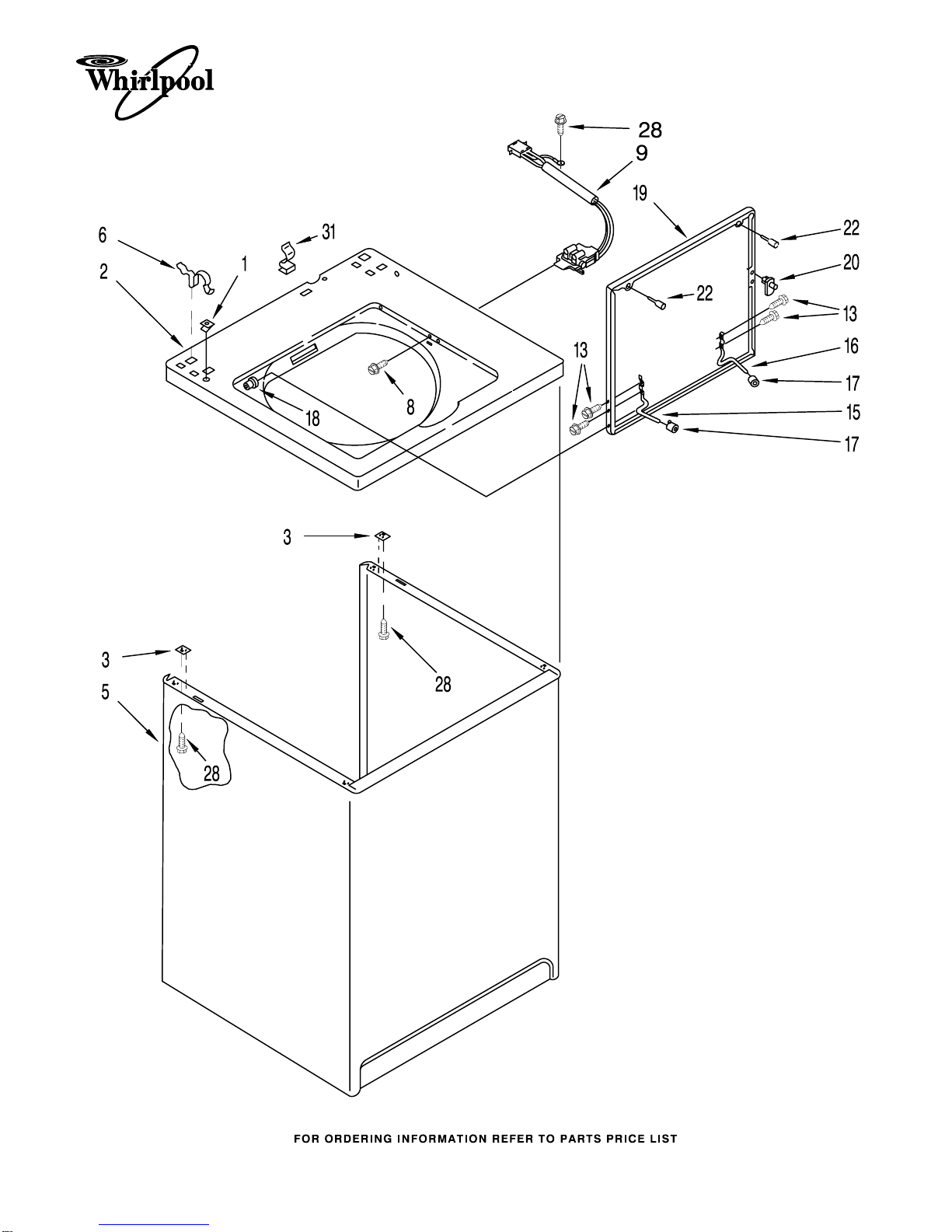

TOP AND CABINET PARTS

For Models: LLR7144DQ0, LLR7144DW0, LLR7144DZ0

(Designer White) (White) (Designer Almond)

6−96 Litho In U.S.A.(L.T.) Part No. 881283 Rev.A.

AUTOMATIC

WASHER

TOP AND CABINET PARTS

LITERATURE AND OPTIONAL PARTS

For Models: LLR7144DQ0, LLR7144DW0, LLR7144DZ0

(Designer White) (White) (Designer Almond)

881283

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 357213 Nut, Push−In (2)

2 Top

3949310 For White And

Designer White

Models

3949311 For Designer

Almond Model

3 62750 Spacer, Cabinet To

Top (4)

5 Cabinet

63424 For White And

Designer White

Models

63425 For Designer

Almond Model

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

8 3356311 Screw & Washer,

Lid Switch (2)

9 3352629 Switch, Lid

13 3351355 Screw, Lid Hinge

Mounting (4)

15 54584 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid

Hinge (2)

19 Lid

3361395 For White And

Designer White

Models

3361396 For Designer

Almond Model

20 358684 Strike, Lid Switch

22 93770 Bumper, Lid (2)

28 384435 Screw,

10−16 x 1/2 (4)

31 90016 Clip, Harness

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT3360057

Sheet, Installation

Instructions

LIT3363567

Guide, Use and

Care

LIT3948649

Energy Guide

LIT3948835

Label, Wiring

Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT4313896

A/W

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

72110 Golden Harvest

PAINT, PRESSURIZED SPRAY

(13 oz.)

350938 Primer, Gray

350930 White

350956 Almond

261890 Golden Harvest

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest

(Uncut)

OIL

350572 Oil, Gearcase

(16 Oz.)

LUBRICANT

285208 Lubricant (Use

Only in Brake

Shoe Assembly

On Roller and

Pin)

SEALER

285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

SHIPPING KIT

3348675 Shipping Kit

ACCESSORY PARTS

63580 Fabric Dispenser

89121 Stand−Pipe Kit

367031 Drain Protector

285320 Siphon Break Kit

CONTROLS AND REAR PANEL PARTS

For Models: LLR7144DQ0, LLR7144DW0, LLR7144DZ0

(Designer White) (White) (Designer Almond)

881283

CONTROL AND REAR PANEL PARTS

For Models: LLR7144DQ0, LLR7144DW0, LLR7144DZ0

(Designer White) (White) (Designer Almond)

881283

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 16123 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

3 Hose, Water

Inlet (2)

3949350 Hose−Inlet

(Blue Coupler)

3949351 Hose−Inlet

(Red Coupler)

4 3357027 Nozzle−Drain

Hose

5 387402 Hinge, Console (2)

6 3357978 Panel, Rear

7 62747 Pad, Rear Panel

8 661575 Hose, Drain

(4’− 8")

661577 Hose, Drain

(9’−9")

(Not Included)

3357090 Extension,

Drain Hose

(21 Inches)

(Not Included)

9 3948323 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

11 90767 Screw, 8A x 3/8

12 3356466 Switch, Water Level

13 3948608 Bracket, Control

14 3948063 Cord, Power

15 3949468 Strain Relief,

Power Cord

16 Cap, End (L.H.)

3358528 For Designer

White Model

3358531 For White Model

3358529 For Designer

Almond Model

18 3360392 Valve, Water

Mixing

19 90864 Screw,

10−24 x 3/8 (2)

21 370451 Clamp, Hose

272846 (Alt.)

353367 (Alt.)

22 3357328 Hose, Vacuum

Break

23 371503 Clamp, Hose

24 3347034 Break, Vacuum

25 63290 Support, Rear

Panel

26 3361805 Hose−Corrugated

Assy.

27 356138 Clamp, Hose

30 371502 Clamp, Hose

31 660628 Clamp, Hose

272858 (Alt.)

370447 (Alt.)

353097 (Alt.)

32 62731 Hose, Pump To Tub

35 3949184 Switch, Water

Temperature

36 96435 Screw, Timer

Mounting

(10−32 x 1) (2)

39 Panel, Console

3948241 For Designer

White Model

3948252 For White Model

3948242 For Designer

Almond Model

44 Knob, Timer

3364291 For Designer

White Model

3364290 For White Model

3364293 For Designer

Almond Model

45 Dial, Timer

3946261 For Designer

White Model

3946260 For White Model

3946262 For Designer

Almond Model

47 Knob, Control

3358435 For Designer

White Model

3358431 For White Model

3358436 For Designer

Almond Model

49 388326 Screw, 8−18

(Panel to Top)

50 62863 Screw, 10−16 x 3/8

51 Cap , End (R.H.)

3358513 For Designer

White Model

3358516 For White Model

3358514 For Designer

Almond Model

55 3357011 Screw,

10−16 x 1/2

58 3357331 Clamp, Drain

Hose

59 3359839 Harness, Wiring

(For Detail See

Page 9.) Also

See Clips.

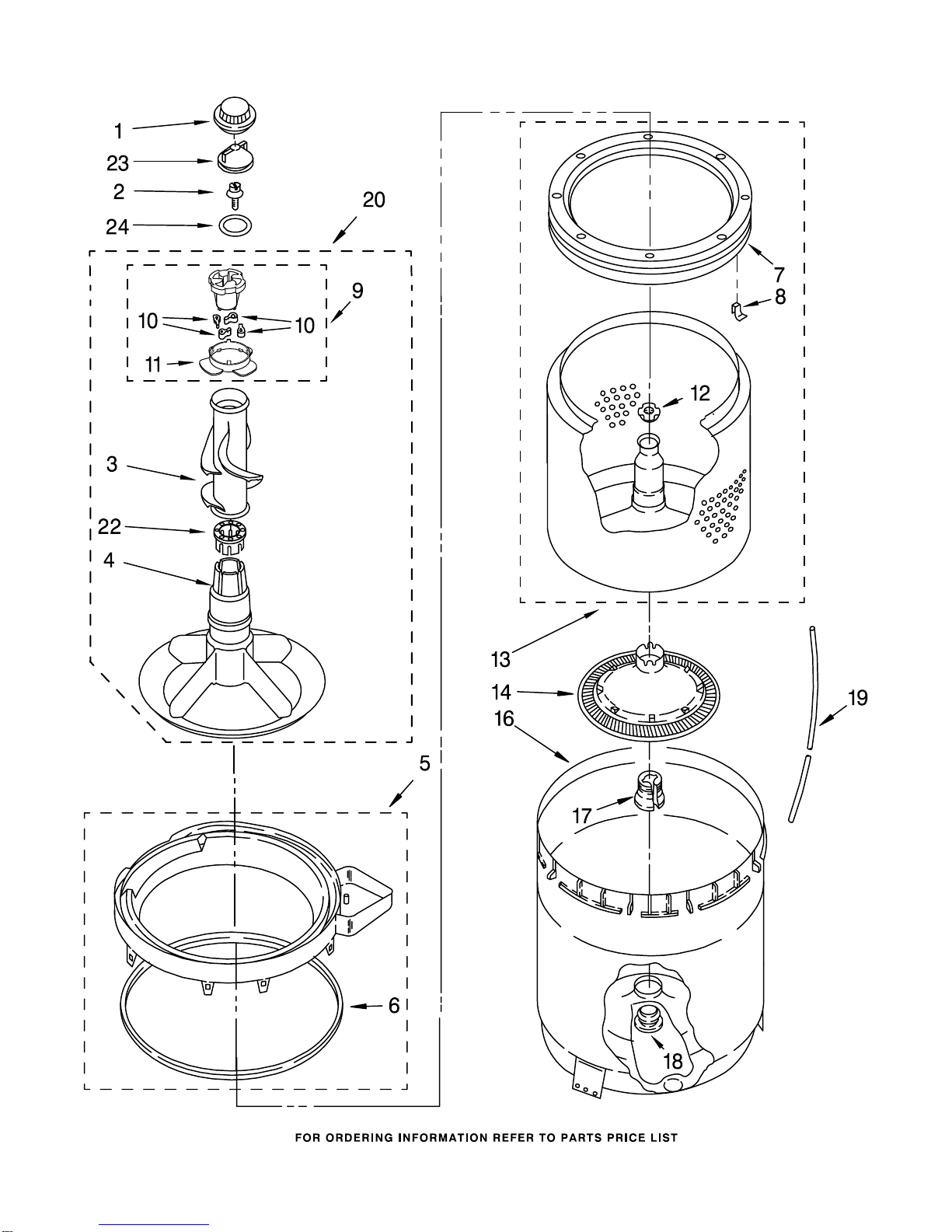

AGITATOR, BASKET AND TUB PARTS

For Models: LLR7144DQ0, LLR7144DW0, LLR7144DZ0

(Designer White) (White) (Designer Almond)

881283

AGITATOR, BASKET AND TUB PARTS

For Models: LLR7144DQ0, LLR7144DW0, LLR7144DZ0

(Designer White) (White) (Designer Almond)

881283

Illus. Part

No. No. DESCRIPTION

1 3355758 Cap, Agitator

2 358237 Screw & Washer

(5−16−24 x 1)

3 3349019 Clothes Mover

4 3350830 Agitator

5 3360611 Tub Ring & Gasket

6 3359586 Gasket, Tub Ring

7 387868 Balance Ring

8 387867 Clip, Balance

Ring (8)

9 3363663 Cam Driven

10 3366877 Dog, Agitator

Clutch

11 3363661 Bearing−Driven

Cam

12 21366 Nut, Spanner

13 387713 Basket & Balance

Ring

14 3361948 Filter, Plate

16 63125 Tub

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

20 3350829 Agitator

(Complete Asy.)

22 3350389 Spacer, Thrust

23 3347290 Cap, Barrier

24 3348855 Seal, Inner Cap

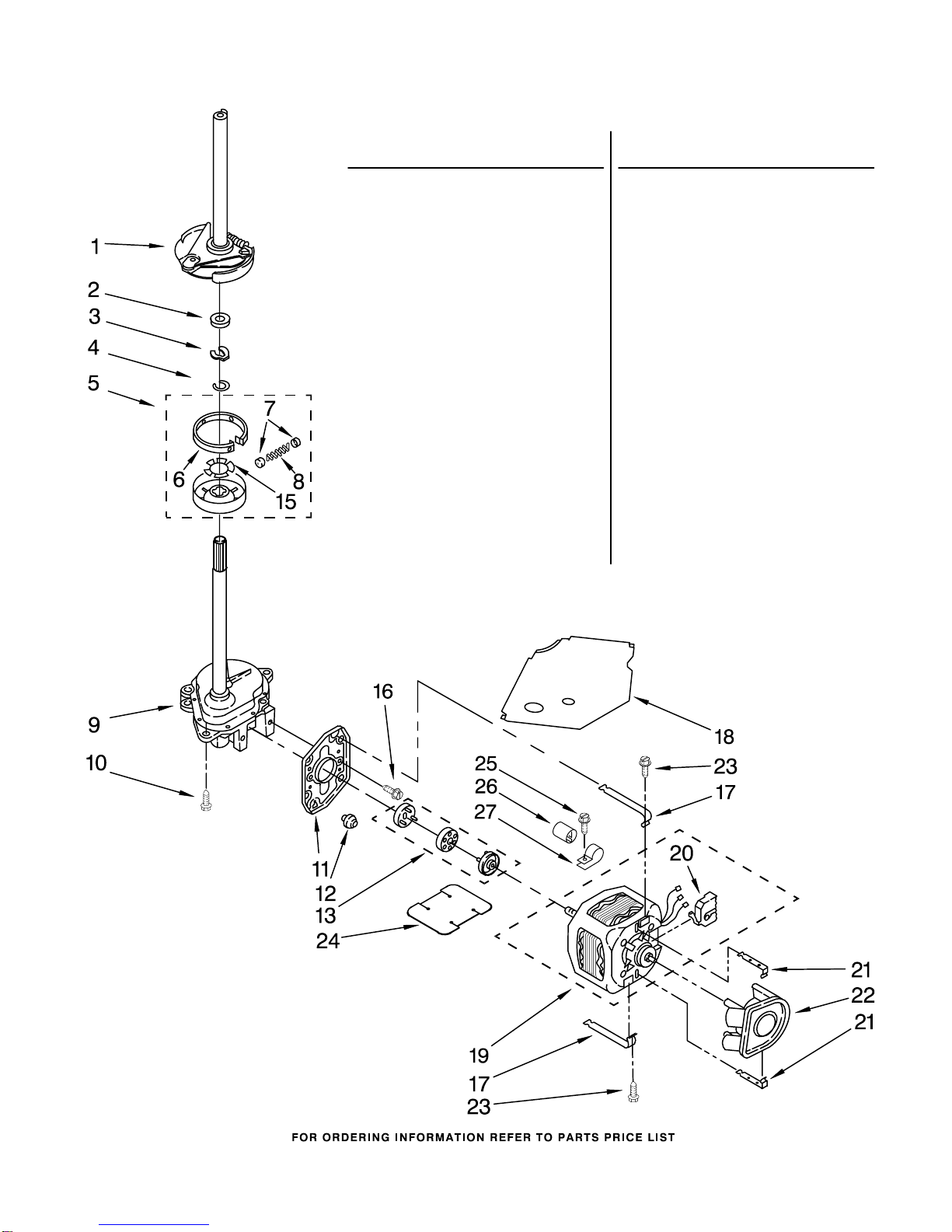

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Models: LLR7144DQ0, LLR7144DW0, LLR7144DZ0

(Designer White) (White) (Designer Almond)

881283

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388951 Brake & Drive

Tube (Complete)

(Refer to Page 11

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3946794 Clutch (Complete)

6 3946793 Band & Lining,

Clutch (Includes

Illus. 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3363337 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 12

For Further

Breakdown

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 3364003 Coupling, Motor

& Isolation

15 3355454 Clip,

Anti−Rattle

16 3357334 Screw

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 661599 Motor, Main

Drive

20 62850 Switch, Main

Drive Motor

21 62700 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3946532 Shield, Motor

25 62863 Screw,

10−16 x 3/8

26 661606 Capacitor

27 357030 Clamp, Capacitor

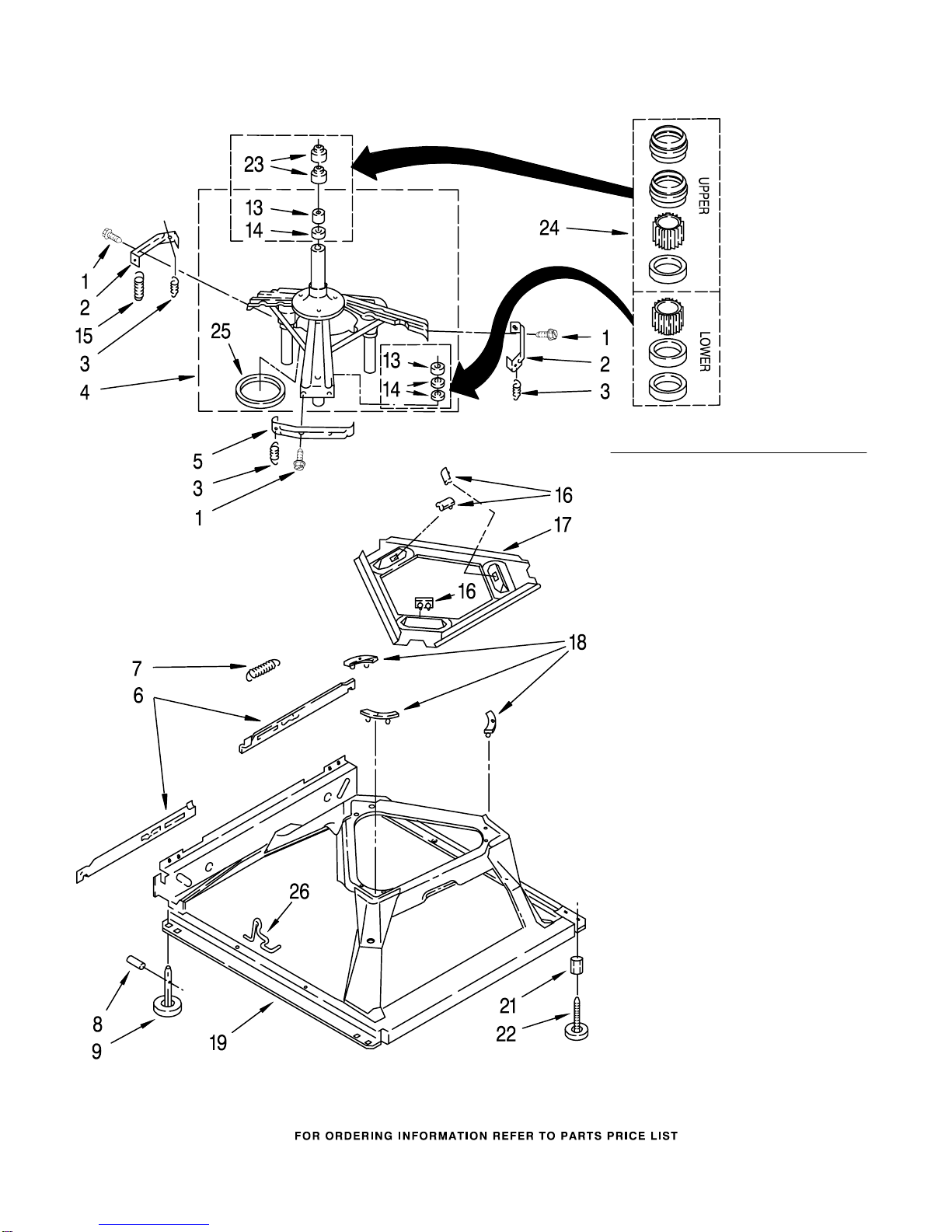

MACHINE BASE PARTS

For Models: LLR7144DQ0, LLR7144DW0, LLR7144DZ0

(Designer White) (White) (Designer Almond)

881283

Illus. Part

No. No. DESCRIPTION

1 3387485 Screw, Bracket

Mounting

(10−16 x 1/2)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 3362087 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 3348727 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

13 3347047 Bearing,

Centerpost (2)

14 357409 Seal, Centerpost (3)

15 388492 Spring,

Counterweight

16 62568 Pad, Plate

17 3946509 Plate, Suspension

(Includes Illus. 16)

18 3363660 Pad, Base

19 3946512 Base Assembly

(Includes Illus, 6,

7, 8, 9, 18 & 26)

21 3359452 Nut, Lock

(3/8−16)

22 389102 Foot, Front (2)

23 356934 Seal, Centerpost (2)

24 285203 Centerpost

Bearing Kit

(Includes Illus.

13, 14 & 23)

25 63134 Ring, Sound

Deadening

26 63806 Retainer,

Suspension Spring

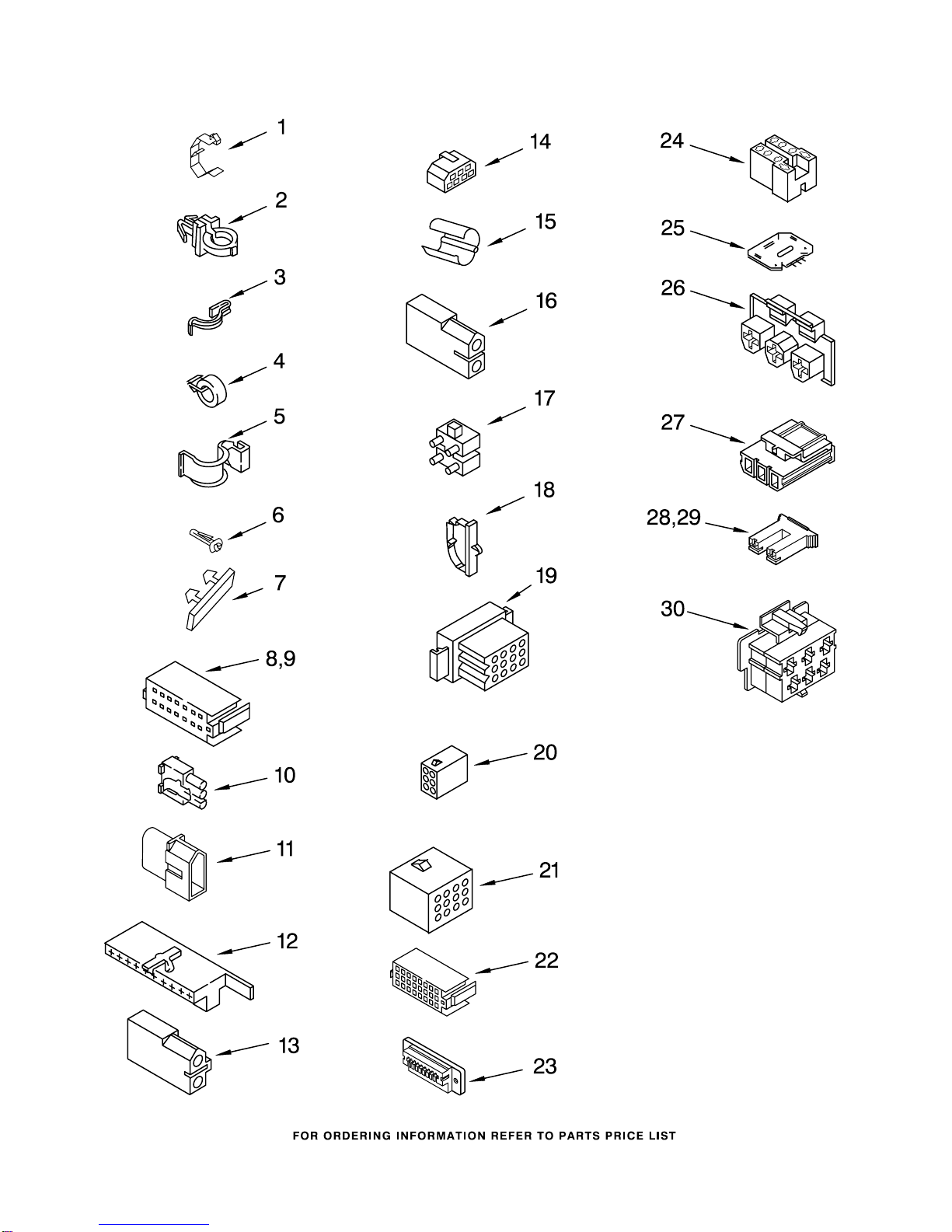

WIRING HARNESS PARTS

WH2E

For Models: LLR7144DQ0, LLR7144DW0, LLR7144DZ0

(Designer White) (White) (Designer Almond)

881283

WIRING HARNESS PARTS

WH2E

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 3349557 Clip, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 389379 Retainer,

(Suds Models)

8 352090 Timer, Block

Disconnect

(White)

9 352089 Timer, Block

Disconnect

(Black)

10 62889 Receptacle,

Terminal

(3−Way)

(Lid Switch)

(Use Term.94613)

Or 94614.)

11 353424 Plug, Terminal

(3−Way)

(Power Cord)

(Use Term.94613)

12 62505 Block, Disconnect

(Motor 2 Speed)

(Use Term.352088)

13 3348075 Block, Disconnect

(Motor 3 Speed)

(Use Term. 94613

Or 94614.)

14 3347243 Block, Disconnect

(Use Term. 352088)

15 63523 Protector

16 717252 Connector

(2−Way)

(Use Term.94614)

17 387566 Plug, Terminal

(4−Way)

(Power Cord)

(Use M3 Screws)

18 3352944 Clip, Harness

19 3390423 Block, Disconnect

(12−Way)

(Timer)

(Use Term. 94613)

20 3347730 Receptacle

(6−Way)

(Use Term. 94613)

21 388818 Plug, Terminal

(12−Way)

(Use Term. 94613

Or 94614.)

22 3369366 Timer, Block

Disconnect

(Black) (Amp)

(Use Term.3369365)

23 3349494 Connector, Etc

24 60687 Connector, Relay

(Use Term.308569

Or 338664.)

25 3407125 E.T.C. Control

26 3948617 Connector (T.P.A.)

(3−Circuit)

(Lid Switch)

27 3360056 Connector (T.P.A)

(3−Circuit)

(Pressure Switch)

28 3354925 Block, Connector

(Cold Valve)

29 3354926 Block, Connector

(Hot Valve)

30 3948615 Connector (T.P.A.)

(6−Circuit)

(Temp. Switch)

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

For Models: LLR7144DQ0, LLR7144DW0, LLR7144DZ0

(Designer White) (White) (Designer Almond)

10 881283

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Waschmaschine Handbücher

Whirlpool

Whirlpool WFE 1490DW Bedienungsanleitung

Whirlpool

Whirlpool AZB 9682 Bedienungsanleitung

Whirlpool

Whirlpool W10222387A Bedienungsanleitung

Whirlpool

Whirlpool Easy-Yo-Use Automatic Washer Bedienungsanleitung

Whirlpool

Whirlpool Commercial Washer Bedienungsanleitung

Whirlpool

Whirlpool LA5580XK Bedienungsanleitung

Whirlpool

Whirlpool Cabrio 6AWTW5550X Bedienungsanleitung

Whirlpool

Whirlpool LA6055XS Bedienungsanleitung

Whirlpool

Whirlpool GSQ9611 Bedienungsanleitung

Whirlpool

Whirlpool Cabrio WTW8700EC Bedienungsanleitung

Whirlpool

Whirlpool Cabrio WTW7800XL3 Bedienungsanleitung

Whirlpool

Whirlpool AWG 751 Bedienungsanleitung

Whirlpool

Whirlpool W11555816B Bedienungsanleitung

Whirlpool

Whirlpool CAM2742TQ Bedienungsanleitung

Whirlpool

Whirlpool W11201742A Bedienungsanleitung

Whirlpool

Whirlpool LA5300XS Bedienungsanleitung

Whirlpool

Whirlpool CFCR70111 Abmessungen und Installationsanleitung

Whirlpool

Whirlpool AWG812/PRO Installationsanleitung

Whirlpool

Whirlpool WTW5800BC Bedienungsanleitung

Whirlpool

Whirlpool LSR5233AW0 Bedienungsanleitung

Whirlpool

Whirlpool AWO/D6188 Bedienungsanleitung

Whirlpool

Whirlpool WA 2340/WS-D Bedienungsanleitung

Whirlpool

Whirlpool WTW5200SQ0 Bedienungsanleitung

Whirlpool

Whirlpool LCE4332PQ1 Bedienungsanleitung

Beliebte Waschmaschine Handbücher anderer Marken

Tricity Bendix

Tricity Bendix AW 1000 W Produkthandbuch

Panasonic

Panasonic NA-F60L5WRB Bedienungsanleitung

GE WSLP1500 Handbuch

Electrolux

Electrolux EWF1284EDW Bedienungsanleitung

Bosch

Bosch WAN2829BSN Bedienungsanleitung

LG TV2516DV3B Bedienungsanleitung

LG TH2517DSAV Bedienungsanleitung

VESTEL

VESTEL CMH-XL 7510 TE Bedienungsanleitung

AEG

AEG 74335 Bedienungsanleitung

Johnson

Johnson JWF721A Bedienungsanleitung

Beko

Beko WTE7604XLW0 Bedienungsanleitung

Danby

Danby DTT100A1WDB Montageanleitung

Amica

Amica WA 14 Ex Bedienungsanleitung

Daewoo

Daewoo DWD-F1222 Bedienungsanleitung

Bosch

Bosch WAS28461AU Bedienungsanleitung

Miele

Miele PW 6080 Vario Bedienungsanleitung

Finlux

Finlux FLX108CF220 Bedienungsanleitung

Beko

Beko WKB 51231 PTMA Bedienungsanleitung
