Whirlpool LLT8244BQ0 Bedienungsanleitung

TOP AND CABINET PARTS AUTOMATIC

WASHER

For Models: LLT8244BQ0, LLT8244BZ0

(Designer White)(Designer Almond)

9−93 Litho in U.S.A. Part No. 881056

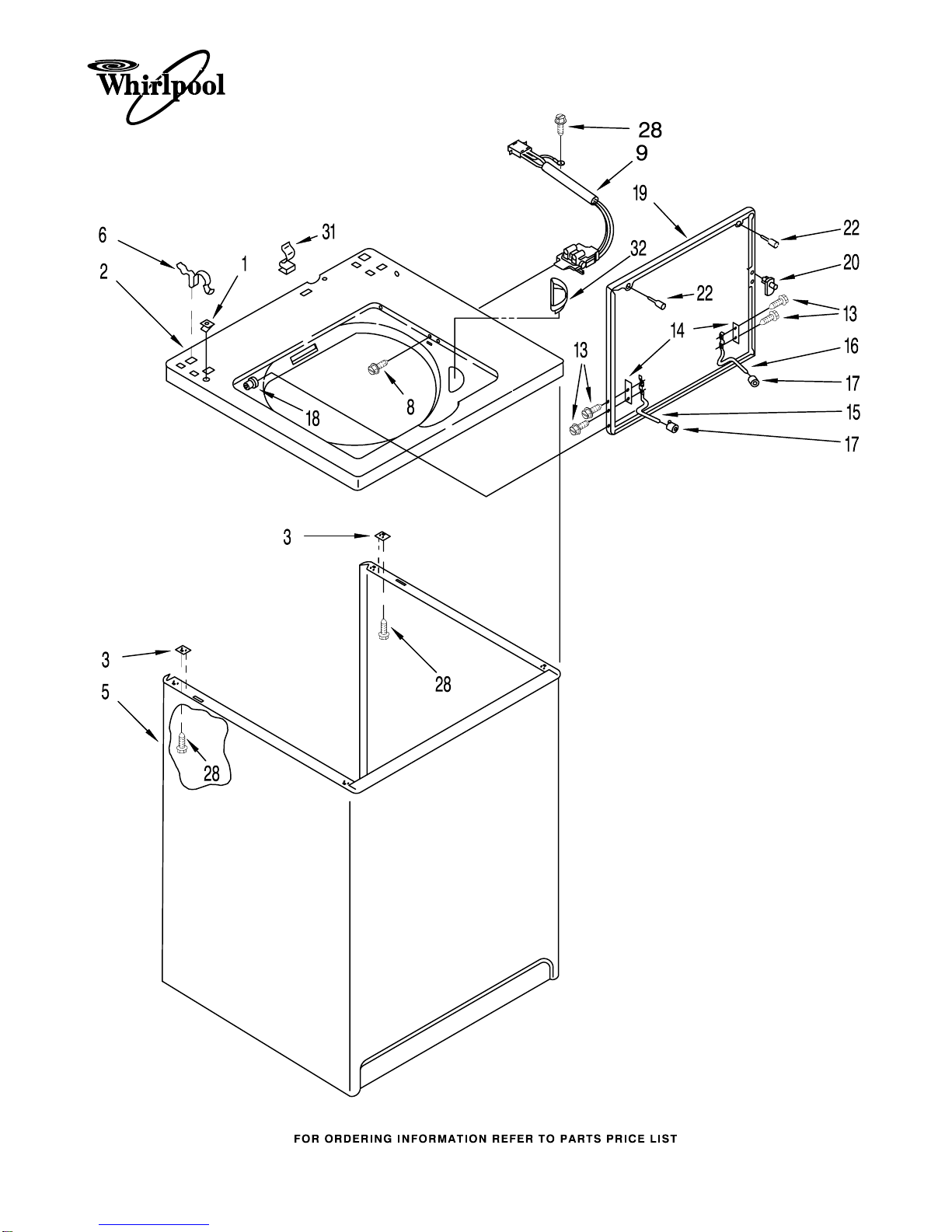

TOP AND CABINET PARTS

LITERATURE AND OPTIONAL PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 357213 Nut, Push−In (2)

2 Top

3358200 For Designer

White Model

3358201 For Desinger

Almond Model

3 62750 Spacer, Cabinet To

Top (4)

5 Cabinet

63424 For Desinger

White Model

63425 For Desinger

Almond Model

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

8 3356311 Screw & Washer,

Lid Switch (2)

9 3352629 Switch, Lid

13 3351355 Screw, Lid Hinge

Mounting (4)

14 21097 Pad, Lid Hinge (2)

15 54584 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid

Hinge (2)

19 Lid

3361392 For Desinger

White Model

3361393 For Designer

Almond Model

20 358684 Strike, Lid Switch

22 93770 Bumper, Lid (2)

28 384435 Screw,

10−16 x 1/2 (4)

31 90016 Clip, Harness

32 63401 Dispenser, Bleach

LITERATURE PARTS

LIT3360057 Sheet, Installation

Instructions

LIT3357471 Guide, Use and

Care

LIT3361372 Energy Guide

LIT3361184 Label, Wiring

Diagram

LIT4313896 Manual, (Washer)

Do−It−Yourself

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

72110 Golden Harvest

PAINT, PRESSURIZED SPRAY

(13 oz.)

350941 Leveler (Thinner)

350938 Primer, Gray

350930 White

350956 Almond

261890 Golden Harvest

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest

(Uncut)

OIL

350572 Oil, Gearcase

(16 Oz.)

LUBRICANT

285208 Lubricant (Use

Only in Brake

Shoe Assembly

On Roller and

Pin)

SEALER

285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

SHIPPING KIT

3348675 Shipping Kit

ACCESSORY PARTS

89121 Stand−Pipe Kit

367031 Drain Protector

285320 Siphon Break Kit

For Models: LLT8244BQ0, LLT8244BZ0

(Designer White)(Designer Almond)

881056

CONTROLS AND REAR PANEL PARTS

For Models: LLT8244BQ0, LLT8244BZ0

(Designer White)(Designer Almond)

881056 3

Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Illus. Part

No. No. DESCRIPTION

CONTROLS AND REAR PANEL PARTS

MISCELLANEOUS PARTS

4881056

For Models: LLT8244BQ0, LLT8244BZ0

(Designer White)(Designer Almond)

1 16123 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

2 694419 Mini Buzzer

3 3354858 Hose, Water

Inlet (2)

5 387402 Hinge, Console (2)

6 3357978 Panel, Rear

7 62747 Pad, Rear Panel

8 661575 Hose, Drain

(5−1/2 Ft.)

661577 Hose, Drain

(10 Ft.)

(Not Included)

3357090 Extension

Drain Hose

(21 Inches.)

(Not Included.)

9 3361181 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

11 3390646 Screw, 8−18 x 5/16

12 Switch, Water Level

3357481 For Designer

White Model

3357480 For Designer

Almond Model

13 3361414 Bracket, Control

14 3360514 Cord, Power

15 63848 Strain Relief,

Power Cord

16 Cap, End (L.H.)

3358531 For Desinger

White Model

3358532 For Desinger

Almond Model

17 96160 Screen, Filter (2)

18 3360392 Valve, Water

Mixing

19 90864 Screw,

10−24 x 3/8 (2)

21 660632 Clamp, Hose

272846 (Alt.)

353367 (Alt.)

22 3357328 Hose, Vacuum

Break

23 371503 Clamp, Hose

24 3347034 Break, Vacuum

25 63290 Support, Rear

Panel

26 3355497 Connector, Drain

Hose

27 356138 Clamp, Hose

28 3359818 Hose, Pump To

Drain Connector

30 371502 Clamp, Hose

31 660628 Clamp, Hose

272858 (Alt.)

370447 (Alt.)

353097 (Alt.)

32 62731 Hose, Pump To Tub

35 Switch, Touch−Pad

(8)

3360802 For Designer

White Model

3360803 For Designer

Almond Model

36 96435 Screw, Timer

Mounting

(10−32 x 1) (2)

37 90767 Screw 8A x 3/8

39 Panel, Console

3360713 For Designer White

Model

3360714 For Designer

Almond Model

44 Knob, Timer

3358417 For Designer

White Model

3358420 For Designer

Almond Model

45 Dial, Timer

3358447 For Designer

White Model

3358448 For Designer

Almond Model

49 3353145 Screw, 8−18

(Panel to Top)

50 62863 Screw, 10−16 x 3/8

51 Cap , End (R.H.)

3358516 For Designer

White Model

3358517 For Designer

Almond Model

55 3357011 Screw,

10−16 x 1/2

58 3357331 Clamp, Drain

Hose

1 3359460 Miscellaneous

Parts Bag

2 16123 Washer, Inlet

Hose

(1−1/16 x 5/8) (4)

4 3359452 Nut, Lock

(3/8−16)

5 389102 Foot, Front (2)

7 356138 Clamp, Hose

AGITATOR, BASKET AND TUB PARTS

For Models: LLT8244BQ0, LLT8244BZ0

(Designer White)(Designer Almond)

881056 5

Illus. Part

No. No. DESCRIPTION

AGITATOR, BASKET AND TUB PARTS

For Models: LLT8244BQ0, LLT8244BZ0

(Designer White)(Designer Almond)

881056

1 63580 Dispenser

2 358237 Screw & Washer

(5−16−24 x 1)

3 3349019 Clothes Mover

4 3350830 Agitator

5 3360611 Tub Ring & Gasket

6 3359586 Gasket, Tub Ring

7 387868 Balance Ring

8 387867 Clip, Balance

Ring (8)

9 3351001 Cam Driven

10 387091 Dog, Agitator

Clutch

11 357574 Seal, Agitator

12 21366 Nut, Spanner

13 3357245 Basket

14 62941 Filter, Plate

(Includes Illus.

15)

15 62942 Lock, Filter

16 63039 Tub

(Includes Item 21)

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

21 3358198 Hose, Bleach

22 3350389 Spacer, Thrust

23 3347290 Cap, Barrier

24 3348855 Seal, Inner Cap

25 3354845 Clip, Agitator

26 3355921 Washer, Agitator

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Models: LLT8244BQ0, LLT8244BZ0

(Designer White)(Designer Almond)

881056 7

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 3352470 Coupling, Motor

& Isolation

15 3355454 Clip,

Anti−Rattle

16 3357334 Screw

17 3349637 Retainer, Motor (2)

18 3349282 Shield, Tub

To Motor

19 3349644 Motor, Main

Drive

20 62850 Switch, Main

Drive Motor

21 62700 Retainer, Pump (2)

22 3352492 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3351341 Shield, Motor

25 9420601 Screw,

10−16 x 5/16

26 357021 Capacitor

27 357030 Clamp, Capacitor

1 388951 Brake & Drive

Tube (Complete)

(Refer to Page 10

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3350115 Clutch (Complete)

6 388190 Band & Lining,

Clutch (Includes

Illus. 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 387712 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 11

For Further

Breakdown)

10 3357334 Screw, Gearcase

To Base (3)

Illus. Part

No. No. DESCRIPTION

MACHINE BASE PARTS

For Models: LLT8244BQ0, LLT8244BZ0

(Designer White)(Designer Almond)

1 98610 Screw, Bracket

Mounting

(10−16 x 5/8) (6)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 389350 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 3348727 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

13 3347047 Bearing,

Centerpost (2)

14 357409 Seal, Centerpost (3)

15 388492 Spring,

Counterweight

16 62568 Pad, Plate

17 389299 Plate, Suspension

(Includes Illus. 16)

18 62602 Pad, Base

19 3359886 Base Assembly

(Includes Illus, 6,

7, 8, 9, 18 & 26)

21 3359452 Nut, Lock

(3/8−16)

22 389102 Foot, Front (2)

23 356934 Seal, Centerpost (2)

24 285203 Centerpost

Bearing Kit

(Includes Illus.

13, 14 & 23)

25 63134 Ring, Sound

Deadening

26 63806 Retainer,

Suspension Spring

881056

Illus. Part

No. No. DESCRIPTION

WIRING HARNESS PARTS

For Models: LLT8244BQ0, LLT8244BZ0

(Designer White)(Designer Almond)

881056 9

1 3349557 Clip, Harness

2 62749 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 3359853 Wiring Harness

8 352090 Block, Disconnect

9 352089 Block, Disconnect

11 62889 Receptacle,

Terminal

(3−Way) (Lid Switch)

12 94614 Terminal, Female

13 3353876 Plug, Terminal

(3−Way)

(Power Cord)

14 94613 Terminal, Male

15 62505 Block, Disconnect

(Motor)

17 3348075 Block, Connector

18 63523 Protector, Harness

19 3371761 Terminal

BRAKE AND DRIVE TUBE PARTS

Illus. Part

No. No. DESCRIPTION

1 388951 Brake And Drive

Tube (Complete)

2 62658 Ring, Thrust

3 91939 Seal, Oil

4 356427 Seal, Drive Tube

5 356937 Spacer, Drive

Tube

6 64027 Tube, Basket

Drive (Includes

Illus. 3, 4, 5 & 9)

7 64035 Ring, Retaining

8 64232 Brake Shoe

9 62703 ‘‘T’’ Bearing,

Spin Tube

10 62648 Cap, Brake

Spring (2)

11 62647 Spring, Brake

12 62909 Sleeve, Brake

Spring

13 63023 Cam, Brake

Release

14 63022 Sleeve, Cam

15 64194 Driver, Brake

Cam

16 90368 Ring, Retaining

FOLLOWING PARTS

NOT ILLUSTRATED

285208 Lubricant

(Use Only In

Brake Shoe

Assembly On

Roller & Pin)

For Models: LLT8244BQ0, LLT8244BZ0

(Designer White)(Designer Almond)

10 881056

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Waschmaschine Handbücher

Whirlpool

Whirlpool WTW4955HW Bedienungsanleitung

Whirlpool

Whirlpool GVW9959KL2 Bedienungsanleitung

Whirlpool

Whirlpool 8318507 Bedienungsanleitung

Whirlpool

Whirlpool LA778OXT Bedienungsanleitung

Whirlpool

Whirlpool AWZ 6812 Bedienungsanleitung

Whirlpool

Whirlpool AWG 5060 Bedienungsanleitung

Whirlpool

Whirlpool CABRIO W10240441A Bedienungsanleitung

Whirlpool

Whirlpool LA5100XT Bedienungsanleitung

Whirlpool

Whirlpool CALYPSO WashMotion GVW9959K-0 Bedienungsanleitung

Whirlpool

Whirlpool LC45OOXS Bedienungsanleitung

Whirlpool

Whirlpool AWO/D 049 Bedienungsanleitung

Whirlpool

Whirlpool WTW4950XW3 Bedienungsanleitung

Whirlpool

Whirlpool WTW4850XQ Montageanleitung

Whirlpool

Whirlpool LCE4332PQ0 Bedienungsanleitung

Whirlpool

Whirlpool Cabrio WTW7300XW2 Bedienungsanleitung

Whirlpool

Whirlpool AWM 8000/PRO Bedienungsanleitung

Whirlpool

Whirlpool FSCR12430 Installations- und Betriebshandbuch

Whirlpool

Whirlpool TDLR70234 Installationsanleitung

Whirlpool

Whirlpool W10775514B Bedienungsanleitung

Whirlpool

Whirlpool Cabrio WTW6200VW0 Bedienungsanleitung

Whirlpool

Whirlpool LCE4332PQ - 22" Washer w/2.1 cu. Ft.... Bedienungsanleitung

Whirlpool

Whirlpool LA56OOXS Bedienungsanleitung

Whirlpool

Whirlpool Cabrio WTW8200YW0 Bedienungsanleitung

Whirlpool

Whirlpool LSS8244AQ0 Bedienungsanleitung

Beliebte Waschmaschine Handbücher anderer Marken

Tricity Bendix

Tricity Bendix AW 1000 W Produkthandbuch

Panasonic

Panasonic NA-F60L5WRB Bedienungsanleitung

GE WSLP1500 Handbuch

Electrolux

Electrolux EWF1284EDW Bedienungsanleitung

Bosch

Bosch WAN2829BSN Bedienungsanleitung

LG TV2516DV3B Bedienungsanleitung

LG TH2517DSAV Bedienungsanleitung

VESTEL

VESTEL CMH-XL 7510 TE Bedienungsanleitung

AEG

AEG 74335 Bedienungsanleitung

Johnson

Johnson JWF721A Bedienungsanleitung

Beko

Beko WTE7604XLW0 Bedienungsanleitung

Danby

Danby DTT100A1WDB Montageanleitung

Amica

Amica WA 14 Ex Bedienungsanleitung

Daewoo

Daewoo DWD-F1222 Bedienungsanleitung

Bosch

Bosch WAS28461AU Bedienungsanleitung

Miele

Miele PW 6080 Vario Bedienungsanleitung

Finlux

Finlux FLX108CF220 Bedienungsanleitung

Beko

Beko WKB 51231 PTMA Bedienungsanleitung
