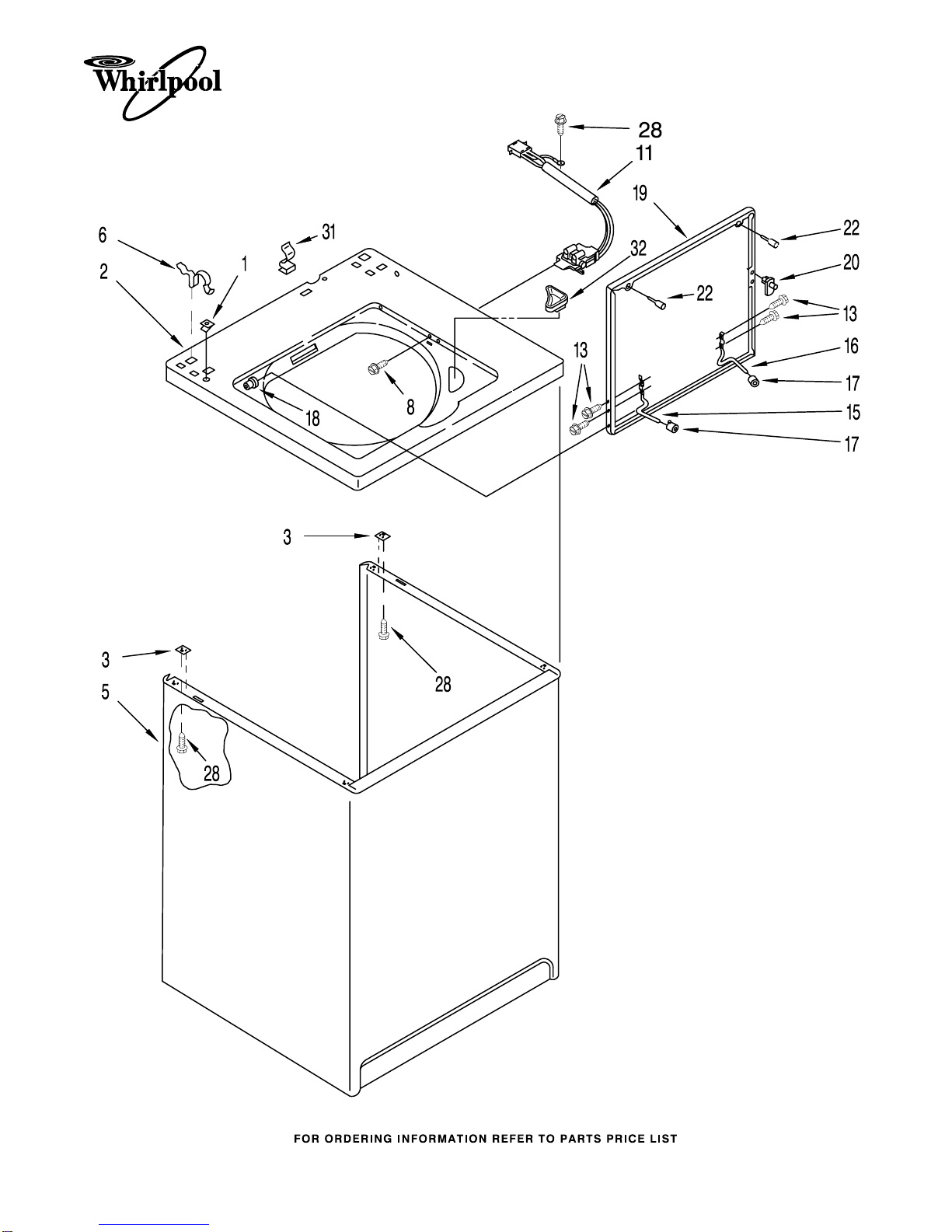

TOP AND CABINET PARTS

For Models: LSR7233DW0, LSR7233DQ0, LSR7233DZ0

(White) (Designer White) (Designer Almond)

5−95Litho in U.S.A.(L.T.) Part No. 881256

AUTOMATIC

WASHER

TOP AND CABINET PARTS

LITERATURE AND OPTIONAL PARTS

For Models: LSR7233DW0, LSR7233DQ0, LSR7233DZ0

(White) (Designer White) (Designer Almond)

881256

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 357213 Nut, Push−In (2)

2 Top

3358200 For White Models

3358201 For Almond Model

3 62750 Spacer, Cabinet To

Top (4)

5 Cabinet

63424 For White Models

63425 For Almond Model

6 62780 Clip, Top & Cabinet

& Rear Panel (2)

8 3356311 Screw & Washer,

Lid Switch (2)

11 3352629 Switch, Lid

13 3351355 Screw, Lid Hinge

Mounting (4)

15 54584 Hinge, Lid (L.H.)

16 54583 Hinge, Lid (R.H.)

17 19119 Bumper, Lid Hinge

18 21258 Bearing, Lid

Hinge (2)

19 Lid

3361392 For White Models

3361393 For Almond Model

20 358684 Strike, Lid Switch

22 93770 Bumper, Lid (2)

28 384435 Screw,

10−16 x 1/2 (5)

31 90016 Clip, Harness

32 3362952 Dispenser, Bleach

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

LITERATURE PARTS

LIT3360057

Sheet, Installation

Instructions

LIT3363554

Guide, Use and

Care

LIT3361377

Energy Guide

LIT3948173

Label, Wiring

Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT4313896

Manual, (Washer)

Do−It−Yourself

OPTIONAL PARTS NOT INCLUDED

PAINT, TOUCH−UP (1/2oz.)

72017 White

72107 Almond

72110 Golden Harvest

PAINT, PRESSURIZED SPRAY

(13 oz.)

350938 Primer, Gray

350930 White

350956 Almond

261890 Golden Harvest

PAINT, BULK (1 qt.)

799344 White (Uncut)

978883 Almond (Uncut)

261891 Golden Harvest

(Uncut)

OIL

350572 Oil, Gearcase

(16 Oz.)

LUBRICANT

285208 Lubricant (Use

Only in Brake

Shoe Assembly

On Roller and

Pin)

SEALER

285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

SHIPPING KIT

3348675 Shipping Kit

ACCESSORY PARTS

89121 Stand−Pipe Kit

367031 Drain Protector

285320 Siphon Break Kit

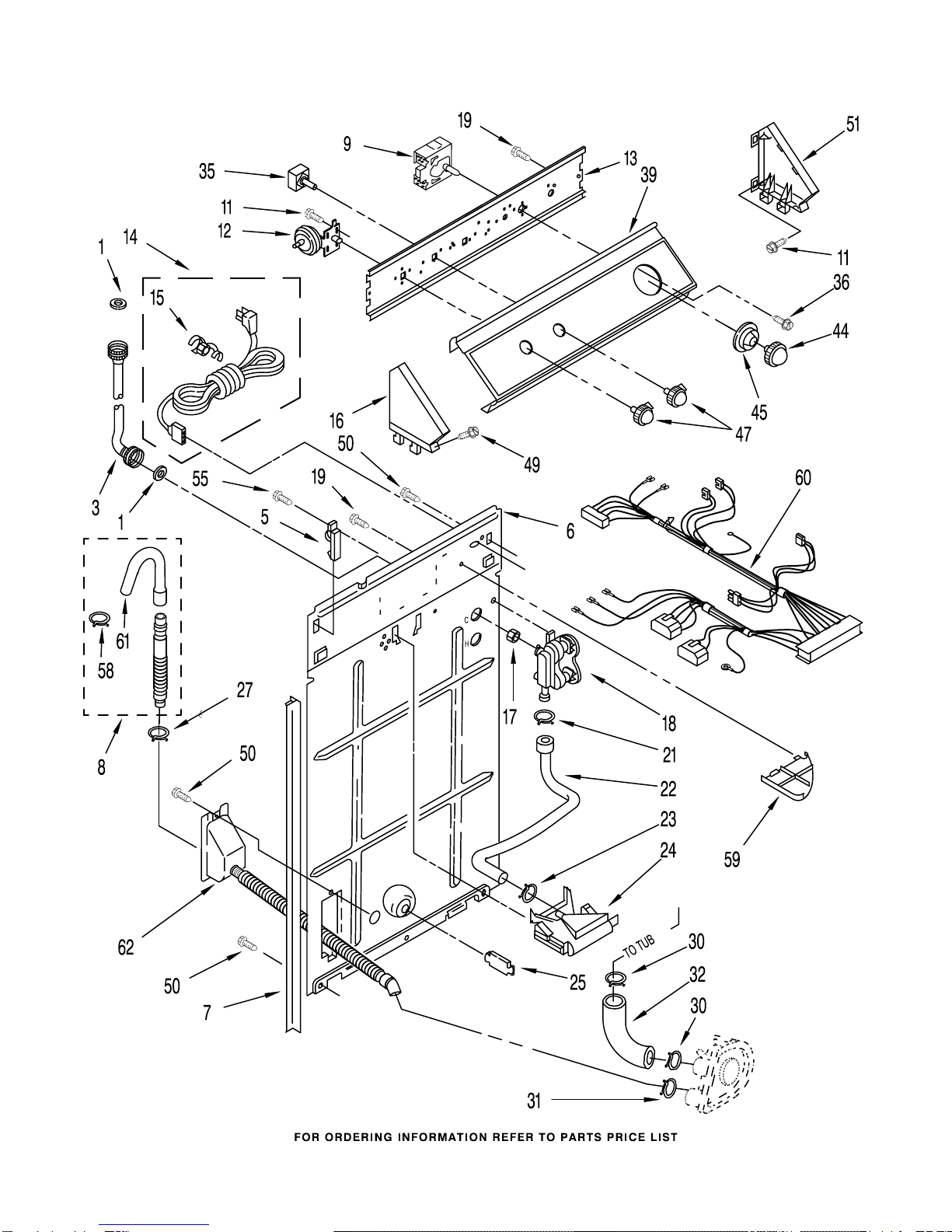

CONTROLS AND REAR PANEL PARTS

For Models: LSR7233DW0, LSR7233DQ0, LSR7233DZ0

(White) (Designer White) (Designer Almond)

881256

CONTROLS AND REAR PANEL PARTS

MISCELLANEOUS PARTS

For Models: LSR7233DW0, LSR7233DQ0, LSR7233DZ0

(White) (Designer White) (Designer Almond)

881256

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 16123 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)

3 3354858 Hose, Water

Inlet (2)

5 387402 Hinge, Console (2)

6 3357978 Panel, Rear

7 62747 Pad, Rear Panel

8 661575 Hose, Drain

(4’− 8")

661577 Hose, Drain

(9’− 9")

(Not Included)

3357090 Extension

Drain Hose

(21 Inches)

(Not Included.)

9 3948171 Timer, Control

(60 Hz.)

(Motor Not A

Service Part)

11 90767 Screw 8A x 3/8

12 3356467 Switch, Water Level

13 3360936 Bracket, Control

14 3360514 Cord, Power

15 63848 Strain Relief,

Power Cord

16 Cap, End (L.H.)

3358531 White/Chrome

3358529 Almond/Chrome

3358528 White/White

17 96160 Screen, Filter (2)

18 3360392 Valve, Water

Mixing

19 90864 Screw,

10−24 x 3/8 (2)

21 370451 Clamp, Hose

272846 (Alt.)

353367 (Alt.)

22 3357328 Hose, Vacuum

Break

23 371503 Clamp, Hose

24 387606 Break, Vacuum

25 63290 Support, Rear

Panel

27 356138 Clamp, Hose

30 371502 Clamp, Hose

31 660628 Clamp, Hose

272858 (Alt.)

370447 (Alt.)

353097 (Alt.)

32 62731 Hose, Pump To Tub

35 3363323 Switch, Water

Temperature

3347117 (Alt.)

3348352 (Alt.)

36 96435 Screw, Timer

Mounting

(10−32 x 1) (2)

39 Panel, Console

3948228 For White Model

3948230 For Almond Model

3948229 For Designer

White Model

44 Knob, Timer

3364290 For White Model

3364291 For Designer

White Model

3364293 For Almond Model

45 Dial, Timer

3946260 For White Model

3946261 For Designer

White Model

3946262 For Almond Model

47 Knob, Controls

3358431 For White Model

3358435 For Designer

White Model

3358436 For Almond Model

49 3353145 Screw, 8−18 (2)

(Panel to Top)

50 62863 Screw, 10−16 x 3/8

51 Cap , End (R.H.)

3358516 White/Chrome

3358514 Almond/Chrome

3358513 White/White

55 3357011 Screw,

10−16 x 1/2

58 3357331 Clamp, Drain

Hose

59 3348424 Shield, Suds

60 3948205 Harness, Wiring

(For Detail See

Page 8.) Also

See Clips.

61 3357027 Nozzle−Drain

Hose

62 3361805 Hose−Drain

Connector Assy

Illus. Part

No. No. DESCRIPTION

1 3359460 Miscellaneous

Parts Bag

2 16123 Washer, Inlet

Hose

(1−1/16 x 5/8) (4)

4 3359452 Nut, Lock

(3/8−16)

5 389102 Foot, Front (2)

7 356138 Clamp, Hose

AGITATOR, BASKET AND TUB PARTS

For Models: LSR7233DW0, LSR7233DQ0, LSR7233DZ0

(White) (Designer White) (Designer Almond)

881256

AGITATOR, BASKET AND TUB PARTS

For Models: LSR7233DW0, LSR7233DQ0, LSR7233DZ0

(White) (Designer White) (Designer Almond)

881256

Illus. Part

No. No. DESCRIPTION

1 63580 Dispenser, Assy.

2 358237 Screw & Washer

(5−16−24 x 1)

3 3363003 Clothes Mover

4 3347288 Agitator

5 63851 Tub Ring & Gasket

6 3359585 Gasket, Tub Ring

7 3354845 Clip, Agitator

83355921 Washer, Agitator

9 3351001 Cam Driven

10 387091 Dog, Agitator

Clutch

12 21366 Nut, Spanner

13 64217 Basket & Balance

Ring

14 3361948 Filter, Plate

16 388893 Tub

17 389140 Block, Basket

Drive

18 383727 Gasket, Centerpost

19 3347780 Hose, Pressure

Switch

20 3946501 Agitator

(Complete Asy.)

22 3350389 Spacer, Thrust

23 3354733 Cap, Barrier

24 3348855 Seal, Inner Cap

25 3358198 Hose, Bleach

26 21365 Washer

MACHINE BASE PARTS

For Models: LSR7233DW0, LSR7233DQ0, LSR7233DZ0

(White) (Designer White) (Designer Almond)

881256

Illus. Part

No. No. DESCRIPTION

1 343641 Screw, Bracket

Mounting

(10−16 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 3362087 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism

8 62837 Pin, Knurled

9 62596 Foot, Rear (2)

13 3347047 Bearing,

Centerpost (2)

14 357409 Seal, Centerpost (3)

15 388492 Spring,

Counterweight

16 62568 Pad, Plate

17 3946509 Plate, Suspension

(Includes Illus. 16)

18 3363660 Pad, Base

19 3946512 Base Assembly

(Includes Illus, 6,

7, 8, 9, 18 & 26)

21 3359452 Nut, Lock

(3/8−16) (2)

22 389102 Foot, Front (2)

23 356934 Seal, Centerpost (2)

24 285203 Centerpost

Bearing Kit

(Includes Illus.

13, 14 & 23)

25 63134 Ring, Sound

Deadening

26 63806 Retainer,

Suspension Spring

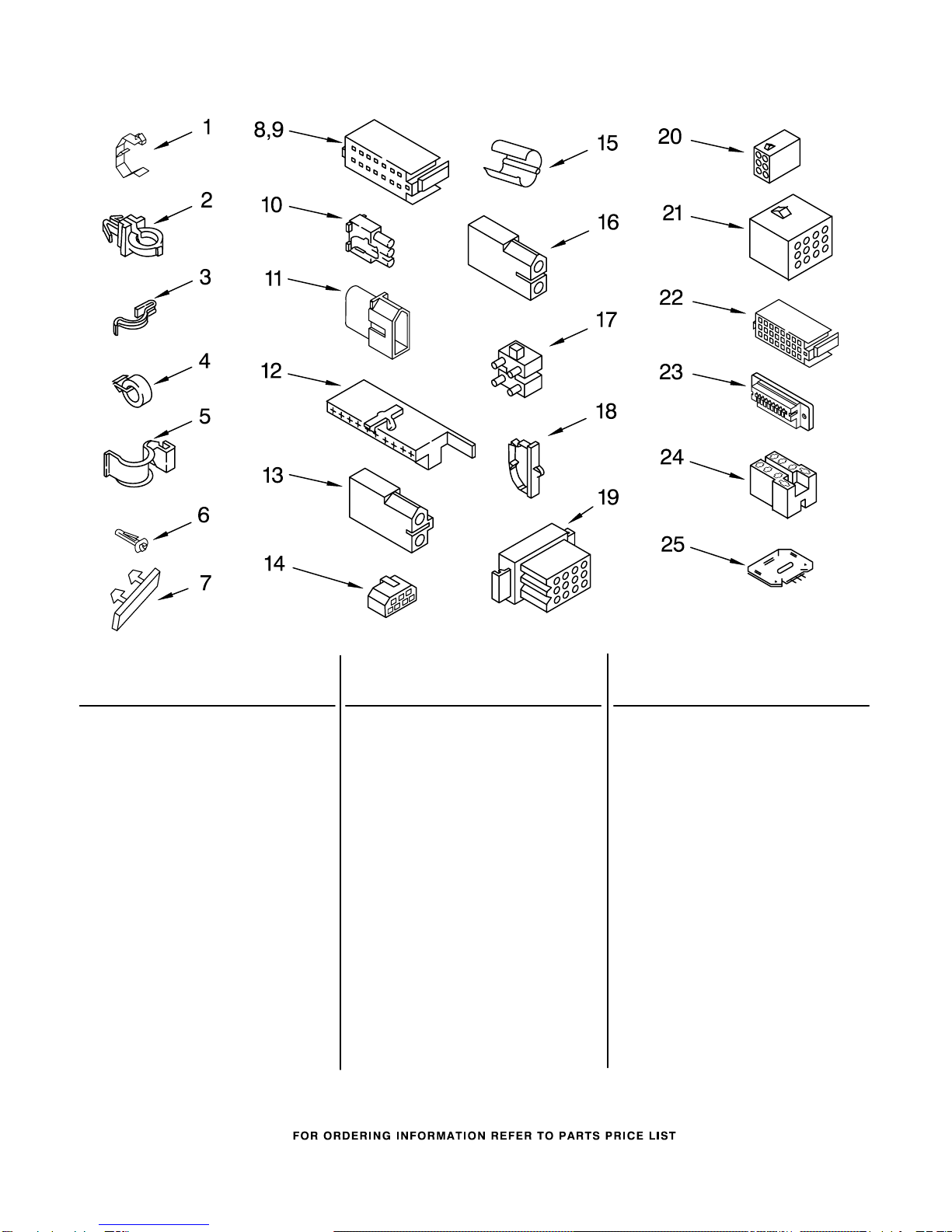

WIRING HARNESS PARTS

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

WH2D

1 3349557 Clip, Harness

2 388498 Clip, Harness

3 3347812 Clip, Harness

4 3352501 Clip, Harness

5 90016 Clip, Harness

6 3390496 Clip, Harness

7 389379 Retainer,

(Suds Models)

8 352090 Timer, Block

Disconnect

(White)

9 352089 Timer, Block

Disconnect

(Black)

10 62889 Receptacle,

Terminal

(3−Way)

(Lid Switch)

(Use Term.94613)

Or 94614.)

11 353424 Plug, Terminal

(3−Way)

(Power Cord)

(Use Term.94613)

12 62505 Block, Disconnect

(Motor 2 Speed)

(Use Term.352088)

13 3348075 Block, Disconnect

(Motor 3 Speed)

(Use Term. 94613

Or 94614.)

14 3347243 Block, Disconnect

(Use Term. 352088)

15 63523 Protector

16 717252 Connector

(2−Way)

(Use Term.94614)

17 387566 Plug, Terminal

(4−Way)

(Power Cord)

(Use M3 Screws)

18 3352944 Clip, Harness

19 3390423 Block, Disconnect

(12−Way)

(Timer)

(Use Term. 94613)

20 3347730 Receptacle

(6−Way)

(Use Term. 94613)

21 388818 Plug, Terminal

(12−Way)

(Use Term. 94613

Or 94614.)

22 3369366 Timer, Block

Disconnect

(Black) (Amp)

(Use Term.3369365)

23 3349494 Connector, Etc

24 60687 Connector, Relay

(Use Term.308569

Or 338664.)

25 3407125 E.T.C. Control

For Models: LSR7233DW0, LSR7233DQ0, LSR7233DZ0

(White) (Designer White) (Designer Almond)

881256

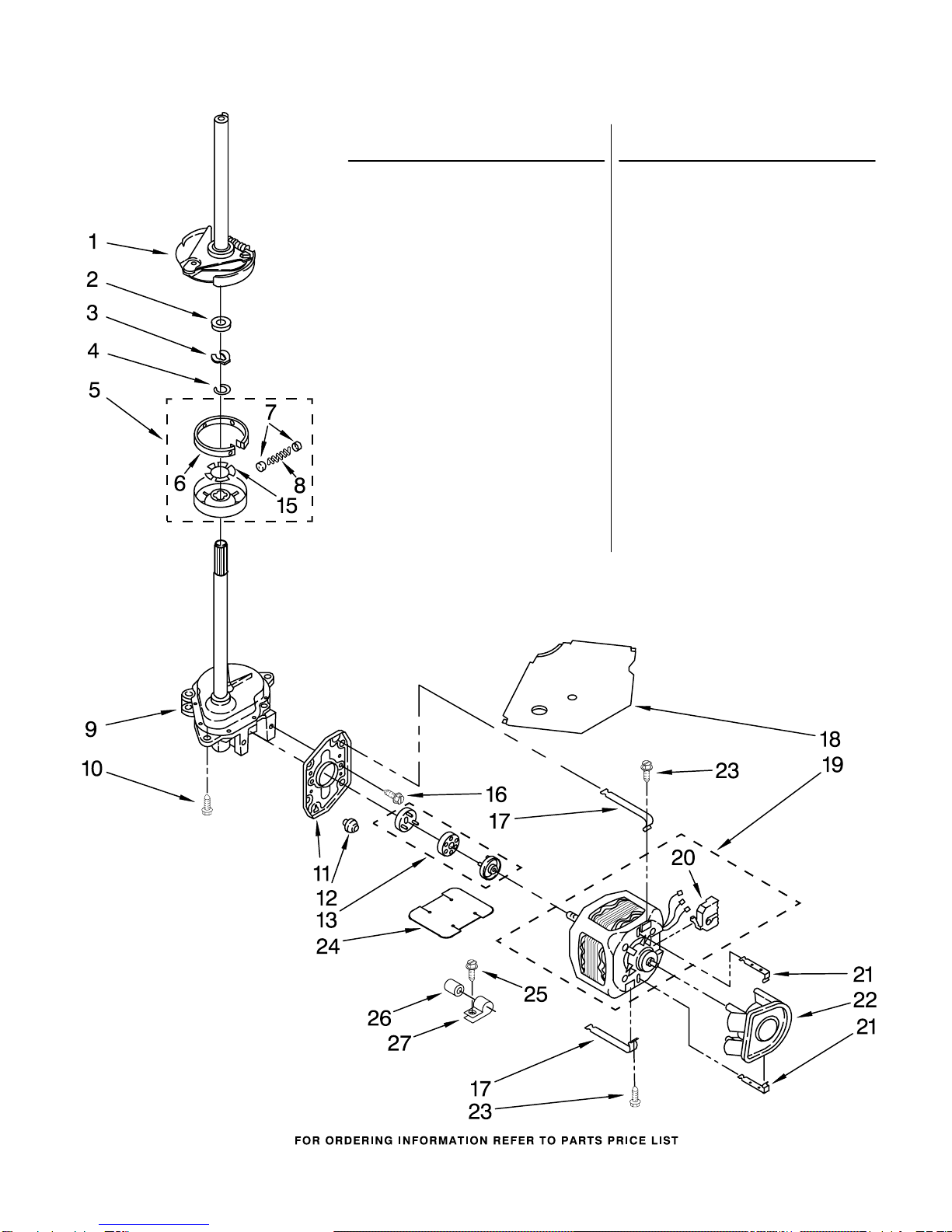

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Models: LSR7233DW0, LSR7233DQ0, LSR7233DZ0

(White) (Designer White) (Designer Almond)

881256

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 388952 Brake & Drive

Tube (Complete)

(Refer to Page 10

For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer

5 3946794 Clutch (Complete)

6 3946793 Band & Lining,

Clutch (Includes

Illus. 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3363337 Spring, Clutch

9 3360630 Gearcase

(Complete)

(Refer To Page 11

For Further

Breakdown

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase

12 62691 Grommet, Motor (4)

13 3364003 Coupling, Motor

& Isolation

15 3355454 Clip,

Anti−Rattle

16 3357334 Screw

17 3349637 Retainer, Motor (2)

18 3362089 Shield, Tub

To Motor

19 661600 Motor, Main

Drive

20 62850 Switch, Main

Drive Motor

21 62700 Retainer, Pump (2)

22 3363394 Pump (Complete)

23 3387485 Screw, 10−16 x 5/8

24 3946532 Shield, Motor

25 62863 Screw,

10−16 x 3/8

26 357021 Capacitor

27 357030 Clamp, Capacitor

Illus. Part

No. No. DESCRIPTION

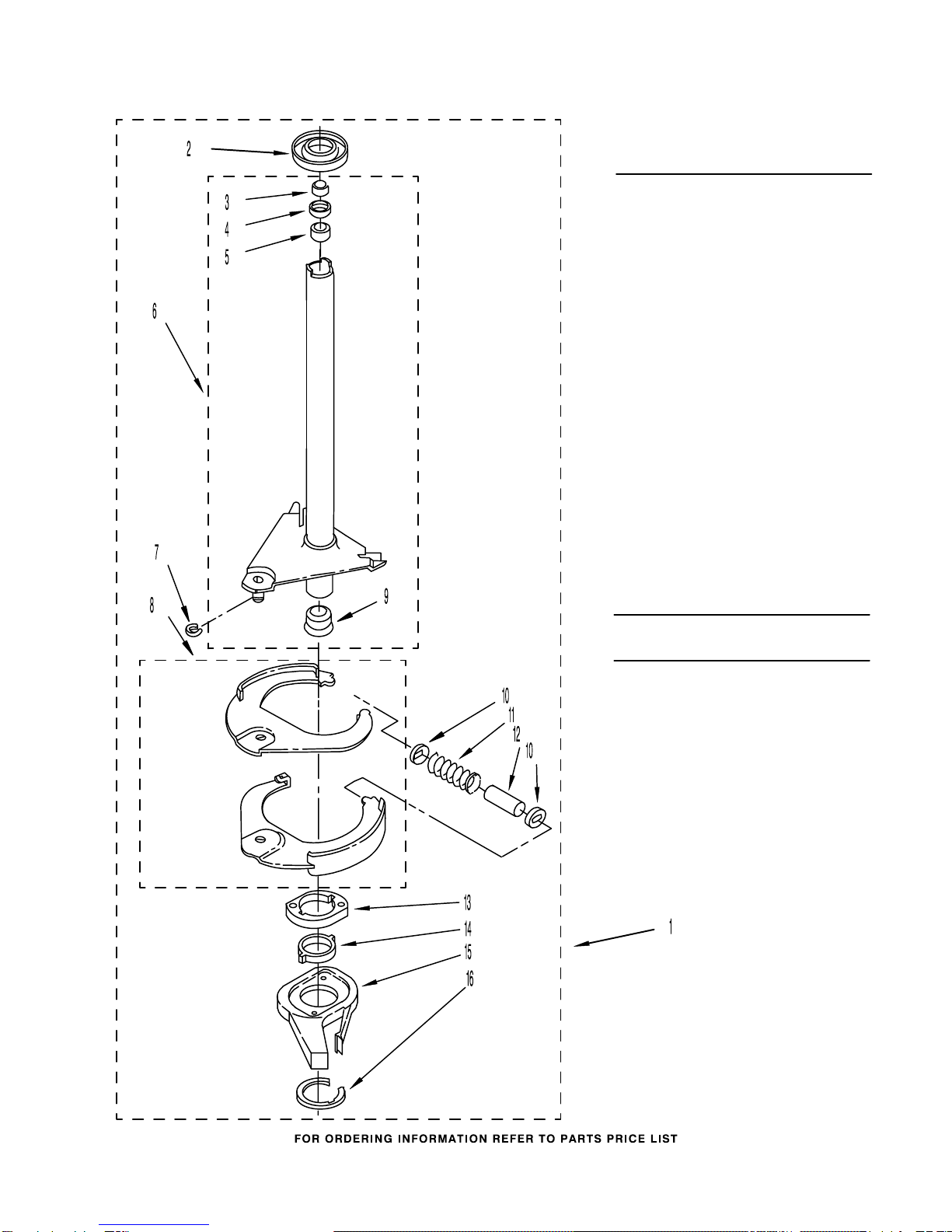

BRAKE AND DRIVE TUBE PARTS

1 388952 Brake And Drive

Tube (Complete)

2 62658 Ring, Thrust

3 91939 Seal, Oil

4 356427 Seal, Drive Tube

5 356937 Spacer, Drive

Tube

6 64027 Tube, Basket

Drive (Includes

Illus. 3, 4, 5 & 9)

7 64035 Ring, Retaining

8 64232 Shoe, Brake

9 62703 "T" Bearing,

Spin Tube

10 62648 Cap, Brake

Spring (2)

11 387806 Spring, Brake

12 62909 Sleeve, Brake

Spring

13 63023 Cam, Brake

Release

14 63022 Sleeve, Cam

15 64194 Driver, Brake

Cam

16 90368 Ring, Retaining

FOLLOWING PARTS

NOT ILLUSTRATED

285208 Lubricant

(Use Only In

Brake Shoe

Assembly On

Roller & Pin)

BD−315A

For Models: LSR7233DW0, LSR7233DQ0, LSR7233DZ0

(White) (Designer White) (Designer Almond)

881256

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Waschmaschine Handbücher

Whirlpool

Whirlpool Duet WFW9470WL00 Bedienungsanleitung

Whirlpool

Whirlpool SUDS-MISER WTW4950XW0 Bedienungsanleitung

Whirlpool

Whirlpool SAWB600JQ0 Bedienungsanleitung

Whirlpool

Whirlpool VAN GOGH WWD22ABBPH00 Bedienungsanleitung

Whirlpool

Whirlpool Duet WFW9470WW Bedienungsanleitung

Whirlpool

Whirlpool WTW5500SQ2 Bedienungsanleitung

Whirlpool

Whirlpool WFW94HEAC0 Bedienungsanleitung

Whirlpool

Whirlpool 6LA63OOXT Bedienungsanleitung

Whirlpool

Whirlpool LA531OXP Bedienungsanleitung

Whirlpool

Whirlpool FFB 8469 SBV SPT Bedienungsanleitung

Whirlpool

Whirlpool duet GHW9100L Bedienungsanleitung

Whirlpool

Whirlpool LW4203W/L2 Bedienungsanleitung

Whirlpool

Whirlpool AWT 4105 Bedienungsanleitung

Whirlpool

Whirlpool AWM 8000/PRO Bedienungsanleitung

Whirlpool

Whirlpool AWM 285/3 Bedienungsanleitung

Whirlpool

Whirlpool Gold GST9675JQ0 Bedienungsanleitung

Whirlpool

Whirlpool LCE4332PQ0 Bedienungsanleitung

Whirlpool

Whirlpool FSCR80213 Installations- und Betriebshandbuch

Whirlpool

Whirlpool LSA 1300 Bedienungsanleitung

Whirlpool

Whirlpool Cabrio,- WTW6200V Gebrauchsanweisung

Whirlpool

Whirlpool LA6300XS Bedienungsanleitung

Whirlpool

Whirlpool Duet WFW9200SQ00 Bedienungsanleitung

Whirlpool

Whirlpool LA5430XP Bedienungsanleitung

Whirlpool

Whirlpool FWL61252W UK Bedienungsanleitung

Beliebte Waschmaschine Handbücher anderer Marken

Tricity Bendix

Tricity Bendix AW 1000 W Produkthandbuch

Panasonic

Panasonic NA-F60L5WRB Bedienungsanleitung

GE WSLP1500 Handbuch

Electrolux

Electrolux EWF1284EDW Bedienungsanleitung

Bosch

Bosch WAN2829BSN Bedienungsanleitung

LG TV2516DV3B Bedienungsanleitung

LG TH2517DSAV Bedienungsanleitung

VESTEL

VESTEL CMH-XL 7510 TE Bedienungsanleitung

AEG

AEG 74335 Bedienungsanleitung

Johnson

Johnson JWF721A Bedienungsanleitung

Beko

Beko WTE7604XLW0 Bedienungsanleitung

Danby

Danby DTT100A1WDB Montageanleitung

Amica

Amica WA 14 Ex Bedienungsanleitung

Daewoo

Daewoo DWD-F1222 Bedienungsanleitung

Bosch

Bosch WAS28461AU Bedienungsanleitung

Miele

Miele PW 6080 Vario Bedienungsanleitung

Finlux

Finlux FLX108CF220 Bedienungsanleitung

Beko

Beko WKB 51231 PTMA Bedienungsanleitung
