Whirlpool WDC 1070SL Bedienungsanleitung

WDC 1070SL Service

Manual

Table of Contents

Part I: Safety Precautions............................................................................................................................. 3

Part II: Installation Instructions ...................................................................................................................4

Part III: Structural Perspective.....................................................................................................................8

Part IV: Decomposition Essentials .............................................................................................................15

Part V: Troubleshooting Index ...................................................................................................................25

Part VI: The Main Parts Parameters and Troubleshooting.......................................................................34

Part V: Part List and Diagram.....................................................................................................................42

Specifications:

Parameters / Model

WDC1070SL

The maximum spin speed

1200rpm

Maximum washing capacity

10kg

The maximum drying capacity

7kg

Temperature range ( cold to )

95℃

Exterior color

Net Dimensions (H * W * D )

830*595*680

net weight

85kg

Voltage

(220V+/-10%V)

Frequency

60Hz

Heating Element Power Input (Dryer)

1100W

Heating Element Power Input (Washer)

1100W

Power cord length

190cm

Drum capacity

64L

Gate diameter

320mm

Door opening angle

140°

Part I: Safety Precautions

1.1 Do not use illegal accessories

Parts of the machine used have been specially designed and rigorous testing, performance reached the

national and enterprise industry standards, and the whole energy security, good work. In the repair process,

for replacement parts, please confirm the replacement parts are provided parts, and then replace ,otherwise

therefore adverse consequences, the company is not responsible.

1.2 The machine must be safety ground

1) When the installation / maintenance must verify the user's home has been well- grounded power outlet,

such as no, it may produce a more intense induction phenomenon , allowing users to frightened or hurt ,

be sure to police. It shows the user and ask the user to solve;

2) Do not use the converter, universal plugs, extension units and other power outlet, and prevent power. Rate

is too large for the machine and the user's personal and property damage and loss;

3) If a machine plug and socket do not match, the user to replace the electrical outlet, no person shall

change the machine's plug.

1.3 Note Use / Maintenance Security

1) Before cleaning or repair, you must first cut off the power;

2) Machine to use or debugging, you should turn off the water and disconnect the power plug;

3) In use / maintenance of the machine, you must observe the following basic safety rules:

a. Wet hands or barefoot, do not touch or operate electrical appliances;

b. When unplugging, do not pull the cord;

c. Washer not exposure, nor get wet;

d. Do not allow children to operate the machine in case of unattended;

e. Before washing the clothes pocket must be clearly fragmented debris, such as coins, banknotes, and

pen.

Category;

f. When this machine is in the drain and spin cycle, do not open the cover;

g. Attention to the protection panel, do not scratch with a sharp, otherwise it may lead to water

infiltration, and Energy leakage.

Part II: Installation Instructions

2.1 Electrical connection

You must use a reliable grounded outlet

Not allowed to use the drag strip, multi-purpose socket

Power lines can only be replaced by a qualified electrician

Electrical connections must be in accordance with local regulations

When heating the washing and drying washing machine maximum operating current of 10A, and families must

ensure that the electrical outlet power supply system to meet the required load.

2.2 Remove the transport screws

1) Using the supplied wrench (depending on model), the direction shown by an arrow loosen transport

screw

2) Move hex wrench horizontally to the round opening.

3) Pull the screw, washer and plastic retainer out at the same time.

4) To ensure safety, reduce noise, use the supplied plastic cover goes in the direction shown until it clicks.

Important notice:

1) Remove the shipping screws do not damage the washing machine.

2) Washing machine weighing more than 55 kilograms, then you need two or more transport

3) Save transport screws and wrenches to use the washing machine when handling the future. The above in

reverse order to re-secure the transport screws.

2.3 Adjustment Feet

Washing machine must be installed on (if necessary, use the spirit level to check) firm, level ground. If you plan to

install a washing machine dress on the wooden floor, with a 3 cm thick, 60 × 60 cm square laminate flooring is

fixed on the wooden floor, the washing machine is placed in above to disperse the weight.

If the floor is uneven, adjust the washing machine's four adjustable feet, do not plug in the soles of the feet and

other wood items.

1. With accessory wrench (depending on model), the clockwise direction of the arrow locknut.

2. Slightly more elevated machines, rotating foot height adjustment nut.

IMPORTANT: After adjusting the height of the counterclockwise rotation of the locking nut, locking the cabinet

bottom.

2.4 Remove the outer tub support

IMPORTANT: Do not remove the outer tub support will damage the washing machine.

1. Tilt the washing machine backward 30 ° -40 °, as illustrated pulled out a red plastic bag, and remove the

outer tub support.

2.5 Installing the bottom cover

In order to provide a quieter environment laundry, a bottom cover plate is provided in some machines, if it is

installed in the bottom of the washing machine section, can significantly reduce noise.

However, this part is not installed, you can normally use the washing machine. After washing machine tilting 30 ° -

40 °, the bottom cover is affixed with sound-absorbing cotton side up, printed with "PUMP" (pump) the right

corner that is placed in the washing machine

The position of the pump, and then fasten the bottom plate, flat washing machine can be.

2.6 Connection inlet

If the inlet hose is not installed on the washing

machine, you must install it tightly to the inlet valve.

Depending on the model, some washing machines

may also have a hot water inlet valve.

If the model has both hot and cold inlet valve; the

blue-colored inlet hose should be connected to the

cold water inlet valve, and the red-colored inlet

hose should be connected to the hot water inlet

valve. Lastly, connect the other end of the hose to

the faucet.

NOTE:

Make sure that there are no kinks on knots on the inlet hose.

Hot water line should not be connected to machines with no hot water inlet valves.

Hot water washing machine cannot be connected to storage water heaters without pressure.

After connecting the inlet pipe, open the faucet to check for leaks.

Regularly check whether the inlet pipe brittle, cracking, and replace if necessary.

2.7 Connecting the drain

1) Affix the rubber water hose for discharging water to the smallest pipe with a 5cm diameter. After removing

the curved pipe, push the rubber hose inwards and upwards. If a dedicated rubber water hose is not

available, retain the curved pipe for directing water discharge into water pail or tank.

2) The curved end of the rubber water hose for discharging water must be fixed at a height between 0.85 to

1.2m.

IMPORTANT NOTICE:

1) The drain pipe should not have blocks or kinks.

2) Make sure to create a secure between the drain hose and the machine, in order to avoid falling, scalding hot

water when washing machine goes to drain and spin cycle.

3) Is not suitable for small sink drain.

4) When the extended drain, using the same pipe, the connection must be reliable.

5) The total length of the drain cannot be more than 2.5 meters

Part III: Structural Perspective

3.1 Barrel

3.2 Tripod

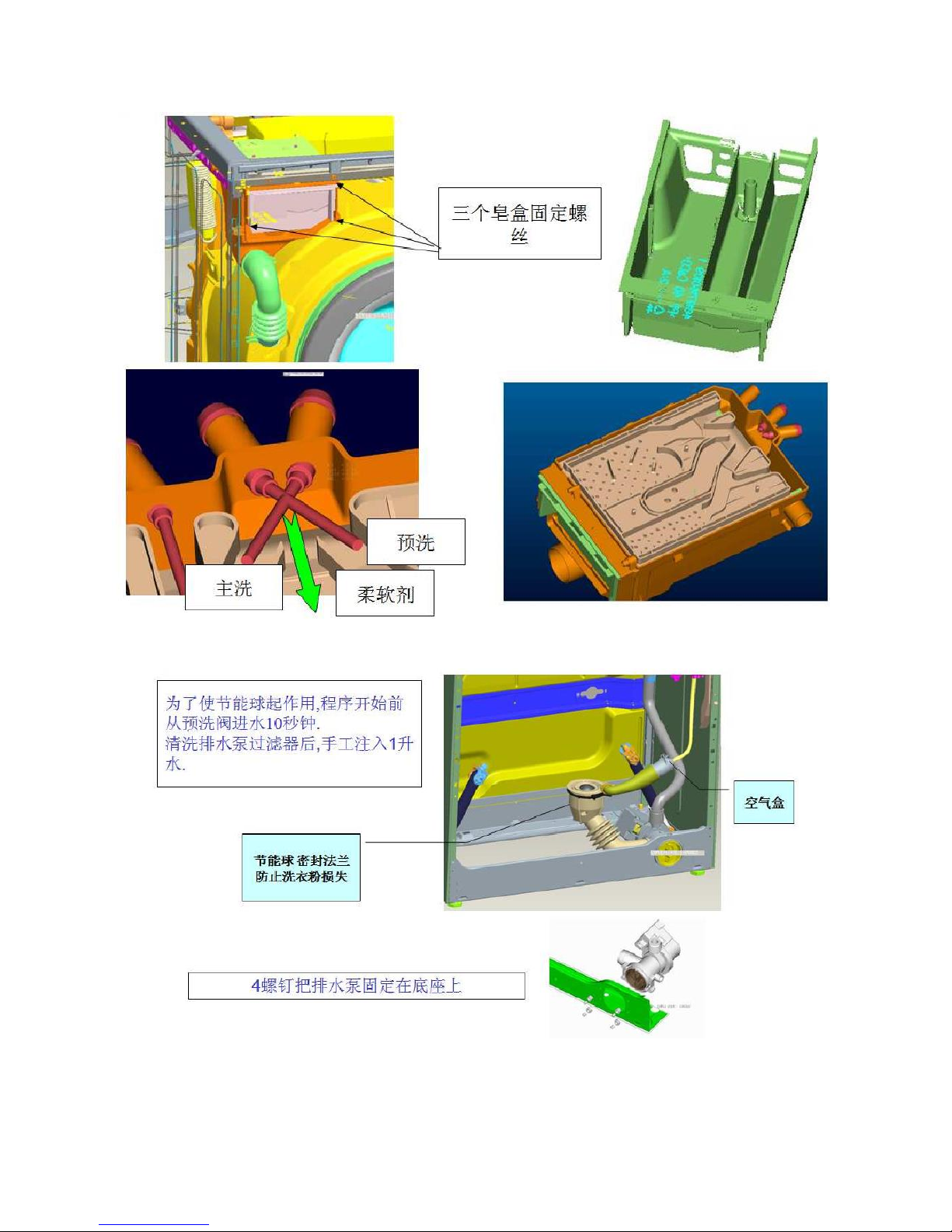

3.3 Water System

1. Drawer assembly; 2. Soap Bucket Pipe; 3. Clamps; 4. Detergent Box Assembly; 5. Condenser; 6. Soap

Valve Tube; 7. Soap Valve Tube; 8. Three-way valve

3.4 Drainage System
