Whirlpool WTW6400SW0 Bedienungsanleitung

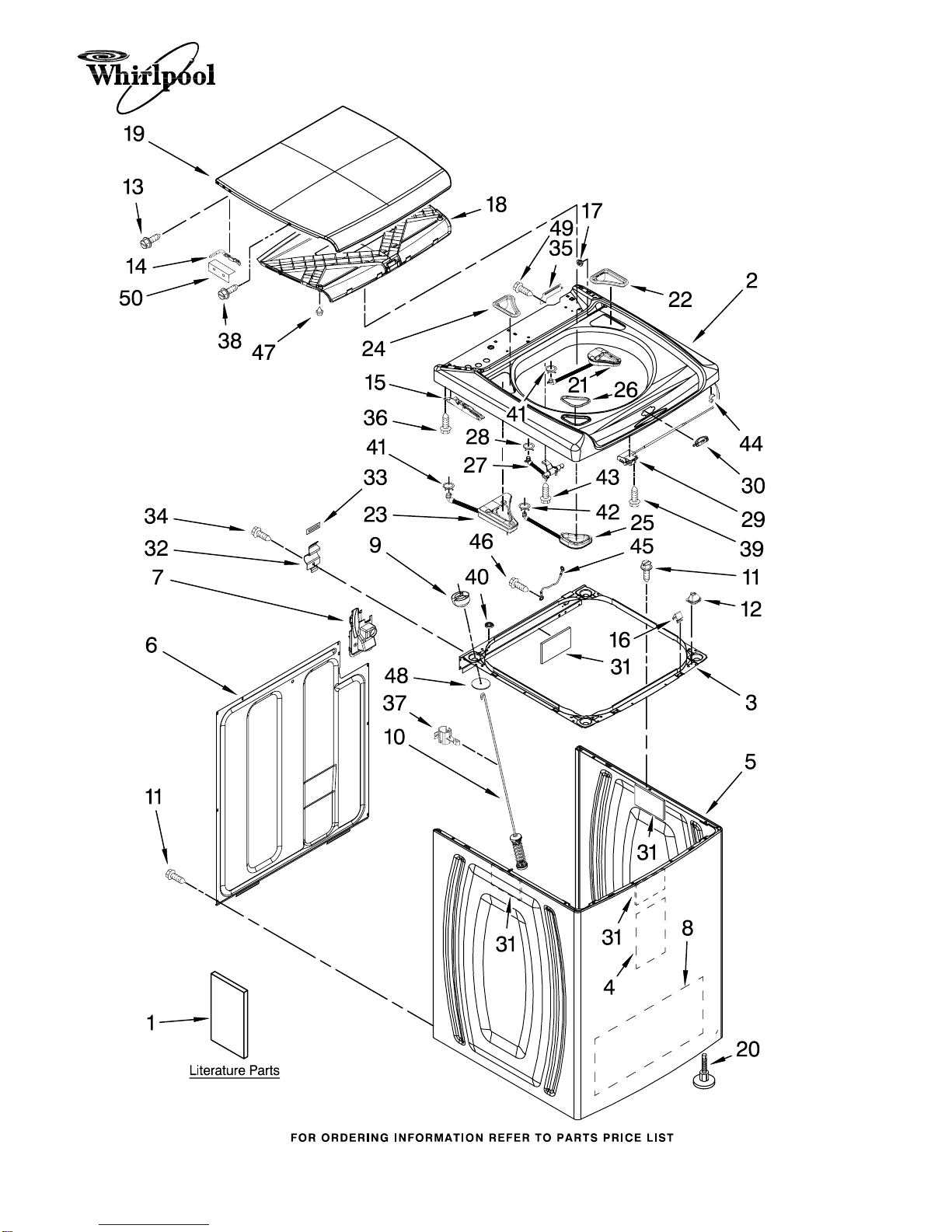

TOP AND CABINET PARTS

For Model: WTW6400SW0

(White)

5−06 Litho in U.S.A. (drd) Part No. 8181163

AUTOMATIC WASHER

TOP AND CABINET PARTS

For Model: WTW6400SW0

(White)

8181163

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8566931 Use & Care Guide

8567037 Tech Sheet

8566929 Quick Start Guide

8577781 Wiring Diagram

8567168 Energy Guide

2 8565311 Top

3 8576639 Frame Assembly,

Cabinet Top

(Includes Item 31)

4 8576784 Sound Absorber,

Cabinet

5 8566156 Cabinet

6 8566090 Panel, Rear

7 8543781 Retainer, Drain

Hose Storage

8 8578225 Sound Absorber,

Cabinet

9 8576475 Ball,

Suspension (4)

10 8564009 Damper Assembly,

Tub Suspension

(Set Of 4)

11 1157158 Screw, 8−18 x 3/8

12 8563602 Locator, Top (2)

13 355274 Screw, Lid

Hinge

Mounting (4)

14 8576780 Hinge Arm, Lid (2)

15 Hinge, Spring

Assembly

8563962 (Left)

8563963 (Right)

16 8563785 Lock, Top−

Front (2)

W10052730

Bearing, Lid

Hinge (2)

18 8577353 Lid−Inner

(Includes Item 47)

19 8572891 Lid

20 8578826 Foot Assembly,

Leveling (4)

W10059150

Dispenser,

Fabric Softener

22 8566210 Bezel, Fabric

Softener Dispenser

W10059160

Dispenser, Bleach

24 8566211 Bezel, Bleach

Dispenser

25 8564976 Dispenser,

Detergent

26 8564979 Bezel, Detergent

Dispenser

27 8543779 Nozzle Assembly,

Fresh Water

28 371503 Clamp, Hose

W10059230

Lock Assembly, Lid

30 8572019 Bezel, Lid Lock

31 8564458 Absorber, Impact

32 8564456 Hinge, Top (2)

33 18849 Pad, Top Hinge (2)

34 343641 Screw,

10−16 x 1/2 (2)

35 8563941 Cover, Harness

36 693995 Screw, 8−18 x 3/8

37 8543784 Bracket,

Drain Hose

W10076920

Screw (2)

39 8281136 Screw, 10−16 x 3/4

40 8576476 Spacer, Rear

(Cabinet/Top)

41 370451 Clamp, Hose

42 371503 Clamp, Hose

43 3400061 Screw,

10−16 x 9/16

44 90016 Clip, Harness (5)

45 8281736 Wire,

Ground Jumper

46 3400076 Screw, 10−32 x 5/8

W10076780

Bumper, Lid (2)

48 8577896 Washer, Suspension

Umbrella

49 3390647 Screw, 8−18 x 1/2

50 21097 Pad,

Lid Hinge (2)

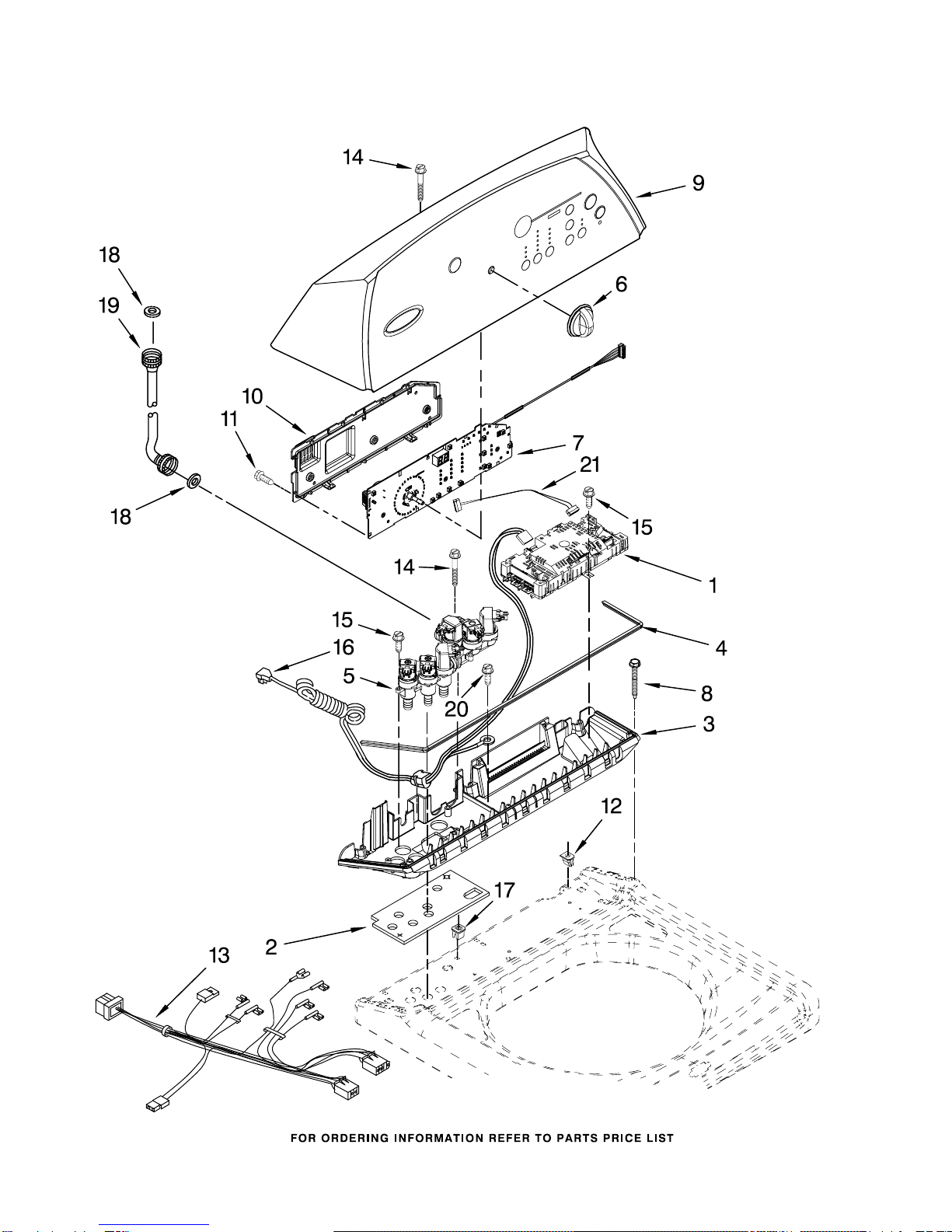

CONTROL PANEL PARTS

For Model: WTW6400SW0

(White)

8181163

CONTROL PANEL PARTS

For Model: WTW6400SW0

(White)

8181163

Illus. Part

No. No. DESCRIPTION

W10104830

Control Unit

Assembly,

Machine & Motor

2 8565260 Gasket, Valve Tray

3 8565304 Tray Assembly,

Console (Includes

Items 2 & 4)

4 8565259 Gasket,

Console/Tray

W10059320

Valve, Log

Assembly

6 8574885 Knob, Control

7 8564291 User Interface

W10004990

Screw, 6−20 x 1.2

W10070050

Console

10 8564265 Cover, Rear−

User Interface

W10003770

Screw,

6−19 x 1/2 (3)

W10022060

Nut, Push−In (3)

W10045100

Harness, Upper

14 8565324 Screw,

10−16 x 1.75

15 8281136 Screw, 8−18 x 3/4

16 3407203 Cord Assembly,

Power

17 98460 Nut, Push−In (2)

18 3976300 Washer, Water

Inlet Hose

(1−1/16 x 5/8)(4)

19 Hose, Water Inlet

8571377 Blue Coupler

8571378 Red Coupler

20 488649 Screw, Power

Cord Ground

21 3407187 Harness,

Thermistor

MOTOR, BASKET AND TUB PARTS

For Model: WTW6400SW0

(White)

8181163

MOTOR, BASKET AND TUB PARTS

For Model: WTW6400SW0

(White)

8181163

Illus. Part

No. No. DESCRIPTION

1 8578929 Cap, Impeller

W10076270

Screw & Washer

Assembly

W10076260

Washer

4 8542666 Tub Ring

5 8572540 Hose Pressure

Switch

W10076230

Impeller

(Washplate)

7 8533953 Screw,

8−16 x 1.000 (6)

8 8545948 Hub, Basket−Driven

(Includes Item 9)

9 8545953 Hub, Basket−Driver

(Includes Item 8)

10 8557267 Basket Assembly

(Includes Items

7, 8, & 9)

11 8572660 Tub & Drive Shaft

Assembly

13 8542674 Weight,

Tub Counterbalance

W10004910

Screw,

12−16 x 1−1/4 (2)

15 8557839 Shield,

Drive Motor

(Includes Item 16)

16 8565172 Tube, Buffer

(Set Of 4)

17 8565170 Stator, Motor

(Includes Item 18)

18 8557836 Plate, Stator

(Set Of 2)

W10076010

Screw,

1/4−20 x .968 (4)

20 8565188 RPS Assembly

21 8565177 Rotor, Main Drive

Motor (Includes

Item 22)

22 Bolt, Rotor

Assembly

Non−Serviceable

(Supplied W/Rotor)

W10058730

Harness, Lower

(Includes Item 5)

24 8566197 Filter, Dual

Pump Hood

25 8533928 Screw,

8−18 x 3/4 (2)

W10005430

Clamp, Pressure

Hose Retainer

28 8533957 Screw, 10−16 x 1/2

29 8564017 Cup,

Suspension (4)

PUMP PARTS

For Model: WTW6400SW0

(White)

8181163

Illus. Part

No. No. DESCRIPTION

W10049390

Pump Assembly,

Drain

2 8571715 Hose, Drain

3 8543774 Hose, Recirc

4 8578573 Pump Assembly,

Recirc

5 8534063 Screw,

10−14 x 1.000

6 370449 Clamp, Hose

7 8269146 Clamp, Hose

8 8317496 Clamp, Hose

9 8182771 Grommet, Pump

Mounting (4)

10 8534021 Clamp, Recirc

Hose Retainer

11 8533943 Screw, 10−16 x 3/4

12 8578572 Shield,

Recirc Pump

13 8576642 Retainer,

Drain Hose

14 3347868 Cable Tie

15 8182769 Hose, Recirc Pump

16 8182770 Clamp,

Recirc Pump Hose

17 8182767 Hose, Drain Pump

18 8182768 Clamp,

Drain Pump Hose

OPTIONAL PARTS (NOT INCLUDED)

For Model: WTW6400SW0

(White)

8181163

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350938 Primer, Gray

350930 White

PAINT, BULK (1 qt.)

799344 White (Uncut)

WATER SYSTEM PARTS

285442 Connector Kit,

Plastic Drain

Hose

285321 Sleeve Kit,

(Contains 2

Sleeves)

285320 Siphon Break Kit

367031 Drain Protector

SEALER

285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

COUPLING

384496 Coupling, Hose
