Vision Assembly Guide 1

Vision

White’s Electronics, Inc. -

Manufacturers of the World’s Finest Metal Detectors

™

Guide to:

Assembly

Battery & Charger

Owner Registration

First-Time Out

2 Vision Assembly Guide

Press ON/OFF.

Optionally… Press ZOOM to select text size.

Squeeze & release Trigger on the handle grip.

Hold Trigger & hold ENTER, pump search coil (loop) up

and down on the ground until background hum steadies, release

ENTER… and then release Trigger and begin searching.

(Note releasing Trigger before releasing ENTER) locks Vision

in pinpoint mode, squeeze and release trigger twice to unlock

pinpoint.

Sweep search coil close to the ground, from side to side,

overlapping each pass.

Locate a consistent “BEEP” upon several passes of the

search coil.

Look at display. VDI, Blocks, and ICON, indicate a metal

target worthy of digging.

Pinpoint squeeze & hold toggle on the grip and slowly “X”

the area. Depth in inches and maximum bars indicates target

center.

Vision™

First Time Out - ”Turn On And Go” ...

Vision Assembly Guide 3

ASSEMBLY -

Washers between each

loop ear & clevis

Search Coil

Cable Retainer

Camlock

Battery

Compartment Door

Headphone

Jack

Battery

Compartment Latches

Clevis

Lower Rod

S-rod

Loop Connector

Control Box

Display

Touch Pads

Select Programs

Adjust Controls

Elbow Cup Strap

Elbow Cup Foam

Pads - Inside

Elbow Cup

Place soft rubber washer (b)

between clevis and ears - both sides.

Trigger

4 Vision Assembly Guide

ASSEMBLY INSTRUCTIONS -

1. Remove all parts from shipping carton. Check the assembly page to make

sure all parts are present.

2. Use the provided rubber washers between clevis/lower rod and loop ears.

Use only nonmetallic washers, fiber bolt, and thumbnut to secure loop/search coil

to clevis/lower rod.

3. Unlock “S” rod camlock and insert clevis/lower rod into curved “S” rod

so that stainless steel spring clip buttons line up and lock into one of the

adjustment holes in the curved “S” rod. Turn camlock to secure. The second

or third adjustment holes are suitable for average size adults. Individuals 6’

or taller should use the fully extended position. Individuals well over 6’ tall

should purchase the optional Tall Man Fiber Lower Rod #500-0242-3 and/or

#500-0240-1 Tall Man Aluminum “S” Rod.

4. Unravel loop cable and wind the cable around the clevis and rod assembly,

first revolution over the top of the rod. Wind cable all the way to the top of the

curved “S” rod, about five revolutions. Use the black cable retainers, one near

the loop, and one near the top of the curved “S” rod, to hold the loop cable in

place.

5. Unlock control box rod cam-lock and insert curved “S” rod so that stainless

steel spring clip buttons line up and lock into the rod on top of the control box.

The “S” rod is designed to curve up toward the display. However, those who

prefer to sweep the loop close to their feet may desire to assemble the “S” rod

to curve down toward the ground. Turn cam-lock to secure. Plug loop connector

into control box, screw lock ring to secure.

6. Grip the instrument by the handle, with your arm in the elbow cup with strap

secure, and sweep the loop/search coil over the floor. If the instrument fit feels

uncomfortable, adjust the elbow cup by removing and repositioning the bolt/

thumbnut and installing in one of the optional positions. If necessary, readjust

clevis/lower rod length with the spring clip buttons and cam-lock so that the

search coil can be held near the floor without requiring stooping over.

Vision Assembly Guide 5

7. Remove the protective paper from the two black elbow cup foam pads.

Carefully align pads on the inside of the elbow cup, one on each side of the

center rod, and press firmly into place.

8. Adjust the elbow cup strap so that it is loose enough for you to slide your arm

in and out without loosening each time you want to set the detector down. The

elbow cup strap provides extra leverage and control. However, some prefer not

to use it.

9. Install battery as described in the next section, decal facing down, single

larger plastic tab and steel contacts facing toward inside of battery compartment.

10. It should be noted at this point that the Vision may not work as expected

indoors due to the high degree of metals used in modern construction. It is best

to tune and practice (outdoors) to ensure stable, predictable results.

11. Your Vision is designed with an automatic turn OFF if the trigger on the grip

(or another control) “is not used” for a period of 30 minutes. This protects the

battery from damage (absolute discharge) in case of an accidental turn on during

travel or storage. The Vision will make a specific deep tone musical melody

upon automatic turn off. To restart, simply press ON and squeeze and release

the trigger on the grip to resume searching. The Vision returns to pre-turn-off

settings.

Batteries

The Vision is provided with two battery packs. A rechargeable Nickel Metal

Hydride (NiMH) battery (Orange Decal) will require an initial 3-4 hour battery

charge.

Orange Decal

6 Vision Assembly Guide

To begin using the Vision immediately, use the back-up “AA” battery pack (Blue

Decal).

• The standard battery holder (Blue Decal) holds eight “AA” cell

batteries. Alkaline batteries are recommended for use with this battery holder.

• Non-alkaline batteries can be used in this holder. When non-alkaline

or rechargeable “AA” cells are used, detecting time (before replacement/

recharge) may be reduced or increased depending upon the type of battery

used.

• An ” Unhappy Battery Icon” will automatically appear on the

display (lower left status line) when the batteries become too low (8 volts) to

properly operate the Vision.

• A headphone icon with a battery inside indicates the batteries are low

in the wireless headphone. See additional status indications on bottom of control

box.

• The battery compartment opens by gently pulling down on the front

of each of the two latches (on the bottom of the control box) releasing the catch

and hinging open the door. The non-rechargeable battery holder can use many

different types of batteries, including rechargeable. This holder is designed for

standard size “AA” batteries 50 mm ± .10 mm. Battery lengths shorter than this

will likely cause problems with this power supply.

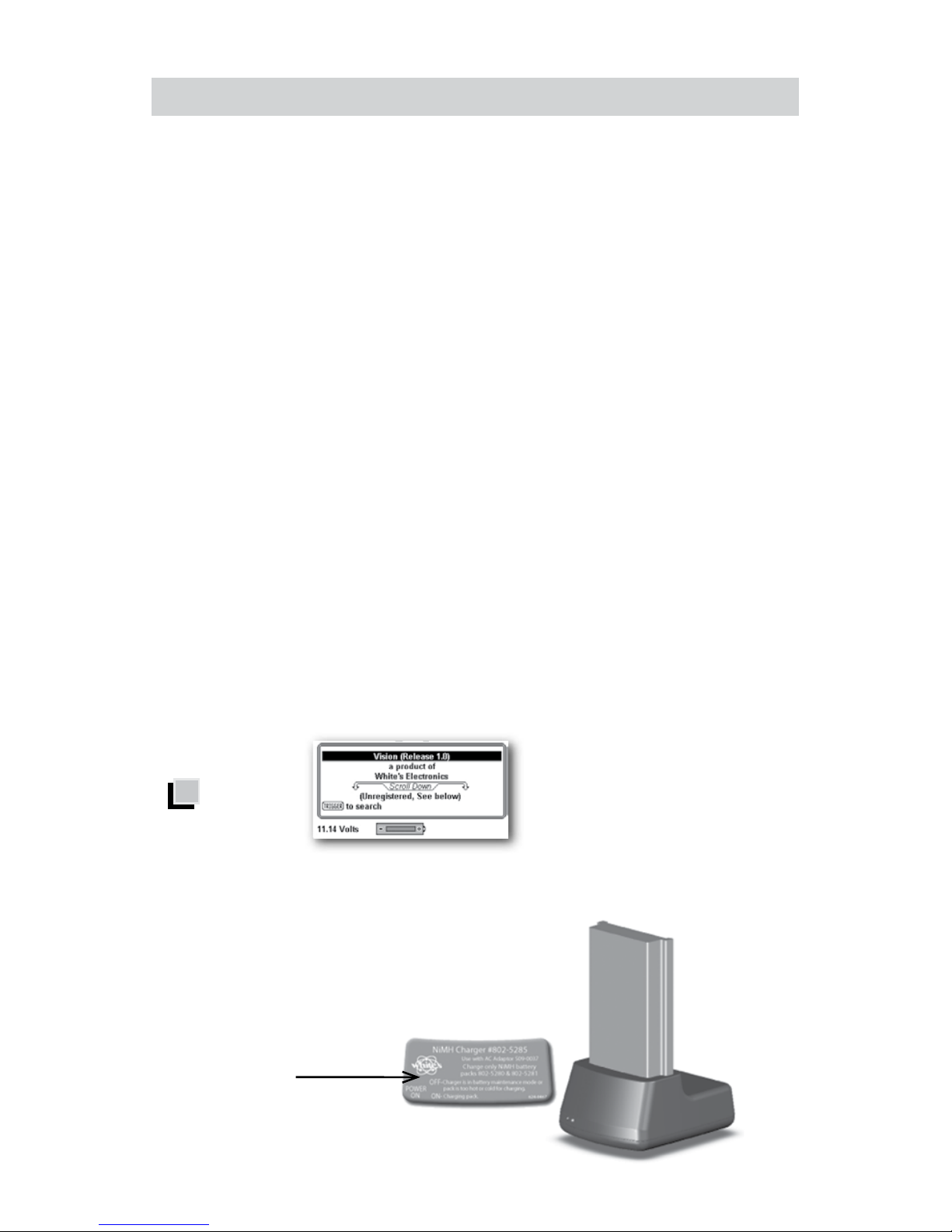

• When the Vision is turned on the battery voltage will momentarily

appear on the opening display (lower left). The degree the battery is filled, toward

+, indicates the battery condition. Full Fill = 100% battery life remaining, half fill =

50% battery life remaining.

• To recheck the battery voltage during searching, press MENU twice

and note battery voltage under BATTERY. Vision operates correctly between 8

Volts “low battery” and 13 Volts. Squeeze and release Trigger on grip (twice) to

Blue Decal

Battery Voltage Reading

Vision Assembly Guide 7

return to searching. Initial battery check voltage may indicate abnormally high.

With new Alkaline, or a fresh battery charge, the most accurate battery voltage

will be indicated after one hour of use.

Using the Standard Battery Holder

• Slide open the battery holder lid (decal side of battery holder) by applying

gentle upward pressure on the single large tab of the door so that it unlocks.

Slide the door away from the battery box exposing the cell positions.

• Remove any old cells from the holder. Note the “+” and “-“ positions of

each cell and the “+” and “-“ for each position marked inside the cell tray. Install

new “AA” cells noting carefully the correct (+) and (-) positions. If any of the cells

are installed incorrectly, battery life will be significantly reduced and/or the Vision

may require service by an Authorized Service Center.

• Slide the door closed so that it snaps securely.

• Insert the battery holder into the detector so that the decal is

facing down, with the single larger battery holder door tab and metal contact

points facing toward the inside of the battery compartment. Close the battery

compartment door and secure the two latches on the bottom of the case. Hook

the front (nearest the door) of each latch first, and then snap down the rear

(furthest from the door).

8 Vision Assembly Guide

NiMH Rechargeable Battery

• A rechargeable NiMH (Nickel Metal Hydride) battery (Orange Decal)

is provided with your Vision. This battery can be recharged hundreds of times.

Full charge can be achieved anytime during the discharge cycle (a non-memory

system). The provided “Smart Charger” and “Charging Cradle/Stand” sense

the type of charge the battery needs and automatically adjust the charge cycle.

From fully low this system provides a full charge in as little as 3-4 hours. A full

charge will last ten to twelve hours of normal use. Battery life will vary with

temperature, the number of targets found, and the exact settings used. Six hours

is not unusual for extreme high performance settings, or for batteries that have

experienced extensive use.

• The battery will lose its charge during storage. If stored inserted in

your instrument, this loss will be more significant. It is recommended that the

battery be removed from the Vision during periods of storage. It is not advisable

to store rechargeable batteries for long periods of time without use (six +

months). If extended storage is necessary, store with a charge (charged). If

possible, recharge at least once every six months of non-use.

• Do not discharge the battery in devices other than your metal

detector. Unnecessary discharging and/or an absolute discharge will reduce

battery life and may damage the battery. Unlike older rechargeable battery

designs, the rechargeable battery provided with your Vision can be recharged at

any time. Regardless of whether or not it already has a partial charge, memory

will not occur.

• White’s has provided the leading edge NiMH rechargeable battery

technology with your Vision. Disregard advice that conflicts with the above

recommendations. Care for batteries provided by other manufacturers, or with

other White’s models, may vary.

• Do not combine (use) any other battery, or any other battery charger,

not specifically designed to work with this system.

• The NiMH battery provided with your Vision may be subject to

recycling laws in your area. It is the right thing to do and is often legally required.

If, perhaps many years in the future, you are uncertain as to where to return a

Vision Assembly Guide 9

White’s NiMH batteries for recycling, please return it to the place of purchase or

any White’s Electronics Inc. address circling “the recycling” (trash can) portion of

the label.

• Charging

- Plug the charger into a standard wall outlet. (110 volts for USA

models, 220 volts for UK models).

- To charge, insert the battery into the cradle / stand (only fits one way)

plug the charger plug into the back of the cradle / stand. Green light should glow.

- Green and Red Lights ON indicate battery and charger have made

a good connection and the battery is charging. The battery charger is designed

to charge a completely low battery in as little as 3-4 hours. However, no harm

will come to the system leaving it charging for several days (automatic trickle

charge).

- Red Light OFF, Green Light ON indicates battery is now fully charged

and ready for use and will now simply maintain the full charge indefinitely. It is

normal for the battery and charger to get warm during use. However, if either

the battery or the charger gets too hot to hold or deforms due to the heat,

discontinue use and return for testing.

- When using fresh batteries, the voltage will initially check somewhere

in the 10 to 13 volt area. Unlike standard batteries, the rechargeable battery

voltage will quickly drop somewhere between 9 and 11 volts and plateau there

for most of its life. Once the rechargeable battery voltage drops below this

plateau, it will quickly drop below a usable voltage level (8 volts) and thus require

a recharge. “Unhappy Battery Icon” will automatically appear on the display when

the battery approaches 8 volts. It is recommended to either recharge or switch

to “AA” pack when occasional unhappy battery starts to appear (flash) on display.

With a consistent unhappy battery, Vision will not be operating properly and will

soon entirely cease to operate.

10 Vision Assembly Guide

Owner Registration

How to Access – To access Information / Configure press MENU twice in

succession. Arrow down to Owner Registration and press ENTER. To Exit

squeeze and release trigger on hand grip twice

Owner Registration – Allows the Vision owner to embed their name and contact

information, protected from tampering, but updateable with original factory code.

• Select Owner Register and press ENTER. Press MENU / TAB to select

• Password – IMPORTANT! Write down the password or code that

automatically appears and keep it in a safe place separate from your Vision…

(Password code will disappear, and must be manual re-entered, after first

registration). If you normally keep your instruction manual at home, write it

on the inside cover of the manual. Should you ever change addresses or sell

your vision, this code must be retained and manually re-entered to update or

revise your Visions registration information. To detour theft, without this original

disappearing code, significant inconvenience can be expected regarding re-

setting the Registration information.

Owner’s Name – Use the ARROWs Down / Up, and Left / Right to spell out your

name. Or press ENTER to bring up a key-board and then use ARROWs and

ENTER to spell out your name.

• Select and ENTER blanks to add spaces. If you make an error, to redo

that digit, squeeze and release trigger, ARROW back to that digit, and press

ENTER to bring the Keyboard back, then redo that digit.

Inhaltsverzeichnis

Andere White’s Electronics Metalldetektor Handbücher

White’s Electronics

White’s Electronics CoinMaster Bedienungsanleitung

White’s Electronics

White’s Electronics AF101 Bedienungsanleitung

White’s Electronics

White’s Electronics Treasuremaster 80TR Technische Daten

White’s Electronics

White’s Electronics coinmaster 3900/D Professional Bedienungsanleitung

White’s Electronics

White’s Electronics Coinmaster 2/DB Technische Daten

White’s Electronics

White’s Electronics M-59 Treasure Master Technische Daten

White’s Electronics

White’s Electronics Searchmaster Bedienungsanleitung

White’s Electronics

White’s Electronics Prizm 6T Bedienungsanleitung

White’s Electronics

White’s Electronics PCL 500 Bedienungsanleitung

White’s Electronics

White’s Electronics Coinmaster classic Bedienungsanleitung

White’s Electronics

White’s Electronics GOLDMASTER 24k Einrichtungshandbuch

White’s Electronics

White’s Electronics Coin Master PRO Bedienungsanleitung

White’s Electronics

White’s Electronics classic I SL Bedienungsanleitung

White’s Electronics

White’s Electronics Beachcomber Bedienungsanleitung

White’s Electronics

White’s Electronics 3900/D PRO PLUS Bedienungsanleitung

White’s Electronics

White’s Electronics Bullseye TRX Bedienungsanleitung

White’s Electronics

White’s Electronics Classic III SL Bedienungsanleitung

White’s Electronics

White’s Electronics Quantum II Bedienungsanleitung

White’s Electronics

White’s Electronics 6000/DI PRO SL Bedienungsanleitung

White’s Electronics

White’s Electronics Classic III Plus Bedienungsanleitung

White’s Electronics

White’s Electronics Coinmaster V Supreme Technische Daten

White’s Electronics

White’s Electronics PulseScan TDI Bedienungsanleitung

White’s Electronics

White’s Electronics Spectra V3 Bedienungsanleitung

White’s Electronics

White’s Electronics Surf Master Technische Daten

Beliebte Metalldetektor Handbücher anderer Marken

Garrett

Garrett MAGNASCANNER CS 5000 Bedienungsanleitung

Valex

Valex 1800200 Bedienungsanleitung

Gauss

Gauss MIL MD Bedienungsanleitung

Velleman

Velleman CS130 Bedienungsanleitung

Sears

Sears 321.596370 Bedienungsanleitung

Eriez

Eriez X8 Bedienungsanleitung

Steinberg Systems

Steinberg Systems SBS-MD-22 Bedienungsanleitung

Zircon

Zircon MetalliScanner m60c Bedienungsanleitung

nalanda

nalanda MD027 Bedienungsanleitung

REV Ritter

REV Ritter CB-7005 Bedienungsanleitung

Minelab

Minelab F1A4 Bedienungsanleitung

Fisher Research Labs

Fisher Research Labs F70 Bedienungsanleitung

Steinberg Systems

Steinberg Systems SBS-MD-12 Bedienungsanleitung

GOLDEN MASK

GOLDEN MASK 5 Bedienungsanleitung

Grizzly

Grizzly YM 203 Bedienungsanleitung

Fisher Research Labs

Fisher Research Labs 1280-X Aquanaut Bedienungsanleitung

Treasure Cove

Treasure Cove Vibra-Probe 560 Bedienungsanleitung

Accurate Locators

Accurate Locators XL16 IMAGER Bedienungsanleitung
