Instruction Manual

TM 808

(English Edition)

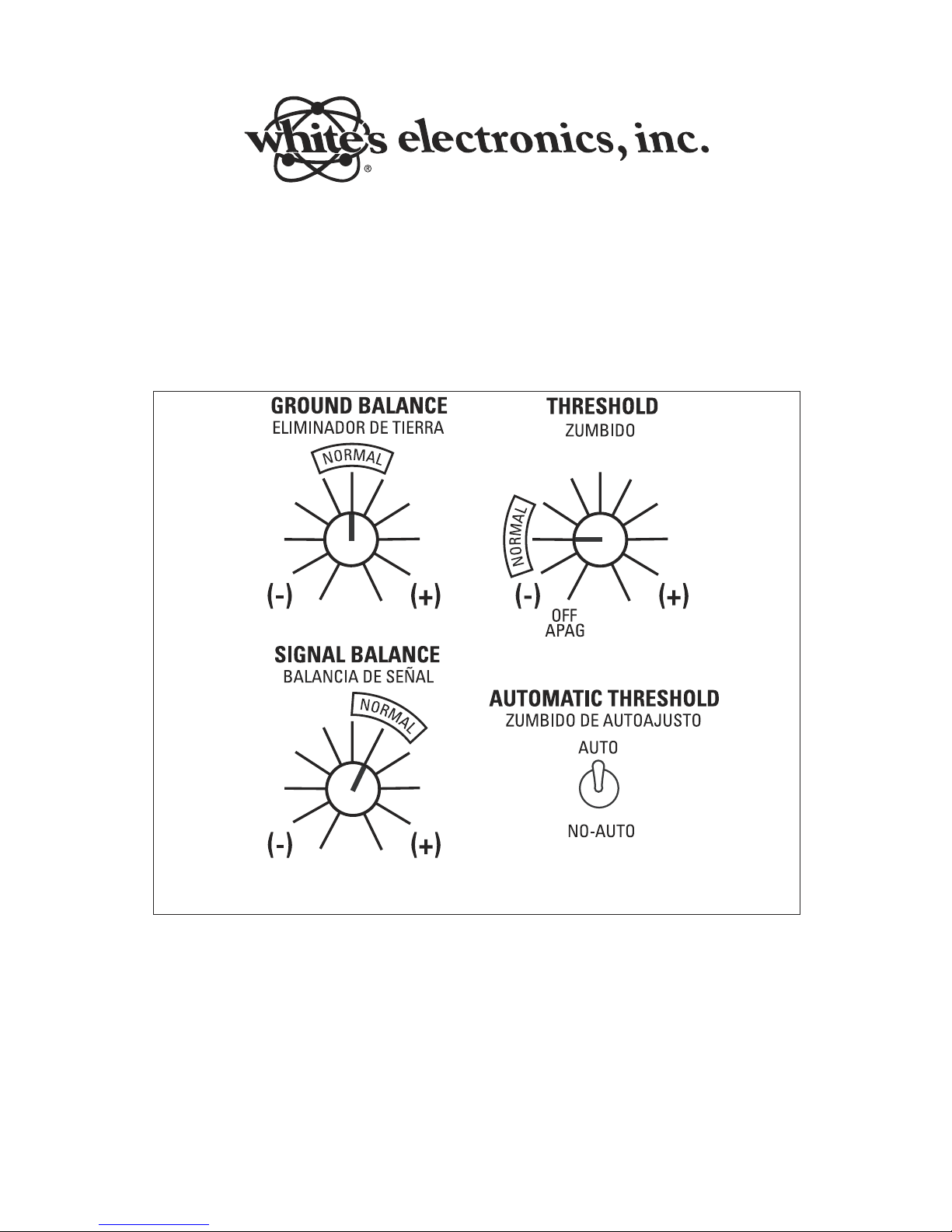

NOTE:

To locate large metal in normal conditions, set the controls as

shown above. Walk briskly, noting areas that produce an increase in

sound - beep. Cross these areas from at least two sides ( X ) to pinpoint

target location. When AUTOMATIC THRESHOLD is in AUTO, detector

must always be moving to respond to targets. NO-AUTO doesn't require

motion to respond to targets.

A Message from...

Kenneth R. White

Congratulations, and thank you for choosing the TM 808.

As an avid detectorist, I commend you for making an excellent choice

in deep seeking equipment. White's continually strives to achieve

performance and reliability above and beyond your expectations.

Your new TM 808 has been hand built and carefully tested. Properly

cared for, it will last years.

The following instructions are intended to familiarize you with this

ﬁne detector, and give you a good understanding of the basics. Obvi-

ously, there is no substitute for ﬁeld experience. Practice using your

detector in the ﬁeld, and study this manual carefully. Before long

you may be able to teach the experts a thing or two!

People use White's metal detectors to ﬁnd valuables every day.

Regardless of a metal detectors performance, it is the operator who

makes the critical decisions that result in great recoveries. A metal

detector is simply a tool which greatly increases the capabilities of

the user to ﬁnd such valuables. Knowing your detector, and re-

searching good places to use it, are key elements to successful metal

detecting.

Another important factor today is obtaining permission prior to

searching private property, and the necessary permits prior to

searching publicly owned lands. These steps, as well as reﬁlling dug

holes, and removing trash you discover, will go a long ways toward

protecting the hobby from future restrictive legislation.

We know in a very short time you will be using the TM 808 to help

you ﬁnd valuables. We are proud to continue White's tradition of

high performance and reliability with your TM 808.

(3)

Table of Contents

Assembly .................................................................................................. 4

Batteries ................................................................................................5-6

Description of Controls

Threshold ..................................................................................7

Signal Balance ..........................................................................8

Ground Balance ........................................................................9

Automatic Threshold ................................................................ 10

Push-Button ............................................................................. 11

Headphone Jack ..................................................................... 11

Operation

Tuning (Ground Balancing) ................................................12-14

Locating Metal ......................................................................... 15

Determining Metal Depths.............................................. .........16

Caring For Your Instrument......................................................... ........... 17

Warranty Statement ................................................................................18

NOTES ................................................................................................19

Carton / Carry Case ..................................................................Back Cover

Manufacturers Information ........................................................Back Cover

Assembly Instructions

1) Remove all parts from the shipping carton, taking note of how the instrument

fits into the inserts. Save this carton (and inserts) for future storage or travel.

See back cover for further Carton / Carry case instructions.

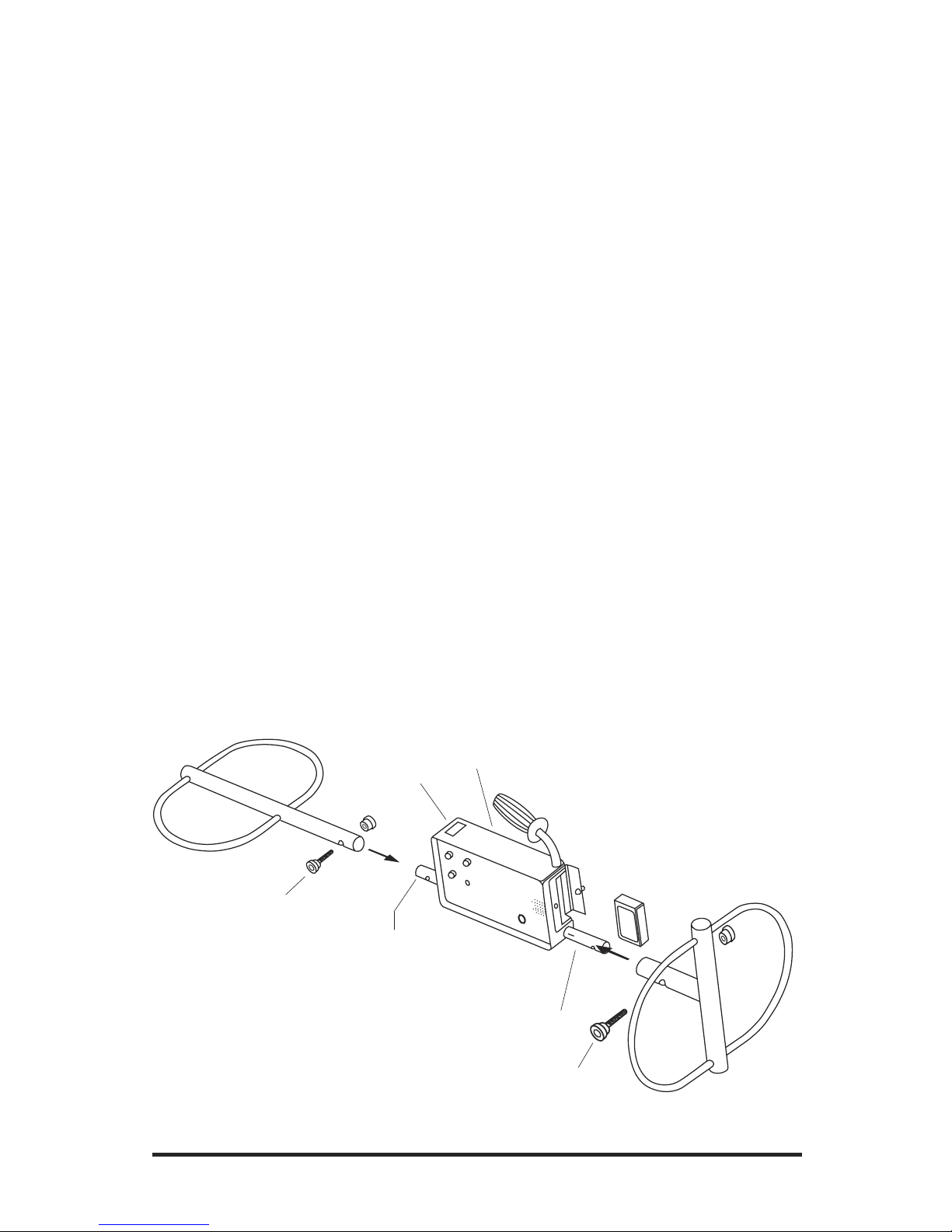

2) Assemble the front loop or antenna as shown, by compressing the button on

the short rod protruding from the front of the control box, sliding the loop onto this

short rod, and aligning the button on the control box short rod with the hole on

the front antenna so that it locks into place. Use the thumbnut and bolt to further

sucure the antenna.

3) Assemble the rear loop or antennas as shown, by compressing the button on

the short rod protruding from the rear of the control box, sliding the loop onto this

short rod, and aligning the button on the control box short rod with the hole on

the rear antenna so that it locks into place. Use the thumbnut and bolt to further

sucure the antenna.

4) Continue by reviewing the next section on Batteries.

(4)

Front Loop (Antenna)

Short Rod

Front Of

Control Box Short

Rod Rear Of

Control Box

Meter

Rear Loop

(Antenna)

Battery

Pack

Control Box

Control

Panel

Handle

Thumbnut

Bolt

Thumbnut

Bolt

The standard battery holder supplied with your instrument holds four "C"

size batteries. Alkalines are recommended as they supply more consistent power

for longer time periods. Rechargeable "C" size batteries may also be used in this

holder, although they will need to be removed from the holder for recharging.

Using The Standard Battery Holder:

1) Remove the battery holder lid by applying gentle pressure down on the two

locking tab openings on one side (just enough so that they unlock), flip the pack

over and apply gentle pressure on the other two locking tab openings. The lid will

then slip off.

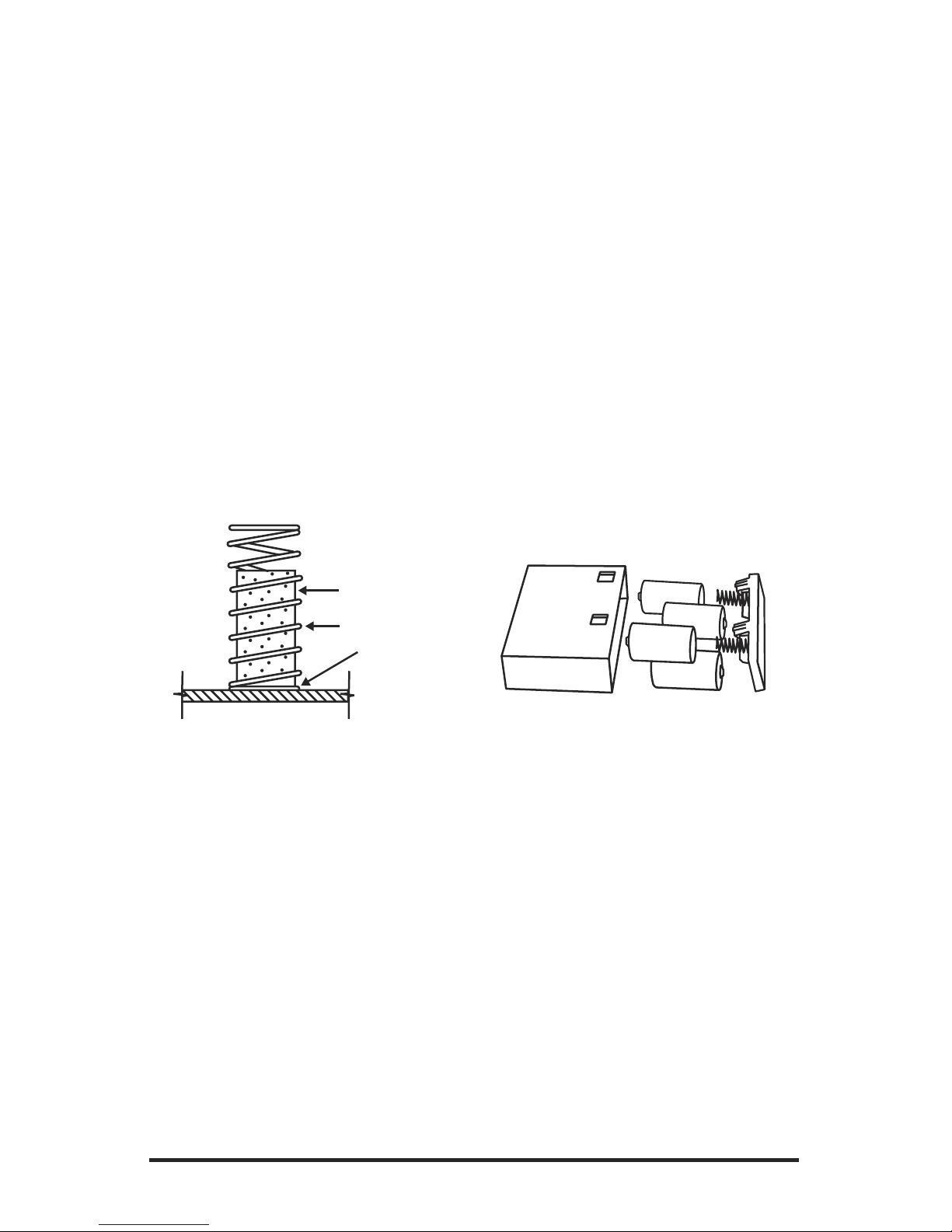

2) Insert the small foam squares inside the two springs on the lid, and

the two in the holder, to prevent loss of spring tension

3) Note the position of each cell. The flat side of each battery cell fits against one

of the four springs. There are two springs on the lid, and two in the case. The bat-

teries fit alternating +, -, +, -.

4) Install new "C" cells. Caution: If the cells are put in backwards the detector

may blow a fuse. Fuses can only be replaced by authorized service centers.

5) Line up the locking tabs on the lid with the locking tab openings on the battery

holder. Snap the lid and holder together.

6) Open the battery compartment door on the side of the control box nearest the

rear antenna, by pulling the battery door knob.

(5)

Batteries

“C” Cell HOLDER

FOAM

SPRING

PUSH FOAM

TO BASE

OF SPRING

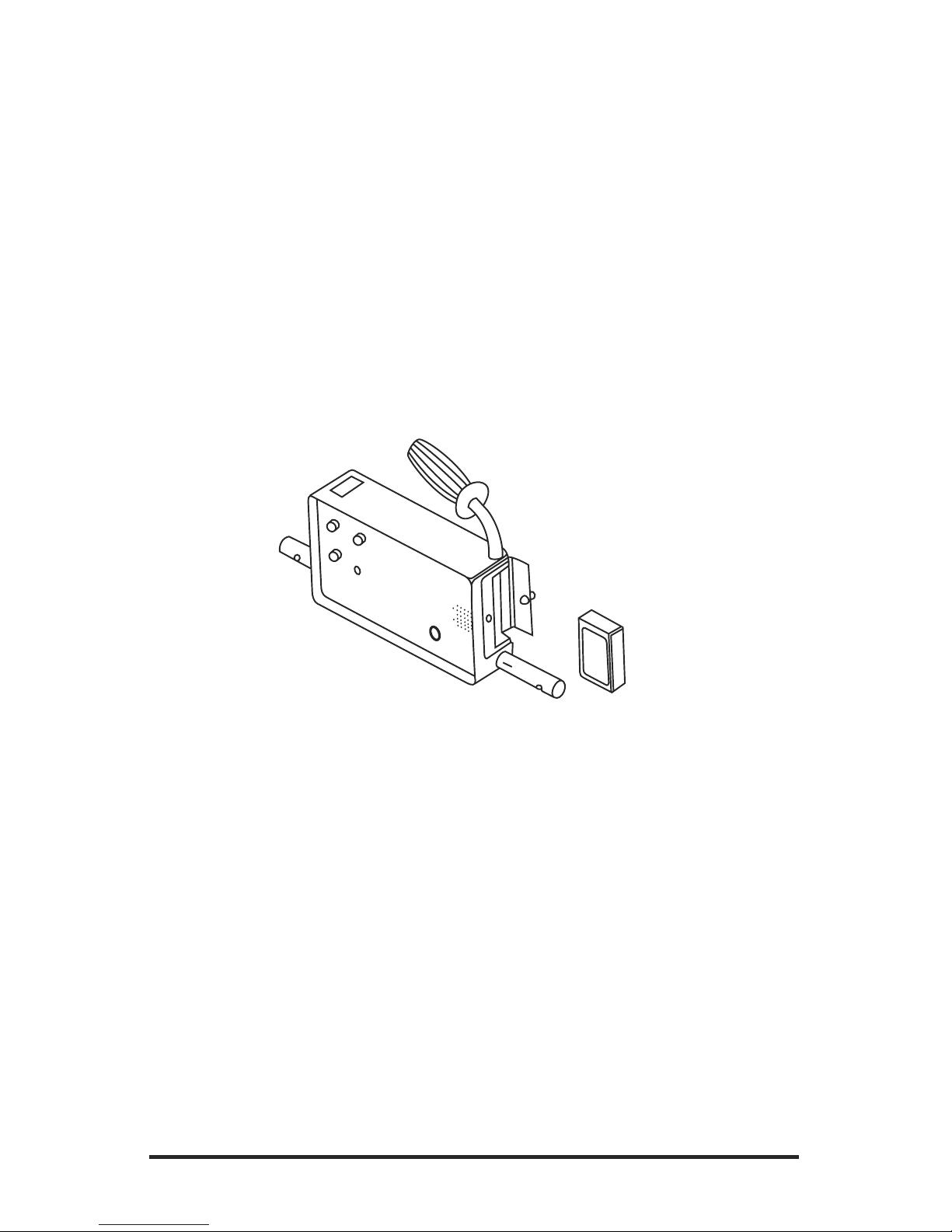

7) Insert the battery holder into the detector so that the decal on the battery

holder is facing toward the control panel of the detector.

8) Close the battery compartment door by first pressing on the door itself to

close and hold it into position, then press the battery compartment knob in, until

it snaps locked.

Rechargeable Batteries

Although this instrument doesn't normally come with a recharge-

able battery system, high quality systems are available for this model. White's

rechargeable battery #802-5185 and charger #509-0020 are recommended,

for U.S.A. 110V use. These are sealed sets which offer the durability of spot

welded contacts, and the conveniences of automatic charge, trickle charge, and

maintainenance charge. Please contact your dealer.

Batteries continued ...

(6)

(7)

Description of Controls

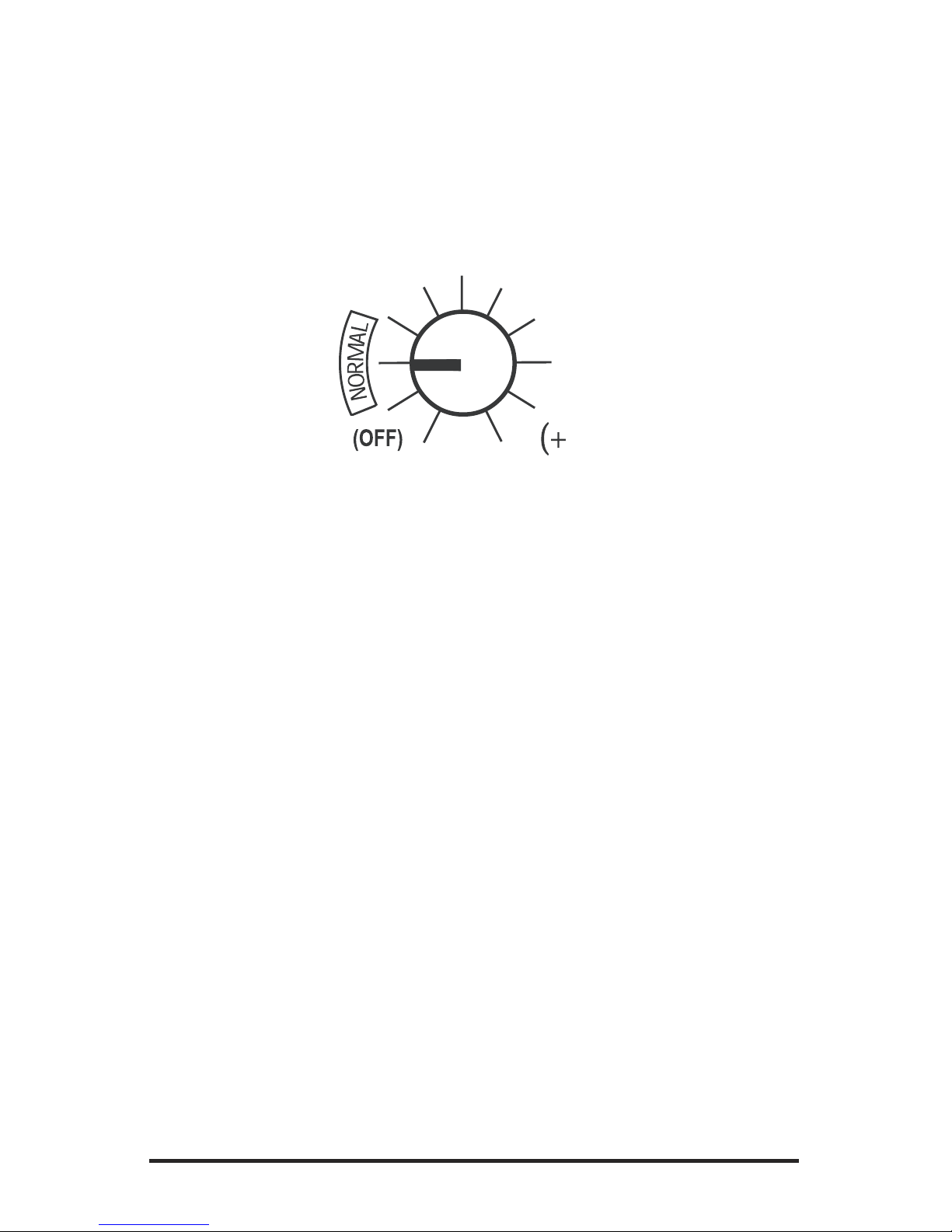

The THRESHOLD control turns the TM 808 On and OFF and adjust

the volume of the background hum, or as it is commonly called, the "threshold".

Turning the THRESHOLD control clockwise the power is turned ON and the bat-

teries automatically check on the METER for a few moments. For the TM 808 to

operate properly, battery test must indicate in the upper yellow highlighted area

of the METER. In average temperatures, new batteries will provide

approximately 12 hours of continuous use. In cold climates, battery life

will be reduced. The THRESHOLD control must be adjusted for a slight

background sound or THRESHOLD that is heard continuously during searching.

The THRESHOLD control should be adjusted to give a barely audible

hum. A slightly lower setting is used with headphones, and slightly higher when

used without headphones, particularly when being used in a high noise environ-

ment. A setting in the NORMAL area will usually be appropriate. Generally,

the lower the THRESHOLD can be set while still hearing a slight hum, the

better. The THRESHOLD may fade over changing ground indicating the PUSH

BUTTON on the handle needs to be squeezed and released which will return or

reset the THRESHOLD hum. This resetting may be needed at regular intervals,

unless AUTOMATIC THRESHOLD is on AUTO which automatically maintains

THRESHOLD.

THRESHOLD

ZUMBIDO

( ) )

Description of Controls continued.....

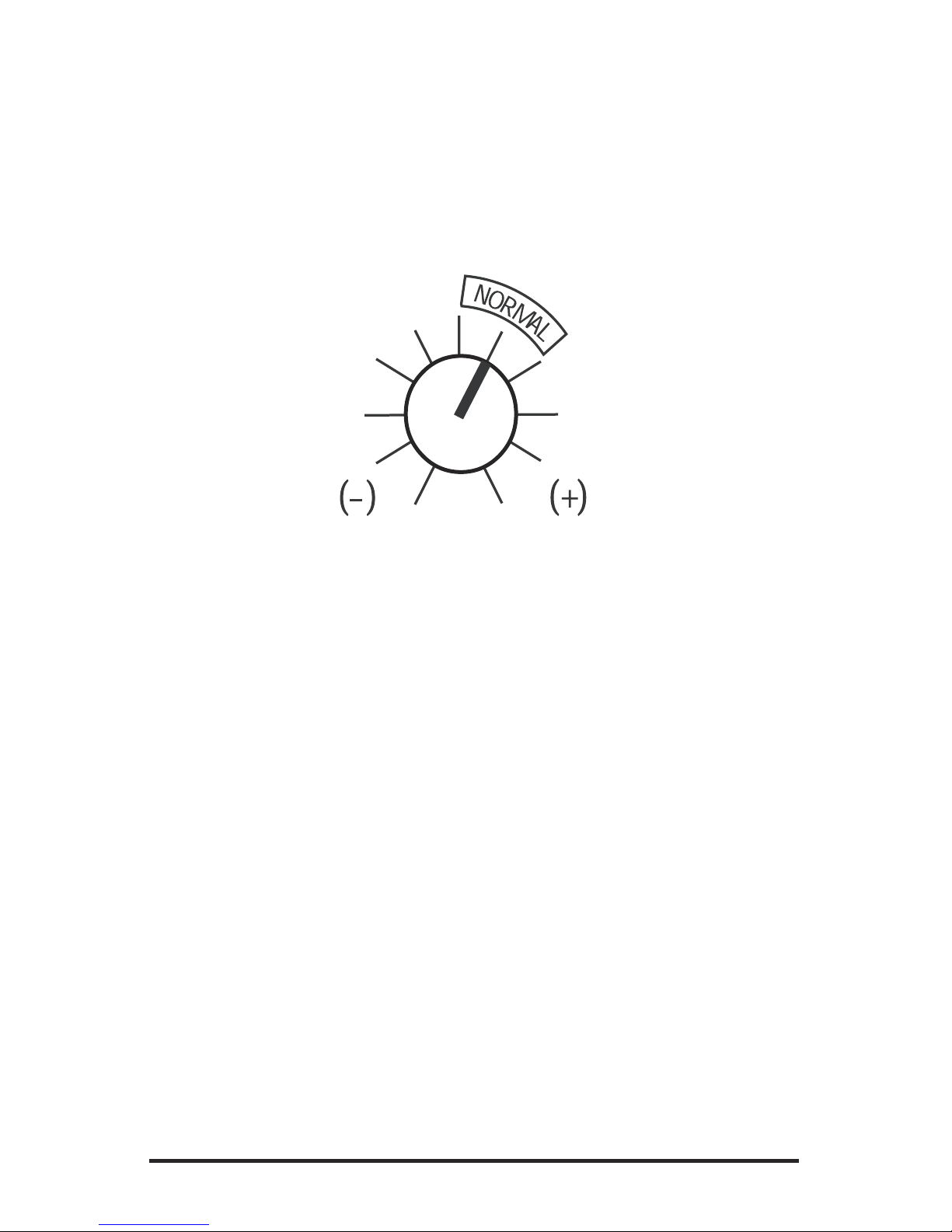

The SIGNAL BALANCE control adjusts the receive signal of the detec-

tor. The NORMAL position works well for most searching situations. This setting

will provide more than adequate performance with little interference from electri-

cal sources. If interference from extreme ground minerals, or electrical sources

(radio, power lines, etc.) cause erratic behavior (extreme fluctuations in the

threshold hum), or produce difficulties in setting the GROUND BALANCE control,

the SIGNAL BALANCE control should be set further toward the (-) setting. If

little interference is experienced and ground balancing can easily be achieved,

the SIGNAL BALANCE control may be set slightly further clockwise toward (+).

However, great caution should be used when increasing beyond NORMAL. If

the detector operates erratically, due to the use of too (+) a setting, the response

from deeper targets will be obscured. Additionally, if the GROUND BALANCE

can not be set correctly, the SIGNAL BALANCE is overloading the detectors re-

ceive signal, and will reduce detection depth. The optimum setting is one which

gives smooth operation allowing deep targets to be heard clearly, and GROUND

BALANCE achieved with a reasonable degree of effort. If the instruments perfor-

mance seems temperamental or unstable, a SIGNAL BALANCE setting slightly

toward (-) should be selected.

(8)

SIGNAL BALANCE

BALANCIA DE SENAL

(9)

Description of Controls continued.....

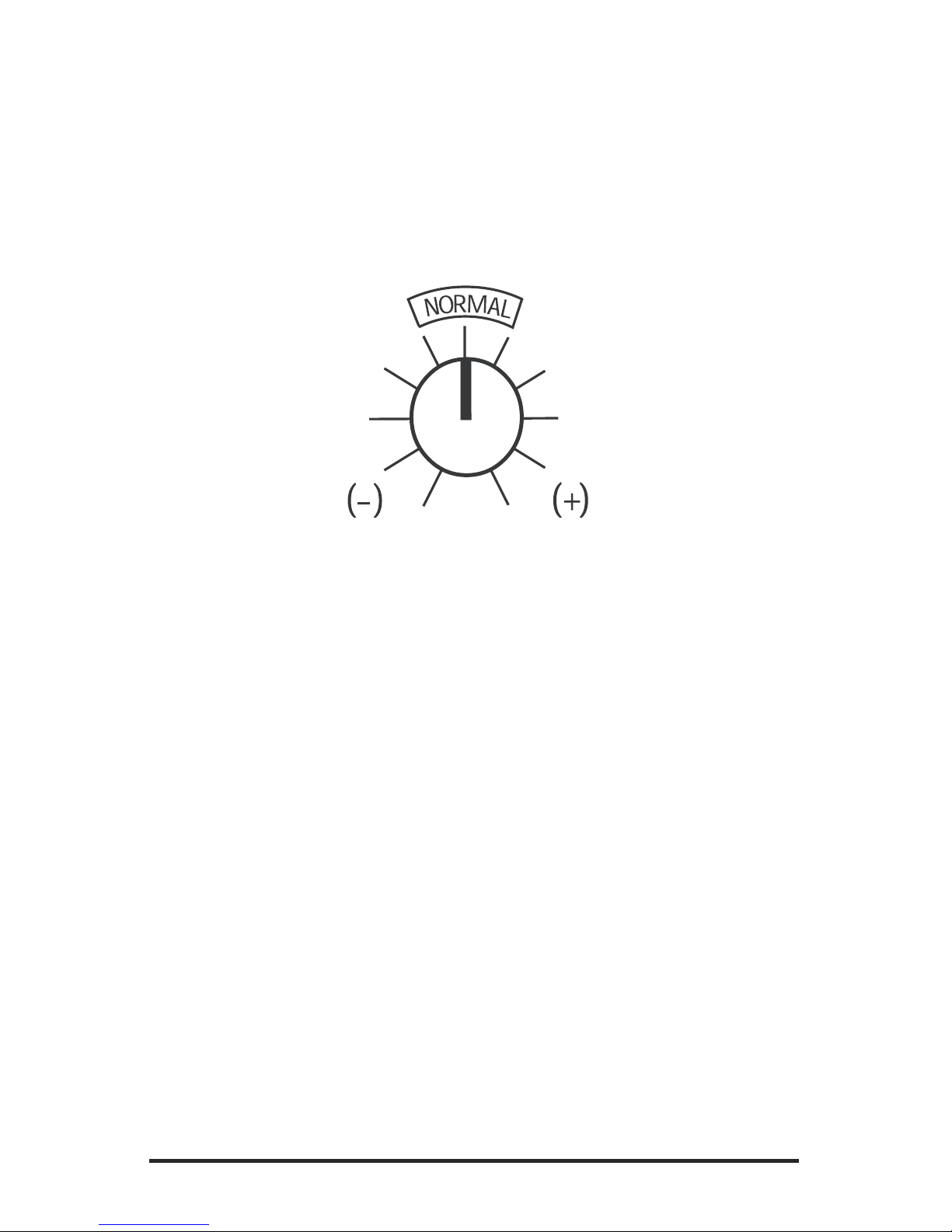

For the best results, the GROUND BALANCE control needs to be ad-

justed each time the detector is used. The NORMAL setting works well for most

conditions. GROUND BALANCE is adjusted to cancel out or ignore common

mineralization in the ground thus, allowing the deepest available penetration.

A setting clockwise toward (+) is used for higher mineralization and a setting

counterclockwise toward the (-) would be sufficient for low mineralized soils.

The method for adjusting this control will be covered in the section on TUNING.

In a nut shell, when GROUND BALANCE is set properly little or no change in

THRESHOLD hum is noted as the detector is lifted slightly up or down in rela-

tionship to the ground. It should also be noted that the AUTOMATIC THRESH-

OLD control, which will be discussed in the next section, should be set in the

NO-AUTO position while the GROUND BALANCE control is being adjusted. The

GROUND BALANCE control and the SIGNAL BALANCE control work hand in

hand to tune out undesired responses, and provide the deepest possible pen-

etration (detection depth).

GROUND BALANCE

ELIMINADOR DE TIERRA

(10)

Description of Controls continued.....

The AUTOMATIC THRESHOLD control is used to activate (AUTO),

or disable (NO-AUTO), the automated threshold resetting feature. This feature

offers automatic threshold maintenance. When AUTO is used it allows the

threshold hum of the detector to remain smooth or constant regardless of small

changes in the ground mineralization, or upward / downward drift of the electron-

ic signal. When NO-AUTO is used changes in threshold which are normal for

such instruments, require manual resetting (squeezing and releasing the PUSH

BUTTON on the handle).

IMPORTANT: The detector must be kept in motion when using the

AUTO position. Standing still over the target will cause the target signal to fade

away.

In the NO-AUTO position, AUTOMATIC THRESHOLD is not functioning.

Use this position when adjusting the GROUND REJECT control to compensate

for the ground. It can be used as a searching mode if the ground mineralization

does not change rapidly, and there isn't external interference from radio signals

etc. In the NO-AUTO position the detector does not have to be kept in motion

when passing over the target. You can stand over the target without the target

signal fading away. It can be valuable to help pinpoint the center of a deep

target. When using this NO-AUTO position it will be necessary to press and

release the reset button on the end of the handle at regular intervals, to keep the

threshold hum constant and free from upward or downward drift. If the threshold

sound gradually increases or decreases while searching, press and release the

button to return the detector to the normal threshold hum. This requires skill and

experience, most users should operate in AUTO until some field experience is

gained.

AUTOMATIC THRESHOLD

AUTO

NO AUTO

ZUMBIDO DE AUTOAJUSTO

Inhaltsverzeichnis

Sprachen:

Andere Whites Metalldetektor Handbücher

Whites

Whites Prizm II Bedienungsanleitung

Whites

Whites G.E.B. Series Technische Daten

Whites

Whites Treasuremaster G.E.B. Technische Daten

Whites

Whites Goldmaster 66TR-4B Bedienungsanleitung

Whites

Whites Vision Spectra Bedienungsanleitung

Whites

Whites Coinmaster 5000/D Bedienungsanleitung

Whites

Whites Beachcomber 2 Bedienungsanleitung

Whites

Whites Little Monster Technische Daten

Whites

Whites Coinmaster 6000/D Bedienungsanleitung

Whites

Whites Quantum XT Bedienungsanleitung

Whites

Whites Beachcomber 3 Bedienungsanleitung

Whites

Whites M6 Bedienungsanleitung

Whites

Whites Goldmaster Bedienungsanleitung

Whites

Whites XLT Bedienungsanleitung

Whites

Whites Coinmaster 400 Series 2 Technische Daten

Whites

Whites Surf P.I. Pro Bedienungsanleitung

Whites

Whites Lawman L-1 Bedienungsanleitung

Whites

Whites Treasuremaster PI 1000 Bedienungsanleitung

Whites

Whites Coinmaster 1TR Deluxe Bedienungsanleitung

Whites

Whites Beachcomber TR 6S Bedienungsanleitung

Whites

Whites Coinmaster GT Bedienungsanleitung

Whites

Whites Spectra V3 Bedienungsanleitung

Whites

Whites Liberty Di Bedienungsanleitung

Whites

Whites Coinmaster 3TR Deluxe Bedienungsanleitung

Beliebte Metalldetektor Handbücher anderer Marken

Garrett

Garrett MAGNASCANNER CS 5000 Bedienungsanleitung

Valex

Valex 1800200 Bedienungsanleitung

Gauss

Gauss MIL MD Bedienungsanleitung

Velleman

Velleman CS130 Bedienungsanleitung

Sears

Sears 321.596370 Bedienungsanleitung

Eriez

Eriez X8 Bedienungsanleitung

Steinberg Systems

Steinberg Systems SBS-MD-22 Bedienungsanleitung

Zircon

Zircon MetalliScanner m60c Bedienungsanleitung

nalanda

nalanda MD027 Bedienungsanleitung

REV Ritter

REV Ritter CB-7005 Bedienungsanleitung

Minelab

Minelab F1A4 Bedienungsanleitung

Fisher Research Labs

Fisher Research Labs F70 Bedienungsanleitung

Steinberg Systems

Steinberg Systems SBS-MD-12 Bedienungsanleitung

GOLDEN MASK

GOLDEN MASK 5 Bedienungsanleitung

Grizzly

Grizzly YM 203 Bedienungsanleitung

Fisher Research Labs

Fisher Research Labs 1280-X Aquanaut Bedienungsanleitung

Treasure Cove

Treasure Cove Vibra-Probe 560 Bedienungsanleitung

Accurate Locators

Accurate Locators XL16 IMAGER Bedienungsanleitung
