Whynter SNO ARC-10D Bedienungsanleitung

SNO PORTABLE AIR CONDITIONER

MODEL: ARC-10D

This owner’s manual provides important instructions on safe installation,

use and maintenance of this portable air conditioner. Please read

carefully and save for future reference.

Index

Introduction--------------------------------------------------------------------- 3

Technical Specification------------------------------------------------------4

Safety Precautions----------------------------------------------------------- 5

Parts and Accessories-------------------------------------------------------7

Electrical Diagram-------------------------------------------------------------7

Installation-----------------------------------------------------------------------9

Operation ----------------------------------------------------------------------11

Maintenance-------------------------------------------------------------------16

Troubleshooting--------------------------------------------------------------18

Warranty & Service----------------------------------------------------------20

Introduction

Thank you for purchasing a Whynter SNO portable air conditioner. We would like you to

enjoy the many benefits this unit offers, so please read this manual carefully and take full

advantage of the many advanced features that you SNO portable air conditioner offers

you. After reading this manual, please keep it in a safe place for future reference.

This unit is designed for improving living and working comfort by providing cooling,

dehumidifying, fan-only and automatic operation mode with a very simple installation

required. With its quiet operation and sleek appearance, you will enjoy its convenience

and comfort.

Energy Saving Tips:

•Please use the unit in the recommended room size (refer to SPECIFICATIONS).

•Do not locate the air conditioner where furniture or other objects can obstruct the

air flow.

•Keep blinds/curtains closed during the sunniest part of the day.

•Close the fireplace damper and floor or wall grills so that cool air does not escape

through the chimney or ductwork.

•Keep the filters clean.

•Avoid opening doors frequently.

•To provide cooling to a room, this portable air conditioner must always be used

with its exhaust hose vented to the outside.

NOTE: It is recommended to turn on the air conditioner when the room temperature is

around 75 degree Fahrenheit. Do not wait until the room is excessively hot to turn on the

unit.

Technical Specification

Model ARC-10D

Electrical Power Supply 115V / 60Hz 1Ph

Rated Power Consumption During Cooling See rating label on unit

Dehumidifying capacity 38 Pints per 24 hours

Refrigeration & Load R22 500g

Cooling Side Fan Speed 3 Speed

Airflow Circulation Volume 340/260/220m3/h

Noise Level 50dB(A)

Dimension(W*D*H) 14” x 13.8” x 31”

Net Weight 55 Pounds

Programming Timer 1-24Hr

Remote Control Y

Recommended Room Size 300 sq. ft.

Note:

1. The above data are obtained at conditioned:

Cooling condition: Dry bulb/Wet bulb:95 / 83°F(35/28.3) according to American standard

ANSI/ASHARE standard 128-2001

2. Operating Limits During Cooling

Maximum Condition: Dry bulb/Wet bulb:104/80 °F (40/26.7)

Minimum Condition: Dry bulb/Wet bulb:64.4/57.2°F(18/14)

Safety Precautions

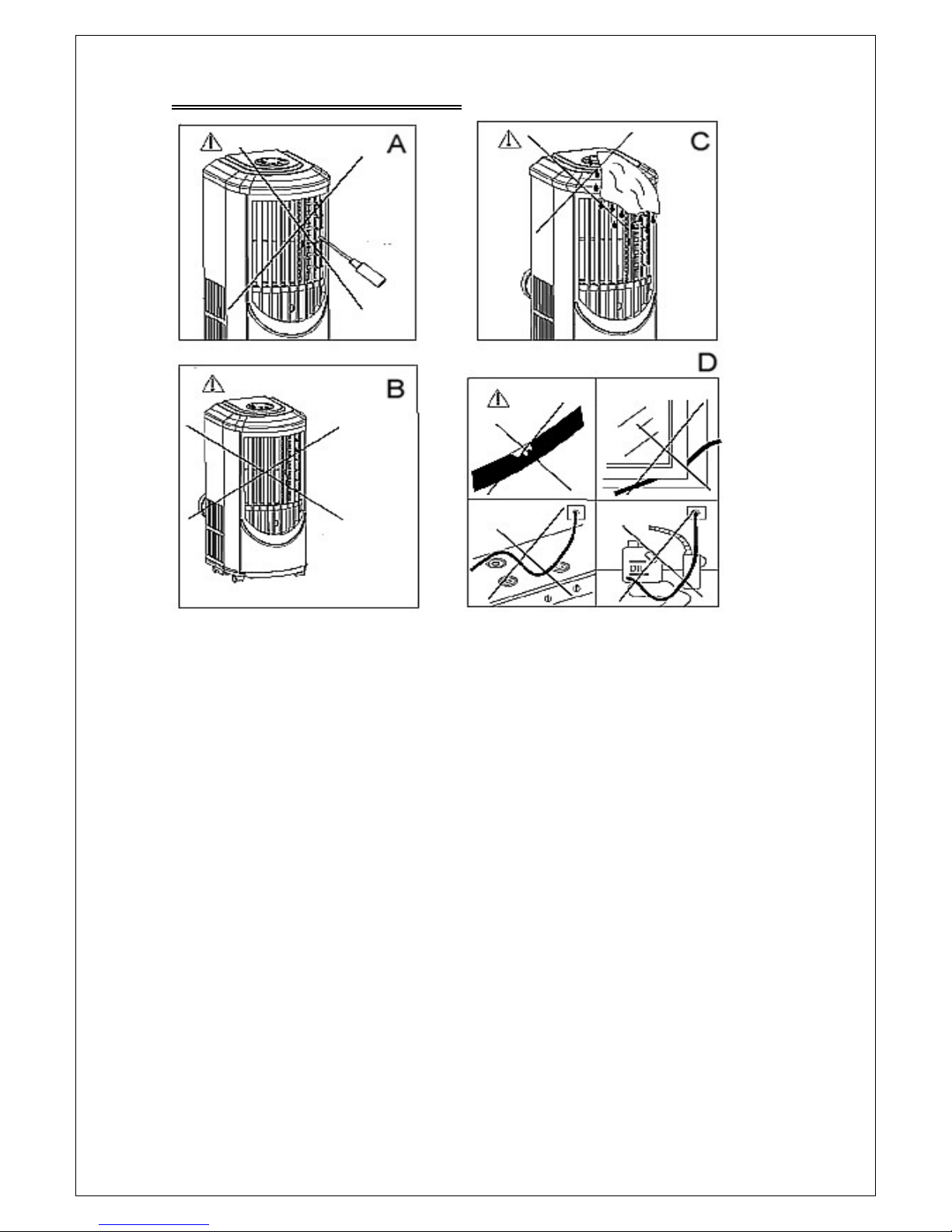

1. Do not insert anything, cover or obstruct the inlet and outlet grilles. (Fig.A)

2. Make sure all children are properly supervised around this portable air

conditioner. (Fig. B)

3. Do not use an excessively wet cloth, industrial solvents, oil-based products

to clean this portable air conditioner. (Fig. C)

4. The power cable (Fig. D) must not:

-Come into contact with liquid of any kind; danger of electric shock and/or

fire;

-be squeezed and/or come into contact with sharp surface;

-be used to drag the unit;

-be used if damaged;

-be handled with damp or wet hands;

-be left in a tangled coil when the unit is working;

-be placed near a source of heat; always unroll completely to avoid the

possibility of overheating.

If the power supply cord is damaged, it must be replaced exclusively by an

authorized service agent.

5. Make sure this unit is connected to a correctly grounded power supply outlet.

Do not use an extension cord. The power cord is UL listed. It has a bulit-in

L.C.D.I (Leakage, Current, Detection, Interruption) circuit breaker for added

safety.

6. Do not sit or place objects on the unit.

7. Do not use this unit inside closets, cabinets and/or cramped spaces

between furniture;

8. Do not repair, disassemble and/or modify the unit by yourself.

9. Do not operate this unit without the filter.

10. Do not turn this unit on and off by using the plugging and unplug. Always

use the ON/OFF switch.

11. Do you use harsh chemical to clean the filter. Dry thoroughly before

inserting the filter into the unit.

12. To avoid the risk of shock, the product should never be used in bathrooms,

shower rooms, or in any other steamy or wet areas.

13. Transport the portable air conditioner in an upright position only. If the unit

is tipped over, make sure it stands upright for at least 3 hours prior to turning it

on.

14. Always place the unit on a level surface.

15. In the event of fire, use carbon dioxide(CO2) extinguishers. Do not use

water or powder extinguishers.

16. In order to cool, the hot air from the exhaust port in the back of the portable

air conditioner must be exhaust to the outside of the room.

17. Do not bend or crush the exhaust hose while in use.

18. Do not add extra length to the exhaust hose for more than 10’ long. This

will reduce the cooling efficiency of the portable air conditioner.

19. This unit is designed to operate in an ambient temperature of 64 – 100

Fahrenheit.

20. This unit is designed for residential use.

21. Always allow air flow around the portable air conditioner for at least 20’.

22. Always turn off the portable air conditioner when not in use.

23. Always turn off the portable air conditioner when cleaning, changing filter,

and transporting.

24. If the electrical socket is different from the plug, have a licensed

professional electrician replace the socket with a suitable one. Do not use

adapter plugs, multiple sockets or extension cord for this unit.

25. At the end of each season, all water must be drained from the unit and filter

must be cleaned before storage.

THE MANUFACTURER DISCLAIMS ANY RESPONSIBILITY IF THE ABOVE

INSTRUCTIONSARE NOT FOLLOWED.

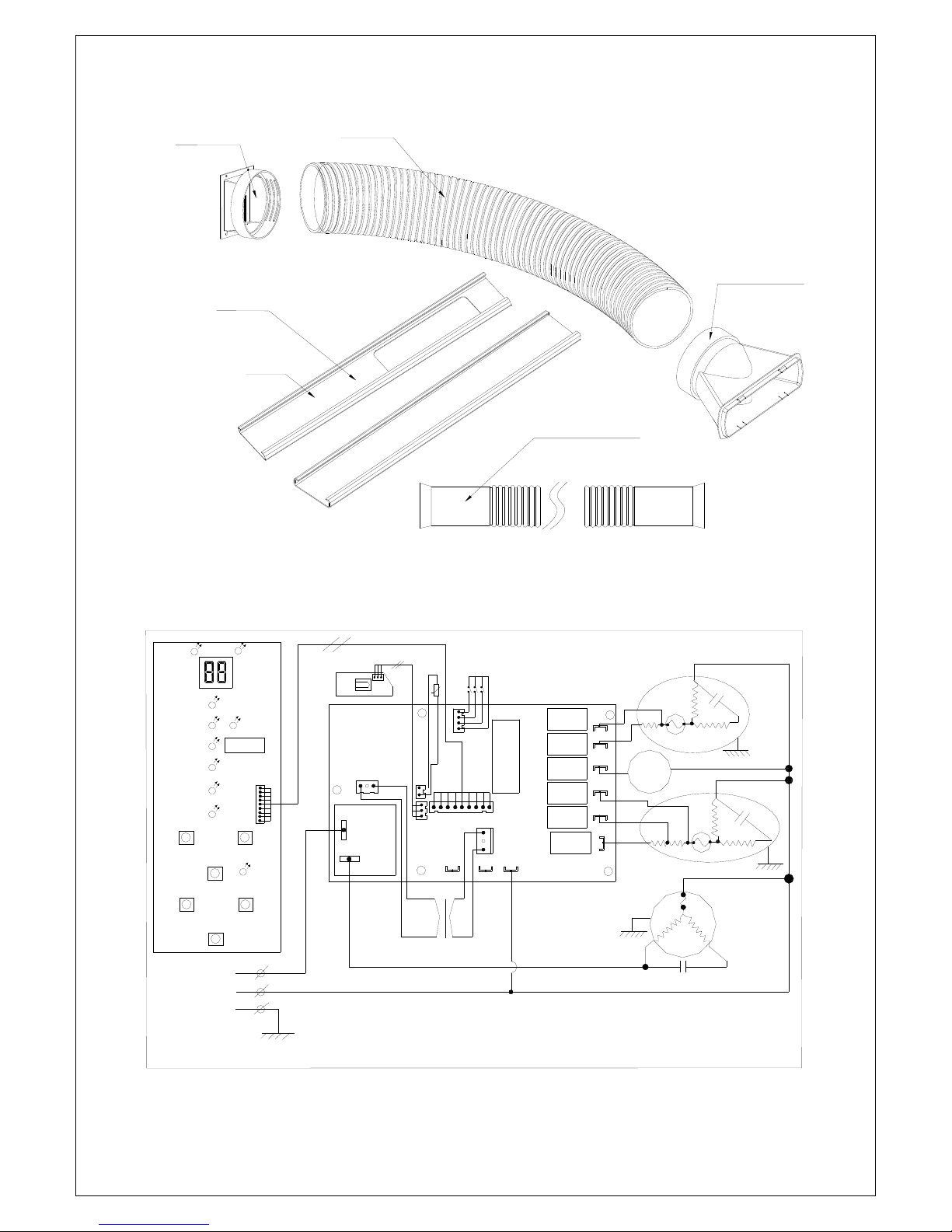

Parts and Accessories

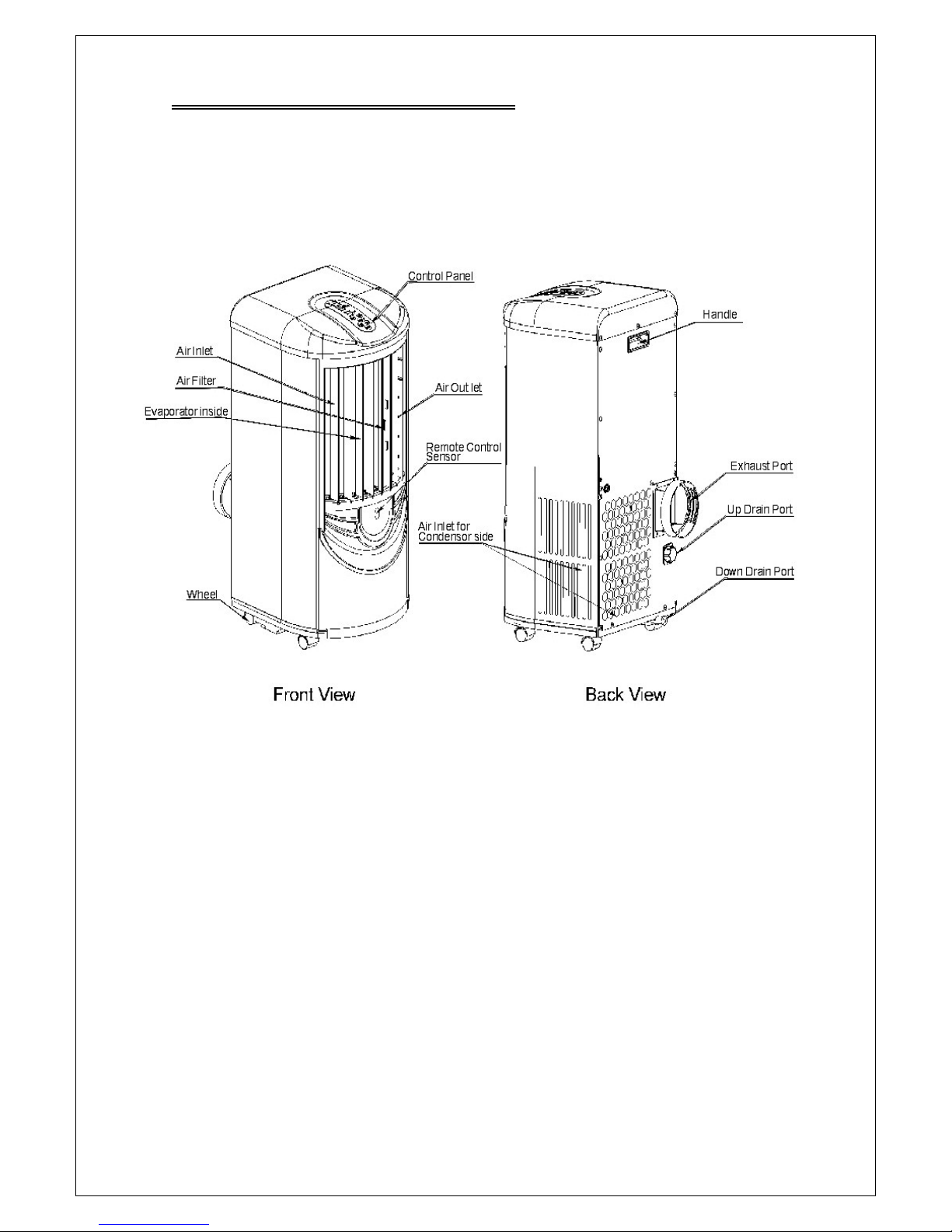

Parts

Accessories

Window Kits

Mai n pi ece

I ndoor Ter mi nal End Exhaust Duct

Wi ndow Ki t Adapt er

Wat er Dr ai n Hose

Electrical Diagram

Microcomput er

POWER

SUPPL Y N

C1:Running Capacitor For Fan Mot or of Condensor Si de

C2:Running Capacitor For Compr essor

C3:Running Capacitor For Fan Mot or of Evapor at or Si de

Tr ansf or mer

COM

AC- N0

AC- N AC- N1 Evapor at or

Si d e Fa n Mot or

Co mpr essor

Pr o-

tector

Cu t - o f f

Bump Wat er

Pump

Re c e i v e r PCB

Mai n Cont r ol

PCB

Oper at i on

Panel PCB

Room

Temp

Sensor

Wat er Level

De t e c t o r

LO Cu t - o f f

Condenser Si de

Fan Mot or

Installation

When you use the unit as an air conditioner or a dehumidifier, the hot air must

be exhausted out of the room to complete the air exchange of the condenser.

When the unit is operating in fan-only mode, no exhaust is required.

If you use this portable air conditioner in cooling mode without venting the

exhaust hose to the outside of the room that you are cooling, the temperature

in the room will not be cooled because the hot air is still coming out from the

rear of the unit even when the front of the unit is blowing cool air.

Exhaust hose Installation

The exhaust hose must be installed onto the unit.

1. Pull out about 6” of one end of the exhaust hose.

2. Screw the exhaust connector on the exhaust hose in a clockwise motion.

3. Snap the exhaust connector in place in the back of the unit.

Warning!

The l engt h of t he exhaust pi pe i s

speci al l y desi gned accor di ng t o

the specification of this product.

Do not r epl ace or ext end i t wi t h

your own hose as t hi s coul d cause

the unit to mal f unct i on.

Note:

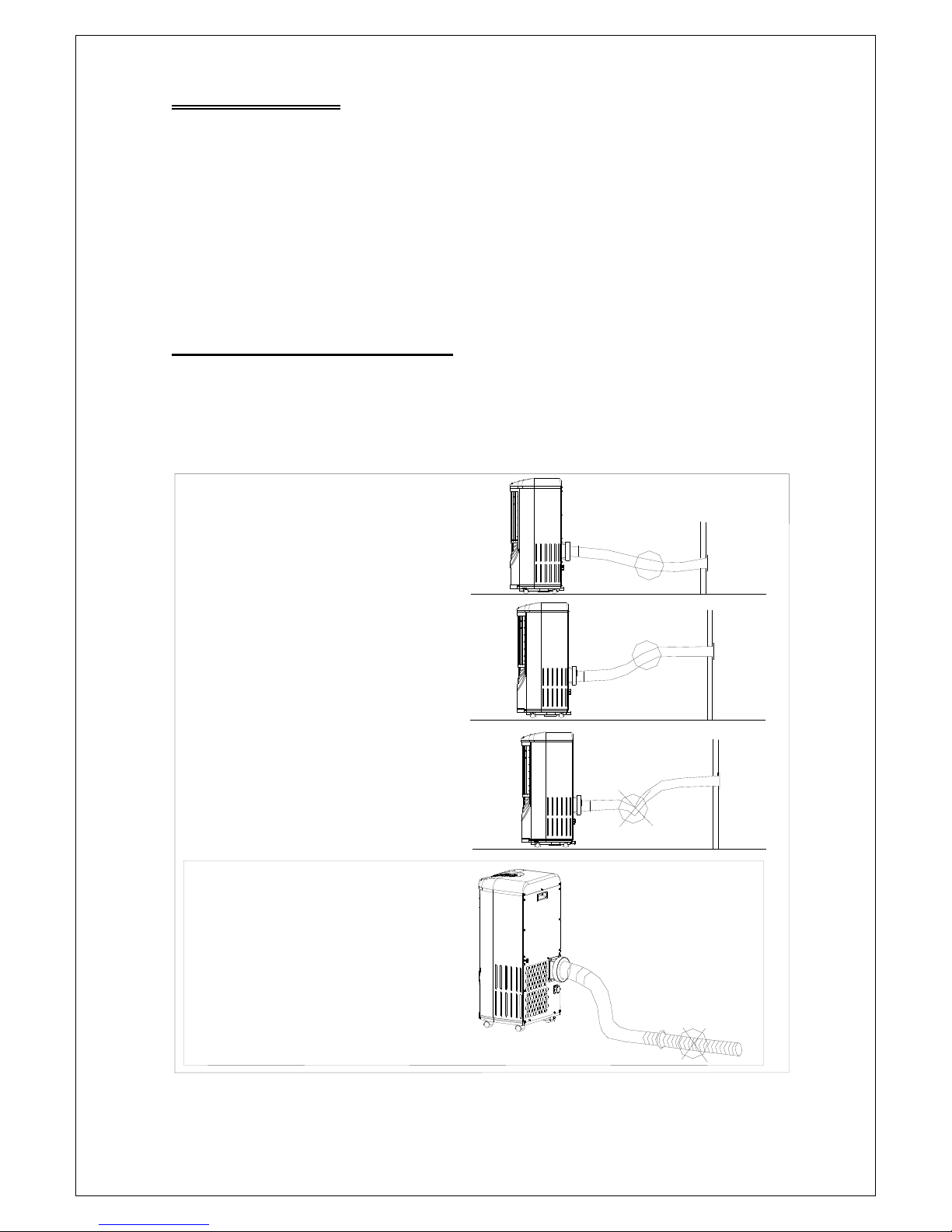

Mounting the exhaust pipe

. The suppl i ed exhaust hose can be

ext ende f r om 40cm t o 160cm for

mount i ng. I t i s r ecommended t hat

you use t he shor t est possi bl e

length of hose.

.Take care to prevent any kink or

bl end i n t he mi ddl e of t he exhaust

hose,as this will trap hot exhaust

ai r , whi ch wi l l r adi at e bach i nt o

t he r oom and ef f ect t he cool i ng

function of the unit.

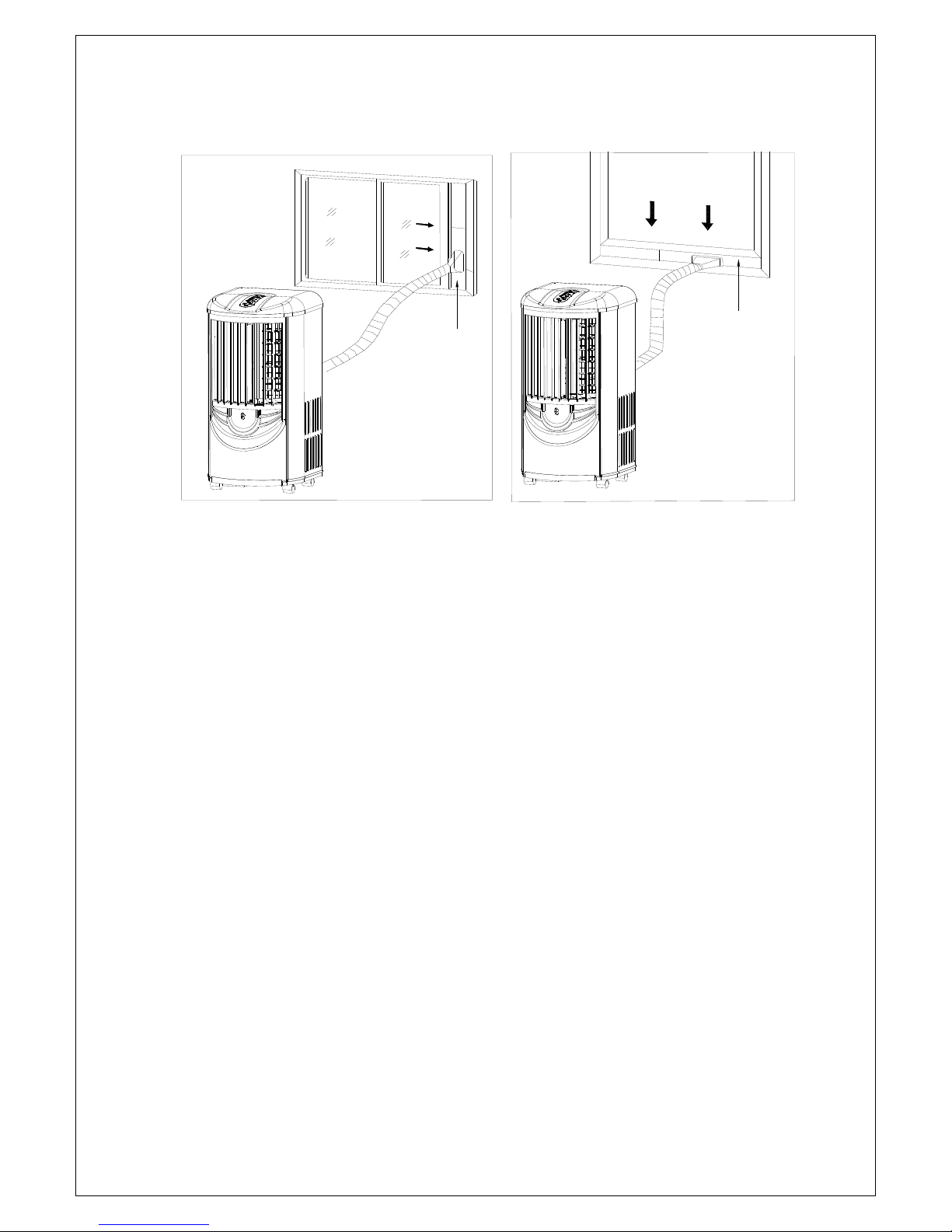

1. Window Installation

Wi ndows

Windows

Wi ndow Ki t s

a) Make sure the exhaust hose is properly installed onto the

portable air conditioner.

b) Open window or sliding door for approximately 5” (130 mm)

c) Adjust the length of the window kit to the same length and width

of the opening of the window or the sliding door. Cut the window

piece if necessary to fit the length of your window or sliding door.

d) Place the window kit on your window or sliding door, with the

exhaust hole as near to the portable air conditioner as possible.

e) Close the window or sliding door, on the window kit. For long

term installation, you may screw the window kit into your window

frame.

f) Adjust the length of the exhaust hose and amount the window kit

adaptor to the window kit.

NOTE: When using the window kit on a window or sliding door it will

cause the window or sliding door not to be properly closed and locked.

Additional security measurements maybe needed.

2. Wall Installation

a) Make sure the exhaust hose is properly installed onto the portable

air conditioner.

b) Make a hole of 5 1/8” diameter in the wall.

c) Insert as much as exhaust hose as needed through the hole.

NOTE: Make sure to have a qualified professional to make the hole to

avoid the possibility of injury or damage to the structure. Make sure that

the hole is covered when it is not used by the portable air conditioner.
