Wi-Next NAAWIGO MINI Bedienungsanleitung

INSTALLATION AND MAINTENANCE

GUIDE - NAAWIGO MINI

INDEX

1 VERIFICATION SECTION 4

1.1 Approval 4

1.2 Revision history 4

1.3 Deﬁnitions, acronyms and abbreviations 4

2 INTRODUCTION 5

2.1 Compliance with R&TTE directives 5

2.2 Restrictions of use: ministerial regulations 5

2.3 Warnings 5

3 DESCRIPTION OF NAAWIGO MINI 7

3.1 Package content 7

3.2 The device 7

3.3 Technical speciﬁcation of Naawigo Mini 8

4 SETTING UP OF THE DEVICE 9

4.1 Installation and inter-connection 9

4.2 Preparing and switching on the device 9

5 CONFIGURATION 10

5.1 N.A.A.W. control panel 10

5.2 First access 11

5.3 Main menu 12

5.4 Main 12

5.5 Main – proﬁle management 13

5.6 Change of parameters 14

5.7 System 15

5.8 IP 16

5.9 Wi-Fi 19

5.10 Services 23

5.11 Firewall and Port Forwarding 24

5.12 Default proﬁles 25

5.13 Troubleshooting 29

5.13.1 The N.A.A.W. assigned IP address is not available 29

INDEX

6 MATERIAL DISPOSAL 30

6.1 Toxic substances 30

7 DECLARATION OF CONFORMITY CE 31

7.1 Restrictions of use in some countries 31

7.2 Restrictions of use of the device 32

7.3 Power output 32

7.4 Naawigo Mini 33

1. VERIFICATION SECTION

1.1 Approval

APPROVED BY POSITION DATE

Nicola De Carne Wireless Networking Director - Wi-Next S.r.l. 20th Jan 2011

1.2 Revision history

STATUS REV. AUTHOR DESCRIPTION DATE

00100 Wi -Next S.r.l. First draft 15th Jun 2008

00101 Wi-Next S.r.l. Revision 9th Mar 2010

00201 Wi-Next S.r.l. Revision 20th Jan 2011

Further updates and related revisions of the present manual are available on-line at the

following address: www.winext.eu/wiki.

1.3 Definitions, acronyms and abbreviations

Naawigo

Mini

Wireless devices router:

frequency: 2,412 GHz - 2,472 GHz

standard:

IEEE 802.11 b/g – IEEE 802.11 d – IEEE 802.11 e

– IEEE 802.11 i

power supply: 120/240 V autosensing - 9 V output

2. INTRODUCTION

Thank you for purchasing this Naawigo product. This document contains full

documentation relating to the product, including the declaration of conformity. The

user’s guide gives all the information regarding installation and testing of the Naawigo

Mini, and its subsequent periodic maintenance.

2.1 Compliance with R&TTE directives

Wi-Next S.r.l. declares that the Naawigo Mini complies with the essential requirements

and relevant provisions of Directive 1999/5/EC.

2.2 Restrictions of use: ministerial regulations

Please note that the use of this device is regulated by:

1Legislative Decree 08/01/2003 N.259, Articles 104 (activity subject to general

authorisation) and 105 (free use for personal use);

2Ministerial Decree 28/05/2003 and subsequent amendments to the provision of

private and public access to networks and telecommunications services.

2.3 Warnings

This manual sets out information to anyone in charge of:

• installation.

• maintenance.

• network administration or anyone employed in a technical capacity - provided they

are informed about the risks and safety standards regarding the installation, operation

and maintenance of electric radio communications equipment.

When carrying out the installation you must check the functionality of the Naawigo Mini.

Do not take any corrective action unless you are certain about the result.

Do not dismantle the device. Taking apart the device will invalidate the warranty.

In case of doubt, please contact our technical support section (e-mail: [email protected]).

2. INTRODUCTION

The manufacturer will not be liable for any damage to property or injuries in case of:

• improper use of the device,

• use of the device by untrained staff,

• improper installation,

• faulty or inadequate materials used for the installation,

• unauthorised modiﬁcations,

• use of non genuine spare parts,

• non-compliance with the recommendations contained in this document.

The manual covers only the use of the application provided by the manufacturer and

under existing legislation relating to data transmission by radio.

3. DESCRIPTION OF NAAWIGO MINI

3.1 Package Content

The package contains:

• Wi-Fi Mini Naawigo device.

• 2 dBi omni-directional antenna with SMA connector.

• Power supply 230V/9V.

• User manual on CD-ROM.

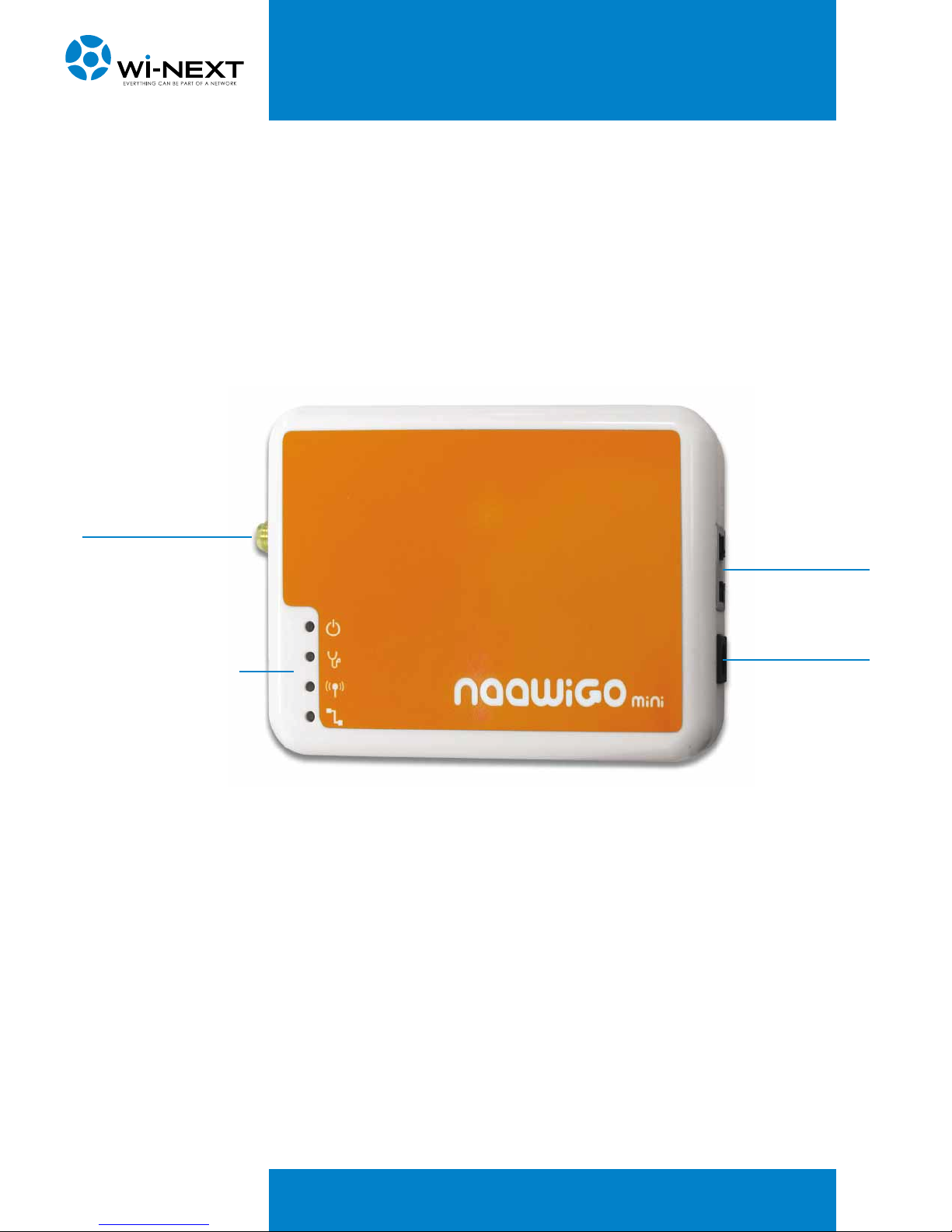

3.2 The device

SMA connector

for externale antenna

LED:

- Power ON

- Diagnostic

- Wireless

- Ethernet

RJ-45 Ethernet port

DC power socket

3. DESCRIPTION OF NAAWIGO MINI

3.3 Technical speciﬁcation of Naawigo Mini

Features

Operating Mode

Access Point

Client

RootAP / Transparent Client

Repeater

Wireless Adapter

Wireless Routing Client

Gateway

Naaw mesh

WAN Type

Static IP

Dynamic IP

PPPoE

Device Management

Web Server

Telnet or Secure Shell (SSH)

Data Capture Notiﬁcation

Event Logging (Syslog)

Detailed Statistics per Client

Certiﬁcation

Dimension and Weight

91,8 mm x 66 mm x 25 mm

Weight: 80 gr.

Hardware features

Linux OS

CPU Atheros AR2317/2318 - 180 Mhz

16Mb SDRAM - 4 Mb FLASH RAM

LAN Interface: 1x10/100Mbps

Virtual Access Point

Up to 4 SSIDs with unique MAC Addresses (BSSID)

802.1q VLAN tag per VAP with Bridging

Conﬁgurable Security (WEP,WPA,WPA2, MAC

Filtering) per VAP

Advanced Features

Build-in DHCP server + DNS forwarder

Transmission Power Control (One dB per step)

Closed System (suppress SSID)

Transmission Rate Control

Security

Station Isolation

MAC Filtering

64 / 128-bit WEP

802.1x authentication

WPA-EAP and WPA-PSK, WPA2

Led Indicators

Power, Diagnostic, LAN, WAN, WLAN

Power Requirements ( DC Supply )

9VDC (Can Range from 9V to 15V)

Integrated Antennas

2 dBi detachable SMA antenna

802.11b/g

Environment

Temperature: from -20°C to +70°C

Humidity: from 10% to 80%

Technical speciﬁcation

4.1 Installation and inter-connection

Naawigo Mini is equipped with safety features for the protection against direct and

indirect contact. However, the installation must be carried out by appropriately

qualiﬁed personnel who must observe the following precautions:

• check the package and promptly notify the supplier in case of damage,

• make sure access points, antennas and support structures are properly installed to

avoid health hazards,

• make sure that installation of the access point, antennas and cables is made in

accordance with local regulations regarding safety.

4.2 Preparing and switching on the device

Fix the omni-directional antenna by screwing it to the connector of the device (please

note that in the absence of an external antenna the device can work, i.e. it can be

conﬁgured, however its performance is affected).

Plug in the power supply to the mains and insert the 220/230V plug into the socket of

the device.

The device starts up and after about 60 seconds it reaches a fully functional status.

4. SETTING UP OF THE DEVICE

5. CONFIGURATION

5.1 N.A.A.W. control panel

The N.A.A.W. control panel is a Web application that resides on the device and is easily

accessible by pointing the browser to one of the IP addresses of the device, either

wirelessly or by cable.

If you want to conﬁgure your PC manually, you must know the address of the N.A.A.W.

interface to which you are connected (the default is 192.168.1.1/24 on Ethernet ports

and wireless network in AP mode). If you do not know the address, you can follow the

discovery procedure outlined in 5.13.1 “Troubleshooting - The device can’t be reached

at the assigned IP adress”.
