WIKA PSD-4 Bedienungsanleitung

Operating instructions

Betriebsanleitung

Mode d'emploi

Manual de instrucciones

Pressure switch, model PSD-4

Druckschalter, Typ PSD-4 Seite 21 - 39

Pressure switch, model PSD-4 Page 2 - 20

Pressostat, type PSD-4 Page 40 - 58

Presostato, modelo PSD-4 Página 59 - 77

2WIKA operating instructions pressure switch, model PSD-4

14208834.02 01/2023 EN/DE/FR/ES

WIKA®is a registered trademark in various countries.

WIKA®ist eine geschützte Marke in verschiedenen Ländern.

1. General information

Prior to starting any work, read the operating instructions! Keep for later use!

■These operating instructions contain important information on handling the pressure switch.Working safely

requires that all safety instructions and work instructions are observed.

■The general terms and conditions of WIKA Alexander Wiegand SE & Co. KG shall apply.

■Further information:

- Internet address: www.wika.de / www.wika.com

- Contact: Tel.: +49 9372 132-0

[email protected]

- Data sheet: PE 81.86

- Test report: Included in delivery

- Tapped holes for process connections: Technical information IN 00.14 at www.wika.com

- Electrical mounting: Technical information IN 00.50 at www.wika.com

- Declaration of conformity: Online at www.wika.de

3WIKA operating instructions pressure switch, model PSD-4

14208834.02 01/2023 EN/DE/FR/ES

2. Short overview

2.1 Overview















Conrmation button

INFO button

Digital display

Status display, switching outputs

MENU button

Electrical connection

Process connection, spanner ats

Process connection, thread

4WIKA operating instructions pressure switch, model PSD-4

14208834.02 01/2023 EN/DE/FR/ES

2.2 Display and operating unit

4-digit LED display

■Display of pressure value

■Display of menu item

■Display of parameter

Status of switching output 1

Status of switching output 2 (optional)

Display mode

▶Short press

Display of unit

▶Long press

For display of the set parameters, see

chapter 5.3 “Overview of parameters”

Programming mode

▶Short press

Menu up

Parameter value up (step-wise)

▶Long press

Menu up

Parameter value up (fast)

Display mode

▶Short press

Display of unit

▶Long press

Jumping into the programming mode

Programming mode

▶Short press

Menu down

Parameter value down (step-wise)

▶Long press

Menu down

Parameter value down (fast)

Display mode

▶Short press

Display of unit

Programming mode

▶Short press

Selection of menu item

Conrmation of input

2. Short overview

5WIKA operating instructions pressure switch, model PSD-4

14208834.02 01/2023 EN/DE/FR/ES

3. Safety

3.1 Explanation of symbols and terms

WARNING!

The signal word indicates a hazard with a medium degree of risk which, if not avoided, may result in

death or serious injury.

CAUTION!

The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in a minor

or moderate injury.

Information

The signal word points out useful tips, recommendations and information for ecient and trouble-free

operation.

1.1 Intended use

The pressure switch may only be used in such applications as are within its technical performance limits, in particular

with regard to its material resistance limit, leakage rate limits and permissible temperature and pressure limits.

It is the sole responsibility of the manufacturer or operator of a machine or plant to ensure the suitability of the pressure

switch, and its media resistance, within the application through proper choice of materials and maintenance cycles. For

performance limits, see chapter 9 “Specications”.

Special versions for oil and grease-free applications, as well as for use with oxygen (dangerous uid in accordance

with Directive 2014/68/EU Article 13, Regulation (EC) No. 1272/2008, or GHS 1)), are available on request.

The mounting, dismounting, installation, parameterisation and maintenance of the pressure switch in industrial

environments absolutely requires suitably skilled personnel in accordance with chapter 3.2 “Personnel qualication”.

The instrument has been designed and built solely for the intended use described here, and may only be used

accordingly.

The manufacturer shall not be liable for claims of any type based on operation contrary to the intended use.

1) Globally Harmonized System of Classification, Labelling and Packaging of Chemicals

6WIKA operating instructions pressure switch, model PSD-4

14208834.02 01/2023 EN/DE/FR/ES

3. Safety

Improper use

Any use beyond or dierent to the intended use is considered as improper use.

The following points, in particular, count as improper use and are not permissible:

■Use of this instrument in safety or emergency shutdown devices

■Unauthorised modications to the pressure switch

■Use in hazardous areas

■Use with abrasive or unstable uids, in particular hydrogen

3.2 Personnel qualification

Skilled personnel

Skilled personnel, authorised by the operator, are understood to be personnel who, based on their technical training,

knowledge of measurement and control technology and on their experience and knowledge of country-specic

regulations, current standards and directives, must be capable of carrying out the work described and independently

recognising potential hazards.

3.3 Labelling, safety marks

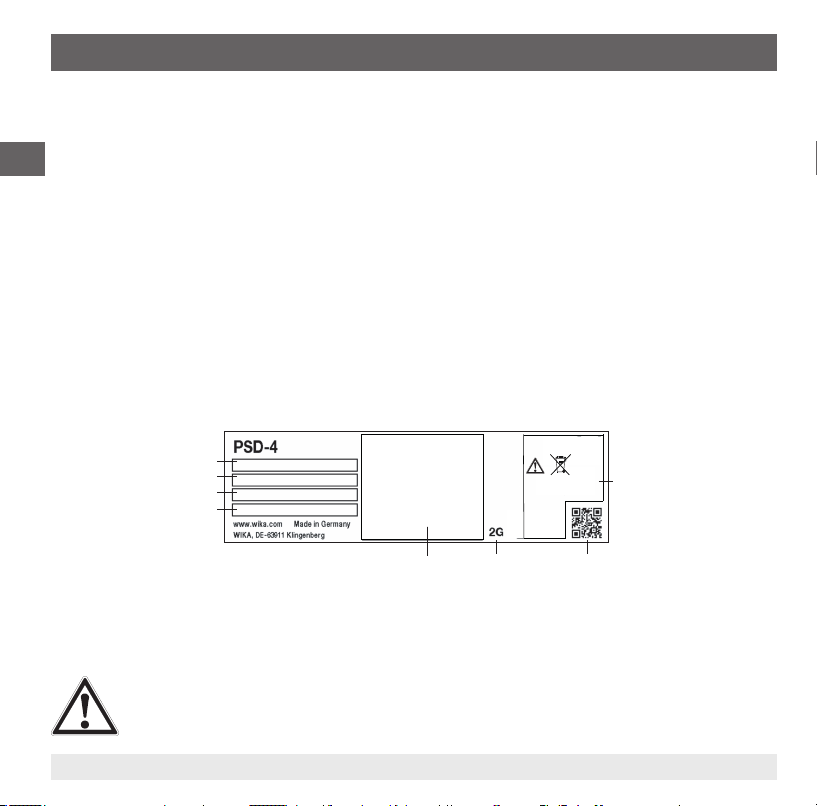

Product (example)

Approvals and conformities Serial number

QR code to WIKA serial number application Article number

Coded date of manufacture Measuring range

Pin assignment and specications IO-Link version (option)

Before mounting and commissioning the instrument, ensure you read the operating instructions!















7WIKA operating instructions pressure switch, model PSD-4

14208834.02 01/2023 EN/DE/FR/ES

3. Safety / 4. Mounting

Do not dispose of with household waste. Ensure a proper disposal in accordance with national

regulations.

4. Mounting

4.1 Mechanical mounting

Only use the pressure switch if it is in perfect condition with respect to safety.

Prior to commissioning, the pressure switch must be subjected to a visual inspection.

■Leaking liquid is indicative of damage.

■Obvious damage must be reported immediately.

■With a high ambient temperature and a high UV irradiation, the pressure switch must be installed with additional

covering in order to avoid damage to the digital indicator and buttons.

For information on tapped holes and welding sockets, see Technical information IN 00.14 at www.wika.com

Mounting instructions for process connections G 1 hygienic and TRI-CLAMP®

■Never loosen sealed lling screws on the measuring instrument.

■For installation, in accordance with the tting and ange standards the appropriate fastenings, such as screws, nuts

or clamp rings, must be used.

■For ange mounting, only use sealings with a suciently large inner diameter and centre them. Contact with the

diaphragm leads to measuring deviations.

■When using a welding socket, position this so that the hole for leakage detection points downwards.Weld the

welding socket ush with the inner wall of the vessel and grind down. The surface roughness of the ground surfaces

must be Ra ≤ 0.8 μm. To comply with 3-A guidelines, always provide a leakage hole of min. 2.38 mm (0.09 in) at the

lowest position.

■When using soft or PTFE sealings, observe the instructions of the sealing manufacturer, particularly with regard to

tightening torque and load cycles.

G 1 hygienic

■Wetted seals from EPDM or FKM

■Suitable for WIKA adapter system model 910.61; see WIKA data sheet AC 09.20

■For dimensions of the appropriate process adapters and welding sockets, see WIKA data sheet AC 09.20

8WIKA operating instructions pressure switch, model PSD-4

14208834.02 01/2023 EN/DE/FR/ES

4. Mounting

TRI-CLAMP®

EHEDG conformity with clamp connection only in combination with a T-ring seal from Combit Metaalbewerking B.V.

Additional mounting instructions for process connections with EHEDG and 3-A approvals

Observe the following instructions, especially for EHEDG-certied and 3-A-compliant instruments.

■To maintain the EHEDG certication, one of the EHEDG-recommended process connections must be used. These

are marked with the logo in the data sheet.

■For an EHEDG-compliant connection, seals in accordance with the current EHEDG policy document must be used.

■To maintain the conformity to the 3-A standard, a 3-A-compliant process connection must be used.These are

marked with the logo in the data sheet.

■Mount the process connection with minimal dead space and able to be cleaned easily.

■The mounting position must not form a draining point or cause a basin to be formed.

4.2 Electrical mounting

Electrical connection to the voltage supply

→For supply voltage, see product label or connection diagram

Pin assignment

→ For pin assignments, see product label or connection diagram

Circular connector M12 x 1 (4-pin) Circular connector M12 x 1 (5-pin)

U+ 1 U+ 1

U- 3 U- 3

S+ 2 S+ 5

SP1/C 1) 4 SP1/C 4

SP2 2 SP2 2

1) Depending on the configuration of the output signals

Legend:

U+ Positive power supply terminal SP1 Switching output 1

U- Negative power supply terminal SP2 Switching output 2

S+ Analogue output C Communication with IO-Link

9WIKA operating instructions pressure switch, model PSD-4

14208834.02 01/2023 EN/DE/FR/ES

For instruments without North American certication

This equipment is intended for operation with low voltages which are separated from the AC 230 V (50 Hz) mains

voltage or voltages greater than AC 50 V or DC 120 V for dry environments. A connection to an SELV circuit is

recommended, or alternatively to circuits with a dierent protective measure in accordance with IEC 60364-4-41

installation standard.

For instruments with North American certication per UL/CSA IEC 61010-1

The power supply for the pressure sensor must be made via an energy-limited electric circuit in accordance with

section 9.3 of UL/EN/IEC 61010-1 or an LPS per UL/EN/IEC 62368-1 or class 2 in accordance with UL1310/UL1585

(NEC or CEC).The voltage supply must be suitable for operation above 2,000 m should the pressure switch be used at

this altitude.

Include the pressure switch in the equipotential bonding via the process connection or connect it to ground (earth).

5. Commissioning

Only use original parts and accessories, see data sheet PE 81.86 under “Accessories”.

5.1 Adjustability of zero point

Check the indicated zero point on the digital display during commissioning. Should a zero point oset be displayed as

a result of installation, this can be reset in programming mode with the 0SET parameter.

Only carry out the setting for gauge and vacuum pressure measuring ranges in a depressurised state.

For absolute pressure measuring ranges, the setting must be carried out at 0 bar absolute (vacuum).

Since appropriate references are required for this, we recommend that this is only carried out by the

manufacturer.

5.2 Operating modes

Mode Description

System start Digital display is fully activated for 1 sec.

When the pressure switch is powered up within the range of the hysteresis, the output switch is set to

“not active” by default.

4. Mounting / 5. Commissioning

10 WIKA operating instructions pressure switch, model PSD-4

14208834.02 01/2023 EN/DE/FR/ES

5. Commissioning

Mode Description

Programming mode

(setting the parameters)

Activating the programming mode

Keep the “MENU” button pressed for approx. 2 sec. If the password is set to ≠ 0000, a password will be

requested. If authentication is successful, then it enters the programming mode, otherwise it reverts to

display mode.

Timeout

If, during the setting of a parameter, no button is pressed for 60 s, the instrument returns to the display

mode with the value unchanged.

Display mode

(normal operation, display

of pressure value)

Returning to the display mode

Simultaneous pressing of “INFO” and “MENU”

5.3 Overview of parameters

Menu item Description Parameter Factory setting

SP1/SP2 Hysteresis function:

Switch point (switching output 1/2)

0.25 ... 100 % of measuring range Nominal pressure

FH1/FH2 Window function:

Window high (switching output 1/2)

0.25 ... 100 % of measuring range Nominal pressure

RP1/RP2 Hysteresis function: Reset point,

switching output (1 or 2)

0 ... (switch point - 0.25 % of measuring

range)

Nominal pressure -

10 %

FL1/FL2 Window function:Window low switch

output (1 or 2)

0 ... (window high - 0.25 % of measuring

range)

Nominal pressure -

10 %

EF Extended programming functions

RES Return the set parameters to the factory

settings

Yes/No

DS1/DS2 Switching delay time, which must occur

without interruption before any electrical

signal change occurs (SP1, if applicable

SP2)

0.00 ... 65.00 s 0.00 s

DR1/DR2 Reset delay time, which must occur

without interruption before any electrical

signal change occurs (RP1, if applicable

RP2)

0.00 ... 65.00 s 0.00 s

Andere Handbücher für PSD-4

Inhaltsverzeichnis

Sprachen:

Andere WIKA Schalten Handbücher

WIKA

WIKA OLS-F1 Bedienungsanleitung

WIKA

WIKA TFS135 Bedienungsanleitung

WIKA

WIKA TS-972 Bedienungsanleitung

WIKA

WIKA SERIES DW Bedienungsanleitung

WIKA

WIKA PSD-4-ECO Bedienungsanleitung

WIKA

WIKA KSR KUEBLER AL-ADF Series Bedienungsanleitung

WIKA

WIKA EGS80 Series Bedienungsanleitung

WIKA

WIKA TFS135 Bedienungsanleitung

WIKA

WIKA PSA-31 Bedienungsanleitung

WIKA

WIKA Phase-Out PSD-3 Series Bedienungsanleitung

WIKA

WIKA PS-600 Bedienungsanleitung

WIKA

WIKA TSD-30 Bedienungsanleitung

WIKA

WIKA FSD-4 Bedienungsanleitung

WIKA

WIKA DC Series Bedienungsanleitung

WIKA

WIKA PS-900 Bedienungsanleitung

WIKA

WIKA mw series Bedienungsanleitung

WIKA

WIKA TSD-30 Bedienungsanleitung

WIKA

WIKA APW SERIES Bedienungsanleitung

WIKA

WIKA PSD-4 Bedienungsanleitung

WIKA

WIKA OLS-C20 Bedienungsanleitung

WIKA

WIKA KSR HLS Bedienungsanleitung

WIKA

WIKA OLS-C Series Bedienungsanleitung

WIKA

WIKA KSR KUEBLER BGU D Series Bedienungsanleitung

WIKA

WIKA LSD-30 Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
