Williams AX2 LED Series Bedienungsanleitung

AX2 LED SERIES

INSTALLATION INSTRUCTIONS

H.E. Williams, Inc. Carthage, Missouri www.hew.com 417-358-4065 Page 1 of 3

PN 49090150

Warning:

Caution – Risk of Shock

• This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of

the product and the hazards involved.

• LEDs are ESD (Electro Static Discharge) sensitive devices that can be easily damaged if the proper ESD mitigating steps are not taken.

• LEDs are very sensitive to mechanical damage. Caution must be taken to avoid damage to the LEDs.

• Do not use power tools to fasten the boards into the fixture. Over-torqueing the LED board fasteners will damage the boards.

• Make sure all electrical power is turned off while installing the fixture.

• This luminaire must be adequately grounded for protection against shock hazards and to assure proper operation.

• Disconnect power before servicing.

01/06/16JL

STAND-ALONE ASSEMBLY

Step 1: T-bar mounting bracket halves are supplied as a one-piece

metal stamping. Break mounting bracket apart. Insert 1/4-

20 threaded stud into “A” half of bracket (Fig. 1).

1/4-20

Stud

Insert stud here

Bracket side “A”

Fig. 1

Step 2: For T-bar ceiling, install mounting brackets at desired

locations. Brackets must be placed exactly on each

mounting point for correct installation and hanging of

cables.

MOUNTING INFORMATION

Nominal Unit Length Mounting Length (A) Actual Length (B)

2’ 24-5/8” 25-7/8”

4’ 46-13/16” 48-1/16”

8’ 89-7/8” 91-1/8”

Step 3: T-bar mounting bracket halves interlock. Snap side “B”

together with side “A” around T-bar. (Fig. 2).

T-bar ceiling grid

Insert tab

Bracket side “A”

Bracket halves lock together

with slots and tabs.

Bracket side “B”

Fig. 2

Step 4: Suspension locations must be securely supported to the

structure before hanging light fixtures onto brackets. Use

12-gauge or stronger steel ceiling support wire (Fig. 3).

Support to structure

T-bar

1/4-20 Stud

(locked into bracket)

T-bar mounting bracket

shown fully assembled

ø5” Canopy

Thread upper cable

retainer onto stud

Suspension Cable

Hole for power feed

Fig. 3

AX2 LED SERIES INSTALLATION INSTRUCTIONS

H.E. Williams, Inc. Carthage, Missouri www.hew.com 417-358-4065

Page 2 of 3

PN 49090150

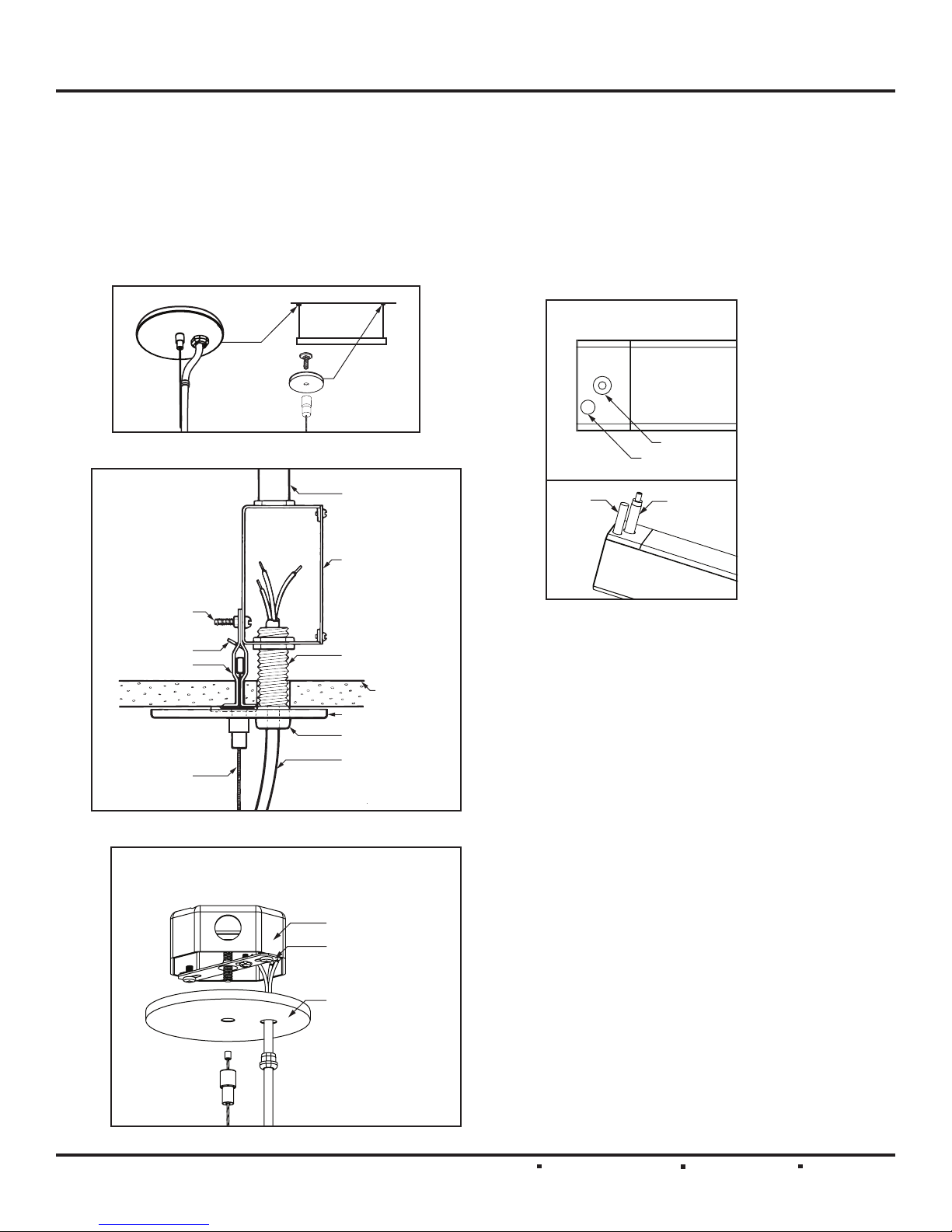

Step 5: Place the canopy flush to ceiling tile and thread upper cable

retainer onto the 1/4 - 20 stud (Fig. 3).

A stand-alone fixture will require two suspension cables. The

5” diameter canopy will be used only at power feed locations.

Smaller 2” canopies are to be used at non-feed locations (Fig.

4). Power feed cord will pass through hole with plastic strain

relief bushing.

Note: For safety, always support the weight of the fixture. Do

not leave a fixture hanging by only one end while working.

2” canopy

The 5” canopy

is used for

power feed.

Fig. 4

1/4 x 20 Screw or Bolt

To lighting panel via

existing circuitry

Mounting Bracket

T-bar (manuf. by others)

Suspension Cable

Junction box &

cover plate

2” threaded nipple with lock

washers (supplied by others)

Ceiling tile

(supplied by others)

ø5” canopy

Strain relief bushing

Power feed cord to fixture

Fig.5A

Typical power feed location

for sheetrock/hardpan installation

Junction box

(furnished by others)

5” canopy with center hole

and power entry location

Cross bar with 1/4” x 20 stud

Only 1/4-20 all thread

material needed for 2”

non-feed suspension point.

Step 6: Hang the fixture from suspension cables by hooking into

each end of light fixture. Install 10 - 32 flange nuts from the

hardware kit onto threaded cable end and adjust up or down

as necessary until fixture is level (Fig. 5A). Fully adjustable

cables allow you to vary the length from 6” to 96” with a

stopping device that may be secured at any point along the

length of cable. One 10 - 32 flange nut from the hardware kit

secures the fixture.

NOTE: When hanging the junction box onto the T-bar

mounting bracket, tie the ceiling support wire for

this location directly to the T-bar.

Stand off

Power location

Power

cord Griplock side

exit gripper

Fig. 6

Fig.5B

AX2 LED SERIES INSTALLATION INSTRUCTIONS

H.E. Williams, Inc. Carthage, Missouri www.hew.com 417-358-4065 Page 3 of 3

PN 49090150

ROW ASSEMBLY

Power Feed Hardware:

Each power feed hardware kit includes the following:

(1) Assembly & Installation Instructions

(2) T-bar mounting brackets & 1/ 4” - 20 studs

(1) 5” diameter canopy with retaining screw

(1) 2” diameter canopy

(2) Suspension cables with hardware

(2) 10” - 32 flange nuts with serrations

(1) Strain relief bushing

(5) Cable ties (white plastic)

Joiner/End Fixture Hardware:

(1) Assembly & installation instructions

(1) AX2 center suspension bracket

(2) Row aligner channel/ AX2 (side btm)

(1) Row aligner channel/ AX2 (bottom)

(2) Screw, SS hex 1/4”x14 1” long

Each non-power feed hardware kit includes the following:

(1) T-bar mounting bracket & 1/ 4” - 20 stud

(1) 2” diameter canopy with 1/4” diameter

(1) Suspension cable with hardware

(1) 10 - 32 flange nuts with serrations

(1) #8 x 3/8” hex head screw

Step 1: For T-bar ceiling, install mounting brackets at desired

locations (see stand-alone assembly step 1 & 2).

Step 2: Install mounting cables at desired locations. Only the first

fixture in each row will require two suspension cables. Each

adjoining fixture will require only one cable before attaching to

the previous fixture. (Fig. 7).

Note: For safety - Always support the weight of the fixture.

Do not leave a fixture hanging by only one end while

working.

2” canopy

The 5” canopy

is used for

power feed.

Fig. 7

Step 3: To remove lens, insert a putty knife or flat blade screwdriver

between the lens and channel. Pry up to get the lens

loosened and then gently peel the lens up.

Step 4: For continuous row applications, use Row Aligners (installed

in fixtures) for level and adjustment.

Row aligner

Row

aligner

slot

AX2U

AX2D

Step 5: When row mounting fixtures, joint between fixtures will have

continuous row bracket. After connecting quick connects

and fixtures, add continuous row bracket around fixture by

snapping the bracket into place.

Continuous

row bracket

Step 6: Add center suspension bracket to fixtures..

Center

Suspension

Bracket

Continuous

row bracket

Suspension

Cable Mount
